Baileigh Four Roll Plate Roll PR-603-4 1006554 Applications
- General metal fabrication and production facilities
- Structural steel fabrication shops
- Custom sheet metal manufacturing
- Agricultural and heavy equipment fabrication
- Tank, pipe, cylinder, and pressure vessel production
- Architectural metal fabrication
- HVAC duct and cylindrical component manufacturing
- Rolling straight sections and cone-shaped workpieces using the included cone bending attachment
Designed for shops requiring fast setup, accurate repeatability, and dependable hydraulic plate rolling for both production runs and custom fabrication projects.
Baileigh Four Roll Plate Roll PR-603-4 1006554 Specifications
| Model Number | PR-603-4 |
|---|---|
| Product Number | 1006554 |
| Machine Type | 4-Roll Double Pinch Plate Roll |
| Maximum Forming Width | 80" |
| Bending Capacity | 72" |
| Mild Steel Capacity | 1/4" (3 Gauge) |
| Roll Speed | 16 Feet Per Minute |
| Main Motor | 4 HP |
| Input Power | 220 Volt, Three Phase |
| Drive System | Planetary Gearbox with Powered Rolls |
| Roll Adjustment | Hydraulic |
| Construction | Heavy-Duty All-Steel Welded Frame |
| Controls | Hydraulic Controls with Digital Readouts |
| Net Weight | 7,600 lbs |
| Gross Weight | 7,600 lbs |
| UPC | 19907414933 |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
Baileigh Four Roll Plate Roll PR-603-4 1006554 Performance & Construction
- Industrial four-roll double-pinch design allows efficient plate rolling while minimizing manual repositioning and reducing setup time.
- Heavy-duty welded steel construction provides exceptional rigidity, reduced vibration, and long-term durability in demanding fabrication environments.
- Four powered rolls maintain superior material control throughout the rolling process, improving consistency while minimizing slippage.
- Hydraulic roll positioning delivers smooth, accurate adjustments for repeatable production and simplified operation.
- 80-inch forming width accommodates large workpieces while maintaining consistent forming quality across the entire roll length.
- 1/4-inch mild steel capacity allows fabrication of cylinders, cones, shells, and structural components from heavy-gauge materials.
- Powerful 4 HP motor combined with a planetary gearbox provides dependable torque and steady roll speed for demanding production workloads.
- 16 feet-per-minute rolling speed balances productivity with precise operator control.

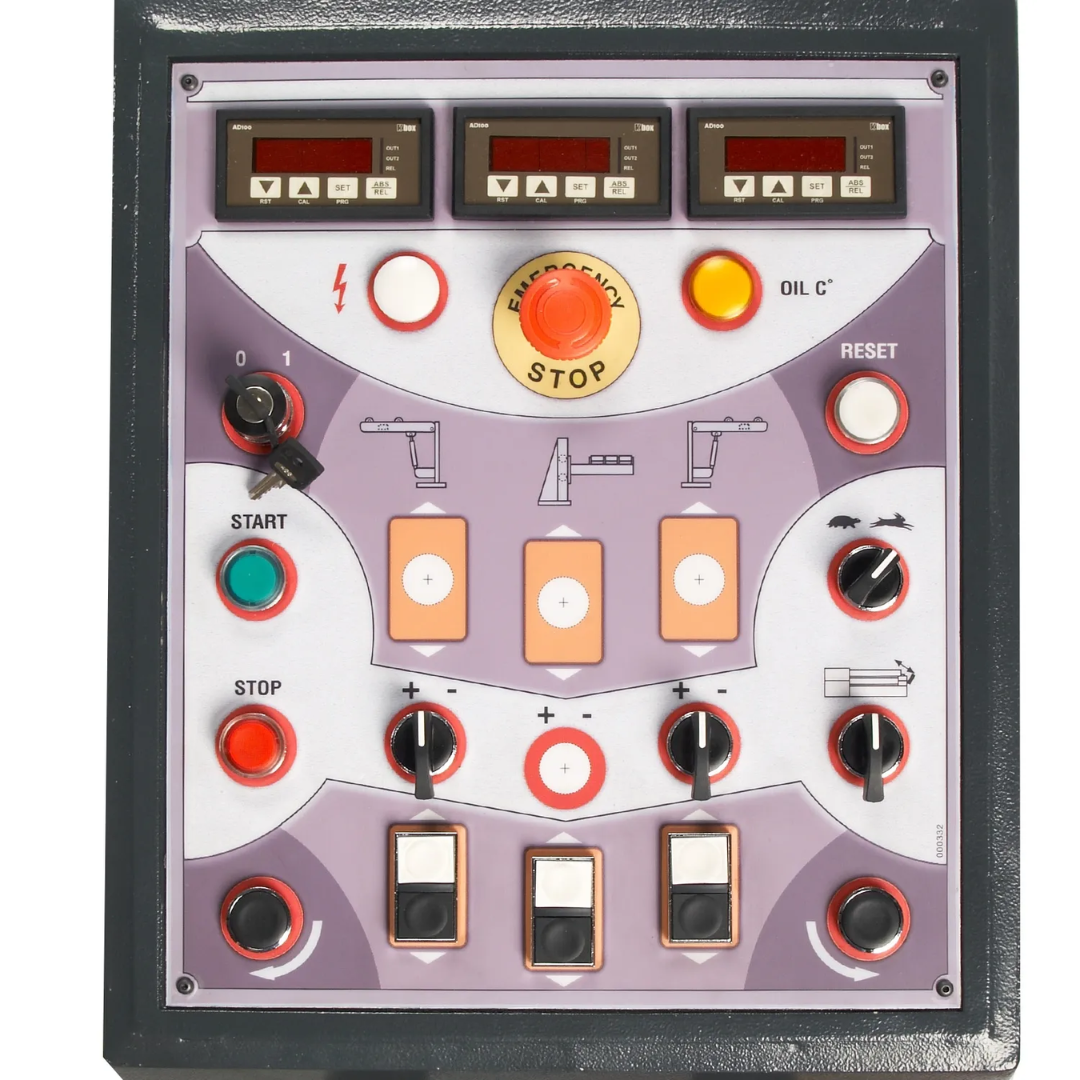

- Digital readouts and intuitive hydraulic controls simplify setup, improve repeatability, and reduce operator error.
- Cone bending attachment included expands fabrication capabilities by allowing accurate production of tapered and conical components.
- Ideal for continuous production where repeatable rolling accuracy and dependable performance are critical.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence.
Why Choose the Baileigh Four Roll Plate Roll PR-603-4 1006554
- Heavy-duty four-roll double-pinch design for maximum material control.
- 80-inch forming width for larger fabrication projects.
- Forms up to 1/4-inch mild steel with precision.
- Hydraulic roll positioning for fast, repeatable setup.
- 4 HP industrial motor with reliable planetary gearbox drive.
- Digital controls improve accuracy and operator efficiency.
- Includes cone bending attachment for expanded forming capabilities.
- Built for fabrication shops, production facilities, and industrial manufacturing environments.
- Supported by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Four Roll Plate Roll PR-603-4 1006554 delivers industrial-grade plate rolling performance with heavy-duty construction, hydraulic precision, and dependable forming power. Whether producing cylinders, cones, structural components, or custom fabricated parts, this four-roll plate roll provides the accuracy, durability, and production efficiency demanded by professional fabrication operations.
