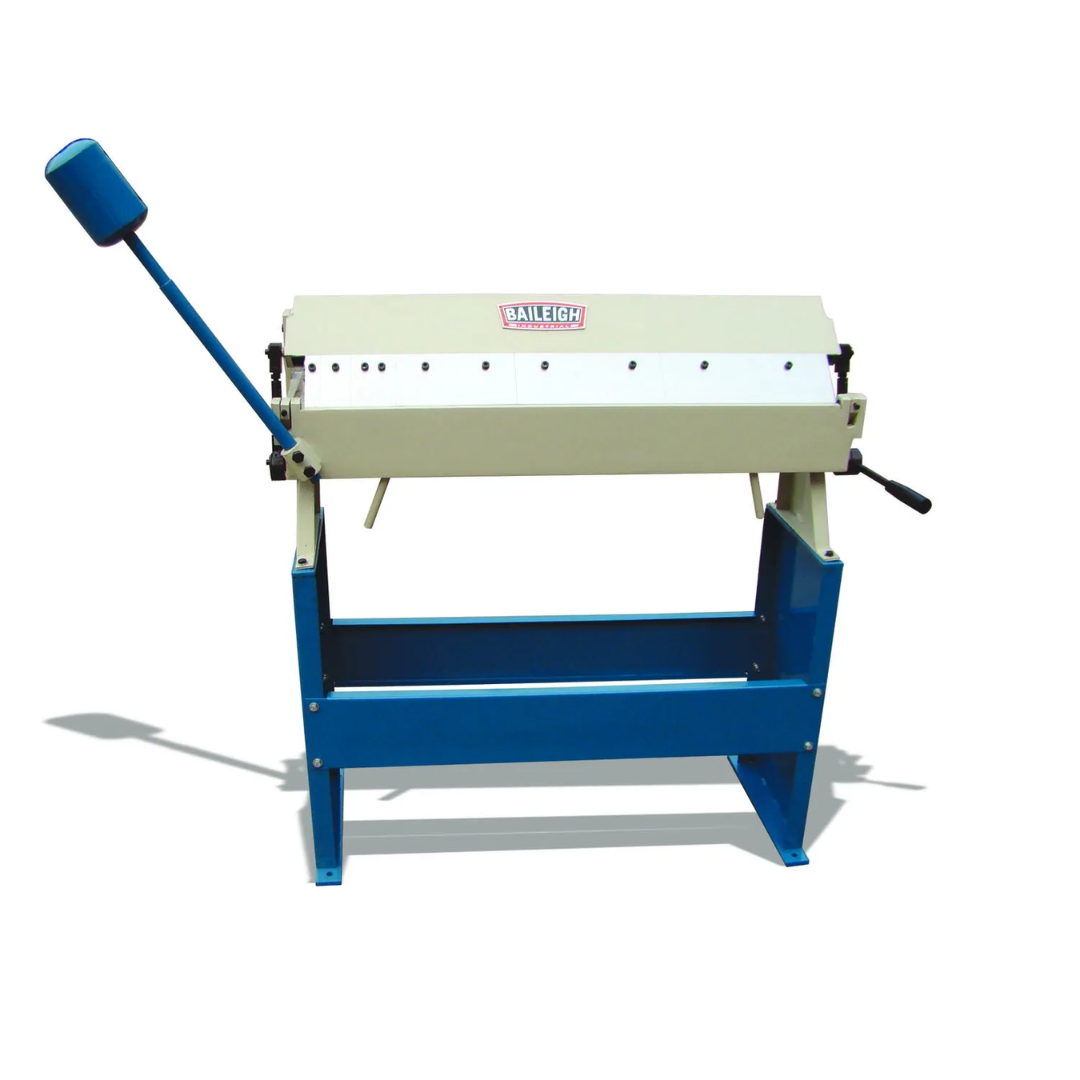

Baileigh Finger Brake - (BB-3616E) 1000386 Applications
- HVAC ductwork fabrication and custom fittings.
- Electrical boxes, cabinets, and enclosure manufacturing.
- Metal fabrication and maintenance repair shops.
- Automotive restoration and custom panel fabrication.
- Agricultural and industrial equipment repair.
- Prototype sheet metal development and low-volume production.
- Educational welding and fabrication training facilities.
- General box, pan, channel, and bracket fabrication.
Perfect for fabricators needing an industrial-quality manual finger brake capable of producing accurate bends on short and medium-sized sheet metal components without requiring electrical power.
Baileigh Finger Brake - (BB-3616E) 1000386 Specifications
| Model Number | BB-3616E |
|---|---|
| Product Keyword | Baileigh Finger Brake - (BB-3616E) 1000386 |
| Machine Type | Manual Box & Pan Finger Brake |
| Bending Capacity | 16 Gauge Mild Steel |
| Working Length | 36 Inches (3 Feet) |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 1.375 Inches |
| Number of Fingers | 6 Adjustable Fingers |
| Power Source | Manual Operation |
| Construction | Industrial Plate Steel Framework with Electro-Welded Design |
| Finger Adjustment | Adjustable Finger Gap for Multiple Material Thicknesses |
| Net Weight | 280 lbs |
| Gross Weight | 280 lbs |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support from Baileigh |
| UPC | 731325392166 |
Baileigh Finger Brake - (BB-3616E) 1000386 Features & Performance
- Heavy-duty plate steel construction provides superior rigidity and long-term durability for daily fabrication work.
- Electro-welded frame design minimizes flex during bending to produce clean, accurate bend angles throughout the entire working width.
- 16-gauge mild steel capacity handles common fabrication materials used in commercial and industrial sheet metal applications.
- 36-inch bending length offers the flexibility to manufacture a wide variety of components while remaining compact enough for smaller shops.
- Maximum 135° bend angle allows fabrication of precise boxes, pans, channels, trays, and formed components.
- Six removable and adjustable fingers make it easy to create different box widths, return flanges, and custom bends for complex fabrication projects.
- Adjustable finger gap accommodates different material thicknesses while improving bend consistency and setup flexibility.

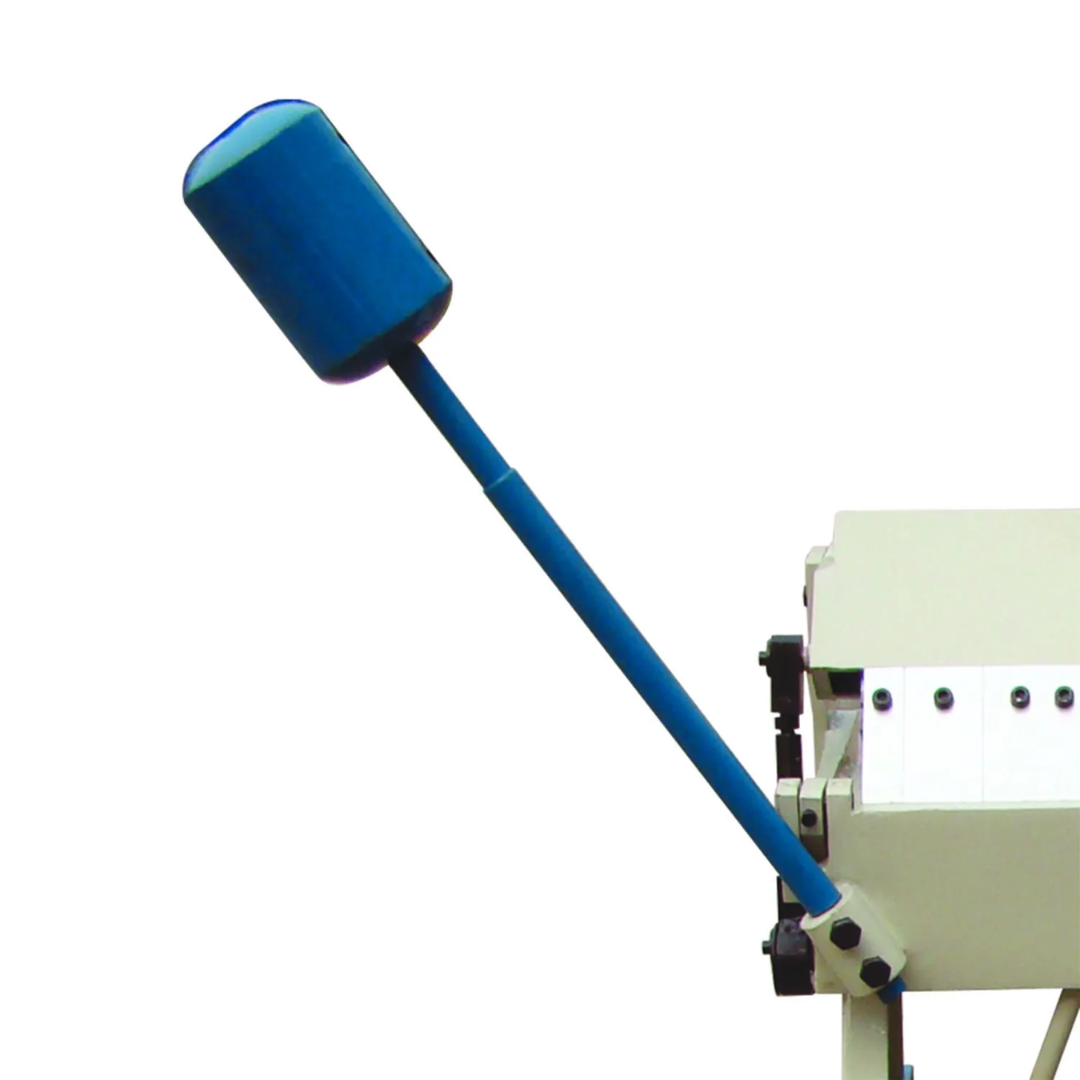

- Heavy counterweight-assisted apron reduces operator effort, making repetitive bending smoother and more comfortable.
- Manual operation eliminates the need for electrical power, allowing the brake to be used virtually anywhere in the shop.
- Compact footprint makes the machine ideal for workshops where space is limited but professional bending capability is required.
- Designed for precision fabrication of electrical enclosures, HVAC work, architectural metalwork, automotive components, and maintenance projects.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence and dependable operation.
Why Choose the Baileigh Finger Brake - (BB-3616E) 1000386
- Industrial-grade plate steel construction built for years of dependable service.
- Bends up to 16-gauge mild steel with professional accuracy.
- 36-inch working width handles a wide range of fabrication projects.
- Six adjustable fingers provide excellent flexibility for box and pan work.
- 135° maximum bend angle supports complex formed components.
- Counterweight-assisted apron improves ease of manual operation.
- No electrical power required, making it ideal for portable or shop use.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Finger Brake - (BB-3616E) 1000386 combines industrial-grade construction, precision bending performance, and versatile box and pan capabilities into a compact manual brake. Whether you're fabricating HVAC components, electrical enclosures, custom metal parts, or prototype assemblies, this machine delivers reliable accuracy, smooth operation, and the durability professionals expect from Baileigh Industrial.
