Baileigh Drill Press DP-0625E 1022127 Applications
- Machine shops performing precision drilling operations.
- Metal fabrication and welding facilities.
- Maintenance and repair departments.
- Educational and vocational training workshops.
- Automotive repair and restoration projects.
- General manufacturing and production environments.
- Prototype and custom fabrication work.
- Accurate drilling of mild steel, aluminum, and other common materials.
The Baileigh Drill Press DP-0625E 1022127 provides dependable belt-driven performance, rigid construction, and precise drilling capability for daily workshop and fabrication use.
Baileigh Drill Press DP-0625E 1022127 Specifications
| Model | DP-0625E |
|---|---|
| Part Number | 1022127 |
| Motor Power | 1/2 HP (0.5 HP) |
| Power Requirement | 110V Single-Phase |
| Drive System | Belt-Driven |
| Swing | 14" |
| Maximum Drilling Capacity (Mild Steel) | 5/8" |
| Spindle Speed Range | 250 – 2900 RPM |
| Number of Spindle Speeds | 5 |
| Spindle Taper | B16 |
| Chuck | B-16 1–16 mm Keyless Chuck Included |
| Work Table Material | Cast Iron |
| Table Adjustment | Tilting and Rotating Cast Iron Table |
| Column Diameter | 2-7/8" Steel Column |
| Safety Features | Protective Spindle Safety Shield |
| Net Weight | 290 lbs. |
| Gross Weight | 290 lbs. |
| UPC | 731325496123 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Drill Press DP-0625E 1022127 Performance & Construction

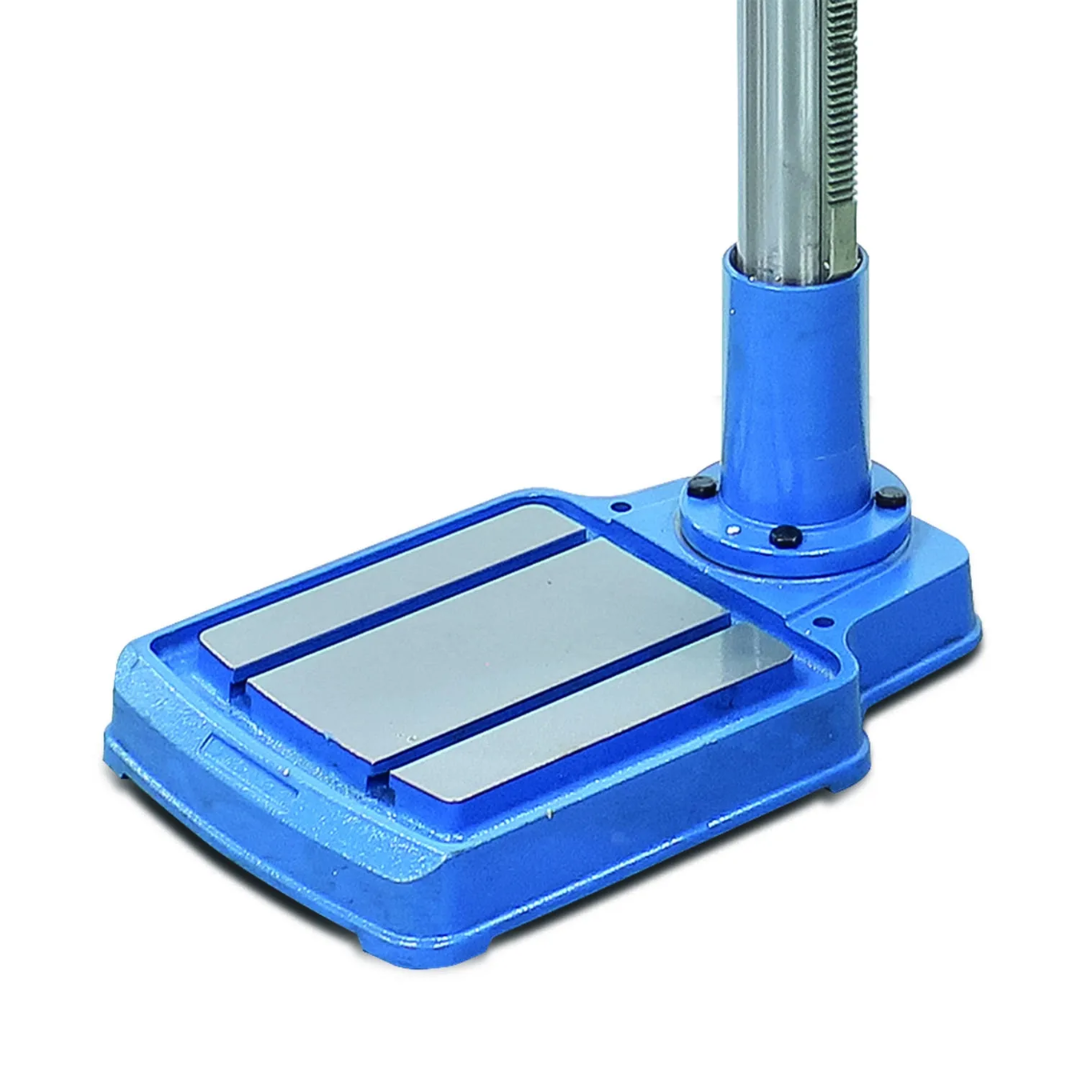

- Heavy-duty cast iron construction featuring a rigid base, headstock, and work table that reduce vibration for improved drilling precision and machine longevity.
- Reliable 1/2 HP motor provides dependable power for drilling applications in mild steel, aluminum, plastics, and other commonly machined materials.
- Belt-driven spindle system delivers smooth, consistent power while allowing easy speed changes to suit different tooling and materials.
- Five selectable spindle speeds ranging from 250 to 2900 RPM provide versatility for a wide variety of drilling operations.
- 5/8-inch drilling capacity in mild steel offers dependable performance for everyday fabrication and maintenance tasks.
- 14-inch swing capacity accommodates larger workpieces while expanding machine versatility.

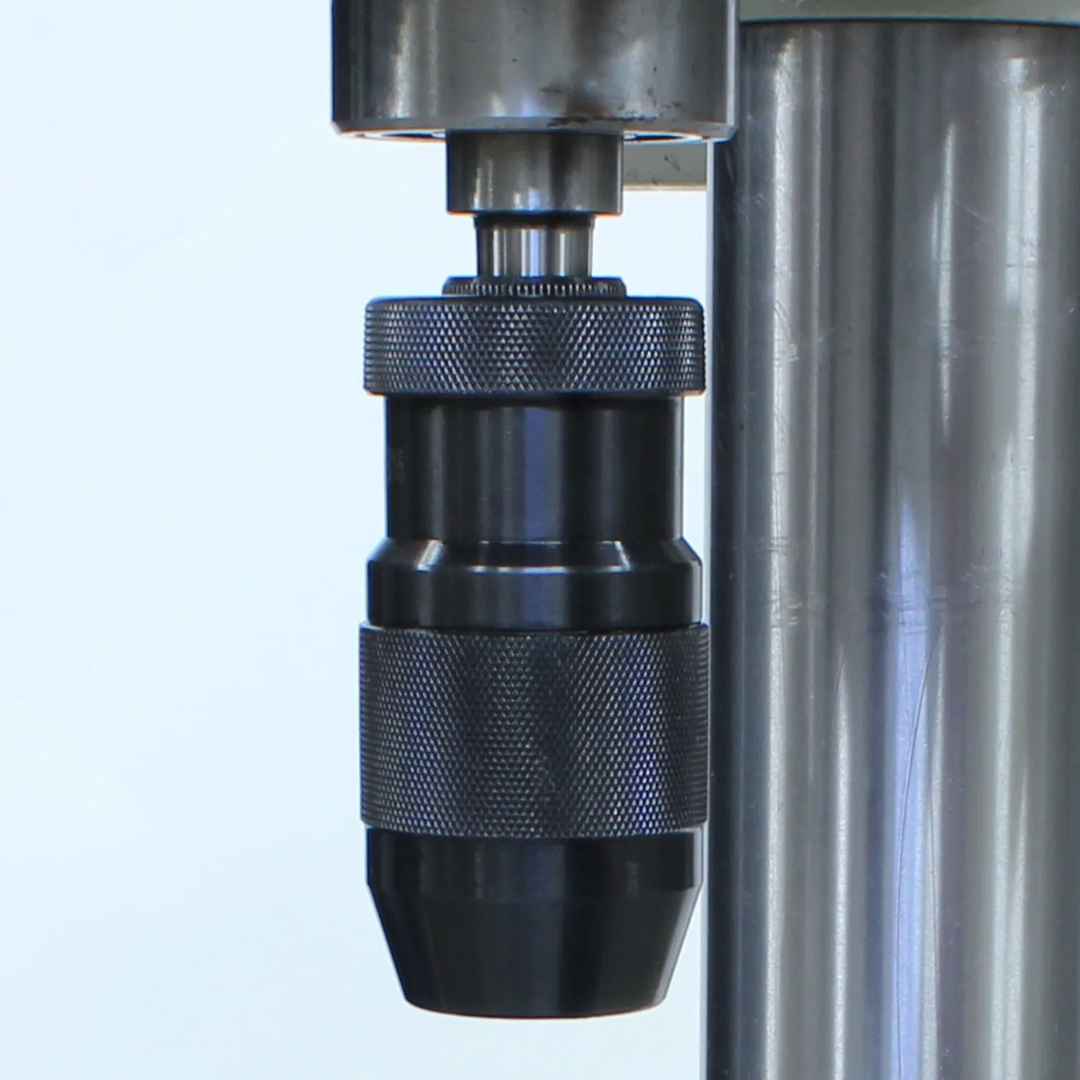

- Precision B16 spindle taper paired with the included 1–16 mm keyless chuck allows fast tool changes and secure drill bit retention.
- Rigid 2-7/8-inch steel column minimizes flex under load, improving drilling accuracy and repeatability.

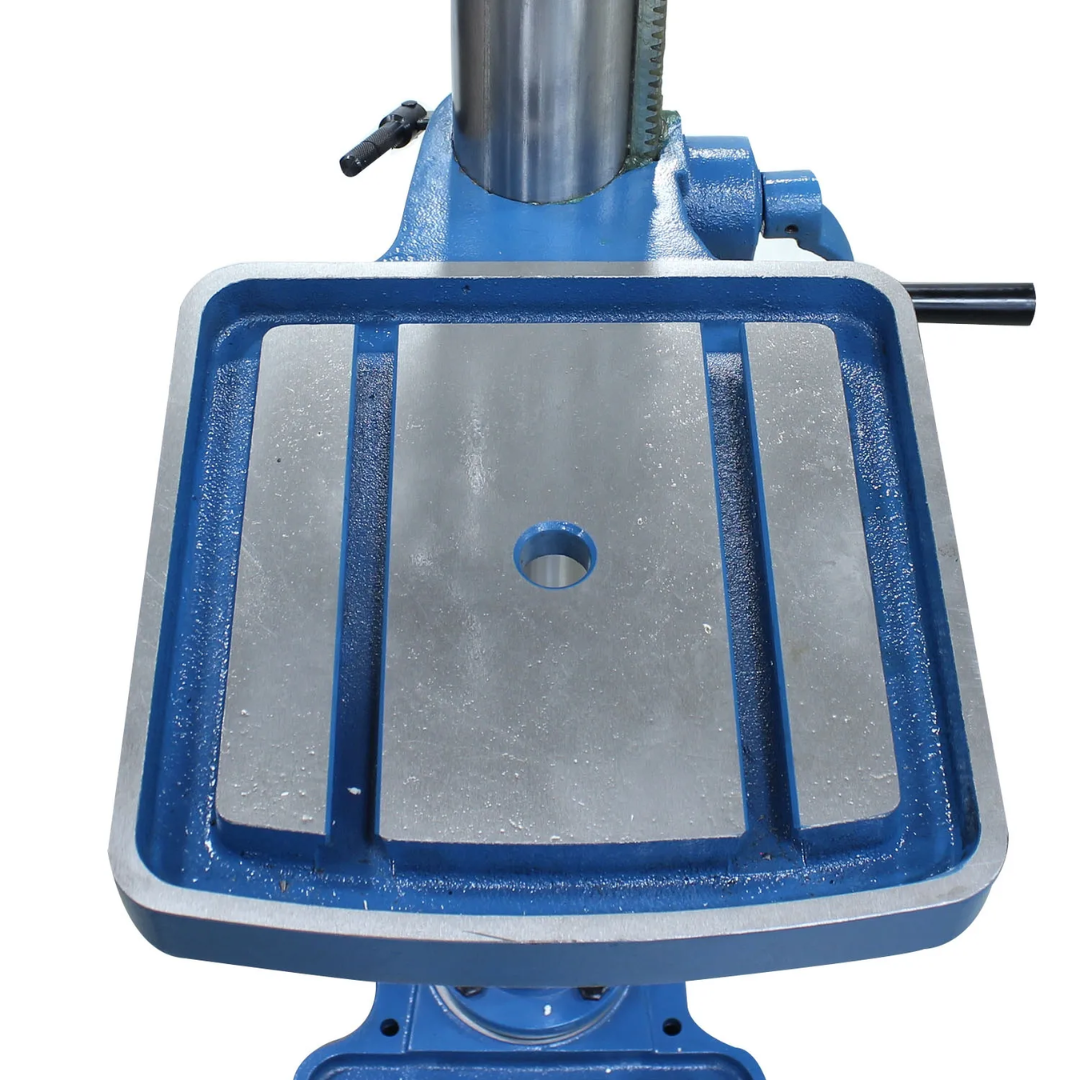

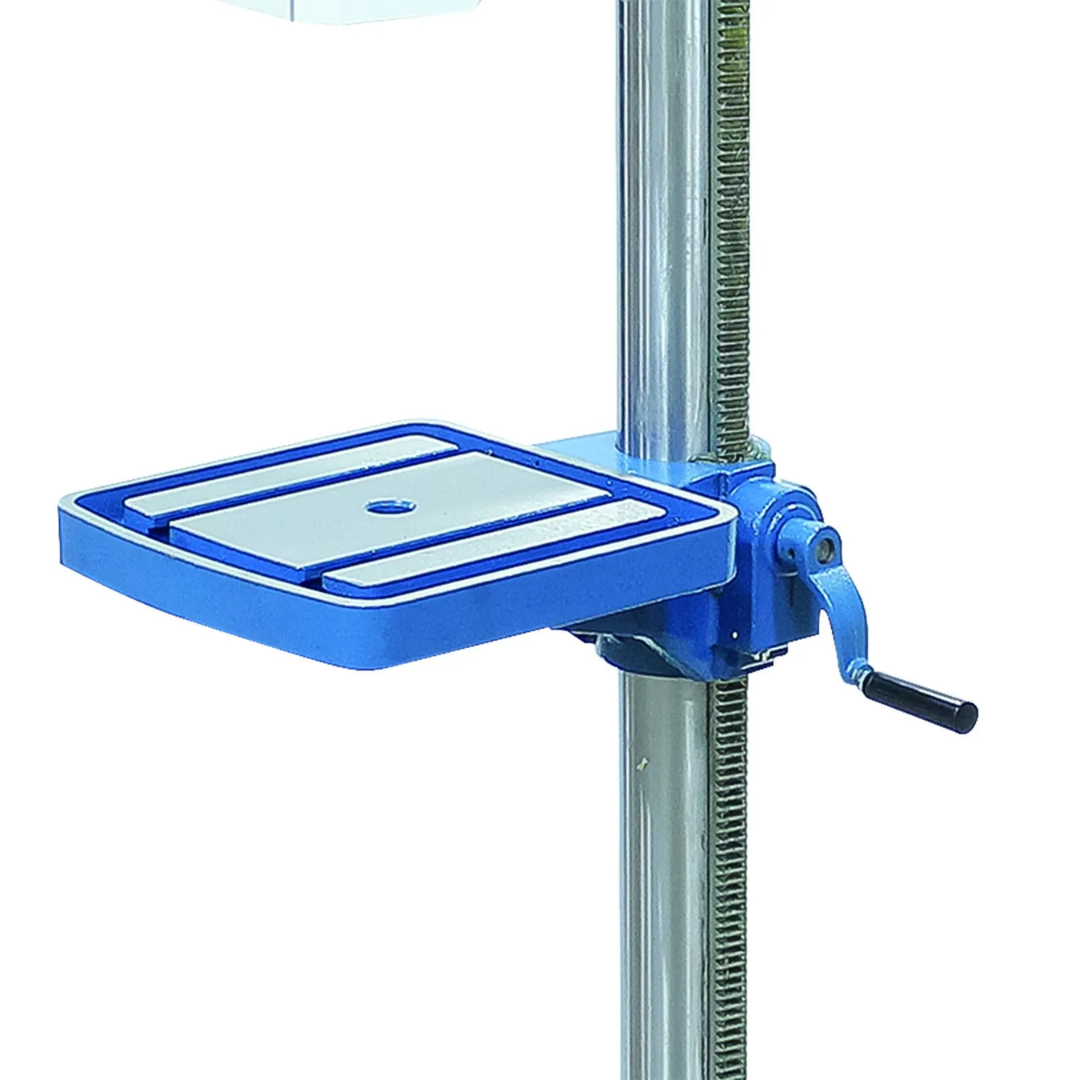

- Tilting and rotating cast iron work table enables angled drilling operations while providing excellent workpiece support.
- Protective spindle safety shield enhances operator safety by helping contain chips and reducing exposure to rotating tooling.
- 110V single-phase operation allows convenient installation in most commercial shops, garages, schools, and maintenance departments.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term reliability and confidence.
Why Choose the Baileigh Drill Press DP-0625E 1022127
- Rigid cast iron construction delivers excellent stability and drilling accuracy.
- Reliable 1/2 HP belt-driven motor provides smooth, dependable performance.
- Five spindle speeds from 250 to 2900 RPM support a wide range of drilling applications.
- 14-inch swing accommodates larger workpieces with ease.
- 5/8-inch drilling capacity handles common fabrication and maintenance work.
- Included keyless chuck simplifies tool changes and improves productivity.
- Tilting cast iron work table supports angled drilling applications.
- Protective spindle shield improves operator safety.
- 110V single-phase power allows installation in virtually any workshop.
- Backed by Baileigh's 1-year warranty and lifetime technical support.

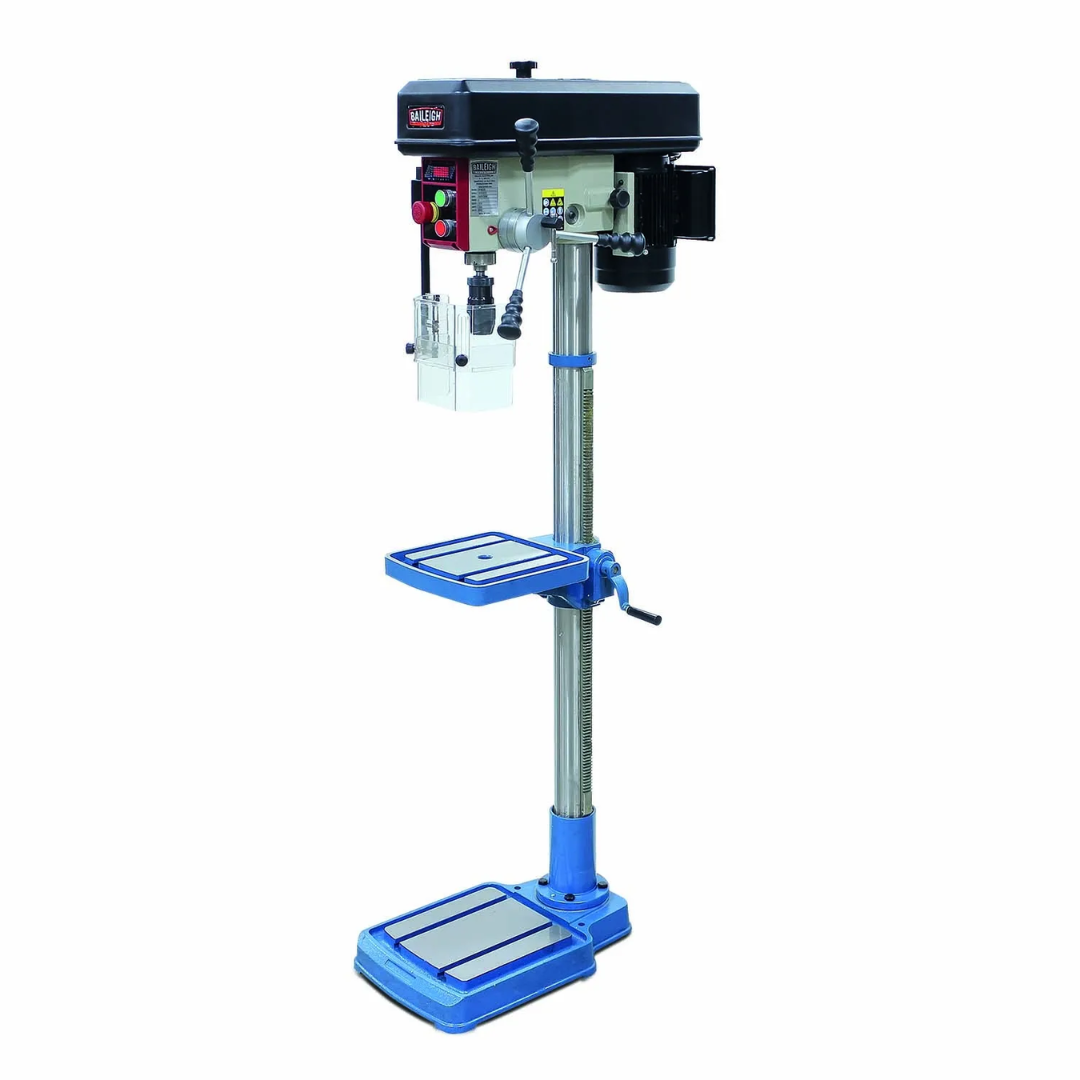

The Baileigh Drill Press DP-0625E 1022127 combines durable cast iron construction, versatile belt-driven performance, accurate drilling capability, and dependable reliability into a professional floor-standing drill press built for fabrication shops, educational facilities, maintenance departments, and general industrial use.
