Baileigh Downdraft Table DDTM-8024 1008628 Applications
- Metal grinding and deburring operations.
- Welding fume and particulate capture.
- Sanding and surface preparation tasks.
- Fabrication shop finishing stations.
- Metal polishing and cleanup operations.
- Maintenance and repair facilities.
- Industrial production environments requiring dust control.
- Workstations where improved air quality and cleanliness are priorities.

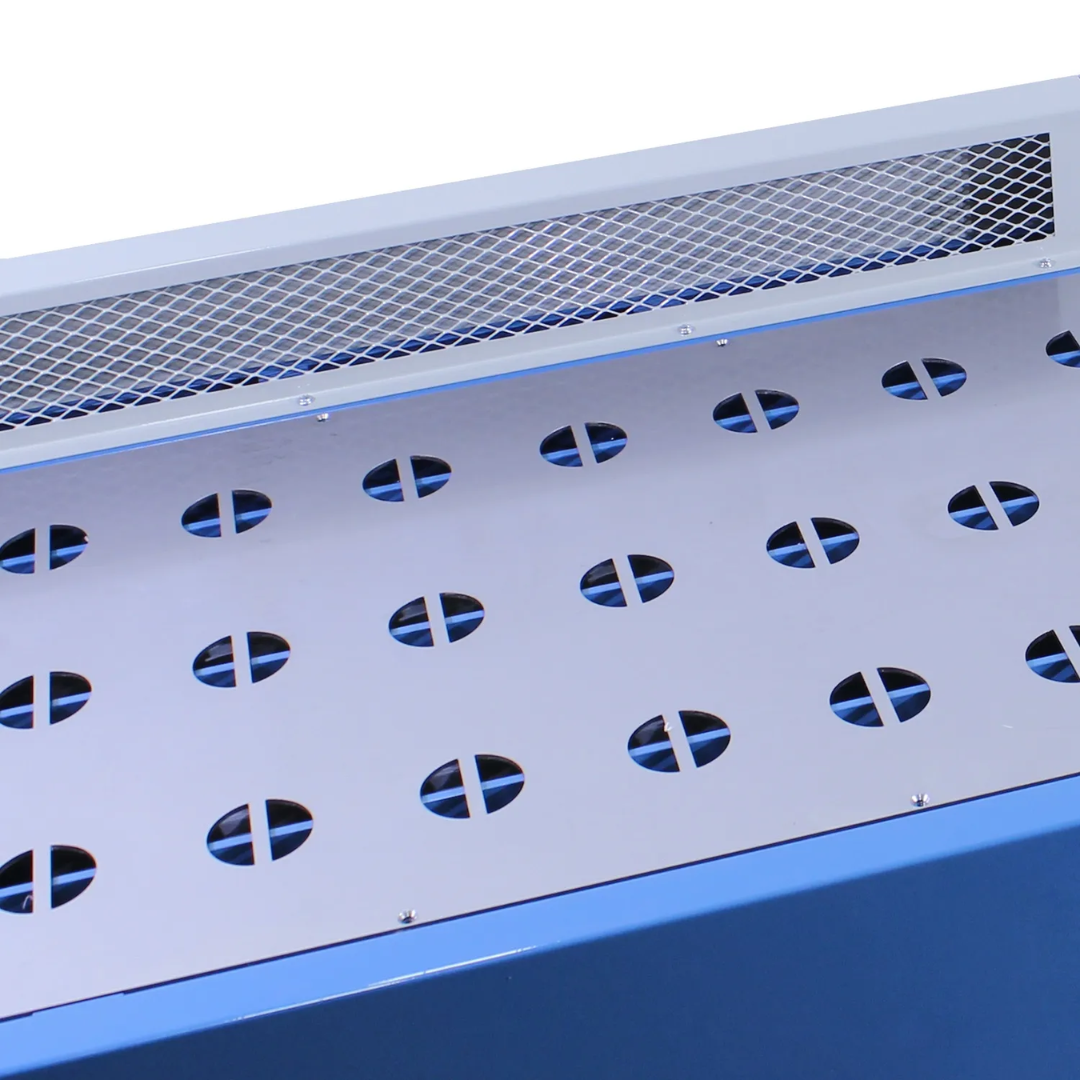

Captures dust and debris directly through the work surface, helping reduce airborne contaminants while creating a cleaner and safer work environment.
Baileigh Downdraft Table DDTM-8024 1008628 Specifications
| Model | DDTM-8024 |
|---|---|
| Product Type | Industrial Downdraft Table |
| Working Area | 80 in. x 24 in. |
| Work Surface Material | 3 mm Stainless Steel |
| Motor Configuration | Dual Motors |
| Motor Power | 2 x 1 HP |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Maximum Airflow | 1,950 CFM per Motor |
| Total Airflow Capacity | Up to 3,900 CFM Combined |
| Load Capacity | 660 lbs. |
| Filter Type | 250 Micron Fire-Resistant Filters |
| Filter Quantity | Four Filters |
| Filter Size | 16 in. x 20 in. x 1 in. (4) |
| Maintenance Access | Integrated Clean-Out Compartments |
| Net Weight | 690 lbs. |
| Gross Weight | 690 lbs. |
| Warranty | 1 Year |
| UPC | 731325421712 |
Baileigh Downdraft Table DDTM-8024 1008628 Features & Performance

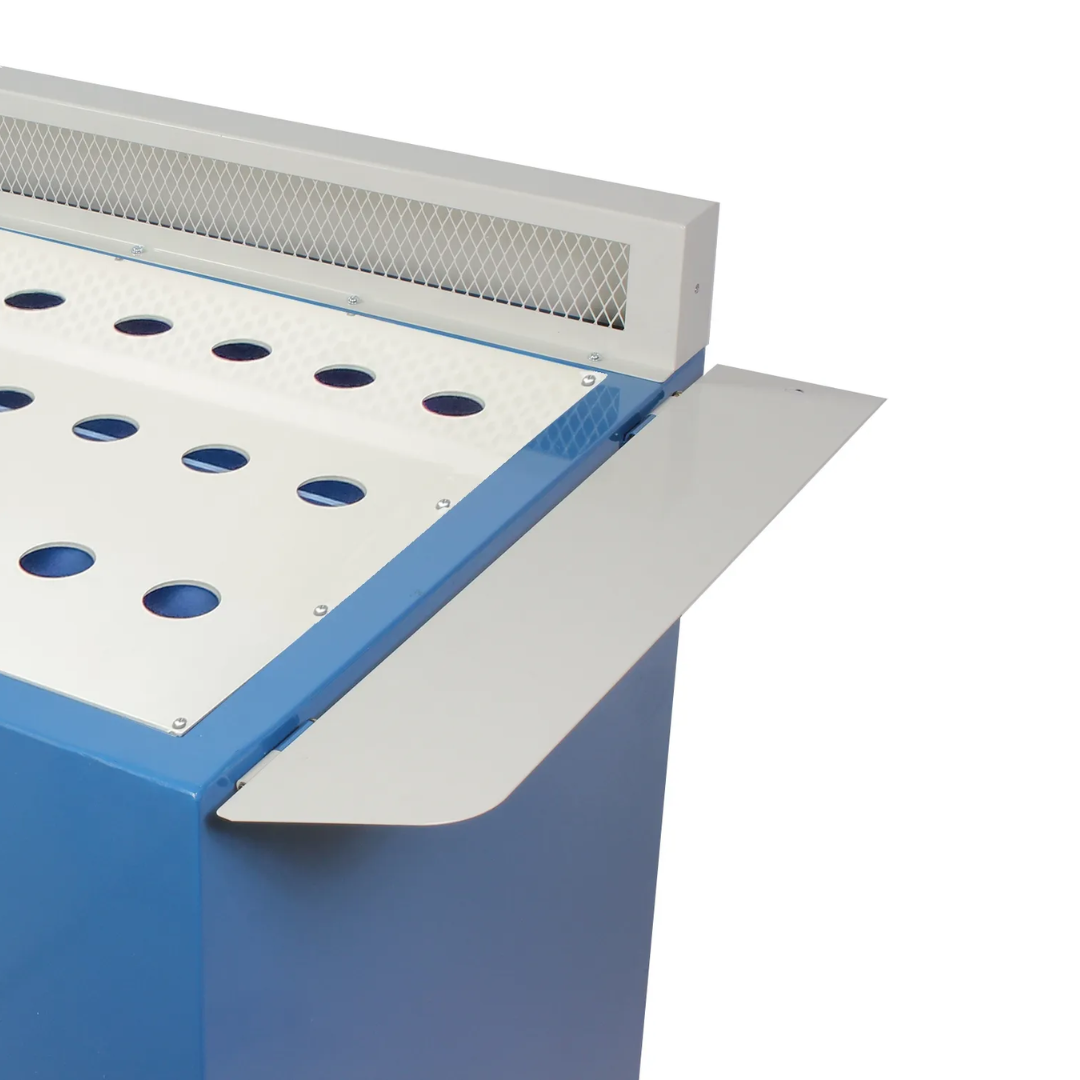

- Large 80" x 24" Work Surface accommodates long workpieces, fabrication projects, and larger grinding or finishing operations.
- 3 mm Stainless Steel Tabletop provides exceptional durability, corrosion resistance, and long-term performance in demanding industrial environments.

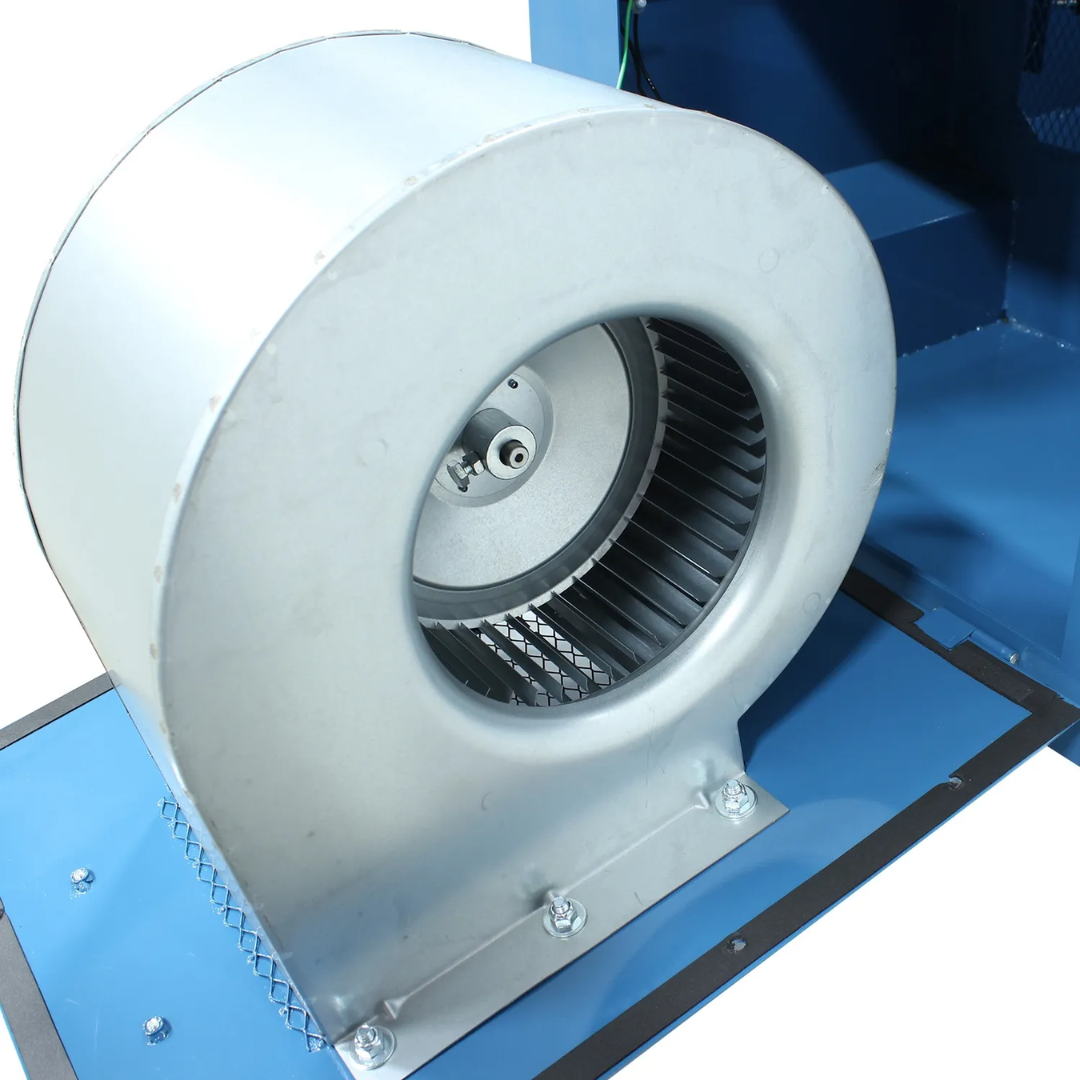

- Dual 1 HP Motors generate powerful airflow across the entire work surface to efficiently capture dust, smoke, and debris.

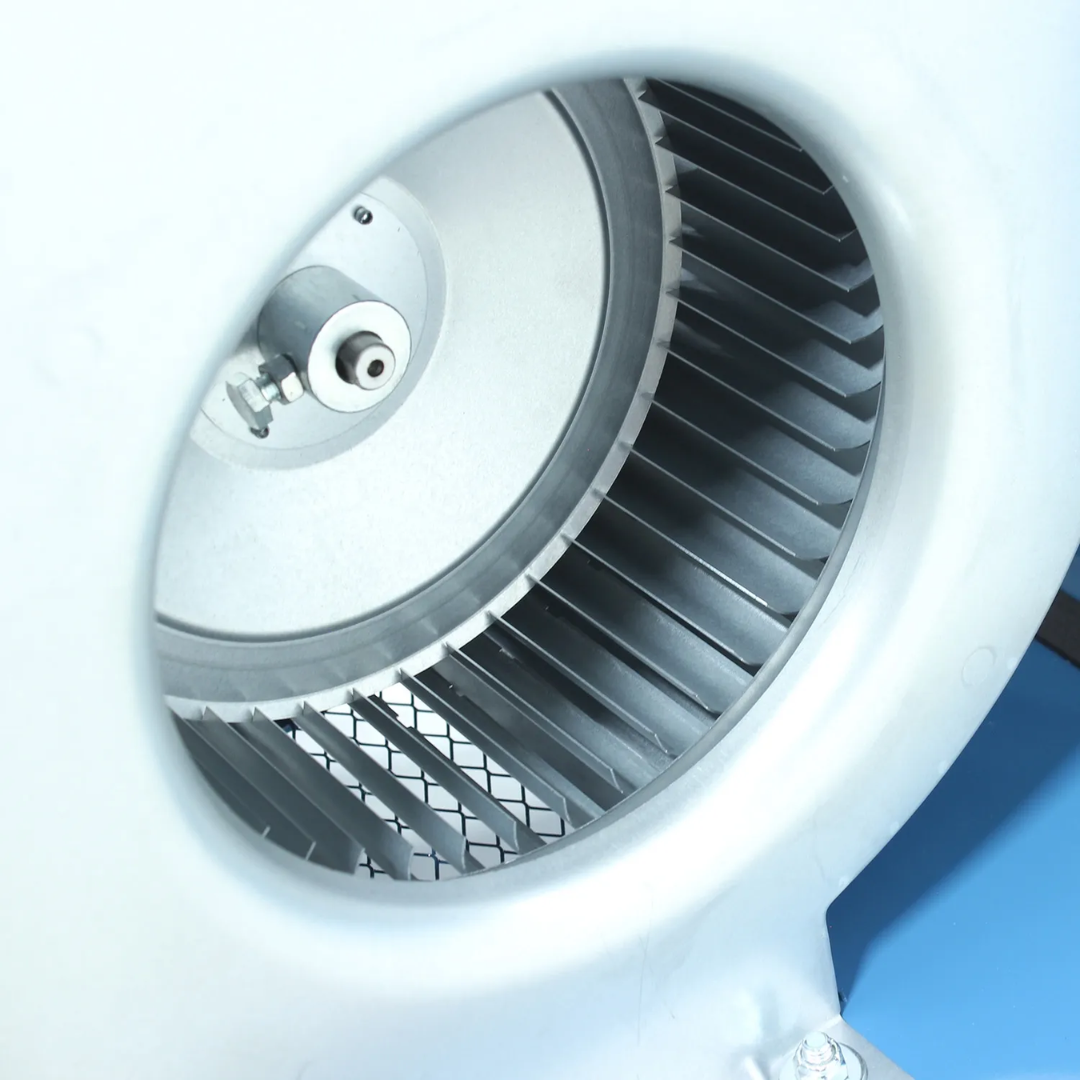

- Up to 1,950 CFM per Motor delivers strong suction performance for effective source-capture dust collection.
- Self-Contained Dust Collection System eliminates the need for external dust collectors, reducing installation complexity and floor space requirements.

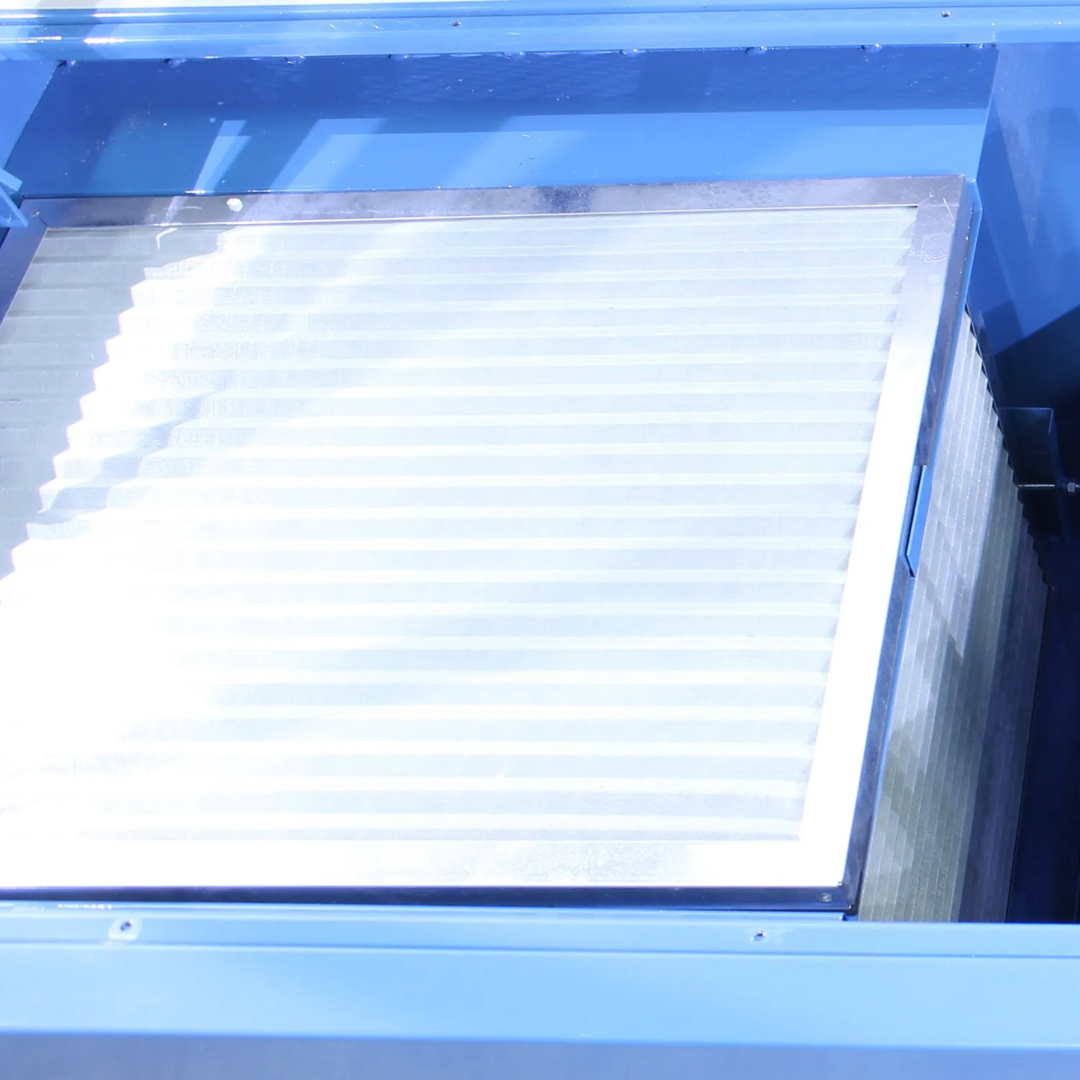

- Fire-Resistant Filter System helps improve workplace safety while effectively capturing airborne particulates generated during grinding and finishing operations.

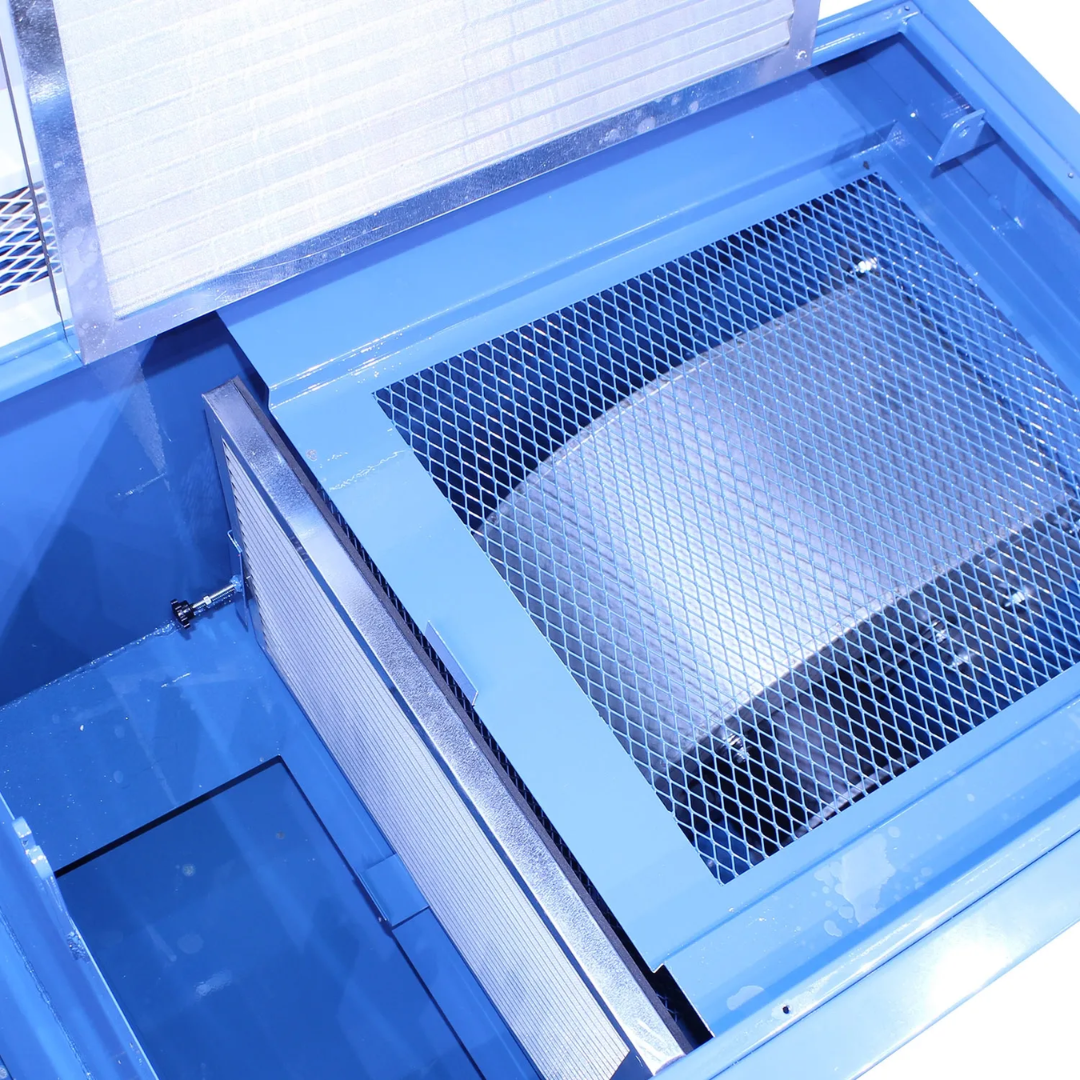

- Four Integrated Filters maximize filtration surface area and support continuous airflow performance.
- 660 lb. Load Capacity allows handling of heavy workpieces, weldments, fabricated assemblies, and industrial components.

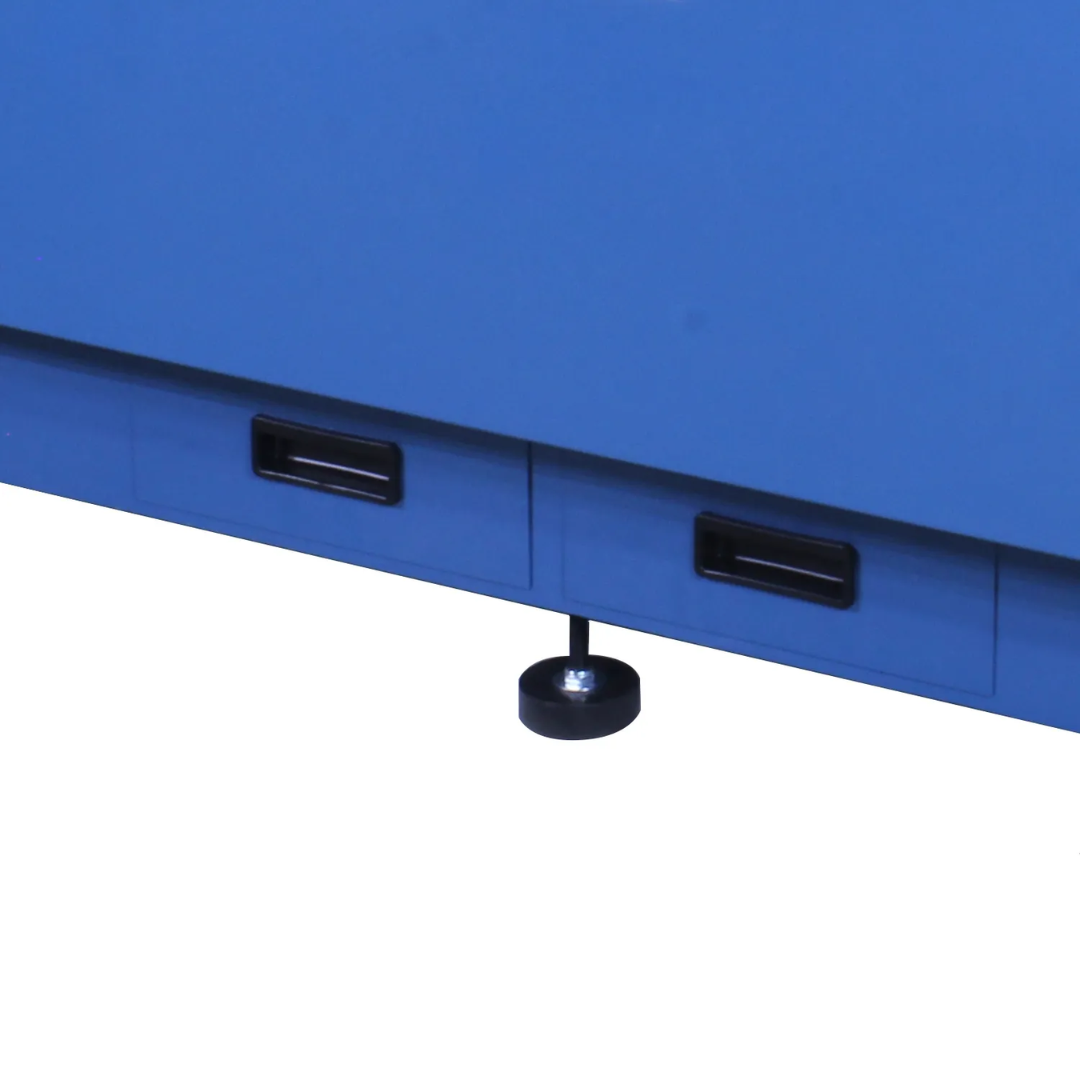

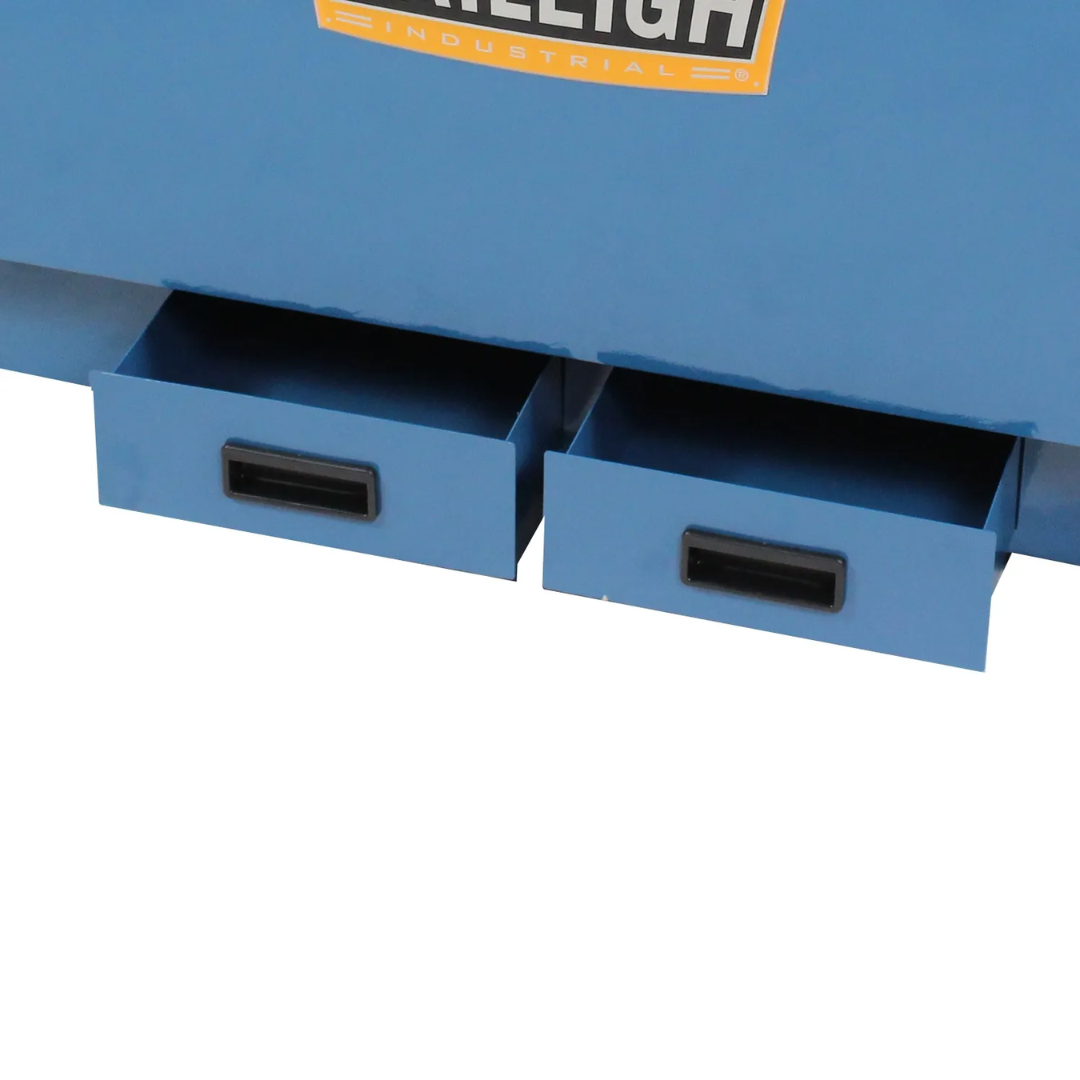

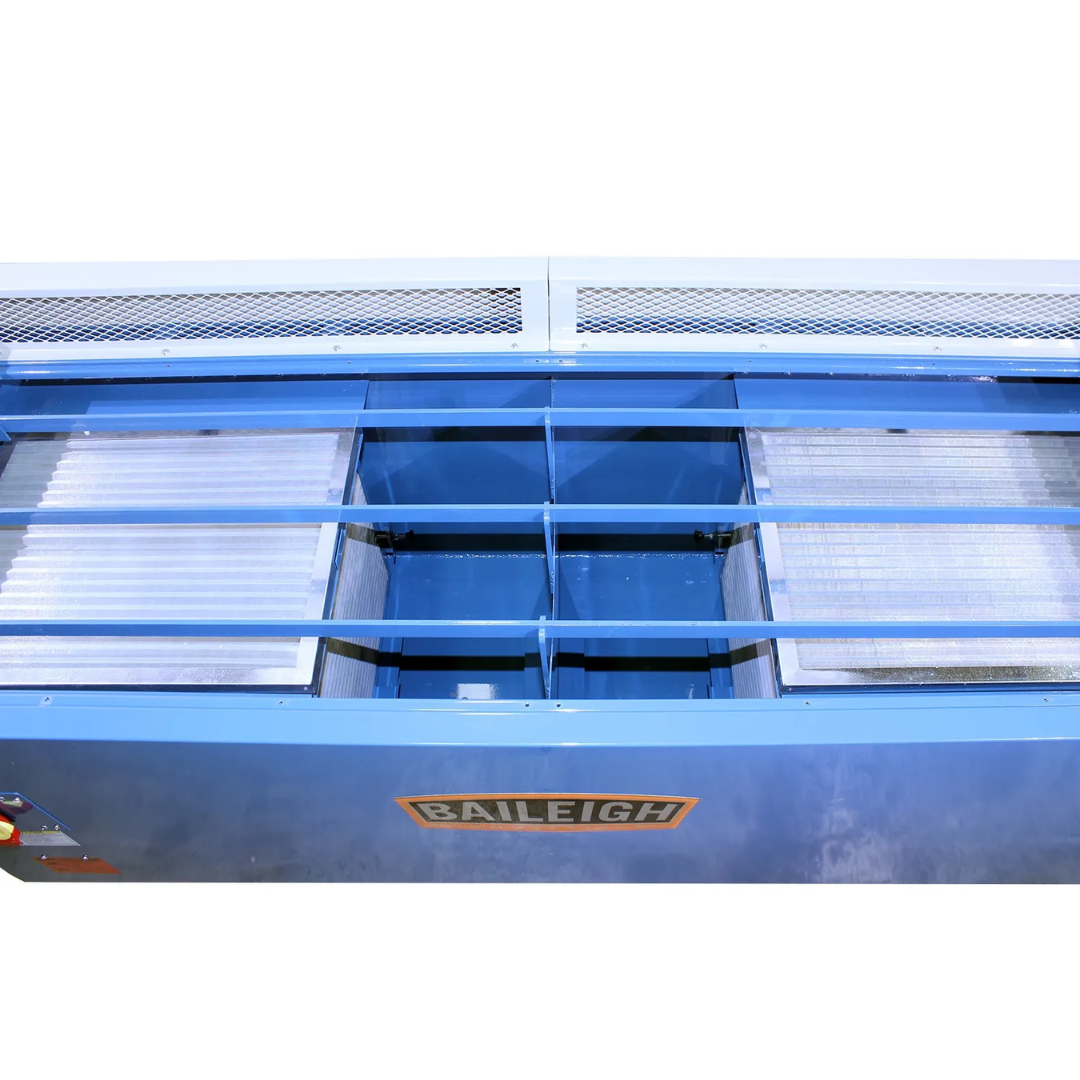

- Built-In Clean-Out Compartments simplify routine maintenance and speed debris removal between shifts.
- 220V Single-Phase Operation provides convenient installation in most fabrication shops and industrial facilities.
- Heavy-Duty Industrial Construction ensures long service life and dependable performance under continuous daily use.
- Improved Shop Air Quality captures contaminants directly at the source before they become airborne throughout the facility.
- Enhanced Workplace Productivity keeps work areas cleaner while reducing time spent on secondary cleanup operations.
- Baileigh Warranty & Technical Support includes a 1-year parts warranty and lifetime technical assistance.
Why Choose the Baileigh Downdraft Table DDTM-8024 1008628
- Large 80" x 24" stainless steel work surface supports oversized fabrication projects.
- Dual 1 HP motors provide powerful dust and particulate extraction.
- Up to 3,900 CFM combined airflow enhances source-capture efficiency.
- Fire-resistant filtration system improves workplace safety.
- 660 lb. load capacity handles heavy industrial workpieces.
- Self-contained design eliminates the need for external dust collection equipment.
- Easy-clean debris compartments simplify maintenance.
- Ideal for fabrication, welding, grinding, sanding, and metal finishing applications.

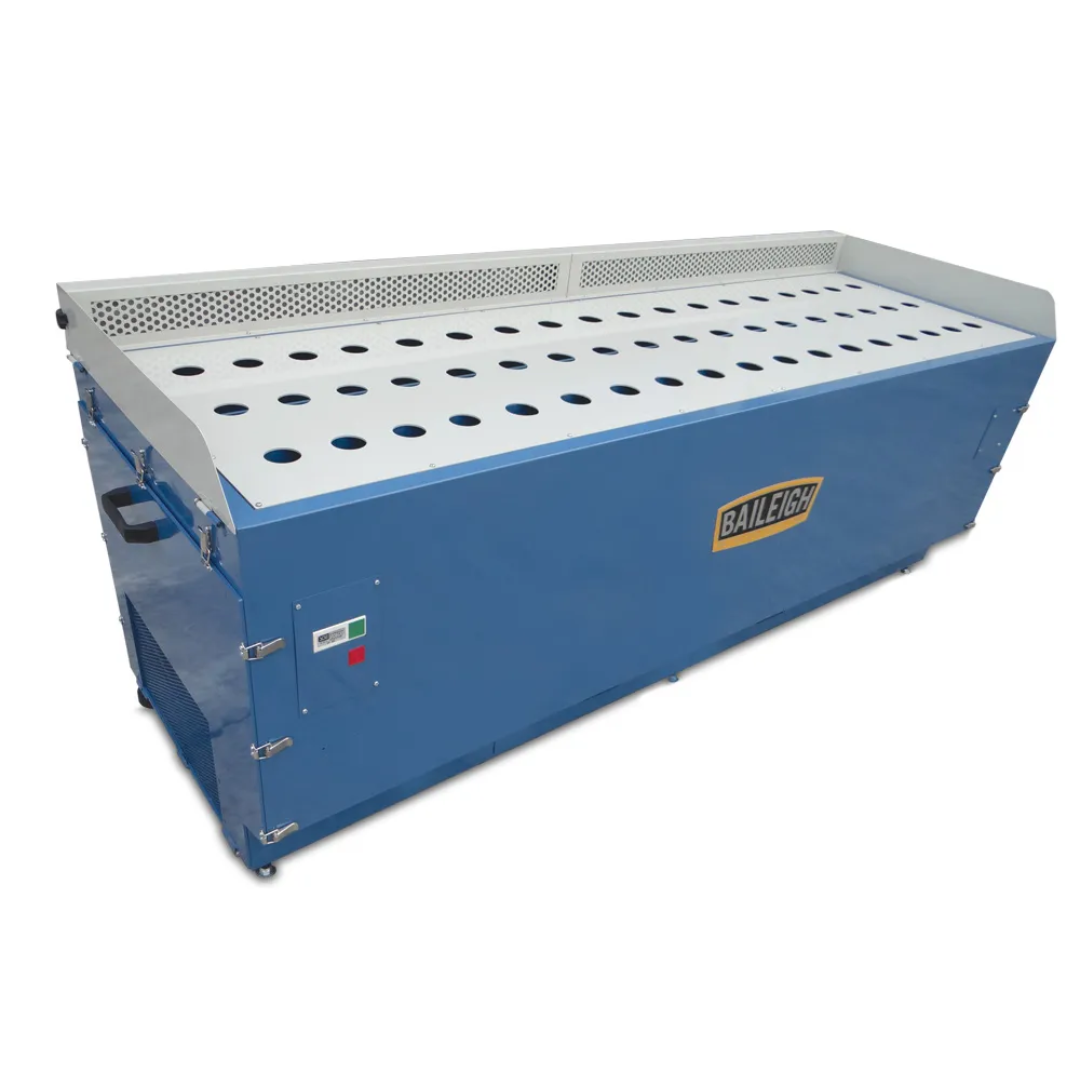

The Baileigh Downdraft Table DDTM-8024 1008628 combines a spacious stainless steel work surface, powerful dual-motor airflow performance, and integrated fire-resistant filtration into a complete industrial dust collection workstation. Designed for demanding fabrication and finishing environments, it helps improve air quality, reduce cleanup time, and create a safer, more productive workspace.
