Baileigh Disc Grinder DG-500 1002708 Applications
- Deburring laser-cut, plasma-cut, and saw-cut metal parts.
- Edge finishing and smoothing fabricated steel components.
- Chamfering plates, flat bar, and structural metal.
- Cleaning castings prior to machining or welding.
- Surface preparation before assembly, coating, or painting.
- General-purpose metal grinding in fabrication and machine shops.
- Industrial maintenance and manufacturing operations.
Designed for professional metalworking environments that require accurate edge finishing, controlled material removal, and dependable industrial performance.
Baileigh Disc Grinder DG-500 1002708 Specifications
| Model | DG-500 |
|---|---|
| Product Number | 1002708 |
| Machine Type | Industrial Disc Grinder |
| Disc Diameter | 20 in. |
| Motor Power | 2 HP |
| Motor Speed | 1,100 RPM |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Work Table Size | 25.5 in. × 14.5 in. |
| Chamfer Adjustment | Up to 45° Vertical Chamfer |
| Dust Collection | Integrated Dust Port |
| Construction | Cast Iron Base and Worktable |
| Net Weight | 400 lbs. |
| Gross Weight | 400 lbs. |
| Warranty | 1 Year |
| UPC | 731325403695 |
Baileigh Disc Grinder DG-500 1002708 Performance & Construction

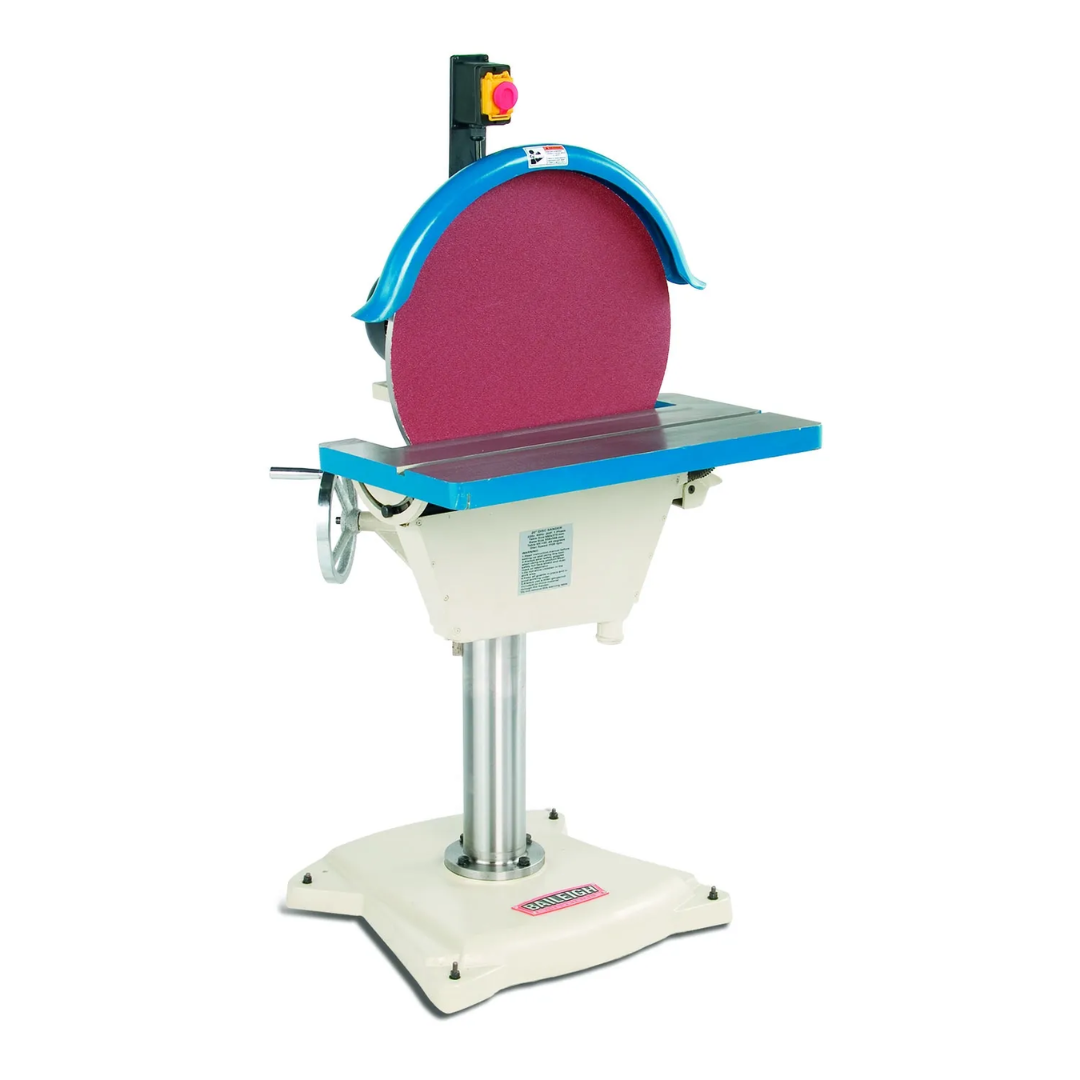

- Large 20-inch grinding disc provides an expansive grinding surface for efficient material removal and precision finishing of larger workpieces.

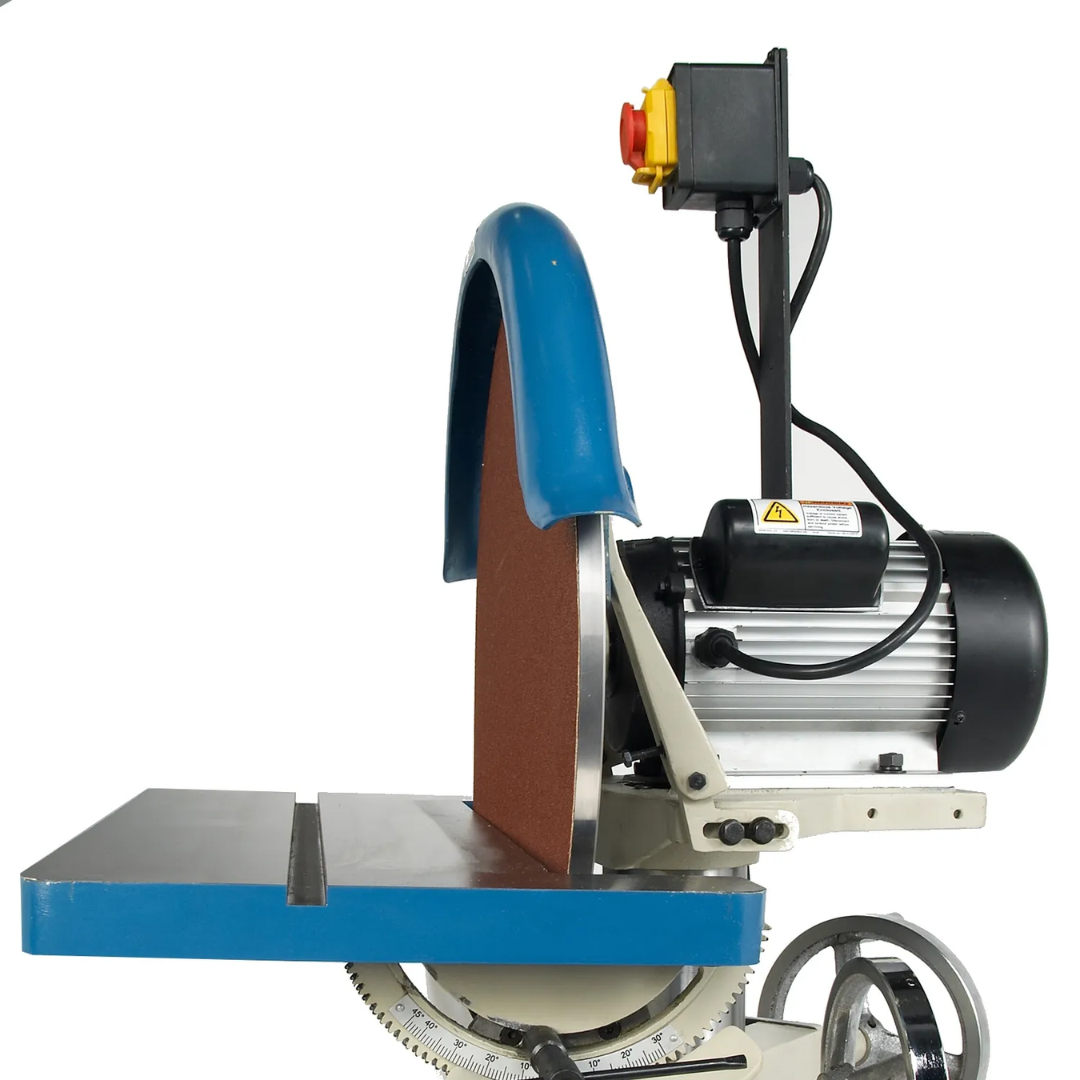

- Powerful 2 HP industrial motor delivers dependable performance for continuous grinding, deburring, and edge preparation applications.
- 1,100 RPM operating speed offers consistent grinding action for smooth finishes while maintaining excellent operator control.
- 220V single-phase electrical operation allows installation in many commercial fabrication and maintenance shops without requiring three-phase power.
- 25.5 in. × 14.5 in. worktable provides stable support for larger metal components during grinding and finishing operations.

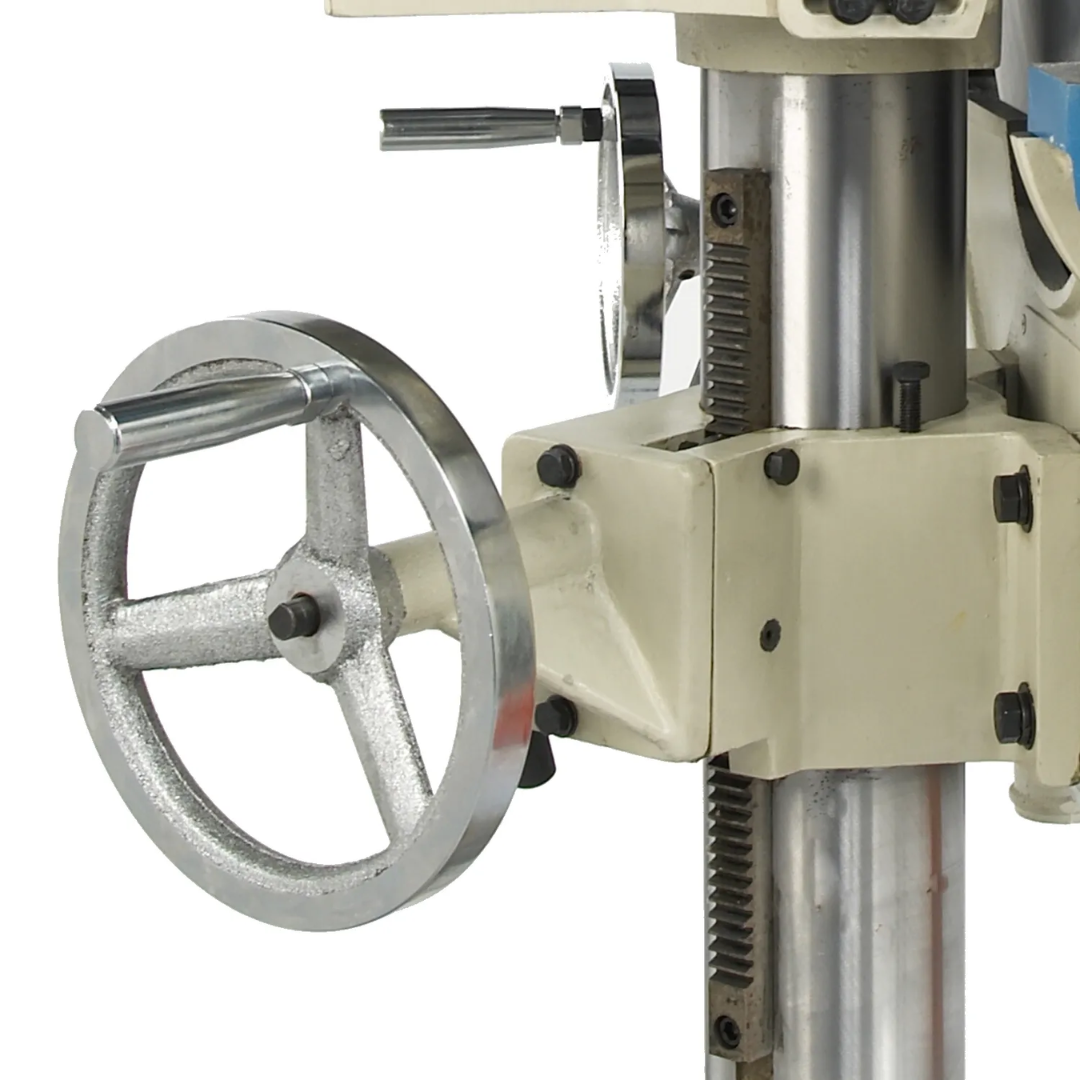

- Adjustable tilting worktable moves up and down the support column using a precision handwheel for accurate work positioning.

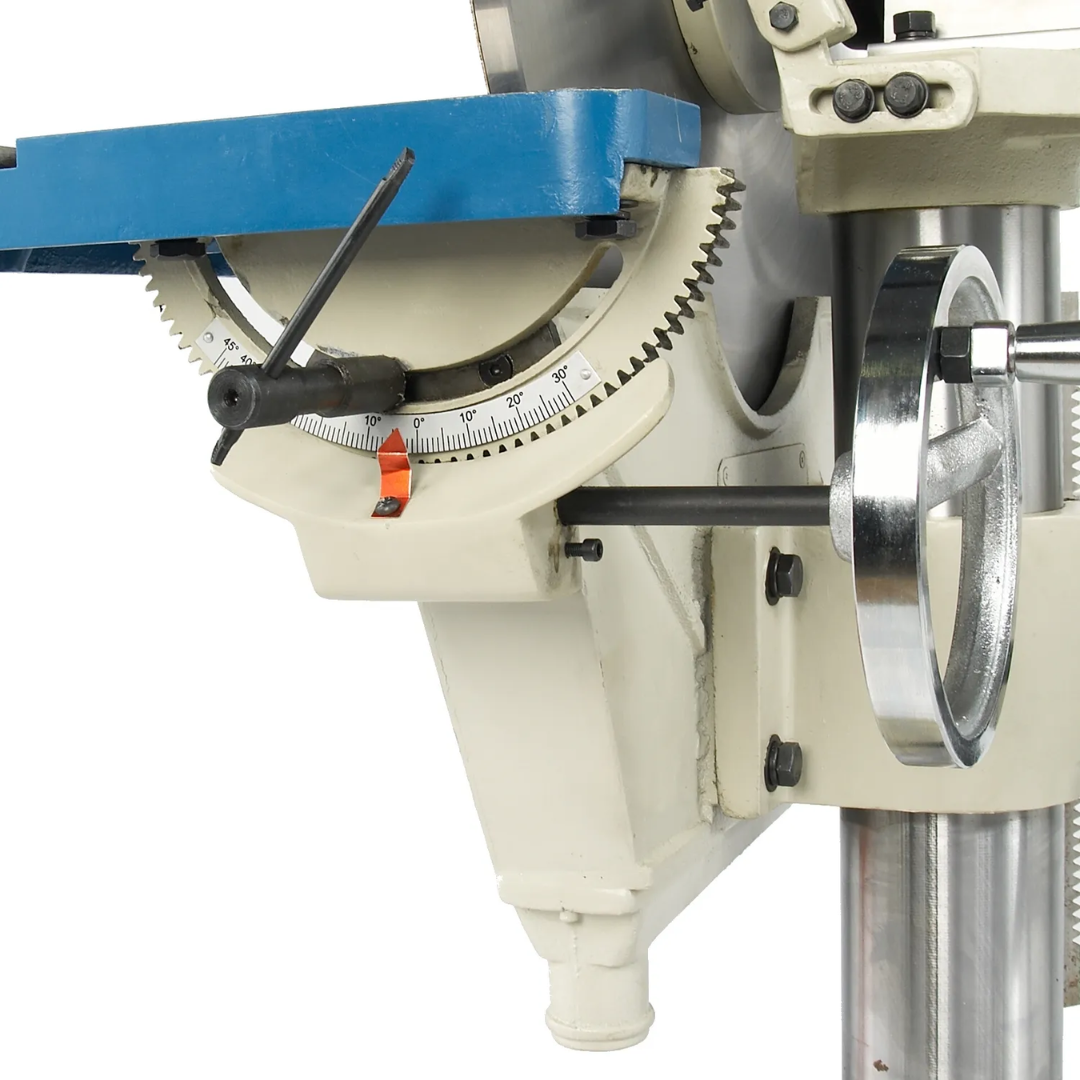

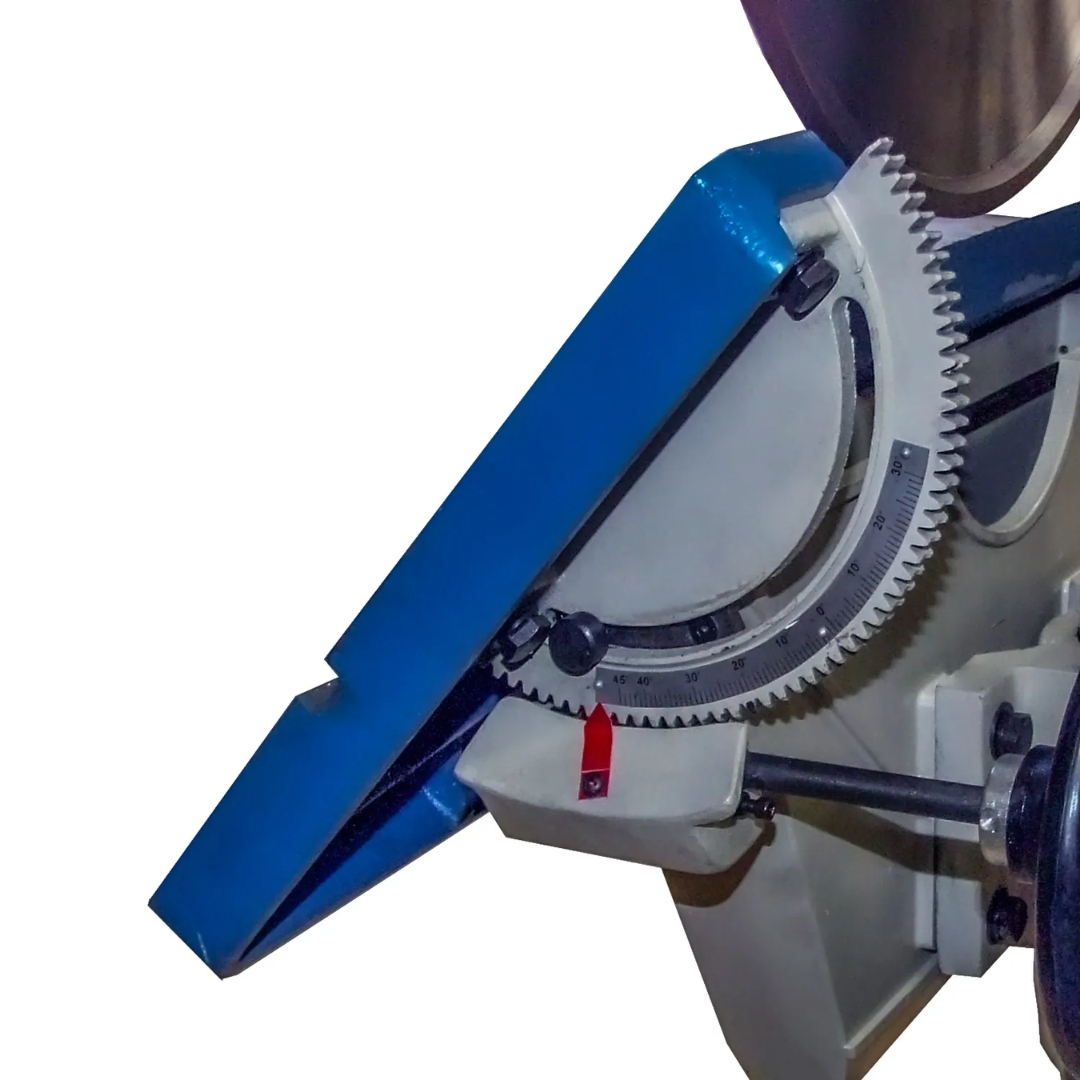

- Vertical chamfer adjustment up to 45° simplifies beveling and edge preparation for welding and fabrication projects.
- Integrated dust port connects to shop vacuum or dust collection systems to help maintain a cleaner working environment.
- Heavy cast iron base and worktable reduce vibration, improve stability, and enhance grinding accuracy during demanding industrial use.
- Industrial-grade construction is built for long service life in fabrication shops, maintenance departments, and production environments.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Disc Grinder DG-500 1002708
- Large 20-inch grinding disc for heavy-duty metal finishing.
- Powerful 2 HP motor provides reliable industrial grinding performance.
- 1,100 RPM disc speed balances efficient stock removal with smooth surface finishes.
- Large adjustable cast iron worktable improves accuracy and workpiece support.
- 45° chamfer adjustment increases versatility for fabrication applications.
- Integrated dust collection port promotes a cleaner, safer workspace.
- Ideal for fabrication shops, machine shops, maintenance departments, and industrial manufacturers.
The Baileigh Disc Grinder DG-500 1002708 combines a large grinding surface, rugged cast iron construction, precision worktable adjustments, and dependable industrial power to deliver professional-quality deburring, chamfering, edge finishing, and surface preparation. Built for demanding production environments, it provides the durability, accuracy, and performance professionals expect from Baileigh Industrial.
