Baileigh Combination Belt and Disk Grinder DBG-9436 1227901 Applications
- Metal fabrication and welding shops.
- Deburring laser-cut, plasma-cut, and machined parts.
- Edge chamfering prior to welding.
- Cleaning castings and fabricated components.
- Surface preparation before finishing or painting.
- Maintenance and repair facilities.
- Tool rooms and prototype manufacturing.
- General-purpose grinding, shaping, and metal finishing operations.
The Baileigh Combination Belt and Disk Grinder DBG-9436 1227901 provides two versatile grinding stations in one compact machine, making it an excellent solution for shops requiring efficient material removal, edge preparation, and finishing.
Baileigh Combination Belt and Disk Grinder DBG-9436 1227901 Specifications
| Model | DBG-9436 |
|---|---|
| Part Number | 1227901 |
| Motor Power | 1 HP |
| Power Requirement | 115V Single-Phase |
| Motor Phase | Single Phase |
| Machine Type | Combination Belt and Disc Grinder |
| Belt Size | 4" × 36" |
| Belt Speed | 4,712 FPM |
| Disc Diameter | 9" |
| Disc Speed | 3,600 RPM |
| Table Angle Range | 0° to 45° |
| Miter Angle Range | 45° (Table) |
| Included Abrasive Grit | 80 Grit Belt and Disc |
| Vacuum Port | Ready for Standard Shop Vacuum Connection |
| Net Weight | 150 lbs. |
| Gross Weight | 150 lbs. |
| UPC | 19907674085 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Combination Belt and Disk Grinder DBG-9436 1227901 Performance & Construction
- Dual-function grinding system combines a 4" × 36" abrasive belt grinder and a 9" grinding disc into one space-saving machine.
- Powerful 1 HP motor provides dependable grinding performance for fabrication, welding, maintenance, and metal finishing applications.
- 115V single-phase operation allows easy installation in most commercial shops, maintenance departments, and home workshops.
- High belt speed of 4,712 FPM delivers aggressive material removal for deburring, shaping, edge preparation, and finishing.
- 9-inch grinding disc operating at 3,600 RPM provides smooth surface finishing and accurate edge grinding.

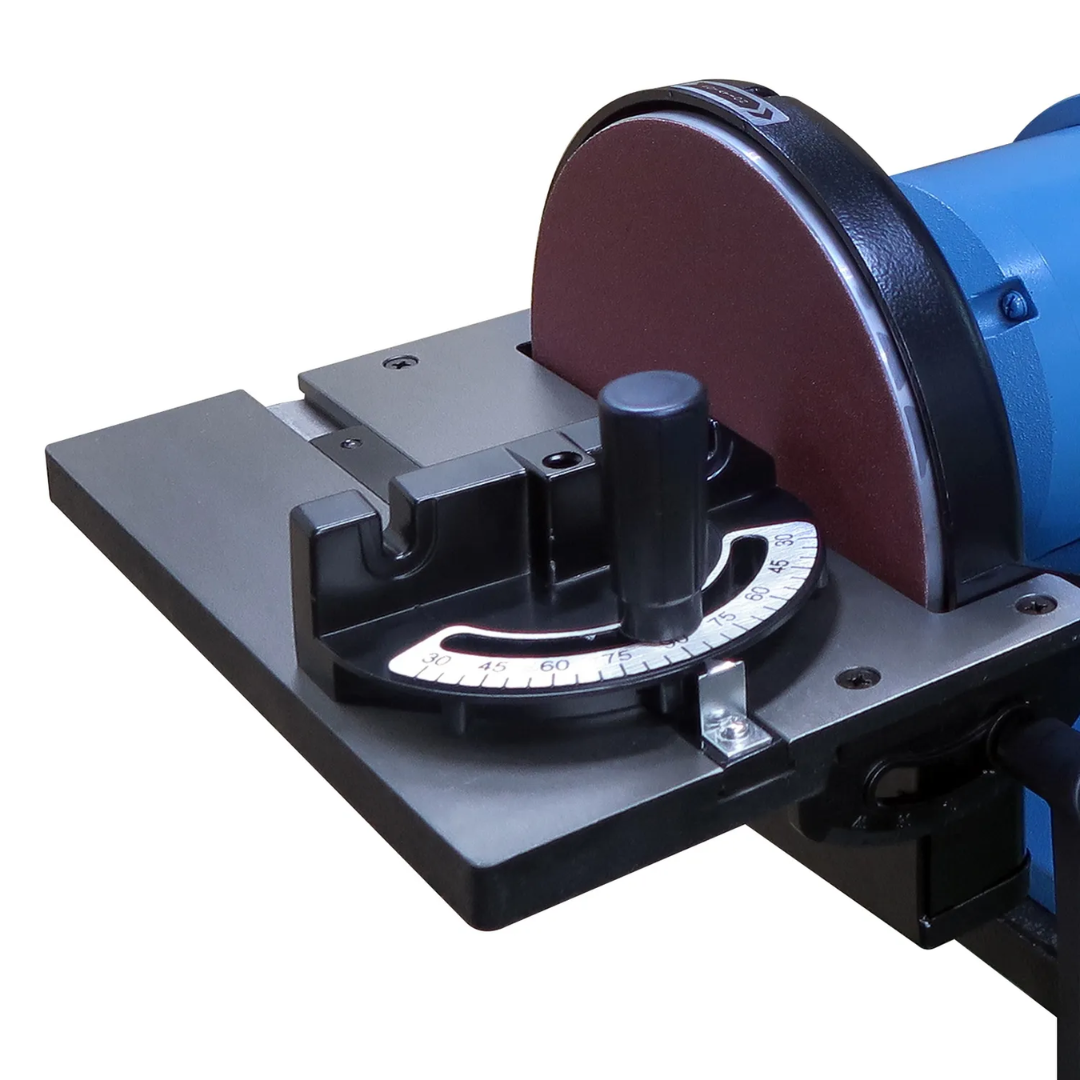

- Large adjustable work tables tilt up to 45° to simplify miter grinding, beveling, and angled finishing operations.
- Precision belt tension and tracking adjustments allow quick belt alignment while promoting consistent grinding performance and extended abrasive life.
- Vacuum port ready design accepts a standard shop vacuum to help reduce airborne grinding dust and maintain a cleaner workspace.
- 80-grit abrasive belt and disc are ideal for general-purpose grinding, deburring, and material removal immediately after installation.
- Heavy-duty benchtop construction provides excellent stability and durability for continuous daily shop use.
- Compact footprint maximizes shop space while offering the flexibility of two grinding stations in a single machine.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Combination Belt and Disk Grinder DBG-9436 1227901
- Two grinding machines combined into one compact benchtop unit.
- Powerful 1 HP motor provides reliable industrial grinding performance.
- 4" × 36" abrasive belt handles aggressive deburring and edge preparation.
- 9" grinding disc delivers accurate finishing and precision edge work.
- 115V single-phase power allows installation in virtually any workshop.
- 45° adjustable work tables improve grinding versatility.
- Belt tracking and tension controls simplify maintenance and belt replacement.
- Vacuum-ready dust port supports cleaner shop operation.
- Ideal for fabrication, welding, maintenance, machining, and metal finishing.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Combination Belt and Disk Grinder DBG-9436 1227901 is an efficient, industrial-quality grinding solution that combines aggressive belt grinding, precision disc finishing, adjustable work support, and dependable 115V performance into a versatile machine built for everyday fabrication and metalworking applications.
