Baileigh Combination Belt and Disk Grinder DBG-9248 1227900 Applications
- Metal fabrication and welding shops requiring efficient deburring and edge finishing.
- Grinding and smoothing burrs after cutting, machining, punching, or plasma operations.
- Chamfering edges and preparing components for assembly or welding.
- Finishing castings, fabricated parts, brackets, plates, and structural components.
- Maintenance and repair facilities performing general grinding and shaping tasks.
- Tool rooms, manufacturing plants, and industrial maintenance departments.
- Precision miter grinding using adjustable work tables with up to 45° positioning.
The dual grinding configuration allows operators to switch between belt grinding and disc grinding operations quickly, improving workflow efficiency and reducing equipment footprint.
Baileigh Combination Belt and Disk Grinder DBG-9248 1227900 Specifications
| Model Number | DBG-9248 |
|---|---|
| Product Name | Baileigh Combination Belt and Disk Grinder DBG-9248 1227900 |
| Motor Power | 1 HP |
| Motor Phase | Single Phase |
| Voltage | 115V |
| Input Power | 115V |
| Belt Size | 2" x 48" |
| Disc Diameter | 9" |
| Belt Speed | 4,712 FPM |
| Disc Speed | 3,600 RPM |
| Abrasive Grit | 80 |
| Wheel Grits | 80 (Disc and Belt) |
| Miter Angle Range | 45° (Table Adjustment) |
| Net Weight | 150 lbs |
| Gross Weight | 150 lbs |
| Warranty | 1 Year |
| UPC | 19907674078 |
Baileigh Combination Belt and Disk Grinder DBG-9248 1227900 Performance & Construction

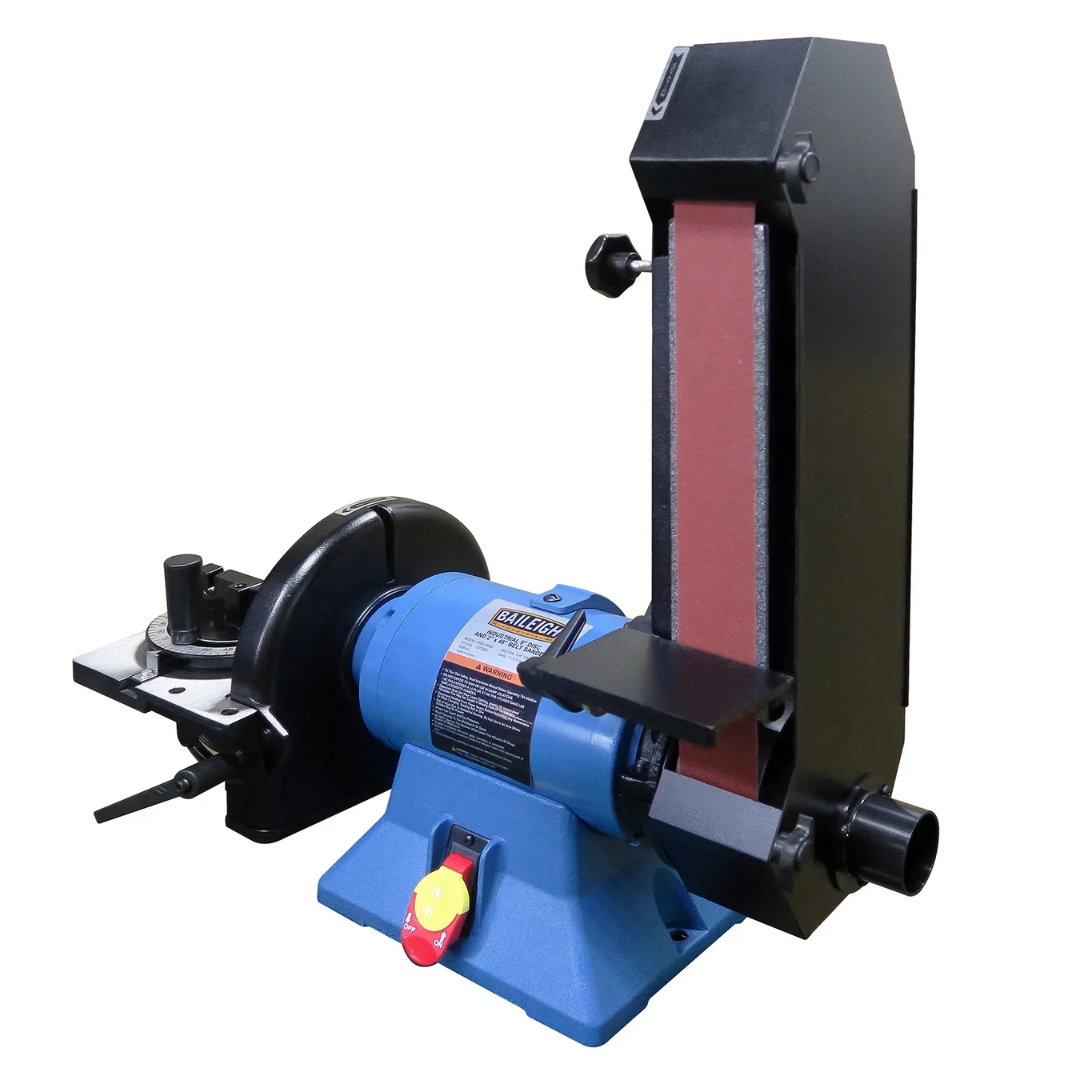

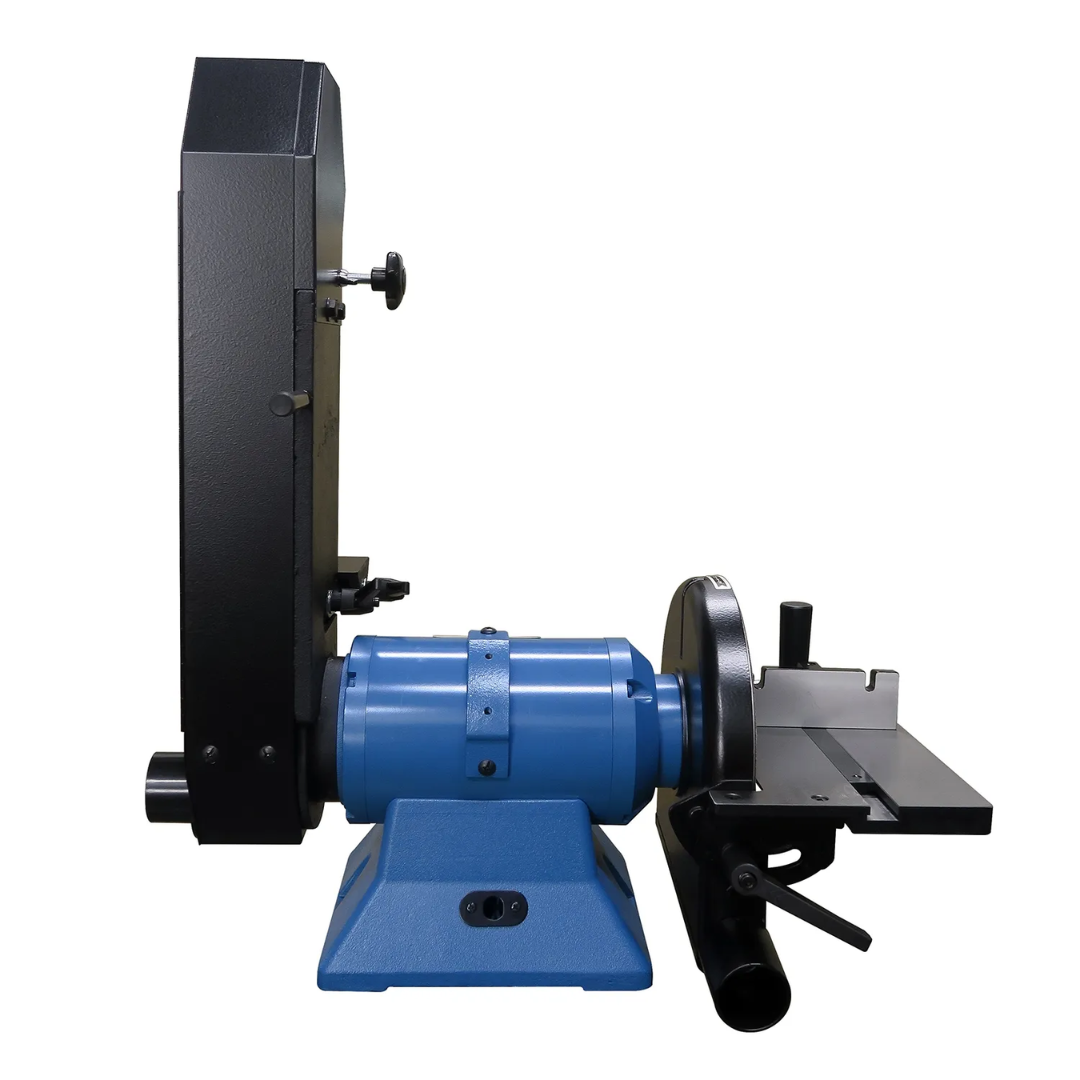

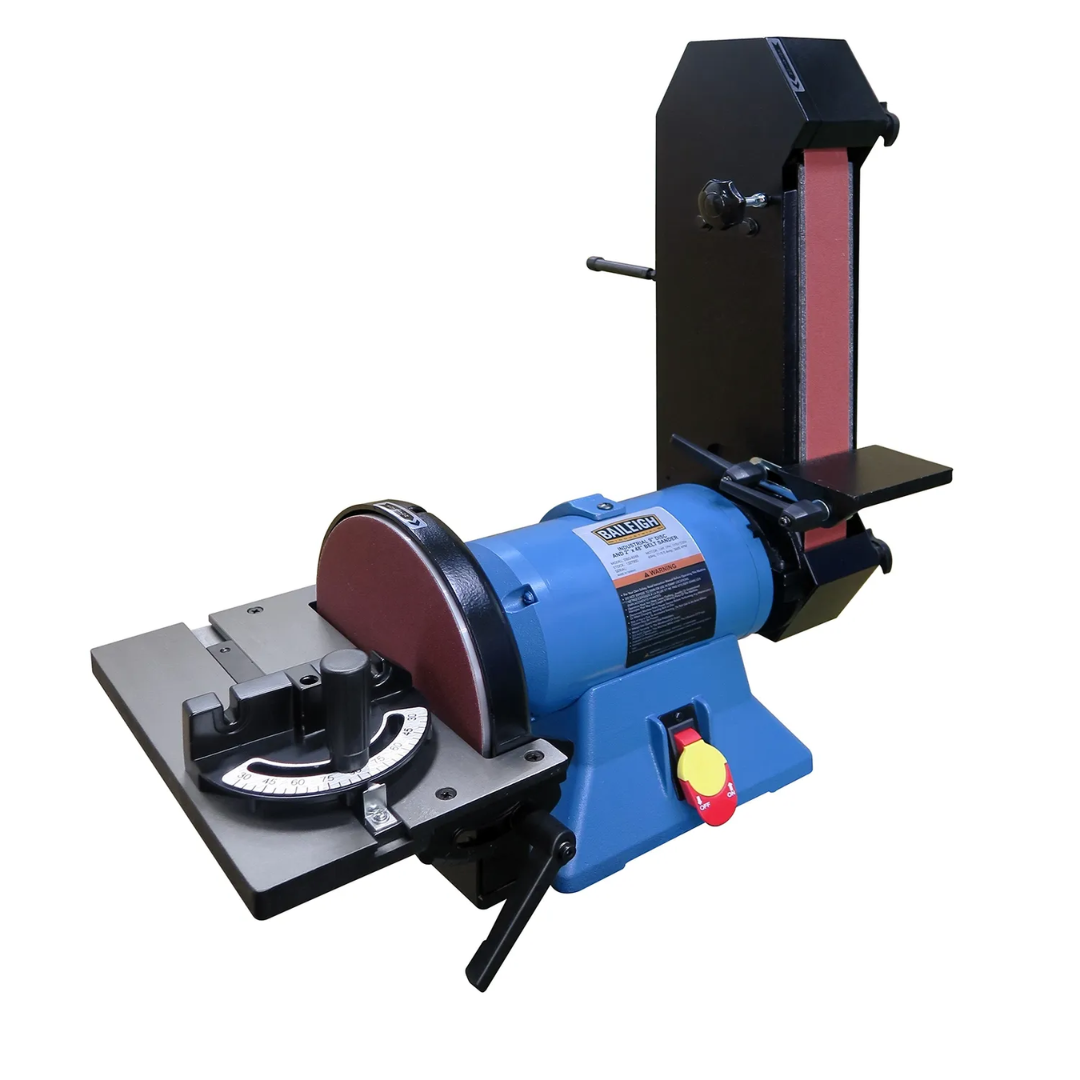

- 2-in-1 Grinding System: Combines a vertical abrasive belt grinder and abrasive disc grinder into a single compact machine.
- Powerful 1 HP Motor: Provides reliable grinding performance for fabrication, maintenance, and production environments.
- 115V Single-Phase Operation: Easily integrates into shops using standard electrical service.
- 2" x 48" Abrasive Belt: Offers a large grinding surface suitable for deburring, shaping, and surface preparation.
- 9" Grinding Disc: Delivers precise edge finishing, squaring, and contour grinding capabilities.
- High Belt Speed: Operates at 4,712 FPM for efficient material removal and consistent finishing performance.
- 3,600 RPM Disc Speed: Provides smooth and controlled grinding for a wide variety of metalworking tasks.

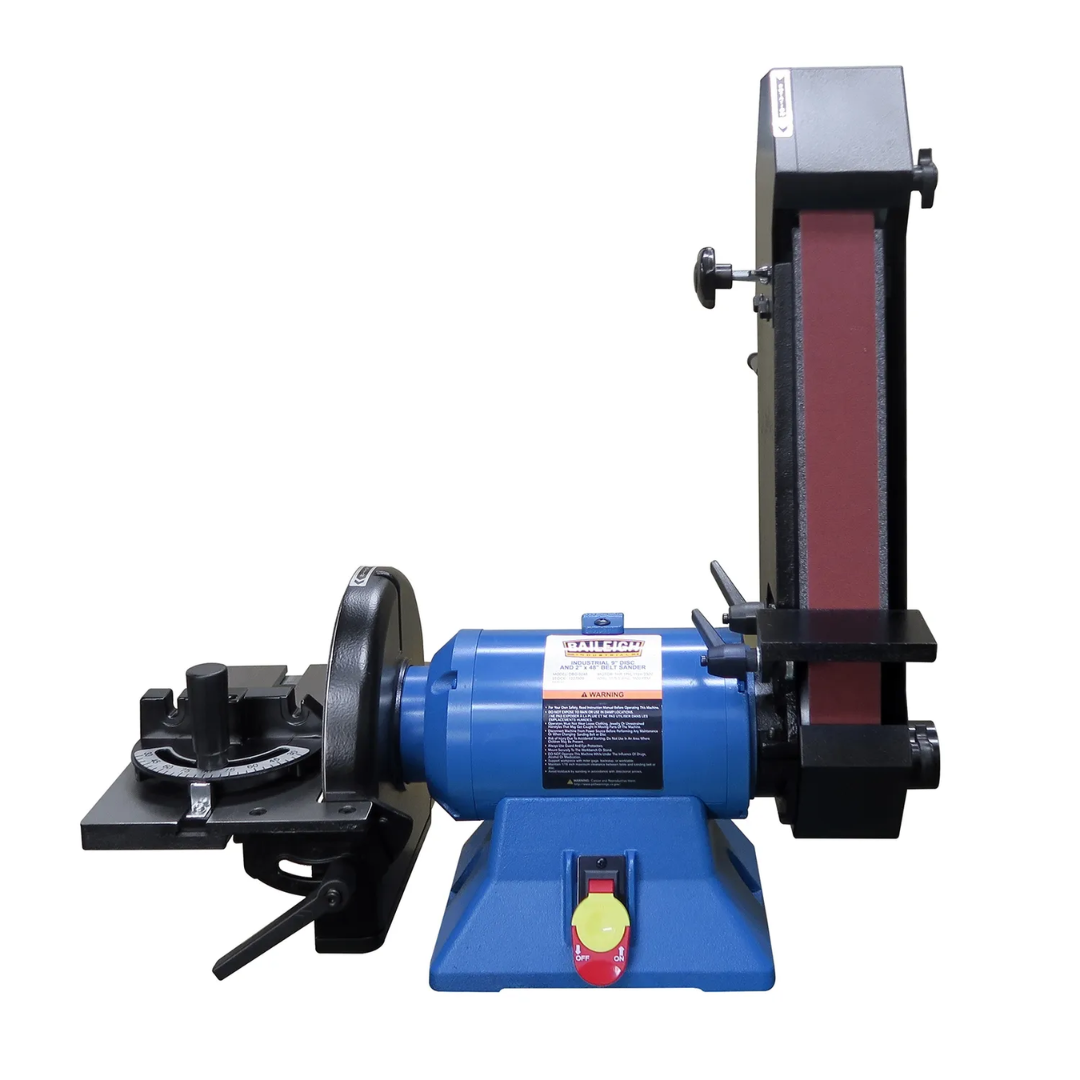

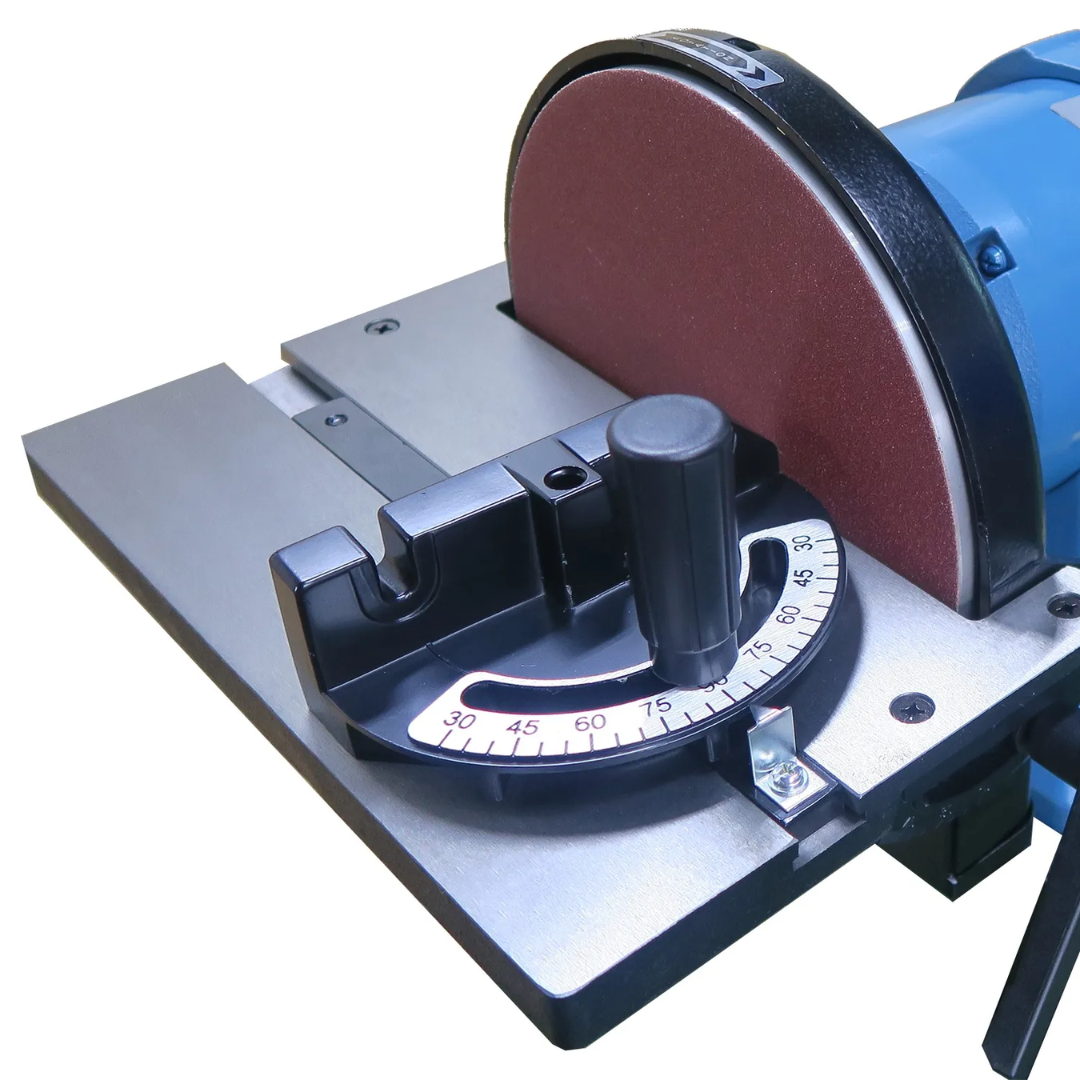

- Adjustable Support Tables: Large work tables can be positioned up to 45° for accurate miter grinding and angled finishing applications.
- Belt Tracking Adjustment: Allows operators to maintain proper belt alignment during operation.
- Tension Control System: Simplifies belt changes while helping ensure consistent abrasive performance.
- Dust Collection Port: Supports connection to a shop vacuum for cleaner operation and improved workplace visibility.

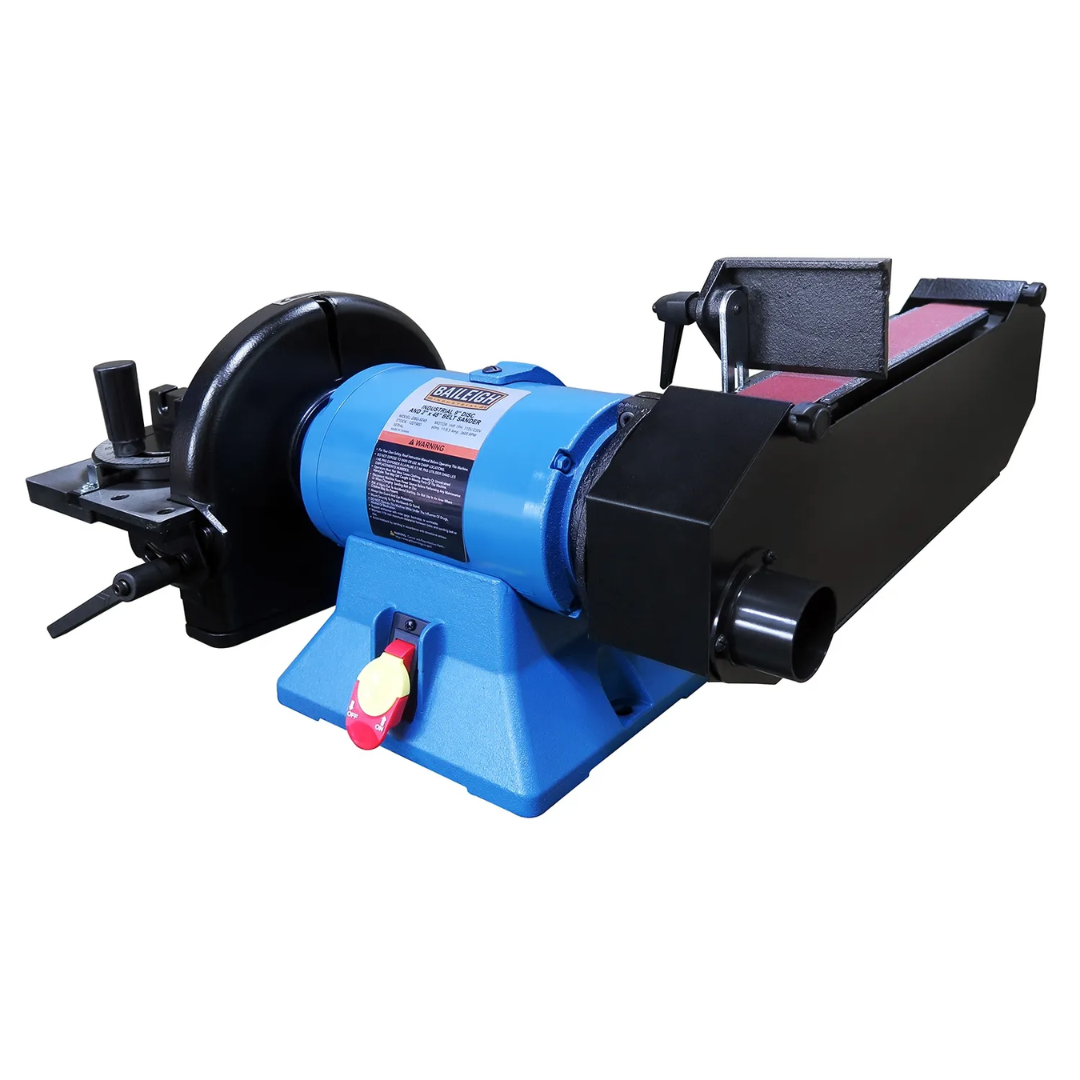

- Industrial Benchtop Design: Heavy-duty construction and 150 lb weight provide stability and vibration reduction during grinding operations.
Why Choose the Baileigh Combination Belt and Disk Grinder DBG-9248 1227900
- Combines belt grinding and disc grinding capabilities in one machine.
- Powerful 1 HP motor delivers dependable performance for daily shop use.
- Runs on standard 115V single-phase power for convenient installation.
- Fast 4,712 FPM belt speed supports efficient stock removal and finishing.
- Adjustable tables allow precision miter grinding up to 45°.
- Integrated dust collection port helps maintain a cleaner work environment.
- Includes Baileigh's 1-year parts warranty and lifetime technical support.
- Ideal for fabrication, welding, maintenance, manufacturing, and metalworking operations.
The Baileigh Combination Belt and Disk Grinder DBG-9248 1227900 delivers the versatility of two grinding machines in a single industrial-grade platform, making it an excellent solution for shops that need reliable deburring, edge finishing, shaping, and precision grinding performance while maximizing workspace efficiency.
