Baileigh Circular Cold Saw - CS-350M 1002569 Applications
- Metal fabrication and welding shops.
- Structural steel and tube fabrication facilities.
- Manufacturing and production environments.
- Maintenance and repair departments.
- Machine shops requiring accurate cutoff operations.
- Handrail, guardrail, and architectural metal fabrication.
- Automotive, motorsports, and chassis fabrication.
- Industrial pipe, tube, and profile cutting applications.
Ideal for fabricators who require clean, burr-minimized cuts, long blade life, and repeatable accuracy on tubing, pipe, and structural materials.
Baileigh Circular Cold Saw - CS-350M 1002569 Specifications
| Model | CS-350M |
|---|---|
| Product Keyword | Baileigh Circular Cold Saw - CS-350M 1002569 |
| Blade Diameter | 14" |
| Motor Power | 4 HP |
| Horsepower | 4 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Blade Speeds | 26 RPM and 52 RPM |
| Number of Speeds | 2 |
| Round Tube Capacity | 4.25" |
| Notch Capacity OD | 4.25" |
| Miter Range | 45° Right / 90° Left |
| Vise Type | American-Style Self-Centering Vise |
| Coolant System | Industrial Flood Coolant |
| Construction | Cast-Iron Base with Heavy Molded Steel Stand |
| Net Weight | 770 lbs |
| Gross Weight | 770 lbs |
| UPC | 19907702948 |
| Warranty | 1 Year |
Baileigh Circular Cold Saw - CS-350M 1002569 Performance & Construction
- Industrial 4 HP motor provides consistent cutting power for demanding production and fabrication applications.
- 14-inch cold saw blade capacity delivers clean, accurate cuts with minimal burr formation.
- Dual blade speed selection of 26 RPM and 52 RPM allows optimization for different materials and cutting requirements.
- 220V three-phase power supports reliable industrial-duty operation.
- 4.25-inch round tube cutting capacity accommodates a wide variety of tubing and pipe applications.

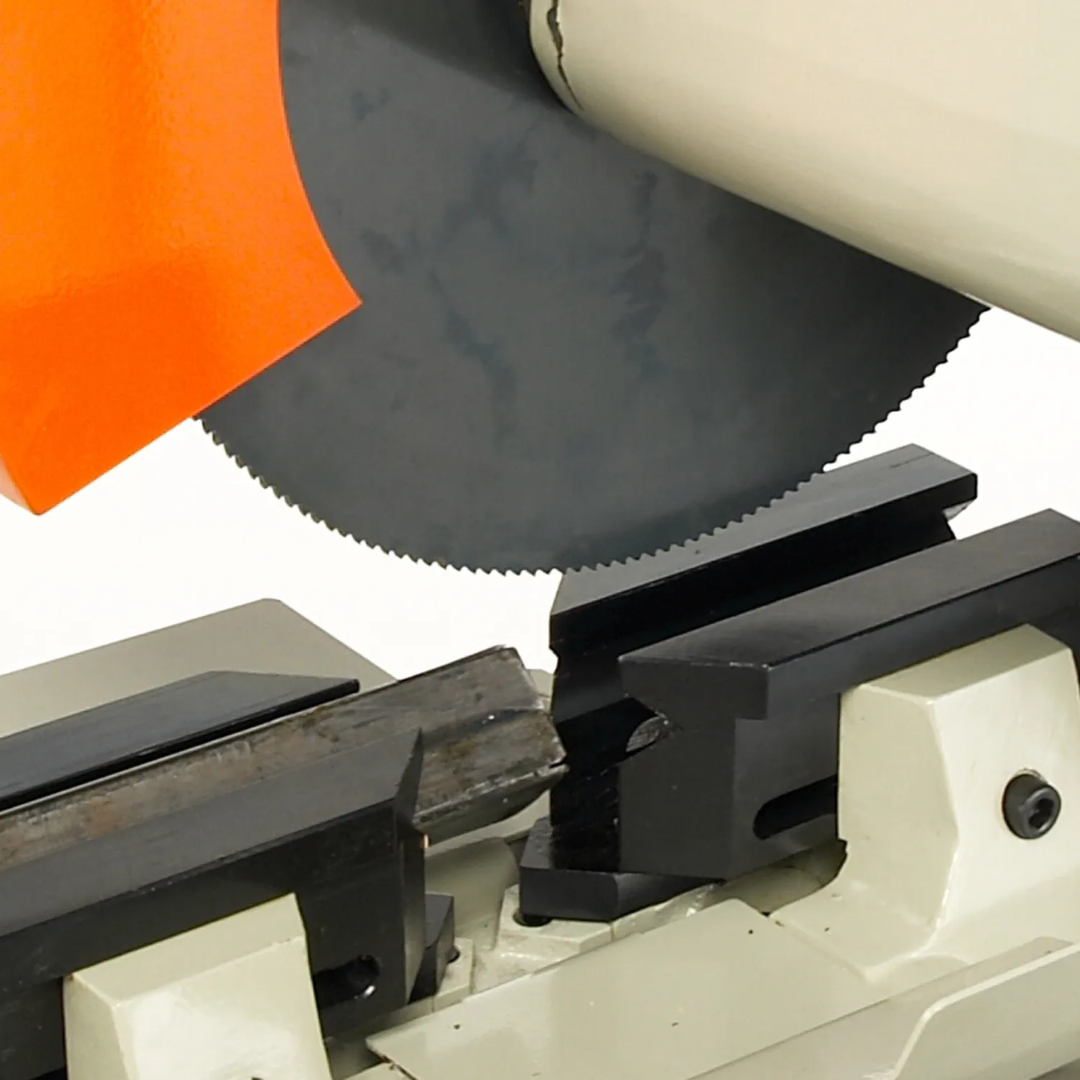

- American-style self-centering vise automatically aligns material for improved cutting accuracy and repeatability.

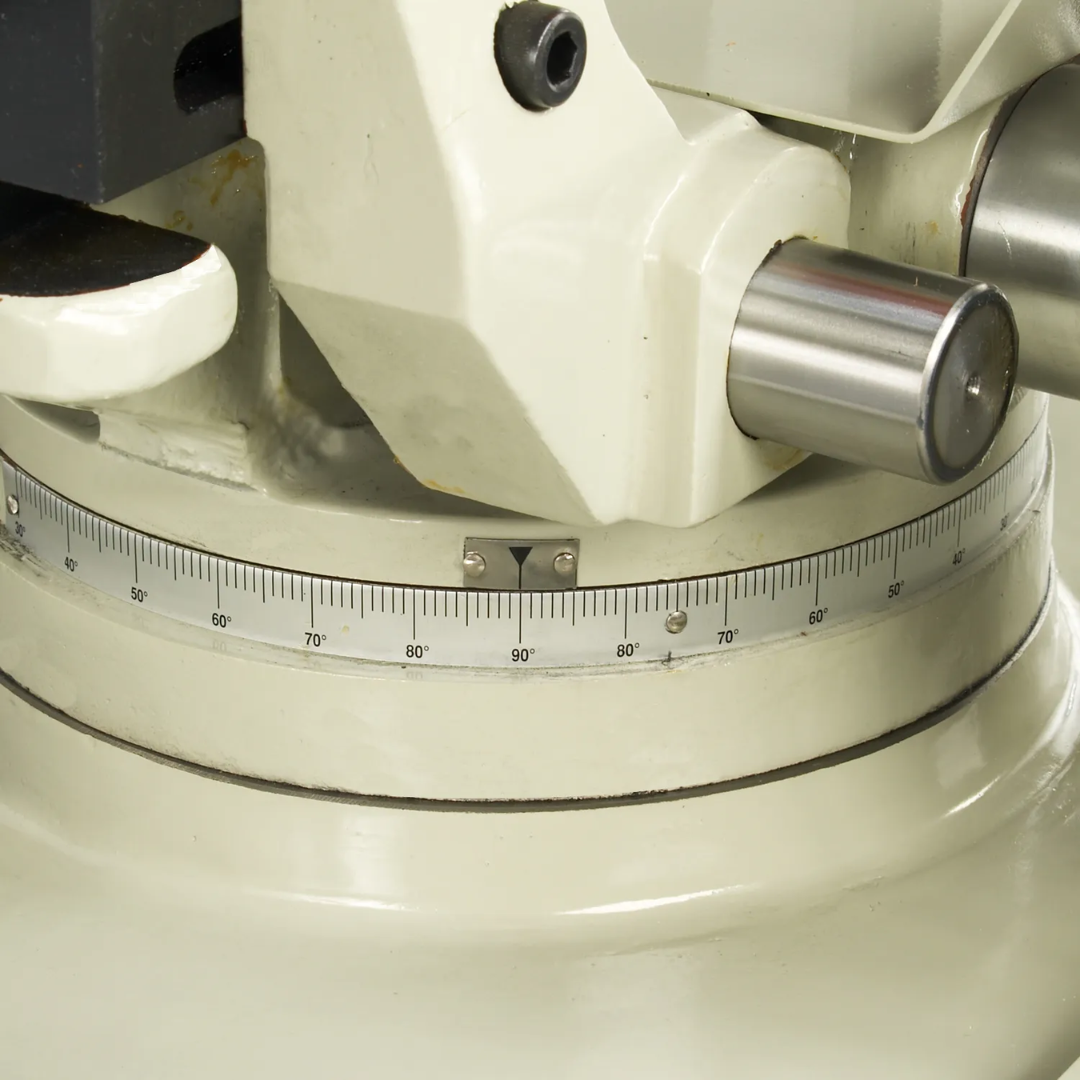

- Left and right miter capability expands versatility for angle cuts, slotting operations, and fabrication projects.

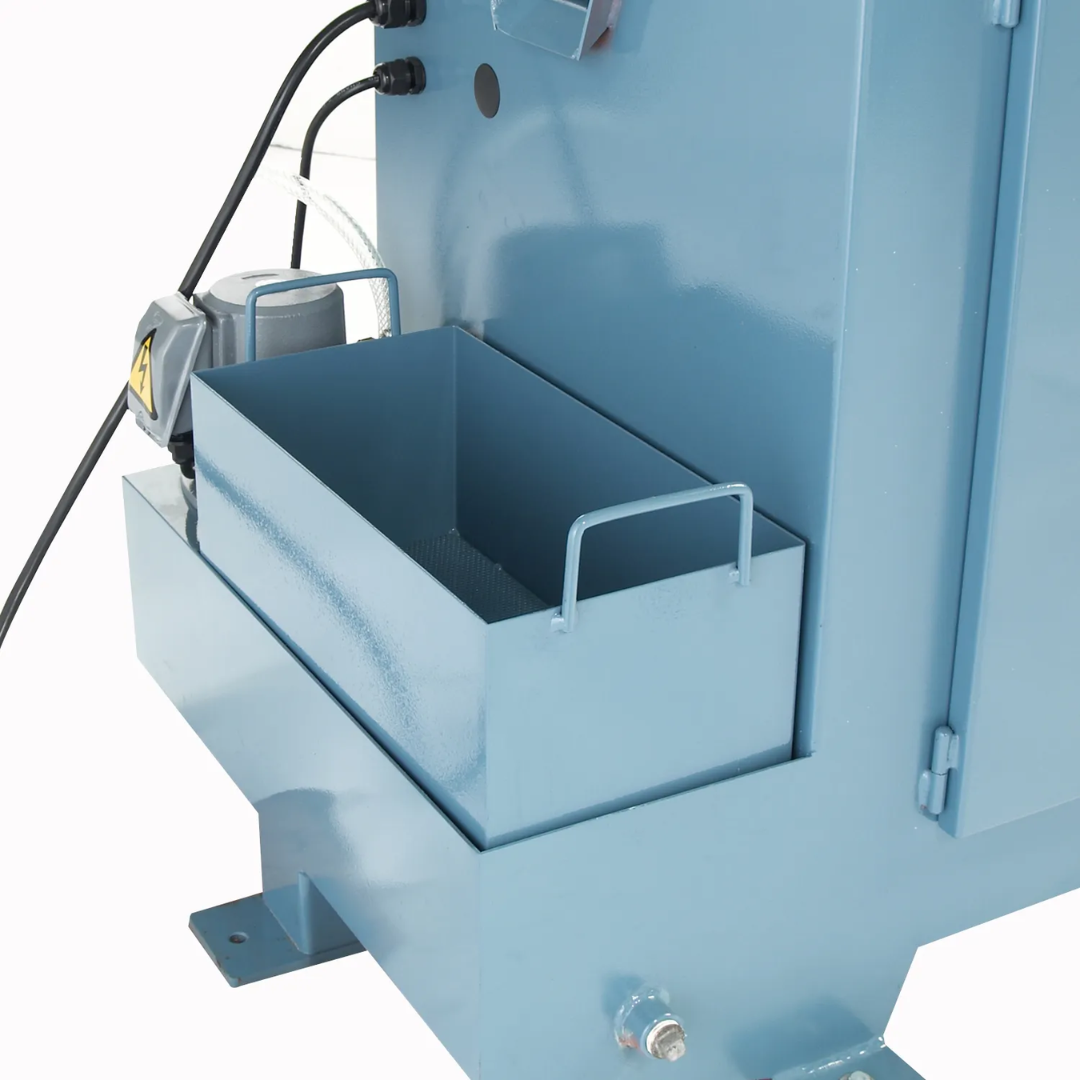

- Industrial flood coolant system continuously lubricates the blade while removing chips and reducing heat buildup.
- Extended blade life achieved through efficient cooling and controlled cutting speeds.
- Rigid cast-iron machine base minimizes vibration and improves overall cut quality.
- Heavy molded steel stand provides stability and durability for long-term shop use.
- Manual operation gives operators precise control over cutting speed and feed pressure.
- Built for industrial production environments where reliability and accuracy are essential.
- Backed by Baileigh lifetime technical support and a 1-year parts warranty.
Why Choose the Baileigh Circular Cold Saw - CS-350M 1002569
- Powerful 4 HP motor designed for industrial metal cutting applications.
- Two blade speeds provide flexibility for a variety of materials.
- Self-centering American-style vise improves accuracy and productivity.
- Flood coolant system extends blade life and enhances cut quality.
- Heavy cast-iron construction minimizes vibration and improves precision.
- 4.25" round tube capacity supports common fabrication requirements.
- Miter cutting capability expands shop versatility.
- Engineered for long service life in demanding production environments.
The Baileigh Circular Cold Saw - CS-350M 1002569 combines industrial-grade power, precision cutting performance, and rugged construction into a dependable cold saw solution. With its dual-speed gearbox, self-centering vise, flood coolant system, and heavy-duty frame, this machine delivers the accuracy, efficiency, and durability required by professional fabricators and manufacturers every day.
