Baileigh C-Frame Press CFP-70HD 1013161 Applications
- Heavy-duty metal forming and shaping operations.
- Industrial straightening and alignment of steel components.
- Bearing, bushing, shaft, and component installation.
- Production manufacturing and assembly processes.
- Tooling, die, and fixture operations.
- Metal fabrication shops requiring high-force hydraulic pressing.
- Industrial maintenance and repair facilities.
- Structural and heavy-gauge metalworking applications.

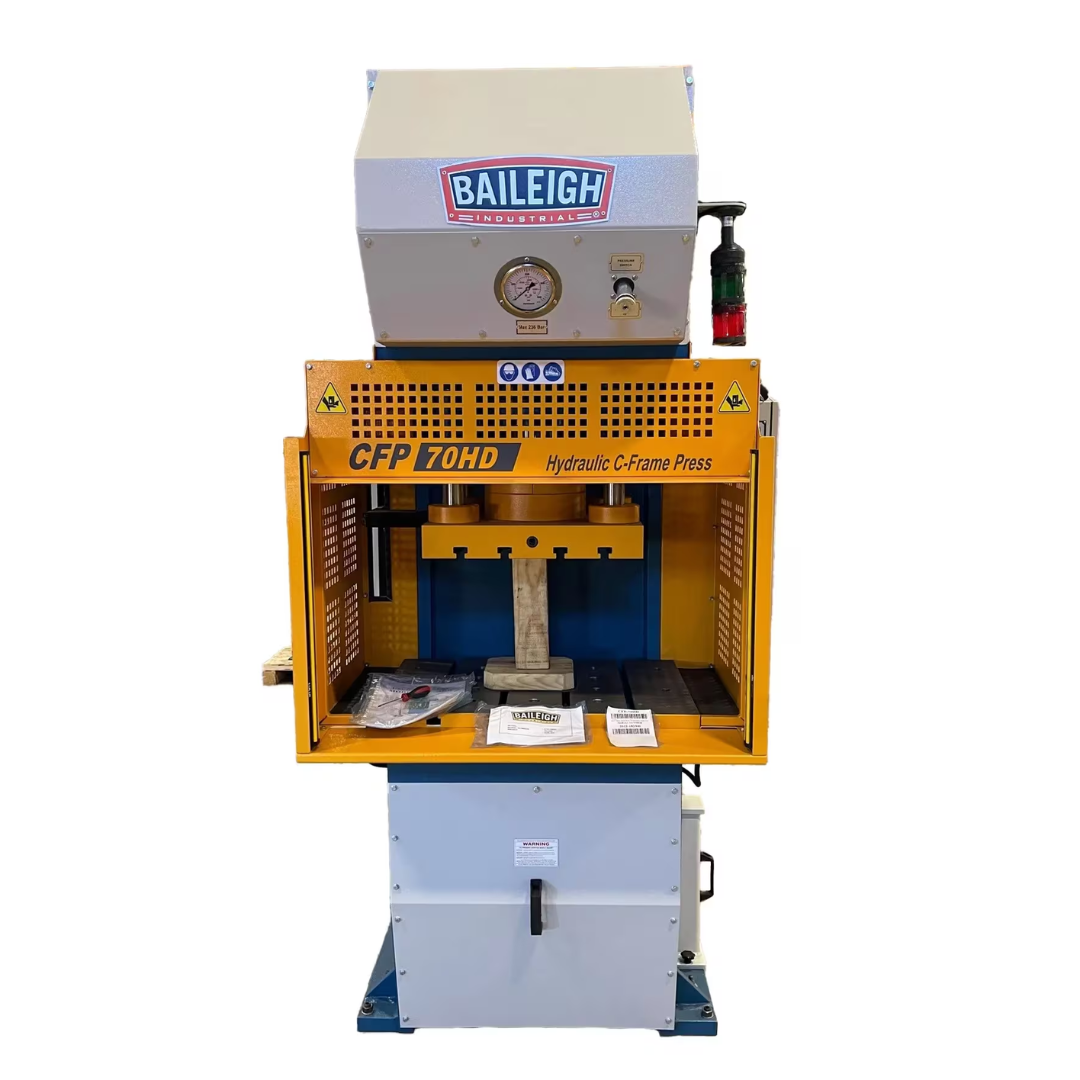

The Baileigh C-Frame Press CFP-70HD 1013161 is designed for manufacturers and fabricators requiring substantial hydraulic force, reliable operation, and precise control for demanding industrial applications.
Baileigh C-Frame Press CFP-70HD 1013161 Specifications
| Product Name | Baileigh C-Frame Press CFP-70HD 1013161 |
|---|---|
| Model Number | CFP-70HD |
| Product Type | Hydraulic C-Frame Press |
| Press Capacity | 70 Tons |
| Return Force | 9 Tons |
| Motor Power | 12 HP |
| Input Power | 480V, 3-Phase, 60Hz |
| Stroke Length | 16.5 in. |
| Shank Hole | 3.9 in. |
| Operation Type | Hydraulically Operated Slide |
| Control System | Separate Control Pedestal |
| Pressure Adjustment | Adjustable Slide Pressure |
| Frame Construction | Fully Welded Steel Construction |
| Gross Weight | 8,180 lbs. |
| Net Weight | 8,180 lbs. |
| UPC | 19907512561 |
| Warranty | 1 Year Parts Warranty |
Baileigh C-Frame Press CFP-70HD 1013161 Performance & Construction
- Massive 70-ton hydraulic capacity provides the force required for heavy-duty pressing, forming, and straightening applications.
- 9-ton return force improves cycle efficiency and helps accelerate production workflows.
- Powerful 12 HP hydraulic system delivers dependable industrial performance for continuous-duty operations.
- 480V 3-phase electrical configuration is ideal for manufacturing plants and industrial fabrication facilities.
- Two-speed hydraulic operation allows operators to balance speed and precision depending on the application.
- 16.5-inch stroke length accommodates larger workpieces and provides flexibility across a broad range of jobs.
- 3.9-inch shank hole supports tooling access and compatibility for specialized applications.

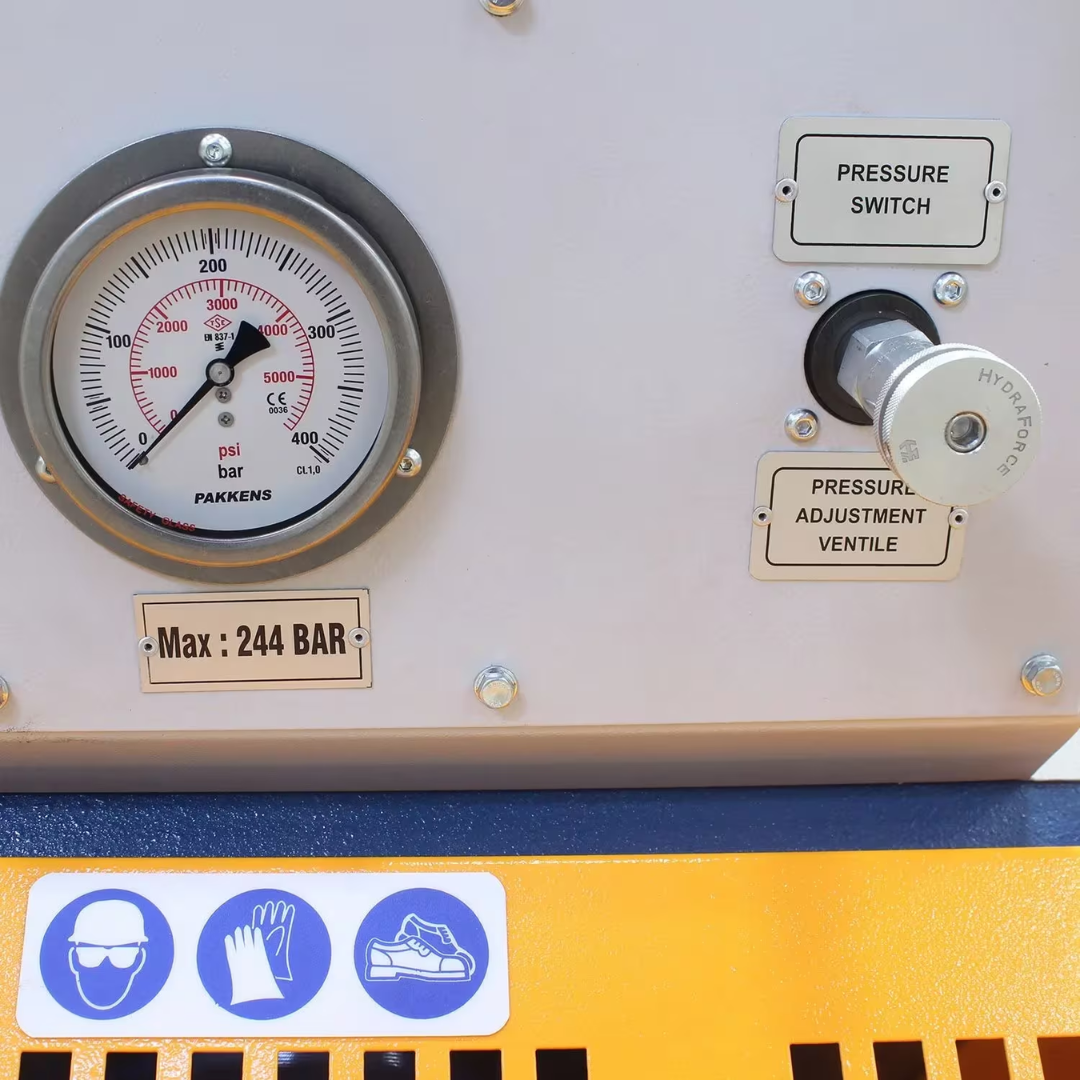

- Adjustable slide pressure enables precise force control for different materials and production requirements.
- Fully welded steel frame maximizes structural strength while minimizing deflection under load.

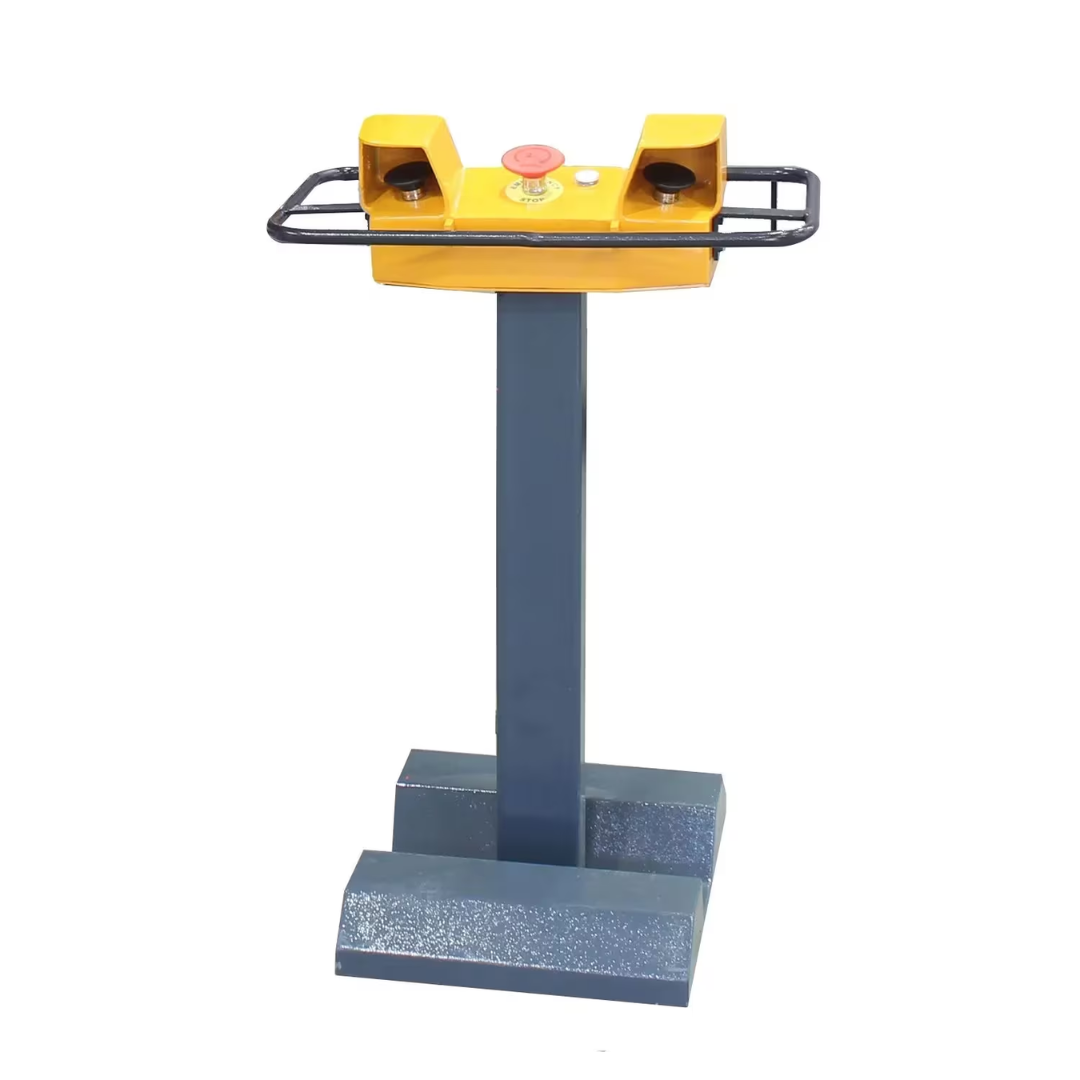

- Separate control pedestal improves operator positioning, visibility, safety, and overall workflow efficiency.
- Hydraulically operated slide delivers smooth and consistent movement for accurate pressing performance.
- Industrial-grade construction is designed for years of dependable service in demanding production environments.
Why Choose the Baileigh C-Frame Press CFP-70HD 1013161
- 70 tons of industrial pressing force for demanding fabrication tasks.
- Heavy-duty fully welded frame built for maximum durability and rigidity.
- Powerful 12 HP hydraulic system for reliable production performance.
- Two-speed operation provides improved productivity and control.
- 16.5-inch stroke supports larger workpieces and tooling setups.
- Adjustable slide pressure increases versatility across applications.
- Separate control pedestal enhances operator comfort and efficiency.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh C-Frame Press CFP-70HD 1013161 combines industrial-strength construction, a powerful 70-ton hydraulic system, two-speed operation, and precision control into a robust manufacturing solution. Designed for heavy-duty pressing, straightening, and forming applications, this machine delivers the durability, performance, and reliability required by modern fabrication and production facilities.
