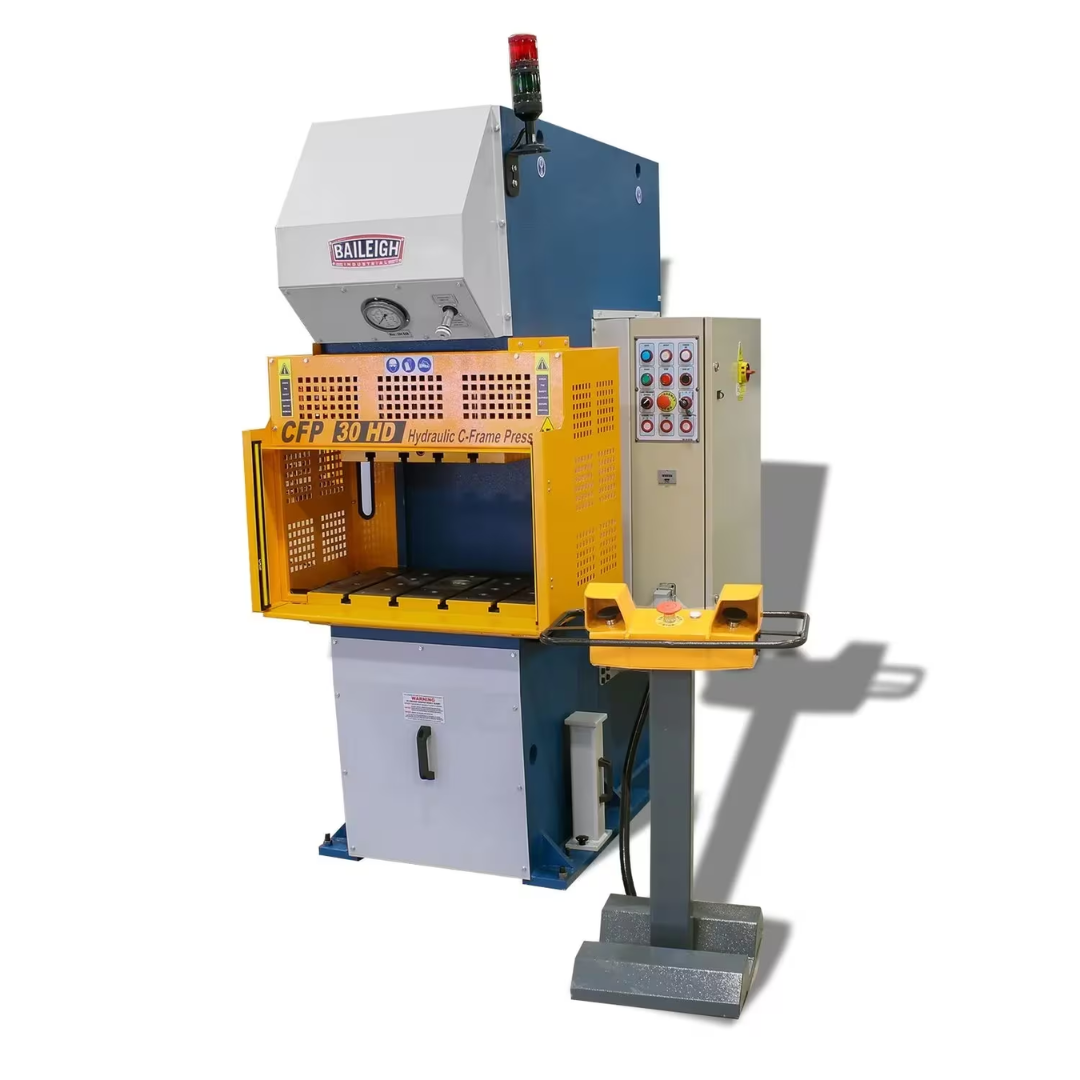

Baileigh C-Frame Press CFP-30HD 1015407 Applications
- Metal forming and shaping operations.
- Industrial straightening and alignment applications.
- Bearing, bushing, and component installation.
- Metal assembly and fabrication processes.
- Production manufacturing environments.
- Tooling, fixture, and die-related operations.
- Maintenance and repair facilities requiring controlled pressing force.
- Custom fabrication shops handling heavy-duty metalworking projects.
The Baileigh C-Frame Press CFP-30HD 1015407 is designed for industrial users who need dependable 30-ton hydraulic pressing power combined with durable construction and precise operational control.
Baileigh C-Frame Press CFP-30HD 1015407 Specifications
| Product Name | Baileigh C-Frame Press CFP-30HD 1015407 |
|---|---|
| Model Number | CFP-30HD |
| Product Type | Hydraulic C-Frame Press |
| Press Capacity | 30 Tons |
| Motor Power | 5 HP |
| Input Power | 220V, 3-Phase, 60Hz |
| Stroke Length | 8 in. |
| Operation Type | Hydraulically Operated Slide |
| Frame Construction | Fully Welded Steel Construction |
| Pressure Control | Adjustable Slide Pressure |

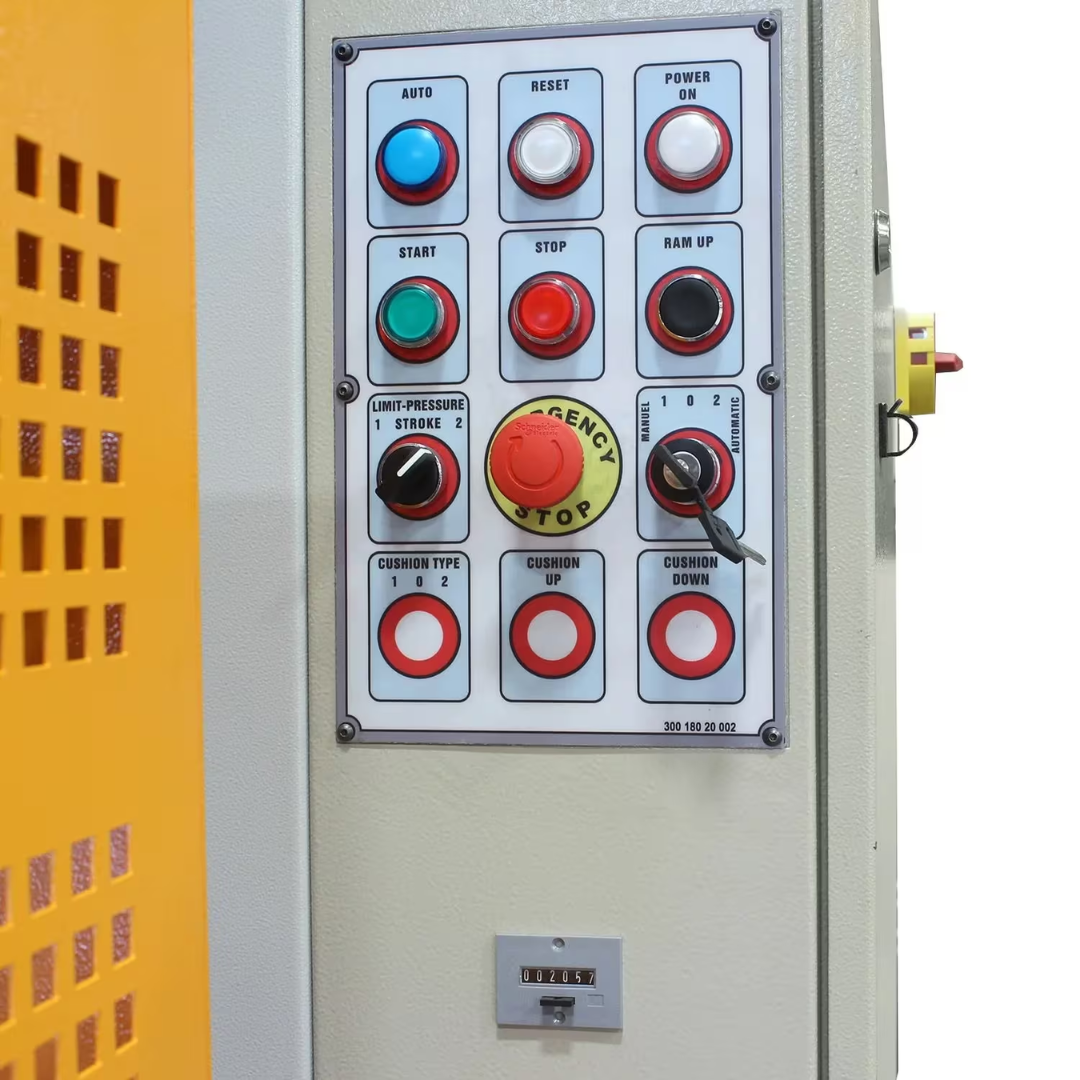

| Control System | Separate Control Pedestal |
| Gross Weight | 5,800 lbs. |
| Net Weight | 5,800 lbs. |
| UPC | 19907598756 |
| Warranty | 1 Year |
Baileigh C-Frame Press CFP-30HD 1015407 Performance & Construction
- 30-ton rated capacity delivers substantial pressing force for industrial forming, straightening, and assembly applications.
- Heavy-duty fully welded frame construction maximizes structural rigidity and minimizes deflection during operation.
- 5 HP industrial motor provides reliable hydraulic power for demanding production environments.
- 220V 3-phase electrical configuration is ideal for manufacturing facilities and industrial workshops.
- Hydraulically operated slide ensures smooth, controlled movement and consistent pressing performance.

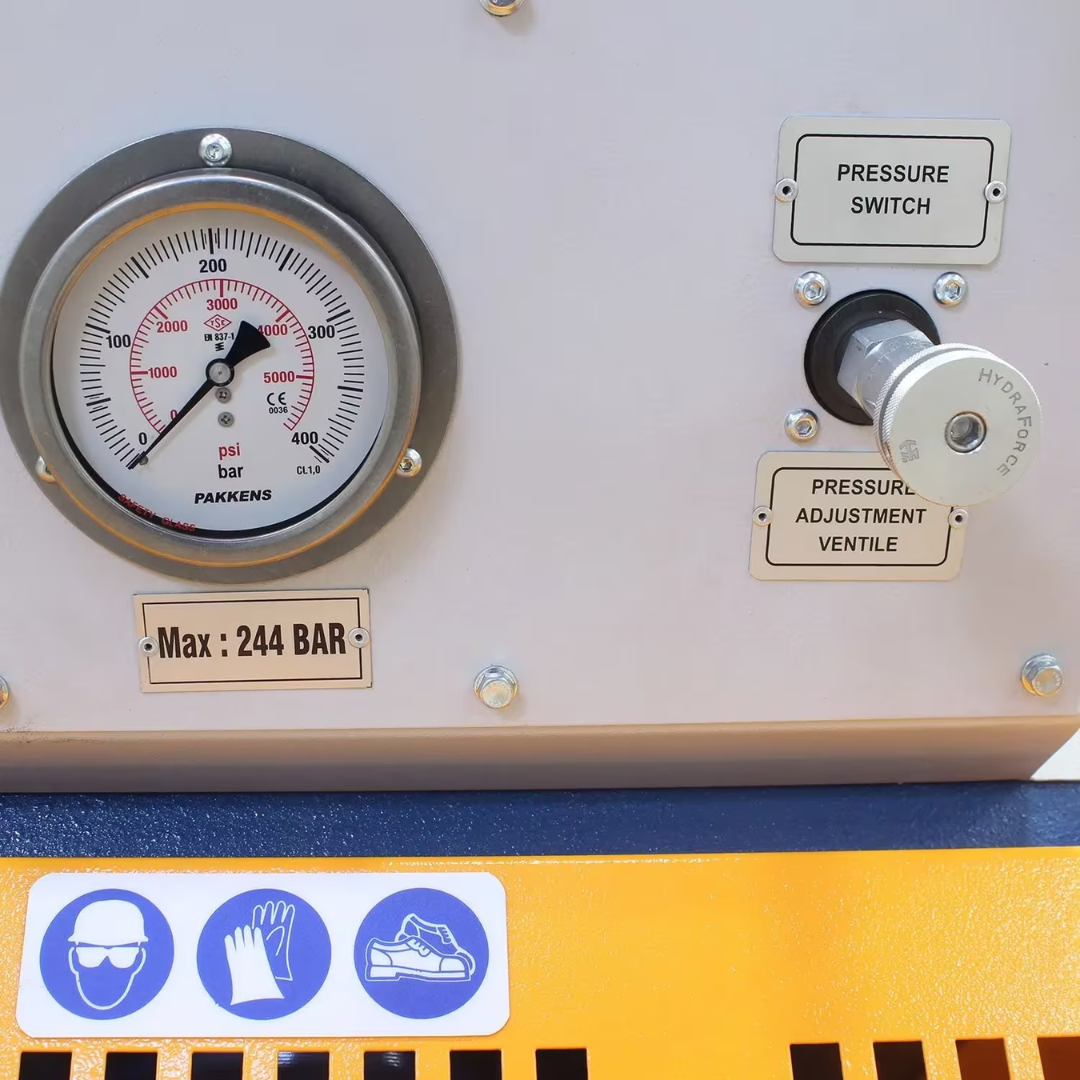

- Adjustable slide pressure allows operators to tailor force output to specific materials and applications.
- 8-inch stroke length offers flexibility for a wide range of pressing and forming operations.

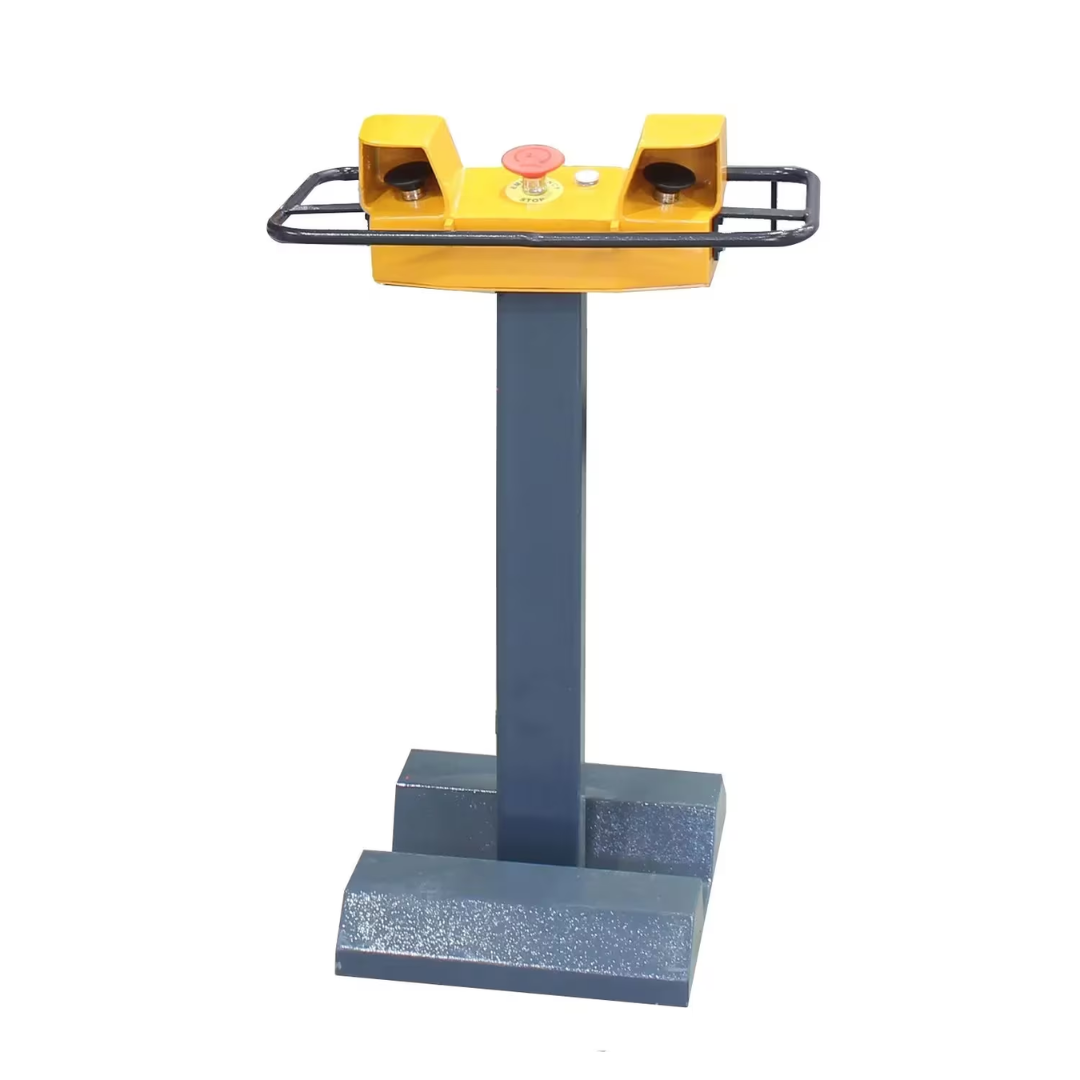

- Separate control pedestal improves operator ergonomics, machine accessibility, and workflow efficiency.
- Industrial-grade hydraulic system is designed for dependable daily operation in demanding production settings.
- Robust machine design supports long service life and reliable performance under continuous workloads.
Why Choose the Baileigh C-Frame Press CFP-30HD 1015407
- Powerful 30-ton hydraulic pressing capability.
- Durable fully welded steel construction built for industrial use.
- 5 HP motor delivers dependable hydraulic performance.
- Adjustable pressure control increases versatility across applications.
- Separate control pedestal enhances operator convenience and safety.
- 8-inch stroke accommodates a wide variety of pressing tasks.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh C-Frame Press CFP-30HD 1015407 is a professional-grade hydraulic press that combines 30 tons of force, industrial-strength welded construction, precise hydraulic control, and dependable 220V 3-phase operation. Designed for fabricators, manufacturers, and industrial maintenance facilities, this machine delivers the strength, durability, and accuracy required for demanding metalworking applications.
