Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 Applications
- Metal fabrication and custom manufacturing projects.
- Cutting mild steel, stainless steel, aluminum, and non-ferrous materials.
- Contour cutting and intricate shape fabrication.
- Prototype development and custom part production.
- Machine shop and maintenance department operations.
- Tool and fixture manufacturing.
- Bevel cutting and angled fabrication work.
- General industrial metal cutting requiring precision and repeatability.

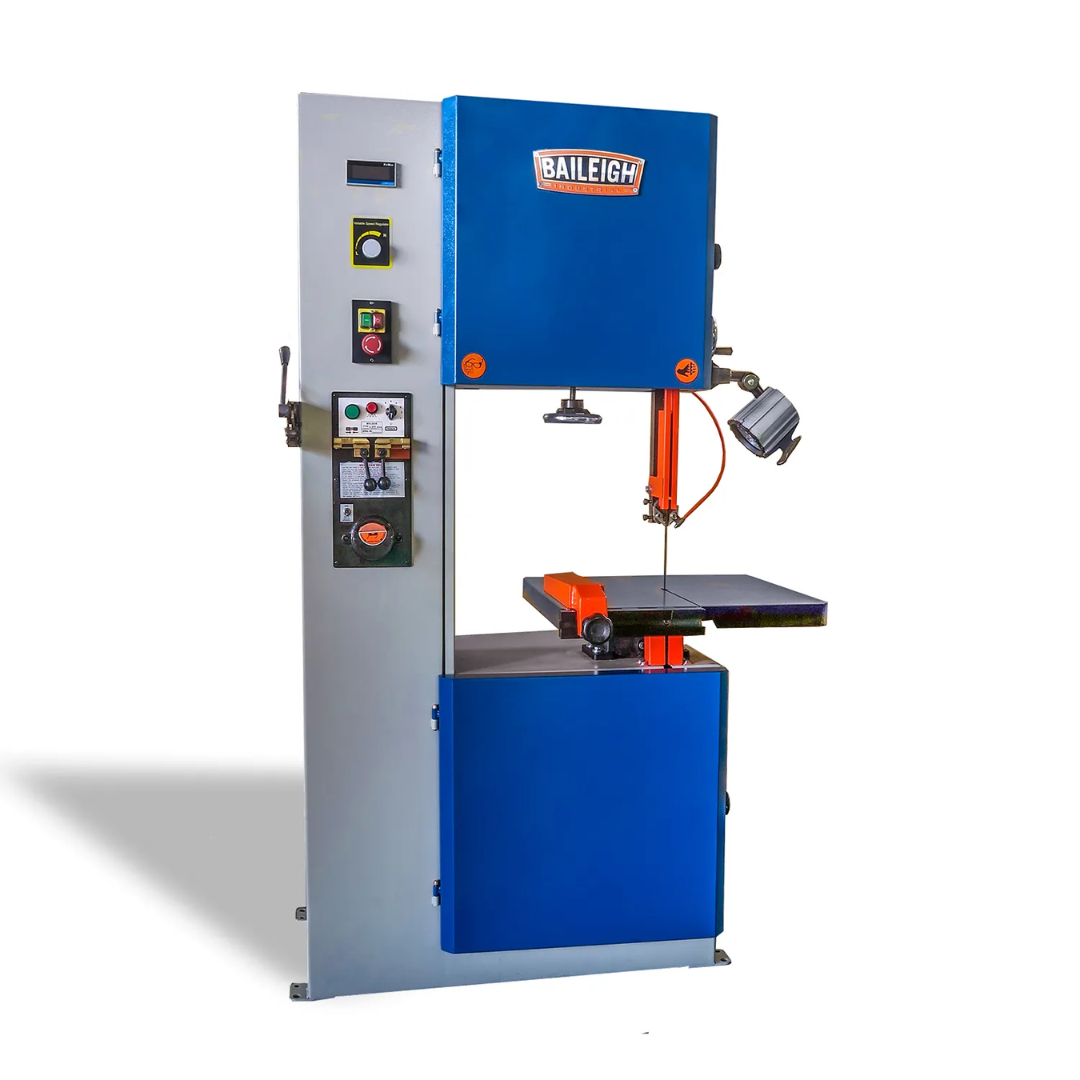

The Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 combines large-capacity cutting capability with variable speed control, making it ideal for both production work and precision fabrication projects.
Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 Specifications
| Model Number | BSV-18VS-V2 |
|---|---|
| Product Keyword | Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 |
| Machine Type | Variable Speed Vertical Bandsaw |
| Motor Power | 1 HP |
| Horsepower | 1 HP |
| Input Power | 110V Single Phase |
| Throat Depth | 18" |
| Maximum Cutting Height | 12.9" |
| Maximum Thickness Capacity | 12.5" |
| Blade Width Capacity | 1/8" – 5/8" |
| Variable Speed Control | Adjustable Blade Speed |
| Table Miter Range | 45° Right, 15° Left |

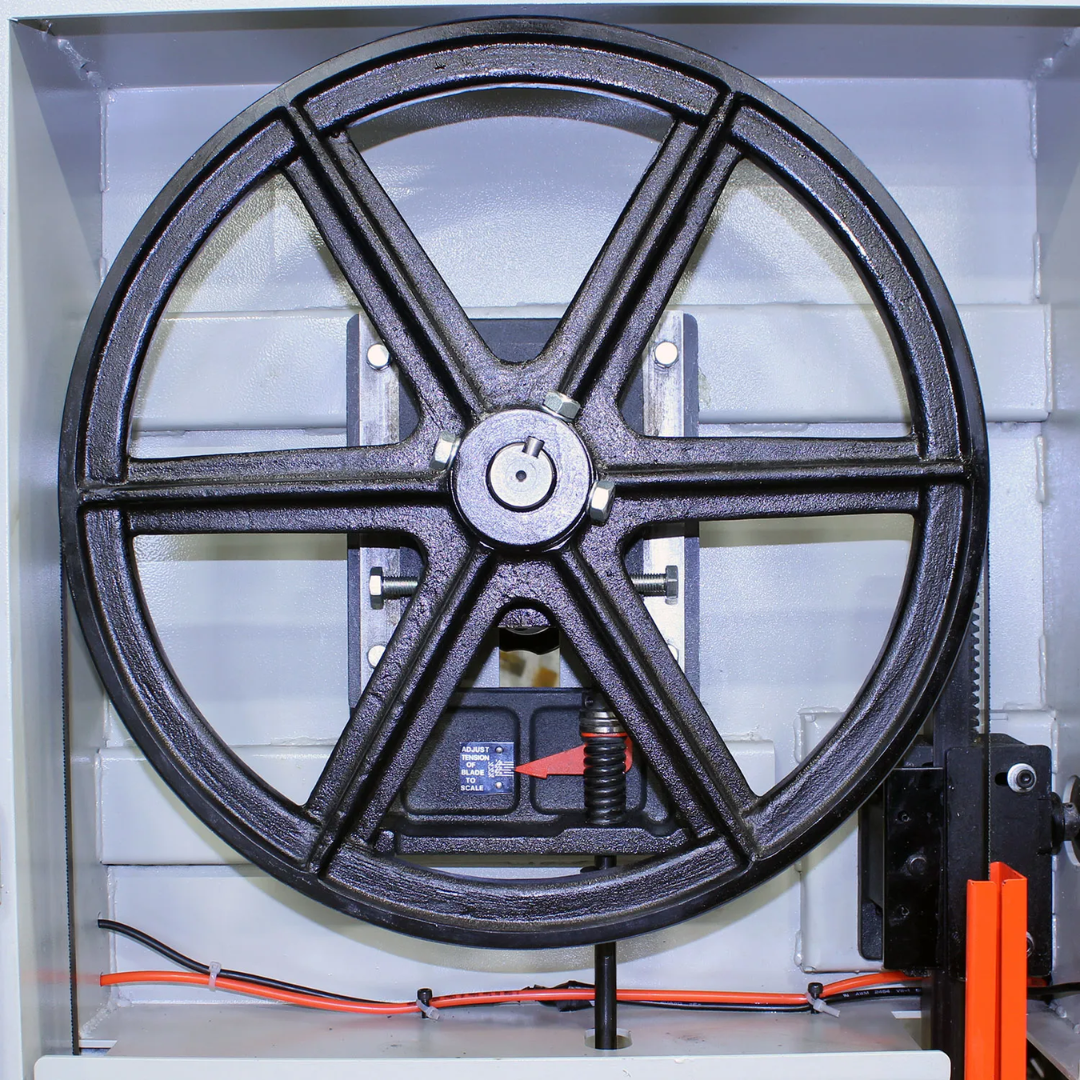

| Wheel Size | 18" |
| Frame Construction | Rigid Welded Steel |
| Table Material | Cast Iron |
| Digital Blade Speed Readout | Included |
| Net Weight | 776 lbs |
| Gross Weight | 776 lbs |
| UPC | 19907010371 |
| Warranty | 1 Year |
| Product Type | Machine |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 Performance & Construction
- Industrial 1 HP motor delivers reliable cutting power for a wide range of metalworking applications.
- 110V single-phase operation allows installation in many commercial workshops without specialized electrical requirements.
- 18-inch throat depth provides ample capacity for handling larger workpieces and complex cutting patterns.
- 12.9-inch maximum cutting height accommodates thick materials and demanding fabrication tasks.
- Blade compatibility from 1/8-inch to 5/8-inch supports both intricate contour work and heavier straight cutting operations.
- True variable-speed blade control enables optimization for different metals and cutting conditions.

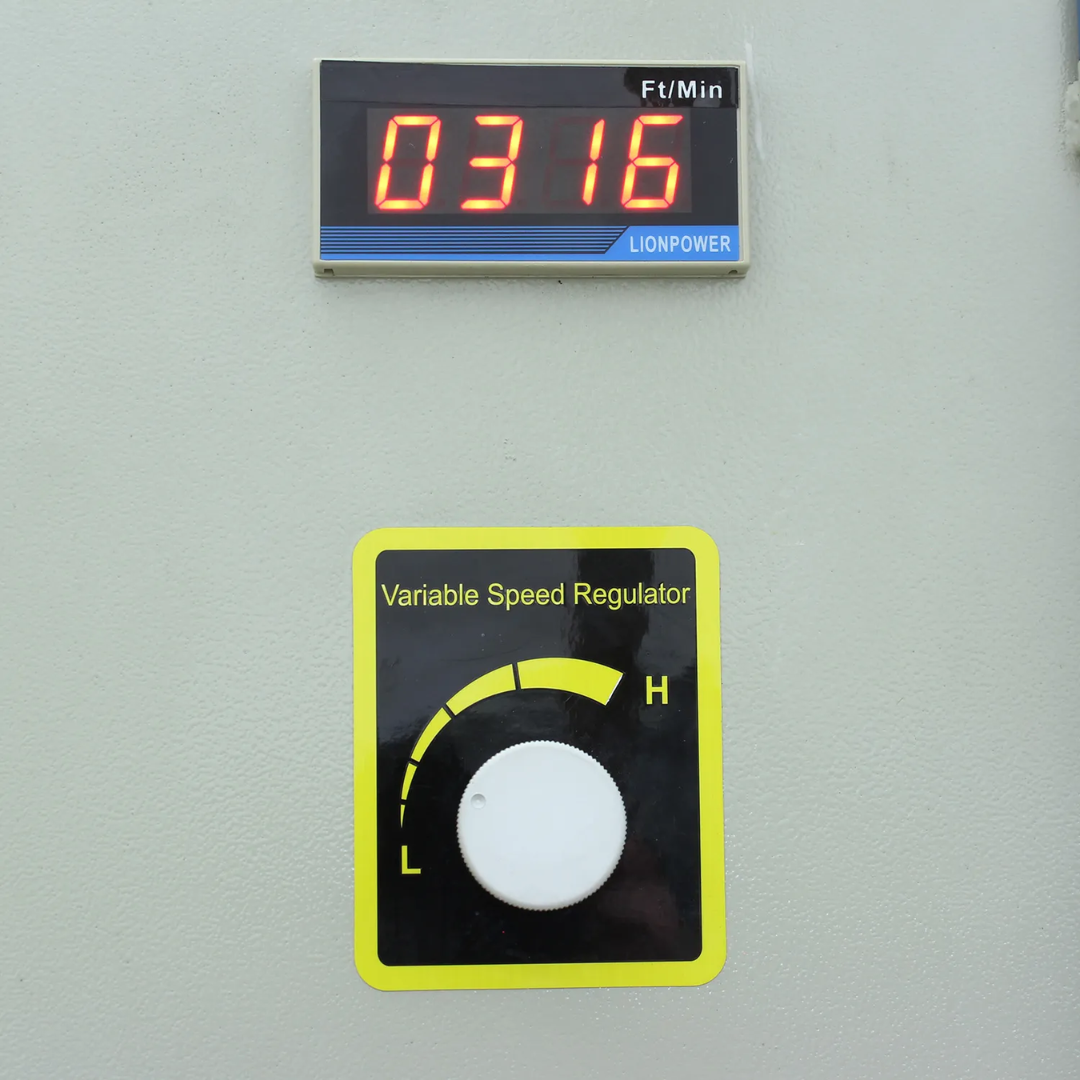

- Digital blade speed readout simplifies setup and improves cutting consistency across various materials.

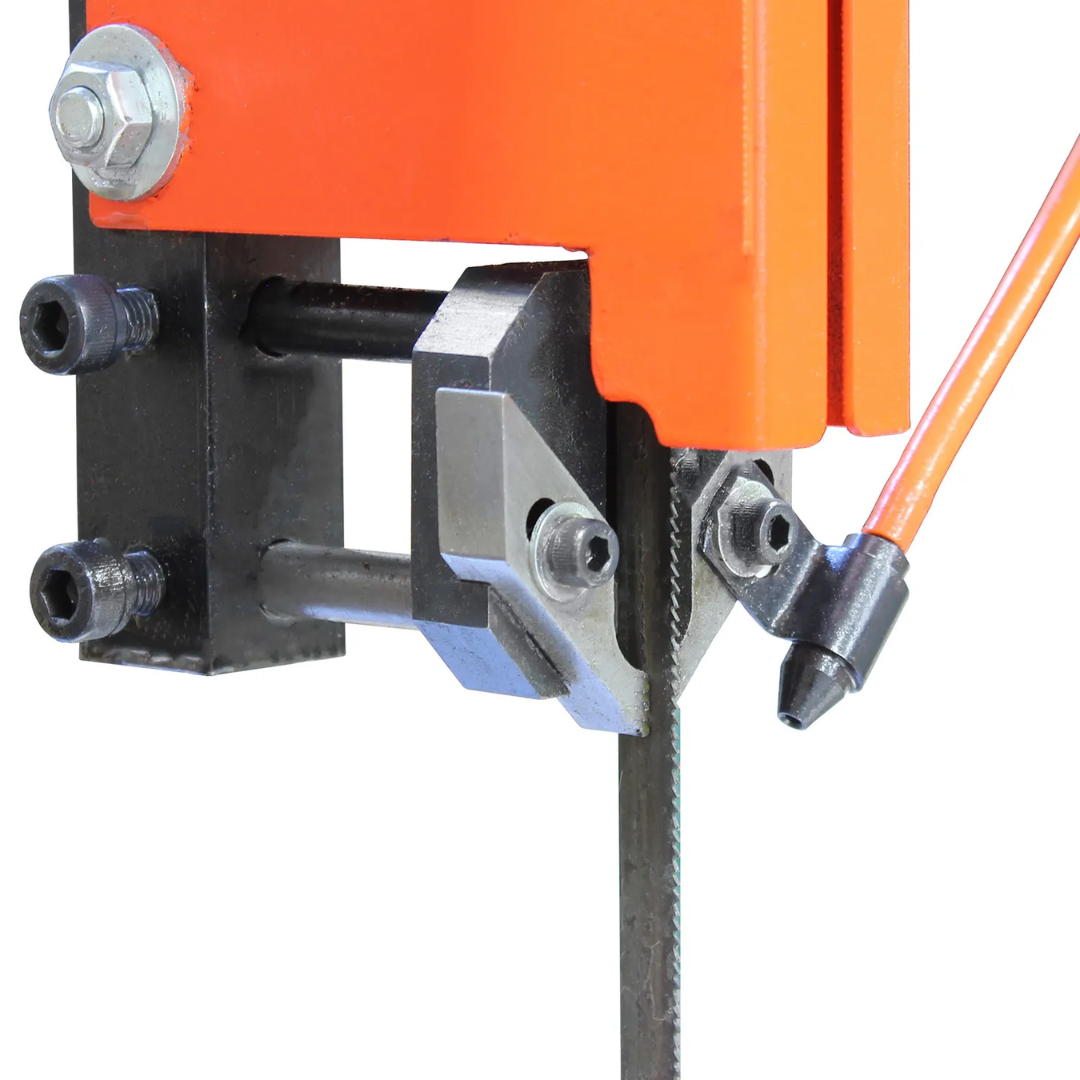

- Precision blade guide system promotes stable blade tracking and improved cut quality.
- Heavy-duty welded steel frame minimizes vibration and maintains alignment during operation.
- Cast iron work table provides a durable, stable surface for precise material handling.

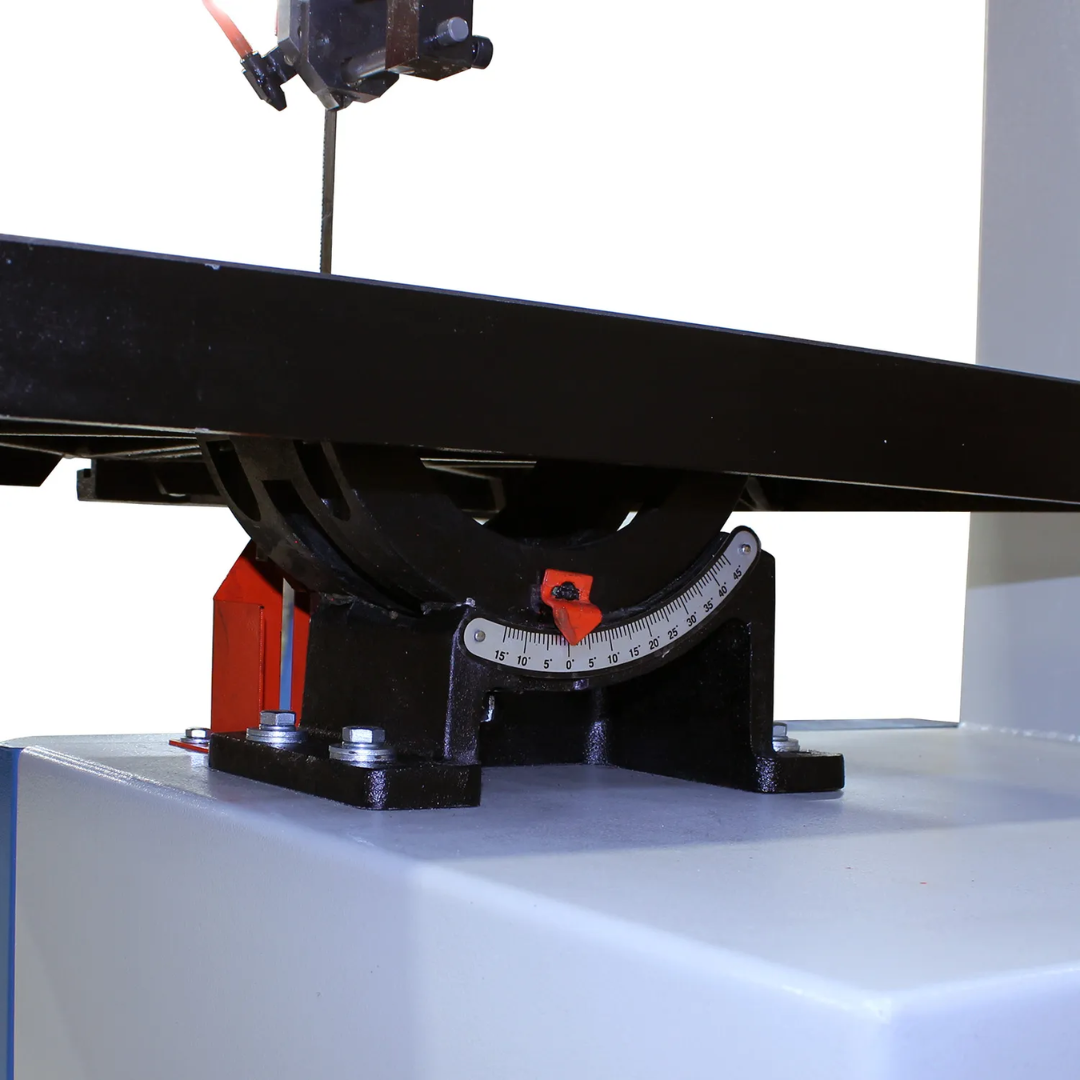

- Tilting table design allows bevel cuts up to 45° right and 15° left for increased fabrication flexibility.

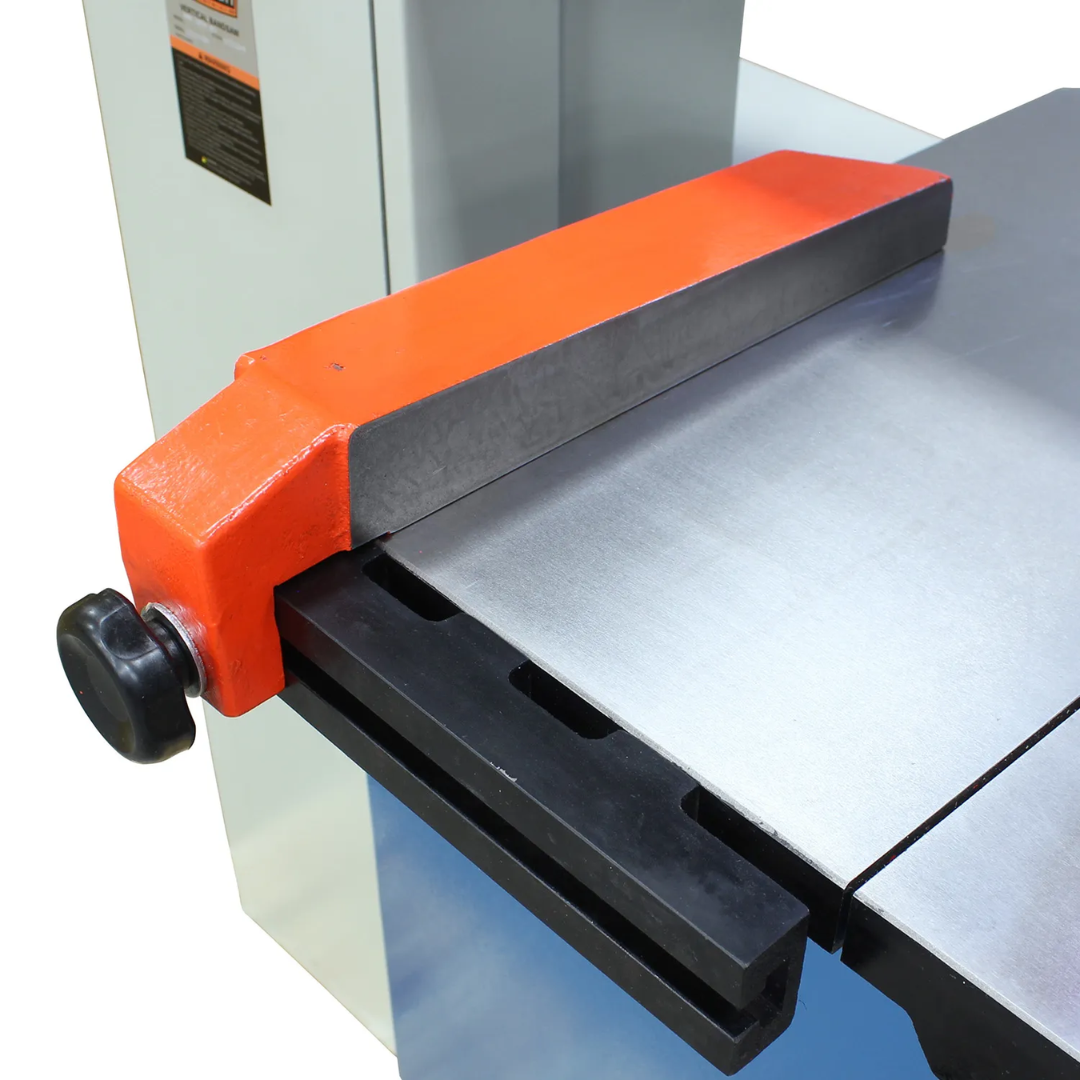

- Cast iron rip fence assists with straight, repeatable cuts and production work.

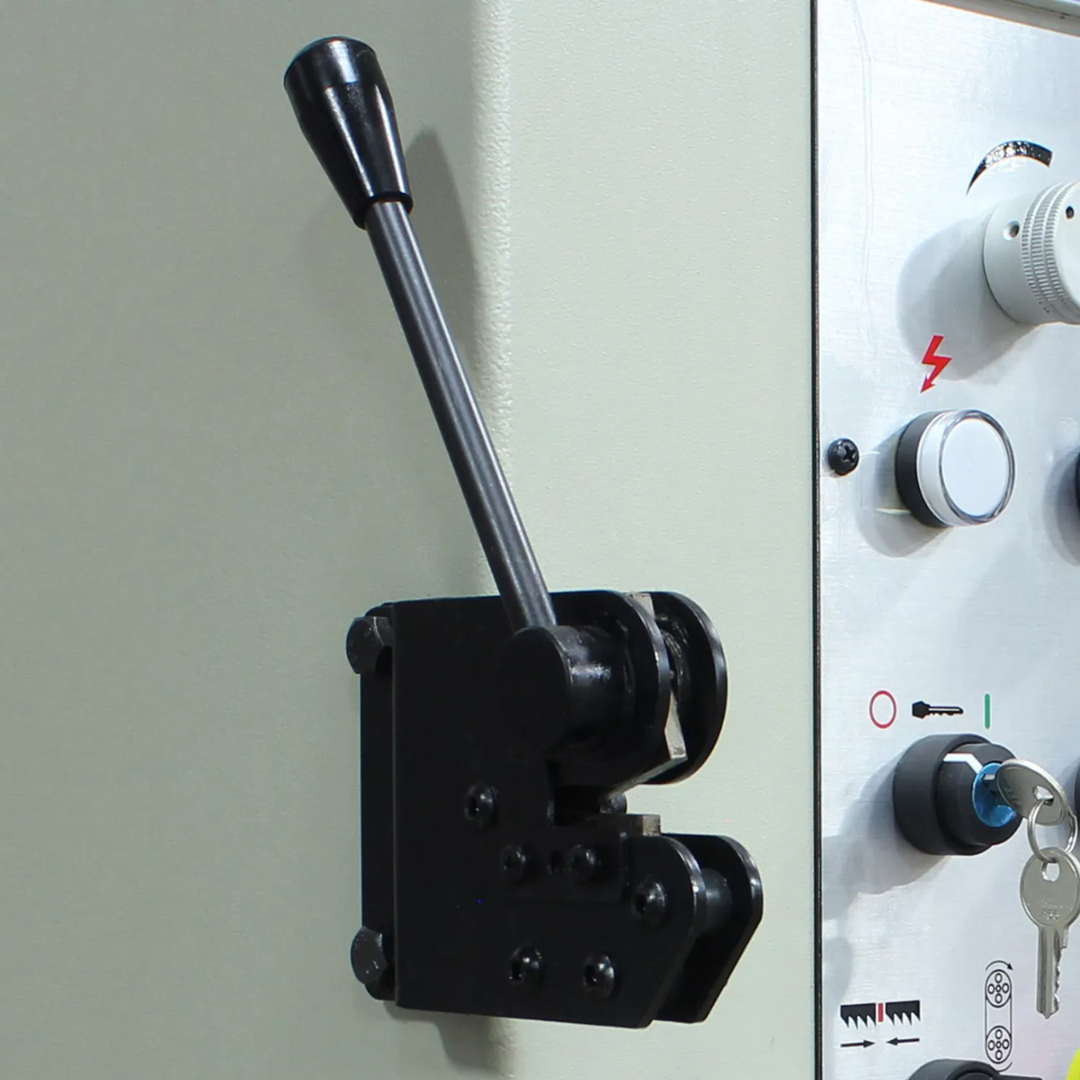

- Manual blade shear feature improves convenience when changing or servicing blades.
- Industrial-grade construction designed for long-term reliability in fabrication and production environments.
Why Choose the Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389
- Large 18-inch throat depth handles oversized workpieces with ease.
- Variable speed capability optimizes cutting performance across multiple materials.
- Wide blade compatibility supports both precision contour cutting and heavy-duty cutting.
- Rigid welded steel frame reduces vibration for cleaner, more accurate cuts.
- Digital blade speed display improves setup accuracy and productivity.
- Tilting cast iron table expands cutting versatility for bevel work.
- Industrial construction designed for daily shop use.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh BSV-18VS-V2 - Vertical Band Saw 1230389 delivers the precision, flexibility, and durability required by professional metalworking operations, combining variable-speed control, large-capacity cutting performance, and industrial-grade construction into a versatile vertical bandsaw solution.
