Baileigh Bench Top Drill Press DP-3814B 1228211 Applications
- General-purpose drilling in fabrication and machine shops.
- Creating accurate holes in mild steel, aluminum, plastics, and wood.
- Maintenance and repair department drilling operations.
- Educational and vocational training environments.
- Prototype development and custom fabrication projects.
- Workshop production drilling tasks requiring repeatability.
- Angle drilling using the adjustable tilting table.
- Home garages and professional workstations requiring compact drilling capability.

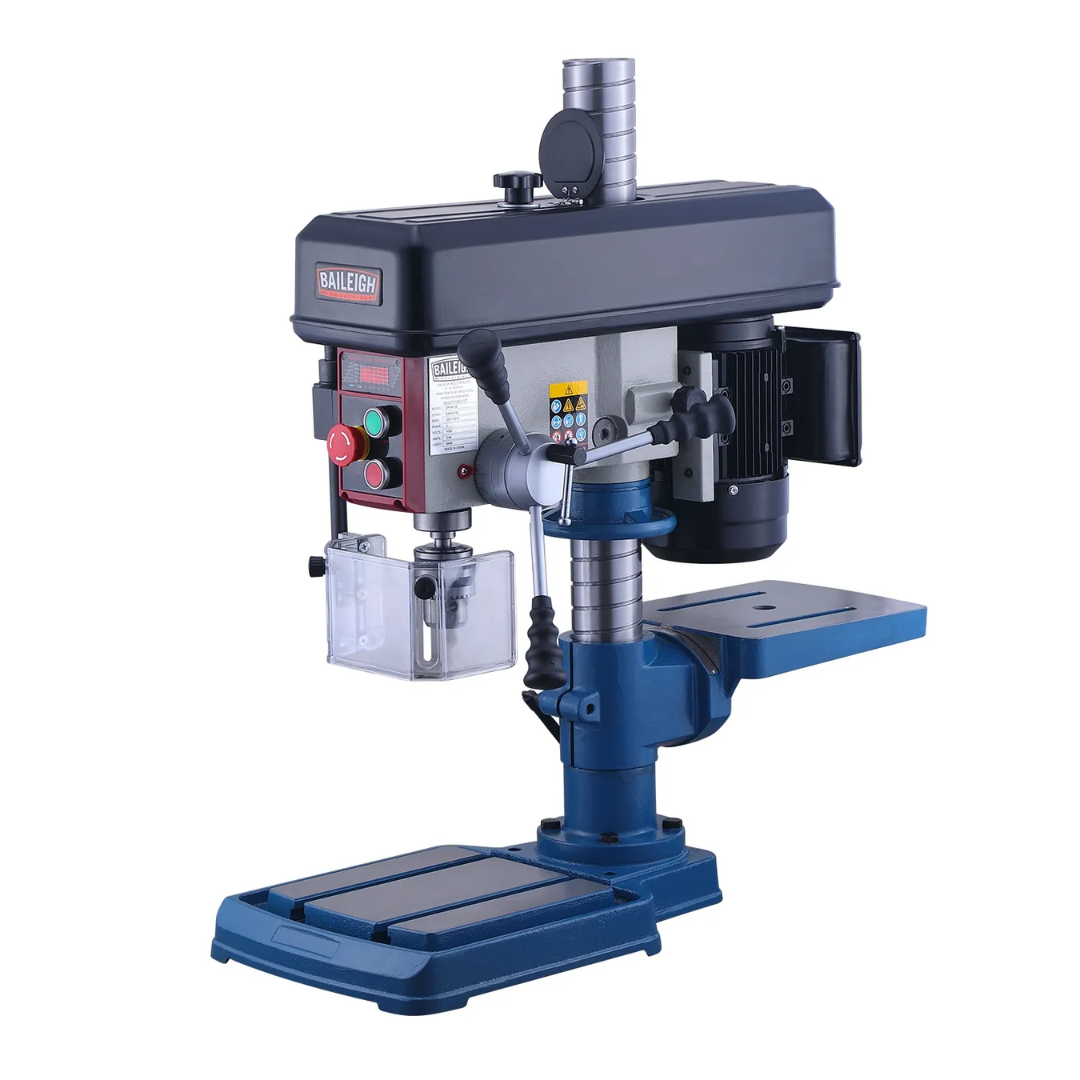

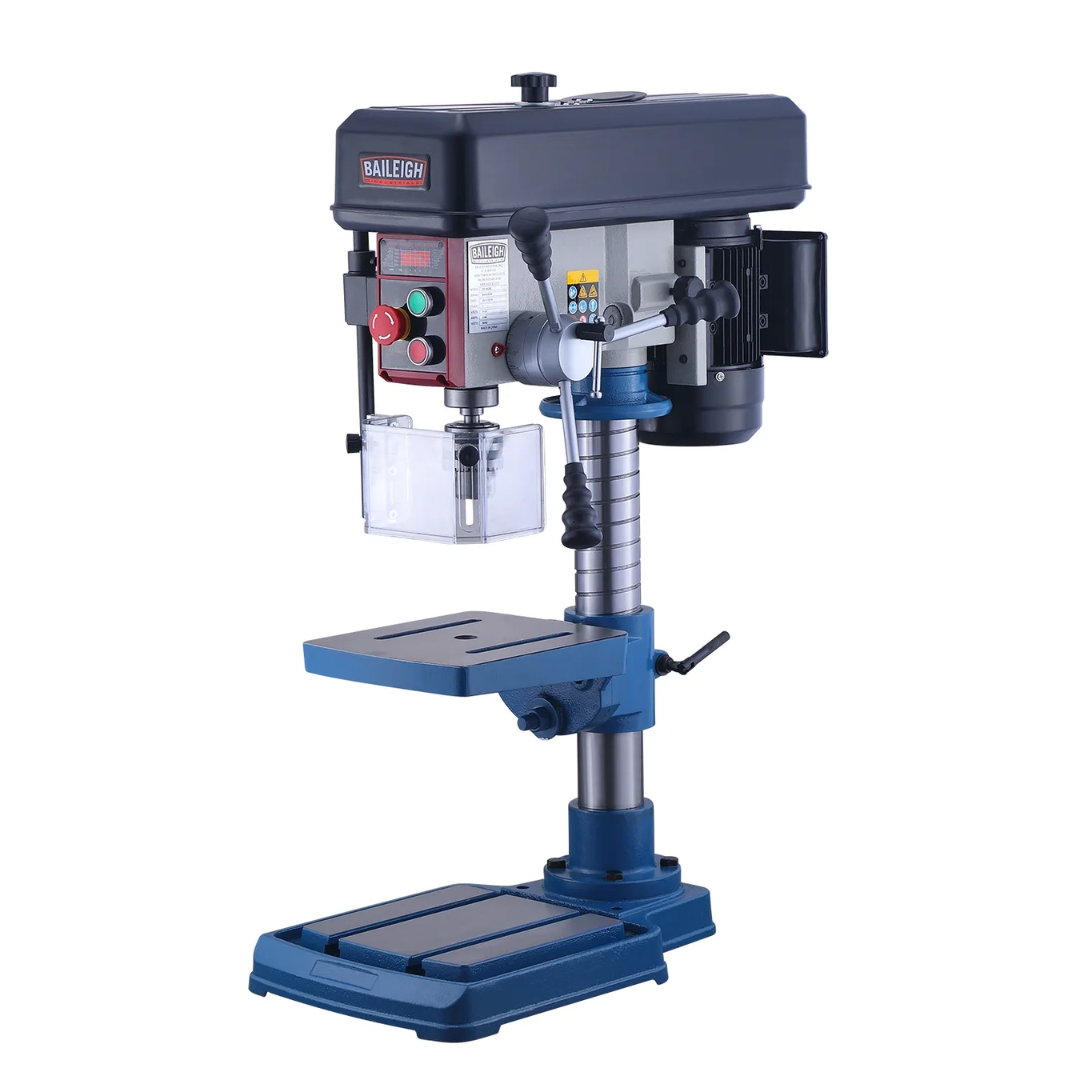

The Baileigh Bench Top Drill Press DP-3814B 1228211 offers dependable drilling performance with a compact footprint, making it ideal for shops that need versatility without sacrificing accuracy.
Baileigh Bench Top Drill Press DP-3814B 1228211 Specifications
| Model Number | DP-3814B |
|---|---|
| Product Keyword | Baileigh Bench Top Drill Press DP-3814B 1228211 |
| Machine Type | Bench Top Belt-Driven Drill Press |
| Swing Capacity | 14" |
| Motor Power | 0.5 HP (1/2 HP) |
| Horsepower | 0.5 HP |
| Input Power | 110V Single Phase |
| Spindle Speed Range | 250 – 2900 RPM |
| Number of Spindle Speeds | 5 |
| Chuck Capacity | 0.03" – 0.625" (5/8") |
| Maximum Mild Steel Capacity | 5/8" |
| Headstock Rotation | 360° Adjustable |
| Table Size | 9" × 10" |
| Table Material | Cast Iron |
| Table Tilt Range | 45° Left / 45° Right |
| Column Diameter | 2-3/4" Steel Column |
| Working Load Limit | 132 lbs |
| Net Weight | 210 lbs |
| Gross Weight | 210 lbs |
| UPC | 731325513844 |
| Warranty | 1 Year |
| Product Type | Machine |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh Bench Top Drill Press DP-3814B 1228211 Performance & Construction
- 14-inch swing capacity allows drilling of larger workpieces while maintaining excellent accuracy.
- 1/2 HP industrial motor delivers dependable power for a variety of drilling applications.
- 110V single-phase electrical operation makes installation simple in most commercial and home workshops.
- Five spindle speed settings provide flexibility for drilling different materials and hole sizes.
- 250 to 2900 RPM speed range allows operators to optimize spindle speed for cutting performance and tool life.

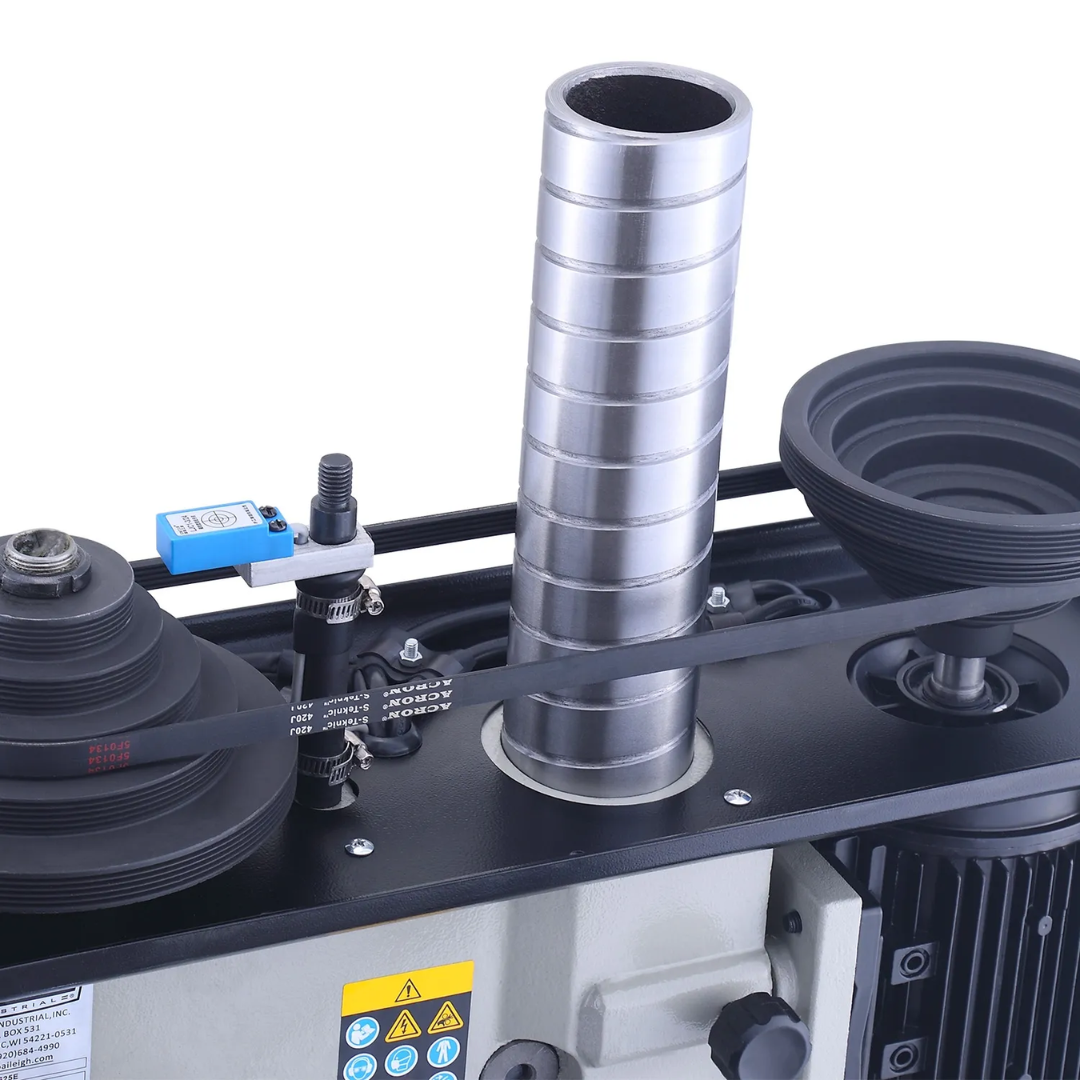

- Belt-driven head design ensures smooth operation, consistent torque delivery, and reliable performance.
- Rigid cast iron head, base, and table reduce vibration and improve drilling accuracy.
- 360-degree adjustable headstock offers increased positioning flexibility for specialized drilling tasks.

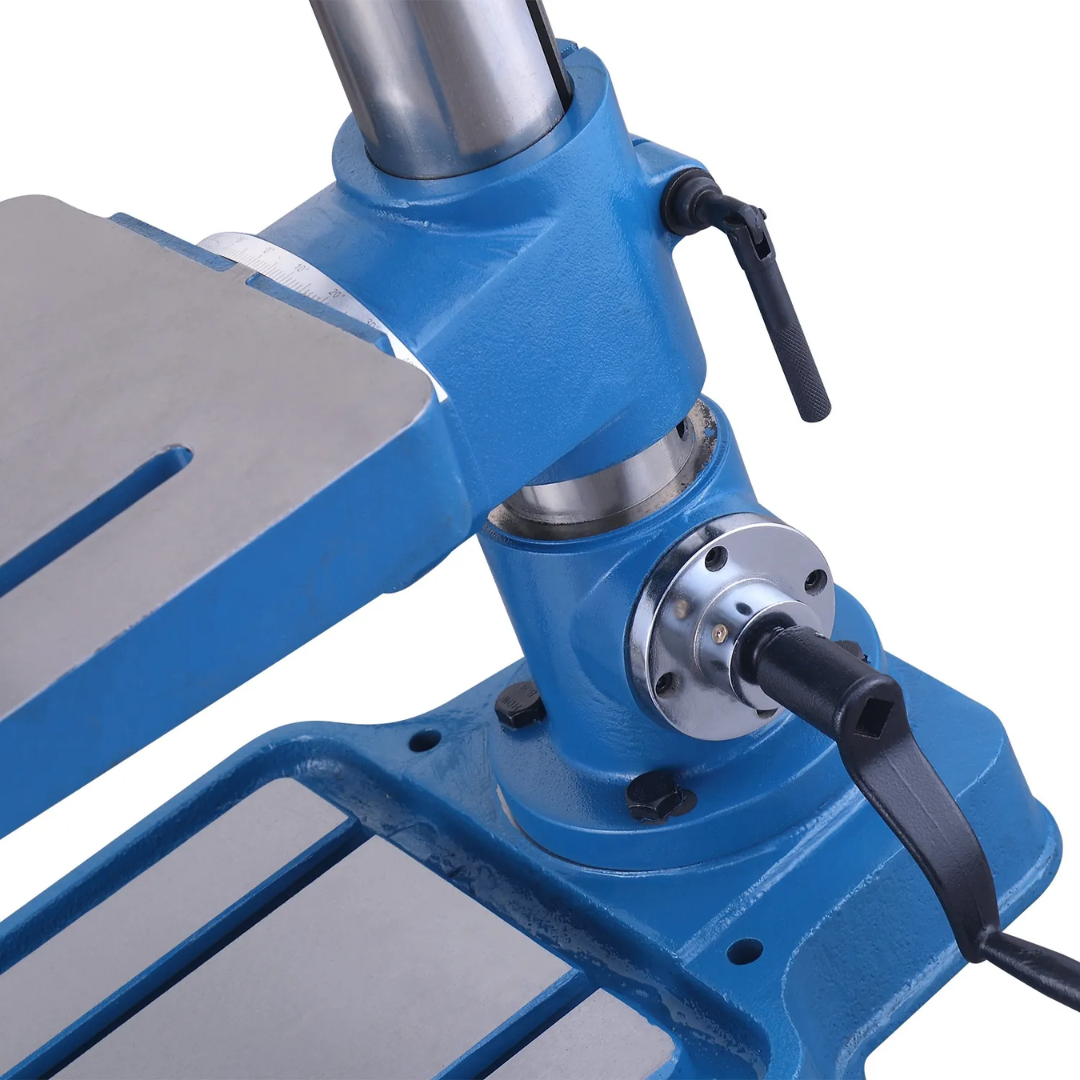

- 9" x 10" cast iron work table provides a durable and stable platform for material support.
- 45-degree left and right table tilt capability enables angle drilling and custom fabrication work.
- 2-3/4-inch steel column helps minimize flex under load and improves drilling precision.
- 5/8-inch drilling capacity in mild steel handles common fabrication and maintenance applications.
- Integrated safety shield helps protect operators during drilling operations.
- Heavy-duty construction designed for years of dependable workshop use.
Why Choose the Baileigh Bench Top Drill Press DP-3814B 1228211
- Compact bench-top design fits easily into professional and home workshops.
- Five spindle speeds provide versatility for multiple drilling applications.
- Rigid cast iron construction improves accuracy and machine longevity.
- Large 14-inch swing capacity accommodates bigger workpieces.
- Tilting table and rotating headstock increase operational flexibility.
- 110V operation allows convenient installation without special power requirements.
- Precision drilling performance backed by industrial-grade construction.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Bench Top Drill Press DP-3814B 1228211 combines durable cast iron construction, adjustable spindle speeds, and versatile workholding capabilities to deliver reliable, accurate drilling performance for fabrication shops, educational facilities, maintenance departments, and professional workshops.
