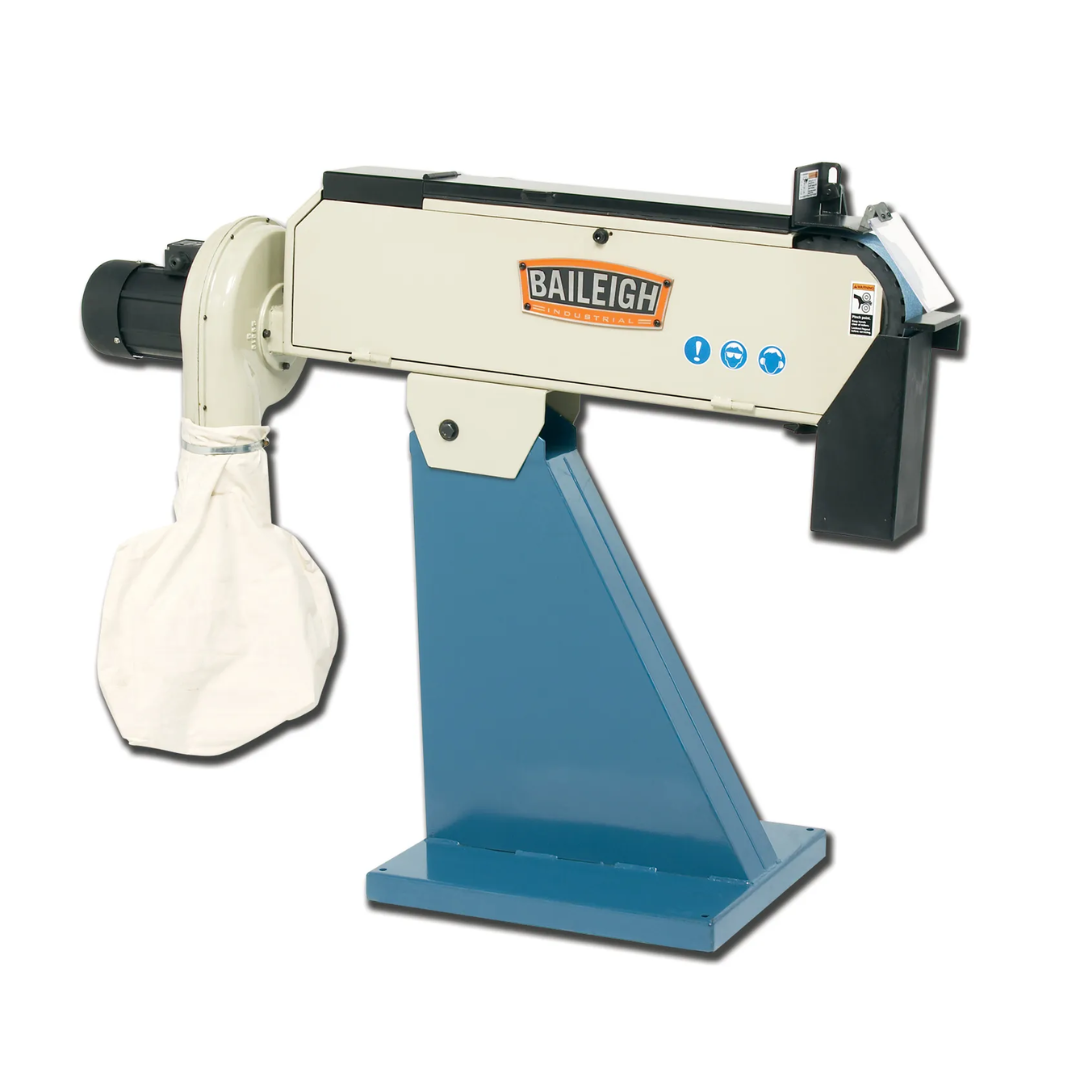

Baileigh Belt Grinder BG-379 1000680 Applications
- Deburring laser-cut, plasma-cut, and machined metal parts.
- Chamfering and edge preparation for fabrication projects.
- Weld blending and surface finishing operations.
- Grinding and finishing castings and fabricated components.
- Metal fabrication and production manufacturing environments.
- Industrial maintenance and repair operations.
- Preparation of steel, stainless steel, and aluminum workpieces.
- General-purpose heavy-duty grinding and finishing applications.
The Baileigh Belt Grinder BG-379 1000680 is engineered for shops that require powerful grinding performance, long-term durability, and integrated dust management for cleaner operation.
Baileigh Belt Grinder BG-379 1000680 Specifications
| Product Name | Baileigh Belt Grinder BG-379 1000680 |
|---|---|
| Model Number | BG-379 |
| Product Type | Industrial Belt Grinder |
| Belt Size | 3 in. x 79 in. |
| Belt Speed | 8,000 FPM |
| Motor Power | 4 HP |
| Horsepower | 4 HP |
| Input Power | 220V Three-Phase |
| Motor Voltage | 220V |
| Motor Phase | Three Phase |
| Drive Wheel | Solid Billet Aluminum |
| Construction | Folded and Fully Welded Steel Body |
| Base Design | Triangular Pivoting Steel Base |
| Dust Collection | Integrated 220V Electric Dust Extraction System |
| Dust Catch Basin | Removable |
| Safety Feature | Opening Top Guard with Large Flat Grinding Surface |
| Net Weight | 260 lbs. |
| Gross Weight | 260 lbs. |
| UPC | 731325393873 |
| Warranty | 1 Year |
Baileigh Belt Grinder BG-379 1000680 Performance & Construction
- Large 3" x 79" abrasive belt provides extended grinding surface area and excellent belt life for production environments.
- High-speed 8,000 FPM belt operation delivers aggressive material removal and efficient finishing performance.
- Powerful 4 HP industrial motor maintains consistent grinding performance under demanding workloads.
- 220V three-phase electrical system supports continuous-duty operation in industrial facilities.

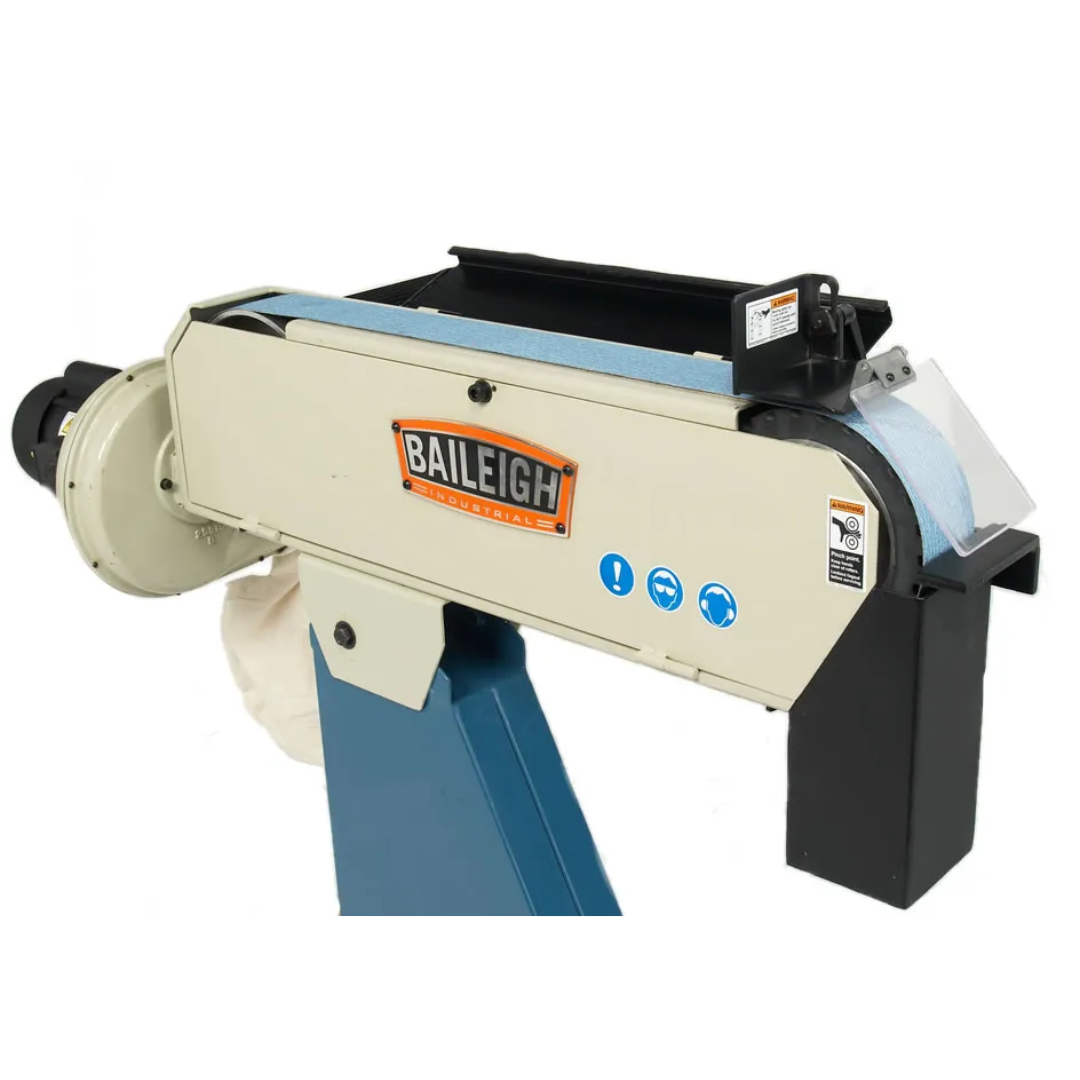

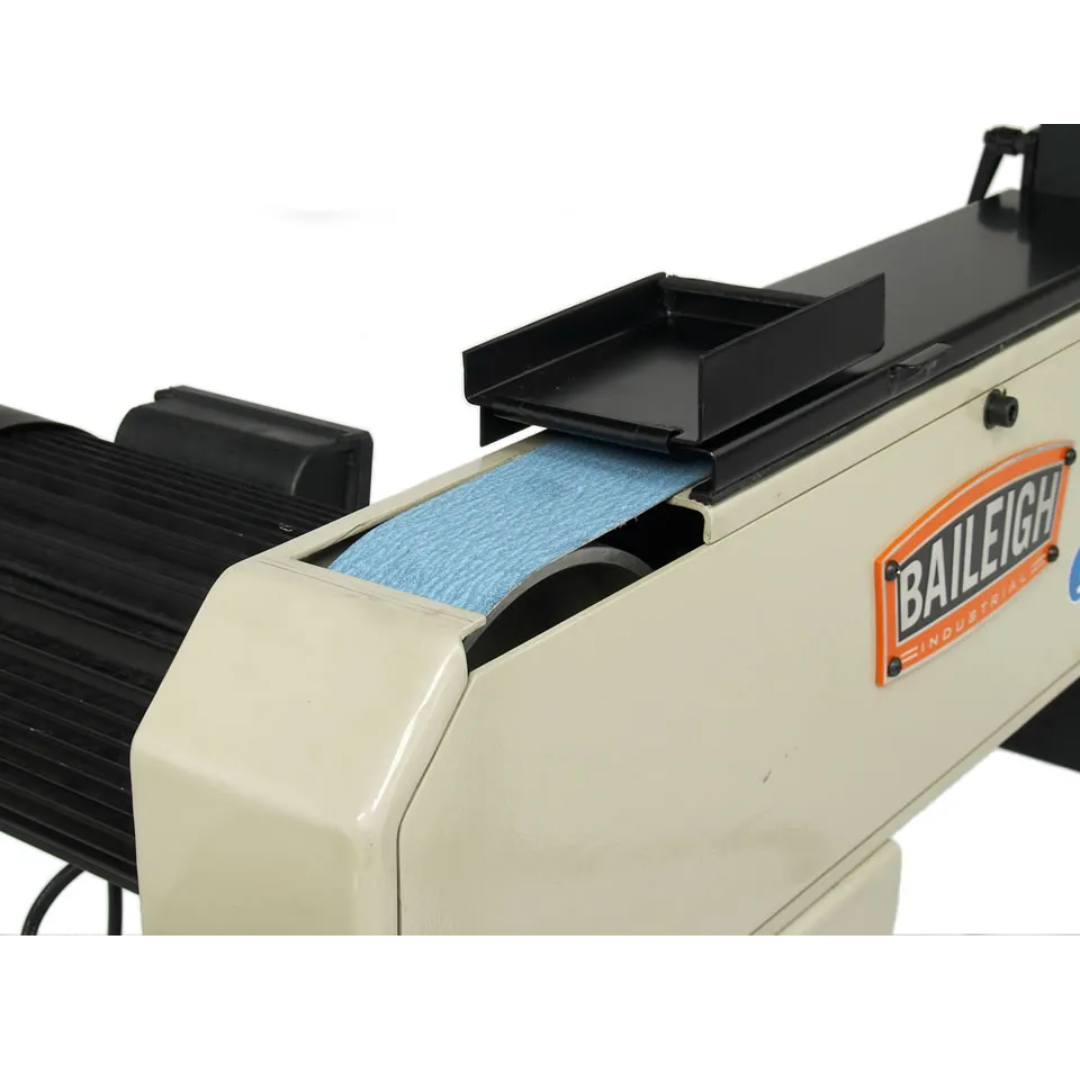

- Solid billet aluminum drive wheel improves belt tracking accuracy and enhances durability.
- Folded and fully welded steel body increases machine rigidity while reducing vibration during operation.
- Triangular steel pedestal base allows the grinder to pivot for improved positioning and optimal grinding angles.
- Integrated electric dust collector helps capture grinding debris and maintain a cleaner workspace.
- Removable catch basin simplifies dust disposal and routine maintenance.

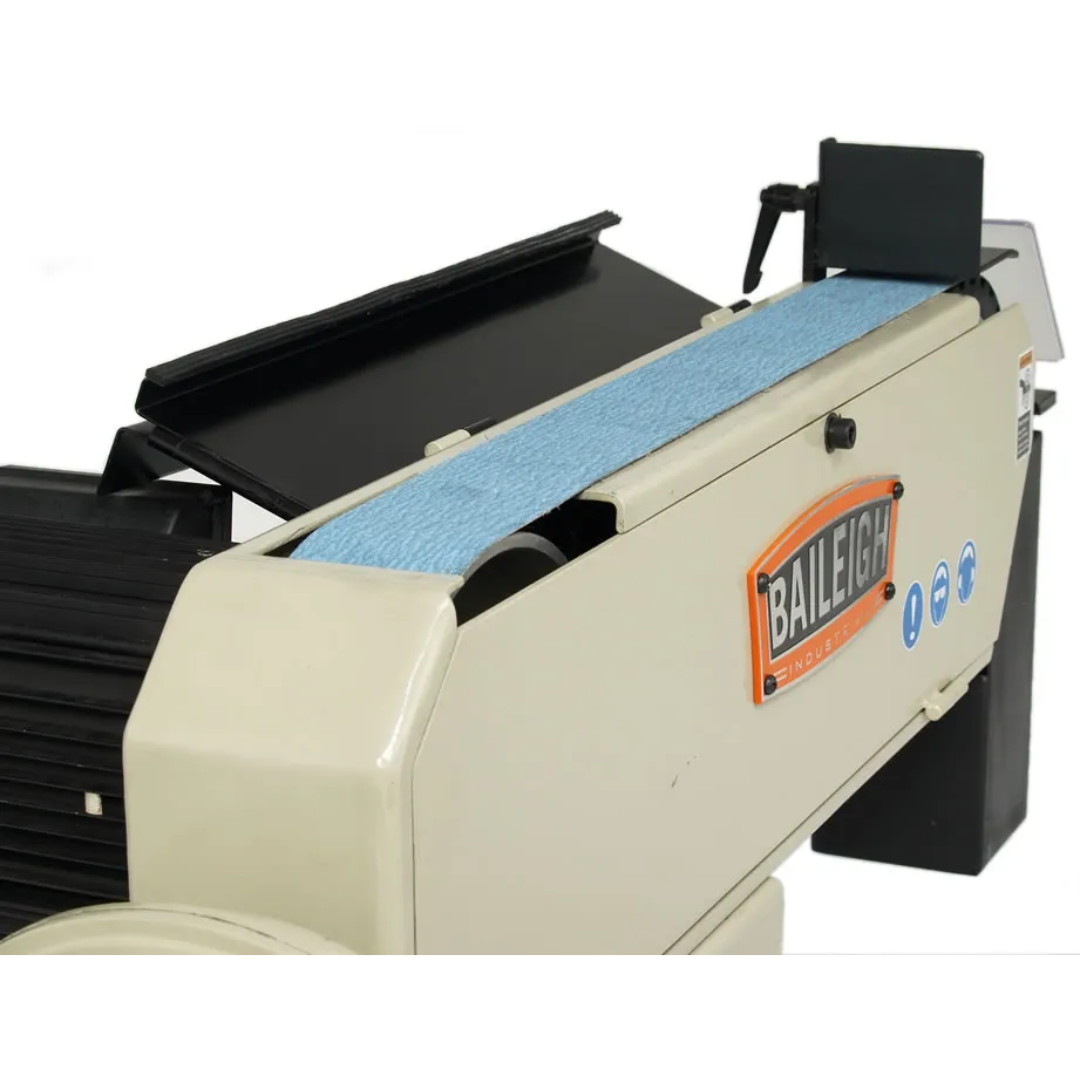

- Opening top guard design provides access to a large flat grinding surface for increased versatility.
- Heavy-duty industrial construction is engineered for years of reliable service in fabrication and manufacturing environments.
- Stable machine platform improves grinding precision and operator confidence during demanding applications.
Why Choose the Baileigh Belt Grinder BG-379 1000680
- Industrial 4 HP motor delivers powerful grinding performance.
- Large 3" x 79" belt accommodates demanding finishing applications.
- Integrated electric dust collection system helps maintain a cleaner work environment.
- Rigid welded steel construction minimizes vibration and maximizes durability.
- Billet aluminum drive wheel enhances belt tracking and reliability.
- Pivoting triangular base improves accessibility and operator positioning.
- 8,000 FPM belt speed supports fast material removal and production efficiency.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Belt Grinder BG-379 1000680 combines industrial-grade power, durable welded-steel construction, integrated dust collection, and precision grinding performance into a professional finishing solution. With its 3" x 79" belt capacity, 4 HP motor, and 8,000 FPM operating speed, this grinder is an excellent choice for fabrication shops, manufacturing facilities, and metalworking professionals seeking reliable, high-performance grinding equipment.
