Baileigh Belt Grinder BG-260-3-110 1000670 Applications
- Metal fabrication and production grinding.
- Weld blending, cleanup, and surface finishing.
- Deburring machined and laser-cut components.
- Knife making and custom metalworking projects.
- Tool and fixture preparation.
- Edge profiling and contour grinding.
- Stainless steel finishing and polishing preparation.
- Maintenance, repair, and industrial workshop operations.
The Baileigh Belt Grinder BG-260-3-110 1000670 is ideal for fabricators and metalworkers who need variable-speed flexibility, smooth operation, and professional-grade grinding performance in a compact machine.
Baileigh Belt Grinder BG-260-3-110 1000670 Specifications
| Product Name | Baileigh Belt Grinder BG-260-3-110 1000670 |
|---|---|
| Model Number | BG-260-3-110 |
| Product Type | Variable-Speed Belt Grinder |
| Belt Size | 2 in. x 60 in. |
| Belt Speed Range | 800 – 8,000 FPM |
| Motor Power | 1.5 HP |
| Horsepower | 1.5 HP |
| Input Power | 110V |
| Motor Voltage | 110V |
| Motor Phase | Single Phase |
| Drive Configuration | 3-Wheel Belt System |
| Contact Wheel Diameter | 7 in. |
| Construction | All-Cast Aluminum Structure |
| Bearing Type | Fully Sealed Ball Bearings |
| Grinding Tables | Standard Precision Grinding Tables Included |
| Belt Tension System | Adjustable |
| Net Weight | 150 lbs. |
| Gross Weight | 150 lbs. |
| UPC | 731325393798 |
| Warranty | 1 Year |
Baileigh Belt Grinder BG-260-3-110 1000670 Performance & Construction
- 2" x 60" belt configuration provides increased abrasive surface area and extended belt life for demanding grinding applications.
- Variable-speed operation from 800 to 8,000 FPM allows operators to precisely match grinding speed to material type, finish requirements, and application needs.

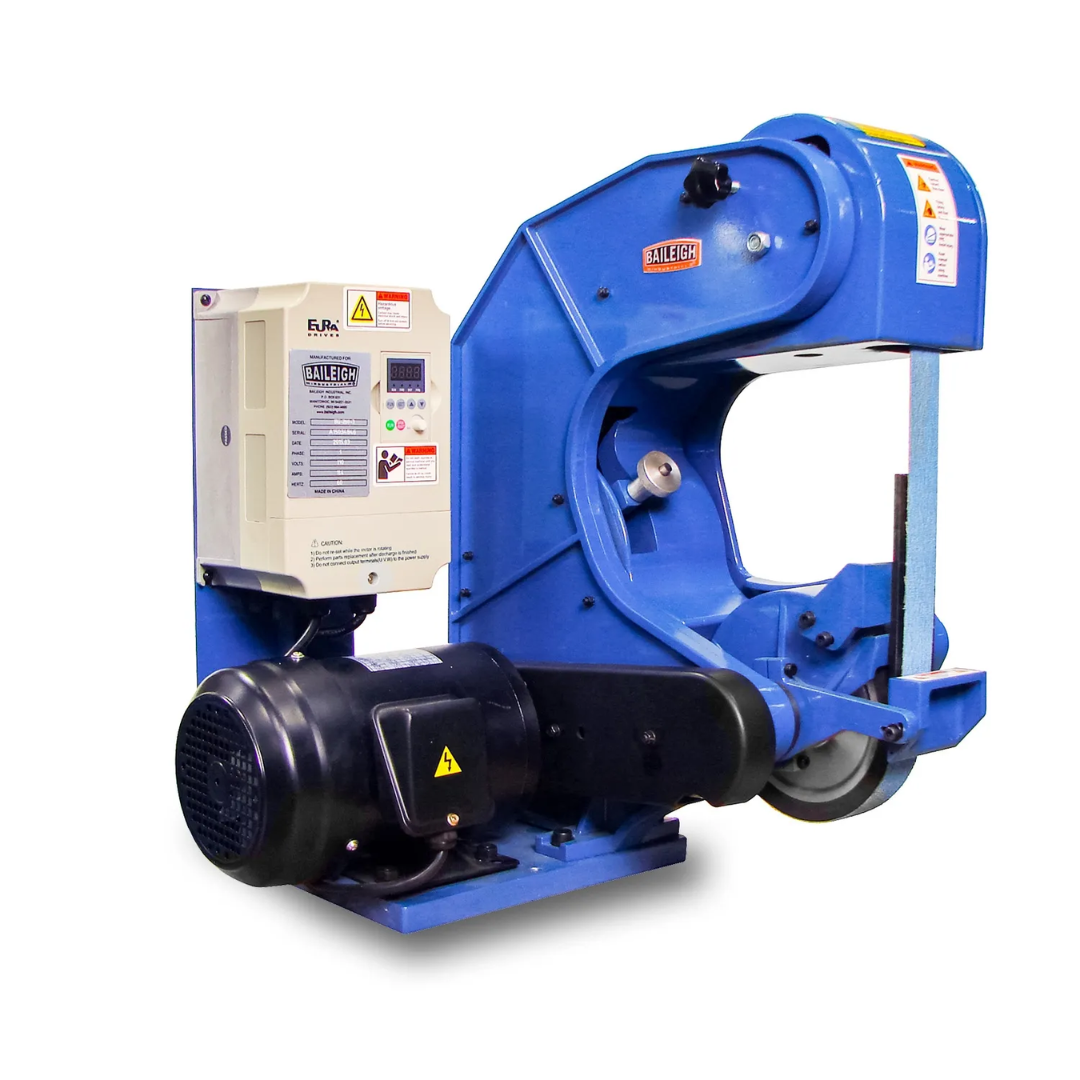

- Powerful 1.5 HP motor delivers dependable performance for daily fabrication and finishing tasks.
- 110V single-phase power enables convenient installation in workshops without requiring industrial three-phase service.

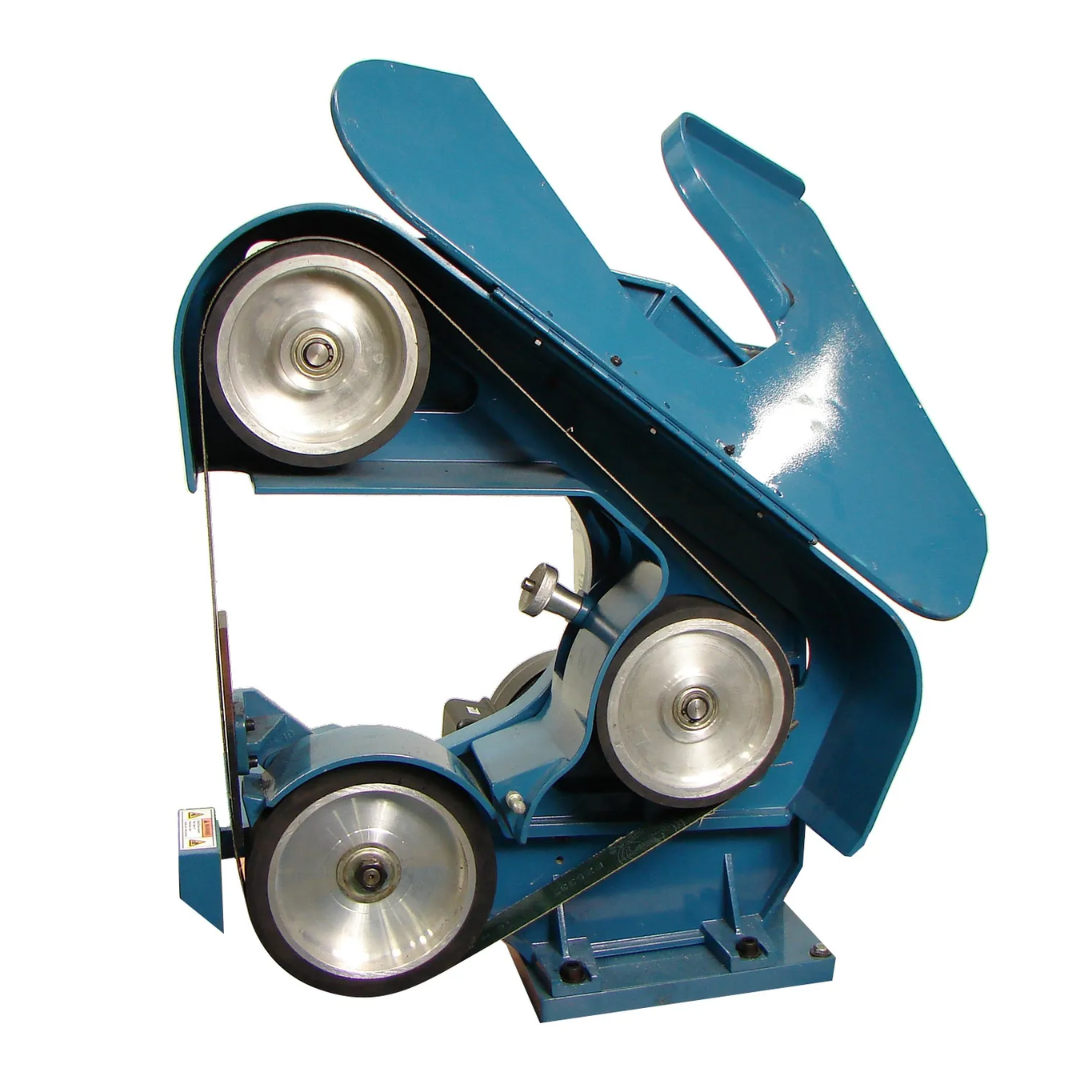

- Three-wheel belt system promotes stable belt tracking and consistent grinding performance.
- 7-inch contact wheel provides smooth belt engagement and enhanced control during grinding operations.

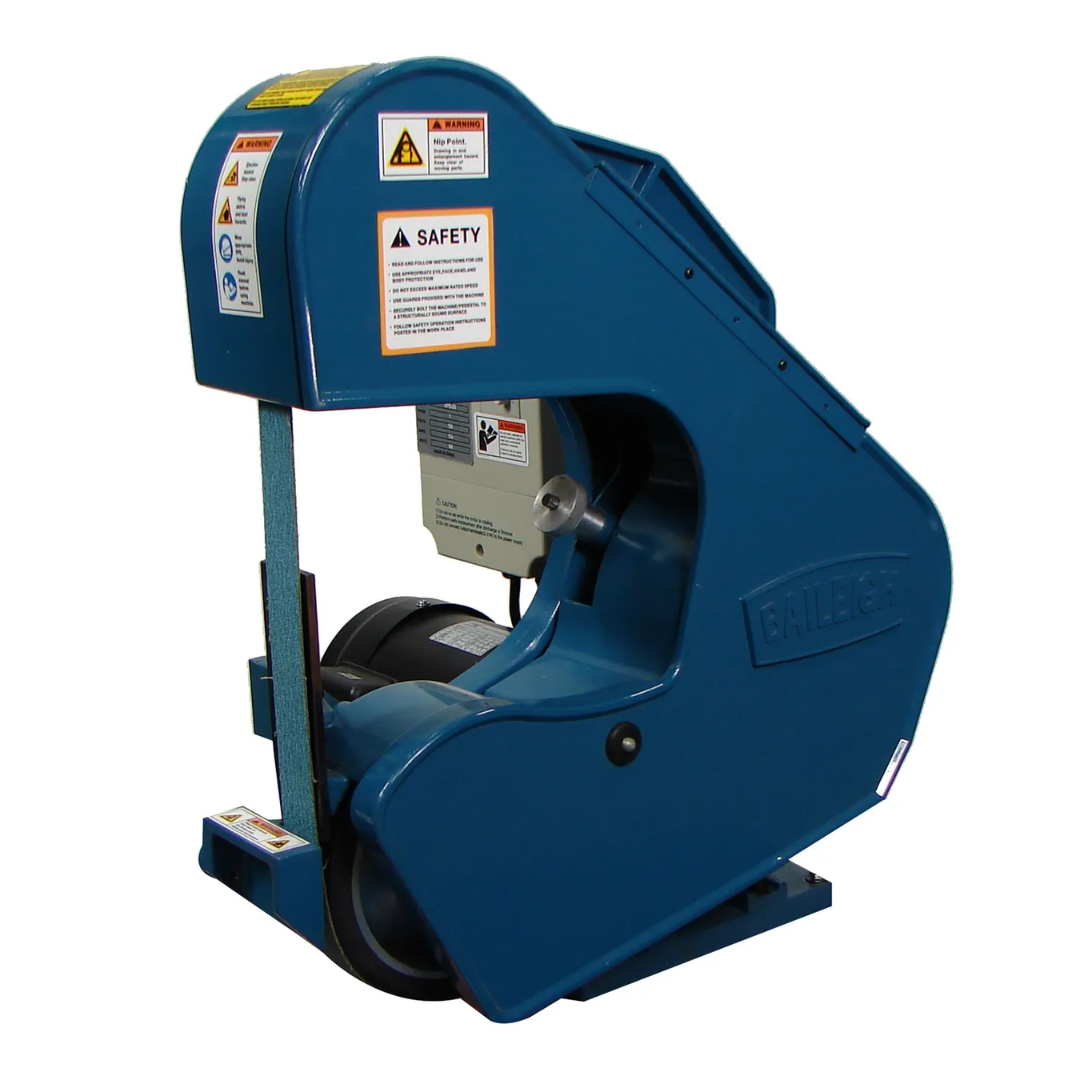

- All-cast aluminum construction increases rigidity while minimizing vibration for improved finish quality.
- Fully sealed ball bearings reduce maintenance requirements and help extend machine service life.
- Integrated precision grinding tables support accurate workpiece positioning and repeatable results.
- Adjustable belt tension system simplifies belt changes and helps maintain proper tracking performance.

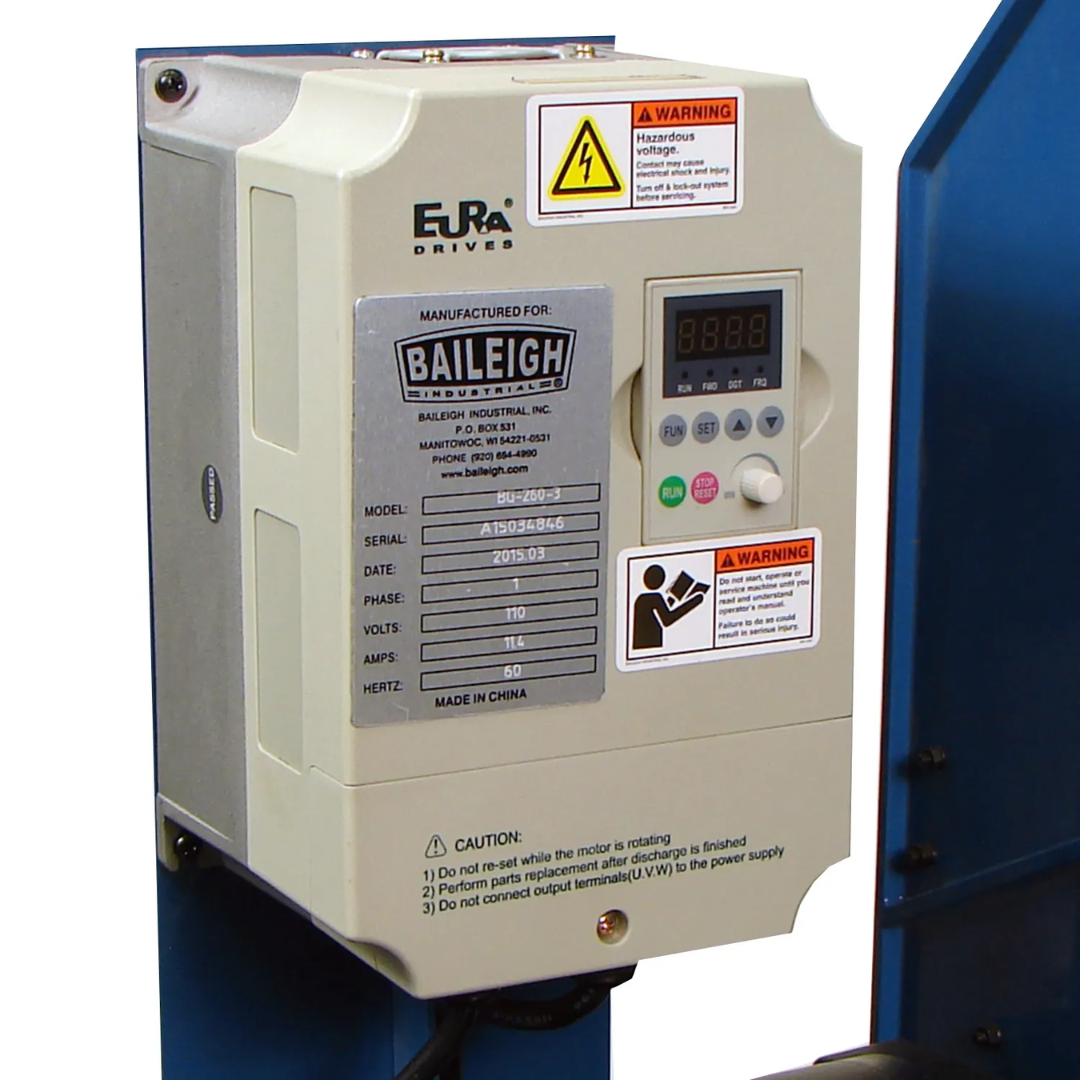

- Inverter-driven speed control offers exceptional versatility for both aggressive stock removal and delicate finishing operations.
- Industrial-grade design delivers reliability and durability for professional fabrication environments.
Why Choose the Baileigh Belt Grinder BG-260-3-110 1000670
- Wide 800 to 8,000 FPM speed range for maximum grinding versatility.
- Durable all-cast aluminum construction minimizes vibration and enhances stability.
- 2" x 60" belt size supports professional fabrication and finishing applications.
- Variable-speed inverter drive provides greater control over material removal rates.
- Sealed bearings reduce maintenance and improve reliability.
- Compact footprint with industrial-grade performance.
- Convenient 110V single-phase operation for easy shop integration.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Belt Grinder BG-260-3-110 1000670 combines professional variable-speed control, rugged all-cast construction, and precision grinding performance into one versatile machine. With its 2" x 60" belt capacity, 1.5 HP motor, and broad 800–8,000 FPM operating range, this grinder is an excellent solution for fabrication shops, maintenance facilities, and metalworking professionals who demand accuracy, durability, and flexibility.
