Baileigh Belt Driven Drill Press DP-1000E 1022128 Applications
- Machine shops performing precision drilling operations.
- Metal fabrication and welding facilities.
- Maintenance and repair departments.
- Educational and vocational training workshops.
- Automotive and agricultural equipment repair.
- General manufacturing and production environments.
- Prototype and custom fabrication work.
- Accurate drilling and tapping of mild steel components.

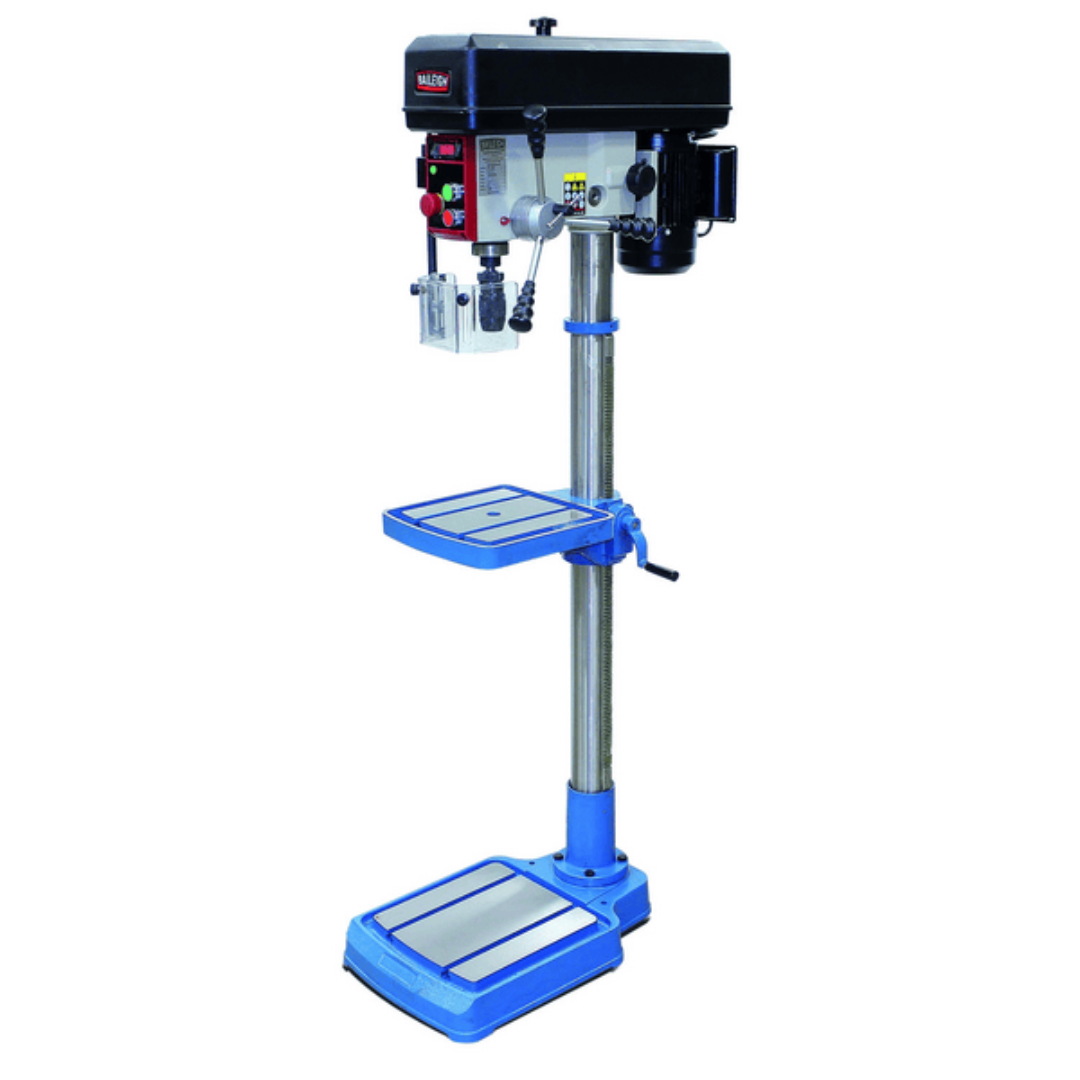

The Baileigh Belt Driven Drill Press DP-1000E 1022128 delivers reliable drilling accuracy, smooth belt-driven performance, and heavy-duty cast iron construction for years of dependable shop service.
Baileigh Belt Driven Drill Press DP-1000E 1022128 Specifications
| Model | DP-1000E |
|---|---|
| Part Number | 1022128 |
| Motor Power | 1/2 HP (0.5 HP) |
| Power Requirement | 110V Single-Phase |
| Drive System | Belt-Driven |
| Swing | 15.5" |
| Maximum Drilling Capacity (Mild Steel) | 1" |
| Maximum Tapping Capacity (Mild Steel) | 0.625" |
| Spindle Speed Range | 250 – 2900 RPM |
| Number of Spindle Speeds | 5 |
| Individual Spindle Speeds | 250, 700, 1150, 1900, 2900 RPM |
| Spindle Taper | MT2 |
| Chuck | B-16 1–16 mm Keyless Chuck with MT2 to B16 Arbor and Drift Key |
| Work Table Material | Cast Iron |
| Table Adjustment | 360° Tilting Cast Iron Table |
| Column Diameter | 3-1/8" Steel Column |
| Compliance | CE |
| Net Weight | 370 lbs. |
| Gross Weight | 370 lbs. |
| UPC | 731325496130 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Belt Driven Drill Press DP-1000E 1022128 Performance & Construction

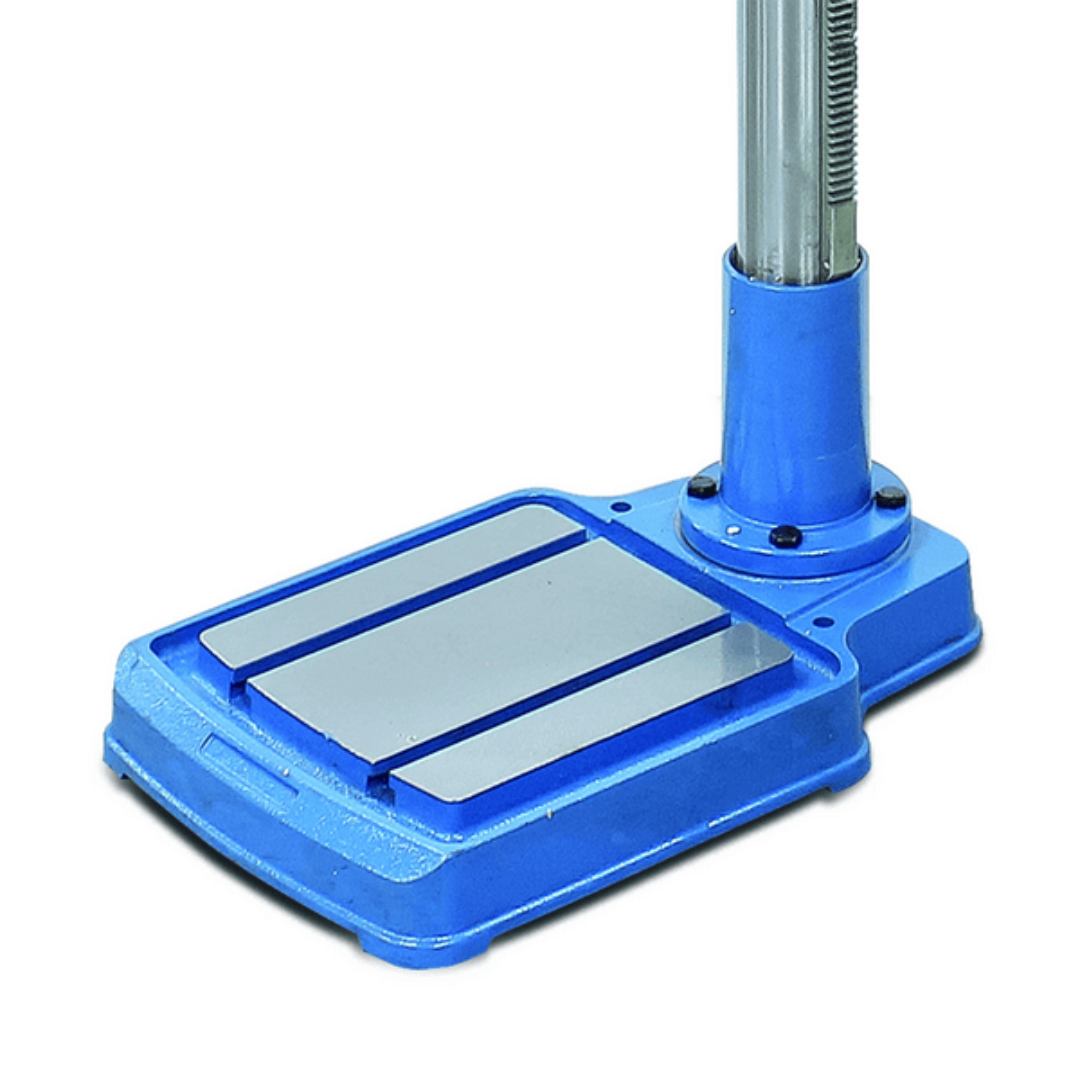

- Heavy-duty cast iron construction featuring a rigid base, table, and headstock that reduce vibration for greater drilling accuracy and longer machine life.
- Reliable 1/2 HP motor delivers dependable power for drilling and light tapping applications in mild steel and other common materials.

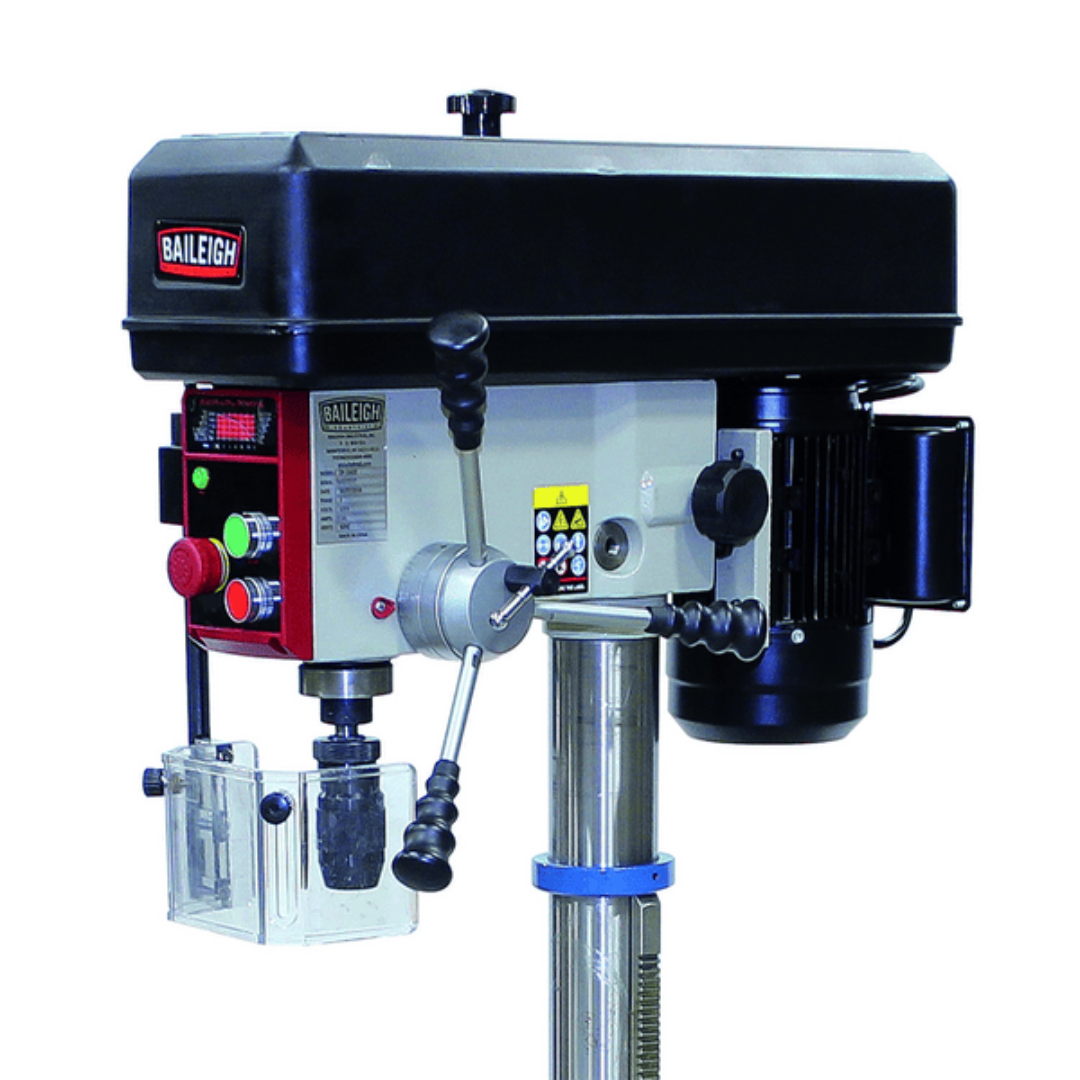

- Belt-driven spindle system provides smooth power transmission while helping extend tooling life and maintain consistent torque.
- Five-speed pulley configuration offers spindle speeds ranging from 250 to 2900 RPM for matching cutting speed to different materials and drill sizes.
- 1-inch drilling capacity in mild steel allows the machine to handle demanding fabrication and maintenance work with confidence.
- 15.5-inch swing capacity accommodates larger workpieces while expanding overall shop versatility.
- MT2 spindle taper accepts a wide variety of industrial tooling for increased flexibility.

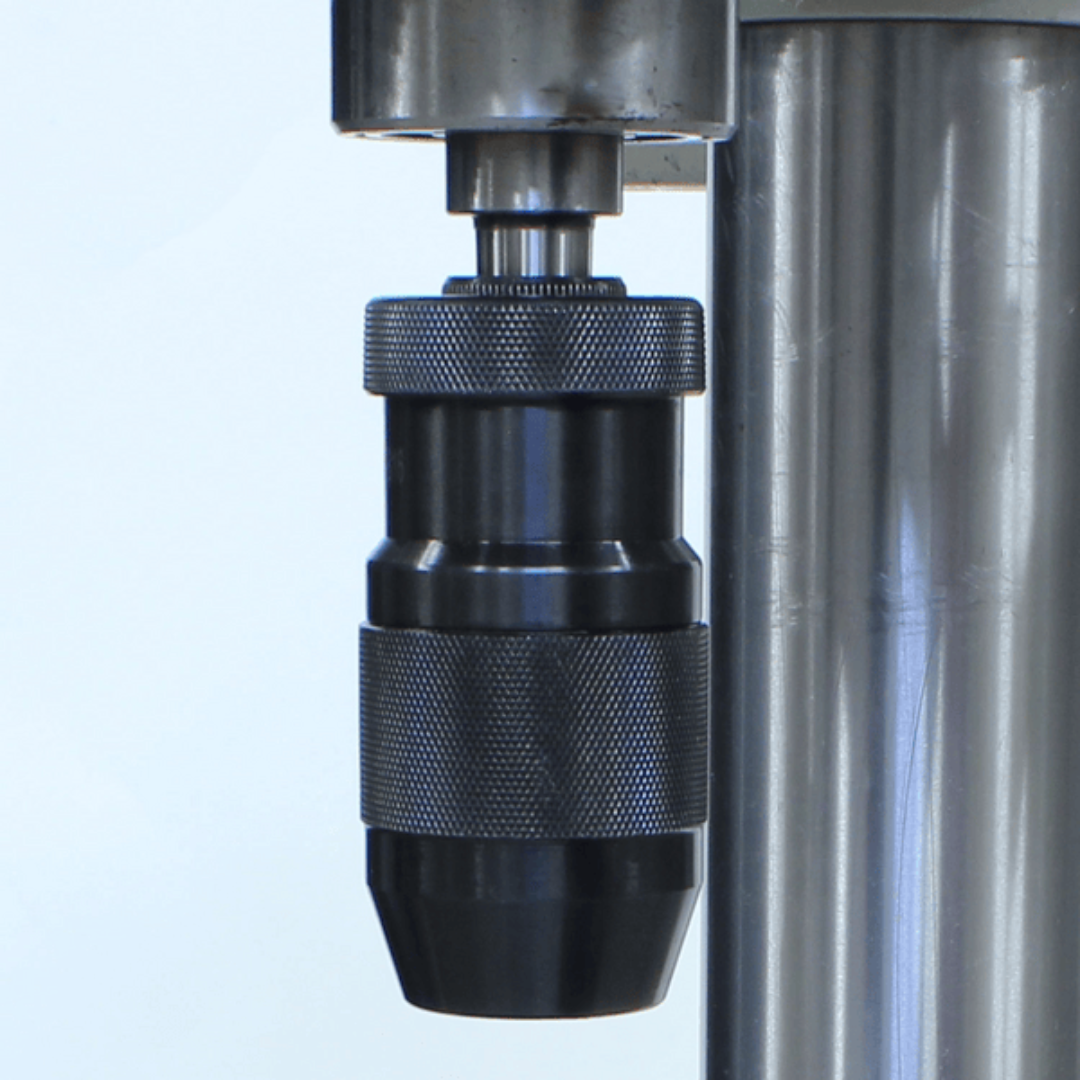

- B-16 keyless chuck with MT2 to B16 arbor enables fast drill bit changes while maintaining secure tool holding.
- Rigid 3-1/8-inch steel column minimizes flexing during heavy drilling operations for improved precision.

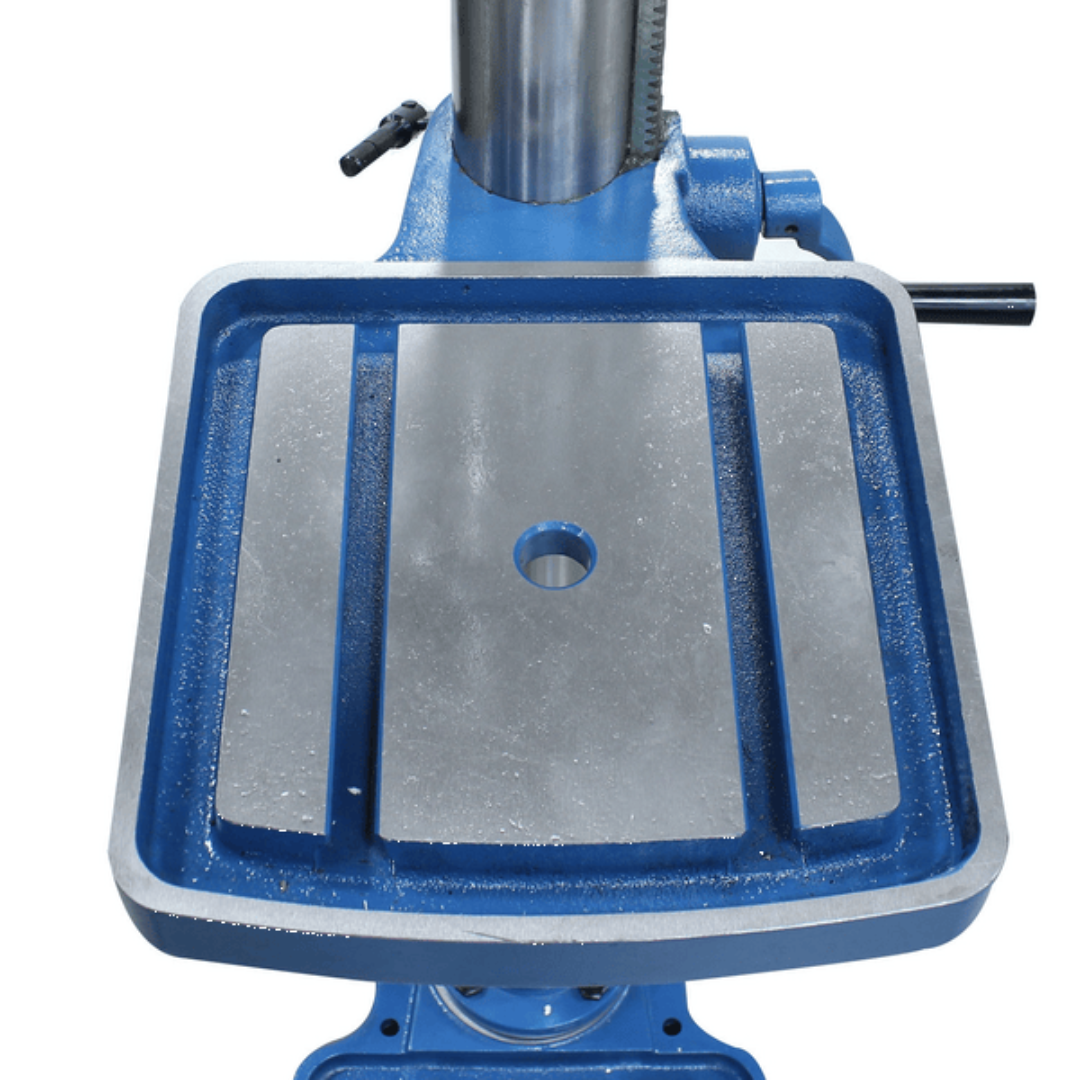

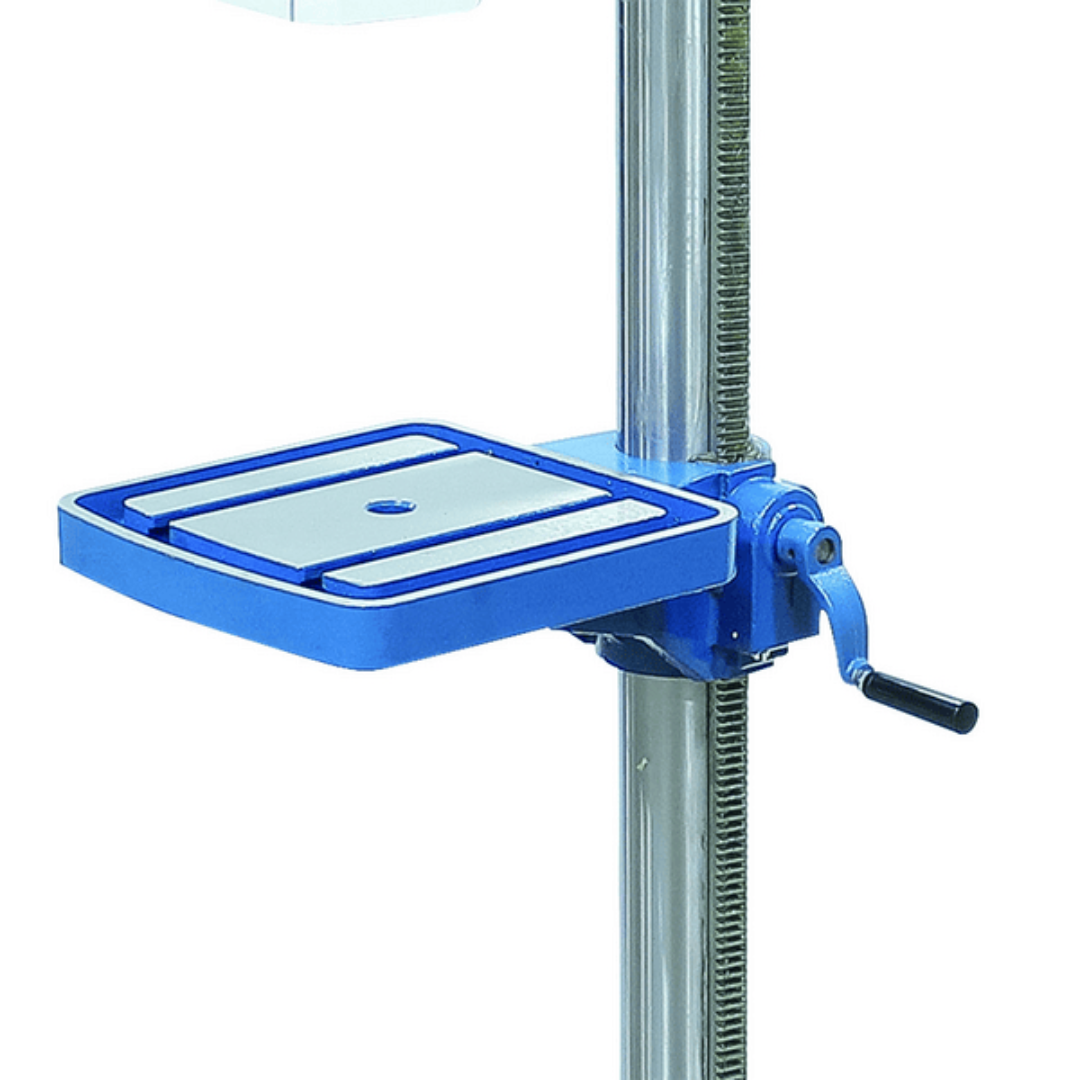

- 360-degree tilting cast iron table allows angled drilling while providing exceptional workpiece support.

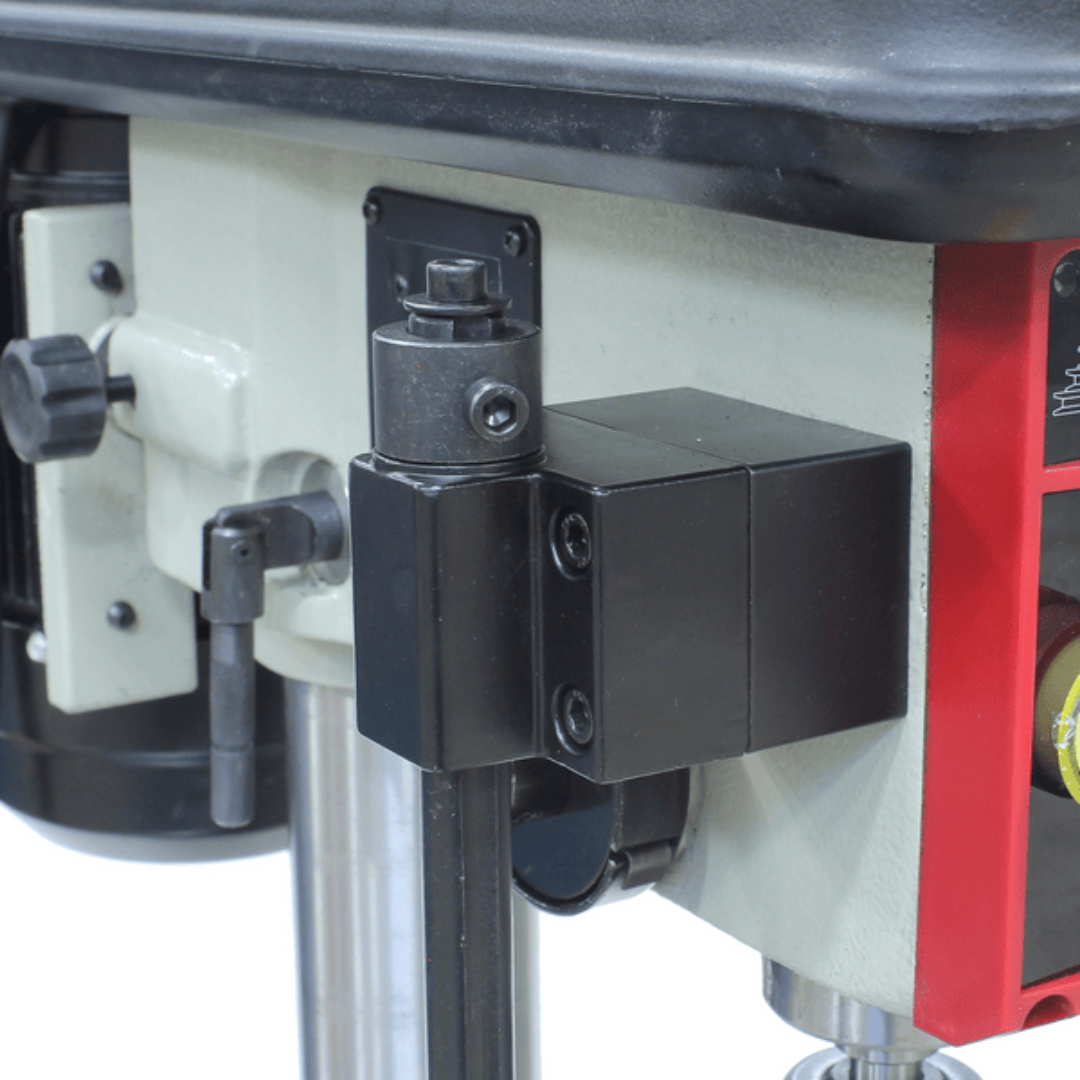

- Integrated drill head safety shield enhances operator protection by helping contain chips and reduce exposure to rotating tooling.
- 110V single-phase operation allows convenient installation in most commercial shops, garages, maintenance departments, and educational facilities.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support for long-term peace of mind.
Why Choose the Baileigh Belt Driven Drill Press DP-1000E 1022128
- Heavy-duty cast iron construction minimizes vibration for precise drilling.
- Reliable 1/2 HP belt-driven motor provides smooth and consistent performance.
- Five spindle speeds from 250 to 2900 RPM accommodate a wide variety of drilling operations.
- 15.5-inch swing increases workpiece capacity and versatility.
- 1-inch drilling capacity in mild steel handles demanding fabrication jobs.
- MT2 spindle taper supports a broad range of industrial tooling.
- 360° tilting cast iron table simplifies angled drilling applications.
- Safety shield improves operator protection during drilling operations.
- 110V single-phase power allows easy installation in most workshops.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Belt Driven Drill Press DP-1000E 1022128 combines durable industrial construction, versatile belt-driven performance, precision drilling capability, and dependable reliability into an economical floor drill press built for fabrication shops, maintenance departments, educational facilities, and general industrial use.
