Baileigh ATM-27-1000 Pneumatic Tapping Arm 1000326 Applications
- Production tapping and repetitive threading operations.
- Machine shops and CNC support stations.
- Fabrication and metalworking facilities.
- Maintenance and repair departments.
- Thread creation in steel, aluminum, and other machinable materials.
- Manufacturing assembly operations requiring precise threaded holes.
- Large workpieces where handheld tapping is inefficient.
- Workstations focused on reducing operator fatigue and improving consistency.

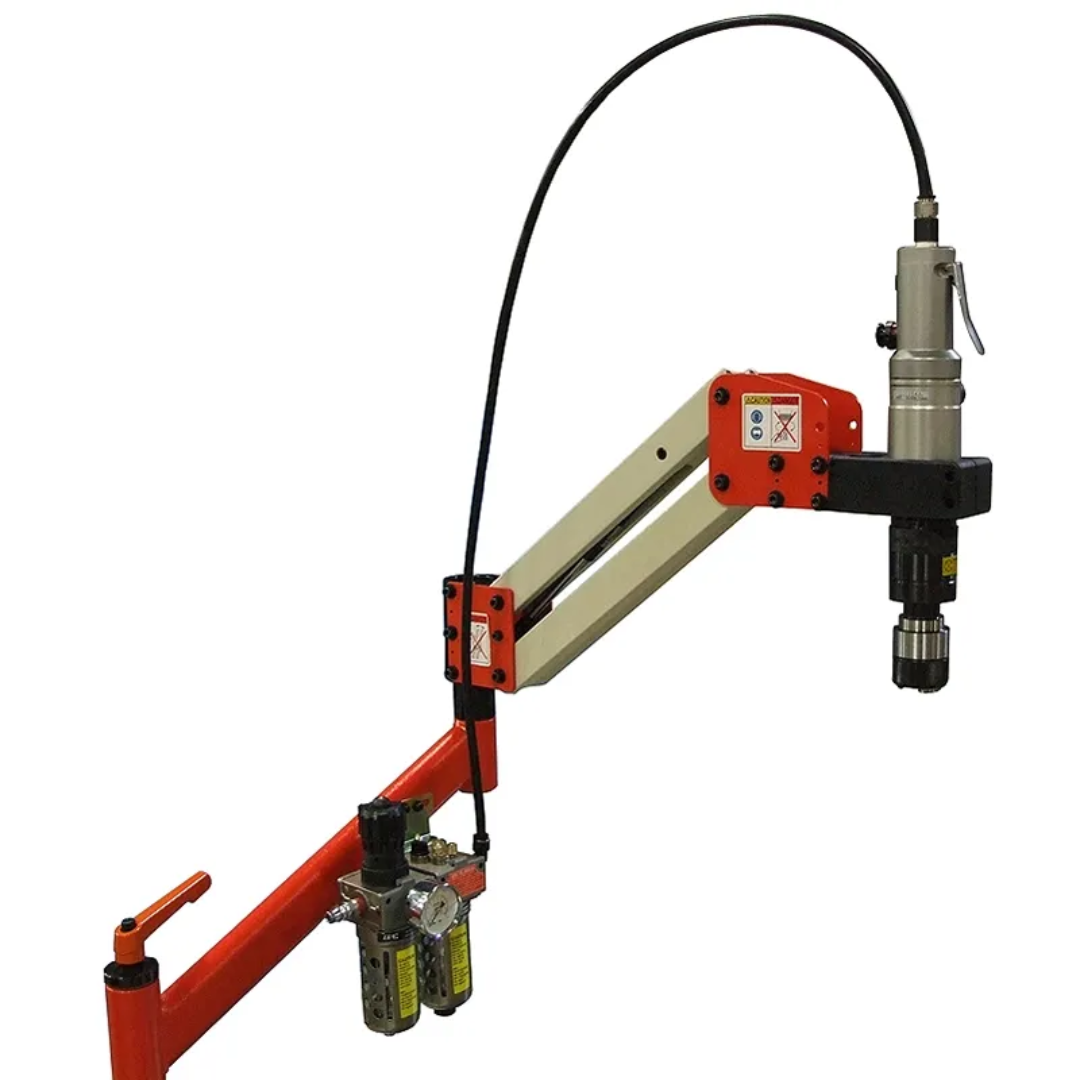

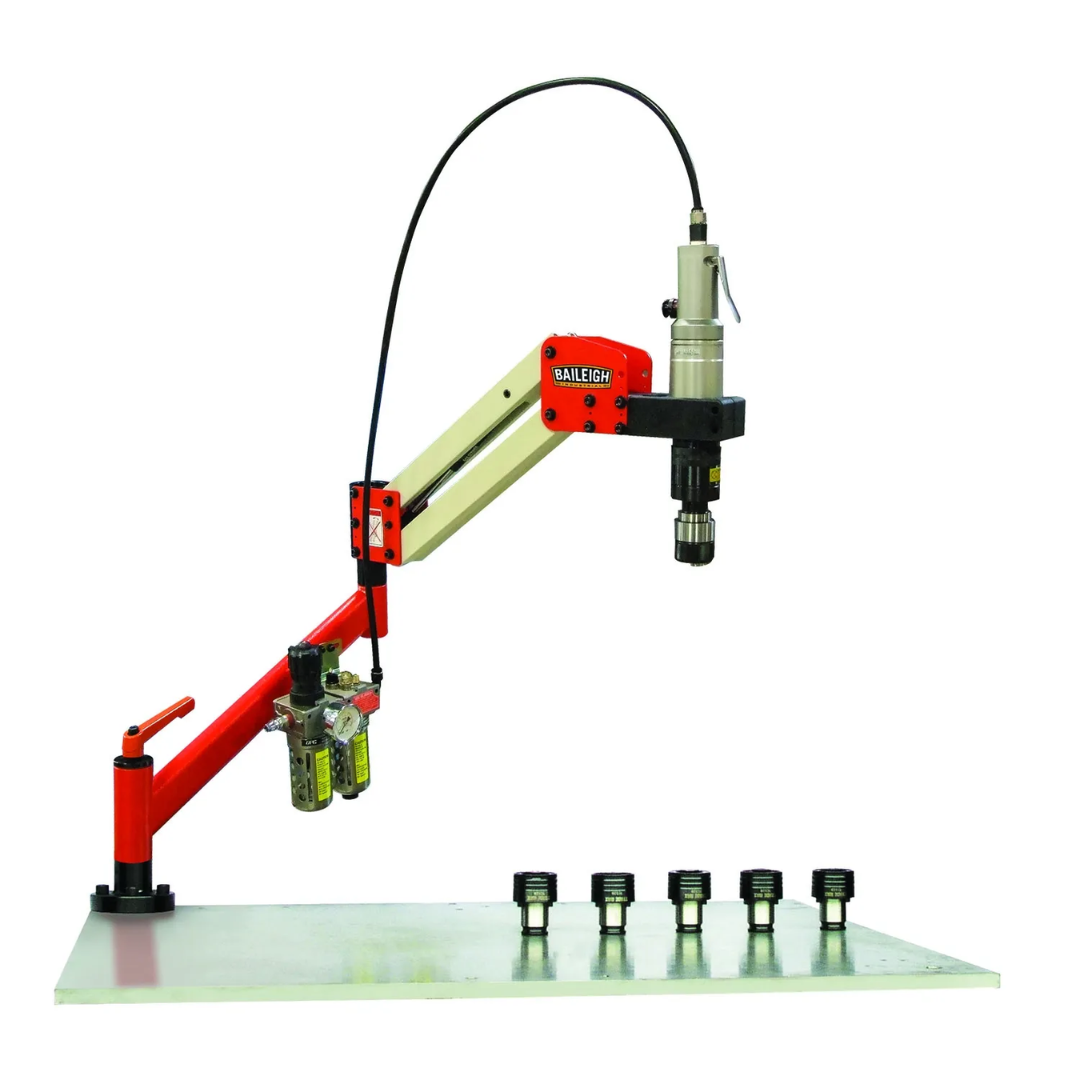

The articulated arm design provides exceptional reach and positioning flexibility, allowing operators to tap holes quickly and accurately throughout a large working envelope.
Baileigh ATM-27-1000 Pneumatic Tapping Arm 1000326 Specifications
| Model | ATM-27-1000 |
|---|---|
| Product Type | Pneumatic Tapping Arm |
| Operation Type | Air Powered / Pneumatic |
| Arm Configuration | Single-Arm Articulated Design |
| Tapping Range | .11" to 1" |
| Tapping Capacity (Mild Steel) | 1 in. |
| Spindle Speed Range | 70 – 220 RPM |
| Maximum Spindle Speed | 220 RPM |
| Minimum Work Range | 3.93 in. |
| Maximum Work Range | 39.3 in. |
| Input Power | Pneumatic |
| Motor Power | 7.5 HP Equivalent Pneumatic System |
| Spindle Operation | Pneumatic |
| Included Tap Holders | 1/4", 3/8", 1/2", 5/8", 3/4", and 7/8" |
| Mounting Style | Table Mounted |
| Construction | Cast Iron and Aluminum Articulated Arm Assembly |
| Net Weight | 55 lbs. |
| Gross Weight | 55 lbs. |
| Warranty | 1 Year |
| UPC | 731325391671 |
Baileigh ATM-27-1000 Pneumatic Tapping Arm 1000326 Features & Performance
- Pneumatic Tapping Operation delivers efficient threading performance without relying on electrical power, making it ideal for industrial workstations already equipped with compressed air systems.
- Single-Arm Articulated Design provides exceptional mobility and positioning flexibility, allowing operators to easily reach different hole locations.
- .11" to 1" Tapping Range accommodates a broad range of threading applications from small fastener holes to larger industrial thread sizes.
- 39.3" Maximum Working Reach covers a large operating area and reduces the need to reposition heavy workpieces.
- 3.93" Minimum Reach Capability allows accurate tapping close to the mounting position for smaller components.
- 70–220 RPM Pneumatic Spindle Speeds provide controlled tapping performance across a variety of materials and thread sizes.
- Heavy-Duty Cast Iron Swing Arm absorbs vibration and resists torque reaction for improved tapping accuracy and smoother operation.
- Aluminum Articulating Components reduce overall weight while maintaining structural rigidity and durability.
- Ergonomic Design minimizes operator fatigue during repetitive production tapping operations and helps improve workplace productivity.
- Table-Mounted Installation creates a secure and stable workstation for consistent threading performance.
- Six Included Tap Holders support common tapping sizes and reduce setup time for a variety of jobs.
- Precision Threading Performance helps produce accurate threads while reducing the risk of tap breakage and misalignment.
- Industrial-Grade Construction designed for continuous use in fabrication shops, machine shops, and manufacturing environments.
- Baileigh Warranty & Technical Support includes a 1-year parts warranty and lifetime technical assistance.
Why Choose the Baileigh ATM-27-1000 Pneumatic Tapping Arm 1000326
- Air-powered tapping system provides efficient industrial threading performance.
- Single-arm articulated design delivers excellent reach and positioning flexibility.
- Supports tap sizes from .11" to 1" for broad application versatility.
- 39.3" maximum work range accommodates large workpieces and production setups.
- Heavy-duty cast iron construction minimizes vibration and torque reaction.
- Includes six common tap holders for faster setup and operation.
- Reduces operator fatigue during repetitive tapping operations.
- Ideal for fabrication shops, machine shops, manufacturing facilities, and maintenance departments.
The Baileigh ATM-27-1000 Pneumatic Tapping Arm 1000326 combines industrial durability, ergonomic operation, and precision pneumatic tapping performance into a highly productive threading solution. With its 39.3" reach, articulated arm design, and 1" tapping capacity, this machine helps increase efficiency, improve thread quality, and reduce operator fatigue in demanding production environments.
