Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 Applications
- Press fitting bearings, bushings, and sleeves.
- Assembly and disassembly of mechanical components.
- Riveting, staking, and swaging operations.
- Light-duty bending and forming applications.
- Punching and broaching tasks with appropriate tooling.
- Tool room, maintenance, and repair shop work.
- Prototype development and small-part fabrication.
- General manufacturing and assembly line operations.
The Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 provides controlled manual force for precision shop operations where accuracy, repeatability, and reliability are critical.
Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 Specifications
| Model Number | AP-0 |
|---|---|
| Product Keyword | Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 |
| Machine Type | Manual Arbor Press |
| Rated Capacity | 0.5 Ton |
| Input Power | Manual |
| Throat Opening | 3-1/8" |
| Capacity Over Table | 4.75" |
| Stroke Length | 4.75" |
| Ram Size | 3/4" Case-Hardened Square Ram |
| Die Plate | Machined 4-Position Die Plate |
| Frame Construction | Rigid Cast Iron / Ductile Iron Casting |
| Mounting Options | Bench Mount or Pedestal Mount |
| Product Type | Machine |
| Net Weight | 19 lbs |
| Gross Weight | 19 lbs |
| UPC | 19907201083 |
| Warranty | 1 Year Parts Warranty |
Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 Performance & Construction
- 1/2-ton pressing capacity provides reliable force for assembly, fabrication, and maintenance applications.
- Rigid cast-iron frame minimizes deflection and maintains accurate alignment during pressing operations.
- Heavy ductile iron construction delivers durability and long service life in demanding shop environments.

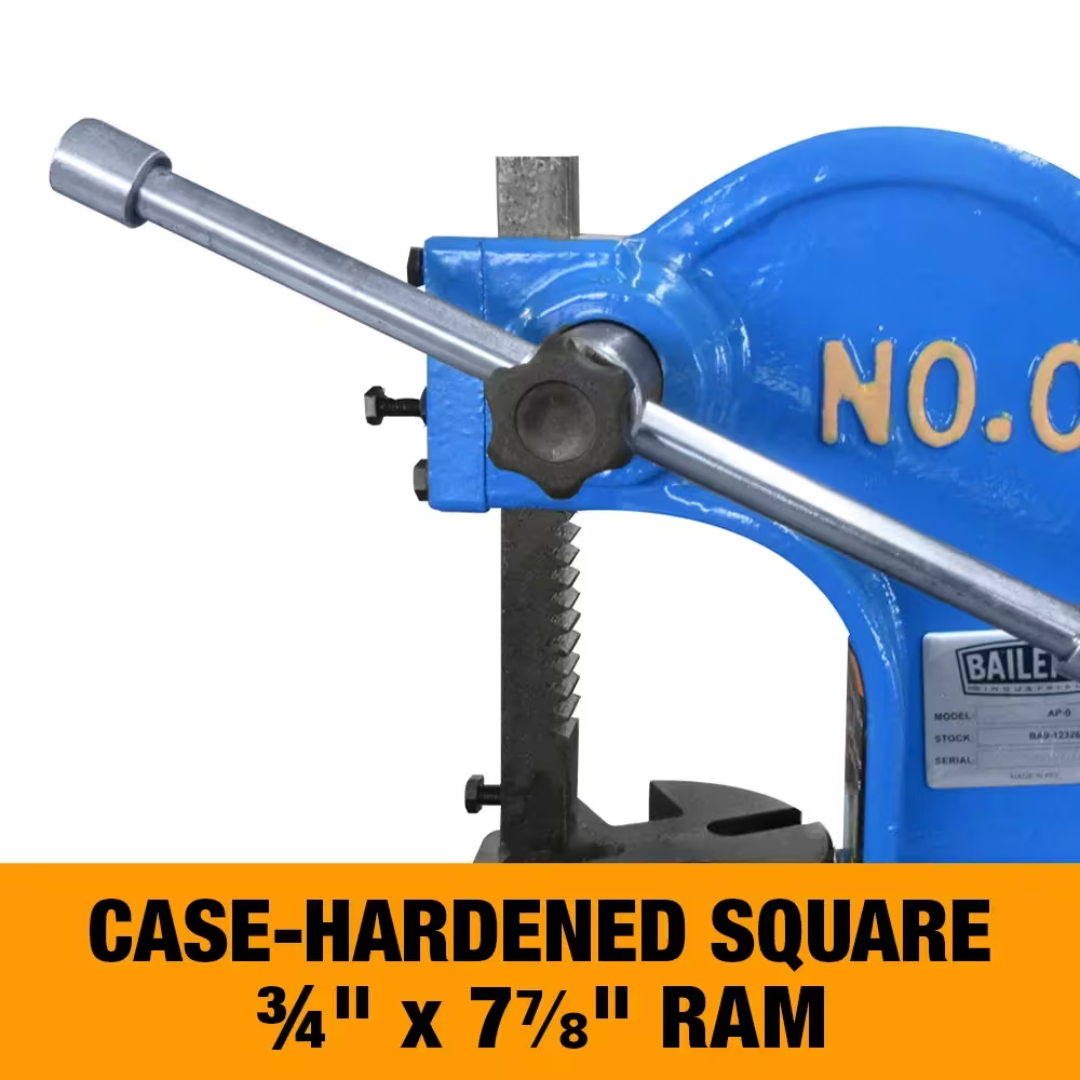

- 3/4" case-hardened square ram resists wear while providing precise force transfer to the workpiece.
- 3-1/8" throat opening allows access to a variety of parts and pressing configurations.
- 4.75" capacity over the table accommodates taller workpieces and tooling setups.
- Manual lever operation provides excellent control and tactile feedback during delicate pressing tasks.
- Compact design fits easily on workbenches, assembly stations, and maintenance work areas.
- Precision-machined components help maintain consistent results and repeatability.
- Low-maintenance design ensures dependable performance with minimal upkeep.
Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 Operational Features

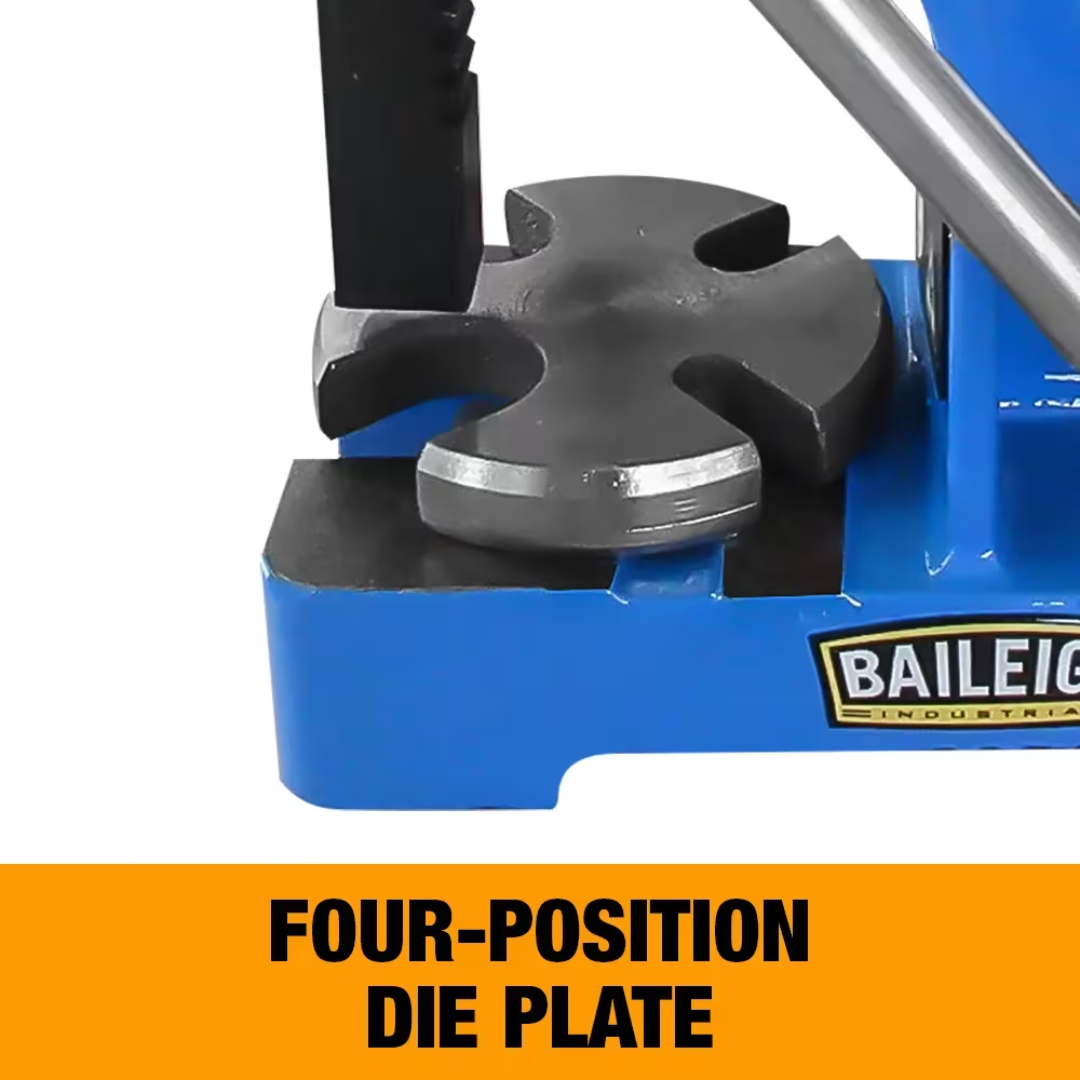

- Includes a precision-machined 4-position die plate for versatile workpiece support.
- Slideway adjustment system allows fine-tuning of ram tension and clearance.
- Suitable for precision assembly, staking, and bearing installation operations.
- Supports a variety of shop tooling and fixture configurations.
- Can be permanently mounted to a workbench or installed on a pedestal stand.
- Provides smooth and consistent ram movement throughout the stroke.
- Ideal for production, repair, fabrication, and maintenance departments.
- Compact footprint maximizes workspace efficiency.
The combination of a case-hardened ram, adjustable slideway system, and four-position die plate makes the Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 an excellent choice for precision manual pressing operations.
Why Choose the Baileigh AP-0 - 1/2-Ton Arbor Press 1232697
- Compact and durable cast iron construction.
- Precise 1/2-ton manual pressing capability.
- 4-position die plate improves versatility and workholding.
- Case-hardened square ram provides long-term durability.
- Bench or pedestal mounting flexibility.
- Ideal for assembly, riveting, staking, swaging, and bearing installation.
- Lightweight design allows convenient placement in any shop.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh AP-0 - 1/2-Ton Arbor Press 1232697 delivers dependable manual pressing performance, rugged construction, and precise control, making it a valuable tool for fabrication shops, maintenance departments, machine shops, and assembly operations.
