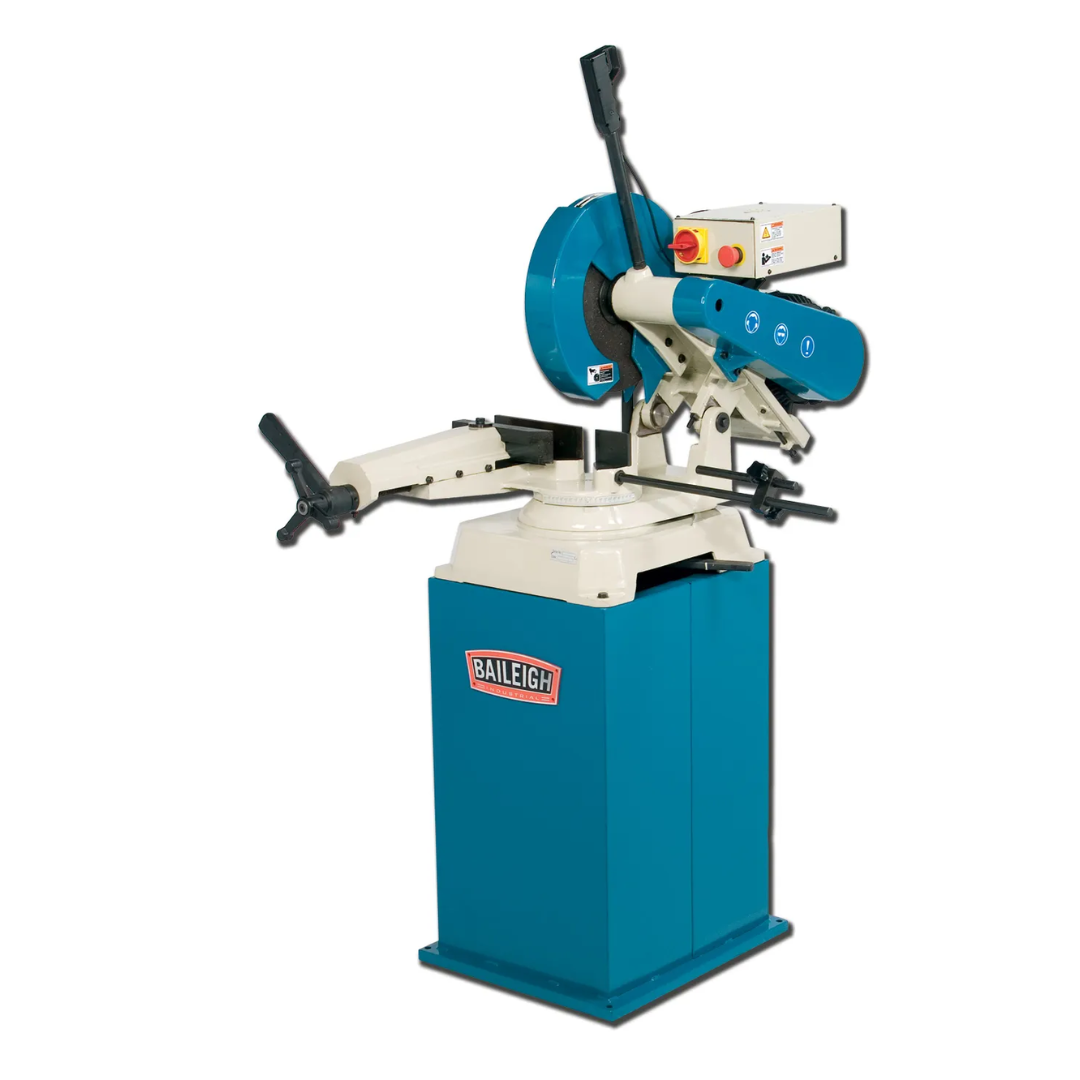

Baileigh Abrasive Chop Saw AS-350M 1000267 Applications
- Metal fabrication and welding shops performing daily production cutting.
- Manufacturing facilities processing steel tubing, pipe, and structural materials.
- Machine shops requiring reliable abrasive cut-off capabilities.
- Maintenance departments handling fabrication and repair work.
- Industrial production environments requiring accurate straight and miter cuts.
- Cutting round tubing, square tubing, bar stock, angle iron, channels, and other ferrous materials.
Ideal for industrial users seeking a powerful abrasive chop saw capable of handling demanding cutting applications while maintaining accuracy, durability, and long-term reliability.
Baileigh Abrasive Chop Saw AS-350M 1000267 Specifications
| Model | AS-350M |
|---|---|
| Product Number | 1000267 |
| Motor Power | 7.5 HP |
| Motor HP | 7.5 |
| Input Power | 220V Three Phase |
| Blade Diameter | 14" |
| Blade Speed | 4,300 RPM |
| Round Capacity at 90° | 4.5" |
| Round Capacity at 45° | 4" |
| Miter Angle Range | 45° Right / 45° Left |
| Maximum Vise Opening | 6.5" |
| Gross Weight | 425 lbs |
| Net Weight | 425 lbs |
| Product Type | Industrial Abrasive Cut-Off Saw |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325391336 |
| California Prop 65 | Cancer and Reproductive Harm Warning |
Baileigh Abrasive Chop Saw AS-350M 1000267 Performance & Construction
- Industrial 7.5 HP motor delivers the power required for demanding production cutting of steel and ferrous materials.
- 220V three-phase electrical system provides reliable industrial-grade operation and consistent performance.
- 14-inch abrasive cut-off blade allows efficient cutting of tubing, pipe, bar stock, and structural steel sections.

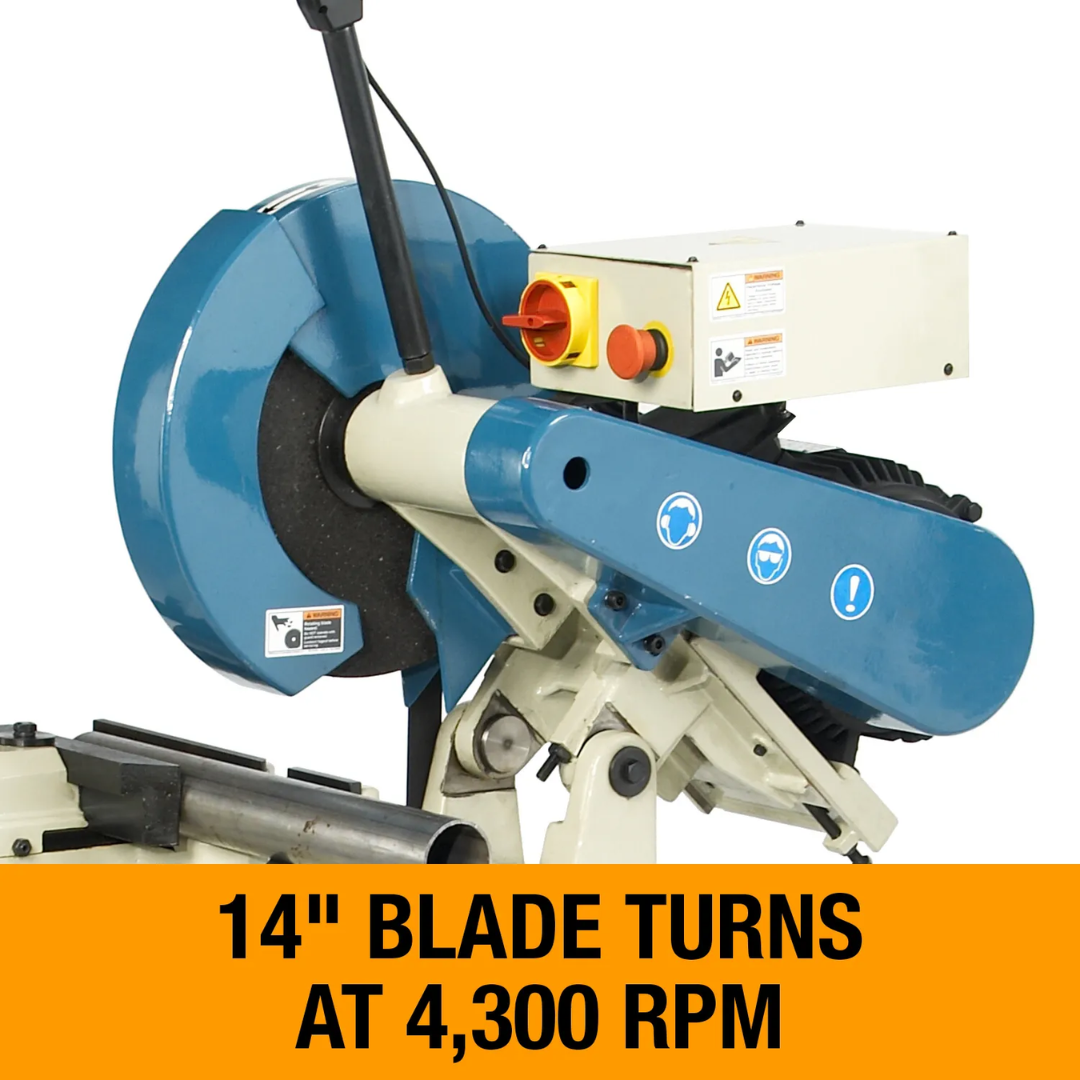

- 4,300 RPM blade speed enables rapid material removal and clean, consistent cutting results.

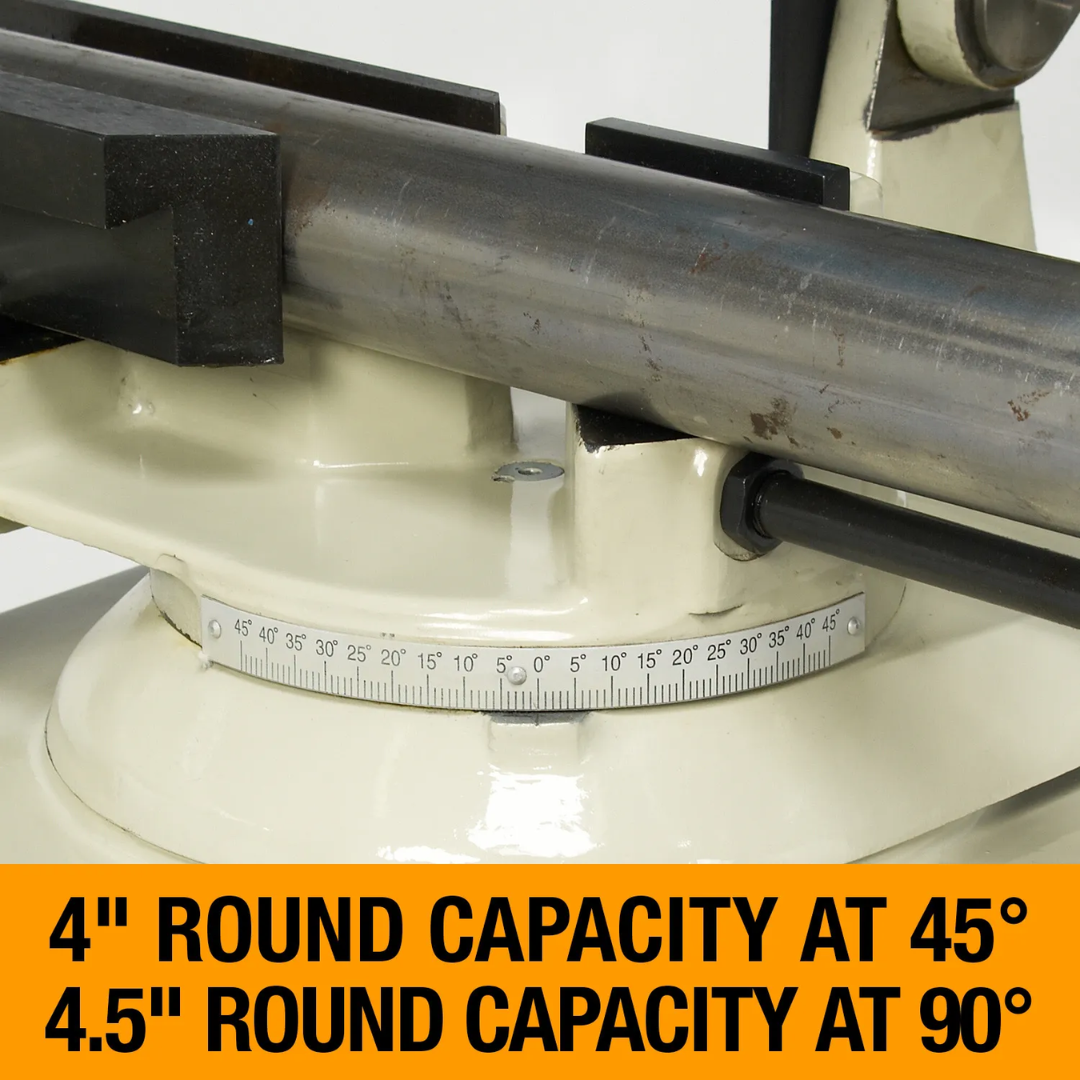

- 4.5-inch round cutting capacity at 90° accommodates larger diameter materials for straight cutting applications.
- 4-inch round cutting capacity at 45° supports accurate angled cuts for fabrication projects.
- 45° left and right miter capability provides flexibility when producing frames, supports, brackets, and custom assemblies.

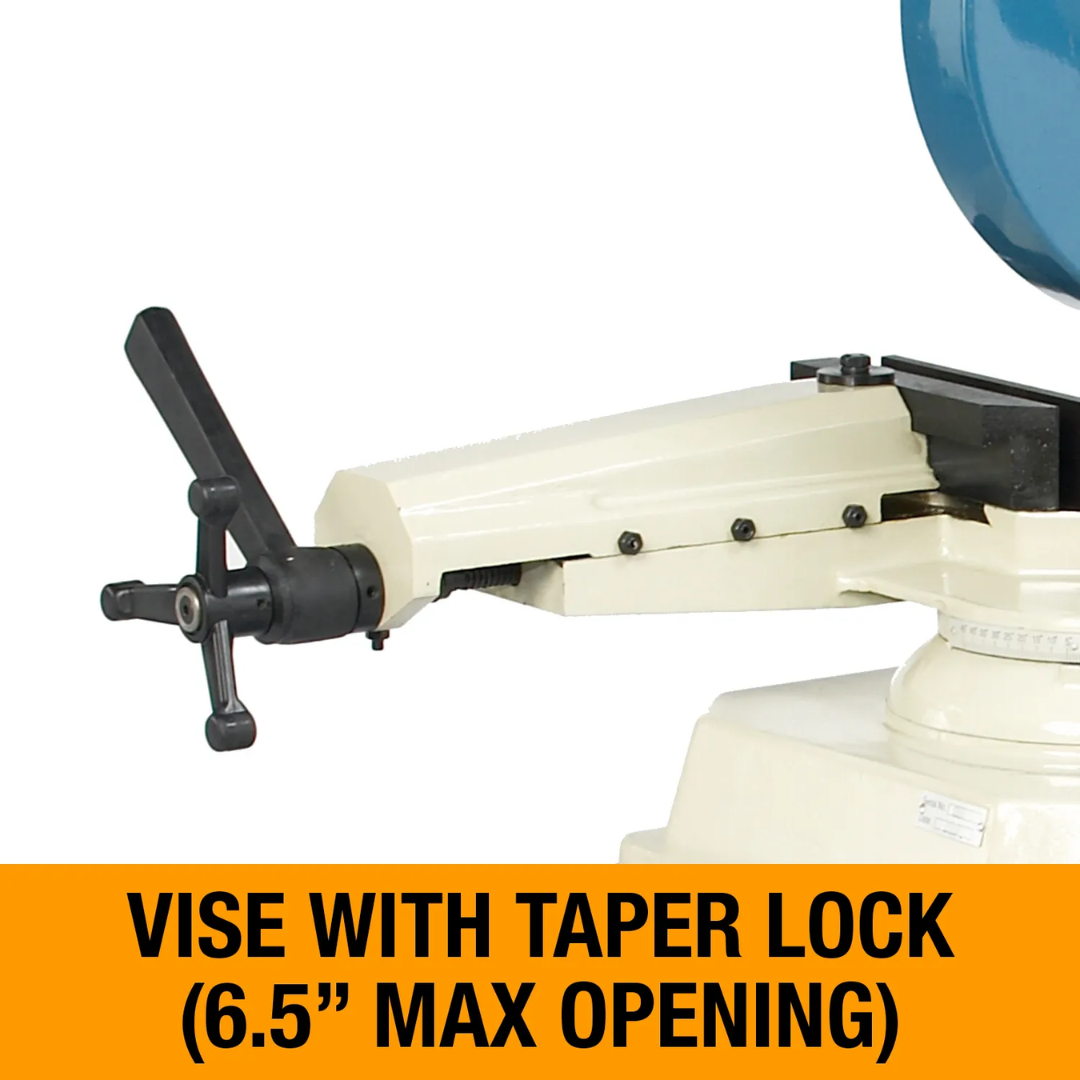

- Heavy-duty vise with taper lock system securely holds material and allows quick workpiece changes between cuts.
- 6.5-inch maximum vise opening accommodates a wide range of stock sizes and material profiles.
- Cast iron base and saw head construction reduce vibration and improve overall cutting stability.
- Steel cabinet stand provides a rigid platform designed for long-term industrial service.
- Reduced vibration design helps extend abrasive blade life while improving cut consistency.
- Manual operation gives operators full control over cutting speed and workpiece positioning.
- Backed by Baileigh's 1-year warranty and lifetime technical support for confidence and long-term ownership value.
Why Choose the Baileigh Abrasive Chop Saw AS-350M 1000267
- Powerful 7.5 HP motor designed for industrial metal cutting applications.
- Fast 4,300 RPM blade speed for efficient production cutting.
- Large cutting capacities for tubing, pipe, and structural steel.
- 45° left and right miter capability for versatile fabrication work.
- Heavy-duty vise with taper lock for secure material clamping.
- Cast construction and steel cabinet minimize vibration and increase durability.
- Ideal for fabrication shops, machine shops, welding facilities, and manufacturing operations.
- Supported by Baileigh's warranty coverage and technical support network.
The Baileigh Abrasive Chop Saw AS-350M 1000267 combines industrial-grade power, rugged construction, and precision cutting capability into a dependable metal cutting solution. Built for demanding fabrication environments, it delivers the performance, durability, and versatility required for professional production cutting operations.
