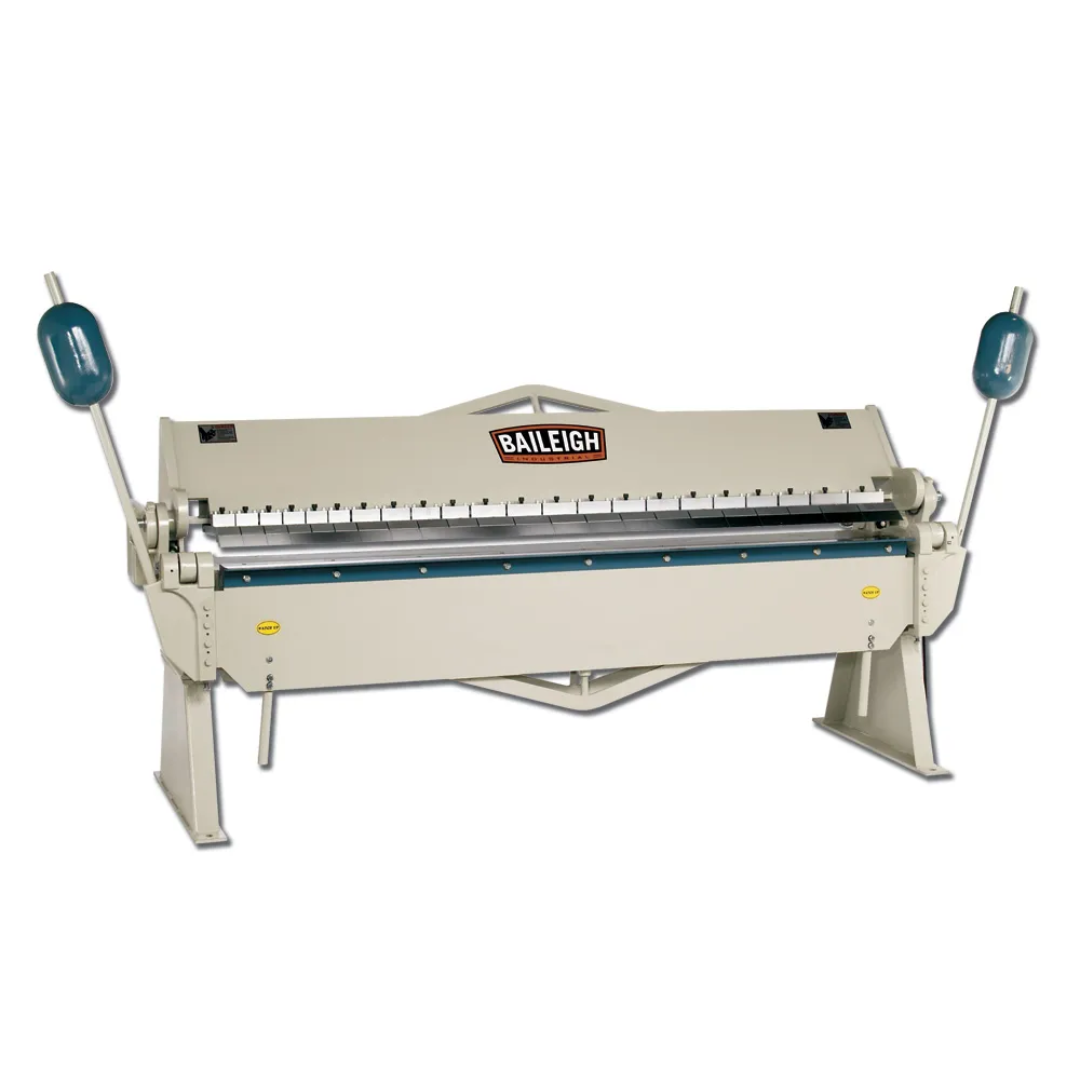

Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 Applications
- HVAC ductwork fabrication and sheet metal forming.
- Architectural metal panel manufacturing.
- Industrial enclosure and cabinet fabrication.
- Custom box, pan, and channel production.
- Metal roofing and flashing fabrication.
- Manufacturing facilities producing large sheet metal components.
- Maintenance and repair shops requiring precision bending capabilities.
- General fabrication operations working with mild steel and stainless steel.
Perfect for fabrication shops that require the flexibility to form large sheet metal components while maintaining precise bend quality and long-term reliability.
Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 Specifications
| Model Number | BB-9612 |
|---|---|
| Product Keyword | Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 |
| Brake Type | Manual Box & Pan Brake |
| Bending Capacity Length | 96 in. (8 ft) |
| Mild Steel Capacity | 12 Gauge |
| Stainless Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Operation | Manual |
| Finger Configuration | 22 Removable Fingers |
| Finger Sizes | 6 × 3", 4 × 4", 10 × 5", 2 × 6" |
| Net Weight | 3,250 lbs |
| Gross Weight | 3,250 lbs |
| UPC | 731325393385 |
| Warranty | 1 Year |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 Features & Construction
- 96-inch working width accommodates large sheet metal panels and full-size fabrication projects.
- 12-gauge mild steel capacity allows fabrication of heavy-duty components with confidence.
- 16-gauge stainless steel capacity expands material compatibility for diverse applications.
- 22 hardened removable fingers provide maximum flexibility when creating boxes, pans, channels, and specialty bends.
- Multiple finger sizes allow custom setups for complex forming operations and production work.
- 6-inch maximum box depth enables fabrication of deeper channels and formed components.
- 0° to 135° bending range delivers precise bend control for a wide variety of projects.
- Electro-welded steel frame construction minimizes deflection while maintaining accuracy over years of operation.
- Industrial-grade structural design provides stability during heavy forming applications.
- Manual operation eliminates electrical requirements and allows flexible placement within the shop.
- Heavy-duty clamping system helps ensure consistent bends along the entire working width.
- Production-ready design built for daily fabrication use in demanding environments.
Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 Performance Advantages
- Massive counterweight system assists apron movement to reduce operator effort during bending operations.
- Reduced operator fatigue improves productivity when processing large quantities of sheet metal.
- Rigid welded construction helps maintain bending accuracy across the full 8-foot width.
- Adjustable finger design allows fast reconfiguration for varying part geometries and production requirements.
- Consistent bend quality supports repeatable results for fabrication, manufacturing, and repair work.
- Heavy-duty mechanical design delivers long-term reliability with minimal maintenance requirements.
The combination of heavy welded construction, large working width, removable fingers, and counterweight-assisted operation makes this brake an outstanding choice for professional sheet metal fabrication facilities.
Why Choose the Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553
- Full 96-inch bending capacity handles large sheet metal panels with ease.
- Bends up to 12-gauge mild steel and 16-gauge stainless steel.
- 22 removable fingers provide exceptional forming flexibility.
- 135° maximum bend angle supports a wide range of fabrication projects.
- 6-inch box depth enables deeper channels and formed components.
- Counterweight-assisted apron reduces operator fatigue.
- Heavy-duty electro-welded frame ensures long-term precision and durability.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 96-Inch Box & Pan Brake, 12-Gauge Mild Steel (BB-9612) 1000553 delivers professional-grade forming performance, industrial durability, and the flexibility required for demanding sheet metal fabrication operations.
