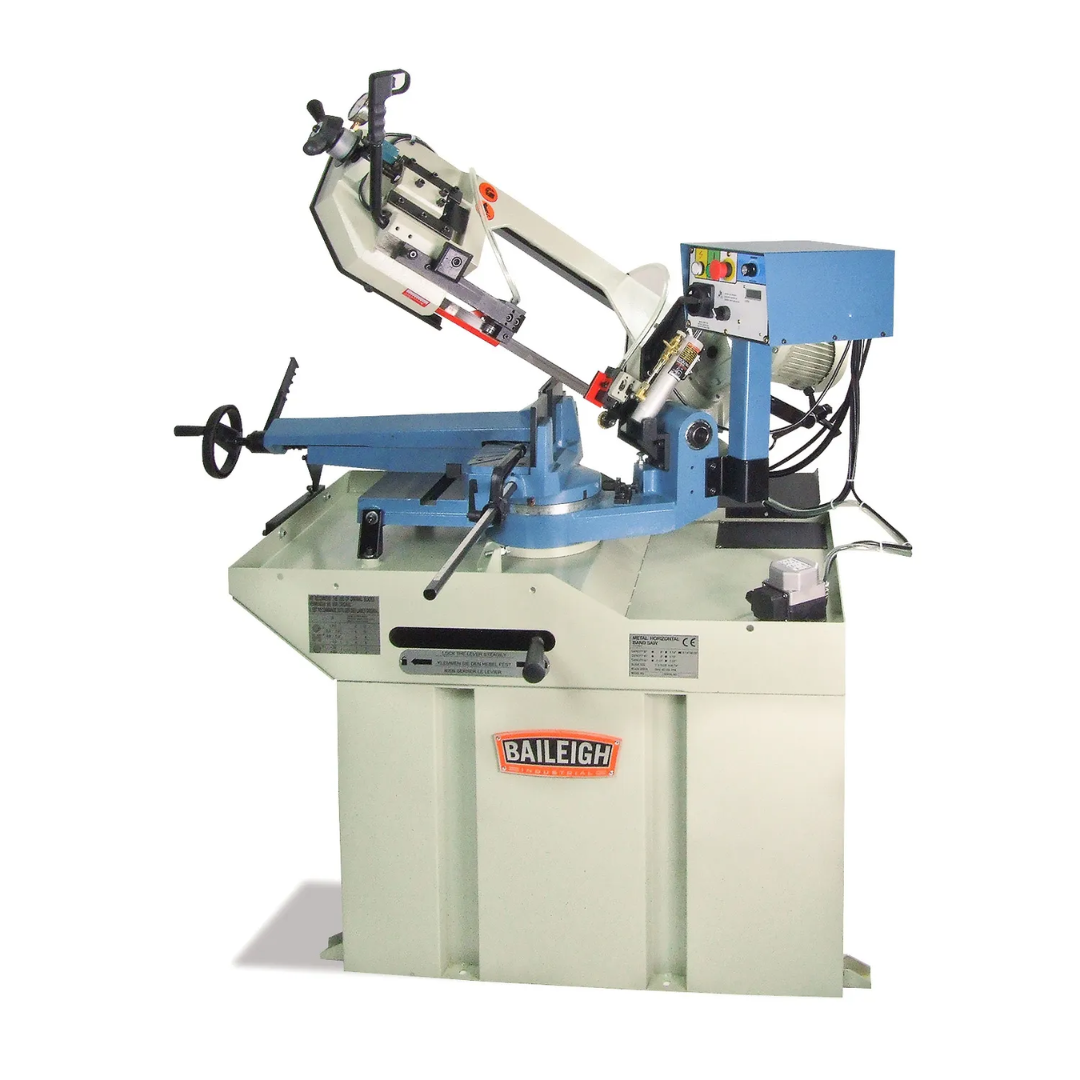

Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432 Applications
- General metal fabrication and structural steel processing.
- Machine shop and maintenance department cutting operations.
- Tube, pipe, angle iron, and solid stock preparation.
- Automotive, agricultural, and industrial manufacturing.
- Custom fabrication requiring accurate miter cuts.
- Production cutting of ferrous and non-ferrous metals.
- Maintenance and repair facility material preparation.
- Small to medium-volume industrial cutting applications.
Perfect for shops that need a versatile horizontal bandsaw capable of accurate straight cuts, compound miter work, and reliable day-to-day production performance.
Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432 Specifications
| Model Number | BS-260M |
|---|---|
| Product Keyword | Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432 |
| Machine Type | Gear-Driven Dual-Miter Horizontal Bandsaw |
| Motor Power | 1.5 HP |
| Input Power | 220V Single Phase |
| Motor Speed | 1720 RPM |
| Round Cutting Capacity at 90° | 8.66 in. |
| Blade Width | 1 in. |
| Blade Guide Type | Carbide x Roller |
| Variable Blade Speed | 66 – 280 SFPM |
| Miter Range | 60° Right / 45° Left |
| Miter Adjustment Type | Dual Swivel Head |
| Descent Control | Hydraulic |
| Return Type | Manual |
| Drive System | Direct-Drive Gearbox |
| Coolant System | Flood Coolant System |
| Net Weight | 717 lbs. |
| Gross Weight | 717 lbs. |
| UPC | 731325397666 |
| Warranty | 1 Year |
Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432 Performance & Construction

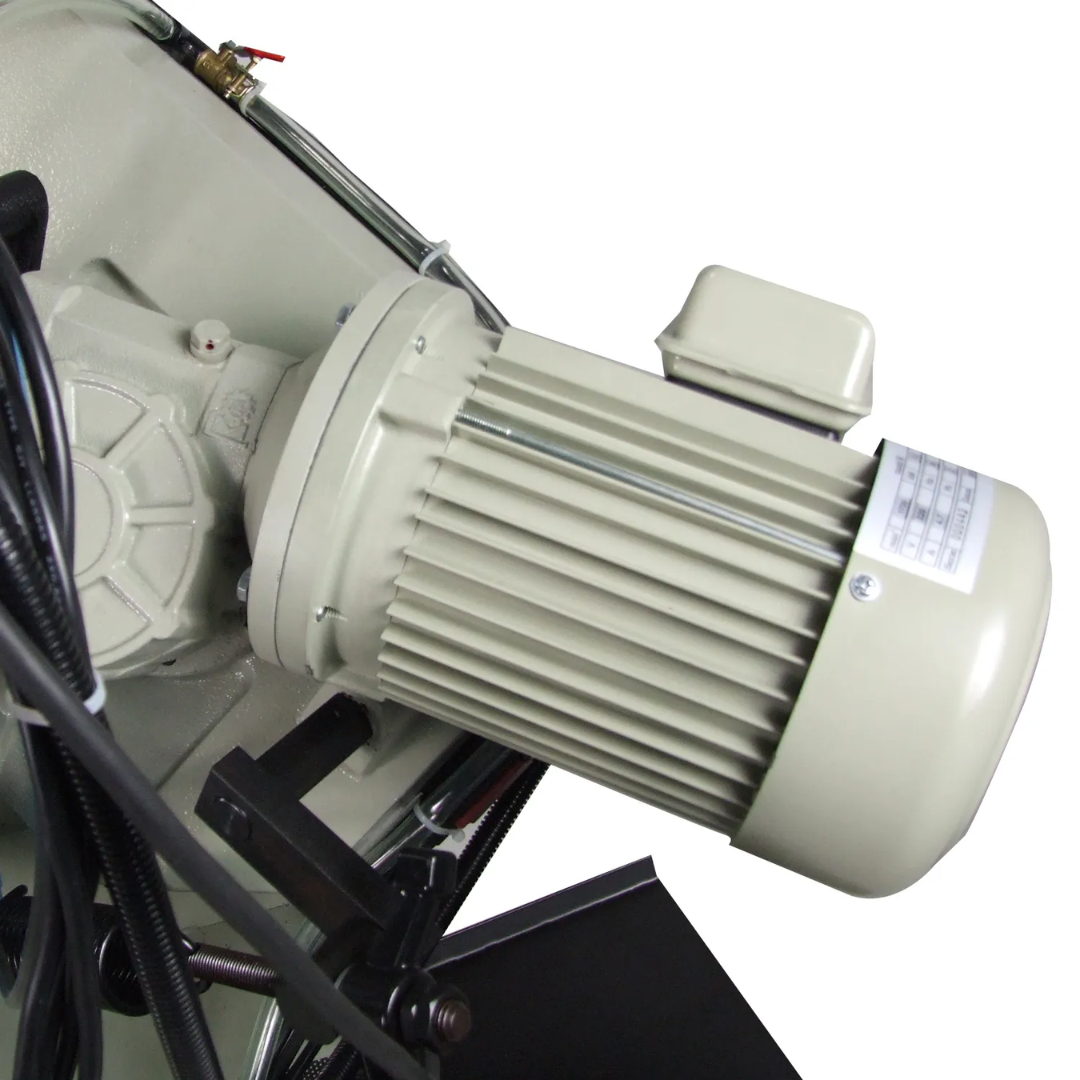

- 1.5 HP inverter-controlled motor delivers reliable cutting power for steel, aluminum, stainless steel, and other metals.
- 220V single-phase operation allows installation in a wide range of fabrication and maintenance facilities.
- 8.66-inch round cutting capacity handles large-diameter tubing, pipe, and solid material with ease.

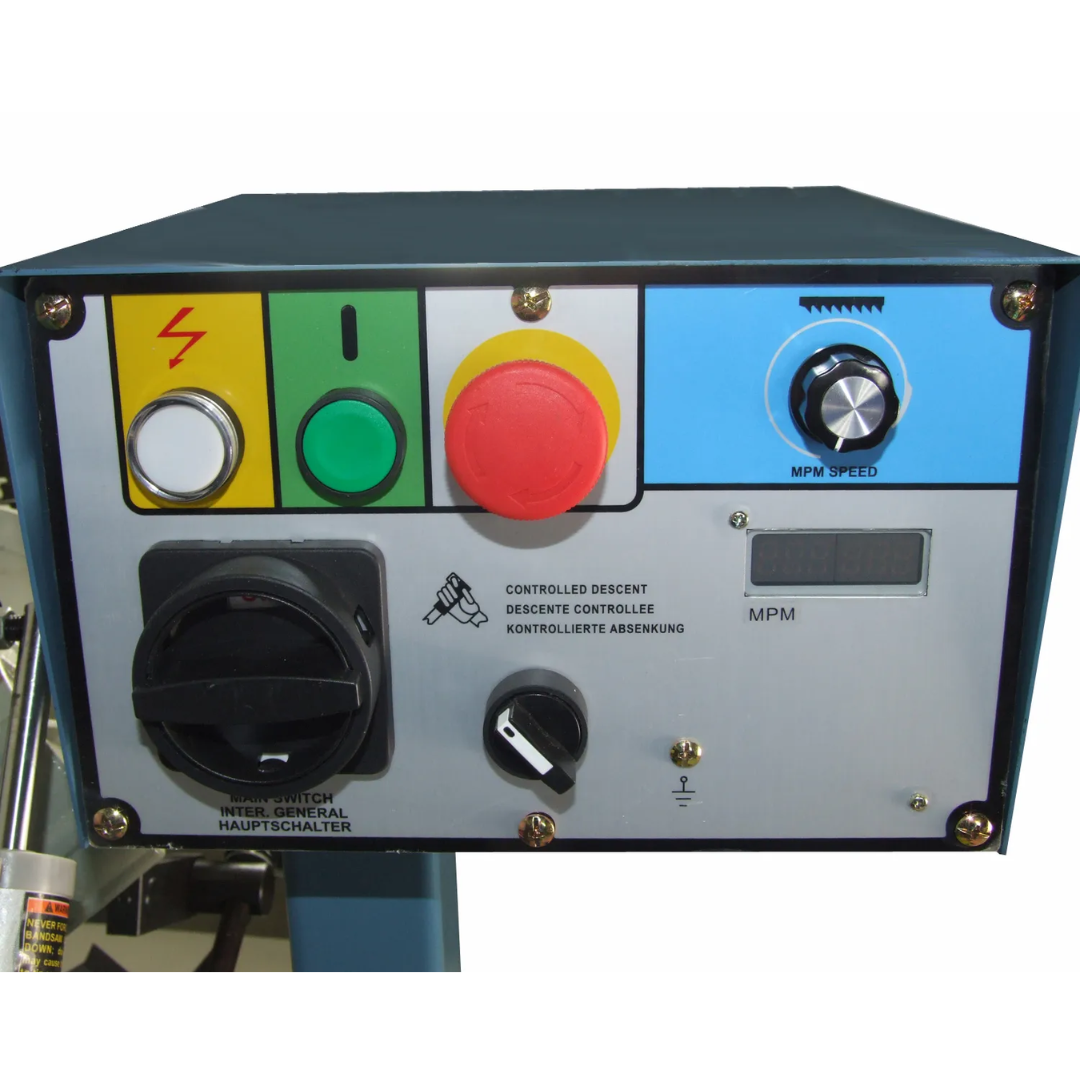

- Variable blade speeds from 66 to 280 SFPM let operators optimize cutting performance for different materials.

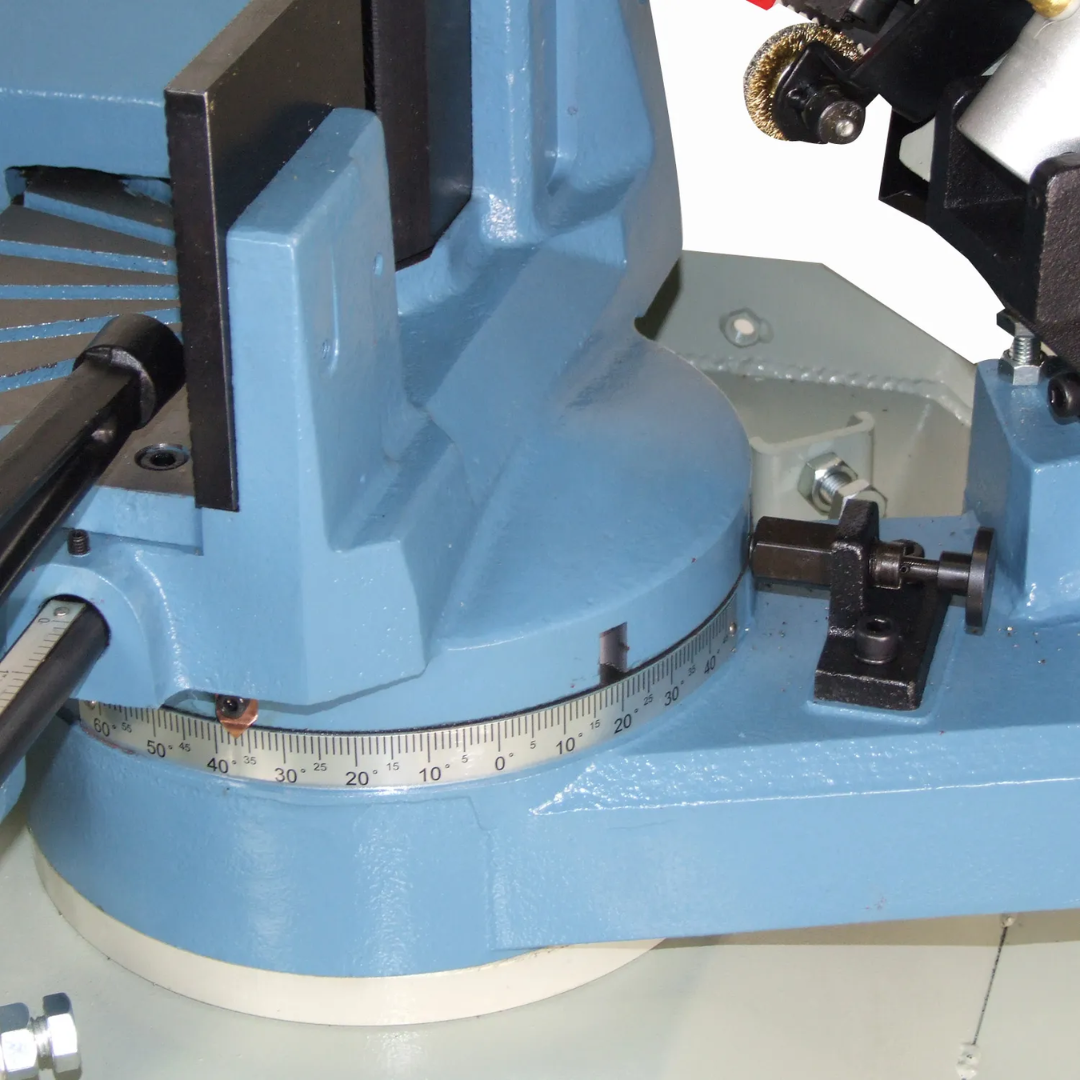

- Dual-swivel miter head enables cuts up to 60° right and 45° left without moving the workpiece.
- Direct-drive gear-driven transmission eliminates belts and pulleys, reducing maintenance requirements and improving reliability.

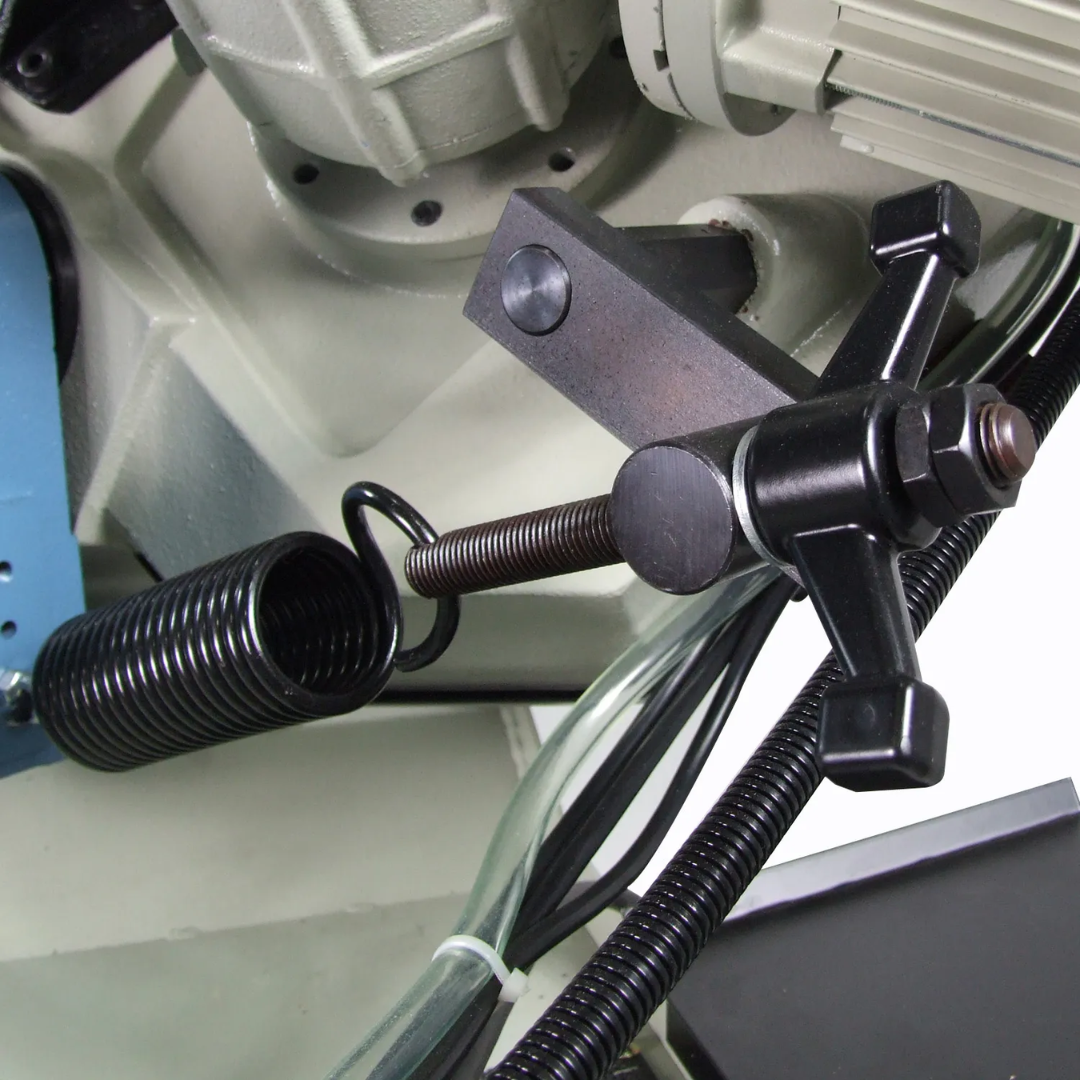

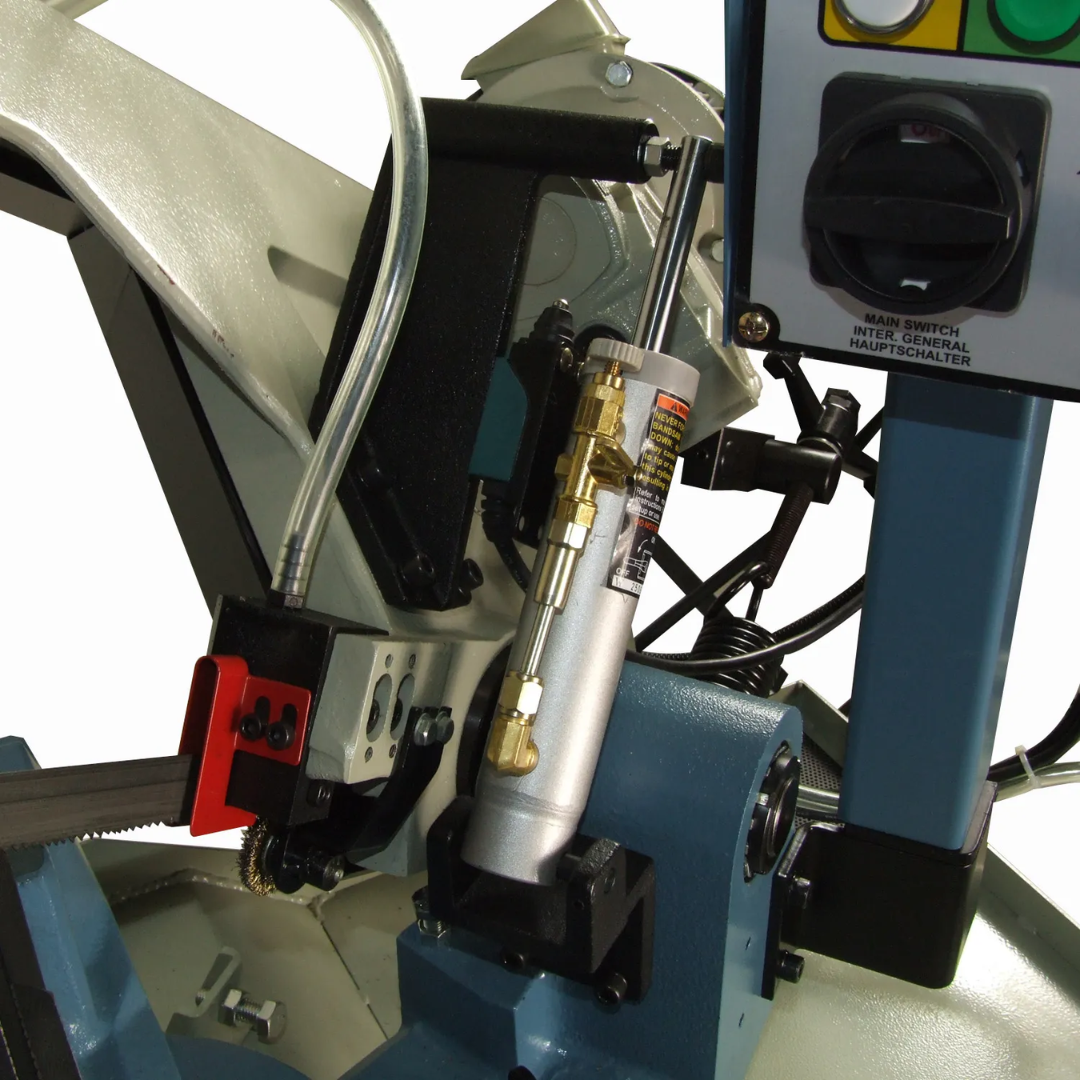

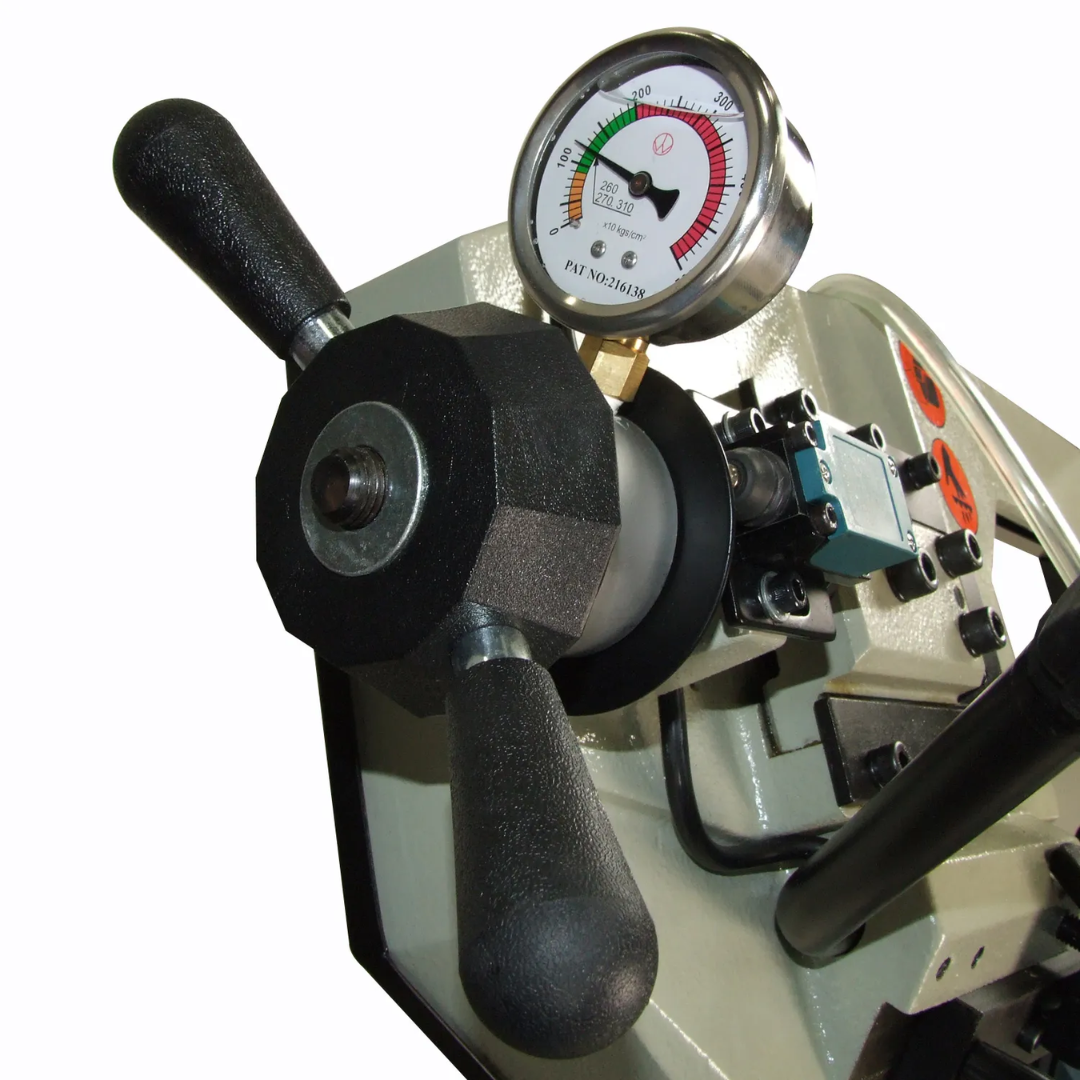

- Hydraulic descent control provides smooth, controlled cutting pressure and improves blade life.
- Manual return function gives operators efficient control for short-run and production cutting operations.
- Flood coolant system helps reduce heat buildup while flushing chips away from the cutting zone.
- Carbide and roller blade guides improve blade tracking accuracy and reduce vibration during cutting.
- Heavy cast iron bow and pivot assembly enhances rigidity and helps produce cleaner, more accurate cuts.
- Precision ball-bearing supported components contribute to smooth operation and long-term durability.
- Quick miter adjustment system simplifies setup changes for production environments.
- Industrial-grade construction withstands demanding shop conditions and continuous use.
Why Choose the Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432
- Large 8.66-inch round cutting capacity for versatile material handling.
- Dual-miter head cuts 60° right and 45° left without repositioning stock.
- Variable-speed operation optimizes cutting performance across multiple materials.
- Direct-drive gearbox reduces maintenance and improves reliability.
- Hydraulic descent control delivers smoother cuts and longer blade life.
- Flood coolant system enhances cutting efficiency and blade performance.
- Heavy-duty cast iron construction minimizes vibration and improves accuracy.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 8.5" Variable-Speed Dual-Miter Horizontal Bandsaw (BS-260M) 1001432 combines industrial-grade construction, precision dual-miter capability, inverter-controlled speed adjustment, and a dependable gear-driven drivetrain to provide fabrication professionals with a powerful and versatile metal-cutting solution for everyday shop production.
