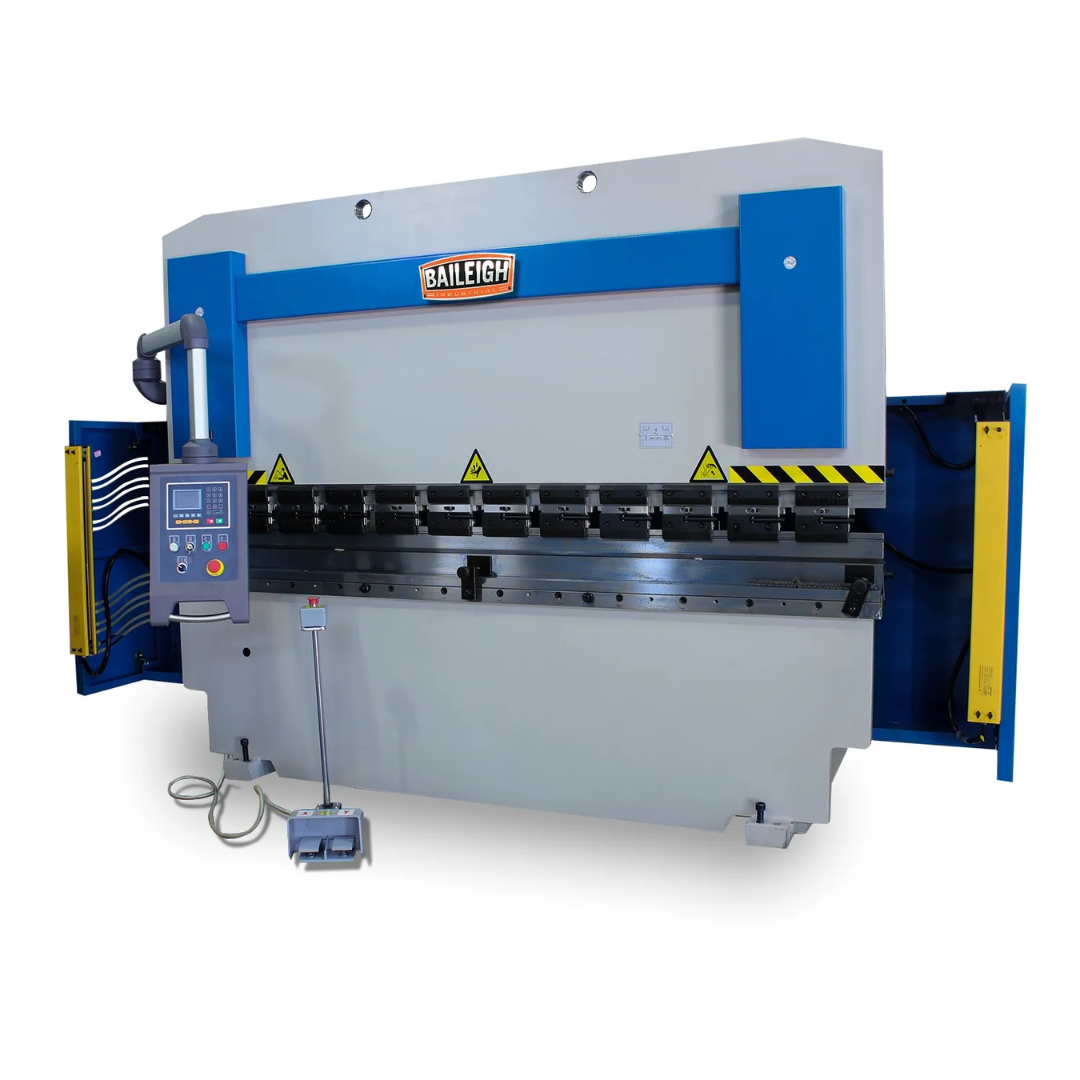

Baileigh 70-Ton Hydraulic Press Brake, 98" Bed Length (BP-7098CNC) 1000836 Applications
- Sheet metal fabrication and manufacturing facilities
- Electrical enclosure and cabinet production
- HVAC ductwork and component fabrication
- Architectural metalworking and custom metal projects
- Agricultural and industrial equipment manufacturing
- Production bending operations requiring repeatability
- Maintenance and repair fabrication departments
- Prototype development and custom fabrication work
- General industrial forming and bending applications
Ideal for shops seeking CNC-controlled precision, industrial-grade hydraulic performance, and efficient production capabilities in a compact footprint.
Baileigh 70-Ton Hydraulic Press Brake, 98" Bed Length (BP-7098CNC) 1000836 Specifications
| Model Number | BP-7098CNC |
|---|---|
| Product Number | 1000836 |
| Bending Capacity | 70 Tons |
| Bending Length | 98" |
| Input Power | 220V, Three Phase |
| Controller | Estun E21 2-Axis CNC Controller |
| Program Storage Capacity | 40 Programs |
| Back Gauge Motor | 1/2 HP |
| Approach Speed | 2.0 in./sec. |
| Bending Speed | 0.6 in./sec. |
| Stroke Length | 4.7" |
| Distance Between Housings | 80" |
| Distance from Table to Ram | 14" |
| Throat Depth | 9.75" |
| Maximum Bend Angle | 135° |
| Hydraulic Pump | Vickers/Eaton Industrial Hydraulic Pump |
| Frame Construction | Fully Welded Stress-Relieved Steel Frame |
| Included Tooling | Gooseneck Punch and Multi-V Bottom Die |
| Gross Weight | 10,850 lbs. |
| Net Weight | 10,850 lbs. |
| UPC | 731325394603 |
| Warranty | 1 Year Parts Warranty |
Baileigh 70-Ton Hydraulic Press Brake, 98" Bed Length (BP-7098CNC) 1000836 Performance & Construction
- 70 tons of hydraulic bending force provides the power required for professional sheet metal forming applications across a broad range of materials and thicknesses.
- 98-inch bed length accommodates long workpieces, panels, enclosures, brackets, and fabricated components while maintaining consistent bending accuracy.

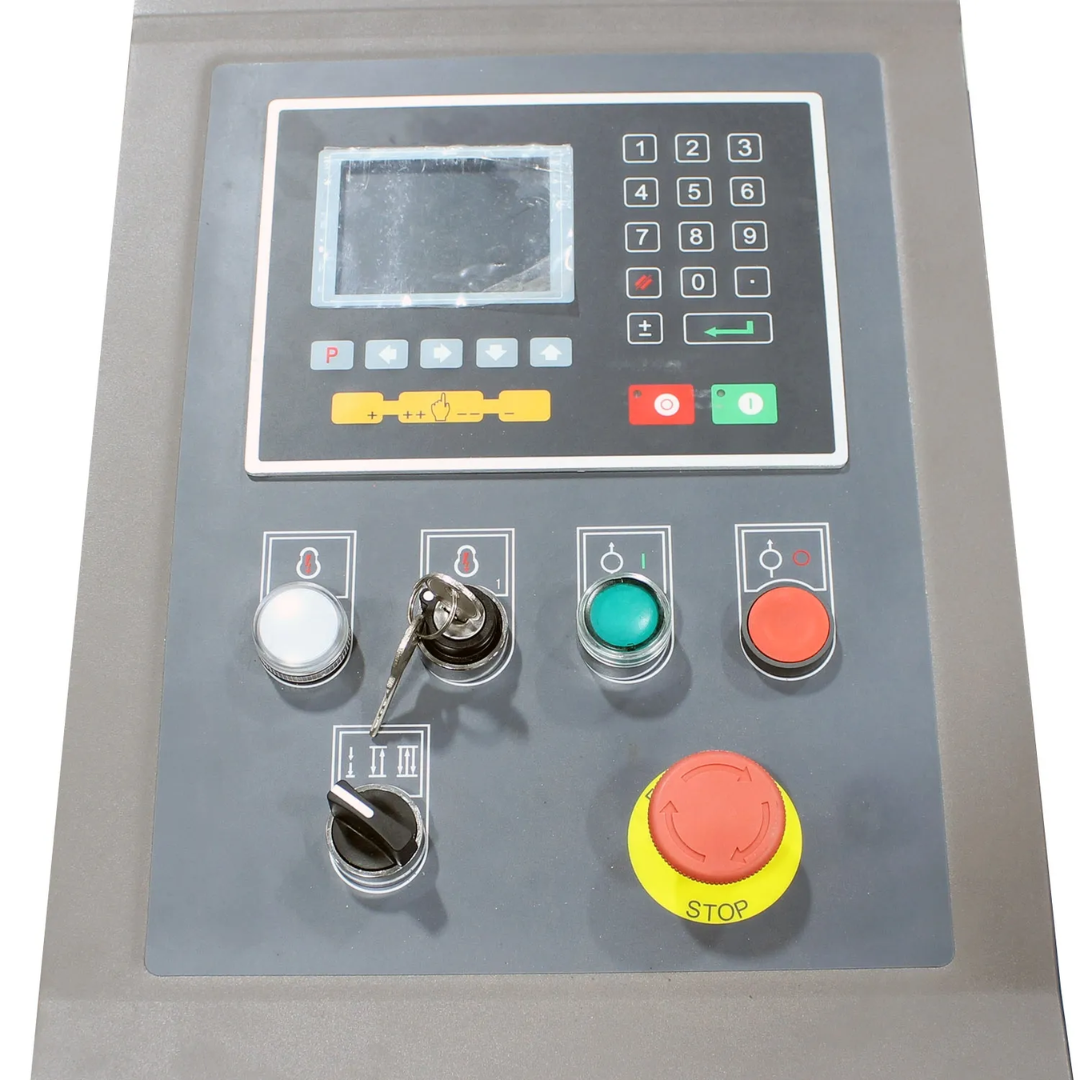

- Estun E21 2-axis CNC controller simplifies operation by allowing operators to program, store, and recall bend sequences for increased productivity and reduced setup time.
- Storage capacity for up to 40 programs helps streamline repeat jobs and production runs by eliminating the need for repeated machine setup.

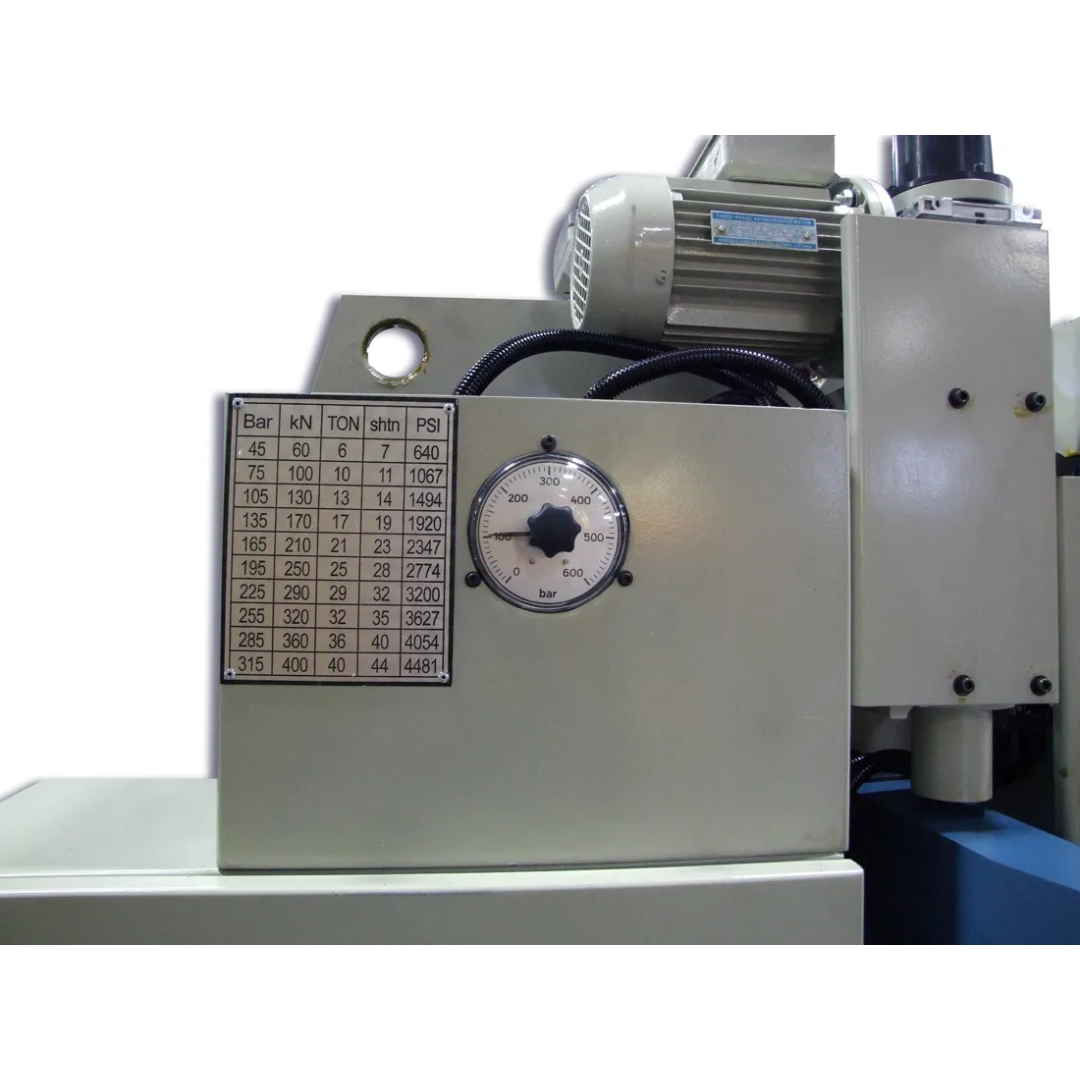

- CNC-controlled back gauge system delivers precise material positioning and repeatable bend locations for consistent finished parts.
- Industrial-grade Vickers/Eaton hydraulic pump provides smooth, balanced hydraulic performance with reliable long-term operation.
- 220V three-phase hydraulic drive system delivers dependable power suitable for fabrication shops and industrial production environments.
- Fully welded stress-relieved steel frame maintains machine alignment and minimizes deflection under load for improved bending accuracy.
- 9.75-inch throat depth offers additional flexibility when forming deeper components and complex sheet metal parts.
- 14-inch open height from table to ram accommodates a variety of tooling configurations and workpiece dimensions.

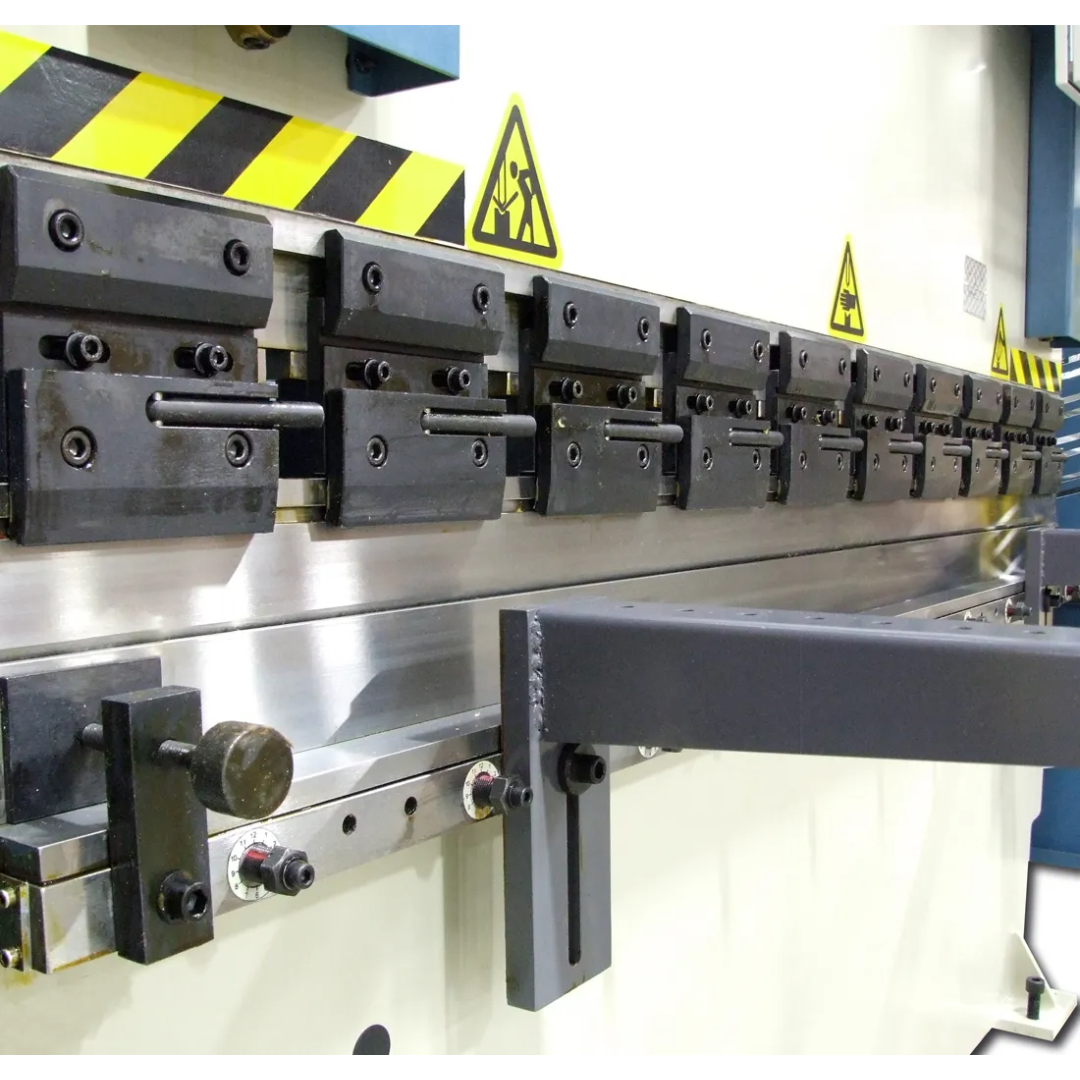

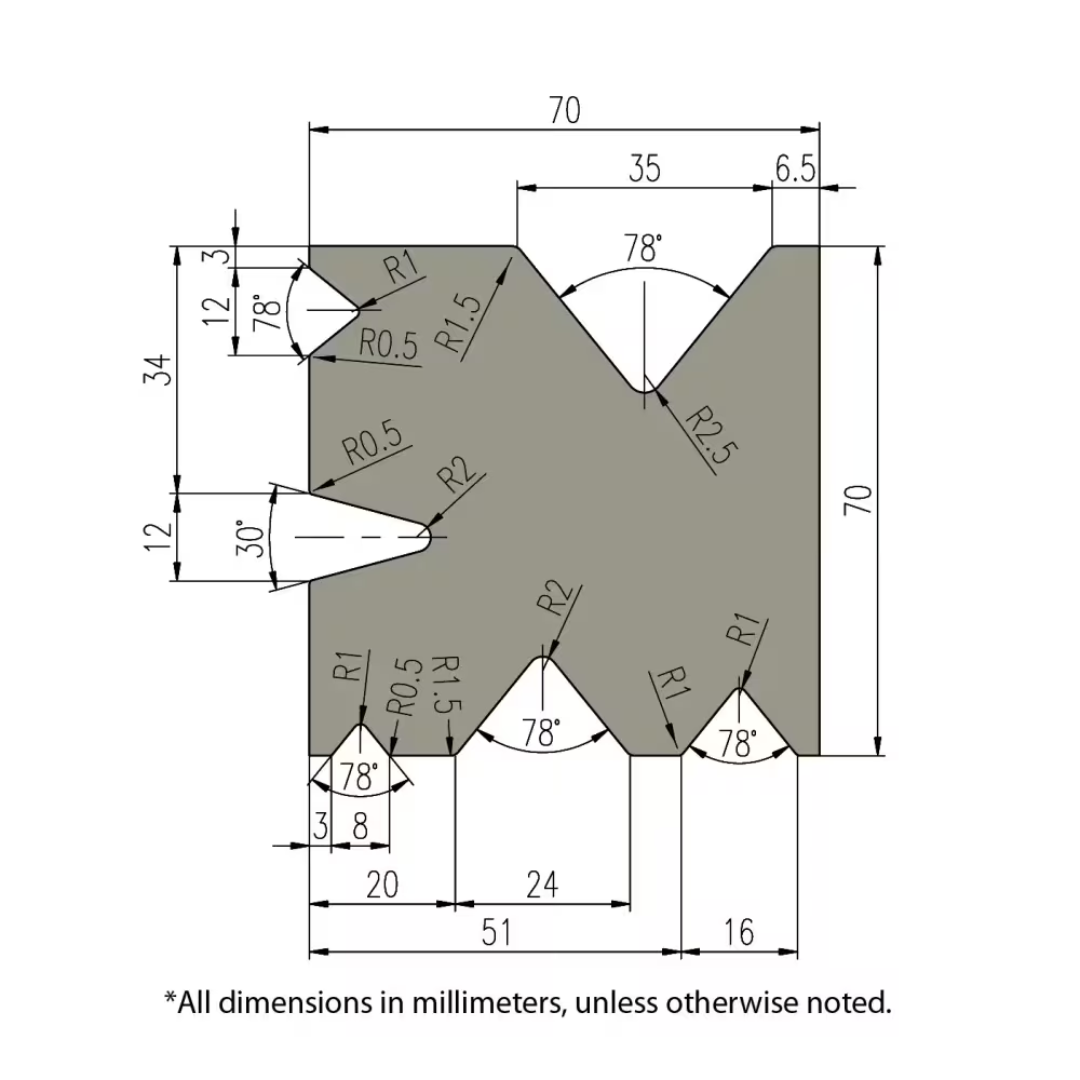

- Included gooseneck punch and multi-V bottom die provide versatility for a wide range of forming operations without requiring immediate tooling upgrades.
- Controlled approach and bending speeds improve operator confidence while maintaining accurate and repeatable forming performance.
- Heavy-duty 10,850-pound construction enhances machine stability, vibration resistance, and long-term reliability.
- Designed for both custom fabrication and production manufacturing where repeatability, accuracy, and efficiency are critical.
- Lifetime technical support from Baileigh provides ongoing assistance and ownership confidence.
Why Choose the Baileigh 70-Ton Hydraulic Press Brake, 98" Bed Length (BP-7098CNC) 1000836
- 70-ton bending capacity supports demanding industrial forming applications.
- 98-inch bed length accommodates larger workpieces and production requirements.
- Estun E21 CNC controller stores up to 40 programs for improved efficiency.
- CNC-controlled back gauge enhances accuracy and repeatability.
- Premium Vickers/Eaton hydraulic components ensure dependable operation.
- Heavy-duty stress-relieved steel frame maintains long-term precision.
- Includes gooseneck punch, multi-V die, warranty coverage, and lifetime technical support.
The Baileigh 70-Ton Hydraulic Press Brake, 98" Bed Length (BP-7098CNC) 1000836 combines industrial hydraulic power, CNC-controlled accuracy, and rugged steel construction to deliver reliable, repeatable bending performance for fabrication professionals who demand productivity, precision, and long-term durability.
