Baileigh 7-Inch Horizontal/Vertical Bandsaw, Coolant Pump (BS-712MS) Applications
- General metal fabrication and welding operations.
- Machine shops producing accurate cutoff and mitered components.
- Maintenance and repair departments processing pipe, tubing, and bar stock.
- Prototype manufacturing and custom fabrication environments.
- Industrial facilities requiring versatile horizontal and vertical cutting capabilities.
- Educational and technical training programs teaching metalworking processes.
- Production cutting of steel, stainless steel, aluminum, and other metals.
Ideal for shops that need both horizontal production cutting and vertical contour-cutting capability from one compact machine.
Baileigh 7-Inch Horizontal/Vertical Bandsaw, Coolant Pump (BS-712MS) Specifications
| Model | BS-712MS |
|---|---|
| Motor Power | 1 HP |
| Input Power | 120V Single Phase |
| Maximum Round Capacity at 90° | 7 in. |
| Maximum Rectangular Capacity at 90° | 7 in. × 10-1/4 in. |
| Notch Capacity OD | 7 in. |
| Miter Adjustment Type | Swivel Head |
| Maximum Miter Angle | 45° |
| Blade Width | 0.75 in. |
| Blade Guide Type | Roller |
| Blade Speeds | Approx. 125, 215, and 270 FPM |
| Descent Control | Hydraulic |
| Coolant System | Integrated Flood Coolant Pump |
| Assembled Dimensions | 51 in. × 23 in. × 43 in. |
| Net Weight | 452 lbs. |
| Gross Weight | 452 lbs. |
| UPC | 731325399172 |
| Warranty | 1 Year |
| Return | Manual |
| Prop 65 | Cancer and Reproductive Harm |
Baileigh 7-Inch Horizontal/Vertical Bandsaw, Coolant Pump (BS-712MS) Performance & Construction

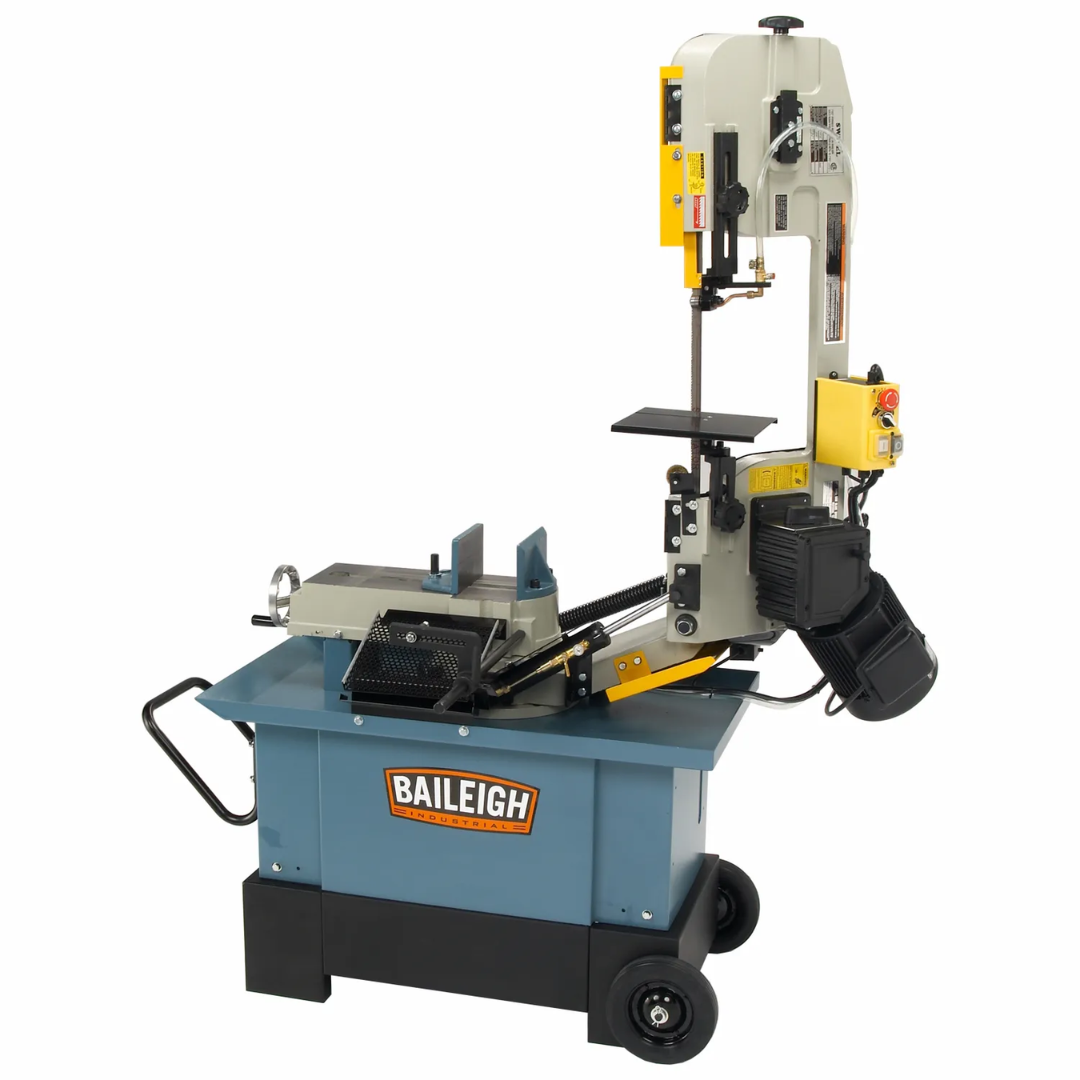

- Dual horizontal and vertical operating modes allow one machine to perform both production cutoff work and detailed shape cutting.
- 1 HP industrial-duty motor delivers dependable cutting power while operating on convenient 120V single-phase shop power.
- 7-inch round cutting capacity provides ample capability for cutting pipe, tubing, and solid round stock.
- 7 in. × 10-1/4 in. rectangular capacity accommodates structural material, flat stock, and fabrication components.

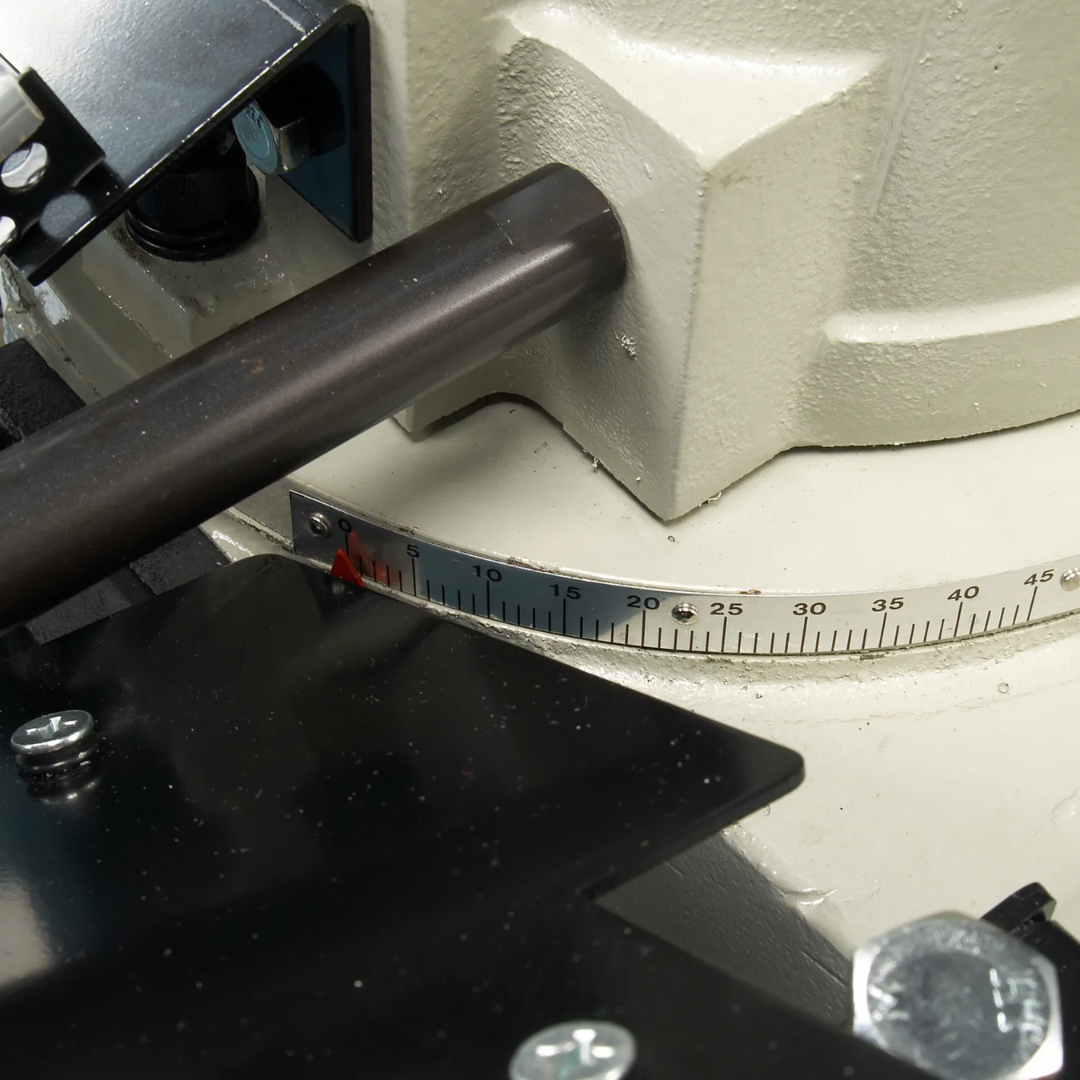

- Swivel head mitering system allows precise angle cuts up to 45° without moving the material, improving workflow efficiency.
- Multiple blade speed selections enable operators to optimize cutting performance for different metals and material thicknesses.

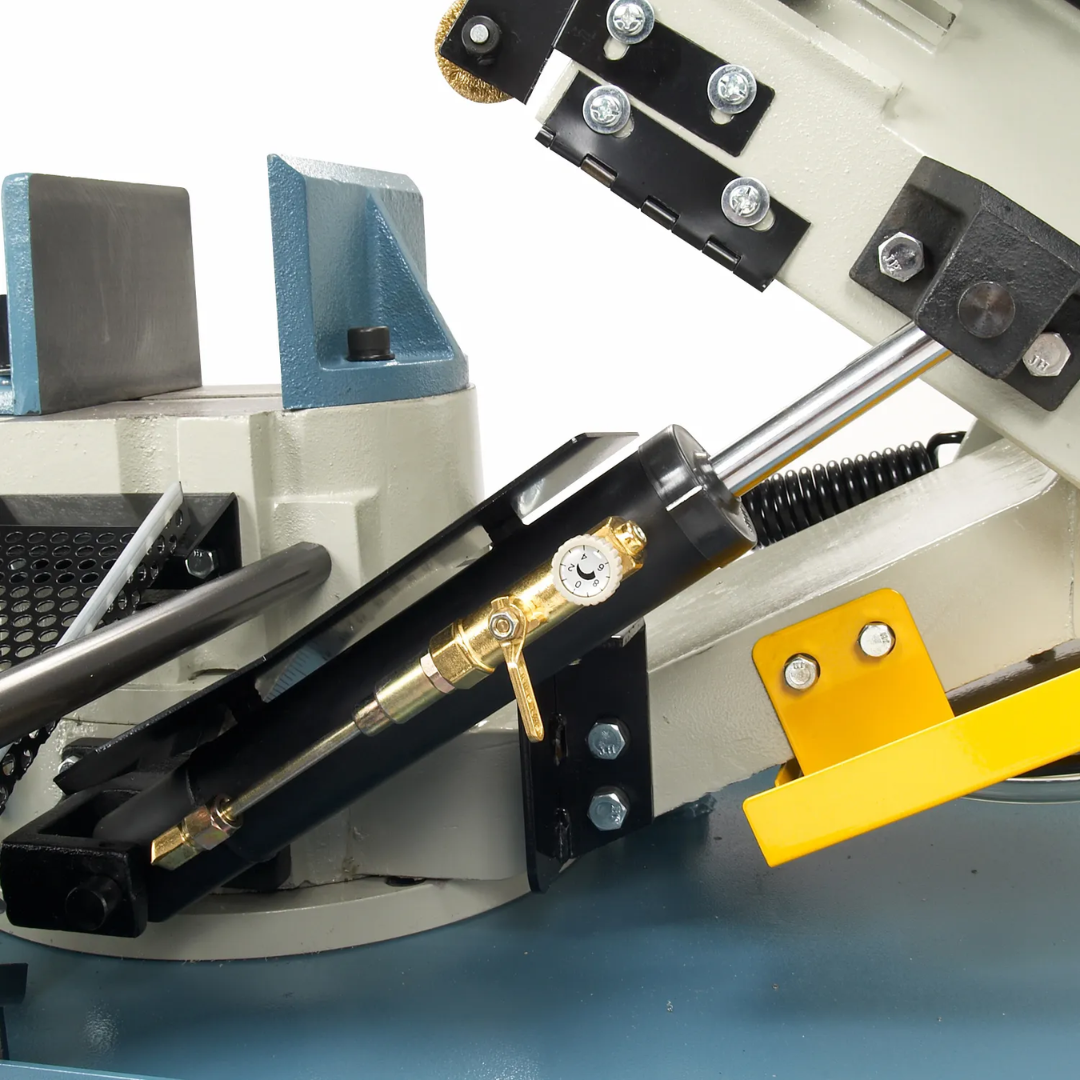

- Hydraulic descent control delivers smooth, controlled blade feed for improved cut quality and reduced operator intervention.
- Gravity-fed adjustable bow descent helps maintain consistent cutting pressure throughout the cut cycle.
- Machined cast-iron head and bow reduce vibration while maintaining alignment for greater cutting accuracy.
- Heavy-duty welded steel frame enhances rigidity, durability, and long-term machine stability.

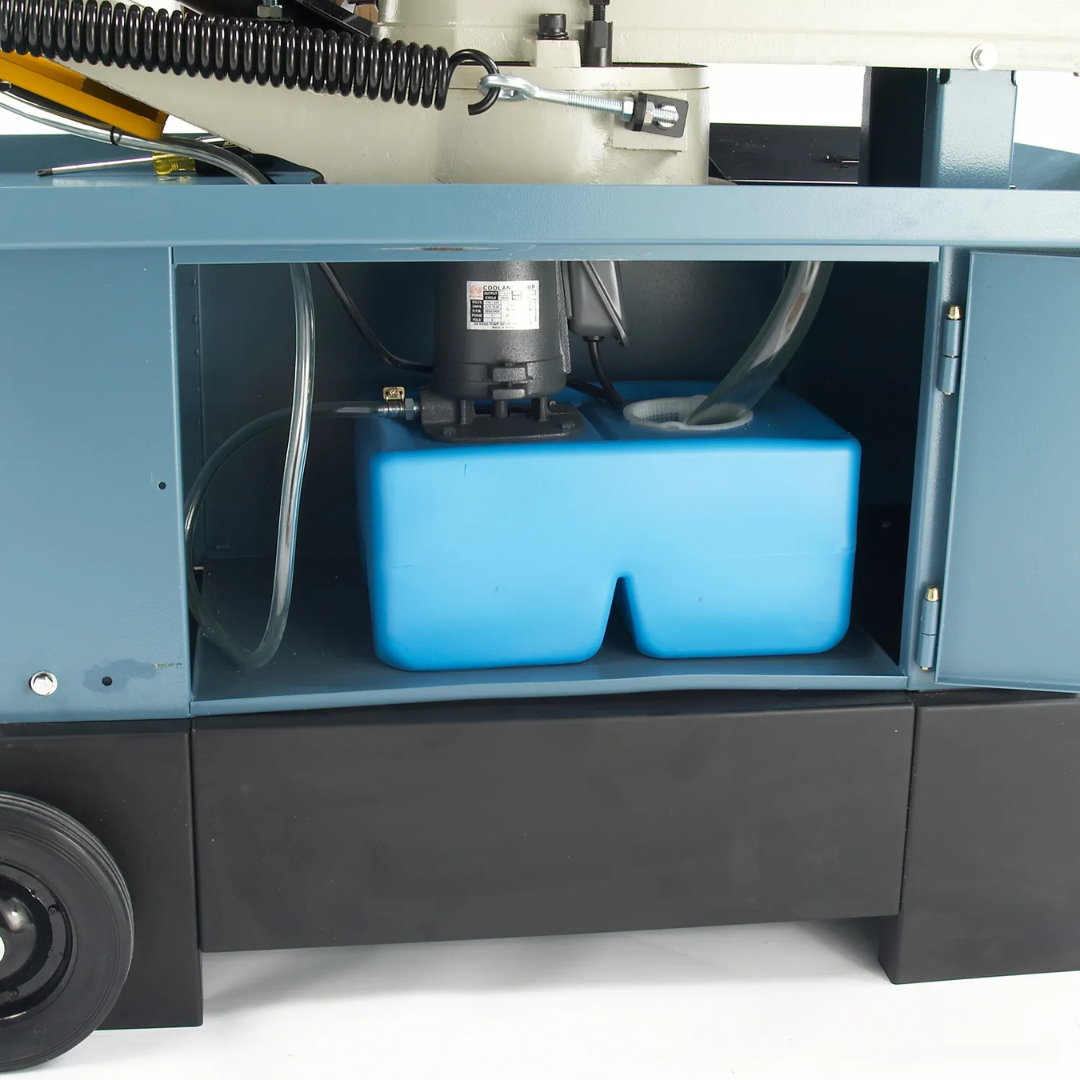

- Integrated flood coolant system cools the blade, improves cut finish, removes chips, and extends blade life during extended operation.

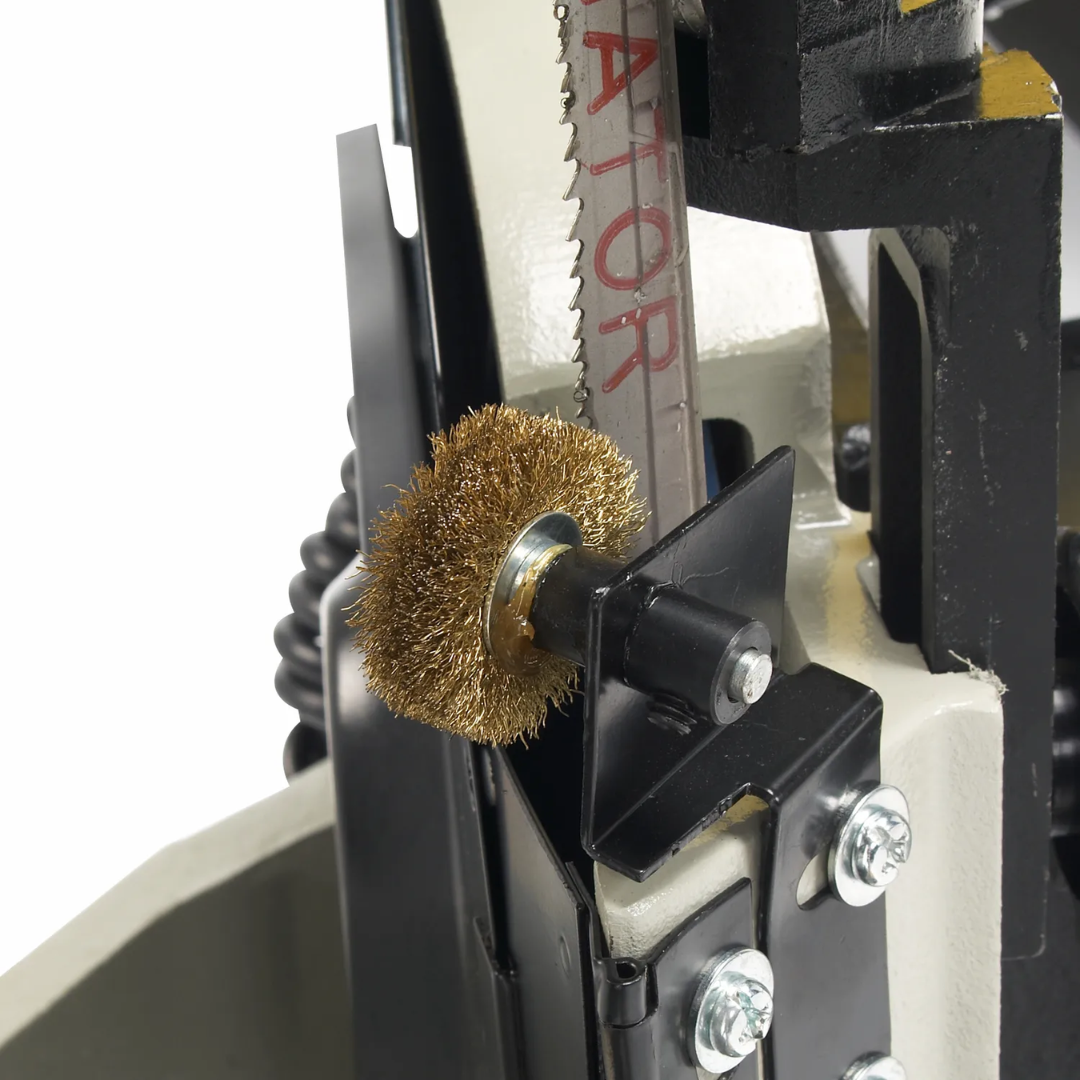

- Roller blade guides provide accurate blade tracking and support consistent cutting performance.
- Portable wheeled base allows easy repositioning within the shop when workflow requirements change.
- Baileigh support package includes a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh 7-Inch Horizontal/Vertical Bandsaw, Coolant Pump (BS-712MS)
- Combines horizontal and vertical metal cutting in one versatile machine.
- Powered by a reliable 1 HP motor operating on standard 120V power.
- Cuts up to 7-inch round stock and 7 in. × 10-1/4 in. rectangular material.
- Swivel head mitering capability up to 45° improves cutting flexibility.
- Hydraulic descent control enhances cut consistency and blade longevity.
- Integrated coolant system improves productivity and cut quality.
- Heavy-duty cast-iron and steel construction built for long-term shop use.
- Backed by Baileigh's warranty coverage and technical support resources.
The Baileigh 7-Inch Horizontal/Vertical Bandsaw, Coolant Pump (BS-712MS) delivers professional cutting performance, exceptional versatility, and durable construction in a compact footprint, making it an excellent choice for shops that demand precision, flexibility, and dependable daily operation.
