Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531 Applications
- Industrial fabrication shops producing cylinders, tanks, and rolled plate components.
- Manufacturing facilities creating guards, enclosures, and curved structural parts.
- Metalworking operations fabricating cones, rings, and custom rolled assemblies.
- Agricultural and heavy equipment manufacturing requiring precision plate forming.
- Maintenance and repair departments producing replacement curved components.
- Production environments demanding consistent hydraulic rolling performance and repeatable accuracy.

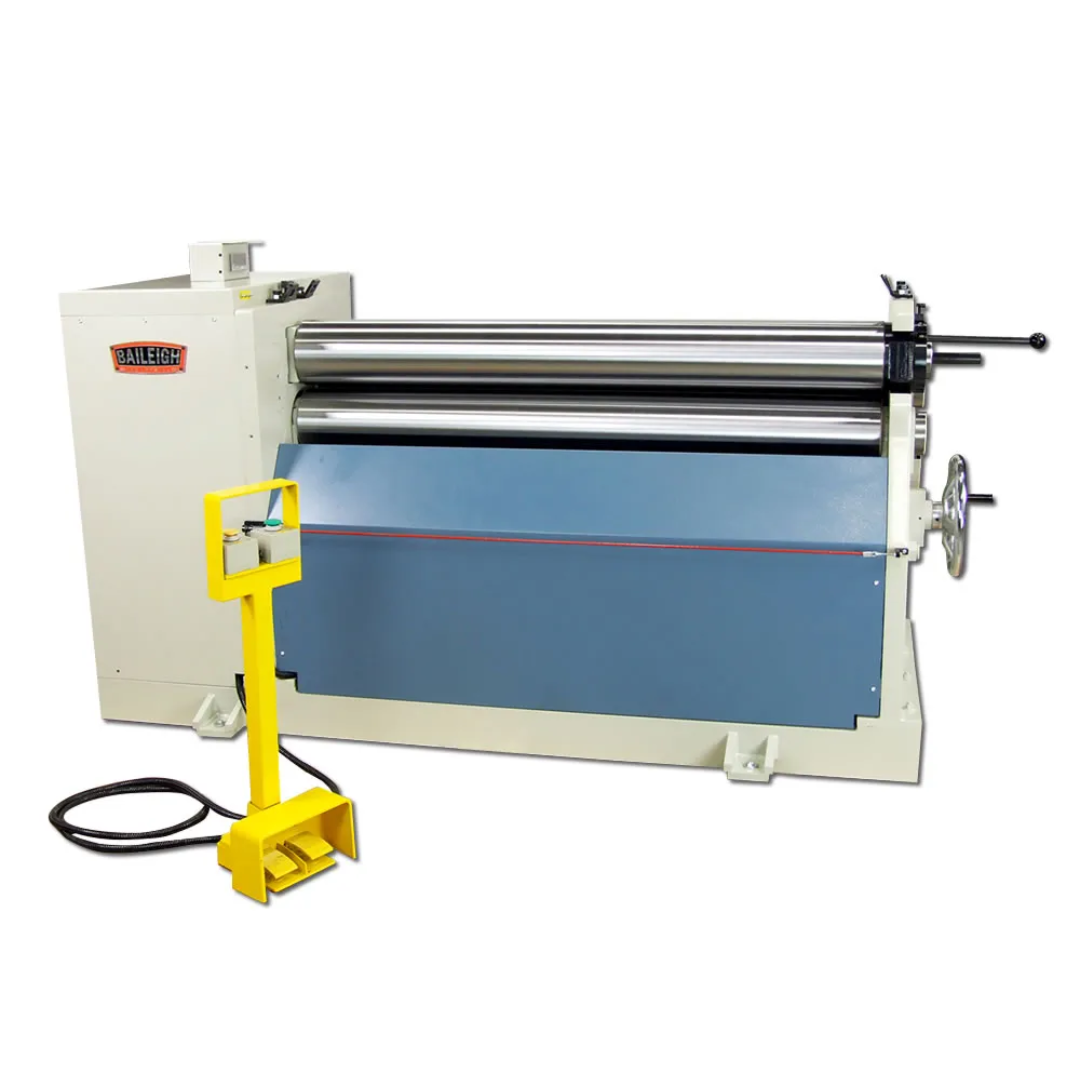

The Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531 is built for shops that require high-capacity hydraulic plate rolling with dependable accuracy, simplified operation, and industrial-grade durability.
Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531 Specifications
| Model | PR-503 |
|---|---|
| Part Number | 1006531 |
| Maximum Forming Width | 61 in. |
| Bending Capacity | 60 in. |
| Maximum Mild Steel Capacity | 1/4 in. |
| Recommended Mild Steel Capacity | 3/16 in. |
| Roll Configuration | Three Hydraulically Driven Rolls |
| Roll Adjustment | Hydraulic |
| Digital Readout | Back Roll Position Display |
| Quick-Release Top Roll | Standard |
| Motor | 5 HP |
| Input Power | 220V, Three Phase |
| Frame Construction | Heavy Fully Welded Steel Frame |
| Product Type | Industrial Hydraulic Plate Rolling Machine |
| Net Weight | 6,380 lbs |
| Gross Weight | 6,380 lbs |
| Warranty | 1 Year Parts Warranty |
Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531 Performance & Construction

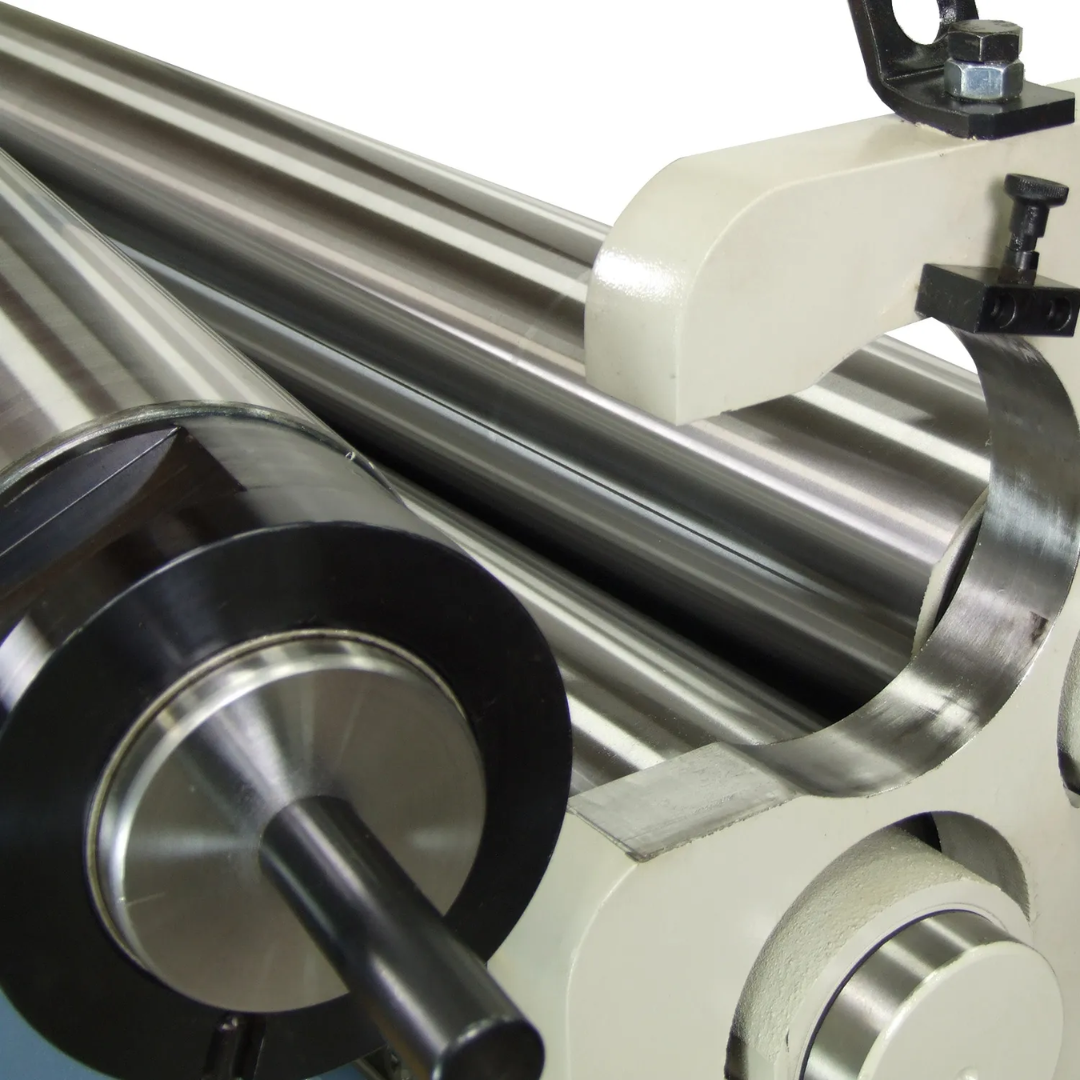

- Heavy-duty fully welded steel frame minimizes deflection under load to maintain exceptional forming accuracy and long-term structural integrity.

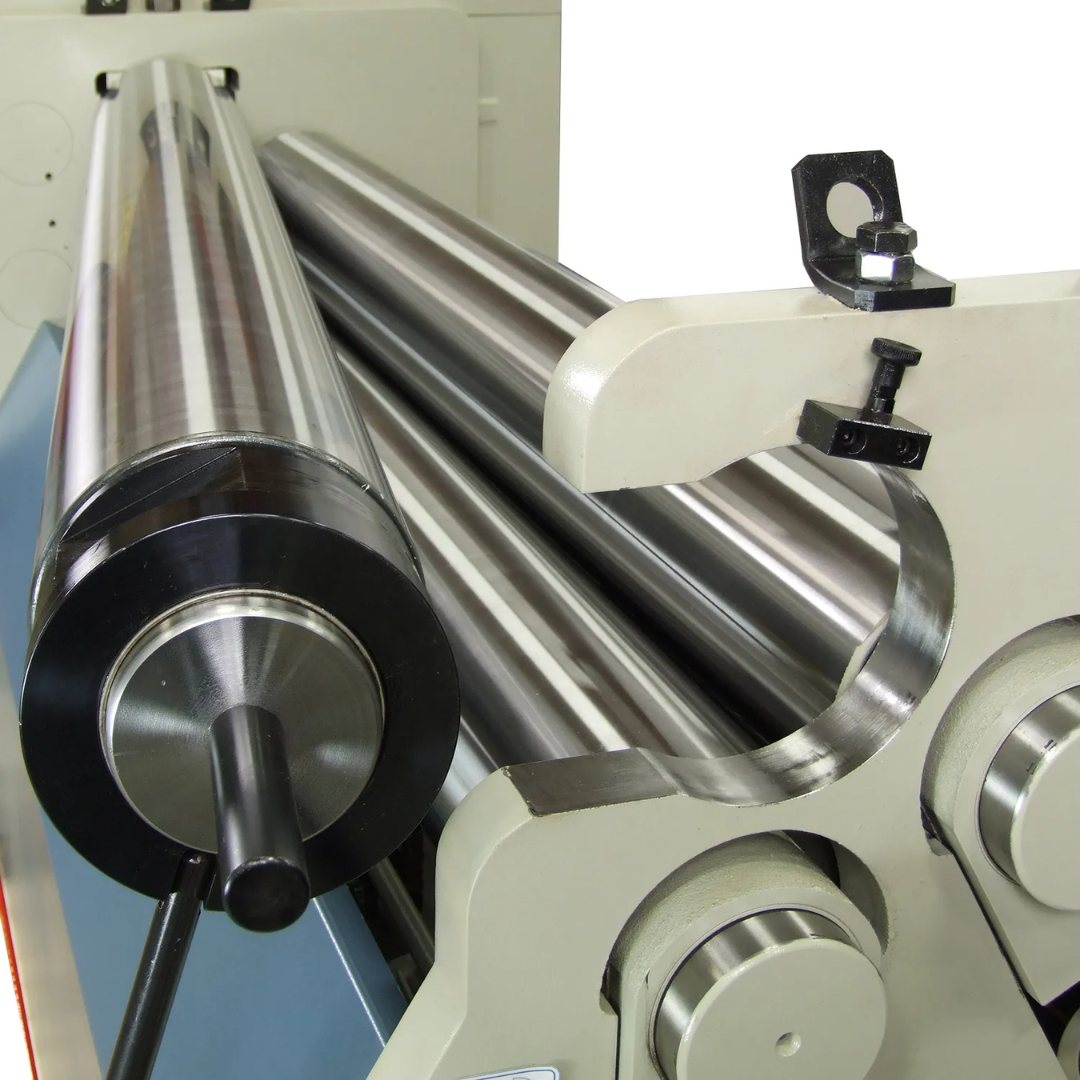

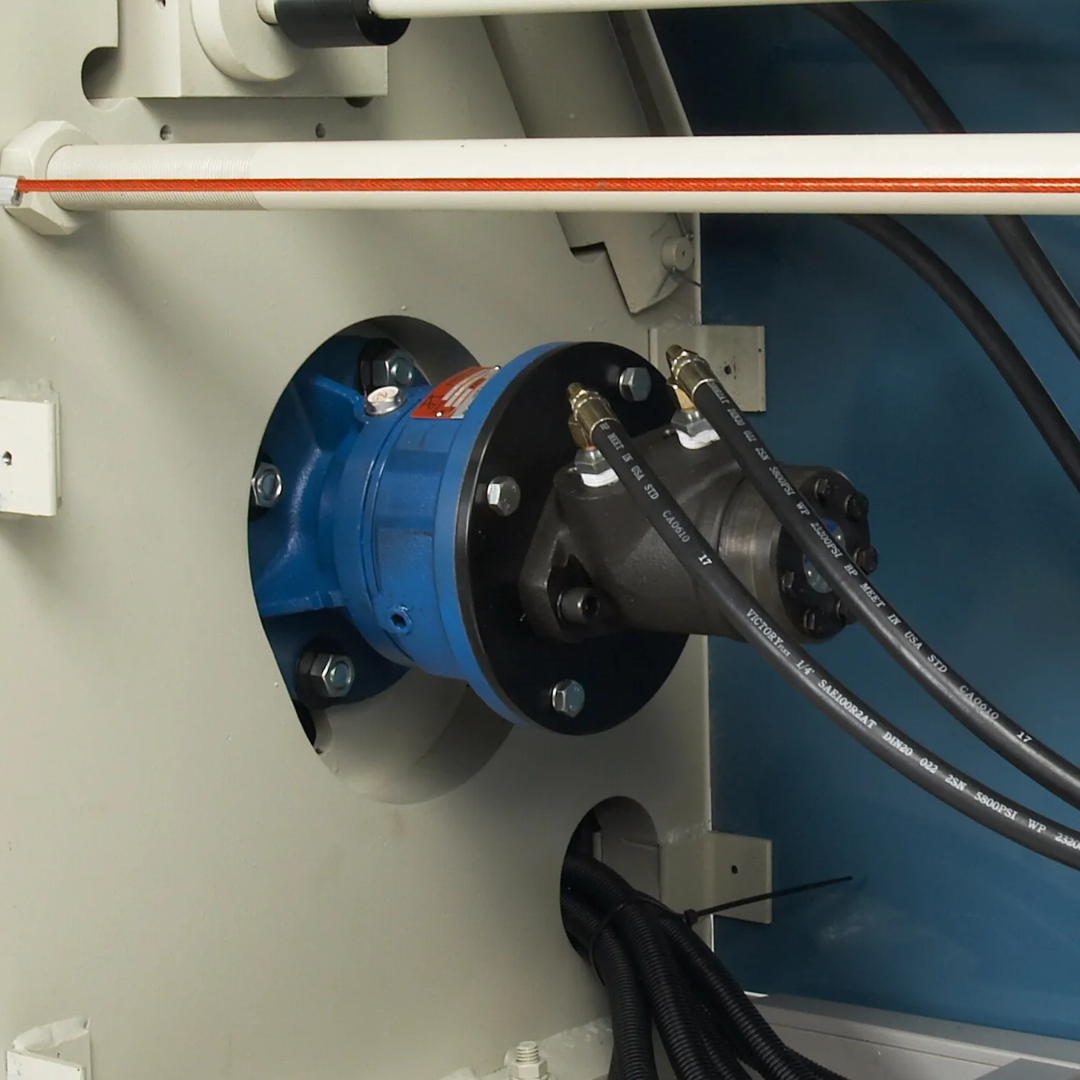

- Three hydraulically driven rolls provide smooth, positive material feeding for consistent rolling performance and improved finished part quality.
- 61-inch forming width accommodates large plate sections for industrial fabrication and production work.
- Maximum 1/4-inch mild steel capacity with a recommended production capacity of 3/16-inch for continuous, repeatable operation.

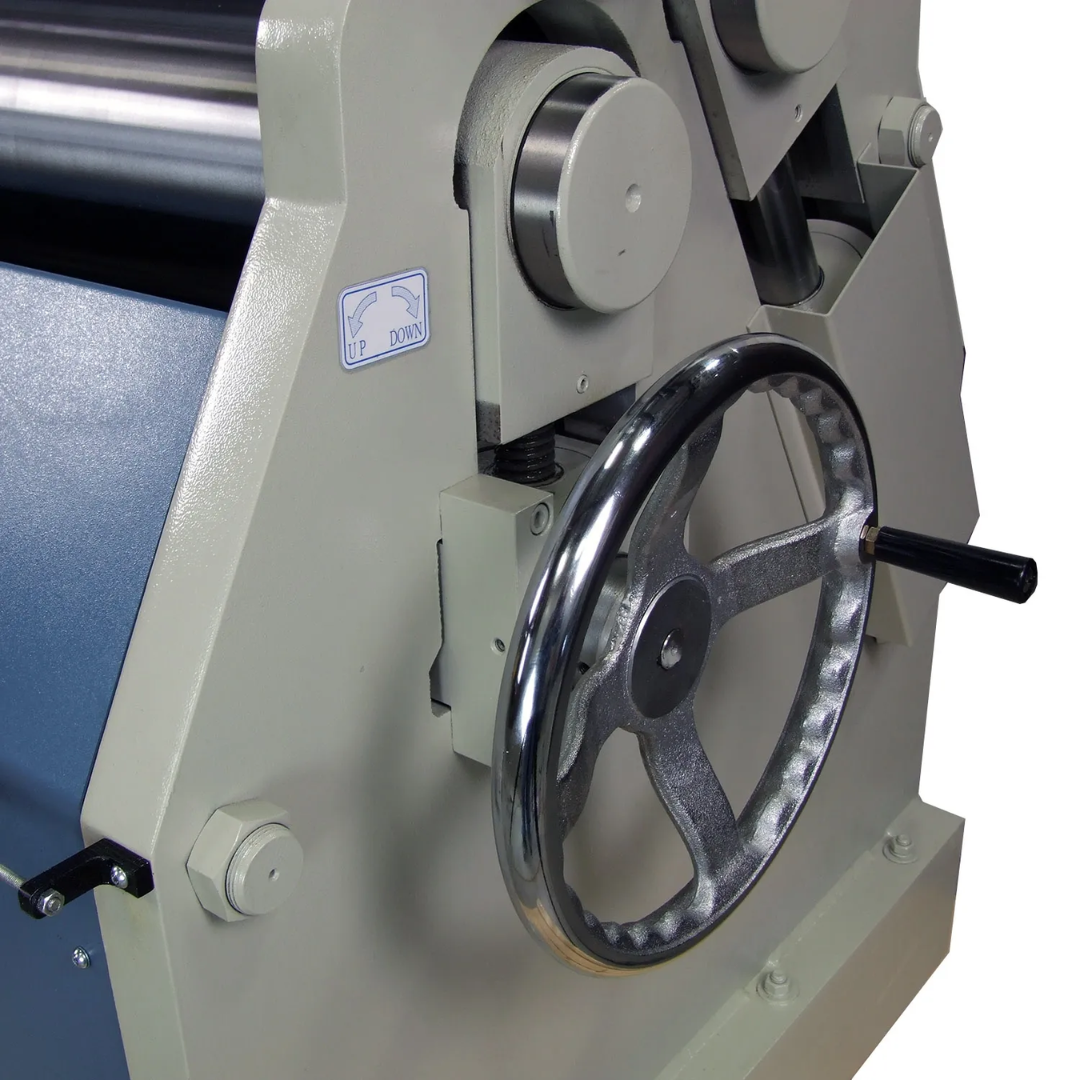

- Hydraulic roll adjustment allows precise positioning for accurate radius control and simplified machine setup.

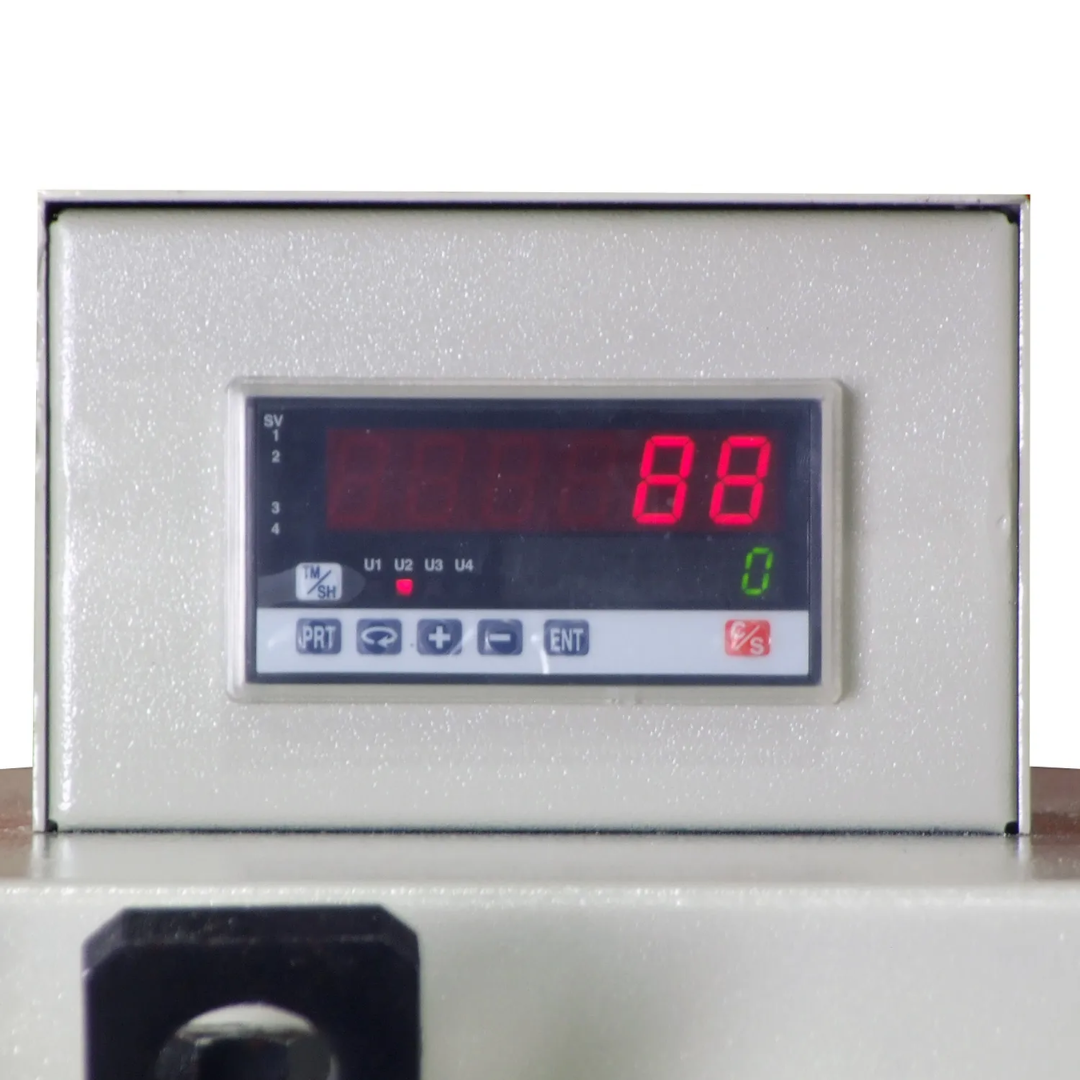

- Digital back roll position readout improves repeatability by allowing operators to quickly return to previous bending settings.

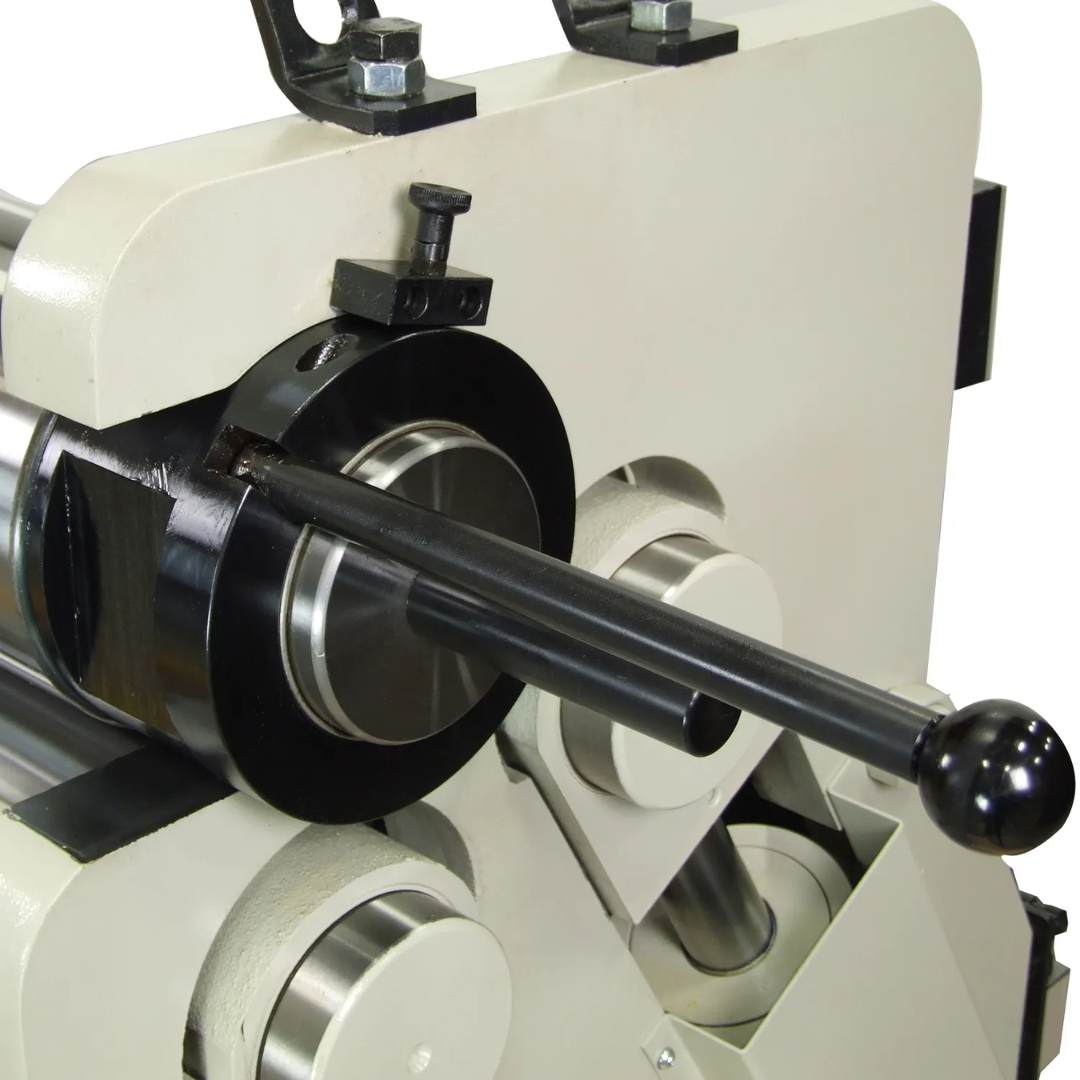

- Quick-release top roll enables fast removal of completed cylinders and formed workpieces, reducing downtime between jobs.

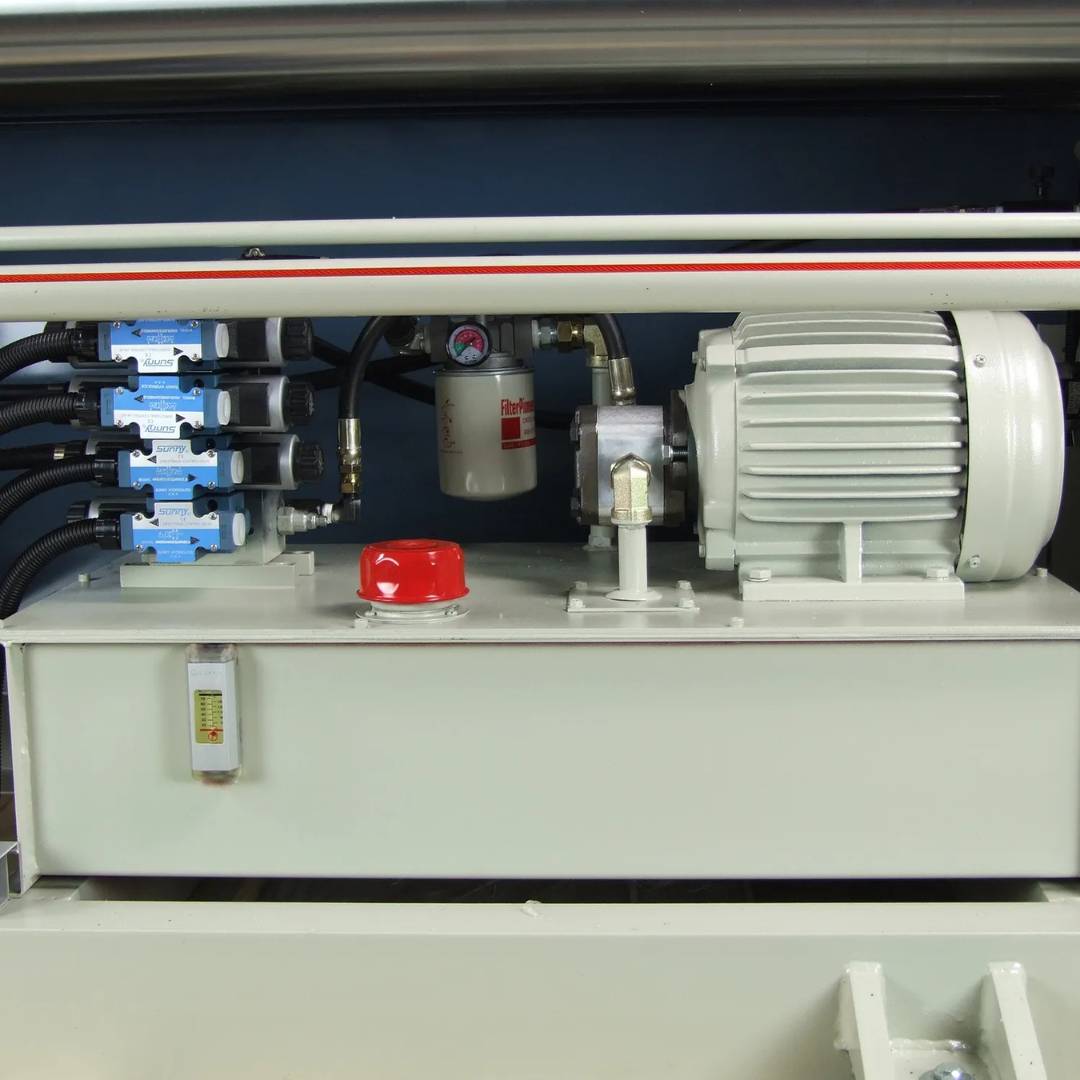

- 5 HP industrial motor delivers dependable hydraulic power while operating on standard 220V three-phase electrical service.

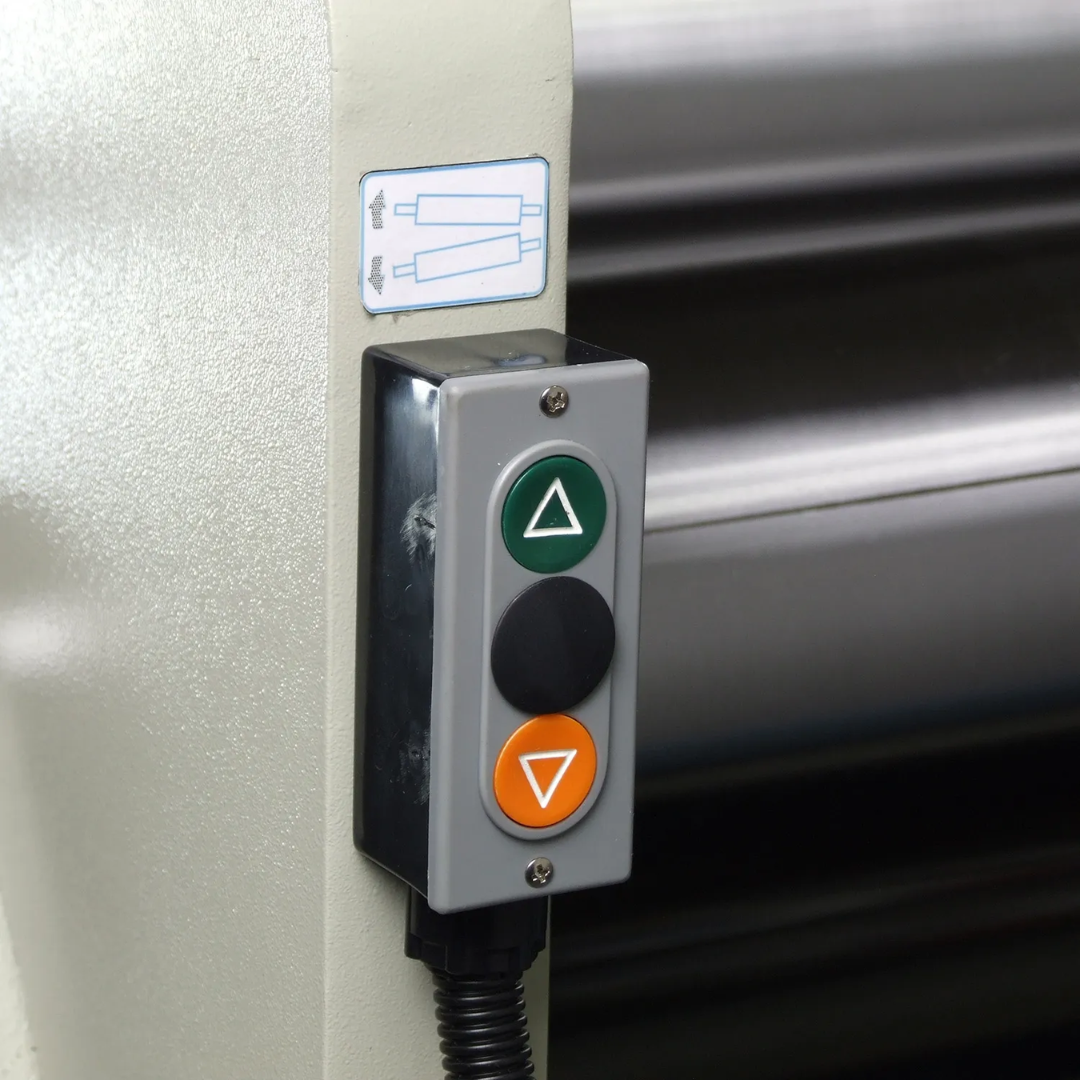

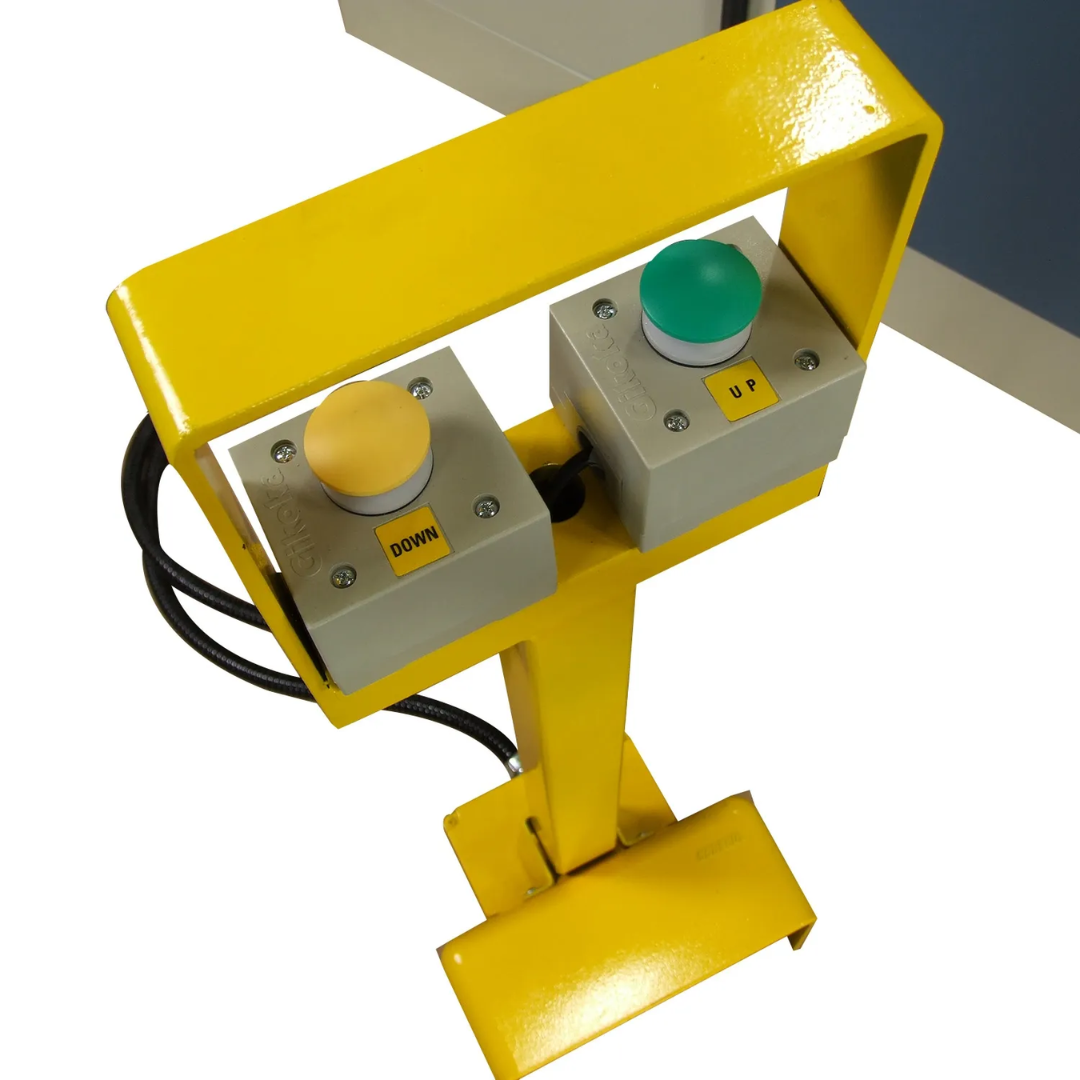

- User-friendly hydraulic controls simplify machine operation for efficient production and reduced setup times.
- Designed for professional fabrication including cylinders, tanks, machine guards, architectural components, and custom rolled plate assemblies.
- Industrial hydraulic components are engineered for dependable performance and long service life in demanding shop environments.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence.
Why Choose the Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531
- Heavy-duty hydraulic three-roll system delivers smooth, consistent plate rolling.
- Forms up to 1/4-inch mild steel across a generous 61-inch working width.
- Digital back roll positioning improves production repeatability and setup accuracy.
- Quick-release top roll speeds removal of finished cylinders and curved components.
- Fully welded steel construction provides industrial durability and long-term precision.
- Ideal for fabrication shops, manufacturing facilities, maintenance departments, and production environments.
- Powered by a reliable 5 HP, 220V three-phase motor for dependable daily operation.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh 61-Inch Hydraulic Plate Roll (Model PR-503) 1006531 combines industrial-strength construction, precision hydraulic controls, and high-capacity plate rolling into one dependable fabrication machine. Designed for demanding production environments, it provides the power, repeatability, and durability required to produce high-quality rolled components day after day.
