Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290 Applications
- Heavy-duty fabrication, forming, and metalworking operations.
- Bearing, bushing, shaft, and gear installation or removal.
- Straightening structural components, machine parts, and fabricated assemblies.
- Production bending, pressing, forming, and light stamping applications.
- Maintenance and repair departments servicing industrial equipment.
- Machine shops and manufacturing facilities requiring independent dual pressing stations.

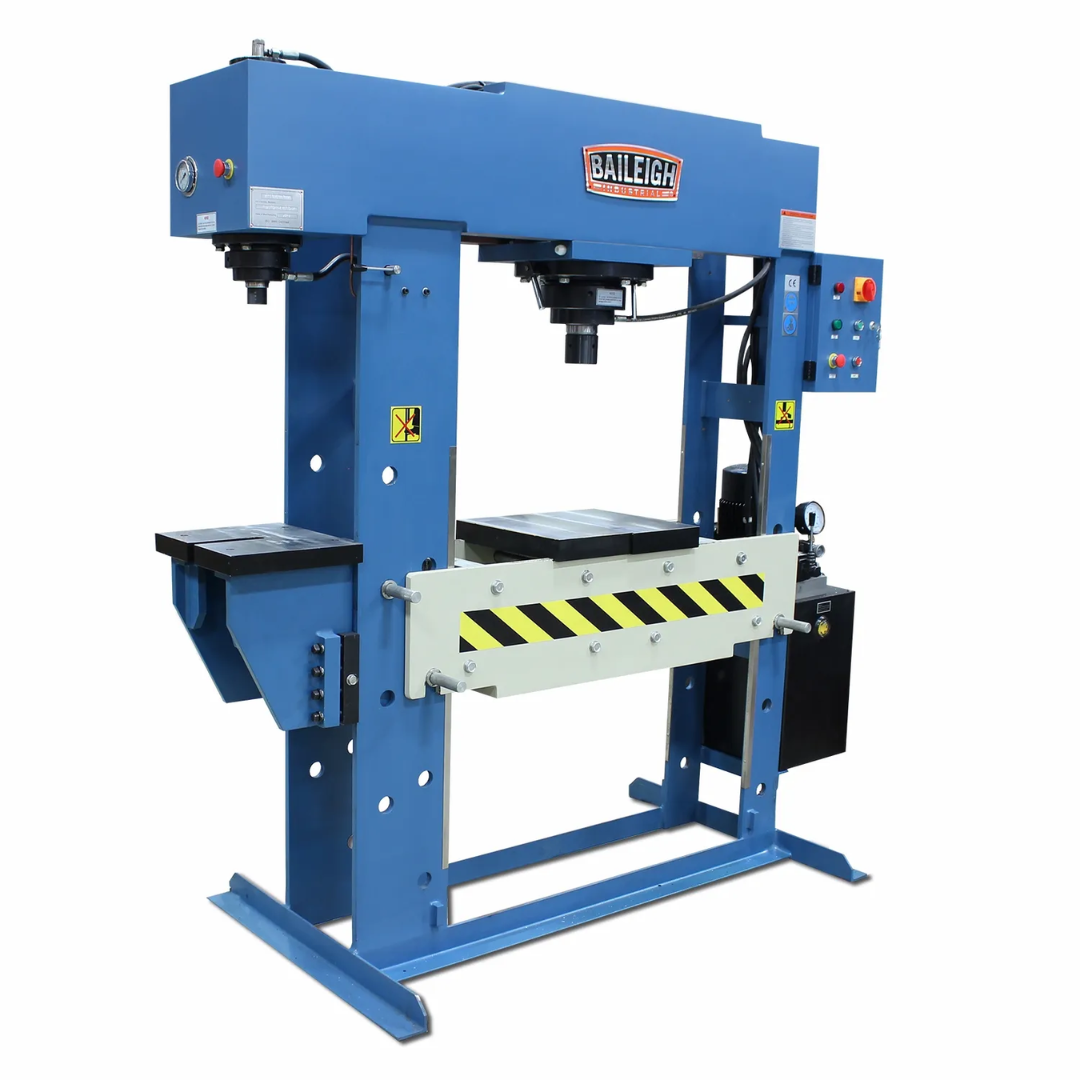

The Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290 maximizes productivity by combining two independent hydraulic workstations into one compact industrial machine capable of handling demanding fabrication and production tasks.
Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290 Specifications
| Model | HSP-60M-C |
|---|---|
| Part Number | 1019290 |
| Main Press Capacity | 60 Tons |
| Secondary Press Capacity | 15 Tons |
| Main Working Width | 41.25 in. |
| Main Cylinder Stroke | 11.8 in. |
| Secondary Cylinder Stroke | 11.75 in. |
| Maximum Stroke Length | 12 in. |
| Main Ram | Movable Left and Right |
| Hydraulic System | Dual Independent Hydraulic Stations |
| Pump Type | Piston-Style Hydraulic Pump |
| Pressure Monitoring | Dual Hydraulic Pressure Gauges |
| Input Power | 220V, Three Phase |
| Included Accessories | Set of V-Blocks |
| Frame Construction | Heavy-Duty Fully Welded Steel Frame |
| Net Weight | 2,960 lbs. |
| Gross Weight | 2,960 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290 Performance & Construction

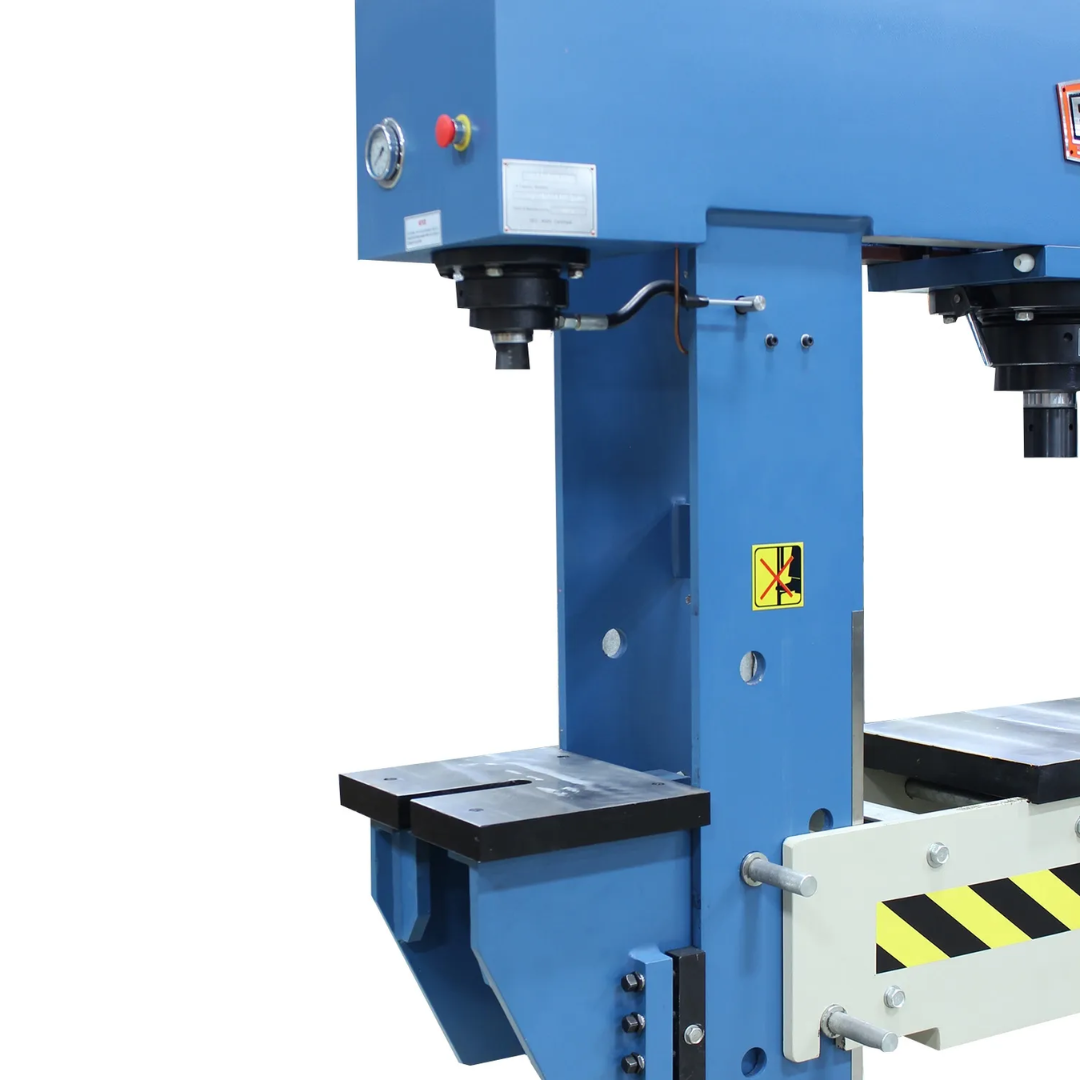

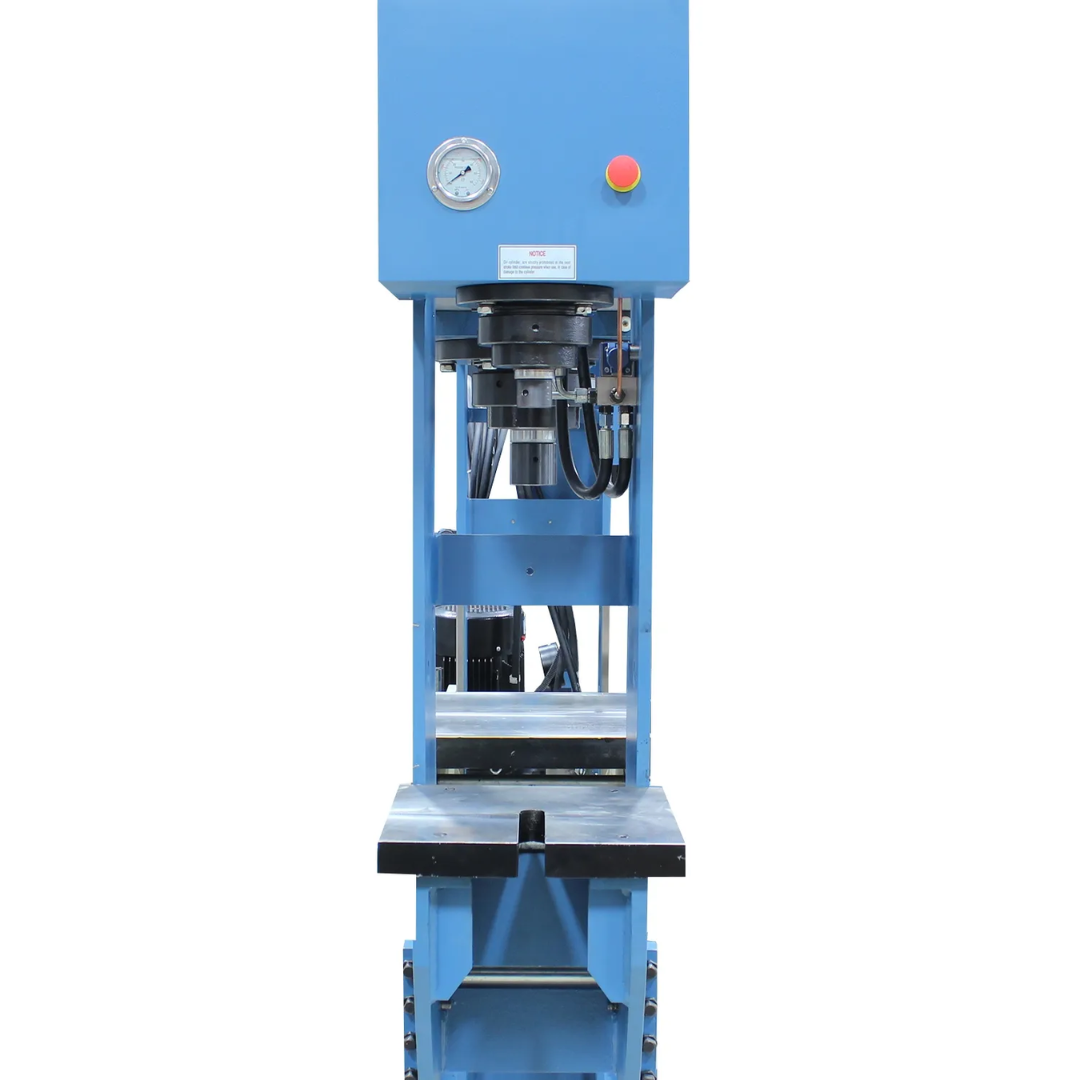

- Dual-station hydraulic configuration combines a powerful 60-ton H-frame press with an independent 15-ton C-frame hydraulic press for exceptional shop versatility.
- 60-ton primary hydraulic press provides substantial force for heavy-duty fabrication, straightening, bending, assembly, and forming applications.
- 15-ton secondary hydraulic arbor press allows simultaneous secondary pressing operations to increase production efficiency.
- Heavy-duty fully welded steel frame delivers outstanding rigidity and long-term durability under demanding industrial workloads.

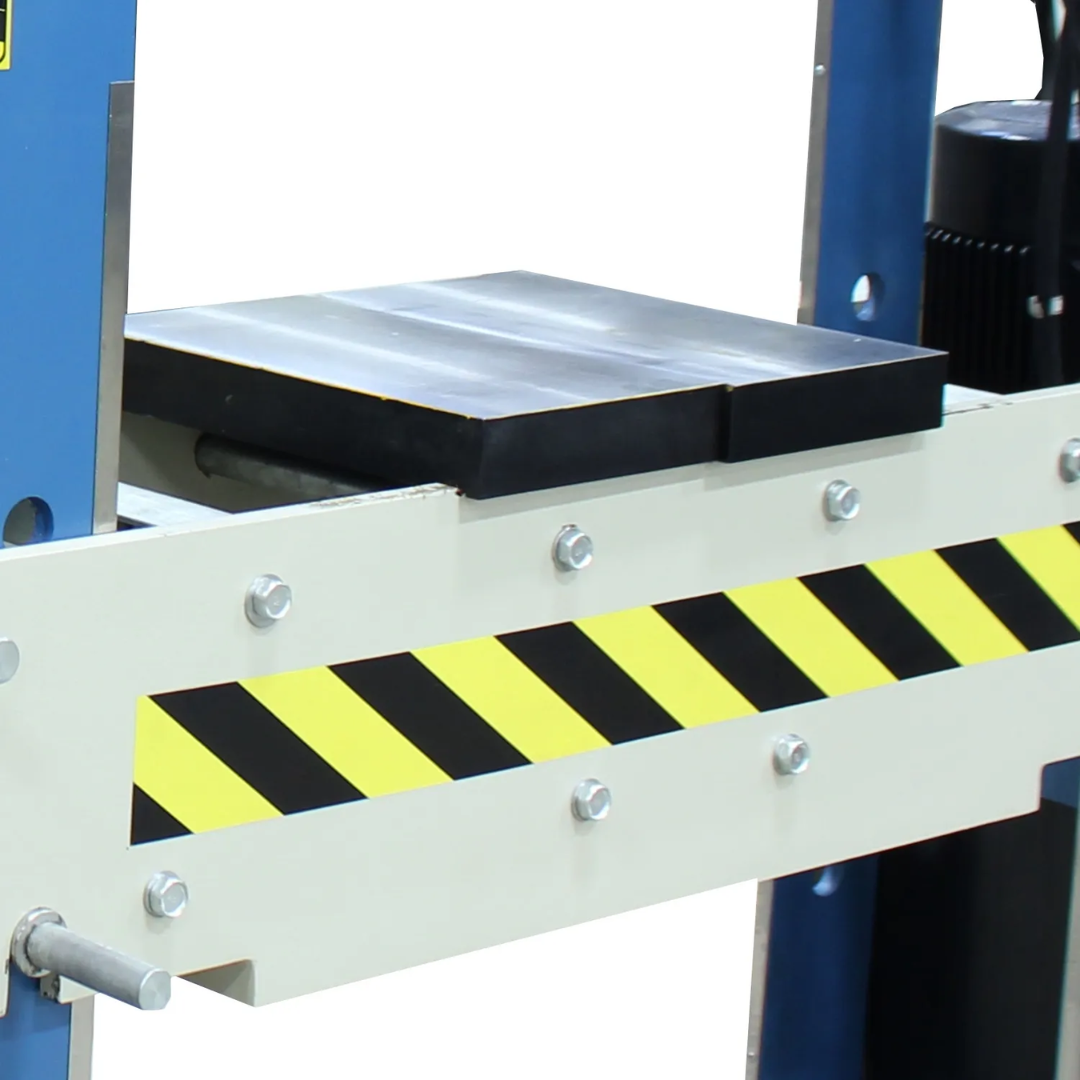

- 41.25-inch working width on the main press accommodates large components and oversized fabrication projects.

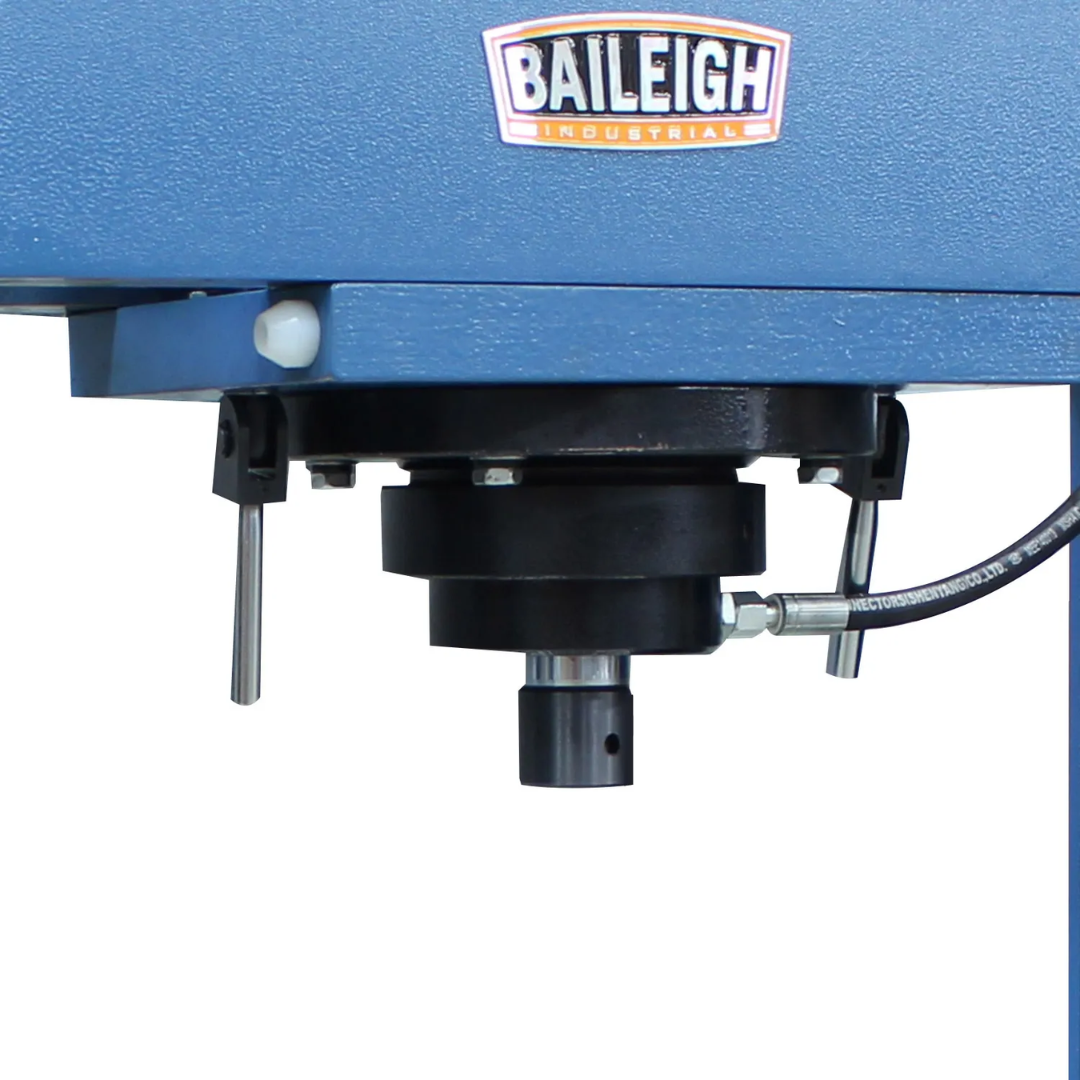

- Movable main cylinder slides left and right, allowing accurate off-center pressing and greater flexibility for irregular workpieces.
- Piston-style hydraulic pump delivers smooth, controlled hydraulic pressure for consistent pressing performance.
- Dual hydraulic pressure gauges provide precise monitoring of both press stations for repeatable operation and improved process control.
- 220V three-phase electrical operation supplies dependable industrial hydraulic power for continuous shop production.
- Includes precision V-blocks for securely supporting shafts, tubing, bearings, and cylindrical workpieces during pressing operations.

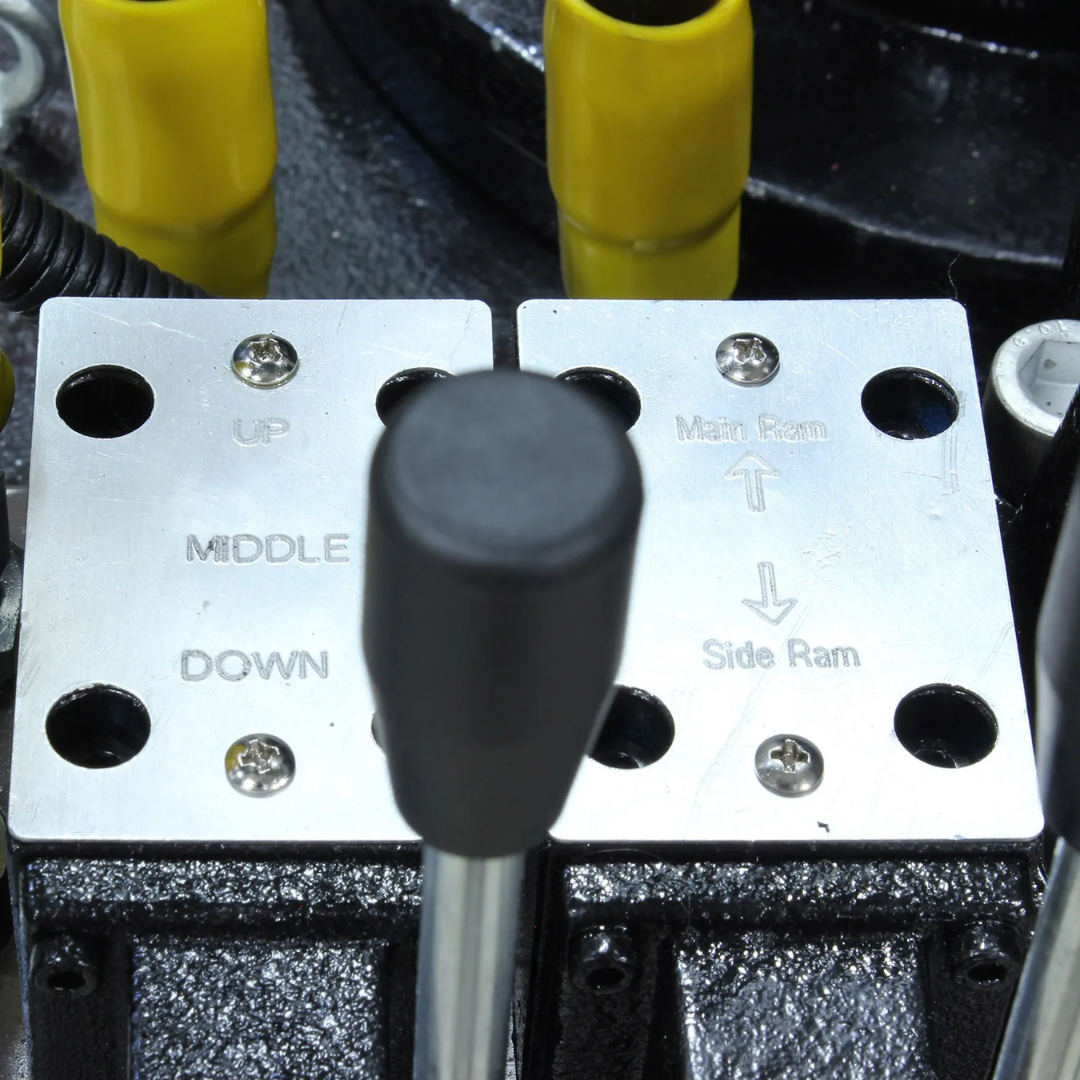

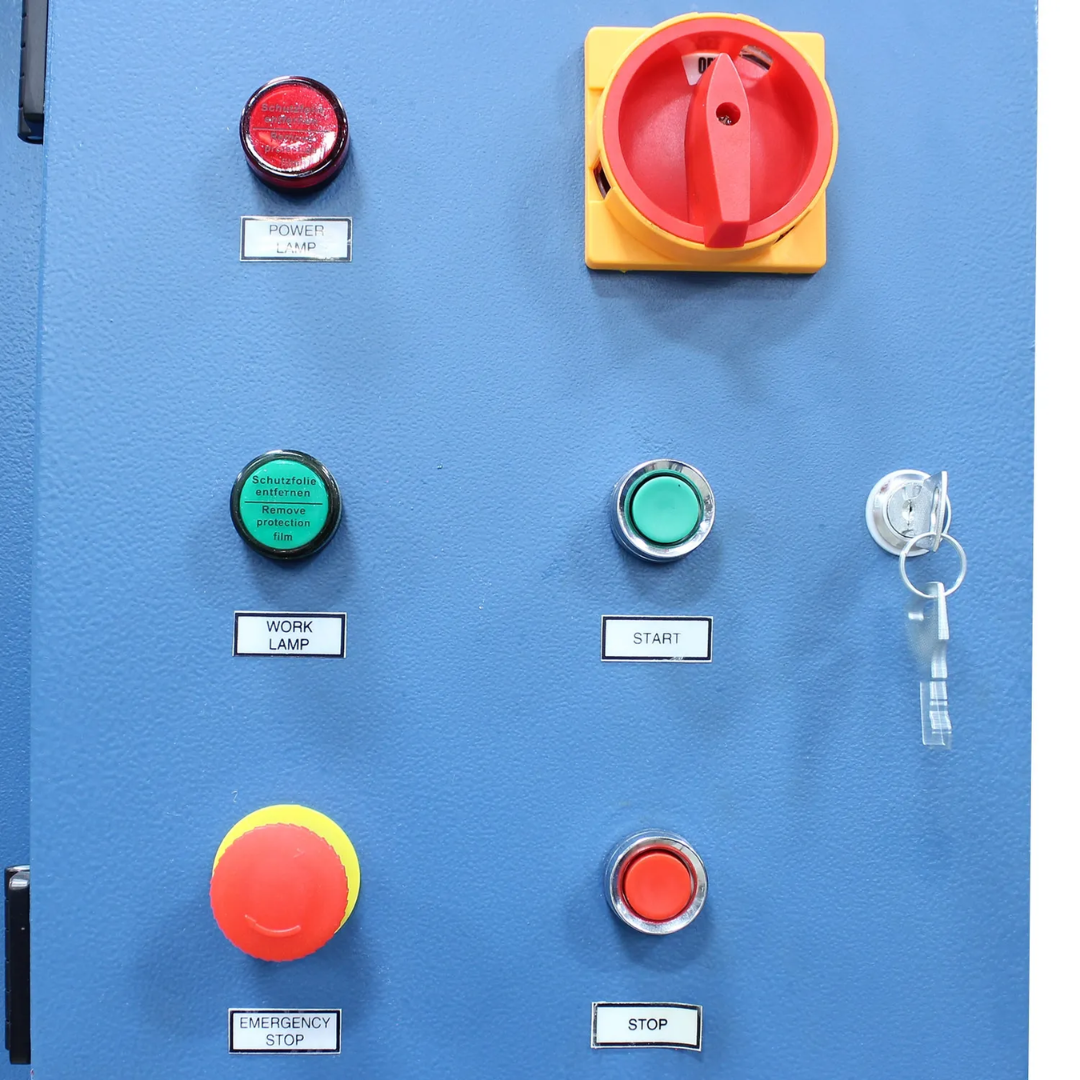

- Independent hydraulic controls allow operators to efficiently manage both press stations while improving workflow and reducing setup time.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290
- Combines a 60-ton H-frame press and 15-ton auxiliary C-frame press in one machine.
- Independent hydraulic stations maximize productivity by allowing multiple operations.
- Movable main ram simplifies off-center pressing and increases versatility.
- Heavy-duty welded steel construction ensures industrial durability and long service life.
- Piston-style hydraulic system provides smooth, accurate pressing performance.
- Dual pressure gauges improve repeatability and hydraulic process control.
- Includes V-blocks for expanded workholding capability.
- Powered by reliable 220V three-phase electrical service for demanding industrial applications.
- Ideal for fabrication shops, machine shops, manufacturing facilities, maintenance departments, and industrial production operations.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh 60/15-Ton Two-Station H-Frame Hydraulic Press (HSP-60M-C) 1019290 delivers exceptional power, flexibility, and productivity by integrating two fully independent hydraulic pressing stations into one rugged industrial platform. Built for demanding fabrication and manufacturing environments, it provides the precision, durability, and performance professionals expect from Baileigh equipment.
