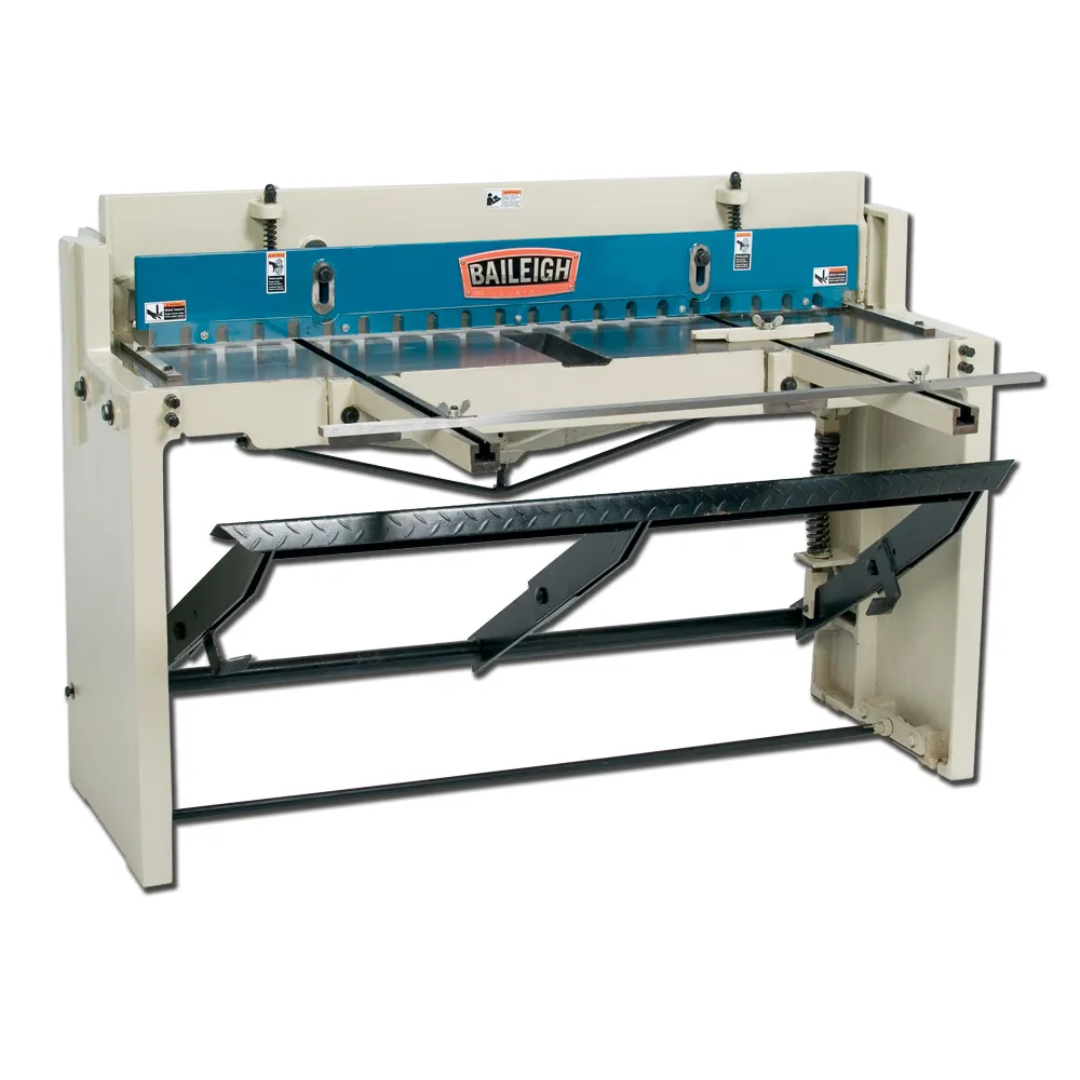

Baileigh 52-Inch Foot Stomp Shear, 16-Gauge Mild Steel (SF-5216E) 1007020 Applications
- HVAC ductwork fabrication and sheet metal production.
- General sheet metal fabrication shops and manufacturing facilities.
- Maintenance departments performing custom metalwork and repairs.
- Educational and vocational training programs teaching fabrication techniques.
- Prototype development and low-volume production environments.
- Cutting mild steel sheets, galvanized steel, and similar sheet materials.
- Production of panels, brackets, enclosures, and formed sheet metal components.
An excellent solution for shops that need dependable manual shearing performance, precise material control, and clean cuts without requiring electrical power.
Baileigh 52-Inch Foot Stomp Shear, 16-Gauge Mild Steel (SF-5216E) 1007020 Specifications
| Model | SF-5216E |
|---|---|
| Product Number | 1007020 |
| Operation Type | Manual Foot-Stomp Shear |
| Shearing Width | 52" |
| Shearing Length Capacity | 52" |
| Mild Steel Capacity | 16 Gauge |
| Front Gauge Capacity | 20" |
| Blade Type | 4-Sided High Chromium Blades |
| Backstop | Included |
| Frame Construction | Fully Welded Heavy-Duty Steel Frame |
| Input Power | Manual |
| Gross Weight | 1,110 lbs |
| Net Weight | 1,110 lbs |
| Product Type | Industrial Sheet Metal Shear |
| Warranty | 1 Year |
| UPC | 731325412840 |
| California Prop 65 | Cancer and Reproductive Harm Warning |
Baileigh 52-Inch Foot Stomp Shear, 16-Gauge Mild Steel (SF-5216E) 1007020 Performance & Construction
- 52-inch shearing capacity allows operators to process full-width sheet metal for a wide variety of fabrication applications.
- 16-gauge mild steel cutting capacity delivers dependable performance for common fabrication and HVAC materials.
- Manual foot-stomp operation leaves both hands free to guide and position material for improved control and safety.

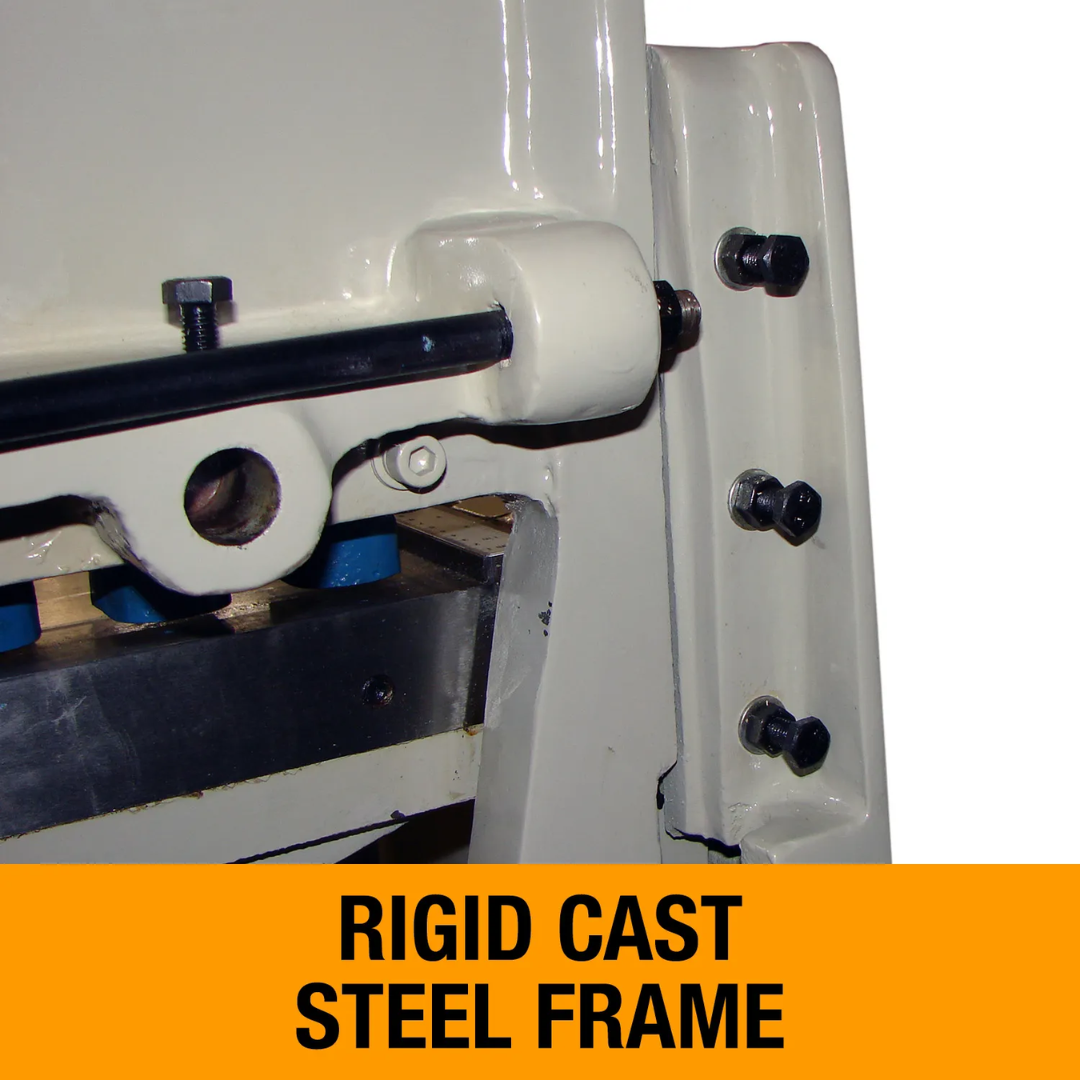

- Fully welded heavy-duty steel frame minimizes flexing and maintains cutting accuracy across the entire blade length.

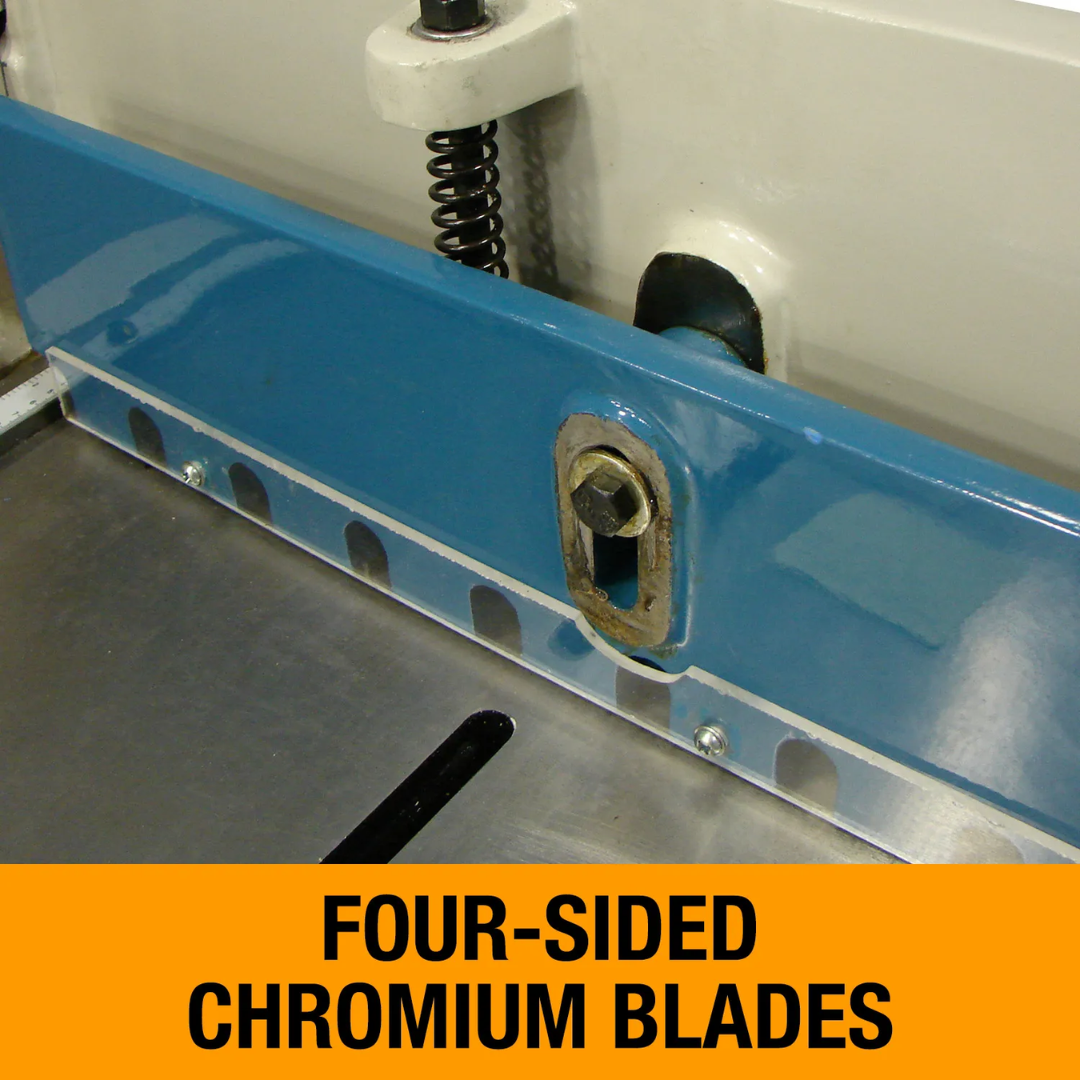

- Four-sided high chromium blades provide long service life, excellent edge retention, and economical blade rotation.
- Adjustable hold-down system secures sheet material firmly during cutting to improve cut quality and consistency.
- Spring-assisted return mechanism reduces operator fatigue during repetitive production cutting operations.

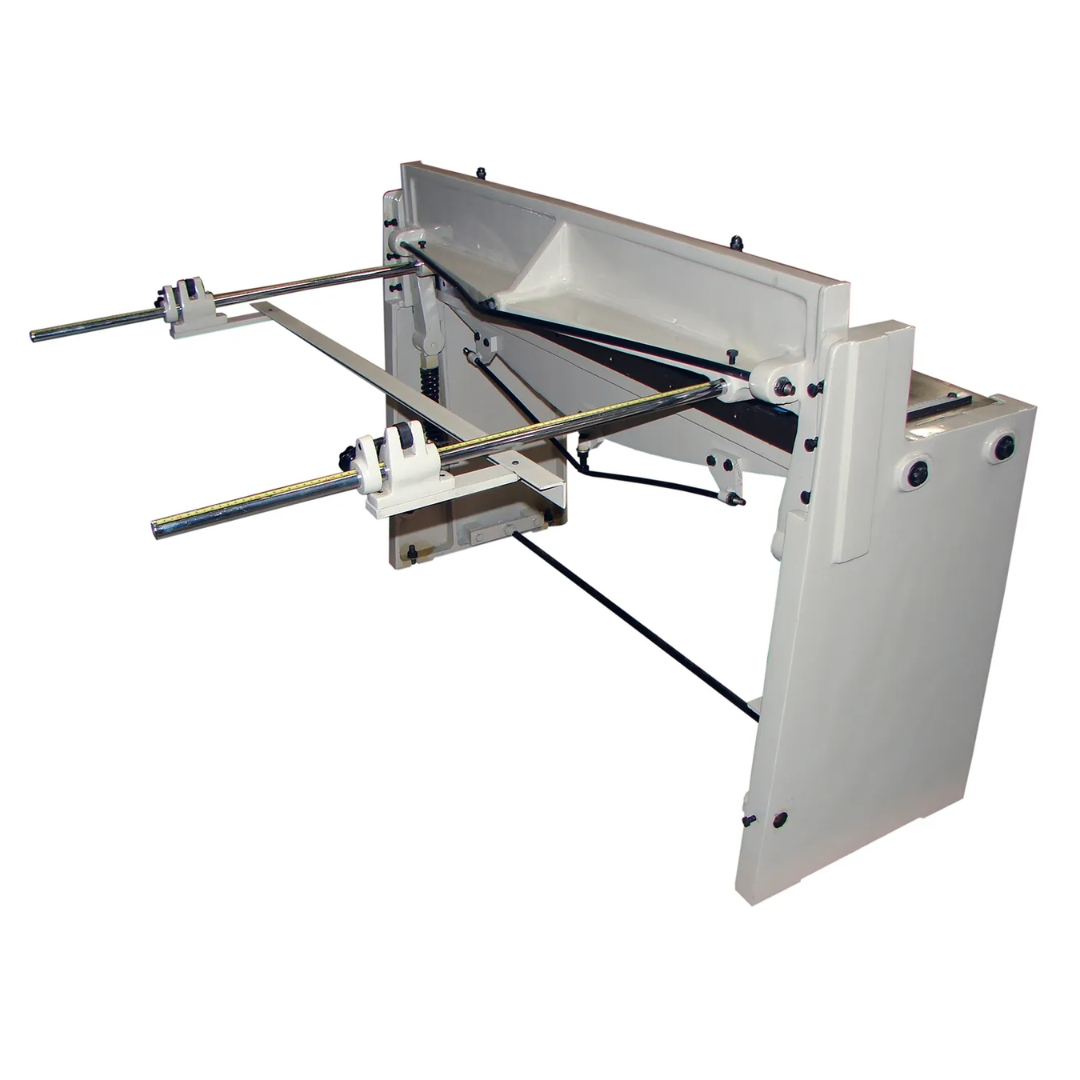

- Front support arms help support larger sheets and improve material handling efficiency.

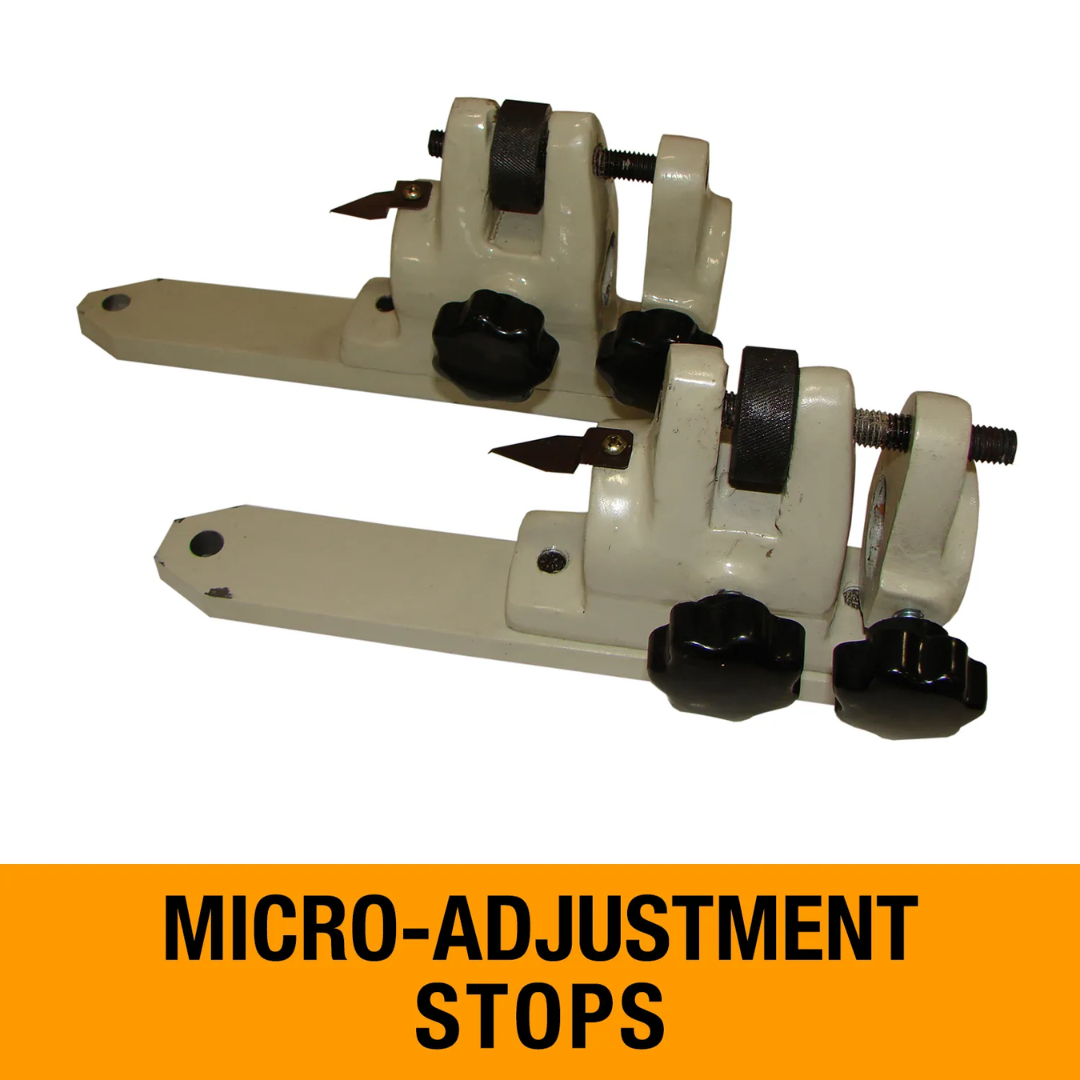

- Precision squaring guides simplify alignment and assist in producing accurate straight cuts.
- Included backstop system improves repeatability and speeds up production work.
- 20-inch front gauge capacity provides additional flexibility for material positioning and measurement.
- Rigid industrial construction is designed for long-term service in demanding fabrication environments.
- No electrical power required allows installation virtually anywhere in the shop while reducing operating costs.
- Supported by Baileigh's 1-year warranty and lifetime technical support for long-term ownership confidence.
Why Choose the Baileigh 52-Inch Foot Stomp Shear, 16-Gauge Mild Steel (SF-5216E) 1007020
- Large 52-inch cutting width for full-size sheet metal processing.
- Cuts up to 16-gauge mild steel with consistent accuracy.
- Manual foot operation provides excellent material control.
- Heavy-duty welded frame ensures long-lasting precision.
- Four-sided chromium blades extend service life and reduce maintenance costs.
- Integrated backstop and alignment guides improve repeatability.
- Ideal for HVAC fabrication, sheet metal shops, schools, and maintenance facilities.
- Reliable industrial performance without requiring electrical power.
The Baileigh 52-Inch Foot Stomp Shear, 16-Gauge Mild Steel (SF-5216E) 1007020 combines industrial-grade construction, precision manual operation, and high-capacity shearing performance into a dependable sheet metal fabrication solution. Designed for professionals who demand durability, accuracy, and ease of operation, this machine delivers clean cuts and consistent results across a wide range of fabrication applications.
