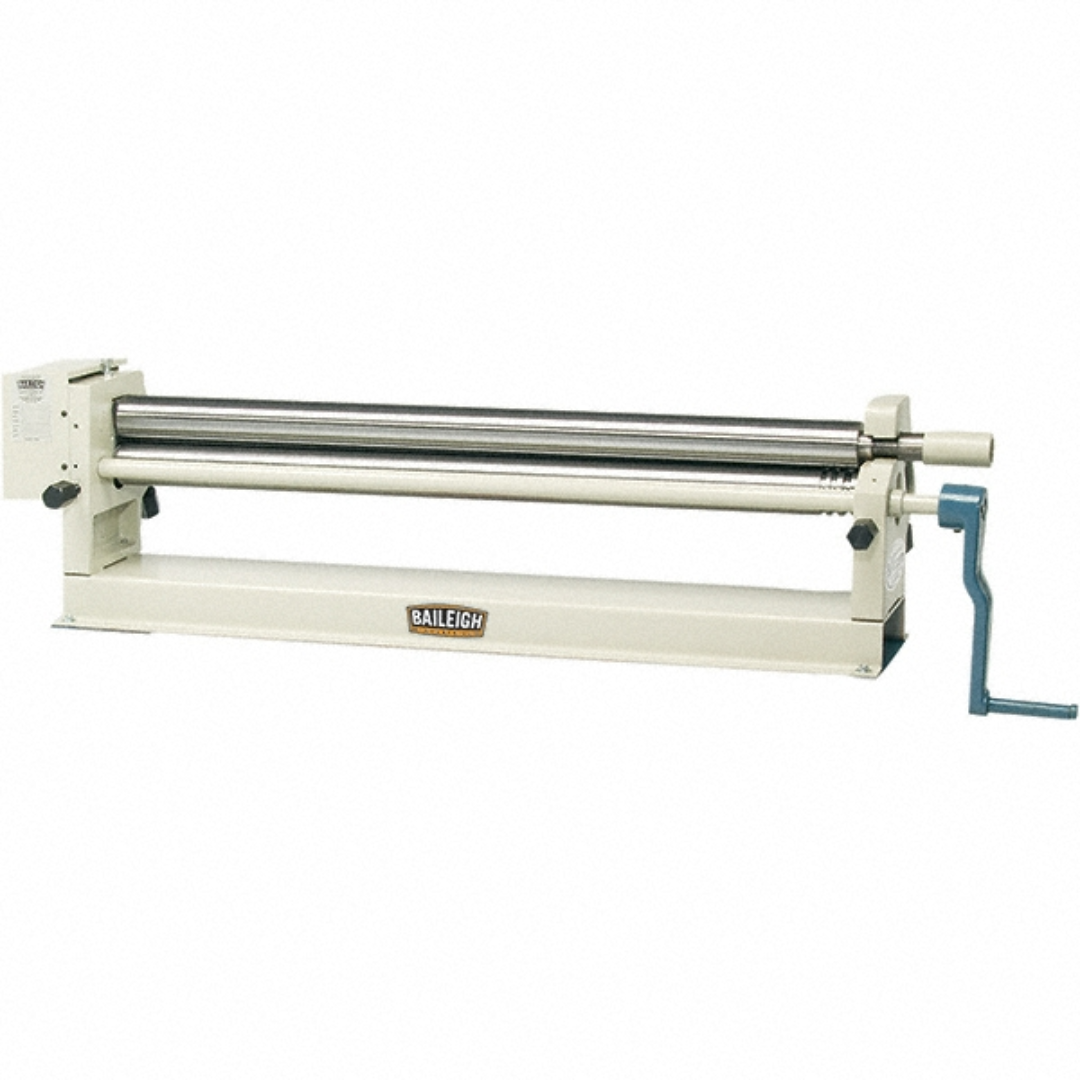

Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348 Applications
- HVAC ductwork and ventilation component fabrication.
- Automotive restoration and custom body panel forming.
- Architectural and ornamental metal fabrication.
- Rolling cylinders, tubes, and curved sheet metal sections.
- Agricultural and industrial equipment manufacturing.
- Custom fabrication and prototype development.
- Metal enclosures, housings, and decorative components.
- General sheet metal forming and repair applications.
An ideal solution for shops that require precise manual rolling of sheet metal into cylinders, cones, and curved shapes without relying on powered equipment.
Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348 Specifications
| Model Number | SR-5016M |
|---|---|
| Product Keyword | Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348 |
| Machine Type | Manual 3-Roll Slip Roll |
| Maximum Forming Width | 50 in. |
| Bending Capacity Length | 50 in. |
| Mild Steel Capacity | 16 Gauge (.060 in.) |
| Input Power | Manual Operation |
| Roll Configuration | 3 Rolls with 2 Driven Rolls |
| Drive System | Manual Gear-Driven System |
| Roll Material | Polished Carbon Steel |
| Roll Surface | Hardened and Polished |
| Back Roll Adjustment | Adjustable for Radius and Cone Rolling |

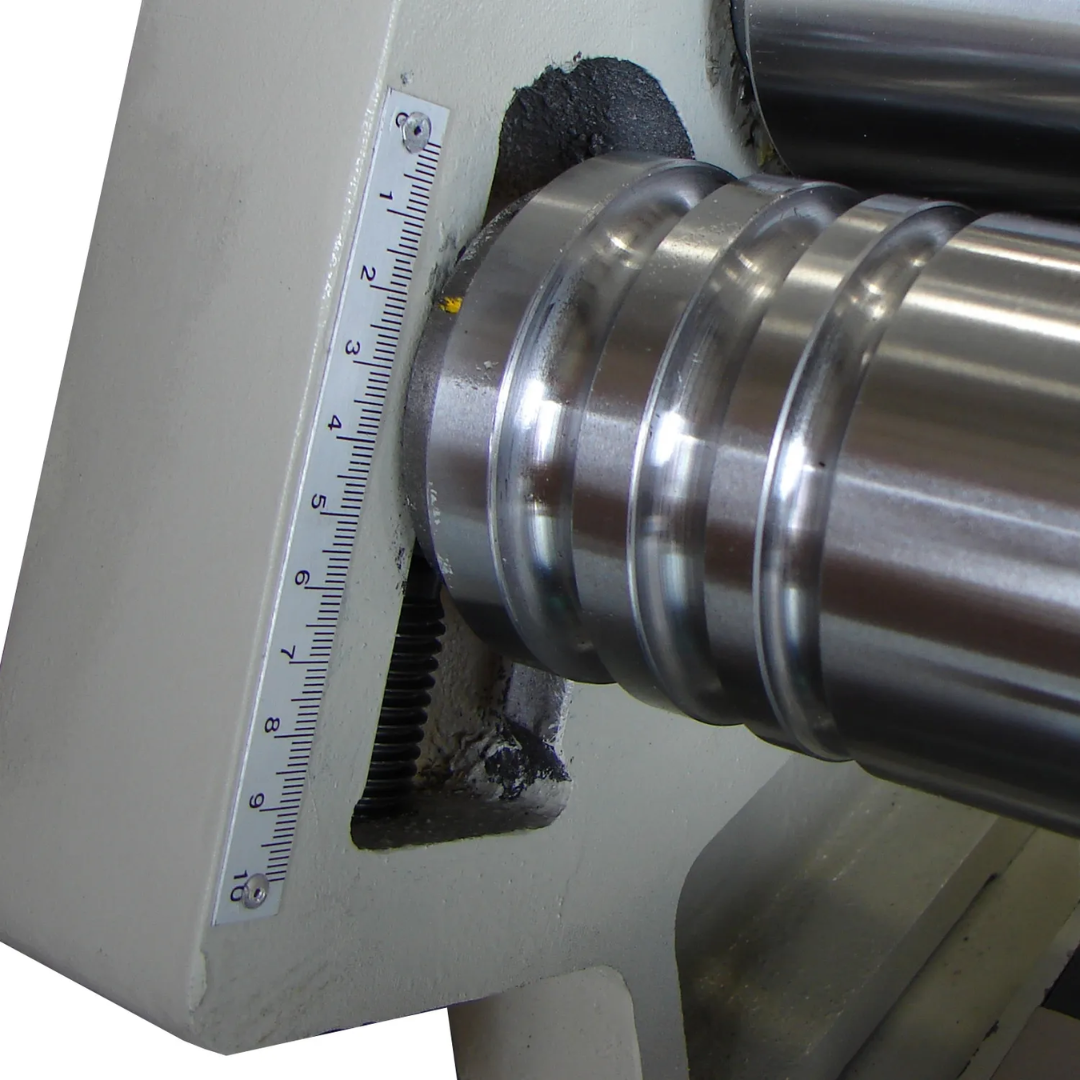

| Wire Grooves | Integrated Wire-Forming Grooves |
| Frame Construction | Heavy-Duty Welded Steel Frame |
| Net Weight | 590 lbs. |
| Gross Weight | 590 lbs. |
| UPC | 731325415636 |
| Warranty | 1 Year |
Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348 Performance & Construction
- 50-inch forming width provides ample capacity for rolling large panels and longer sheet metal sections.
- 16-gauge mild steel capacity allows fabrication of HVAC components, curved panels, cylinders, and custom formed parts.
- Manual 3-roll design delivers controlled and precise sheet metal forming without requiring electrical power.
- Two driven rolls provide consistent material movement and improved forming accuracy throughout the rolling process.
- Gear-driven drive system ensures smooth power transfer and uniform rolling pressure across the machine width.

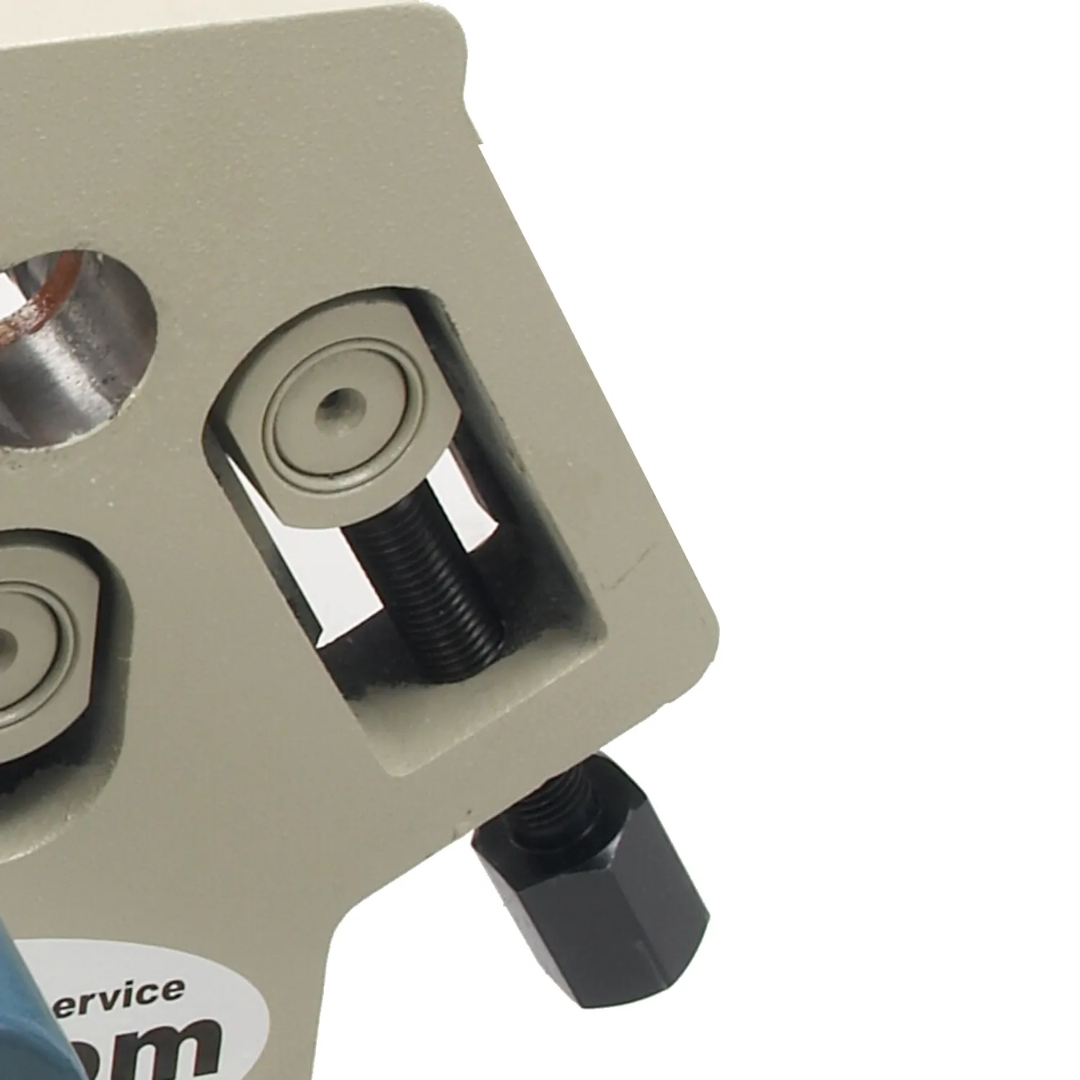

- Adjustable back roll allows operators to create tighter radii and perform cone rolling applications with greater flexibility.

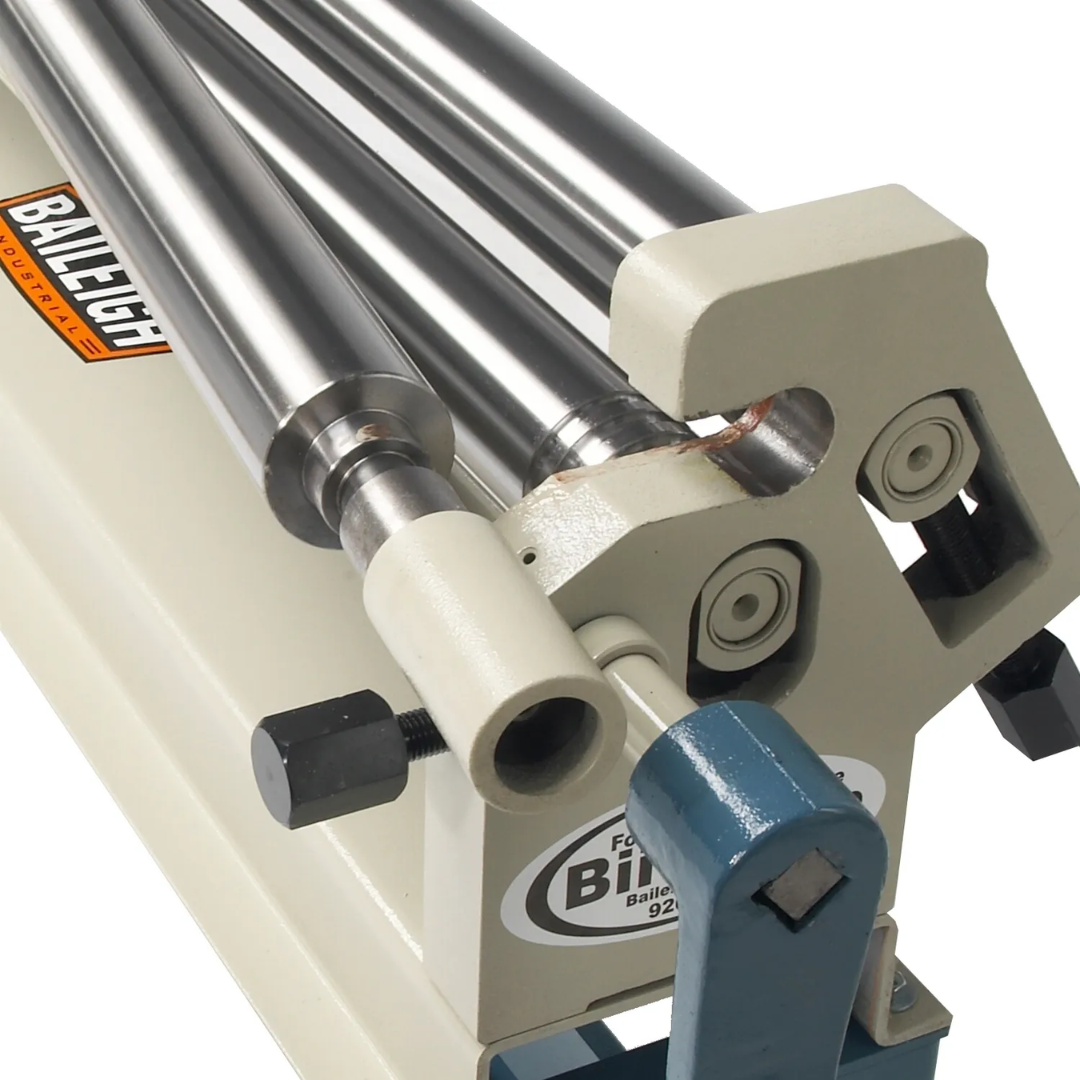

- Hardened polished rolls resist wear while producing smooth, professional-quality finishes on formed material.
- Polished carbon steel roll construction provides durability and long service life in demanding fabrication environments.
- Integrated wire grooves expand forming capabilities by allowing the creation of wire-edged sheet metal components.
- Heavy-duty welded steel frame minimizes deflection and maintains alignment for accurate and repeatable results.

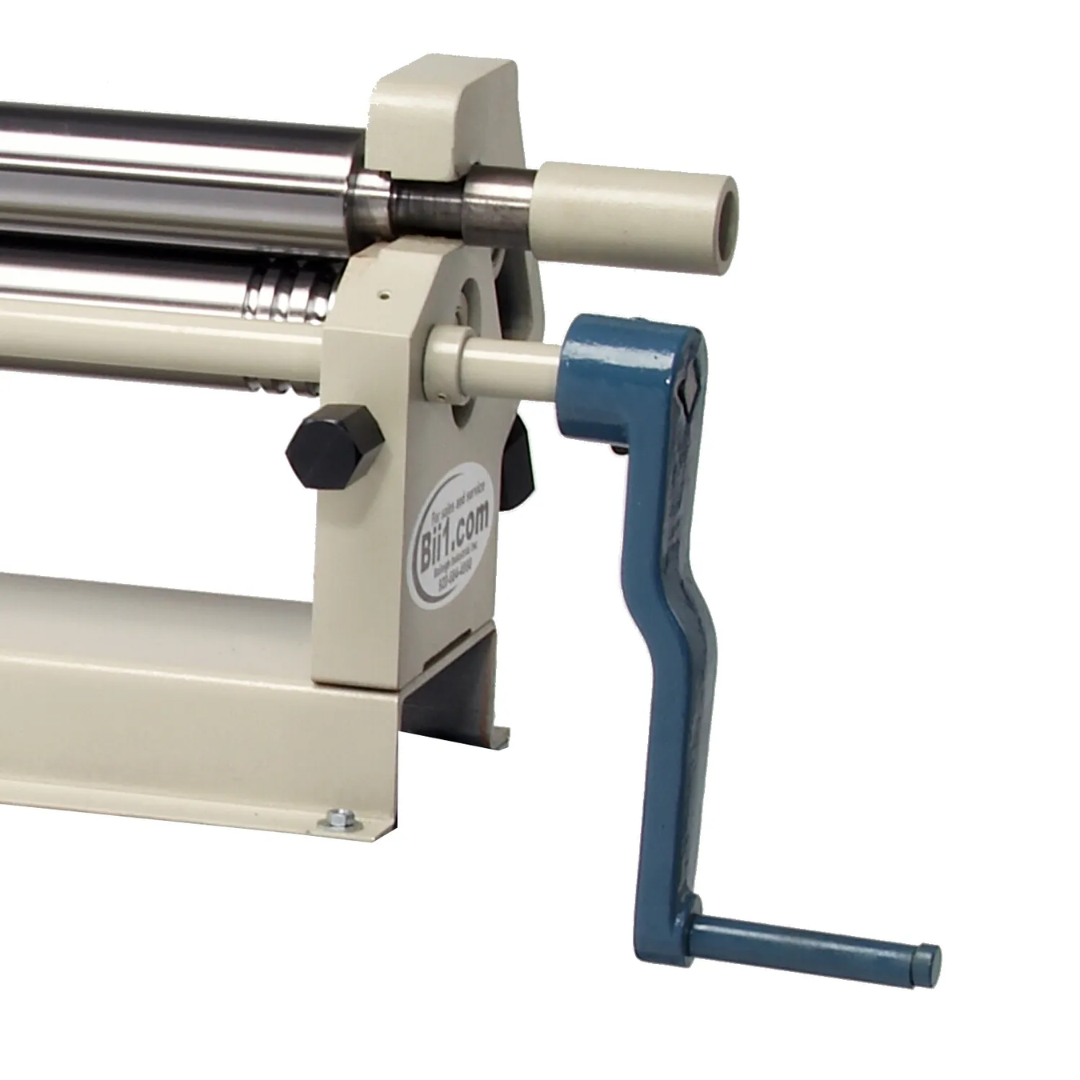

- Manual crank operation offers precise operator control over rolling speed and material feed.
- Designed for professional fabrication environments where reliability, versatility, and forming accuracy are essential.
Why Choose the Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348
- Rolls 16-gauge mild steel across a full 50-inch working width.
- Manual operation eliminates the need for electrical power.
- Two driven rolls provide smooth, consistent material feeding.
- Adjustable back roll enables cylinders, cones, and custom radii.
- Hardened polished rolls ensure long-term durability and clean finishes.
- Integrated wire grooves increase forming versatility.
- Heavy-duty welded construction delivers dependable shop performance.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 50-Inch Manual Slip Roll, 16-Gauge Mild Steel (SR-5016M) 1007348 combines rugged welded-steel construction, precision three-roll forming capability, and versatile manual operation to provide fabrication professionals with a reliable solution for producing cylinders, curved panels, cones, and custom sheet metal components.
