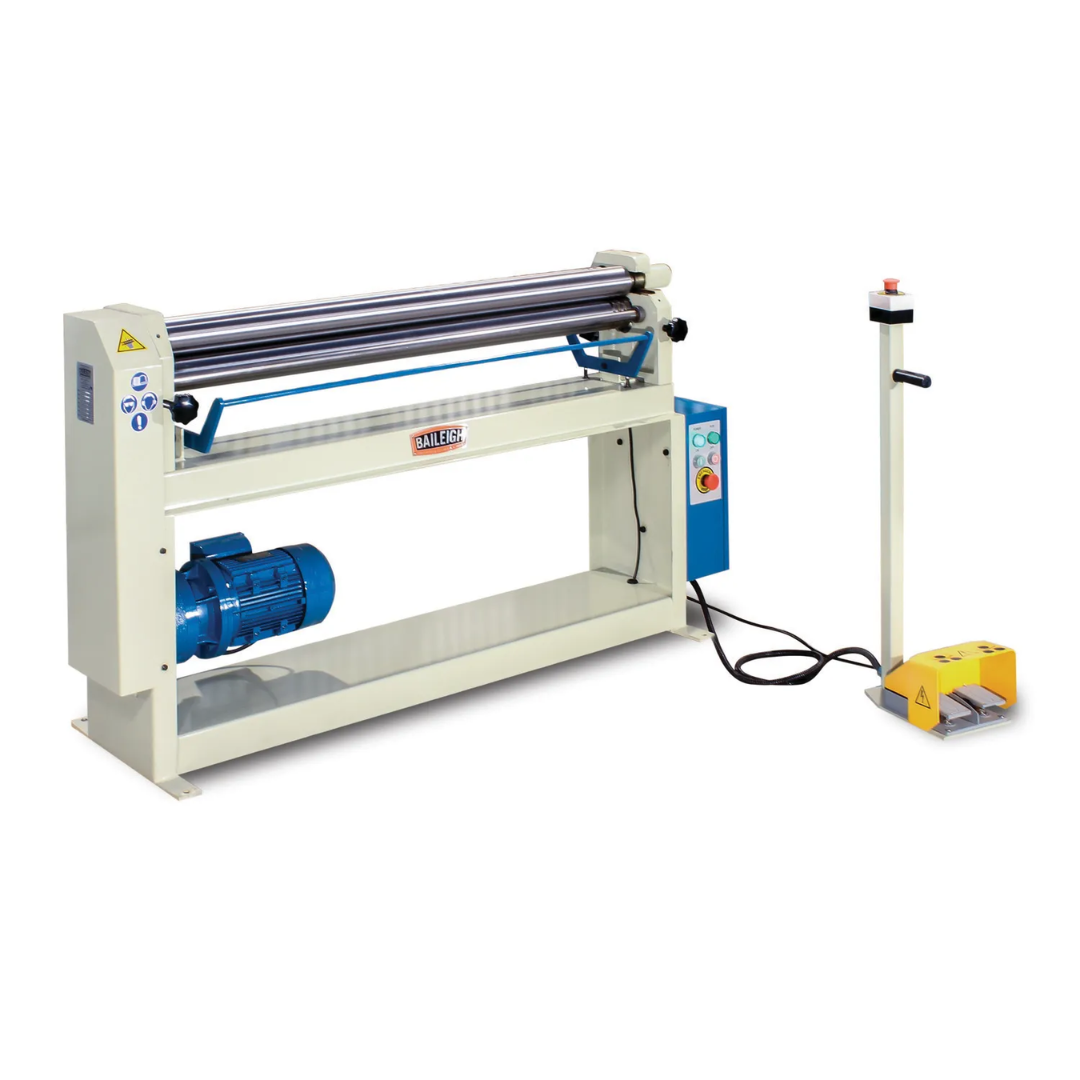

Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 Applications
- HVAC ductwork and round pipe fabrication.
- Custom cylindrical sheet metal component production.
- Industrial fabrication and manufacturing facilities.
- Architectural metalworking and decorative metal fabrication.
- Maintenance and repair departments.
- Prototype and low-volume production work.
- Rolling tanks, sleeves, cylinders, and curved panels.
- General sheet metal forming operations requiring repeatable precision.
Ideal for fabricators seeking a compact powered slip roll capable of producing consistent curved shapes, cylinders, and rolled components from mild steel sheet material.
Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 Specifications
| Model Number | SR-5016E |
|---|---|
| Product Keyword | Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 |
| Machine Type | Electric Slip Roll |
| Working Width | 50 in. |
| Maximum Forming Length | 51 in. |
| Mild Steel Capacity | 16 Gauge (0.060 in.) |
| Motor Power | 1 HP |
| Input Power | 110V |
| Drive Roll Configuration | 2 Driven Rolls |
| Adjustable Depth Stop | Included |
| Net Weight | 790 lbs |
| Gross Weight | 790 lbs |
| UPC | 731325415513 |
| Warranty | 1 Year |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 Features & Construction
- 50-inch working width accommodates a wide variety of sheet metal fabrication projects.
- 51-inch maximum forming length provides flexibility for larger cylindrical and curved components.
- 16-gauge mild steel capacity enables fabrication of durable industrial and commercial products.

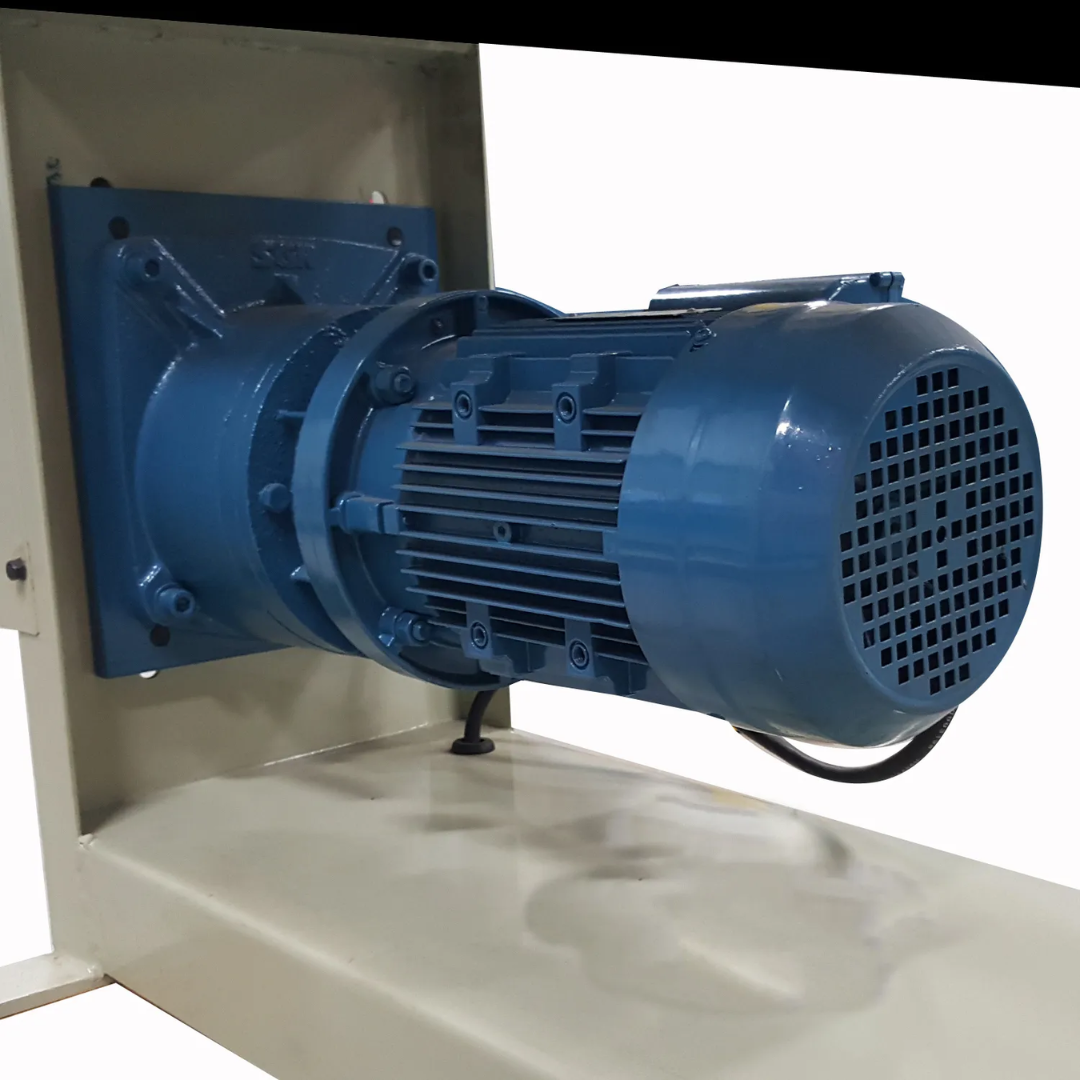

- 110V 1 HP electric motor delivers reliable rolling power and smooth operation.
- Two driven rolls provide positive material feeding and consistent forming performance.

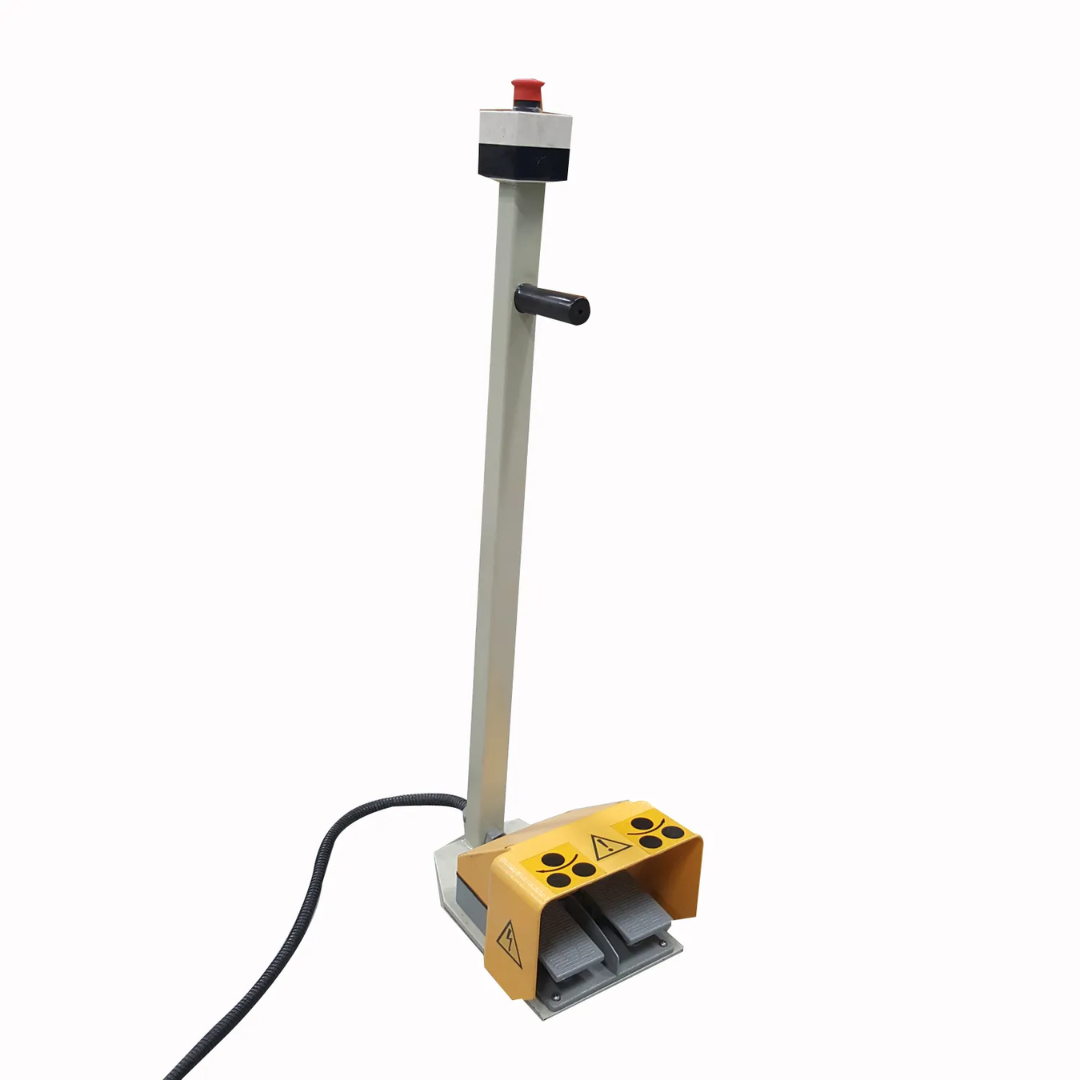

- Forward and reverse foot pedal control allows hands-free operation for improved material handling.

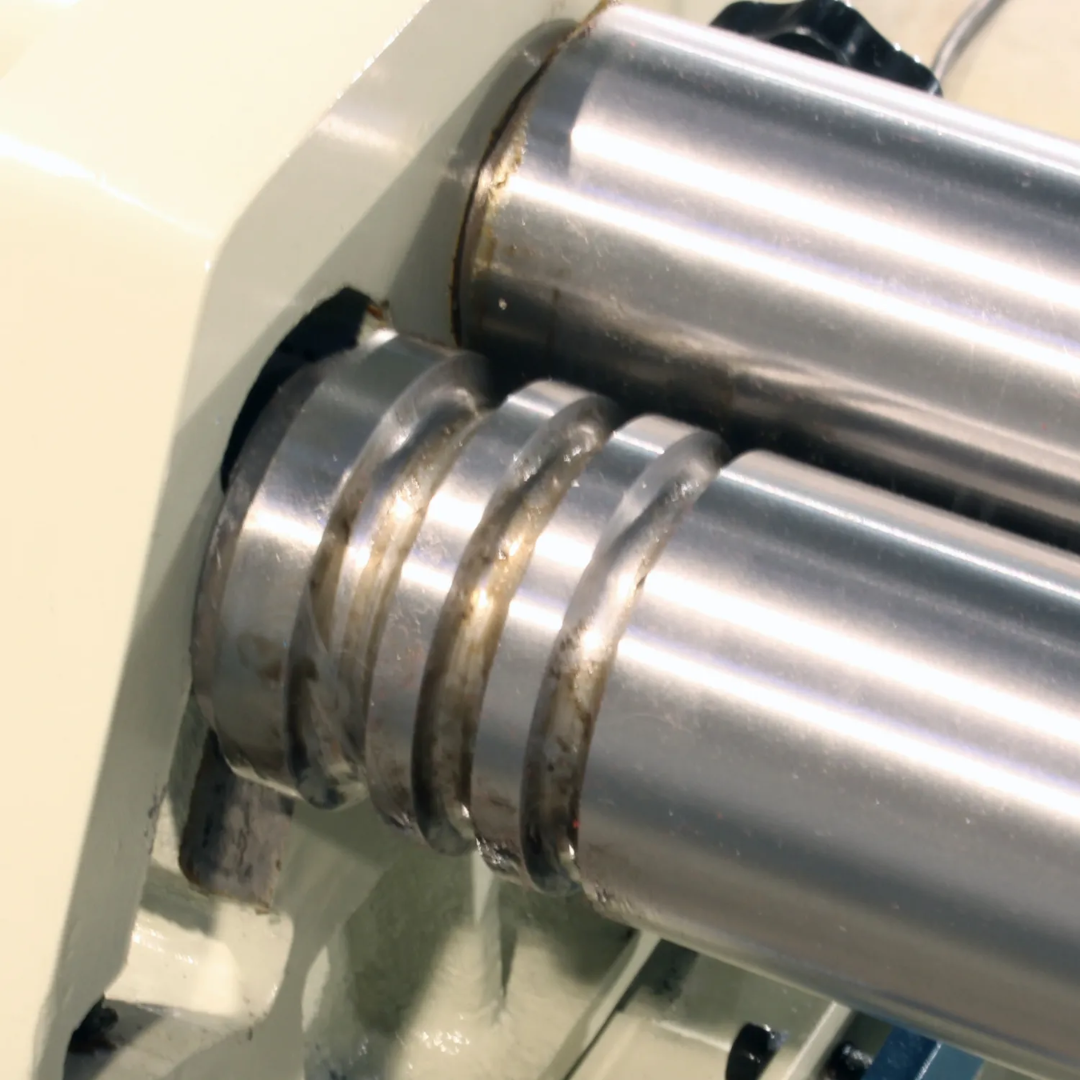

- Hardened and polished rolls resist wear while helping maintain a high-quality material finish.

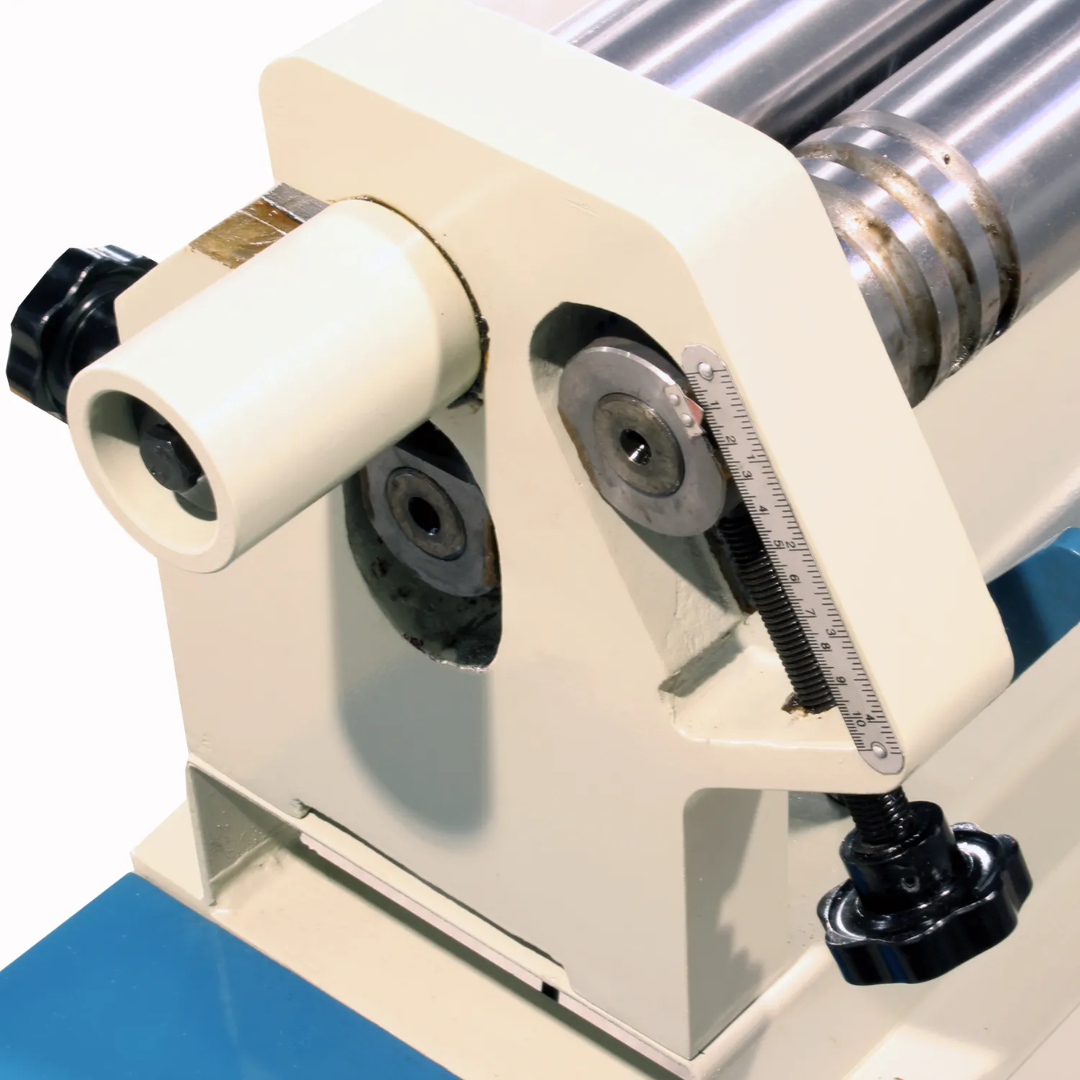

- Adjustable back roll enables tighter radii and expanded forming versatility.
- Adjustable depth stop assists with repeatable production runs and consistent results.
- Heavy-duty welded steel frame minimizes flex and enhances long-term accuracy.
- Open stand design provides convenient access for loading, forming, and unloading materials.
Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 Performance & Safety
- Powered rolling operation reduces operator effort compared to manual slip rolls.
- Consistent motor-driven performance improves forming accuracy across the full width of the machine.
- Forward and reverse operation simplifies material positioning and rolling adjustments.

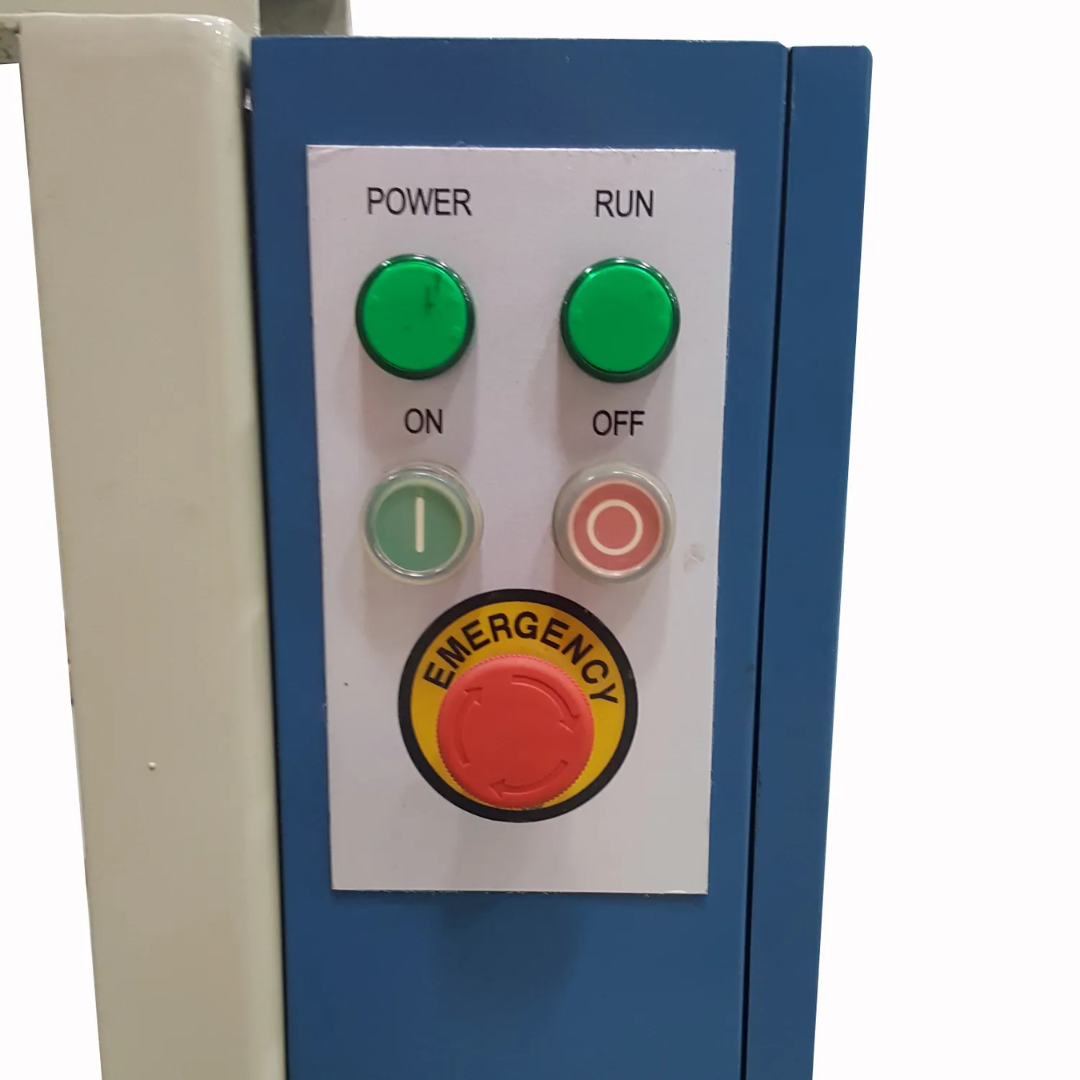

- Three integrated emergency-stop controls enhance operator safety during machine operation.
- Precision roll adjustment capability allows creation of cylinders, arcs, and curved sheet metal components.
- Rigid machine structure supports dependable results in production and fabrication environments.
Combining electric-powered convenience, industrial-grade construction, and precise roll adjustment, the SR-5016E helps fabricators produce repeatable curved parts with greater efficiency and control.
Why Choose the Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336
- Rolls up to 16-gauge mild steel across the full working width.
- Powered by a dependable 110V, 1 HP electric motor.
- Two driven rolls provide smooth and consistent material feeding.
- Foot pedal control allows hands-free forward and reverse operation.
- Adjustable back roll supports a wide range of forming applications.
- Heavy-duty welded steel construction ensures long-term durability.
- Includes adjustable depth stop for repeatable production work.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 50-Inch Electric Slip Roll, Open Stand (SR-5016E) 1007336 is an excellent solution for fabrication professionals who need reliable powered rolling performance, precision sheet metal forming capability, and industrial durability in a versatile workshop machine.
