Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889 Applications
- HVAC ductwork and custom ventilation fabrication.
- Sheet metal fabrication and production shops.
- Prototype and research & development facilities.
- Electrical enclosure and cabinet manufacturing.
- Automotive restoration and custom fabrication.
- Architectural sheet metal projects.
- Production of enclosed boxes, pans, channels, and return flanges.
- Custom sheet metal forming requiring unrestricted bending access.

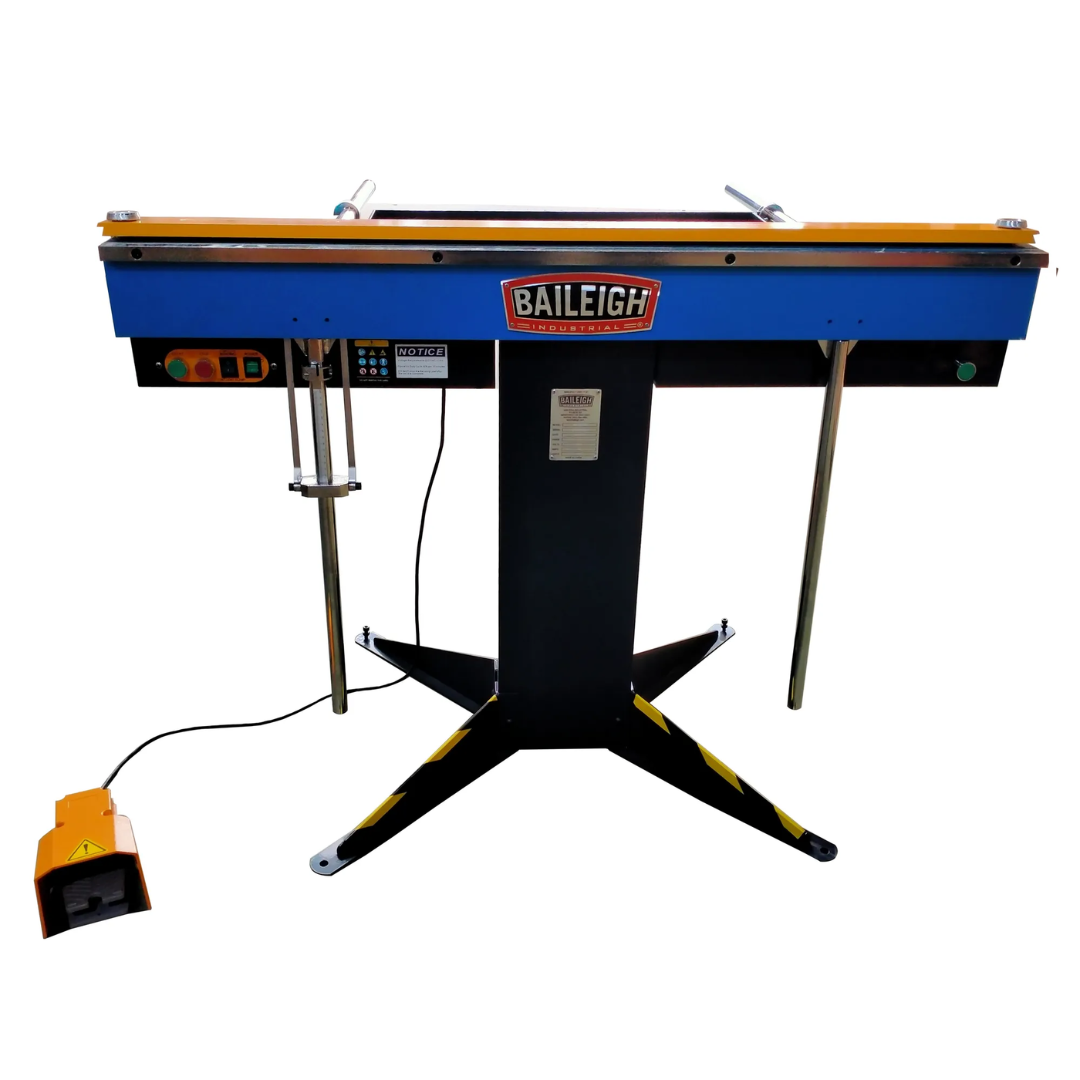

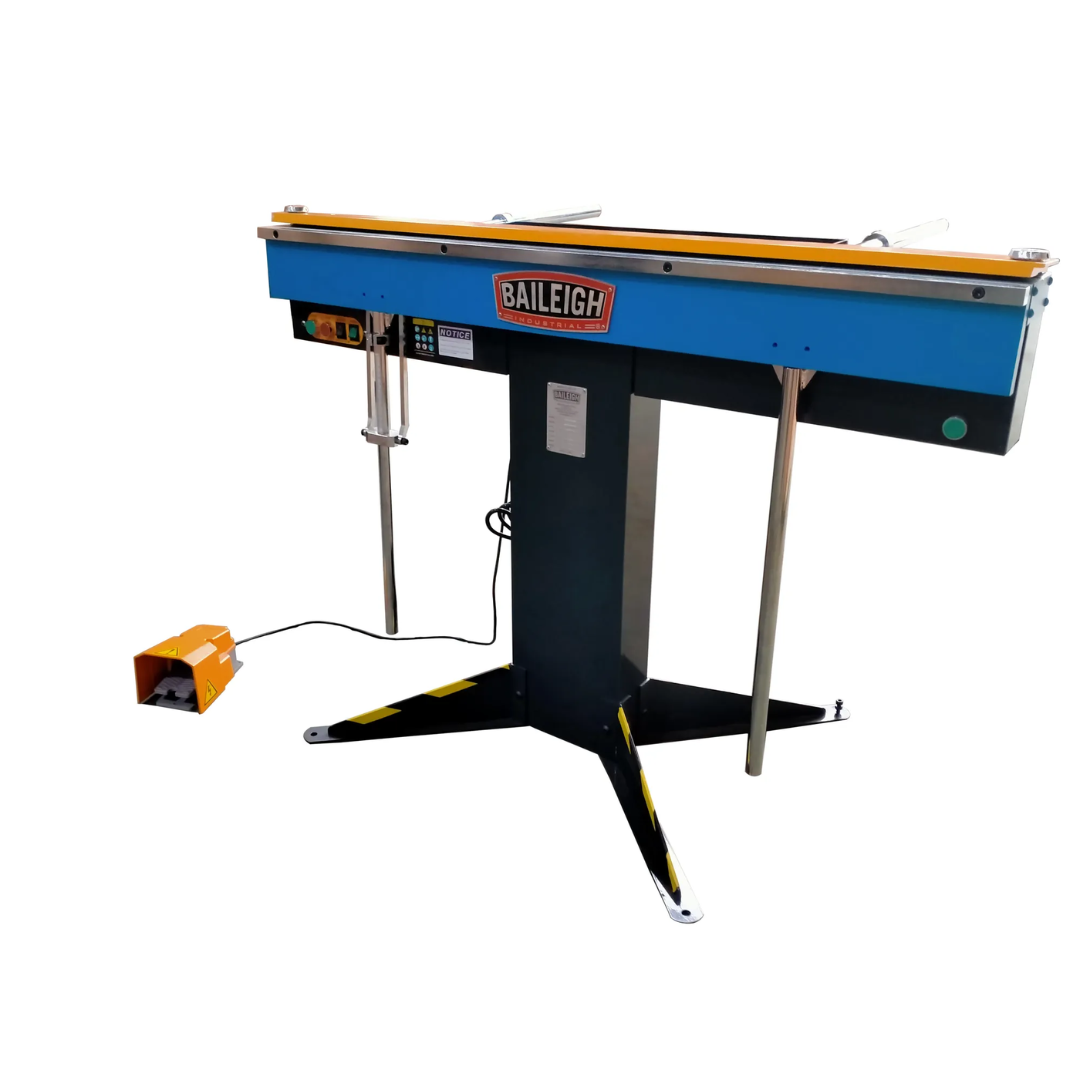

The Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889 allows fabricators to produce enclosed and complex sheet metal components that are difficult or impossible to manufacture with traditional box and pan brakes.
Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889 Specifications
| Model | BB-4816M-V2 |
|---|---|
| Part Number | 1231889 |
| Machine Type | Electromagnetic Sheet Metal Brake |
| Working Width | 48" |
| Maximum Bending Capacity | 16 Gauge Mild Steel |
| Maximum Box Depth | Unlimited |
| Maximum Bend Angle | 135° |
| Power Requirement | 220V Single-Phase |
| Clamping System | Electromagnetic Magnetic Clamping |
| Operation | Manual Bending with Foot Pedal Activated Clamping |
| Clamping Bars | Multiple Removable Clamping Bars Included |
| Frame Construction | Fully Welded Heavy-Duty Steel Frame |
| Net Weight | 387 lbs. |
| Gross Weight | 387 lbs. |
| UPC | 731325856088 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889 Performance & Construction

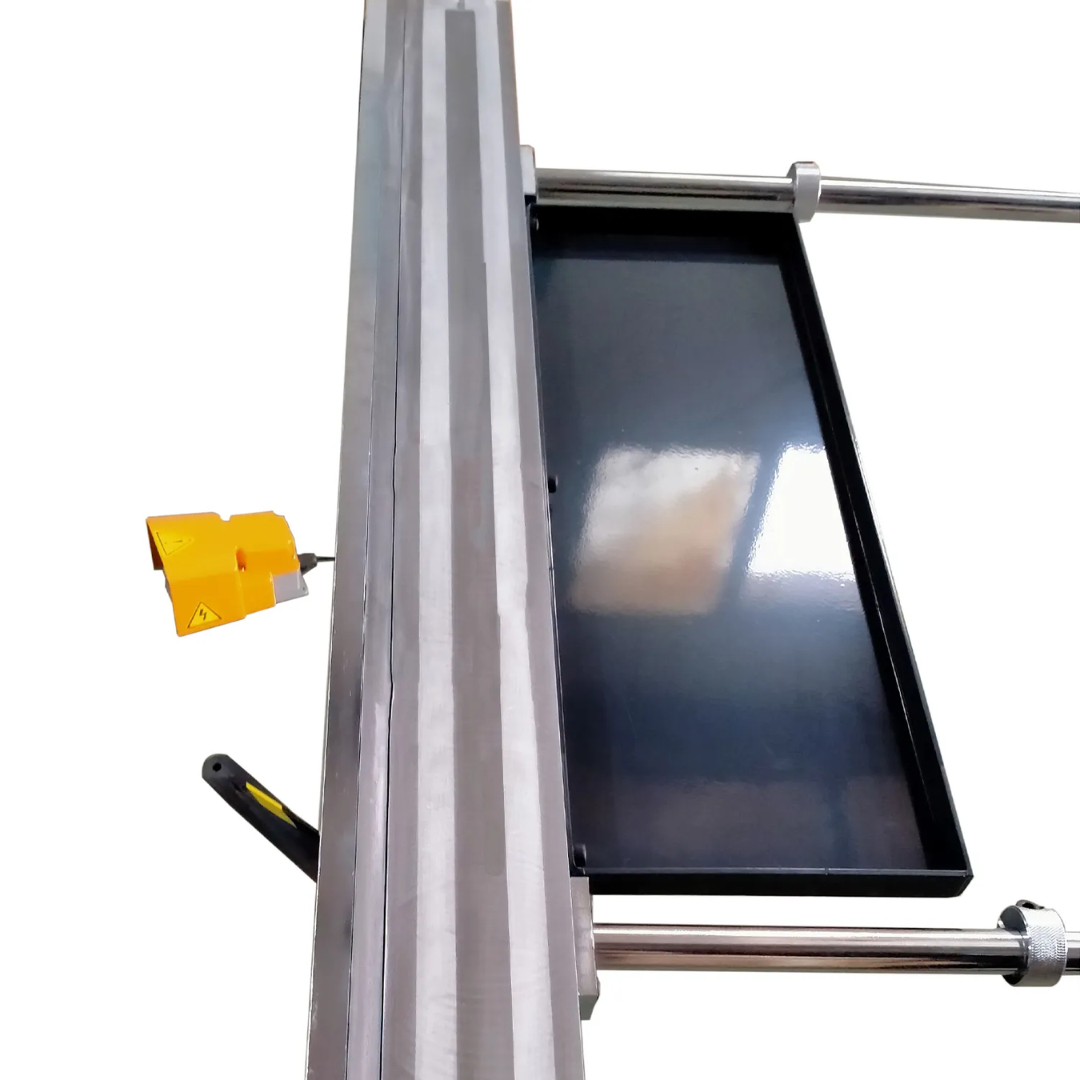

- Powerful electromagnetic clamping system securely holds sheet metal across the full working width without conventional mechanical clamping fingers.
- 48-inch (4-foot) bending capacity accommodates full-width sheet metal for fabrication, HVAC, architectural, and production applications.
- 16-gauge mild steel capacity provides professional-grade performance for forming common fabrication materials.
- Open-ended magnetic design enables fabrication of enclosed boxes, deep channels, return flanges, and complex profiles that cannot be formed on traditional finger brakes.
- Unlimited box depth capability greatly expands design flexibility for large enclosures and specialty sheet metal components.

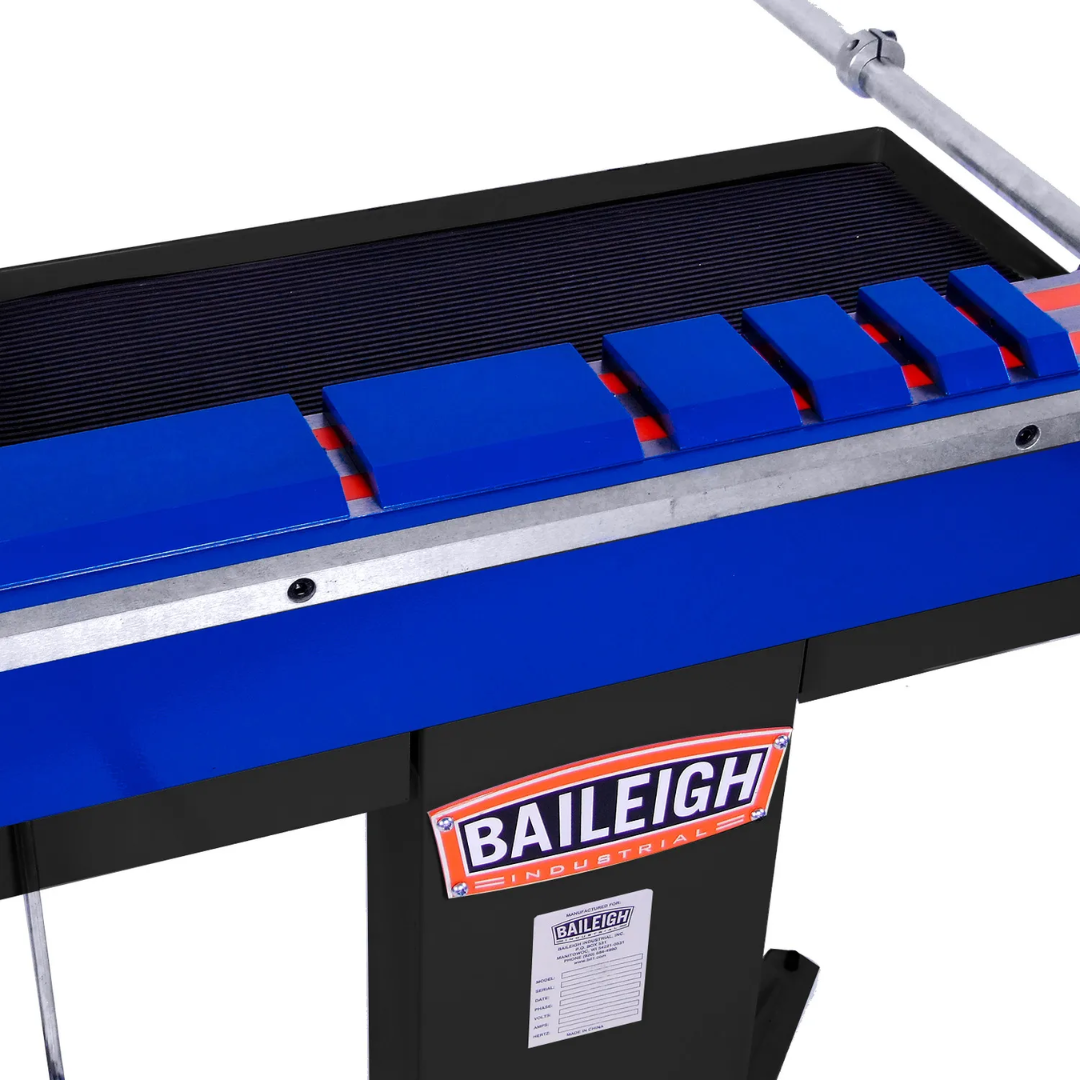

- Multiple removable clamping bars allow quick setup for straight bends, segmented bends, box-and-pan work, and specialized forming operations.

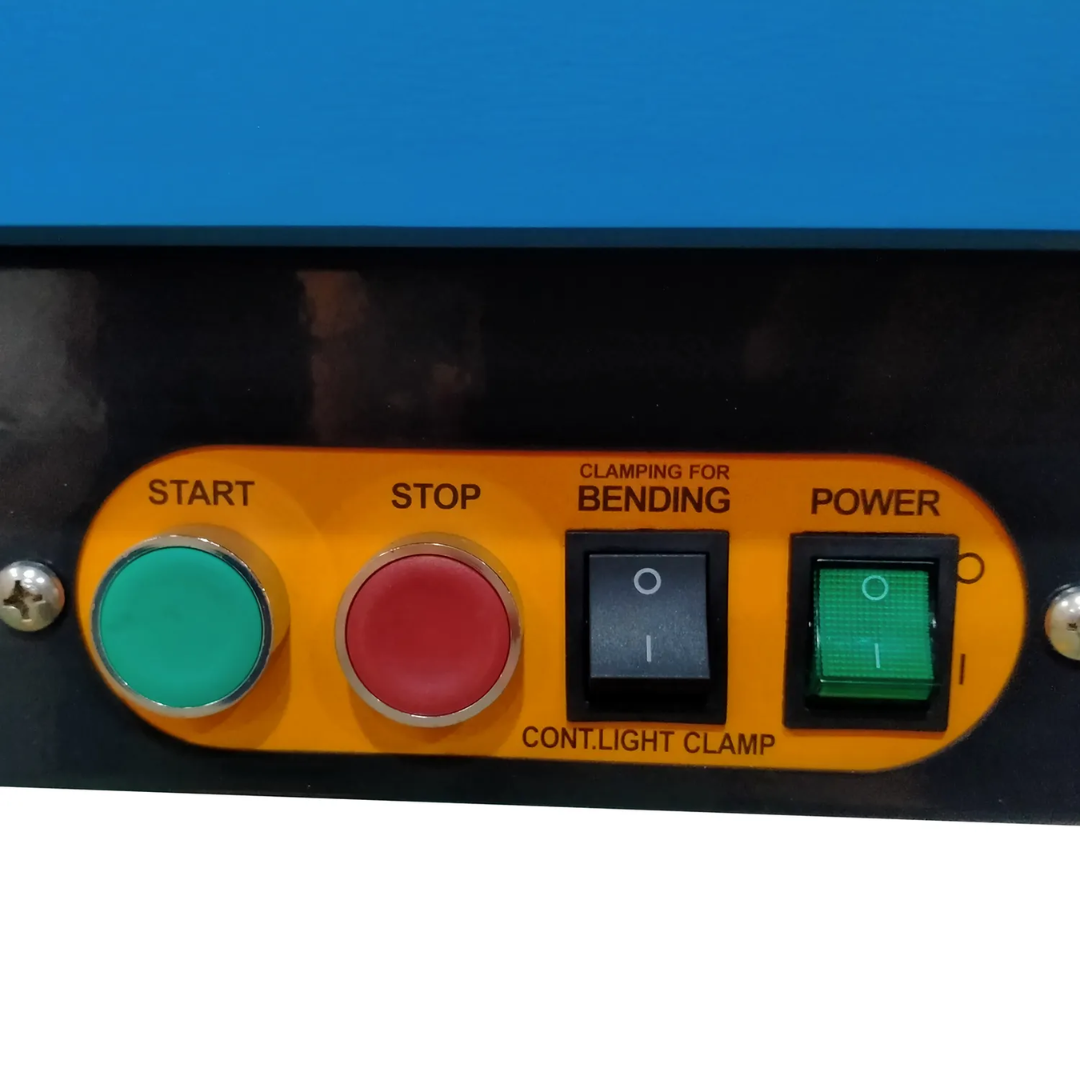

- Foot pedal activated magnetic clamping leaves both hands free for accurate workpiece positioning before bending, improving precision and operator efficiency.
- Maximum bend angle of 135° supports a wide variety of forming requirements beyond standard 90-degree bends.
- Rigid fully welded steel frame minimizes deflection while maintaining excellent forming accuracy across the full bending length.
- 220V single-phase electrical operation allows installation in most fabrication shops without requiring industrial three-phase power.
- Ideal for professional metal fabrication, including HVAC manufacturing, prototype work, custom enclosures, architectural sheet metal, and production fabrication.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889
- Electromagnetic clamping provides unrestricted forming capabilities.
- Forms enclosed boxes, deep channels, and complex shapes impossible for conventional finger brakes.
- 48-inch working width handles full-size sheet metal projects.
- Bends up to 16-gauge mild steel with excellent accuracy.
- Unlimited box depth dramatically expands fabrication possibilities.
- Foot pedal control improves operator precision and productivity.
- Multiple removable clamping bars increase forming versatility.
- Heavy-duty welded steel construction ensures industrial durability.
- 220V single-phase power simplifies installation in professional workshops.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 48-Inch Magnetic Sheet Metal Brake (BB-4816M-V2) 1231889 delivers advanced electromagnetic forming technology, exceptional versatility, and professional-grade construction for fabricators who demand the freedom to produce enclosed shapes, complex bends, and precision sheet metal components with outstanding efficiency and accuracy.
