Baileigh 48-Inch Hydraulic Plate Roll, 1/4-Inch Mild Steel (PR-403) 1006481 Applications
- General sheet metal and fabrication shops.
- HVAC ductwork and cylindrical component manufacturing.
- Rolling mild steel cylinders, cones, and curved panels.
- Custom metal fabrication and architectural metalworking.
- Agricultural, industrial, and OEM manufacturing.
- Medium-production forming of tanks, guards, sleeves, and structural components.
An ideal hydraulic plate roll for shops requiring dependable 48-inch rolling capacity, accurate hydraulic adjustments, and repeatable production-quality forming.
Baileigh 48-Inch Hydraulic Plate Roll, 1/4-Inch Mild Steel (PR-403) 1006481 Specifications
| Model | PR-403 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Part Number | 1006481 |
| Forming Width | 48 in. |
| Maximum Forming Length | 48 in. |
| Mild Steel Capacity | 1/4 in. (3 Gauge) |
| Motor Power | 3 HP |
| Input Power | 220V Three Phase |
| Roll Configuration | Three Hydraulically Driven Rolls |
| Back Roll Adjustment | Hydraulic with Digital Position Readout |
| Frame Construction | Heavy-Duty Welded Steel Frame |
| Control System | Foot Pedal Control Pedestal |
| Net Weight | 3,590 lbs |
| Gross Weight | 3,590 lbs |
| Warranty | 1 Year |
Baileigh 48-Inch Hydraulic Plate Roll, 1/4-Inch Mild Steel (PR-403) 1006481 Performance & Construction

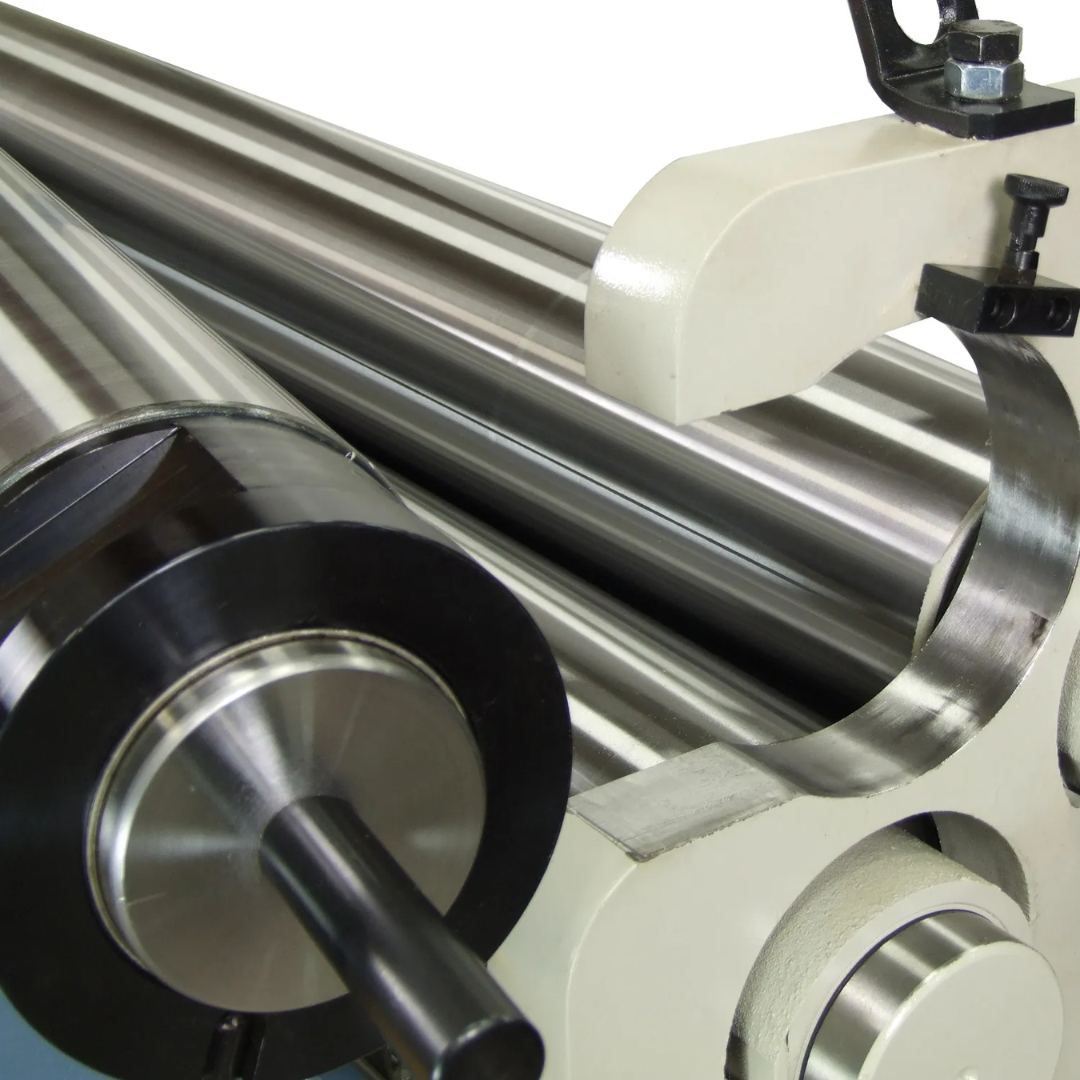

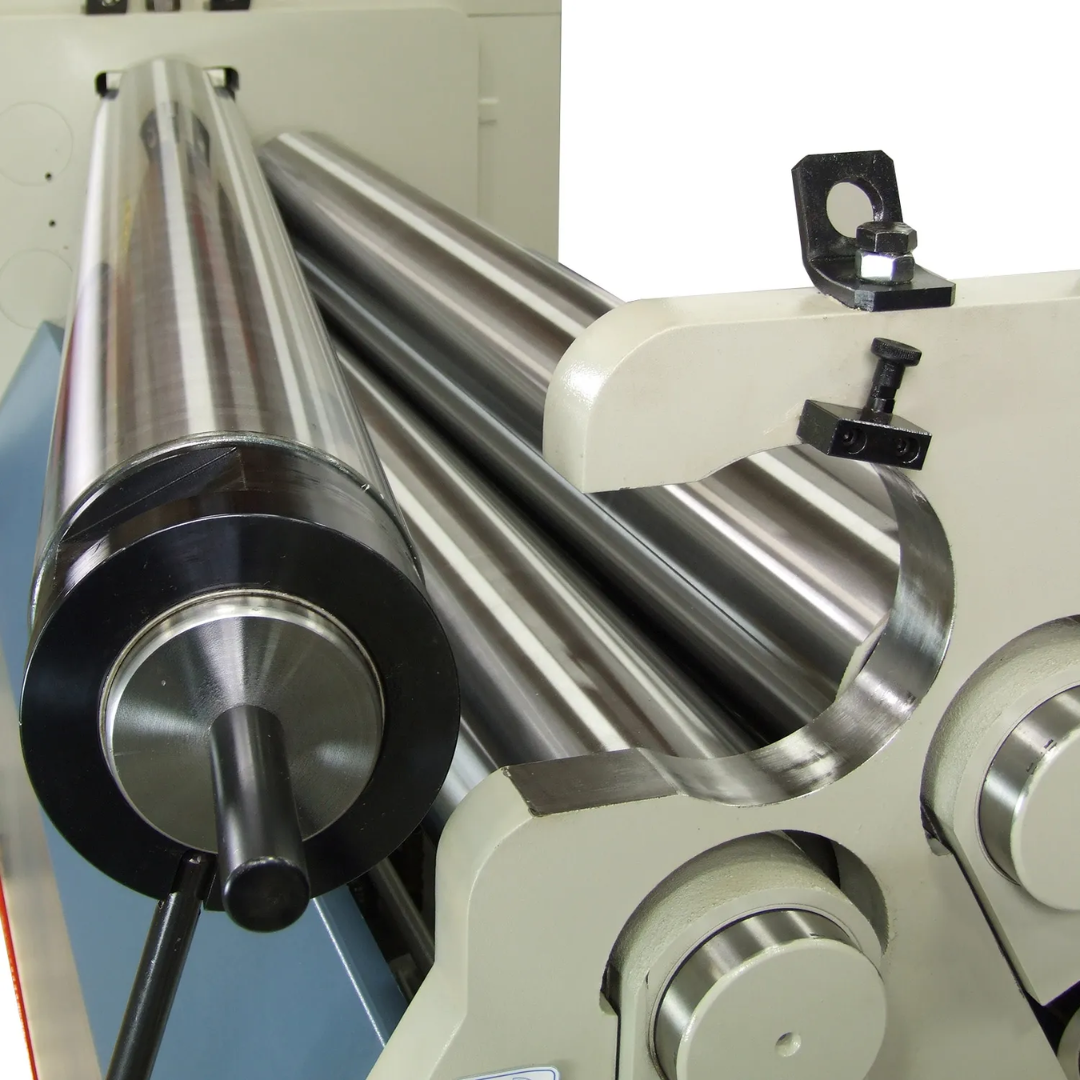

- Three hydraulically driven rolls provide smooth, even power distribution for consistent rolling performance and excellent material control.
- 48-inch forming capacity allows fabrication of cylinders, cones, and curved sheet metal components for a wide variety of industrial applications.
- 1/4-inch mild steel (3 gauge) capacity delivers the strength needed for demanding fabrication and production work.

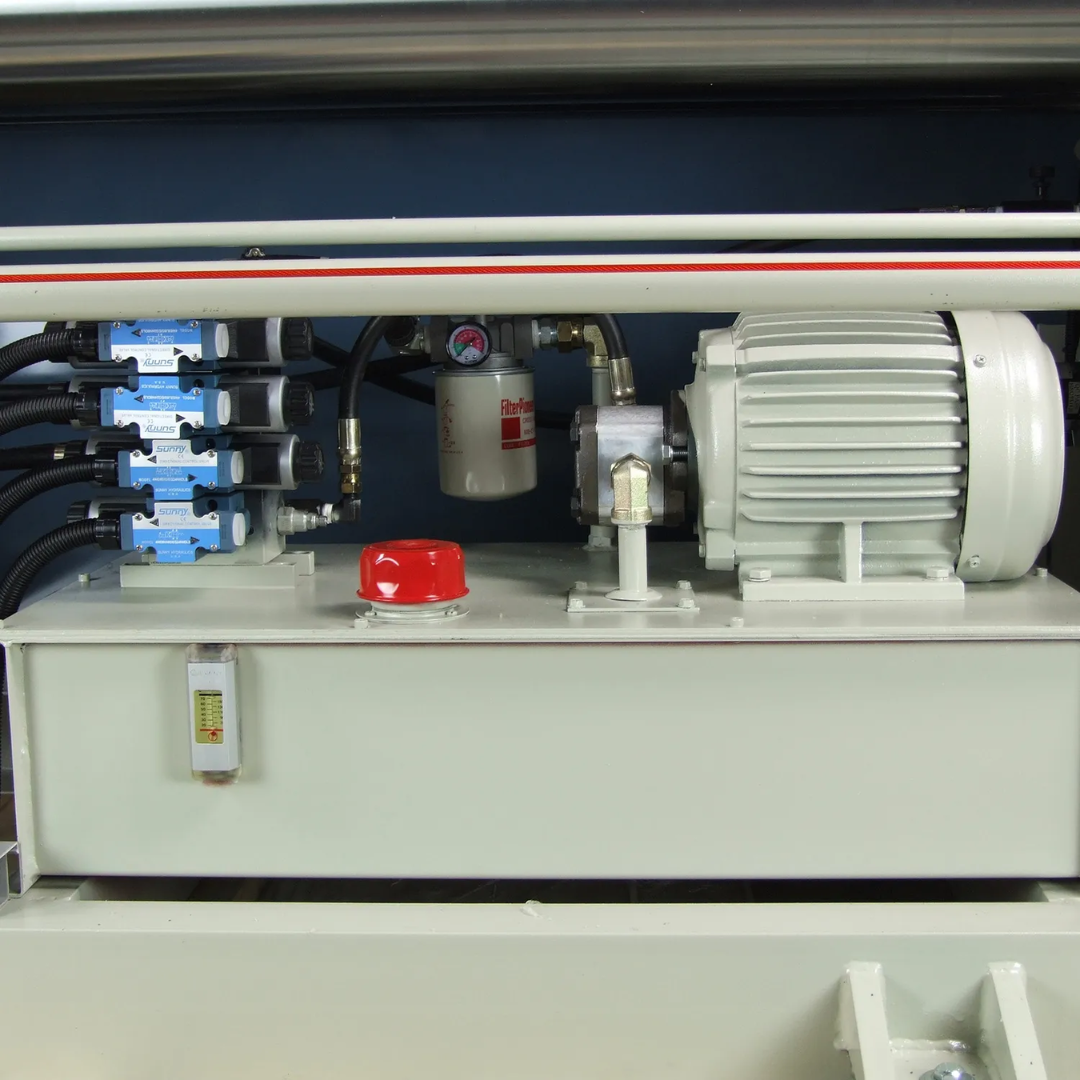

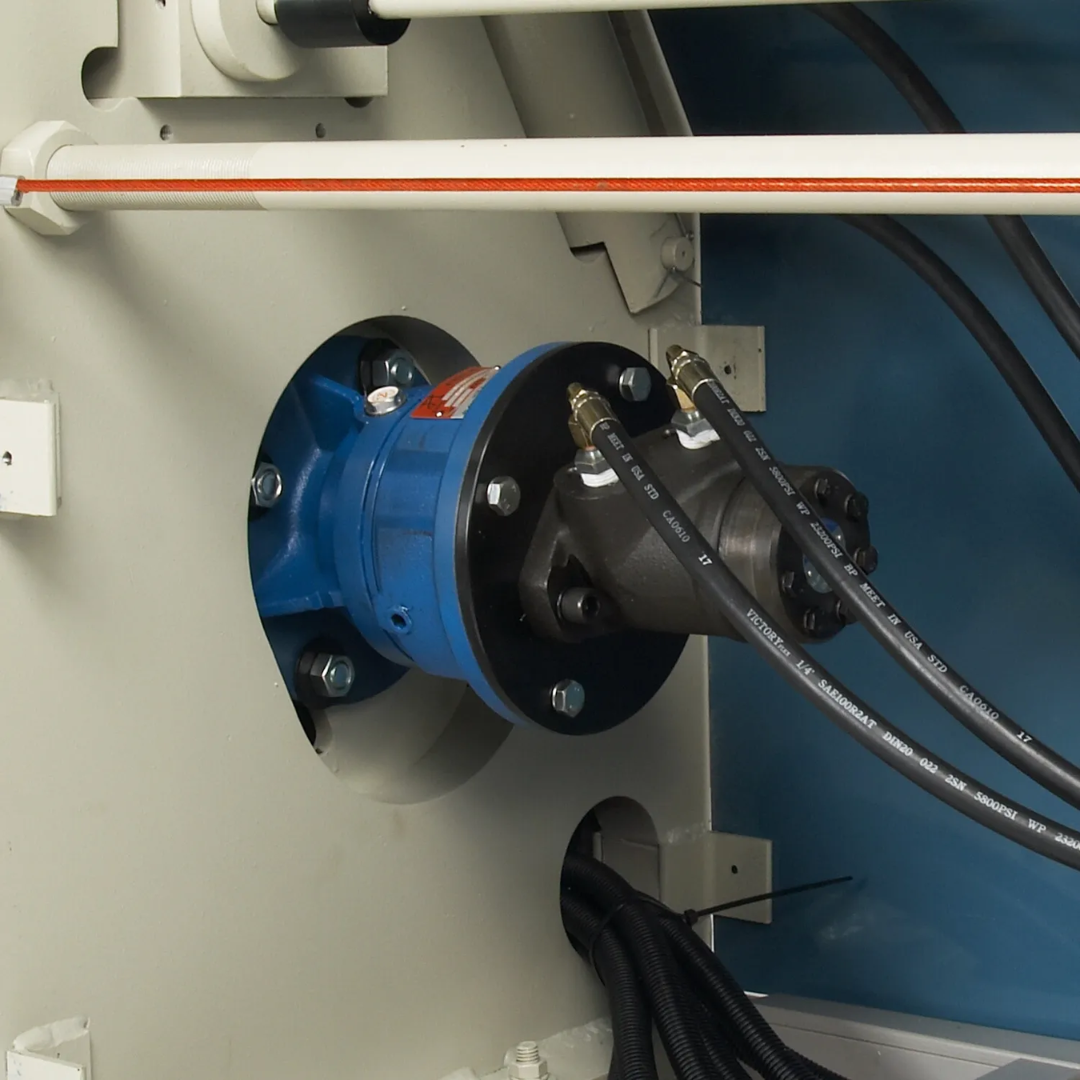

- Powerful 3 HP motor operating on 220V three-phase electrical service supplies dependable hydraulic performance for continuous operation.
- Hydraulic back roll adjustment enables fast, accurate positioning while reducing operator effort during setup.

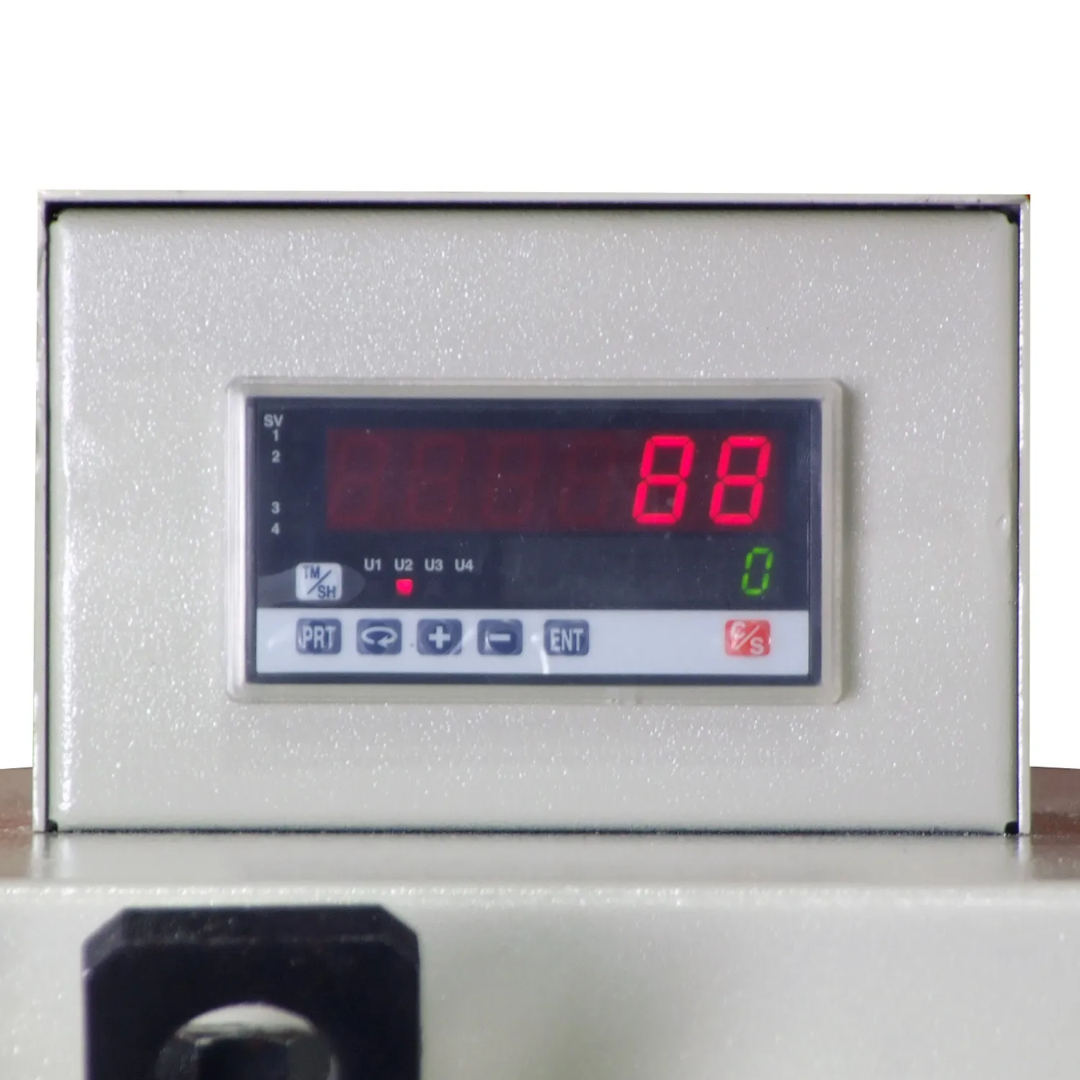

- Digital back roll position readout improves repeatability, simplifies adjustments, and enhances forming precision for production runs.
- Heavy-duty welded steel frame minimizes flex and vibration while maintaining alignment during demanding rolling operations.

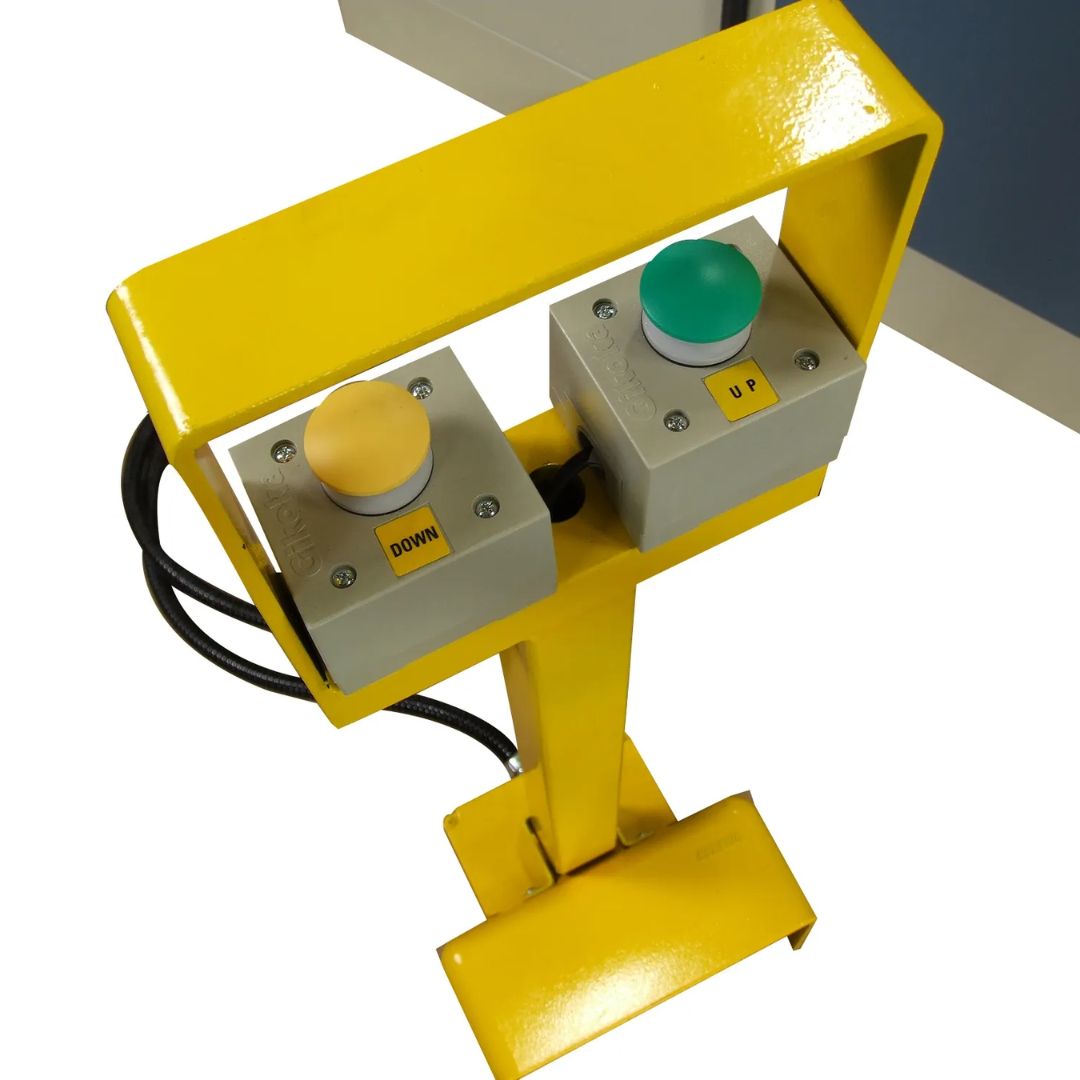

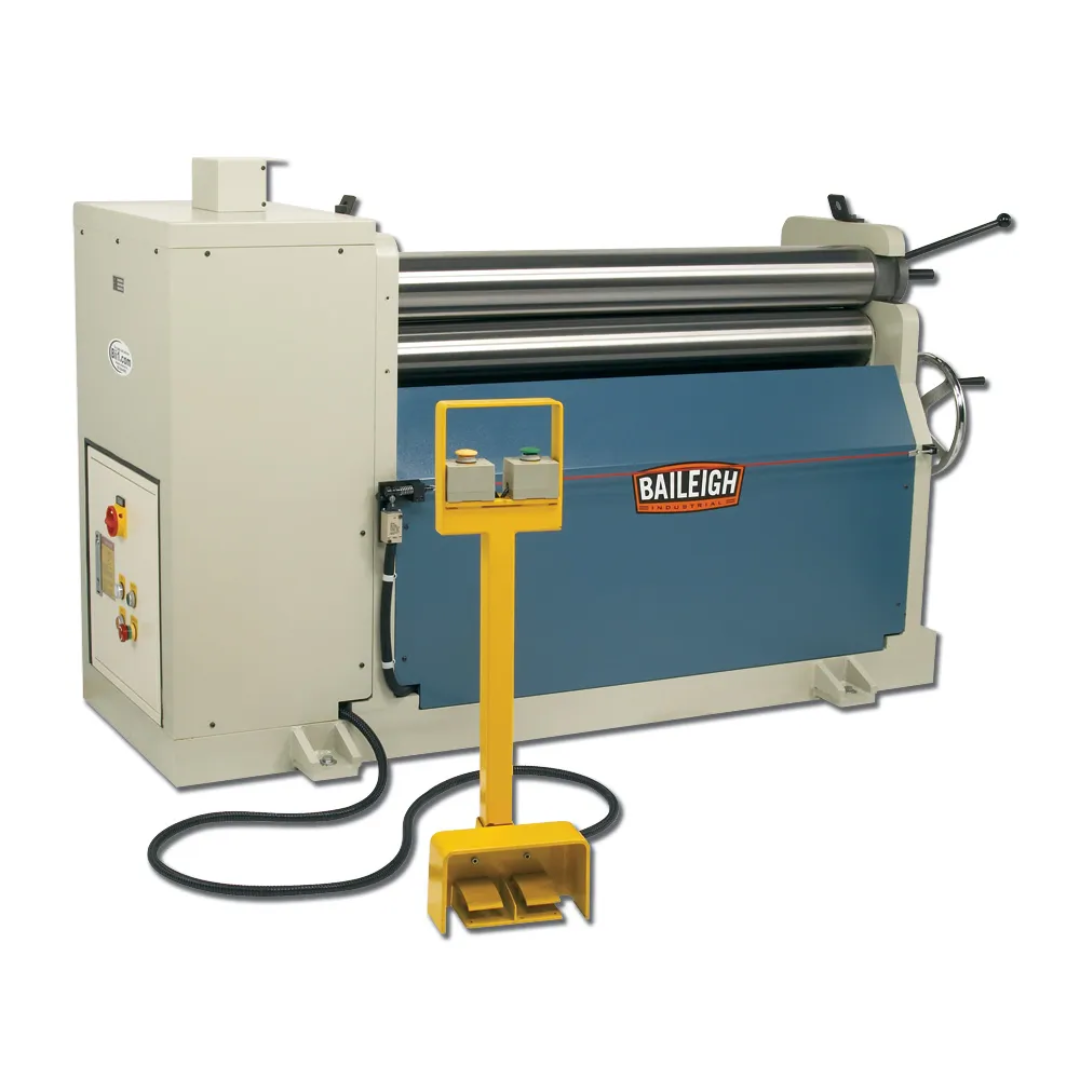

- Ergonomic foot pedal control station allows convenient hands-free operation of roll functions while improving operator efficiency and workflow.
- Compact industrial design fits fabrication shops requiring professional hydraulic rolling performance without excessive floor space.
- Designed for cylinders, cones, curved panels, and custom rolled components across HVAC, fabrication, manufacturing, and industrial applications.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 48-Inch Hydraulic Plate Roll, 1/4-Inch Mild Steel (PR-403) 1006481
- Hydraulically driven three-roll system provides smooth, consistent forming performance.
- 48-inch working width accommodates a broad range of fabrication projects.
- 1/4-inch mild steel capacity handles demanding industrial applications.
- Hydraulic back roll adjustment with digital readout increases accuracy and repeatability.
- Heavy-duty welded steel construction delivers long-term durability and rigidity.
- Foot pedal controls improve productivity and simplify machine operation.
- Excellent solution for fabrication shops, HVAC contractors, and custom metal manufacturers.
The Baileigh 48-Inch Hydraulic Plate Roll, 1/4-Inch Mild Steel (PR-403) 1006481 combines industrial hydraulic power, precision controls, and rugged construction into a dependable rolling machine built for professional fabrication. With its 48-inch capacity, three hydraulically driven rolls, digital positioning system, and durable welded frame, the PR-403 delivers accurate, repeatable forming performance for years of productive operation.
