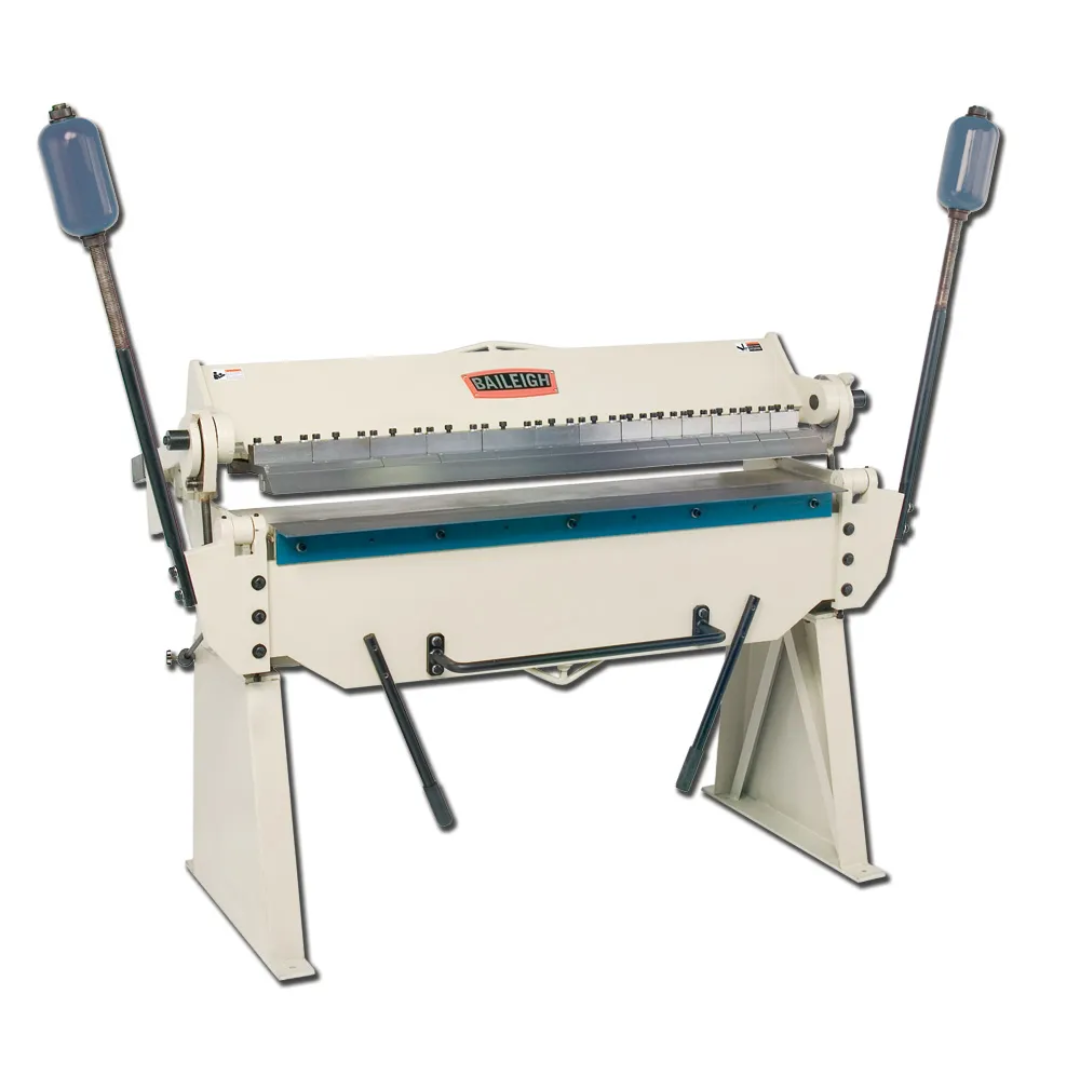

Baileigh 48-Inch Box & Pan Brake, 14-Gauge Mild Steel (BB-4814) 1000417 Applications
- HVAC ductwork fabrication and custom duct components.
- Electrical boxes, cabinets, and sheet metal enclosures.
- Architectural sheet metal fabrication.
- Custom brackets, channels, and formed components.
- Industrial maintenance and repair operations.
- Prototype development and small-batch production.
- Educational and vocational metalworking programs.
- General fabrication shops requiring versatile sheet metal forming.
Ideal for fabricators who need a durable manual brake capable of producing accurate bends, boxes, pans, and formed sheet metal parts up to 48 inches wide.
Baileigh 48-Inch Box & Pan Brake, 14-Gauge Mild Steel (BB-4814) 1000417 Specifications
| Model Number | BB-4814 |
|---|---|
| Product Number | 1000417 |
| Product Type | Manual Box & Pan Brake |
| Working Width | 48" (4 ft) |
| Bending Capacity Length | 48" |
| Material Capacity | 14 Gauge Mild Steel |
| Stainless Steel Capacity | 18 Gauge |
| Maximum Box Depth | 4" |
| Maximum Bend Angle | 135° |
| Operation | Manual |
| Input Power | Manual |
| Finger Configuration | 11 Removable Hardened Fingers |
| Frame Construction | Fully Welded Steel |
| Counterweights | Dual Heavy Counterbalance Weights |
| Net Weight | 1,250 lbs |
| Gross Weight | 1,250 lbs |
| Warranty | 1 Year |
| UPC | 731325392401 |
Baileigh 48-Inch Box & Pan Brake, 14-Gauge Mild Steel (BB-4814) 1000417 Performance & Construction
- 48-inch working width accommodates a wide range of sheet metal fabrication projects and production requirements.
- 14 gauge mild steel capacity delivers substantial forming capability for demanding industrial and commercial applications.
- 18 gauge stainless steel capacity expands material versatility for corrosion-resistant fabrication projects.
- Manual finger brake design provides excellent flexibility for forming boxes, pans, channels, and specialty sheet metal shapes.

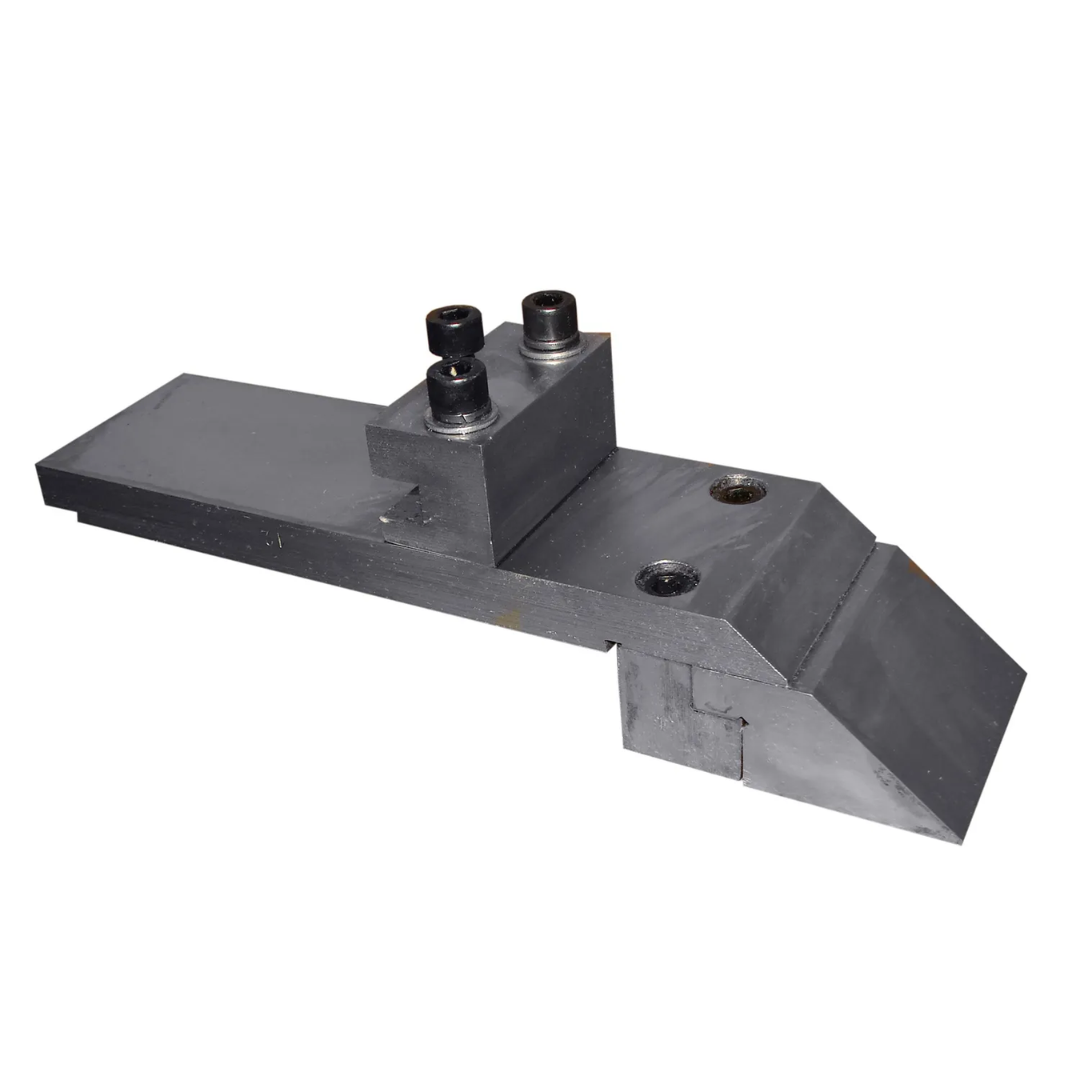

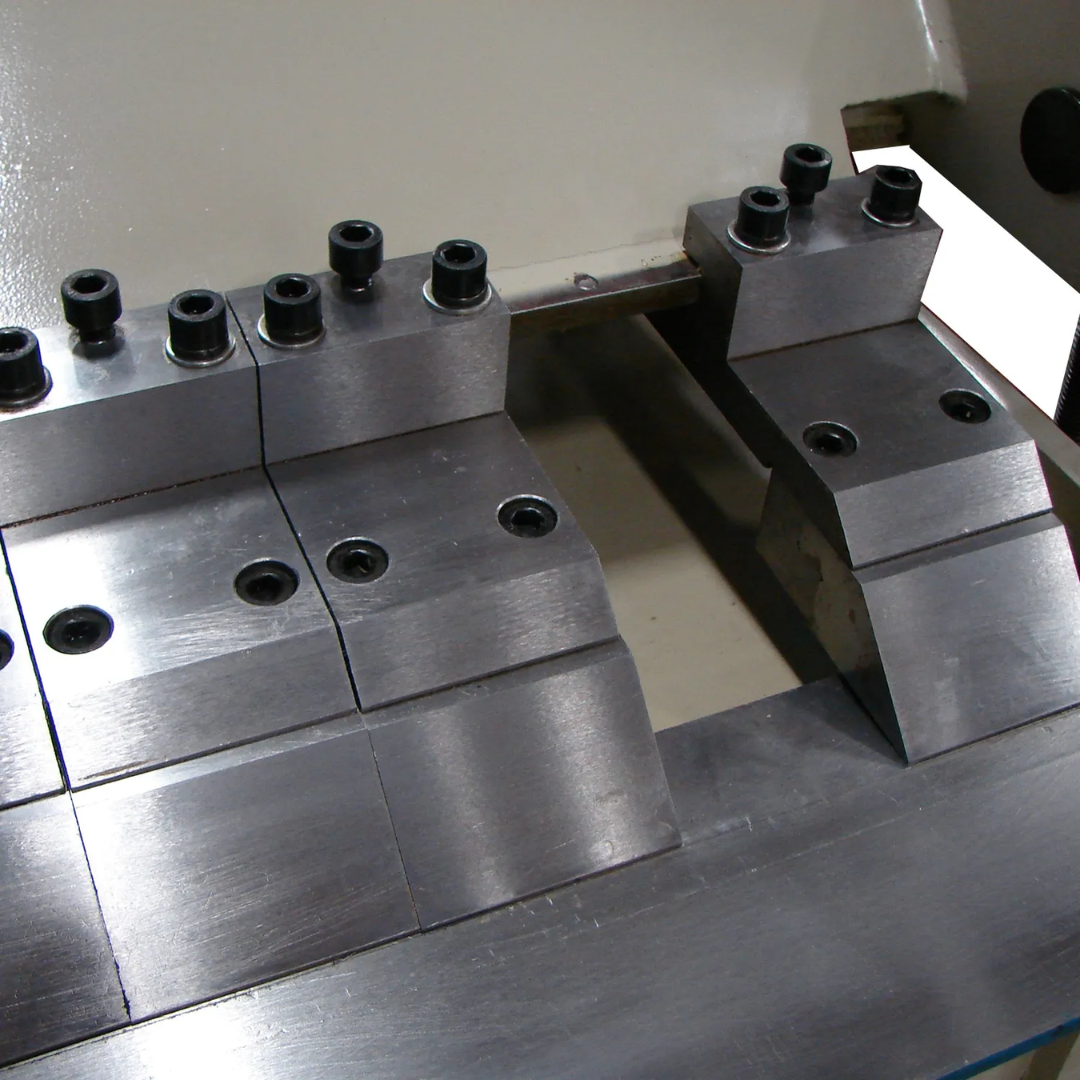

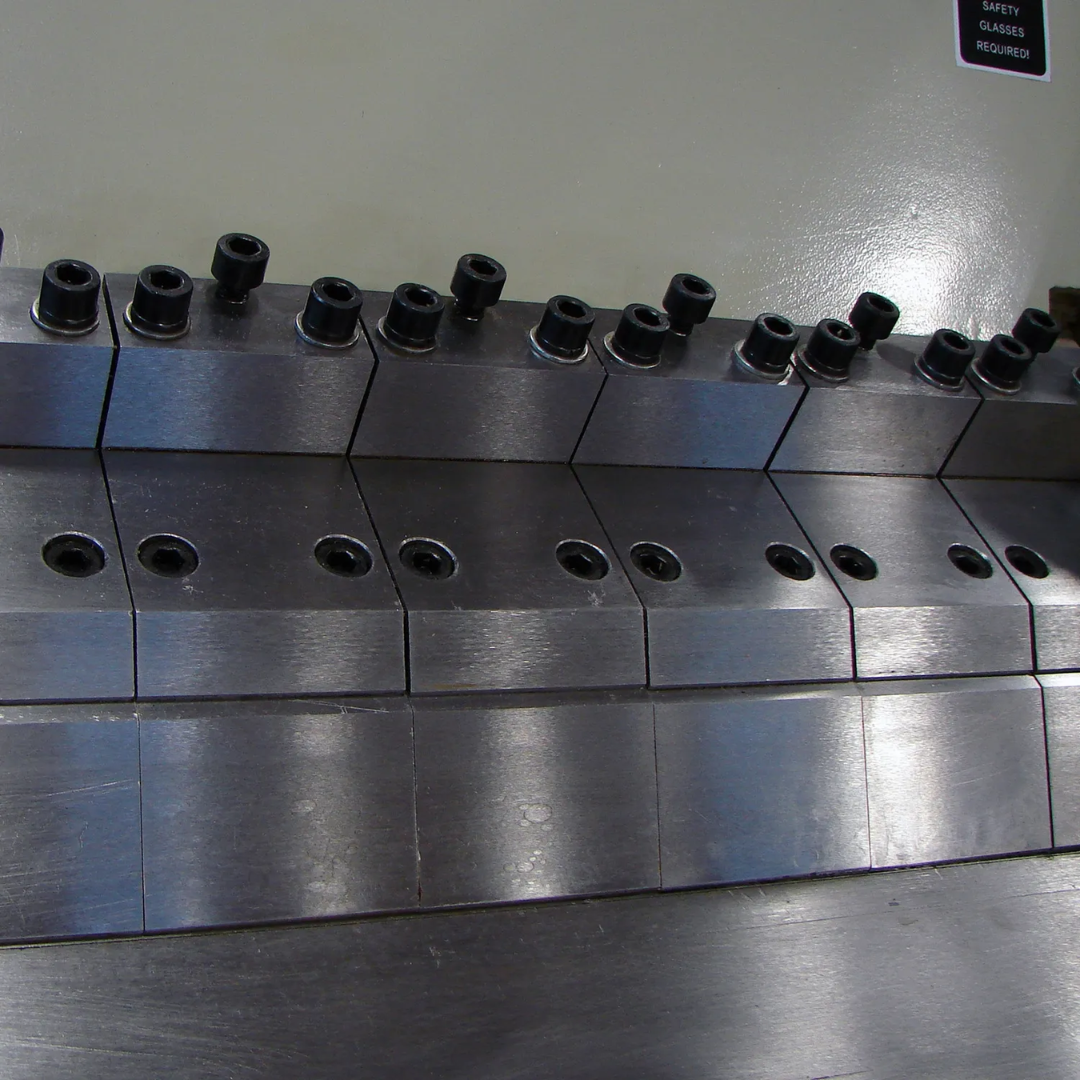

- 11 removable hardened fingers allow multiple tooling configurations to accommodate different part geometries and box sizes.
- 4-inch maximum box depth enables fabrication of deeper formed parts and enclosure components.
- 0° to 135° bending range supports a wide variety of forming operations and finished part requirements.
- Fully welded steel frame construction resists deflection and maintains accuracy even when operating near maximum capacity.

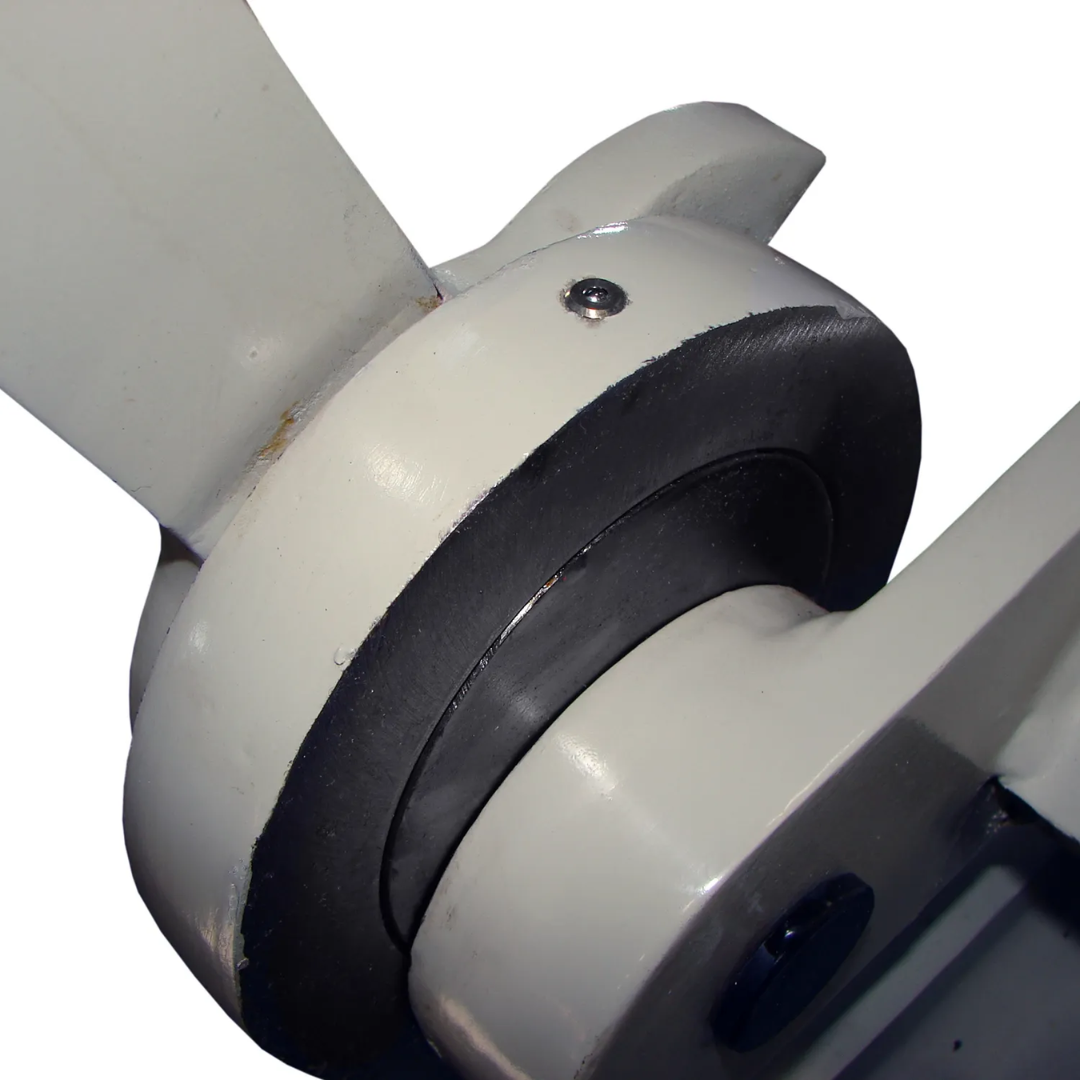

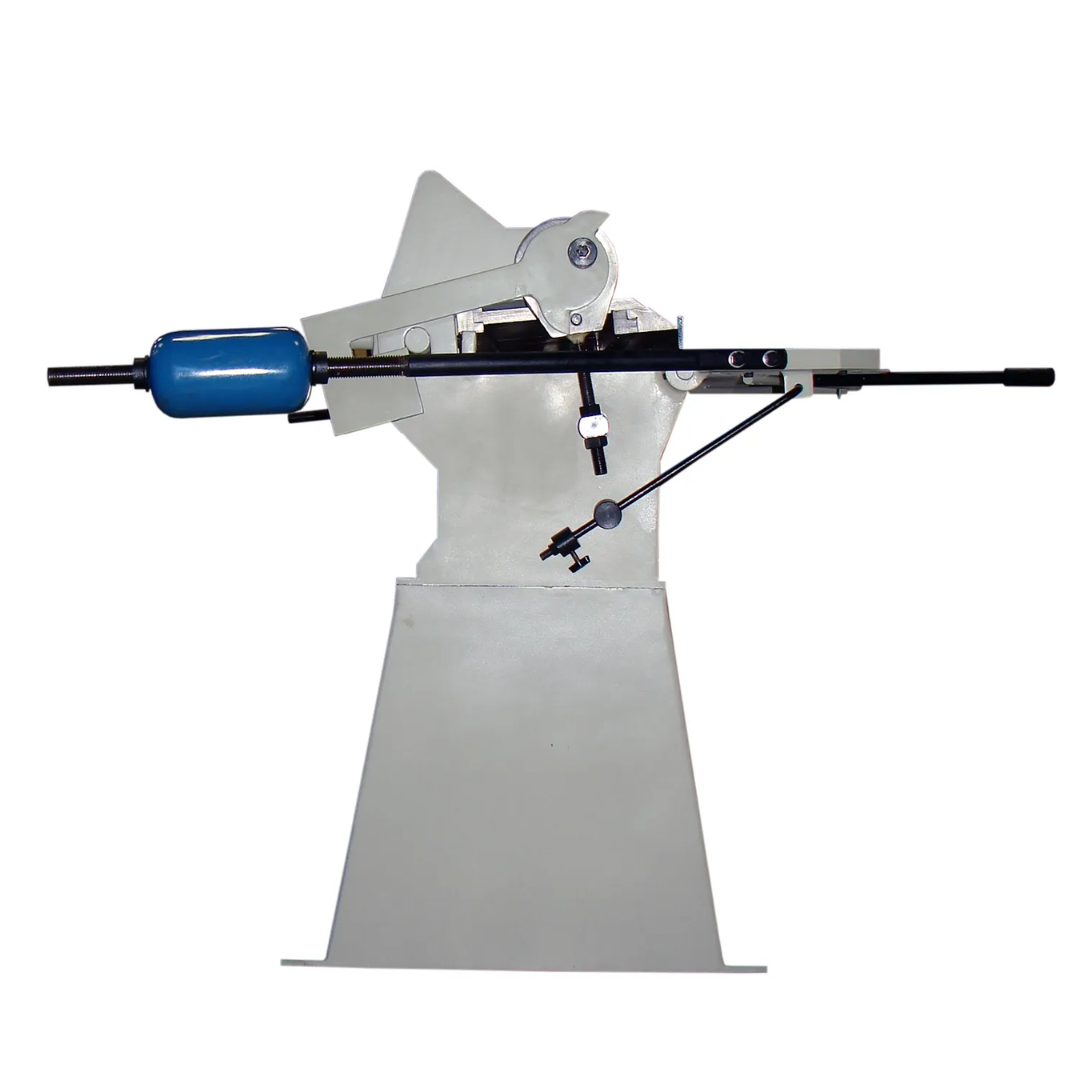

- Dual counterbalance weights reduce operator effort while improving control during repetitive bending operations.
- Integrated floor stand provides excellent machine stability and eliminates the need for additional support structures.
- Heavy-duty shop construction ensures long service life in fabrication, maintenance, and production environments.
- No electrical power required allows installation virtually anywhere while minimizing operating costs.
- Cost-effective alternative to larger and heavier gauge brake systems while still delivering professional-quality results.
Why Choose the Baileigh 48-Inch Box & Pan Brake, 14-Gauge Mild Steel (BB-4814) 1000417
- Forms up to 14 gauge mild steel across a full 48-inch width.
- Includes 11 removable hardened fingers for versatile box and pan fabrication.
- Heavy welded steel construction ensures accuracy and durability.
- Dual counterweights reduce operator fatigue and improve productivity.
- 4-inch box depth supports a wide range of fabrication projects.
- 135° maximum bend angle increases forming flexibility.
- Requires no electrical power for operation.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 48-Inch Box & Pan Brake, 14-Gauge Mild Steel (BB-4814) 1000417 delivers professional-grade sheet metal forming performance, versatile finger configurations, and rugged industrial construction, making it an excellent choice for fabricators who demand precision, flexibility, and long-term reliability.
