Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443) Applications
- Structural steel fabrication facilities.
- General fabrication and welding shops.
- Industrial maintenance departments.
- Agricultural equipment manufacturing.
- Machine shops and production facilities.
- Custom steel fabrication and prototype manufacturing.
- Punching, shearing, trimming, and section cutting from one compact hydraulic workstation.
Designed for fabrication professionals seeking multiple steelworking operations in one compact, heavy-duty hydraulic machine that maximizes productivity while minimizing floor space.
Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443) Specifications
| Model | SW-443 |
|---|---|
| Product Number | 1007757 |
| Hydraulic Capacity | 44 Tons |
| Motor | 5 HP Industrial Motor |
| Power Requirement | 220V Three Phase |
| Number of Workstations | 4 |
| Punch Capacity | 0.75 in. × 0.625 in. |
| Included Tooling | 0.75 in. Punch and Die Set |
| Stroke Length | 1.125 in. |
| Throat Depth | 6.75 in. |
| Angle Iron Capacity | 3-1/8 in. × 3-1/8 in. × 5/16 in. |
| Angle Shear Work Height | 47.5 in. |
| Flat Bar Shear Work Height | 42.32 in. |
| Operation | Hydraulic with Foot Pedal Control |
| Material Guides | Integrated Product Guides |
| Net Weight | 1,335 lb |
| Gross Weight | 1,335 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325417029 |
Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443) Performance & Construction
- Powerful 5 HP industrial motor provides dependable hydraulic performance for continuous punching, shearing, and fabrication operations.
- 44 tons of hydraulic force delivers the power required for heavy-duty punching, flat bar shearing, angle iron cutting, and section work.
- Four integrated fabrication stations allow operators to perform multiple metalworking processes from one centralized machine, improving workflow efficiency and reducing setup time.

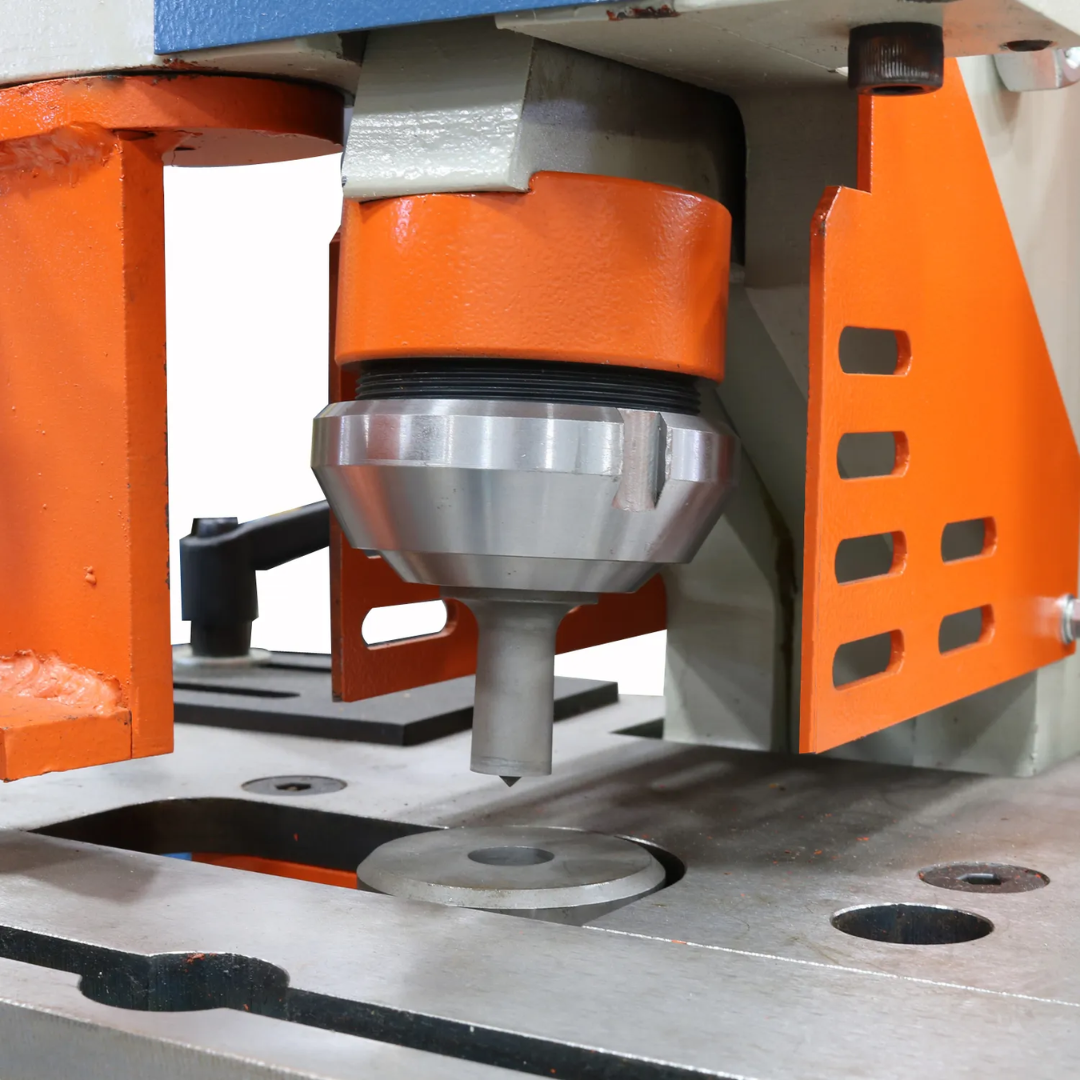

- Included 0.75-inch punch and die set provides accurate hole production immediately after installation, making the machine production-ready.
- 6.75-inch throat depth offers increased flexibility when positioning material for punching operations on larger workpieces.
- Adjustable stroke length up to 1.125 inches allows operators to optimize travel distance for faster production cycles and improved control.

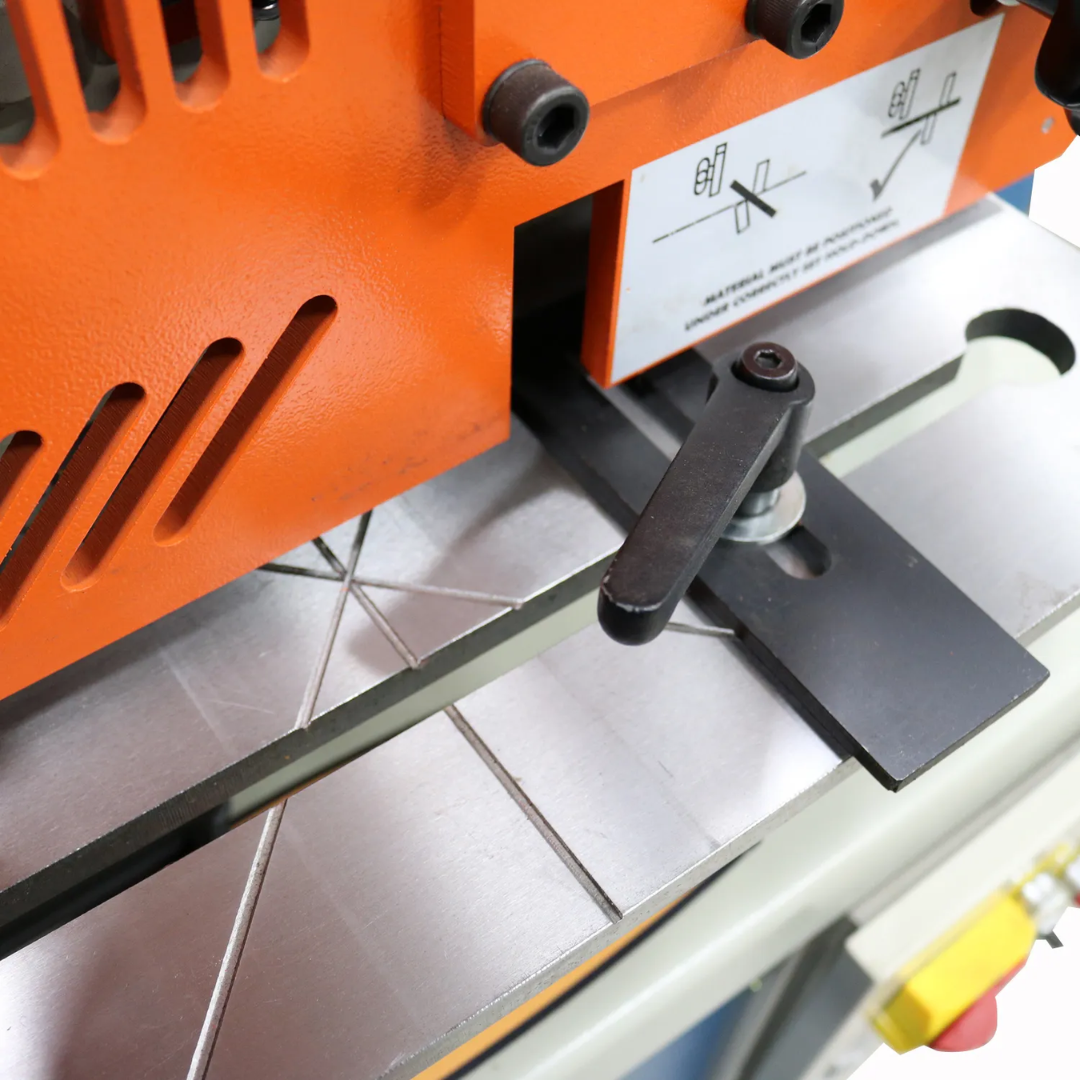

- Dedicated flat bar shear station produces clean, accurate cuts while eliminating the need for secondary cutting equipment.
- Integrated angle iron shear accurately cuts angle material up to 3-1/8 in. × 3-1/8 in. × 5/16 in. for structural fabrication applications.

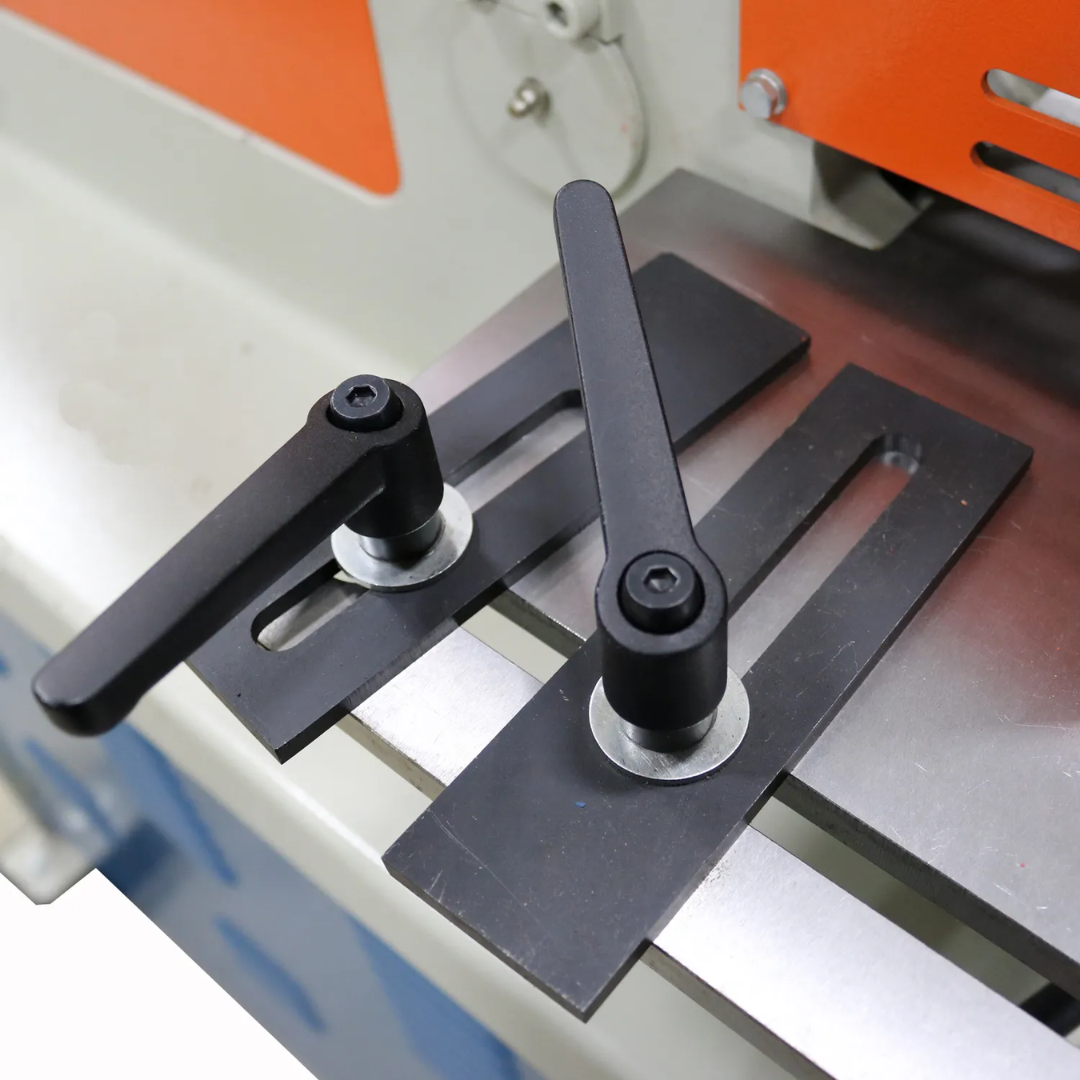

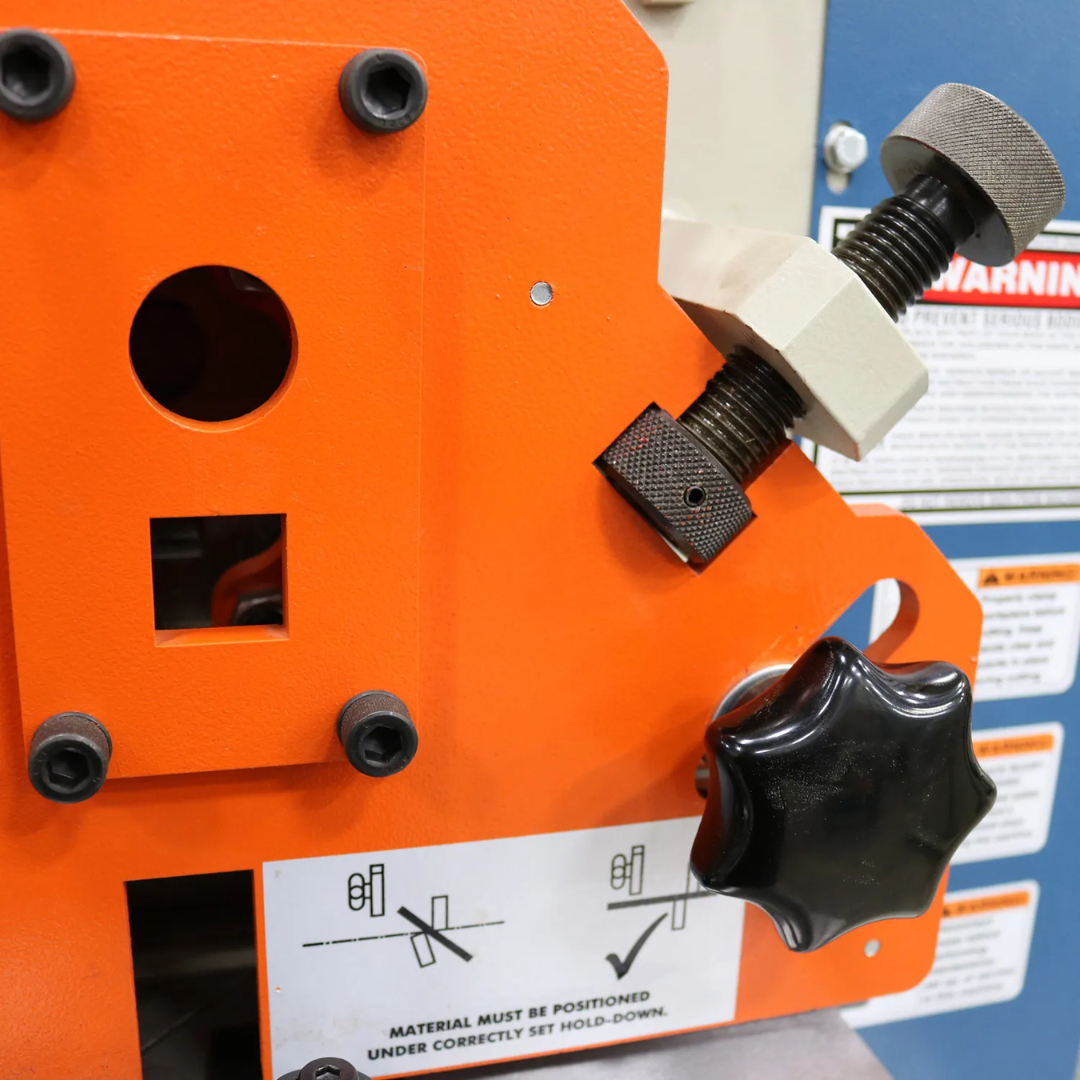

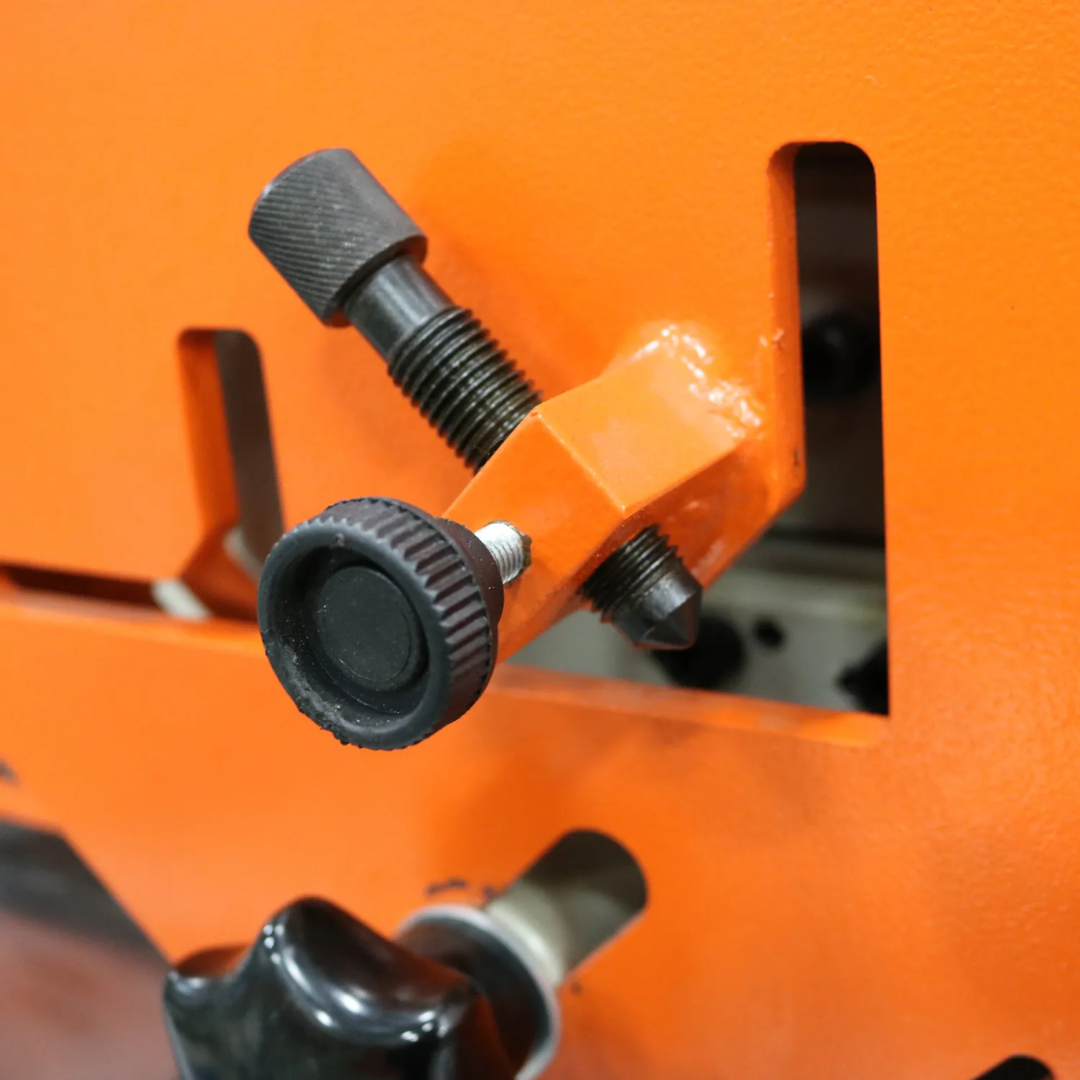

- Large work tables with built-in material guides improve workpiece positioning and help maintain consistent, repeatable production results.
- Heavy-duty welded steel construction provides exceptional rigidity, long service life, and dependable performance in demanding industrial environments.
- Foot pedal operation allows hands-free hydraulic actuation while keeping both hands available for safe material positioning and improved operator control.
Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443) Features & Benefits
- 44 tons of hydraulic punching and shearing capacity.
- Four integrated fabrication stations increase shop productivity.
- Powered by a dependable 5 HP motor with 220V three-phase electrical service.
- Includes a 0.75-inch punch and die set for immediate punching operations.
- 6.75-inch throat depth accommodates a wide variety of workpieces.
- Adjustable stroke length provides improved production efficiency and precision.
- Integrated flat bar shear and angle shear reduce the need for additional equipment.
- Large work tables and built-in guides improve repeatability and material handling.
- Foot pedal operation enhances safety and operator productivity.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443)
- Combines multiple fabrication operations into one compact hydraulic machine.
- Industrial 44-ton hydraulic system delivers dependable daily performance.
- Large work tables and guides improve production accuracy.
- Heavy-duty welded construction ensures long-term durability.
- Compact footprint maximizes shop space without sacrificing capability.
- Ideal for fabrication shops, manufacturing facilities, and structural steel processing.

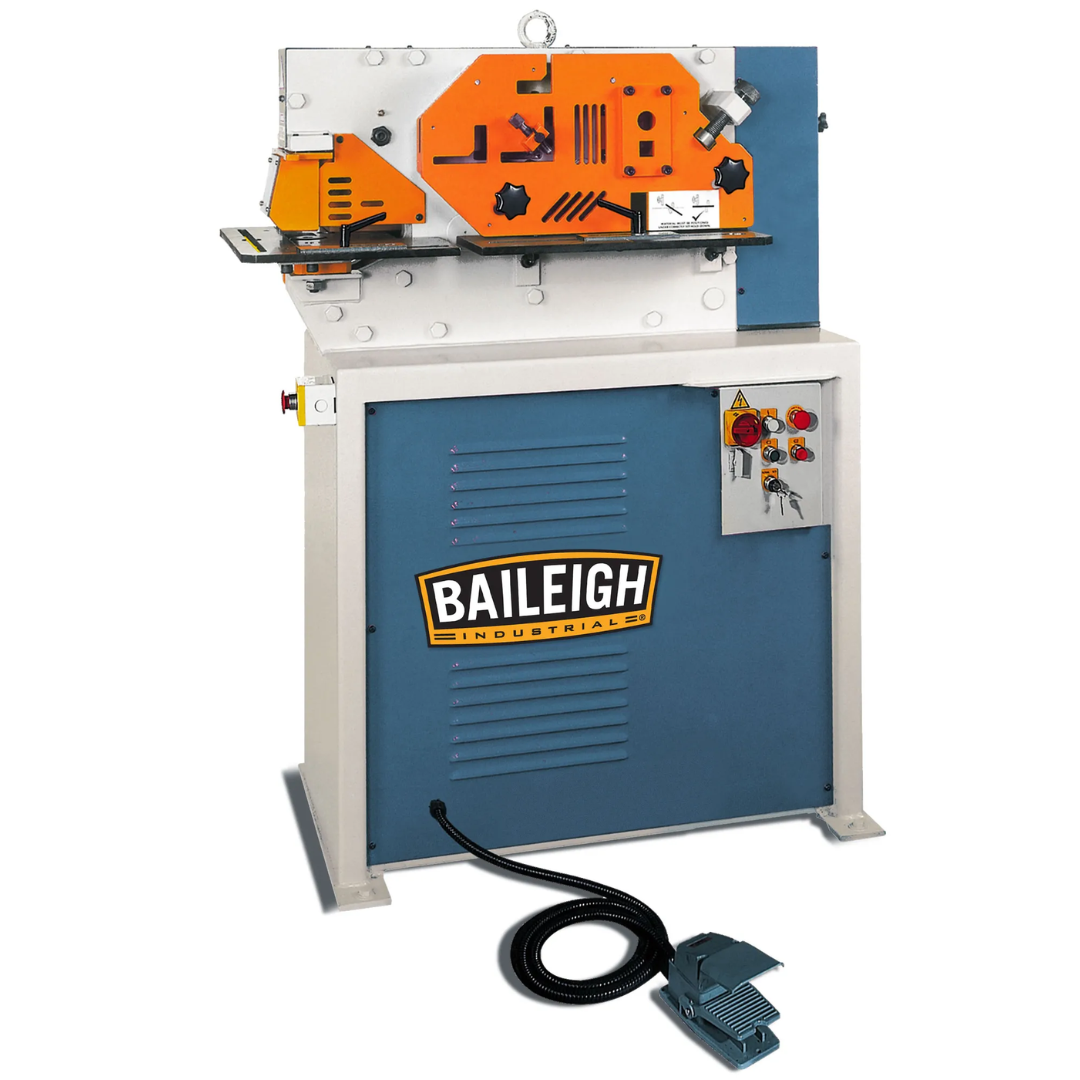

The Baileigh 44-Ton 4-Station Hydraulic Ironworker, 220V 3Ph (SW-443) delivers professional-grade hydraulic power, precision, and versatility in a compact footprint. Featuring four integrated workstations, 44 tons of force, a 5 HP motor, adjustable stroke control, built-in material guides, and heavy-duty welded construction, the SW-443 is engineered to improve productivity and provide years of dependable service in demanding fabrication environments.
