Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680 Applications
- Precision sheet metal bending and forming operations.
- Fabrication of brackets, enclosures, cabinets, panels, and channels.
- Short-run production and custom manufacturing projects.
- Prototype development and research facility fabrication work.
- Maintenance department repair and replacement part production.
- HVAC component fabrication and specialty sheet metal forming.
- Contract manufacturing and job shop production environments.
- Industrial metalworking operations requiring repeatable bend accuracy.
An excellent solution for shops seeking CNC-controlled bending performance, repeatable production accuracy, and industrial-grade hydraulic forming capability in a space-efficient footprint.
Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680 Specifications
| Model Number | BP-3305CNC |
|---|---|
| Product Keyword | Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680 |
| Bending Capacity Length | 63 in. |
| Rated Tonnage | 33 Tons |
| Input Power | 220V Three Phase |
| Approach Speed | 3.5 in./sec. |
| Bending Speed | 0.394 in./sec. |
| Return Speed | 3.3 in./sec. |
| Maximum Bend Angle | 135° |
| Distance Between Housings | 51.25 in. |
| Distance from Table to Ram | 13.325 in. |
| Stroke Length | 3.15 in. |
| Throat Depth | 8 in. |
| Back Gauge Motor | 1/2 HP |
| Net Weight | 5,100 lbs. |
| Gross Weight | 5,100 lbs. |
| Warranty | 1 Year |
| UPC | 19907768548 |
Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680 Performance & Construction
- 33 tons of hydraulic bending force provides the power necessary to form a wide variety of sheet metal components with accuracy and consistency.
- 63-inch working bed length accommodates larger parts and longer bend lengths than many compact press brake systems.

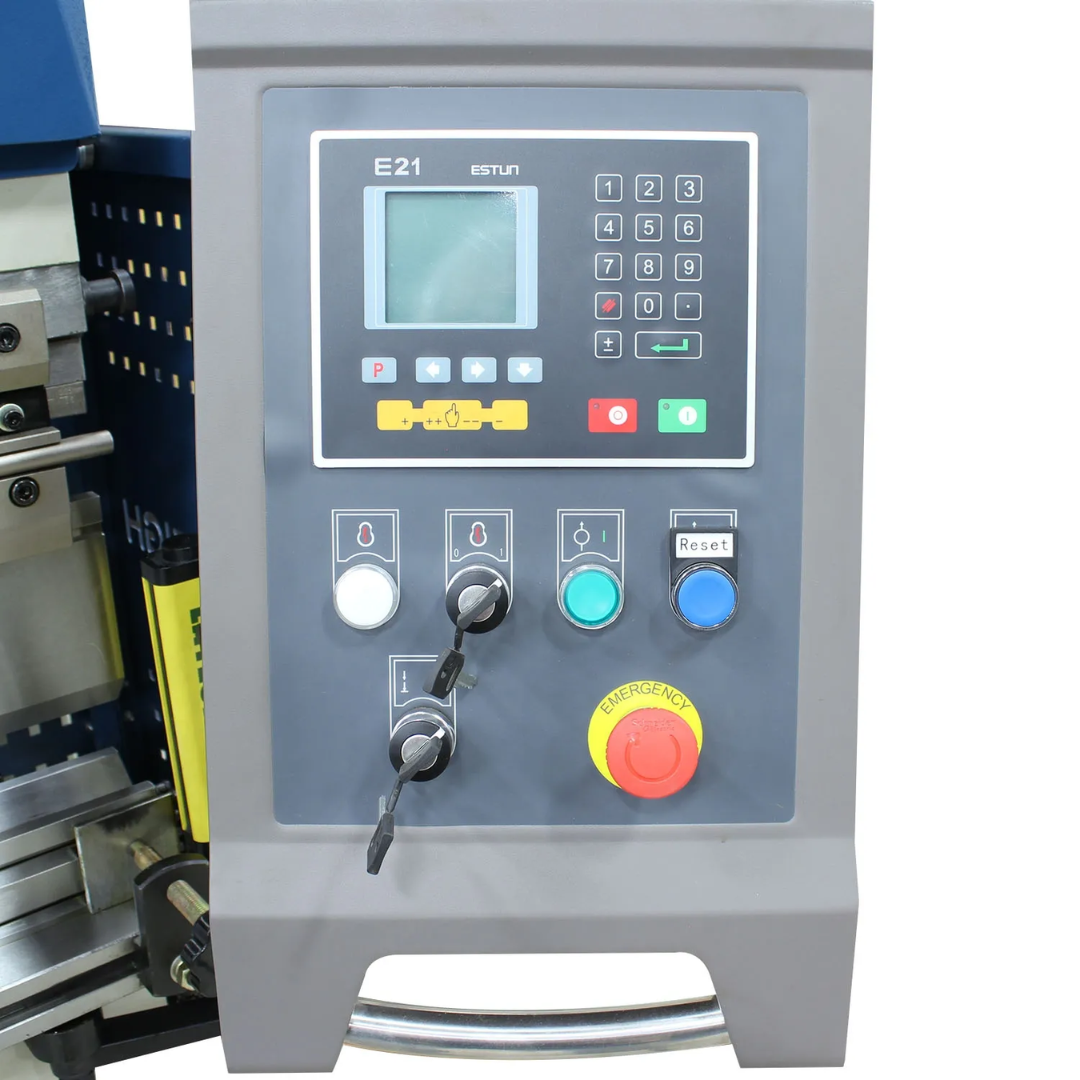

- 2-axis CNC digital controller allows operators to program, store, and repeat bending sequences for increased productivity and reduced setup time.

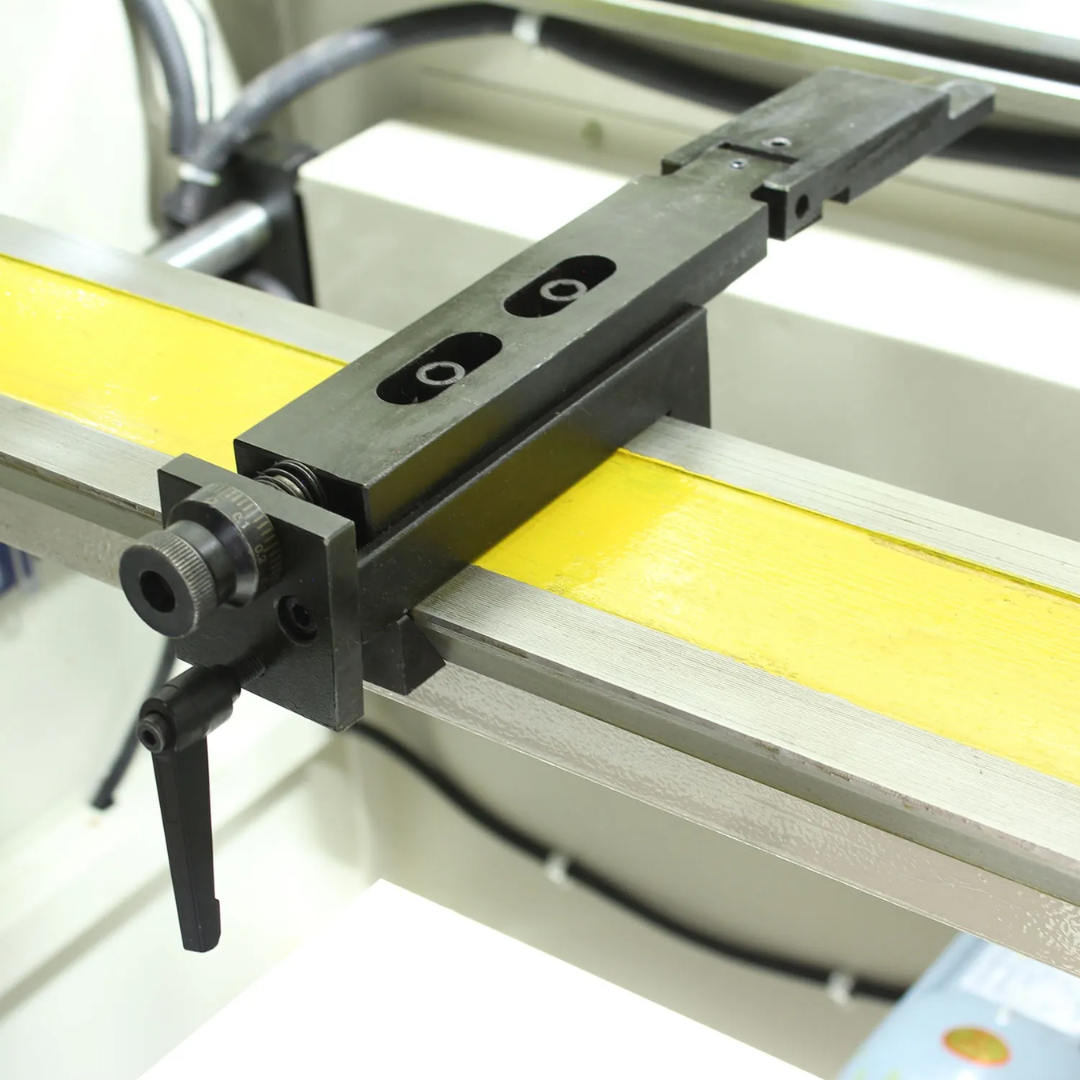

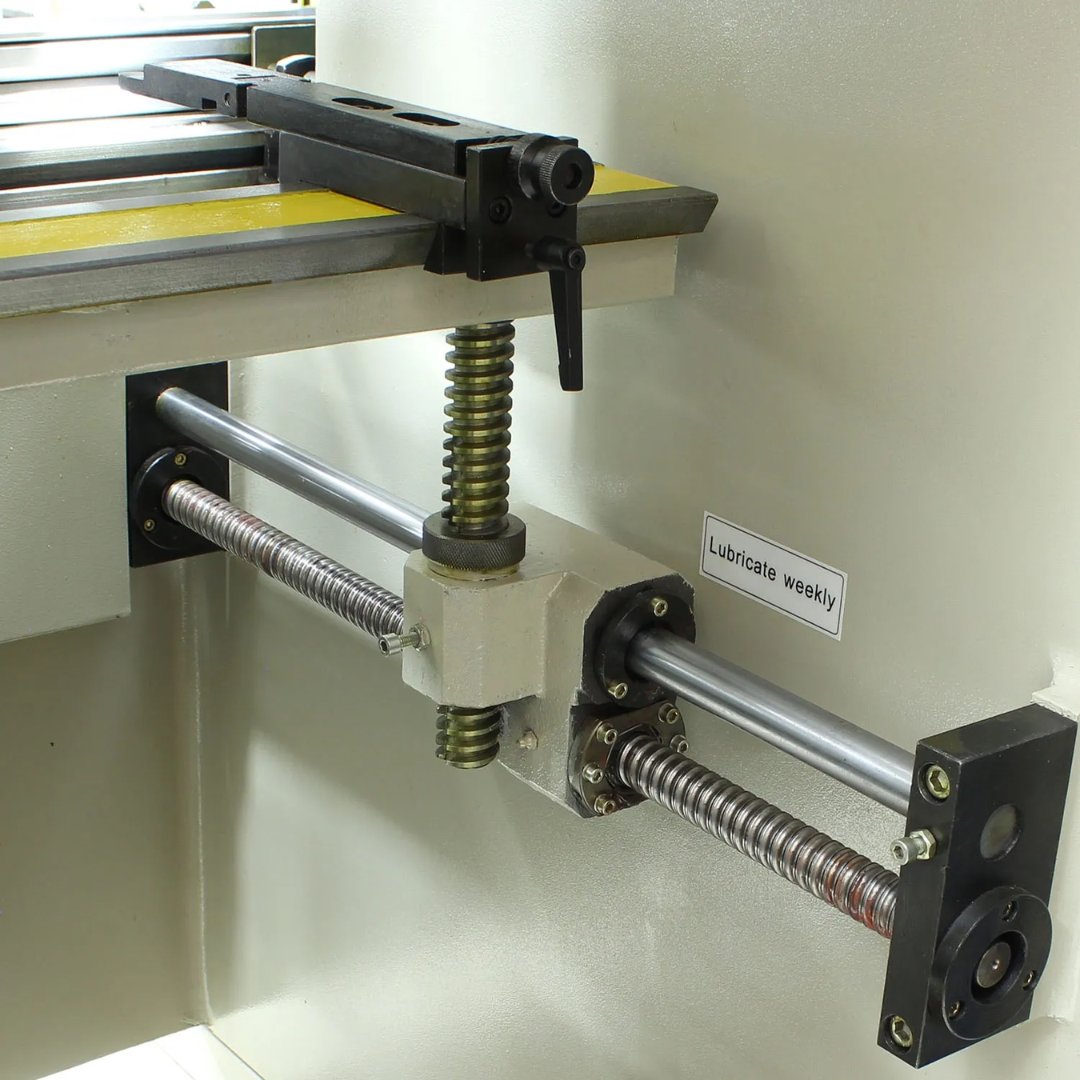

- Programmable back gauge positioning improves repeatability and ensures consistent bend placement throughout production runs.
- 220V three-phase hydraulic drive system delivers smooth, dependable operation and industrial-grade forming performance.

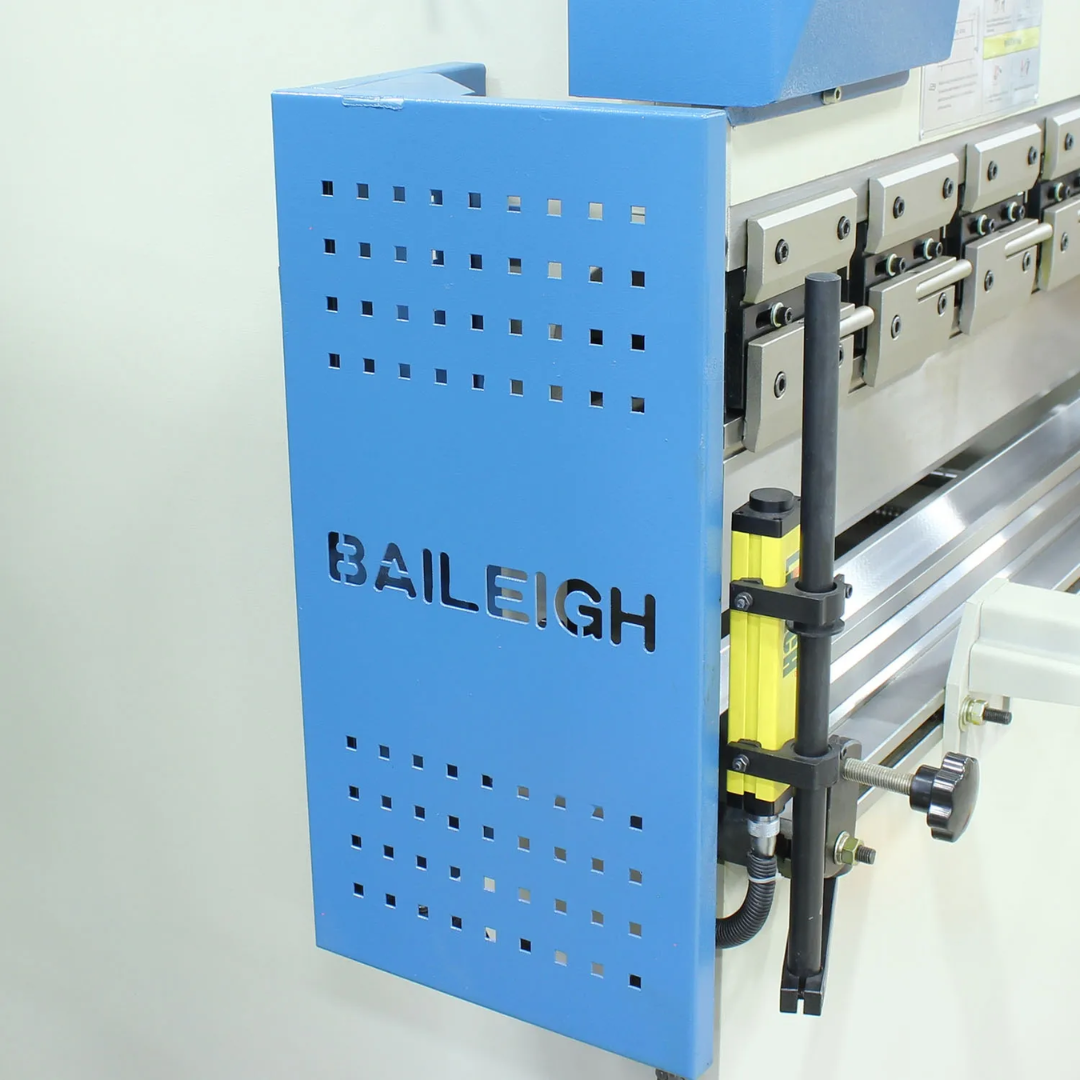

- Heavy welded steel frame provides exceptional rigidity, helping maintain accuracy while minimizing frame deflection under load.
- Synchronized hydraulic system promotes balanced ram movement and precise bending performance across the entire working width.
- Foot pedal operation allows hands-free machine control, improving workflow efficiency and operator convenience.
- 135-degree maximum bend capability supports a broad range of forming applications and component geometries.
- 8-inch throat depth provides additional flexibility when forming larger panels and complex parts.
- Fast approach and return speeds help reduce cycle times while maintaining precision during bending operations.
- Industrial-grade construction supports long-term use in fabrication shops, manufacturing facilities, and production environments.

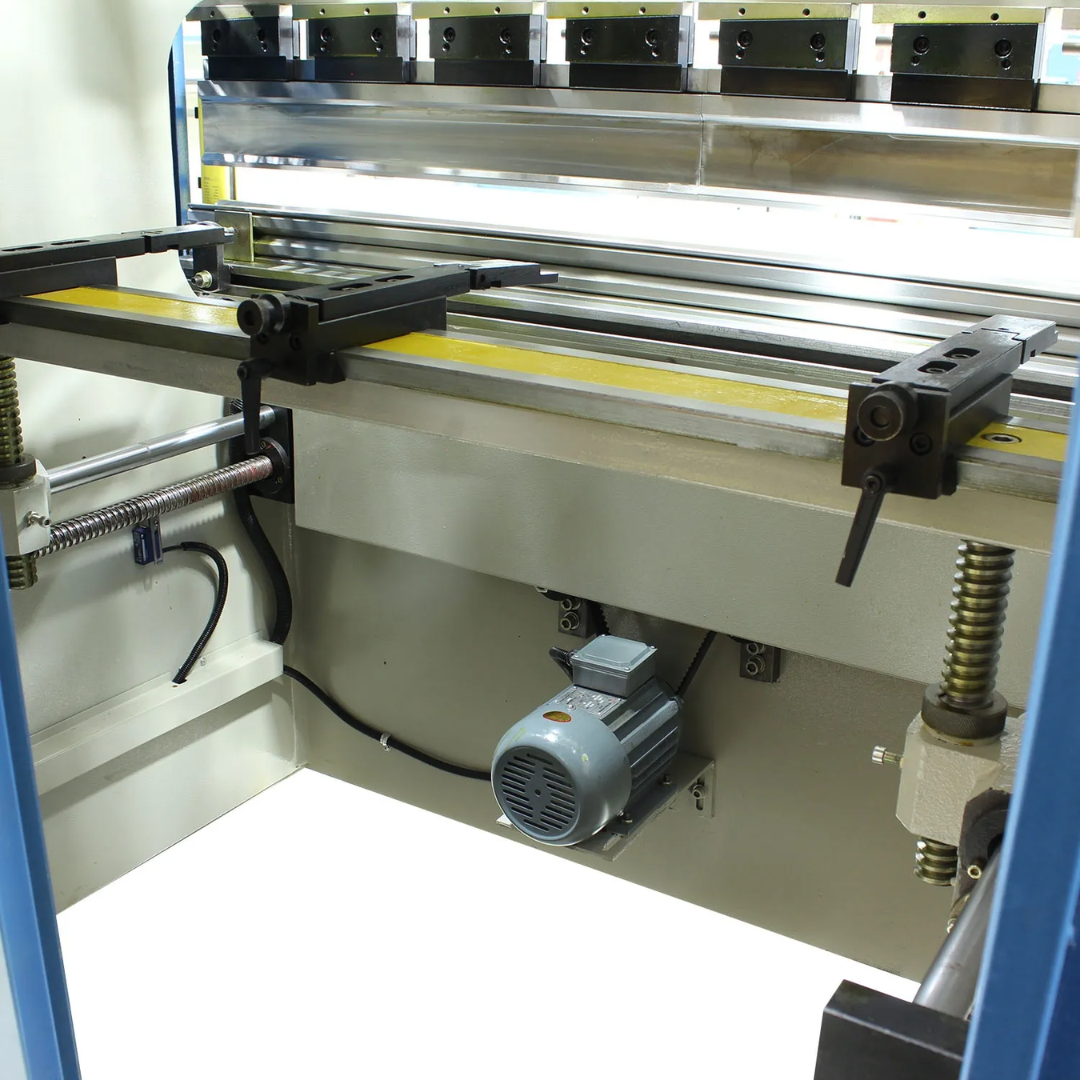

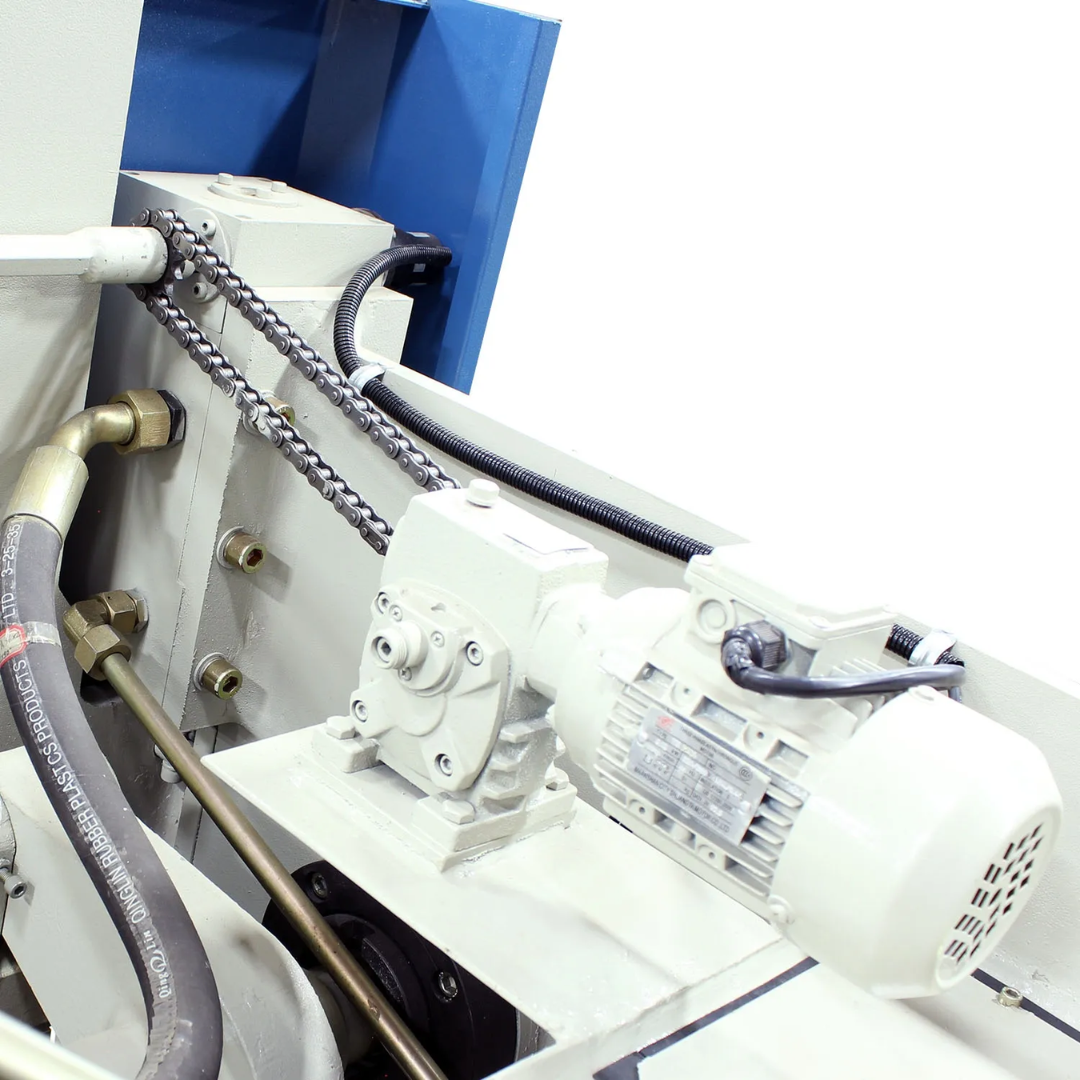

- Back gauge drive motor enhances positioning accuracy and improves efficiency during repetitive production work.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence.
Why Choose the Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680
- 33 tons of hydraulic force for professional sheet metal forming.
- 63-inch bed length accommodates larger workpieces and longer bends.
- Programmable CNC control increases productivity and repeatability.
- Heavy welded steel frame delivers long-term accuracy and durability.
- Hydraulic synchronization ensures smooth, balanced bending performance.
- Foot pedal operation improves efficiency and machine control.
- Ideal for fabrication shops, maintenance departments, and production facilities.
- Backed by Baileigh's industry-leading technical support and warranty coverage.
The Baileigh 33-Ton CNC Hydraulic Press Brake, 63" Length (BP-3305CNC) 1020680 combines CNC precision, hydraulic power, and rugged industrial construction to provide fabricators with a highly capable bending solution for production work, custom fabrication, prototyping, and precision sheet metal manufacturing.
