Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289 Applications
- General fabrication and metalworking operations.
- Bearing, bushing, and shaft installation or removal.
- Straightening bent components, brackets, and structural parts.
- Production forming, stamping, and light press brake operations.
- Assembly, repair, and maintenance departments.
- Machine shops, industrial manufacturing facilities, and production environments requiring dual hydraulic workstations.

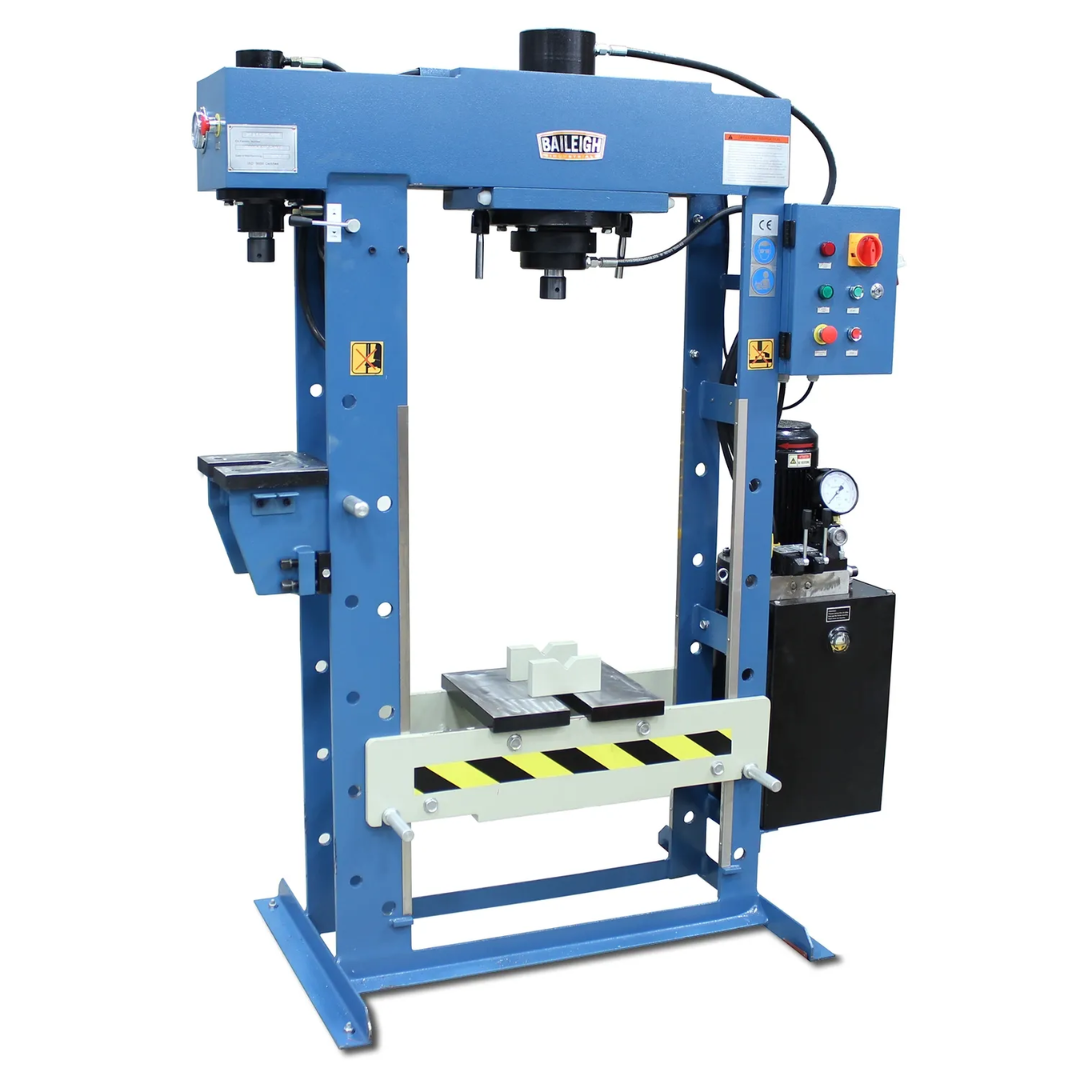

The Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289 increases shop productivity by combining two independent hydraulic pressing stations into one durable industrial machine.
Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289 Specifications
| Model | HSP-30M-C |
|---|---|
| Part Number | 1019289 |
| Main Press Capacity | 30 Tons |
| Auxiliary Press Capacity | 10 Tons |
| Main Working Width | 27.5 in. |
| Main Cylinder Stroke | 9.8 in. |
| Side Cylinder Stroke | 7.75 in. |
| Maximum Stroke Length | 10 in. |
| Main Ram | Movable Left and Right |
| Hydraulic System | Dual Independent Hydraulic Stations |
| Pressure Monitoring | Dual Hydraulic Pressure Gauges |
| Motor | 3 HP |
| Input Power | 220V, Single Phase |
| Included Accessories | Set of V-Blocks |
| Frame Construction | Heavy-Duty Fully Welded Steel Frame |
| Net Weight | 1,240 lbs. |
| Gross Weight | 1,240 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289 Performance & Construction

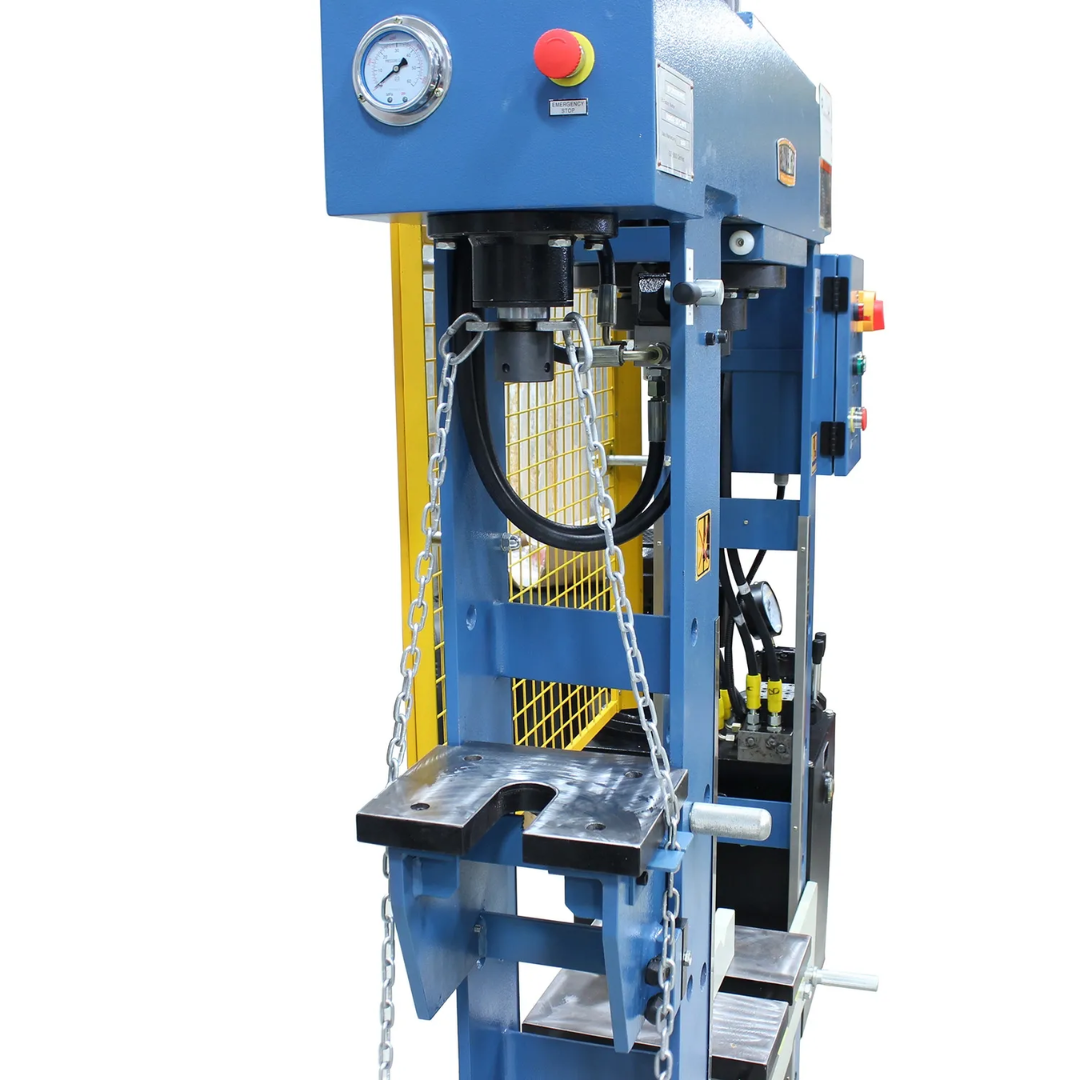

- Dual-station hydraulic design combines a powerful 30-ton H-frame press with an independent 10-ton auxiliary hydraulic press to maximize shop productivity.
- 30-ton primary pressing station provides substantial force for fabrication, straightening, forming, pressing bearings, and heavy-duty assembly work.
- Independent 10-ton side press allows secondary pressing operations without interrupting the main workstation.
- Heavy fully welded steel frame delivers exceptional rigidity, structural strength, and long-term durability under continuous industrial use.
- 27.5-inch working width on the primary station accommodates larger components and diverse fabrication projects.

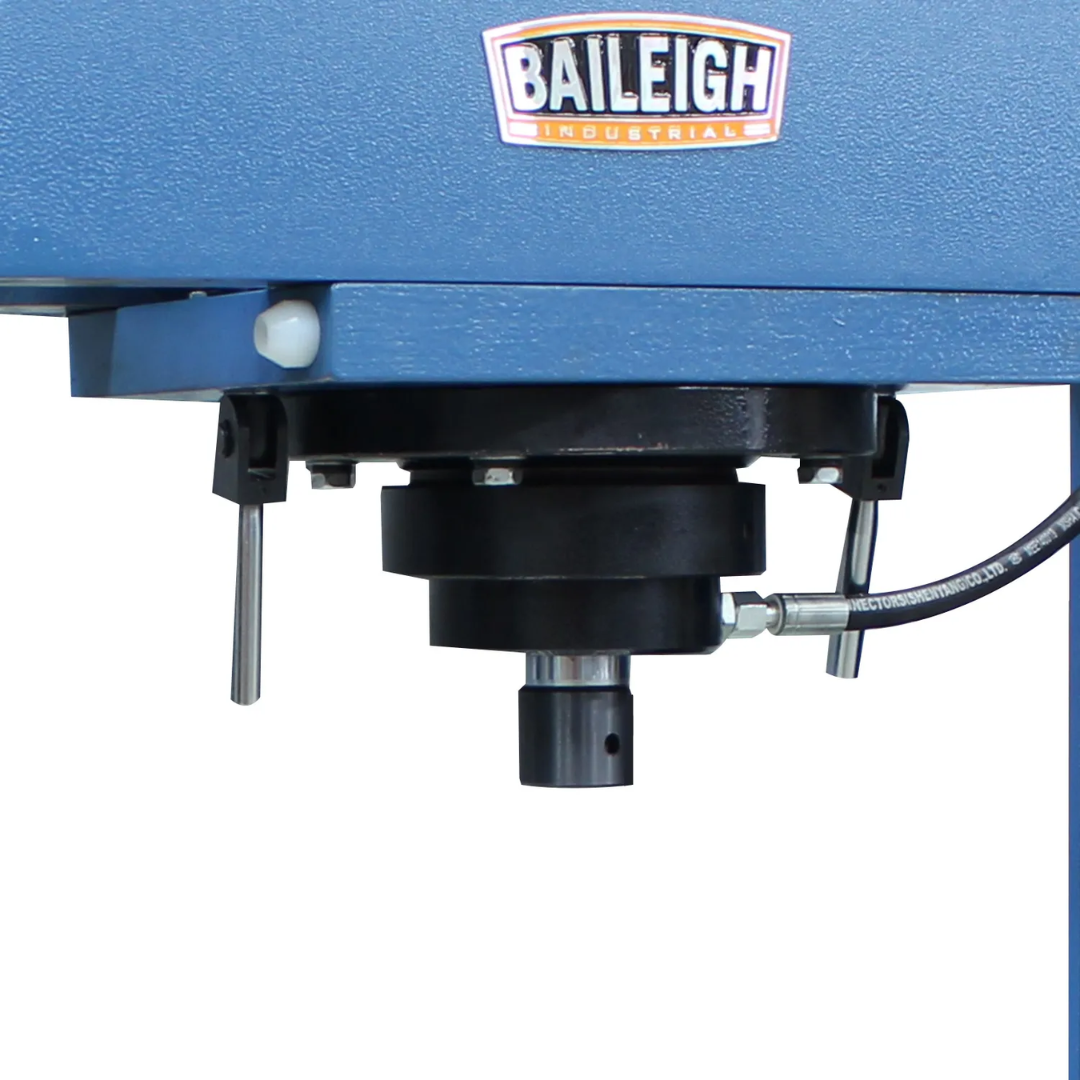

- Movable main ram slides left and right to simplify off-center pressing and improve versatility when working with irregular parts.

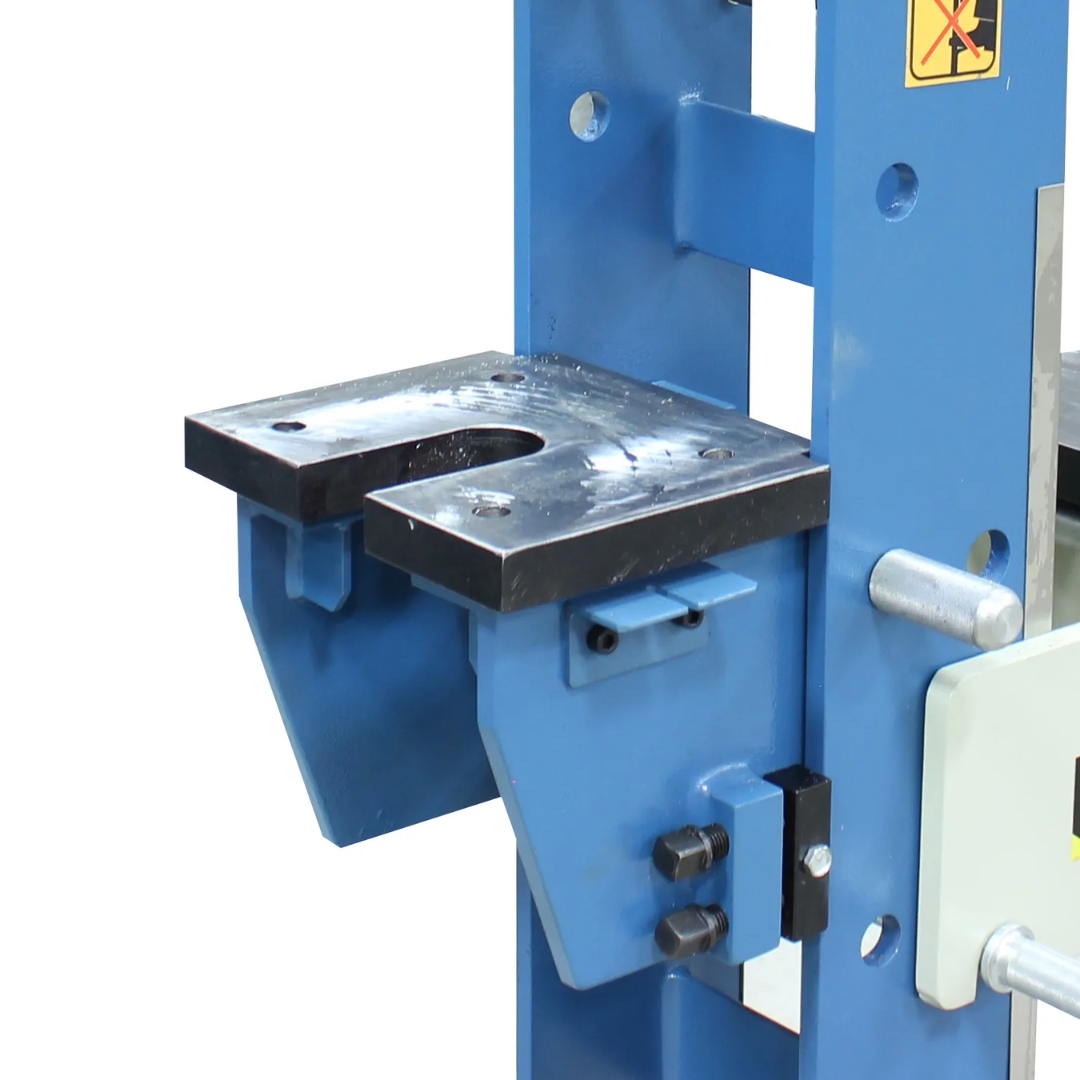

- Adjustable work tables and rams make setup fast and allow the machine to accommodate a wide range of workpiece sizes.

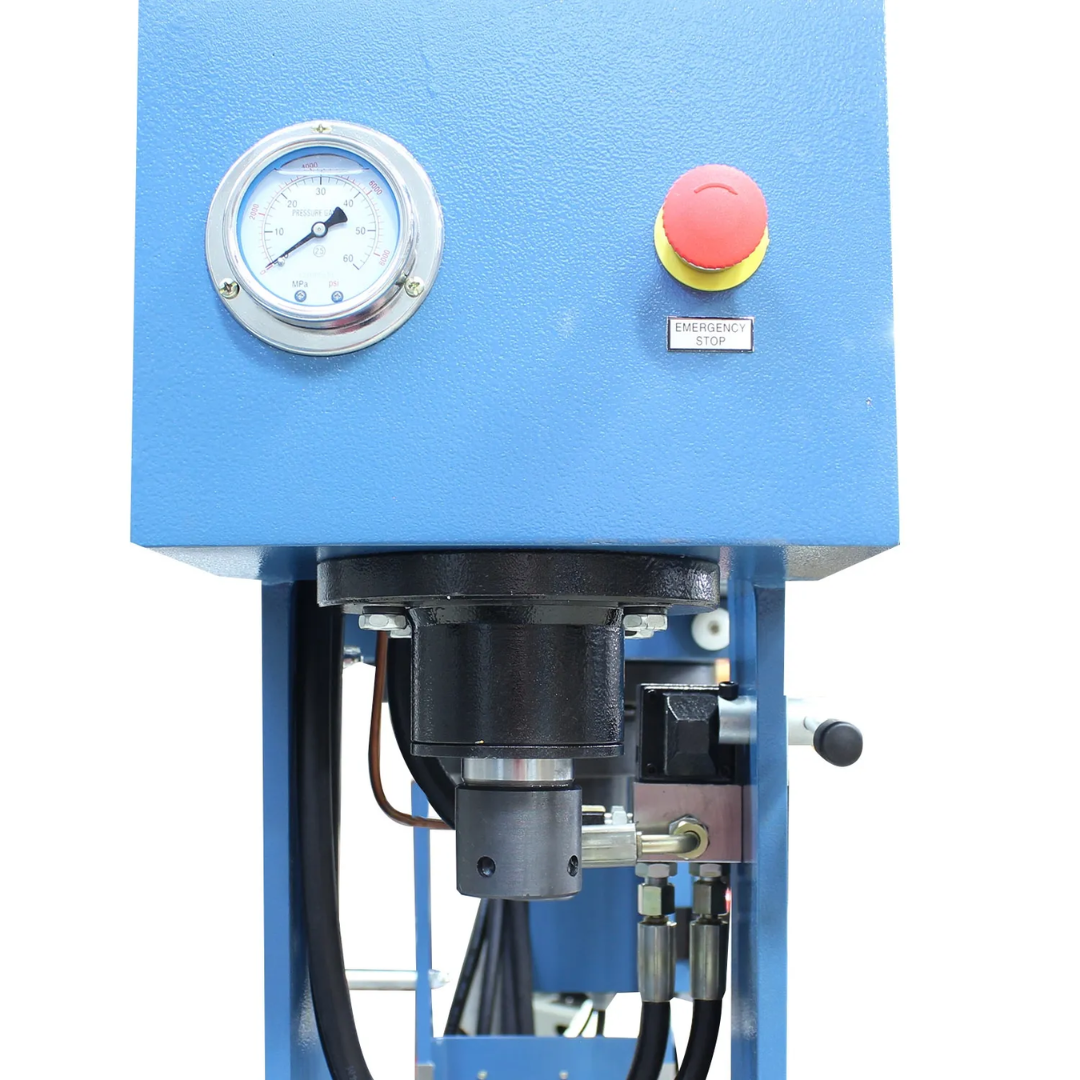

- Dual hydraulic pressure gauges provide accurate monitoring of both pressing stations for consistent and repeatable operation.

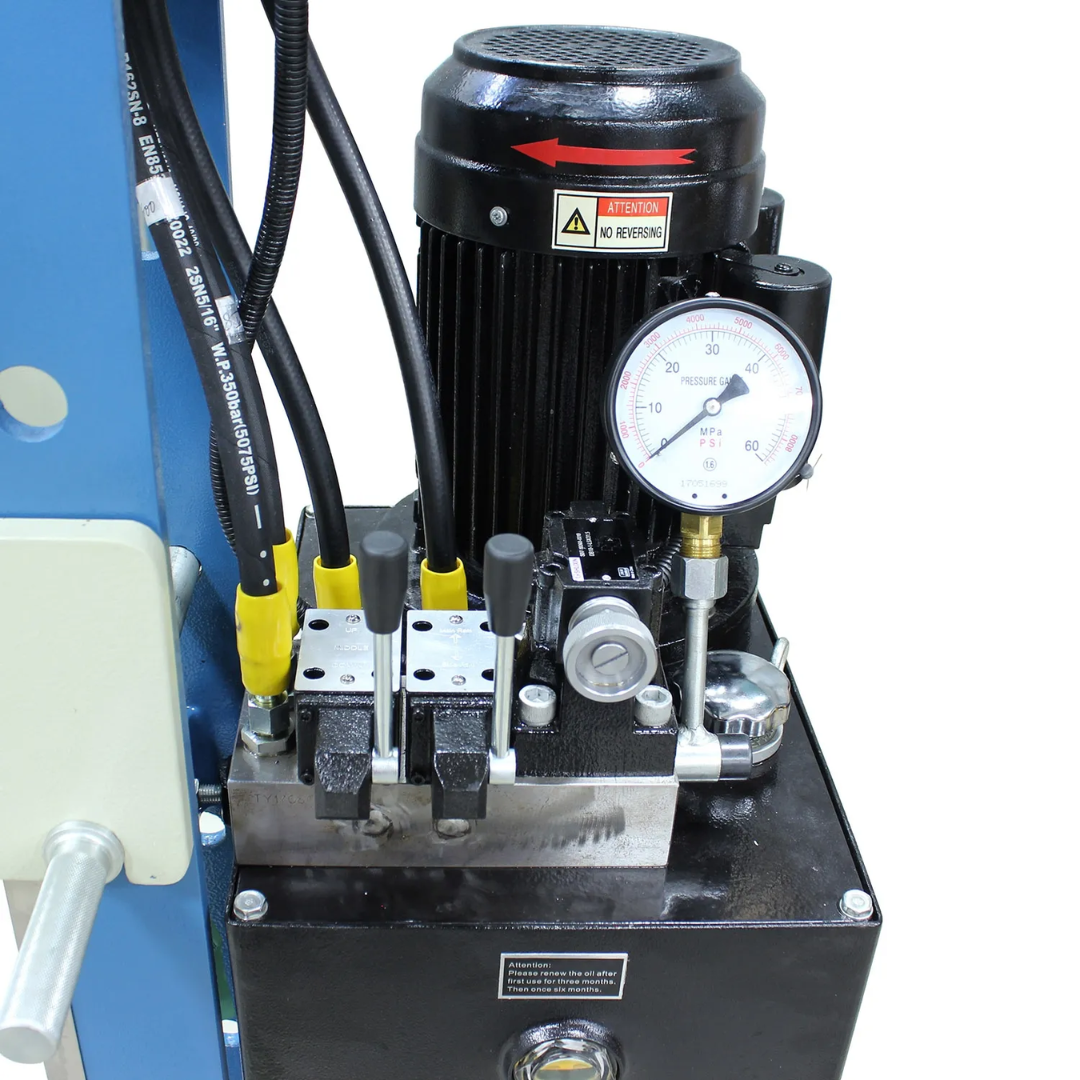

- 3 HP electric motor supplies dependable hydraulic power while operating on standard 220V single-phase electrical service.

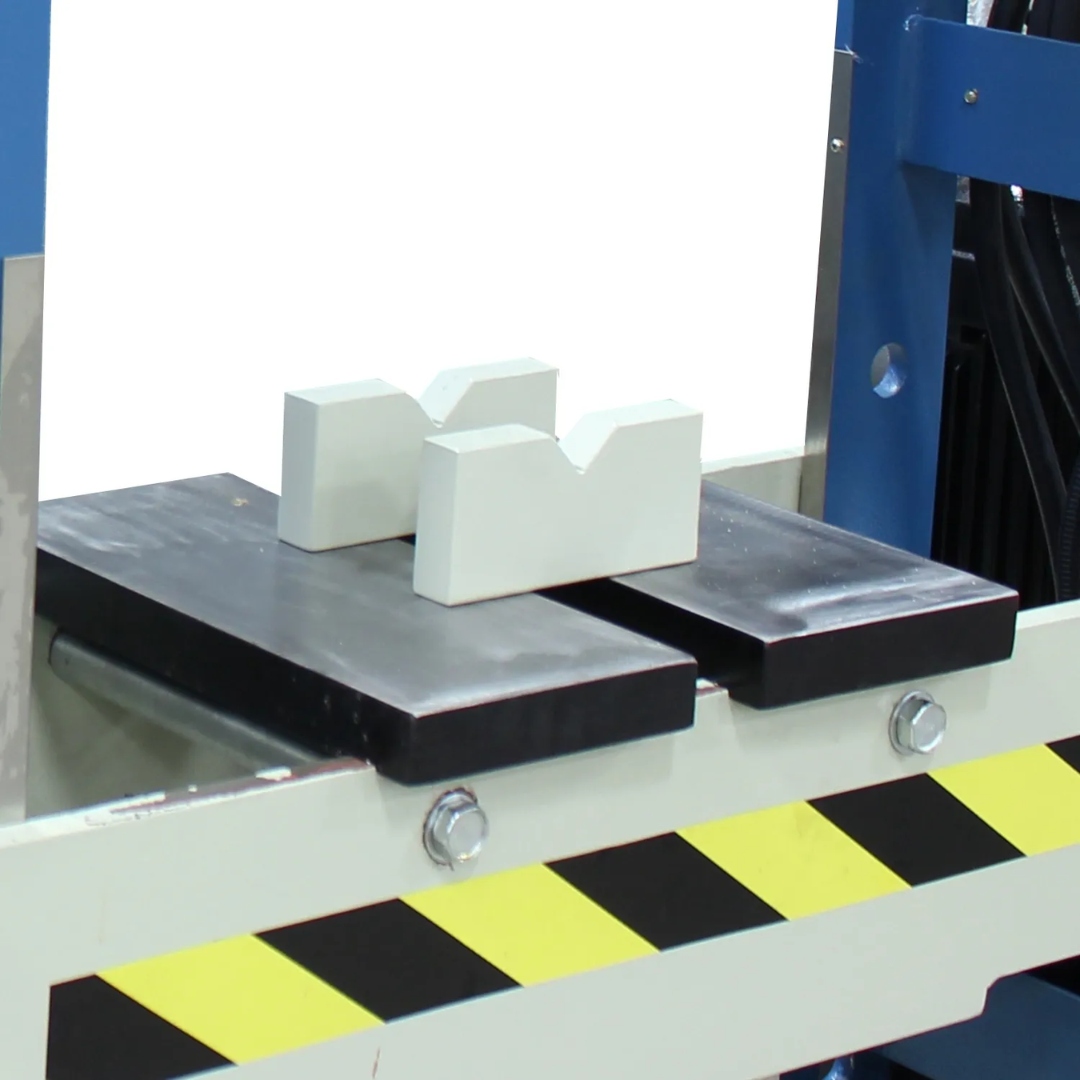

- Includes precision V-blocks for secure support of shafts, tubing, and round workpieces during pressing operations.

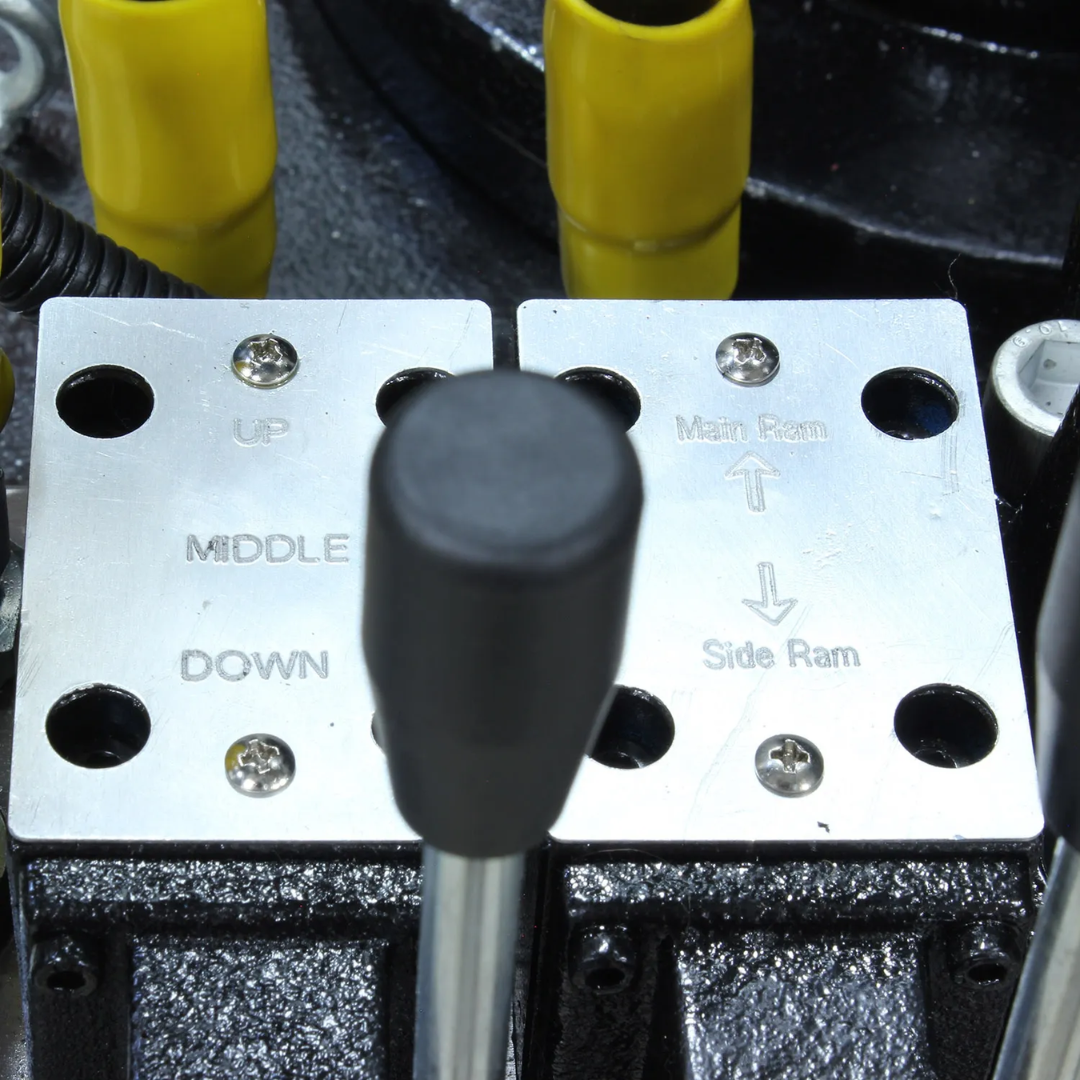

- Independent hydraulic controls allow operators to efficiently perform multiple tasks while maintaining precise pressure control.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term reliability and peace of mind.
Why Choose the Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289
- Combines a 30-ton H-frame press and 10-ton auxiliary press in one compact machine.
- Independent hydraulic systems improve productivity by supporting multiple operations simultaneously.
- Movable main ram increases flexibility for off-center pressing applications.
- Heavy-duty welded steel construction provides industrial durability and precision.
- Dual pressure gauges ensure accurate hydraulic monitoring during operation.
- Includes V-blocks for improved workpiece support and versatility.
- Operates on convenient 220V single-phase power with a dependable 3 HP motor.
- Ideal for fabrication shops, machine shops, maintenance departments, manufacturing facilities, and industrial production environments.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh 30/10-Ton Two-Station H-Frame Hydraulic Press (HSP-30M-C) 1019289 delivers exceptional flexibility by integrating two fully independent hydraulic pressing stations into one professional-grade machine. Built for demanding fabrication and production environments, it combines industrial-strength construction, precise hydraulic control, and efficient dual-station operation to maximize productivity while maintaining the accuracy and reliability professionals expect from Baileigh equipment.
