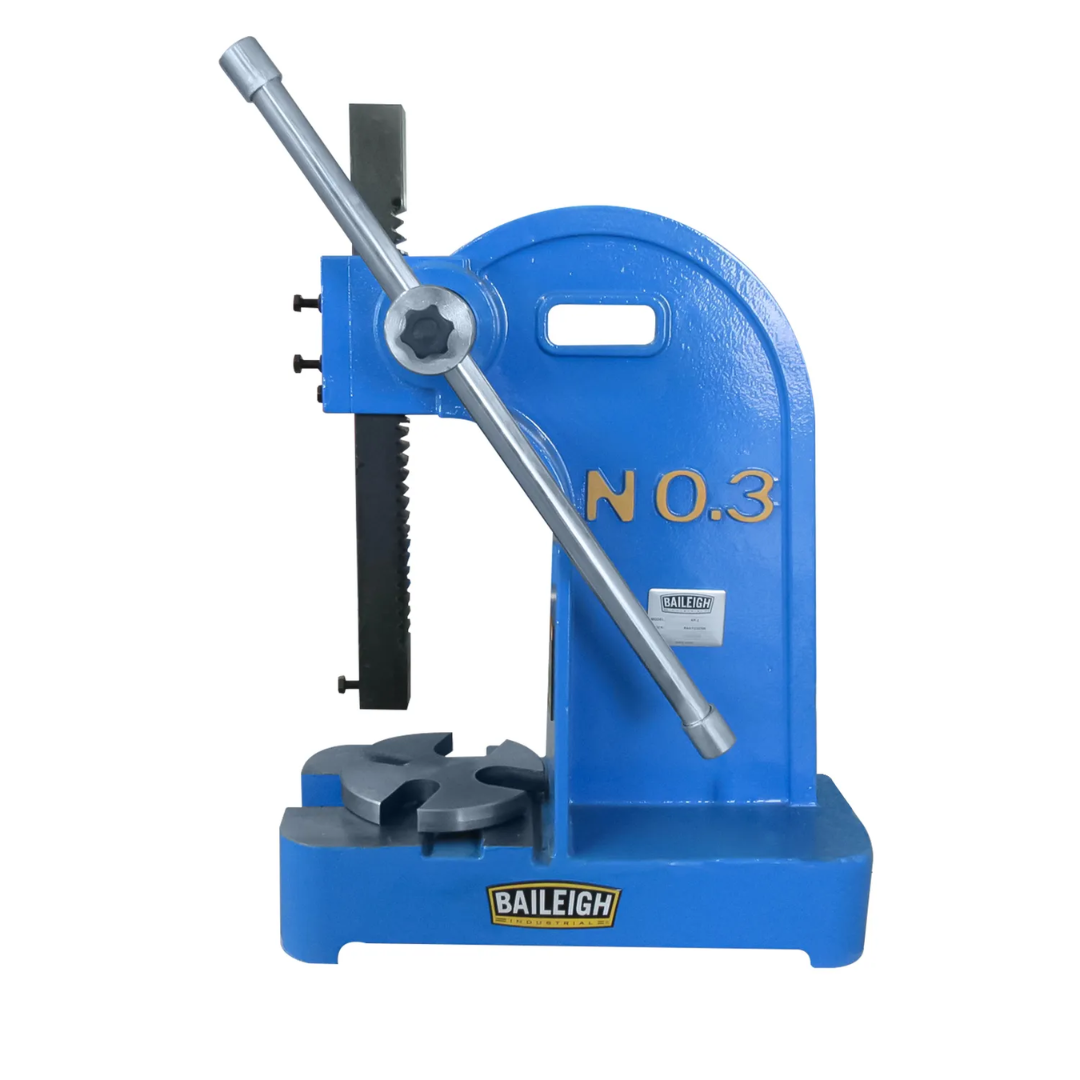

Baileigh 3 Ton Arbor Press AP-3 1232700 Applications
- Bearing, bushing, and shaft installation.
- Metal fabrication and industrial assembly operations.
- Riveting, staking, swaging, and punching applications.
- Bending, straightening, and forming small metal components.
- Machine shop production and maintenance work.
- General-purpose pressing tasks requiring controlled manual force and high accuracy.
Designed for professional fabrication and industrial environments requiring dependable manual pressing power, rigid construction, and precise workpiece alignment.
Baileigh 3 Ton Arbor Press AP-3 1232700 Specifications
| Model | AP-3 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Part Number | 1232700 |
| Operation | Manual |
| Rated Capacity | 3 Tons |
| Throat Opening | 5.675 in. |
| Capacity Over Table | 11.5 in. |
| Maximum Material Height | 12.5 in. |
| Stroke Length | 12.5 in. |
| Ram Size | 1.5 in. Case-Hardened Square Ram |
| Die Plate | Machined 4-Position Die Plate |
| Frame Construction | Rigid Cast-Iron Frame |
| Slide Adjustment | Adjustable Slideway for Tension and Gap |
| Mounting Options | Bench or Pedestal Mount |
| Net Weight | 108 lbs |
| Gross Weight | 108 lbs |
| Warranty | 1 Year |
Baileigh 3 Ton Arbor Press AP-3 1232700 Performance & Construction
- Heavy-duty rigid cast-iron frame resists flex under load to maintain exceptional alignment and long-term durability in demanding shop environments.
- 3-ton manual pressing capacity provides dependable force for production assembly, fabrication, repair, and maintenance applications.

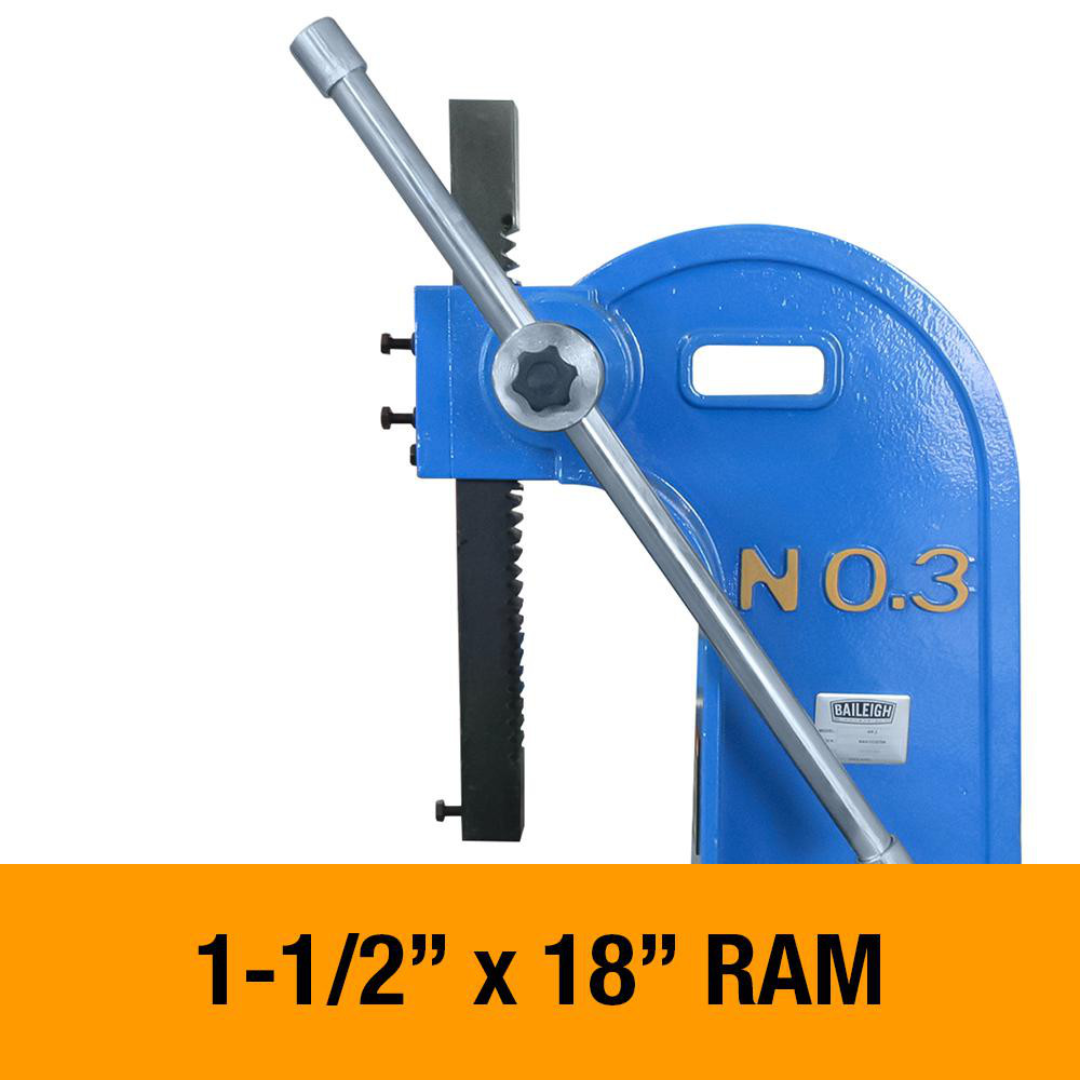

- Case-hardened 1.5-inch square ram delivers precise pressing performance while offering excellent wear resistance for years of reliable service.
- Generous 5.675-inch throat opening allows easy access to a wide variety of workpieces and tooling setups.
- Long 12.5-inch stroke accommodates taller workpieces and provides additional versatility for deep pressing operations.
- Handles material up to 12.5 inches high for increased flexibility across numerous industrial pressing applications.

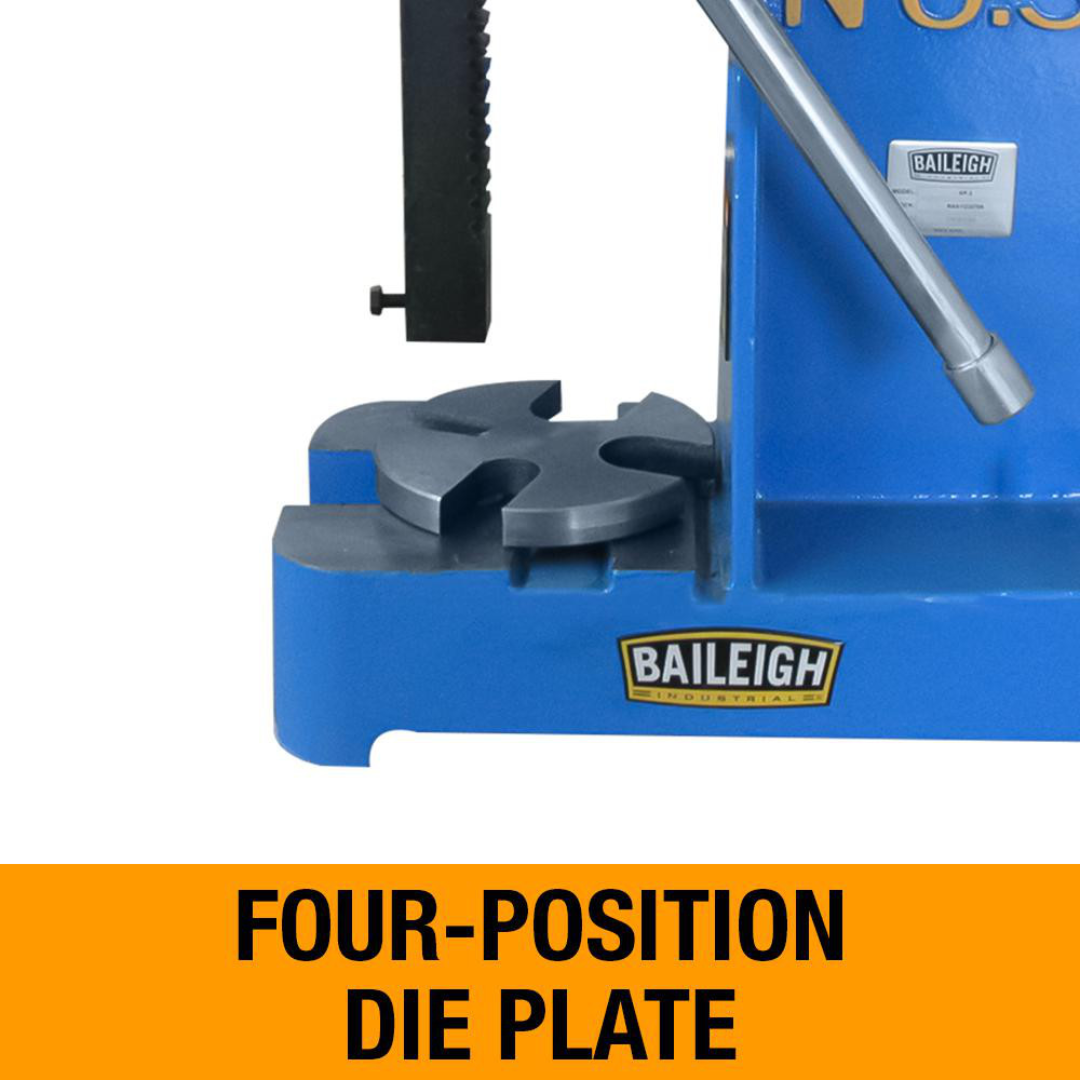

- Precision-machined four-position die plate supports multiple tooling configurations while providing stable workpiece support.
- Adjustable slideway allows operators to fine-tune ram tension and maintain accurate alignment throughout repeated production cycles.
- Bench or pedestal mounting capability offers installation flexibility to fit a variety of workshop layouts.
- Manual operation requires no electrical power, making it ideal for fabrication shops, maintenance facilities, and mobile service environments.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 3 Ton Arbor Press AP-3 1232700
- Powerful 3-ton manual capacity for demanding industrial pressing applications.
- Heavy cast-iron frame delivers superior rigidity, accuracy, and durability.
- Extended 12.5-inch stroke accommodates larger workpieces and deeper pressing operations.
- Case-hardened 1.5-inch ram ensures precise, repeatable performance.
- Machined four-position die plate supports versatile tooling configurations.
- Adjustable slideway improves alignment and operational consistency.
- Ideal for fabrication shops, production facilities, maintenance departments, and machine shops.
The Baileigh 3 Ton Arbor Press AP-3 1232700 combines industrial-strength construction, precision manual operation, and generous working capacity into a dependable shop press built for years of professional use. Whether installing bearings, forming components, staking assemblies, or performing precision fabrication work, the AP-3 delivers the durability, accuracy, and reliability professionals expect from Baileigh Industrial.
