Baileigh 3-in-1 Shear Brake Roll Machine SBR-4020 1006968 Applications
- Sheet metal fabrication and prototyping operations.
- Maintenance and repair departments requiring versatile forming capabilities.
- Educational and vocational metalworking programs.
- HVAC fabrication and light ductwork production.
- Research and development workshops creating custom components.
- Hobbyist and home fabrication shops requiring multiple metalworking functions.
- Manufacturing environments producing brackets, panels, enclosures, and formed sheet metal parts.
An ideal solution for users who need shearing, bending, and rolling capabilities in one machine without sacrificing valuable workshop space.
Baileigh 3-in-1 Shear Brake Roll Machine SBR-4020 1006968 Specifications
| Model | SBR-4020 |
|---|---|
| Product Number | 1006968 |
| Operation Type | Manual |
| Working Width | 40" |
| Bending Capacity Length | 40" |
| Mild Steel Capacity | 20 Gauge |
| Aluminum Capacity | 16 Gauge |
| Rolling Capacity | 20 Gauge (0.0396") |
| Shear Capacity | 20 Gauge (0.0396") |
| Maximum Bend Angle | 90° |
| Minimum Roll Diameter | 1.70" |
| Roll Type | Manual Slip Roll |
| Roll Tooling | Hardened Rolls with 3 Wire Grooves |
| Press Brake Tooling | V-Die Set with Crowning Adjustment |
| Adjustable Die Range | 1" – 10" |
| Back Gauge | Included |
| Net Weight | 465 lbs |
| Gross Weight | 465 lbs |
| Warranty | 1 Year |
| UPC | 731325412451 |
| California Prop 65 | Cancer and Reproductive Harm Warning |
Baileigh 3-in-1 Shear Brake Roll Machine SBR-4020 1006968 Performance & Construction
- Three machines in one compact footprint combine shearing, bending, and rolling operations to maximize shop efficiency.
- 40-inch working width provides ample capacity for a wide variety of sheet metal fabrication projects.
- 20-gauge mild steel capacity allows processing of common fabrication materials across all machine functions.
- 16-gauge aluminum capacity expands material versatility for lighter fabrication applications.
- Manual slip roll assembly forms cylinders, curved panels, and rolled shapes with precision.
- 1.70-inch minimum roll diameter enables the creation of tight-radius rolled components.

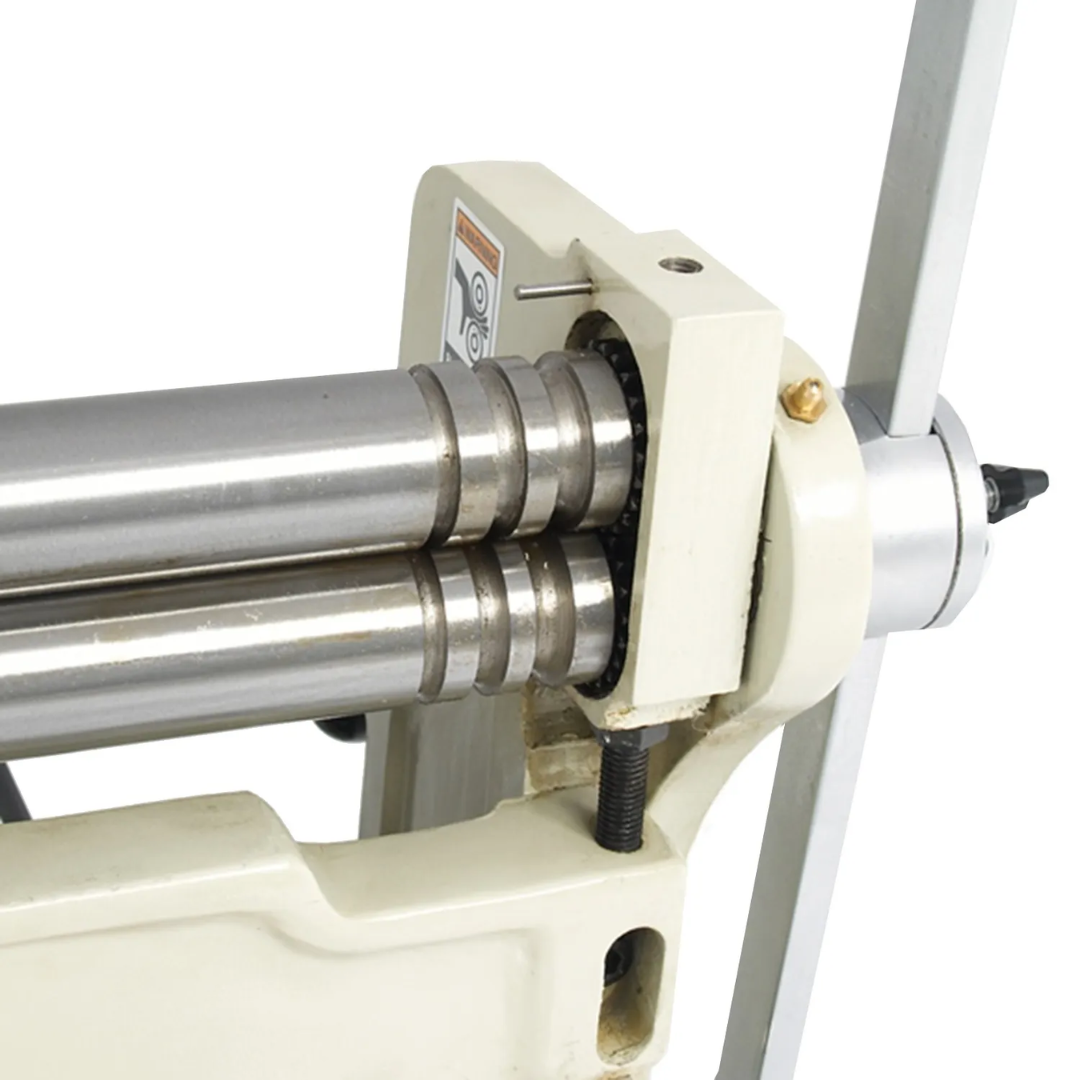

- Hardened rolling dies with three grooves allow forming of wire and small round stock in addition to sheet material.

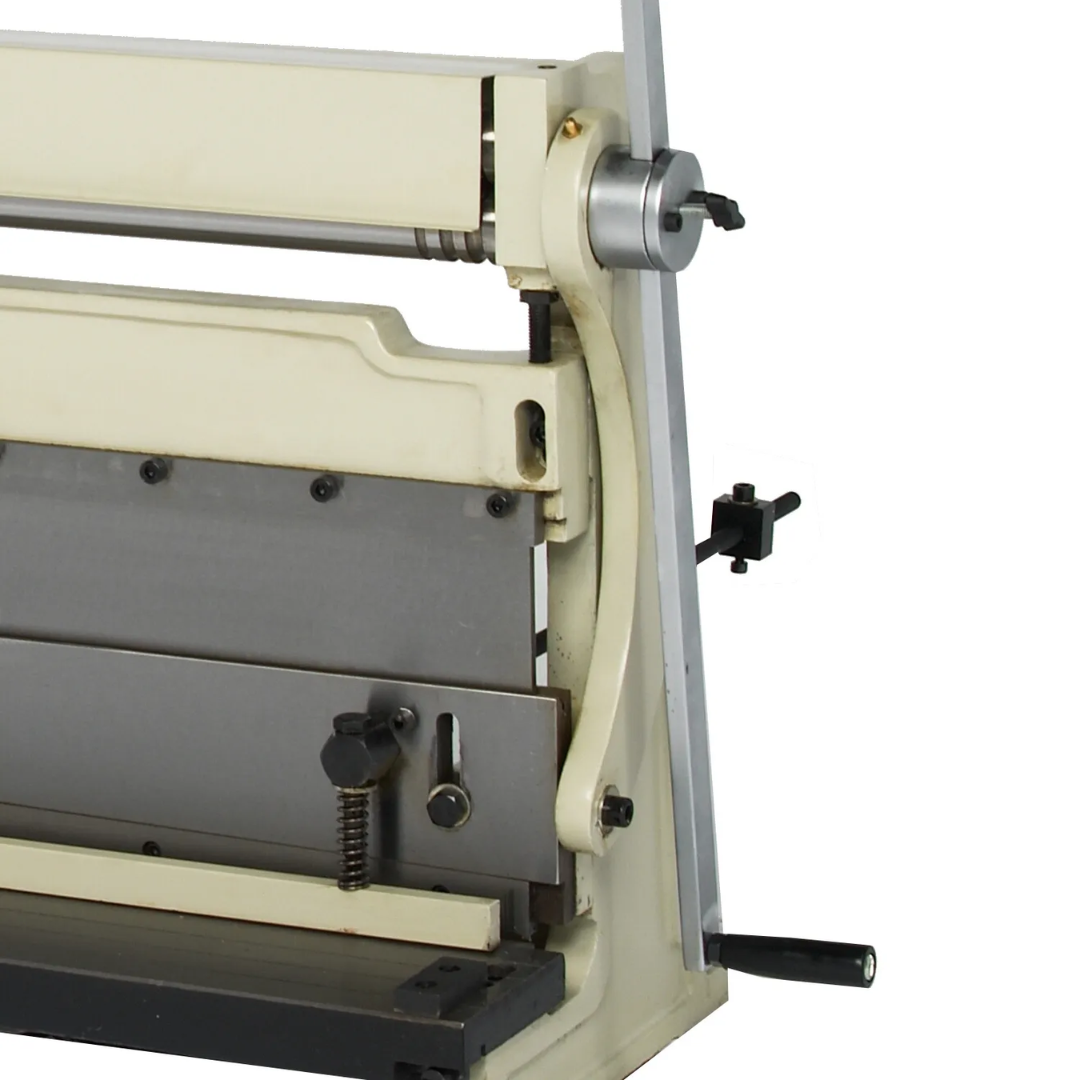

- Manual press brake system delivers accurate bends up to 90 degrees for brackets, boxes, channels, and formed parts.
- Integrated V-die set with crowning adjustment improves bend consistency across the full working width.
- Adjustable brake dies from 1 inch to 10 inches support box and pan forming applications.

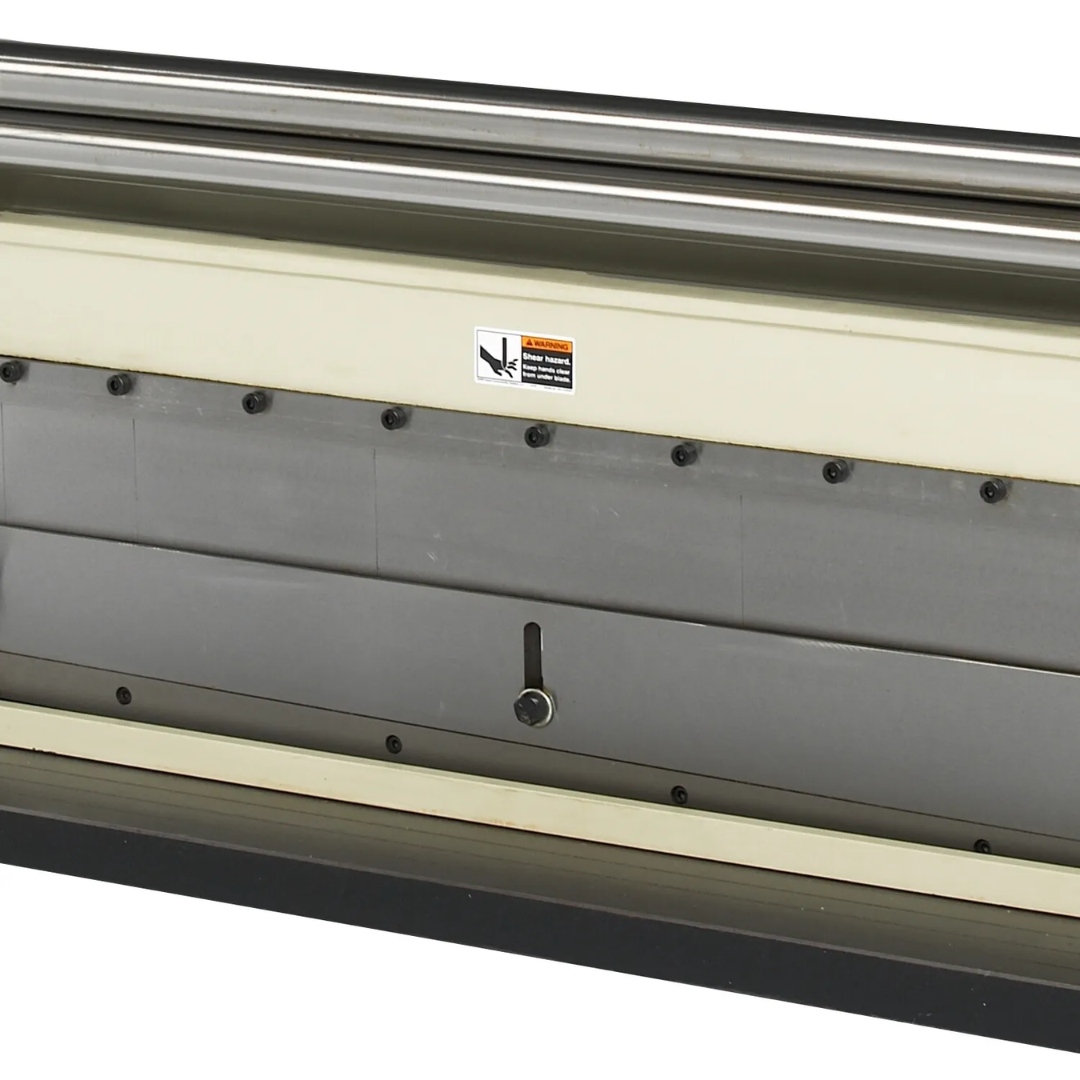

- Heavy-duty shear assembly produces clean cuts through sheet metal with minimal distortion.

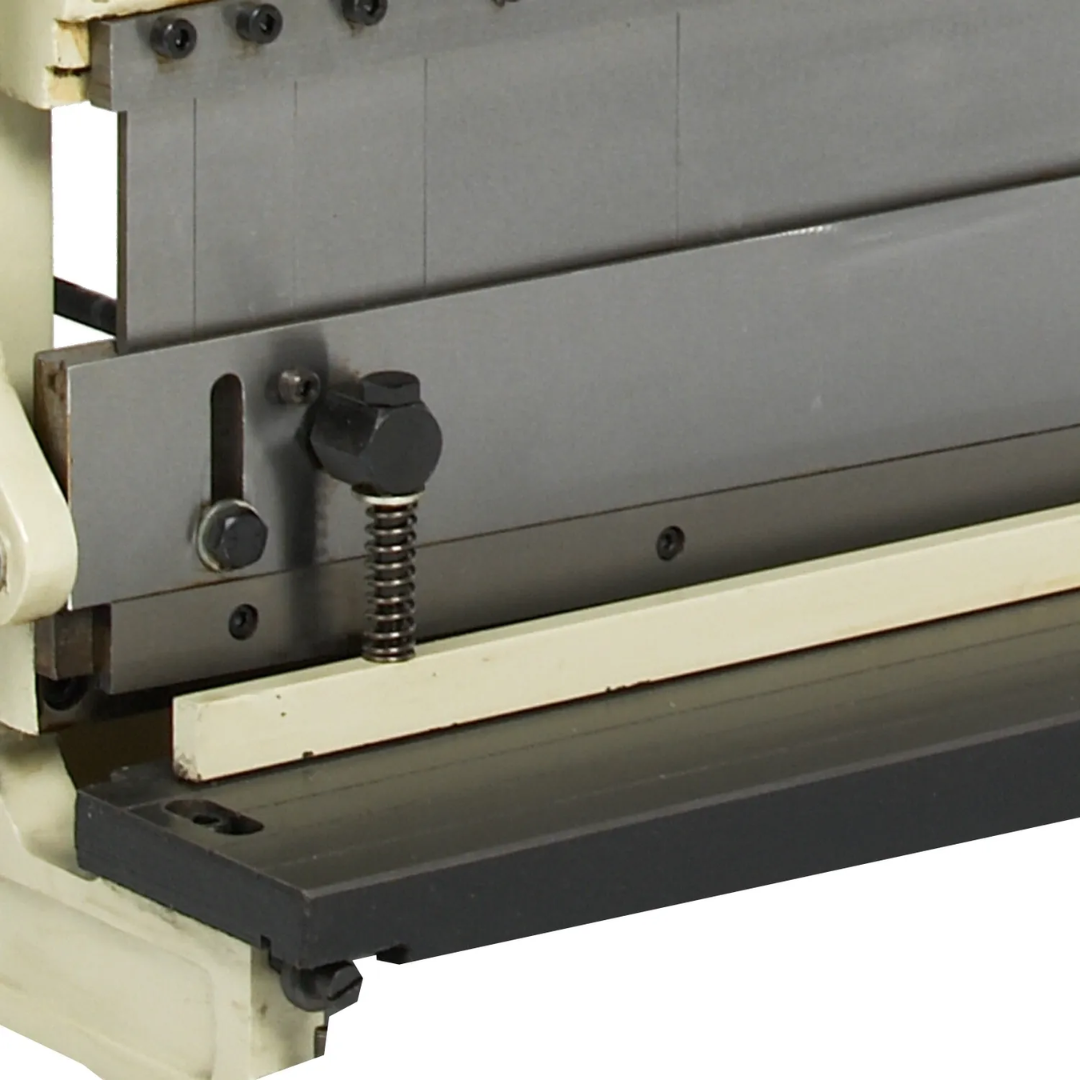

- Spring-loaded material clamps secure material during shearing for improved accuracy and safety.
- Hardened reversible shear blades provide extended service life and economical maintenance.
- Integrated back gauge system improves repeatability and production efficiency for both cuts and bends.

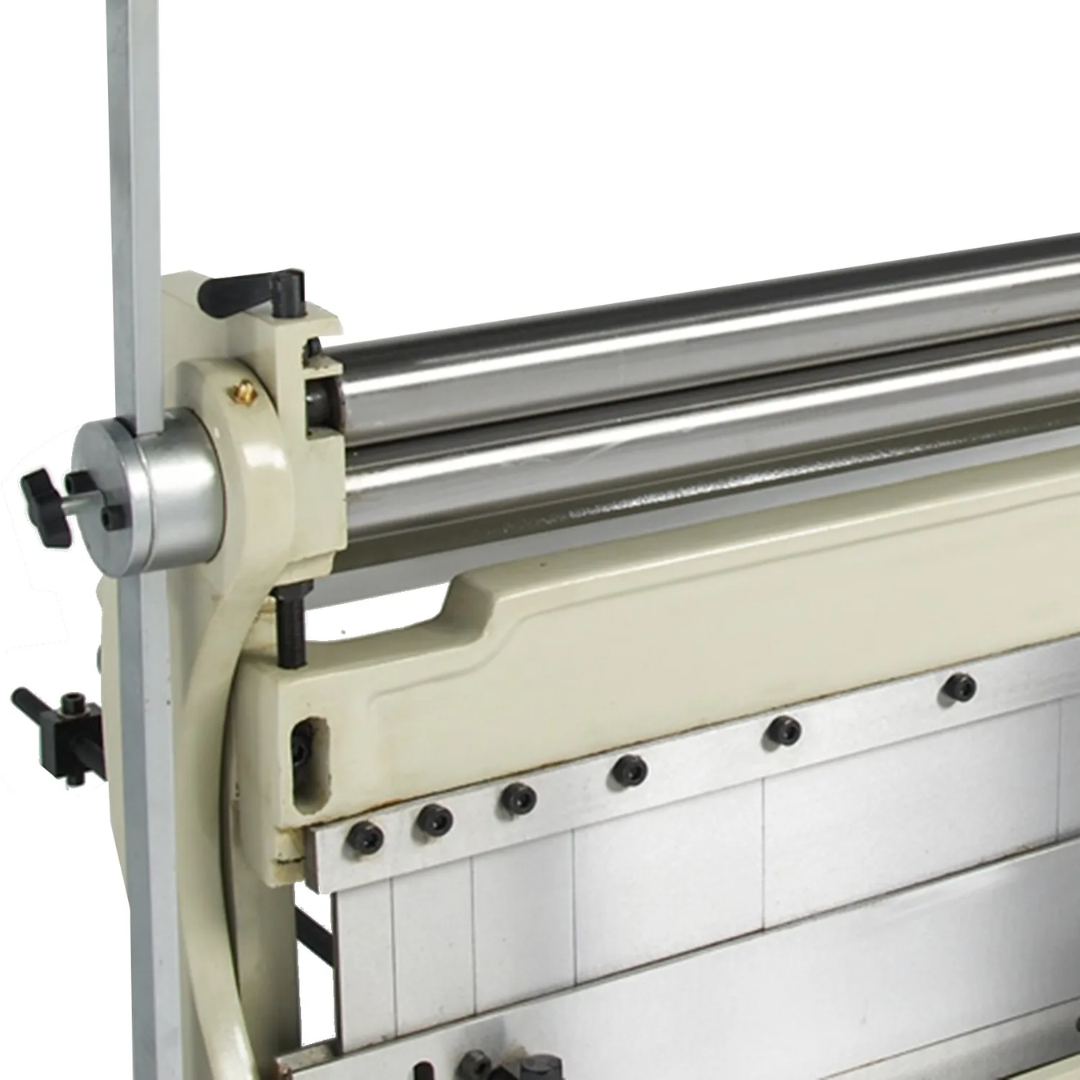

- Heavy-duty steel frame construction delivers rigidity, durability, and dependable long-term performance.
- No electrical power required allows installation virtually anywhere in the workshop.
- Supported by Baileigh's 1-year warranty and lifetime technical support for added confidence and long-term value.
Why Choose the Baileigh 3-in-1 Shear Brake Roll Machine SBR-4020 1006968
- Combines three essential sheet metal fabrication functions into one machine.
- Space-saving design ideal for smaller workshops and maintenance departments.
- Handles 20-gauge mild steel and 16-gauge aluminum across all operations.
- Includes slip roll, press brake, and shear capabilities in a single workstation.
- Features hardened tooling, adjustable dies, and reversible shear blades.
- Back gauge system improves consistency and production repeatability.
- Manual operation eliminates electrical requirements and reduces operating costs.
- Perfect for fabrication shops, schools, maintenance facilities, and prototype development environments.

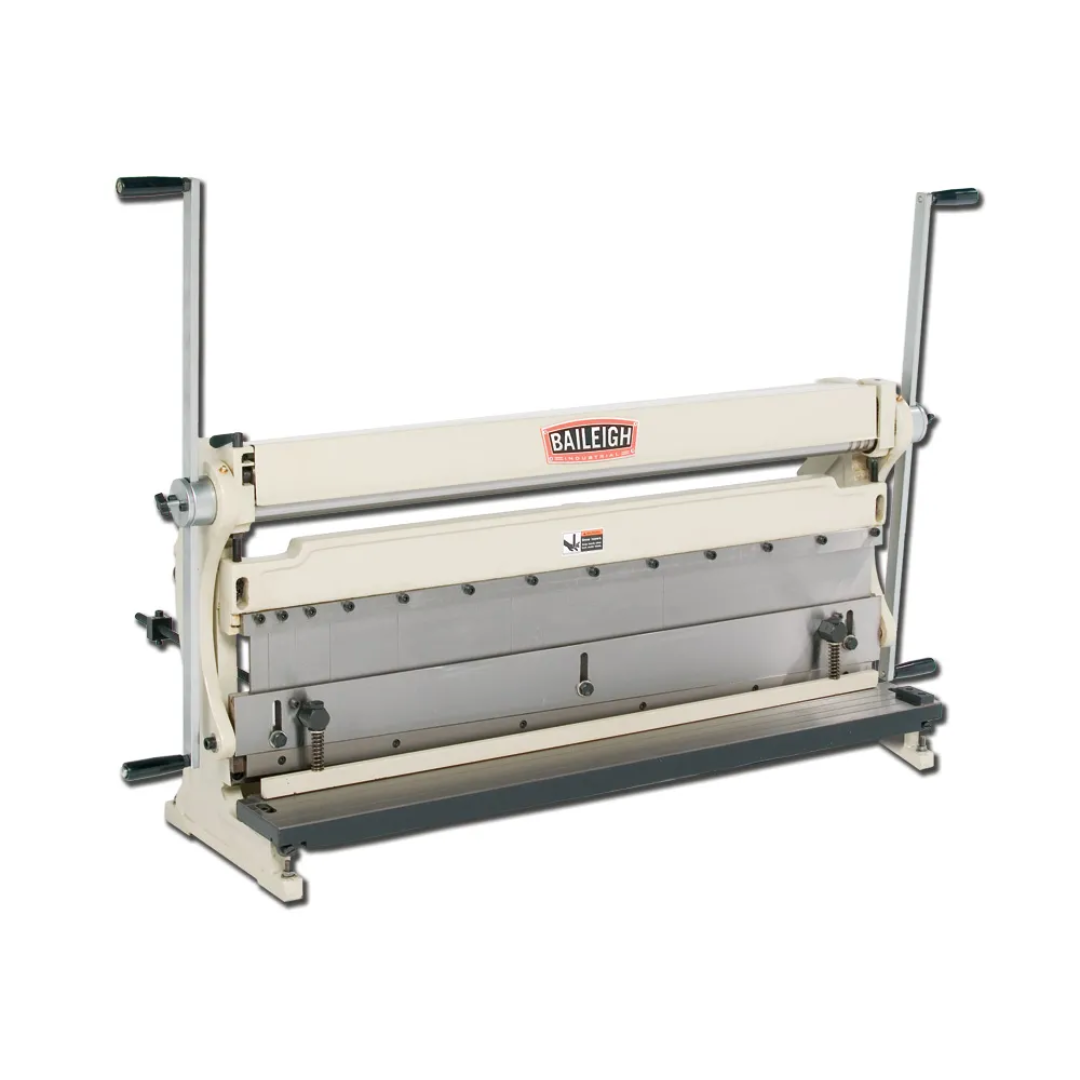

The Baileigh 3-in-1 Shear Brake Roll Machine SBR-4020 1006968 delivers exceptional versatility by combining shearing, bending, and rolling operations into one compact, heavy-duty machine. Designed for efficiency, precision, and space savings, it is an outstanding solution for shops that need professional sheet metal fabrication capabilities without investing in three separate machines.
