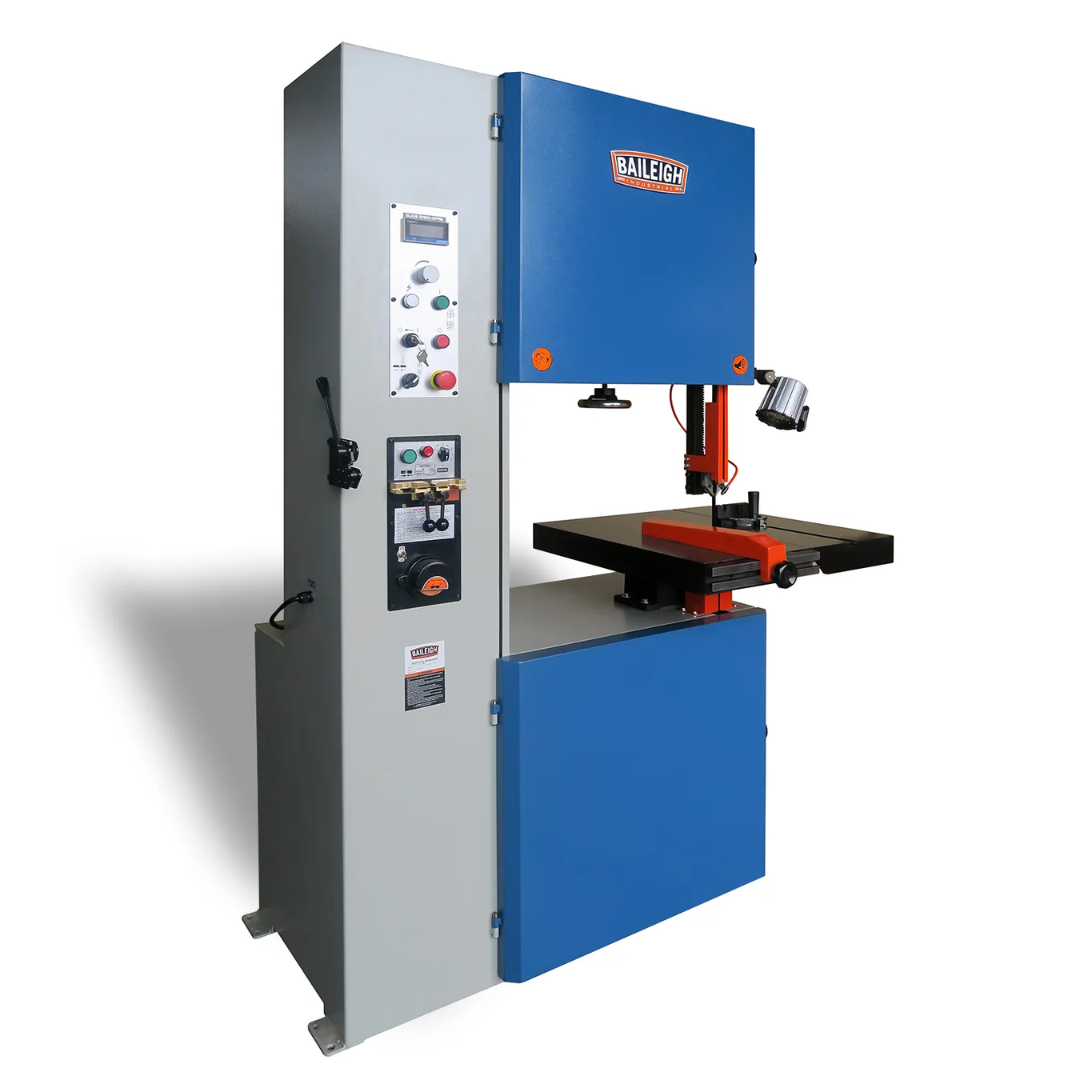

Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391 Applications
- Industrial fabrication and metalworking operations.
- Machine shops producing precision-cut components.
- Maintenance and repair departments handling custom fabrication.
- Tooling, fixture, and prototype manufacturing.
- Cutting steel, stainless steel, aluminum, brass, and non-ferrous alloys.
- Contour cutting, profiling, and intricate shape creation.
- Production environments requiring repeatable straight and angled cuts.
- Custom fabrication projects involving large or unusually shaped materials.
Designed for professional shops that require large-capacity vertical cutting, variable-speed flexibility, and dependable industrial performance on a wide range of materials.
Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391 Specifications
| Model Number | BSV-24VS-V2 |
|---|---|
| Product Keyword | Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391 |
| Machine Type | Variable-Speed Vertical Band Saw |
| Motor Power | 3 HP |
| Horsepower | 3 HP |
| Input Power | 220V Three Phase |
| Throat Depth | 23.5 in. (23.6 in. Nominal) |
| Maximum Cutting Height | 12.2 in. |
| Blade Width Capacity | 1/8 in. – 5/8 in. |
| Variable Blade Speed | 85 – 2200 FPM |
| Table Size | 24 in. × 24 in. Cast Iron |
| Table Tilt Range | 15° Left / 45° Right |
| Miter Angle Range | 15° Left, 45° Right |
| Wheel Size | 24.25 in. |
| Blade Welding Capacity | 3 mm – 16 mm |
| Accessories Included | Rip Fence, Mitering System, and Protractor |
| Net Weight | 1,025 lbs. |
| Gross Weight | 1,025 lbs. |
| UPC | 19907702474 |
| Warranty | 1 Year |
Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391 Performance & Construction
- Powerful 3 HP industrial motor provides consistent cutting performance through thick metals and demanding production workloads.
- 220V three-phase electrical configuration supports industrial environments requiring dependable continuous-duty operation.
- Inverter-controlled variable speed system allows blade speed adjustment from 85 to 2200 FPM for optimal material-specific cutting performance.
- 23.6-inch throat depth accommodates large workpieces and complex contour cutting operations.
- 12.2-inch maximum cutting height enables processing of thicker materials and oversized stock.
- Blade compatibility from 1/8 inch to 5/8 inch provides flexibility for intricate contour work or aggressive straight cutting applications.
- 24-inch by 24-inch cast iron work table delivers excellent support, stability, and vibration reduction.
- Tilting table design allows cuts at angles up to 15 degrees left and 45 degrees right for advanced fabrication projects.
- Precision blade guide system improves blade tracking, reduces vibration, and enhances cut quality.
- Integrated rip fence, miter system, and protractor simplify setup and improve repeatability for production work.
- Heavy-duty welded steel frame increases machine rigidity and contributes to accurate, smooth cutting performance.
- Large 24.25-inch drive wheels support stable blade operation and consistent tracking throughout extended cutting cycles.
Why Choose the Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391
- Large 23.6-inch throat depth accommodates oversized workpieces and complex profiles.
- Powerful 3 HP motor delivers reliable cutting performance across a variety of metals.
- Variable speed control optimizes cutting efficiency and blade life.
- 12.2-inch cutting height handles thicker materials with ease.
- Precision blade guides improve accuracy and reduce vibration.
- Cast iron tilting table supports straight, angled, and contour cutting applications.
- Heavy-duty welded construction ensures long-term durability in industrial environments.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 24-Inch Variable-Speed Bandsaw, 3 HP, 220V 3Ph (BSV-24VS-V2) 1230391 delivers industrial-grade cutting capacity, variable-speed versatility, and precision performance for fabrication professionals who require accurate, repeatable results on a wide range of metals and workpiece sizes.
