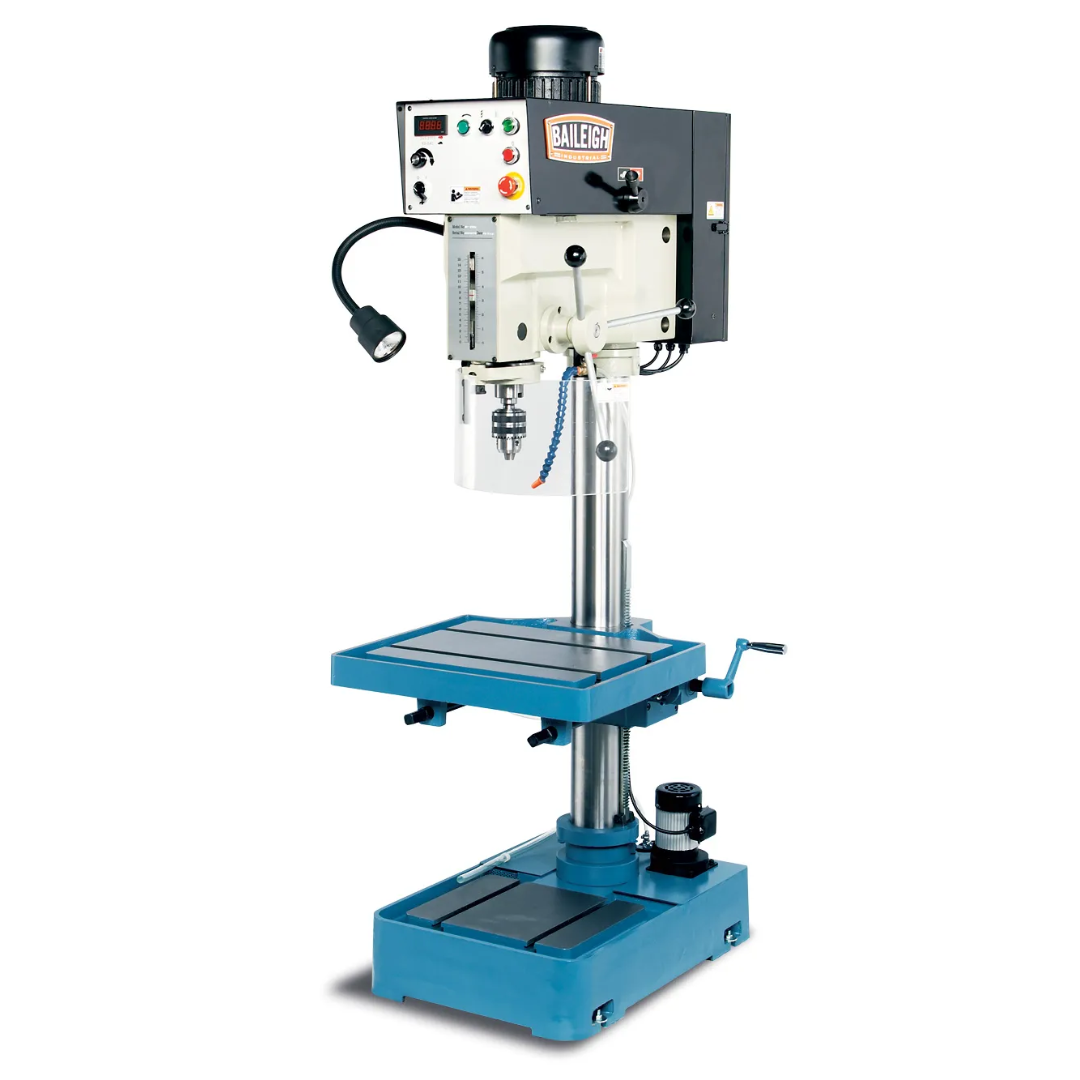

Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1250VS) 1002869 Applications
- Industrial metal fabrication and manufacturing operations.
- Machine shops performing precision drilling and tapping tasks.
- Maintenance and repair departments servicing heavy equipment and machinery.
- Production facilities manufacturing brackets, fixtures, plates, and structural components.
- Tool rooms requiring variable speed drilling for multiple material types.
- Agricultural, transportation, and industrial equipment fabrication.
- General-purpose drilling, tapping, countersinking, and hole-finishing applications.
The inverter-driven variable speed system allows operators to quickly optimize spindle speed for different materials and tooling, improving productivity and extending tool life.
Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1250VS) 1002869 Specifications
| Model Number | DP-1250VS |
|---|---|
| Product Name | Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph |
| Swing Capacity | 20.8" |
| Motor Power | 2 HP |
| Motor Type | Inverter Driven |
| Power Requirement | 220V Single Phase |
| Spindle Speed Range | 85 – 2,000 RPM |
| Minimum Speed Range | 85 – 540 RPM |
| Maximum Speed Range | 245 – 2,000 RPM |
| Drilling Capacity (Mild Steel) | 1.25" |
| Tapping Capacity (Mild Steel) | 0.625" |
| Table Size | 22" x 18.5" |
| T-Slot Size | 0.625" |
| Digital RPM Display | Yes |
| Coolant System | Integrated |
| Net Weight | 735 lbs |
| Gross Weight | 735 lbs |
| UPC | 731325404333 |
| Warranty | 1 Year |
Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1250VS) 1002869 Performance & Construction

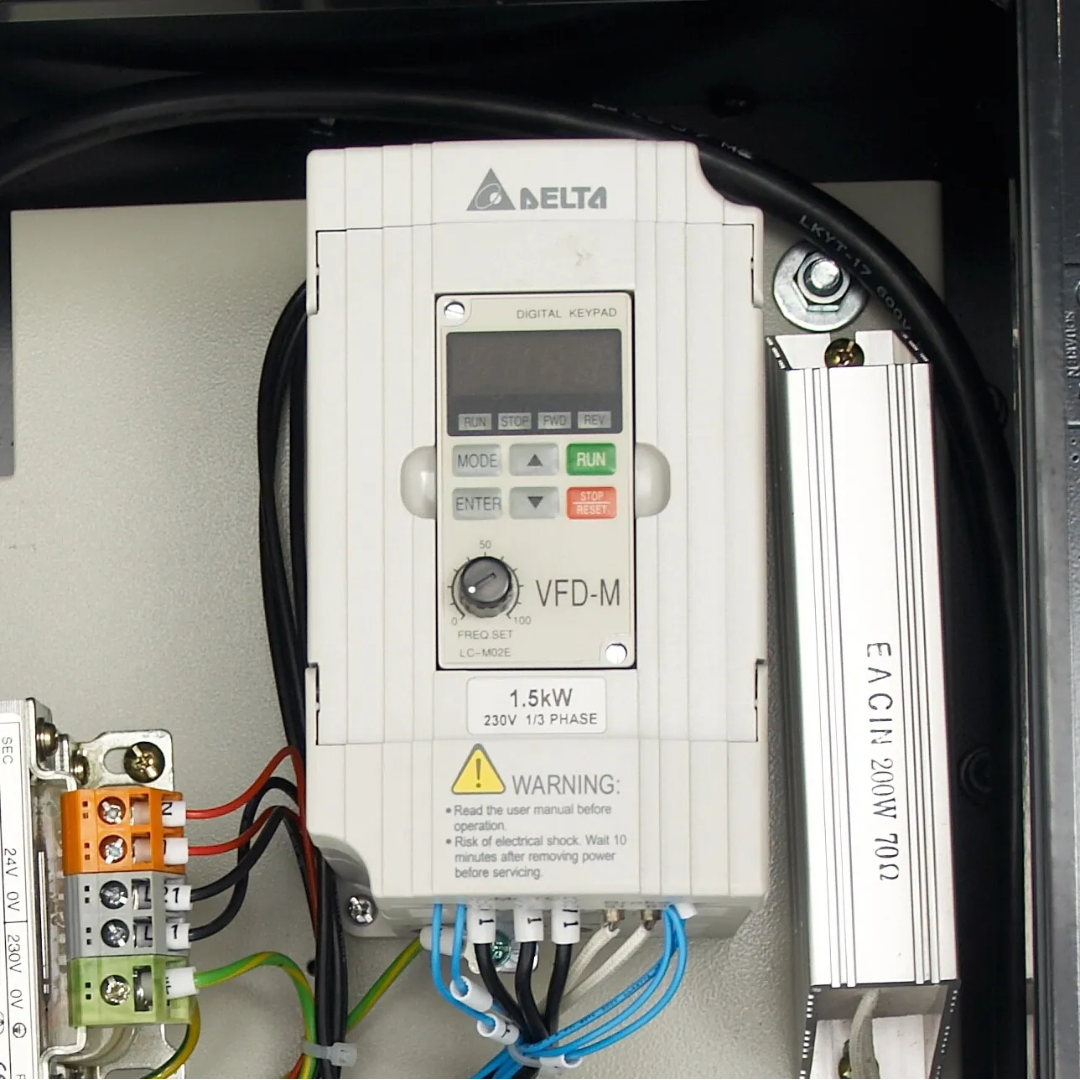

- Powerful 2 HP Inverter-Driven Motor: Provides consistent torque and smooth drilling performance for demanding fabrication and machining operations.
- Variable Speed Control: Continuously adjustable spindle speeds from 85 to 2,000 RPM allow operators to match cutting speeds to tooling and material requirements.
- 1.25" Mild Steel Drilling Capacity: Delivers substantial drilling capability for heavy-duty industrial applications.
- Auto-Reversing Tapping Function: Supports efficient tapping operations up to 5/8" in mild steel while improving productivity and thread quality.

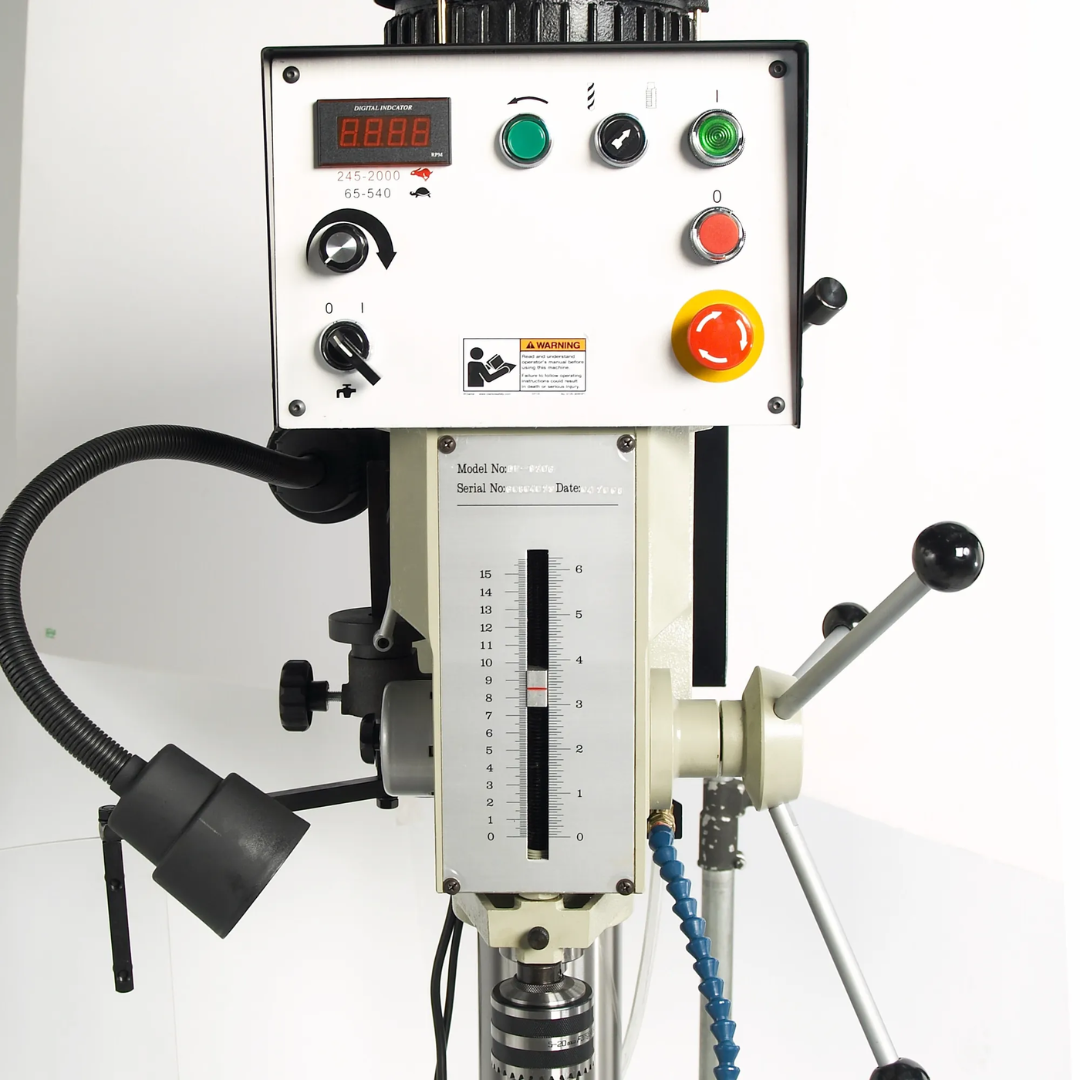

- Digital RPM Readout: Displays actual spindle speed for precise process control and repeatable machining results.
- Rigid Cast Iron Construction: Heavy base, table, and column construction reduce vibration and maintain drilling accuracy under load.

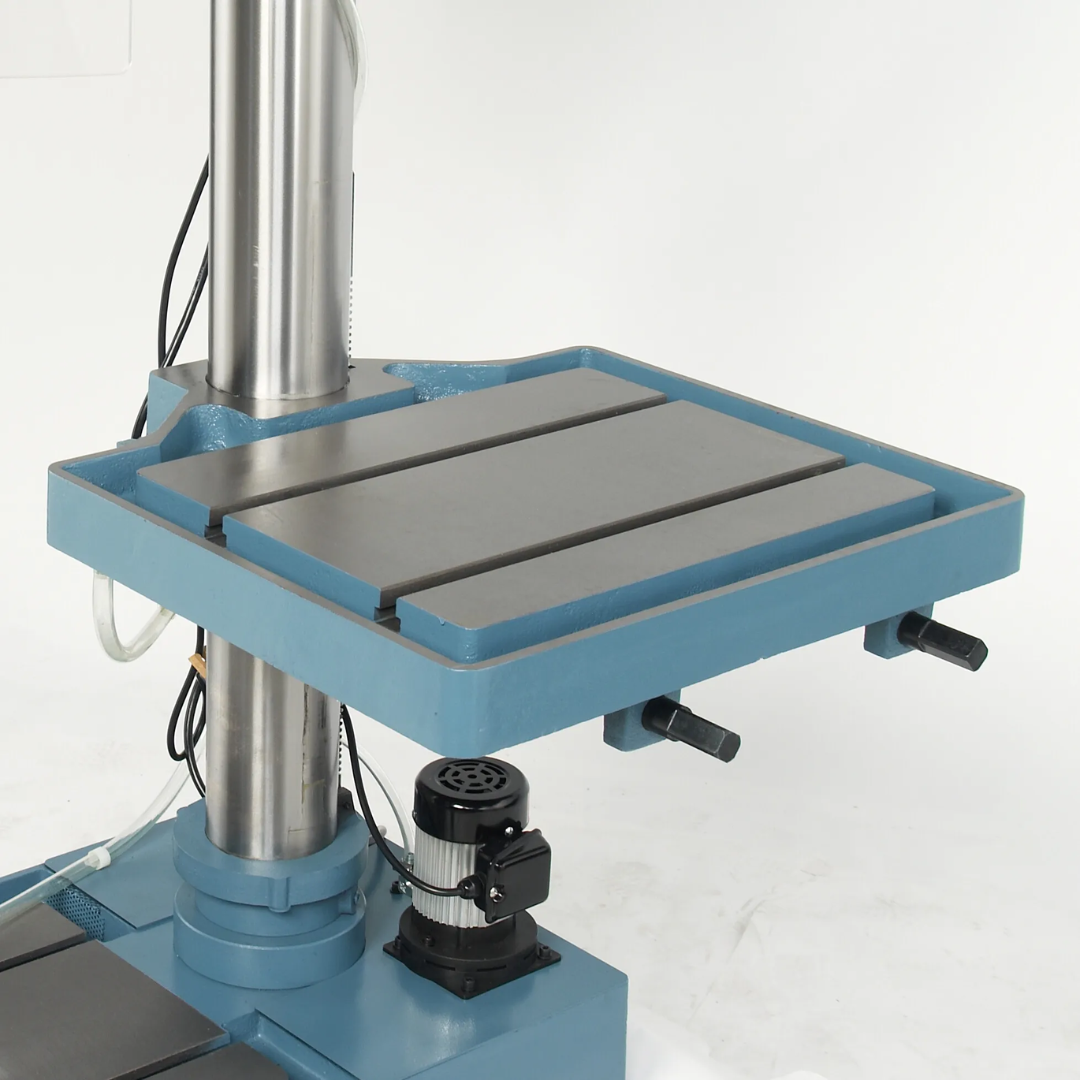

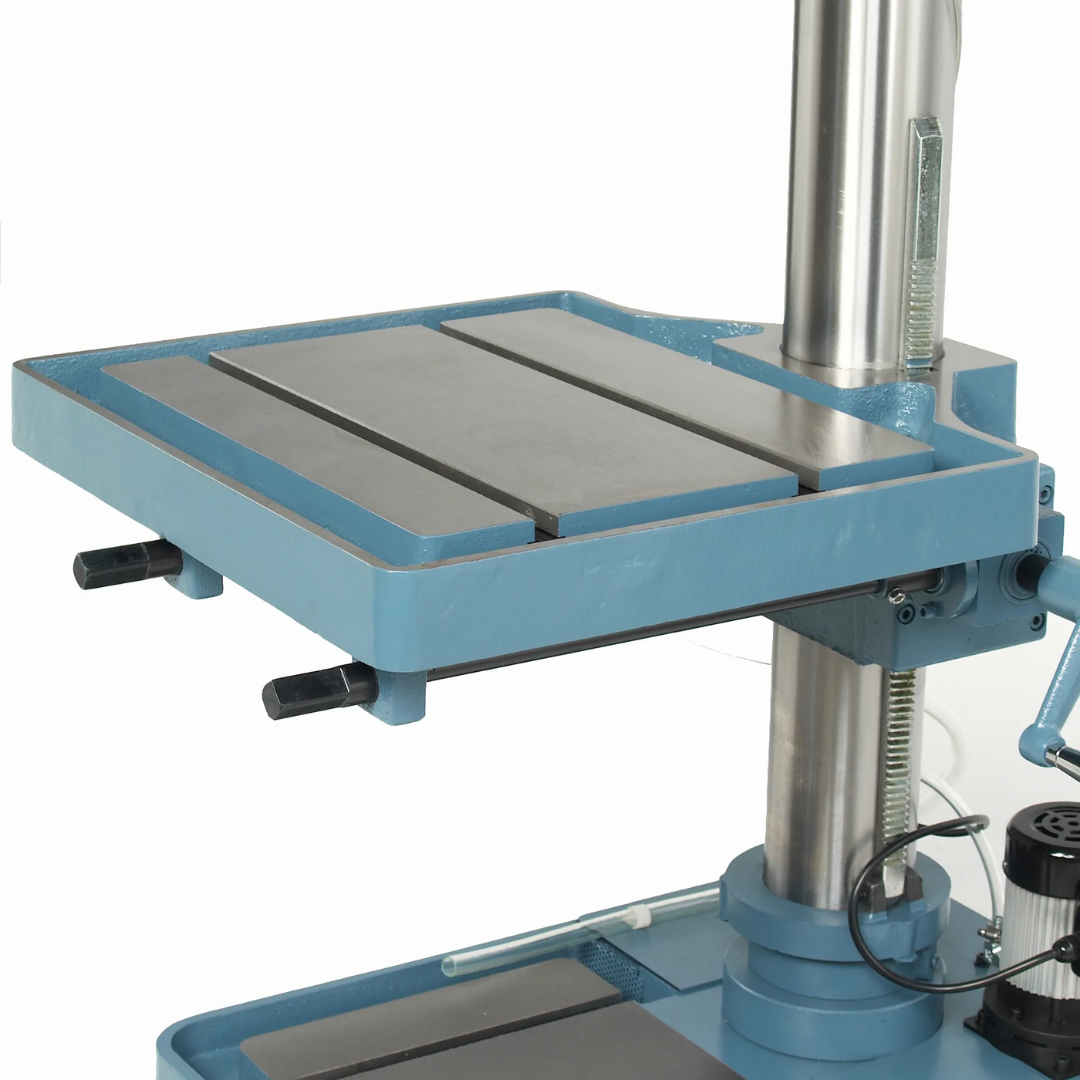

- Large Work Surface: The 22" x 18.5" table accommodates larger workpieces and workholding setups.
- Heavy-Duty T-Slots: Large 0.625" T-slots secure vises, clamps, and fixtures for stable drilling operations.

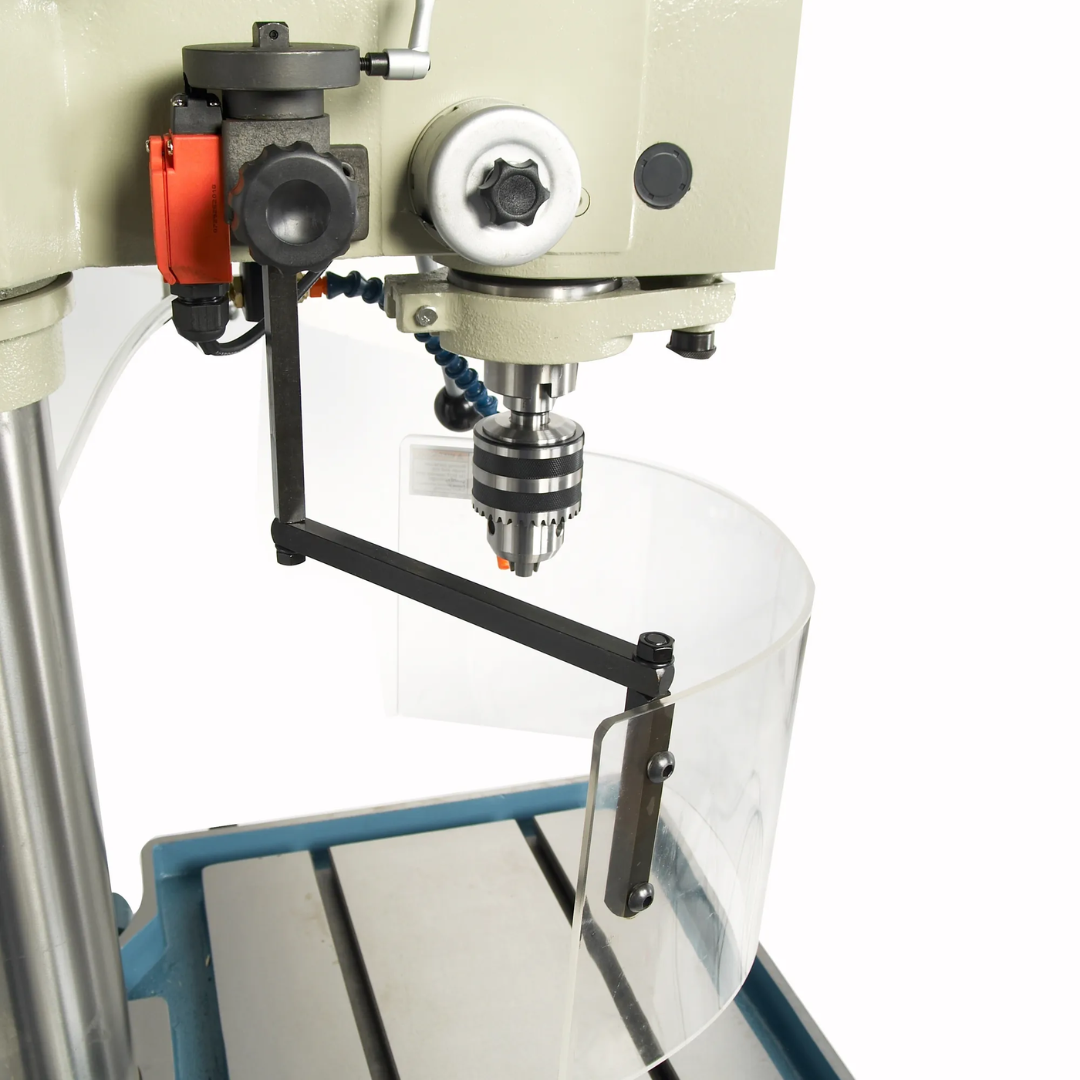

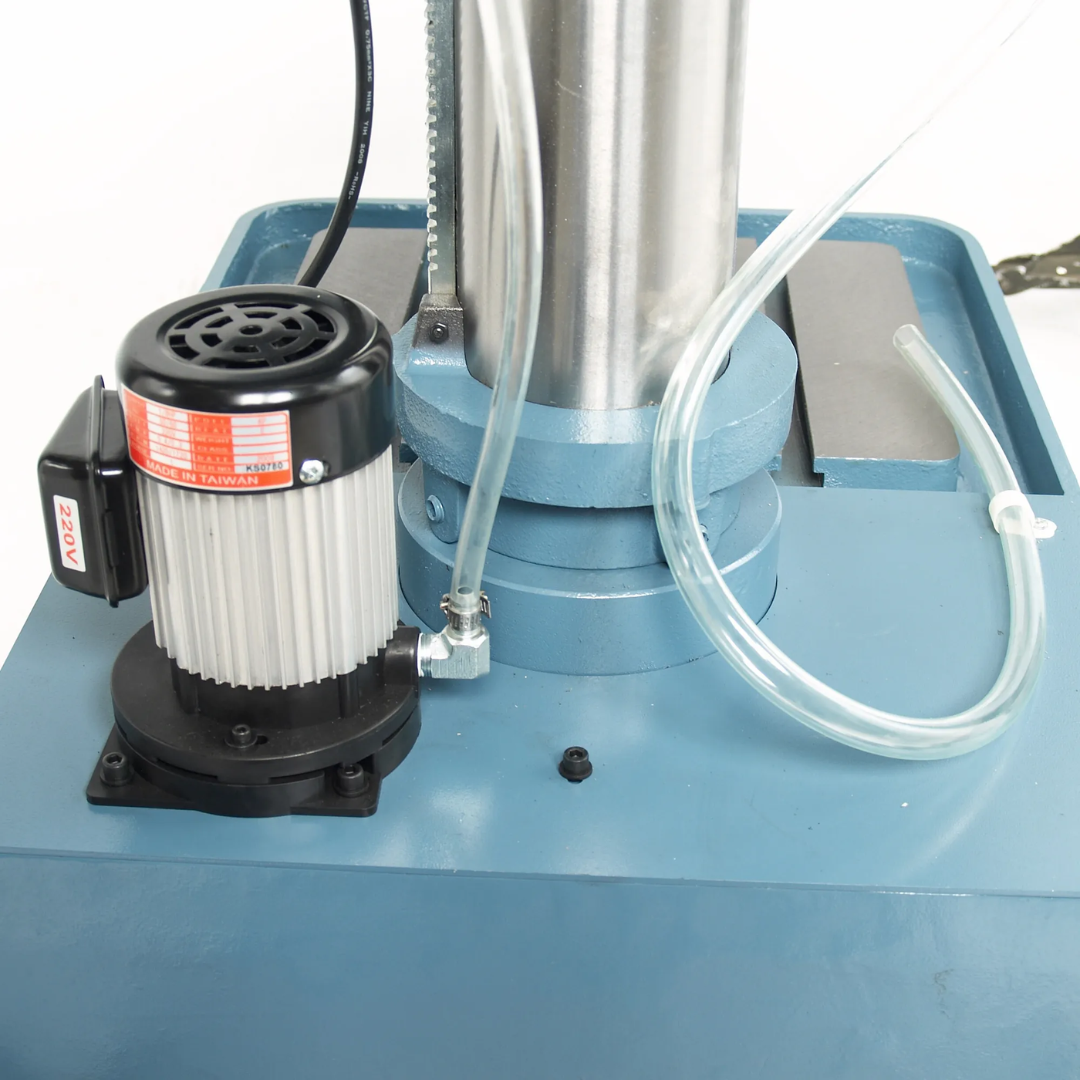

- Integrated Coolant System: Directs coolant to the cutting zone to improve tool life, reduce heat buildup, and support extended production runs.
- Wide Column Design: Minimizes machine flex and enhances overall rigidity during heavy drilling applications.
- 220V Single-Phase Power: Delivers industrial performance while remaining compatible with many shop electrical systems.
- 735 lb Machine Weight: Provides exceptional stability and vibration resistance for precision drilling performance.
Why Choose the Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1250VS) 1002869
- Heavy-duty 2 HP inverter-driven motor for industrial-grade drilling power.
- Variable speed control from 85 to 2,000 RPM without manual belt changes.
- Large 1.25" drilling capacity in mild steel.
- Integrated auto-reversing tapping system increases machine versatility.
- Digital RPM display improves accuracy and process consistency.
- Built-in coolant system helps extend drill and tap life.
- Large cast iron table with T-slots supports secure workholding.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 22-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1250VS) 1002869 combines industrial-strength construction, inverter-driven speed control, advanced tapping capability, and high-capacity drilling performance into a reliable machine built for professional fabrication, manufacturing, and machine shop environments.
