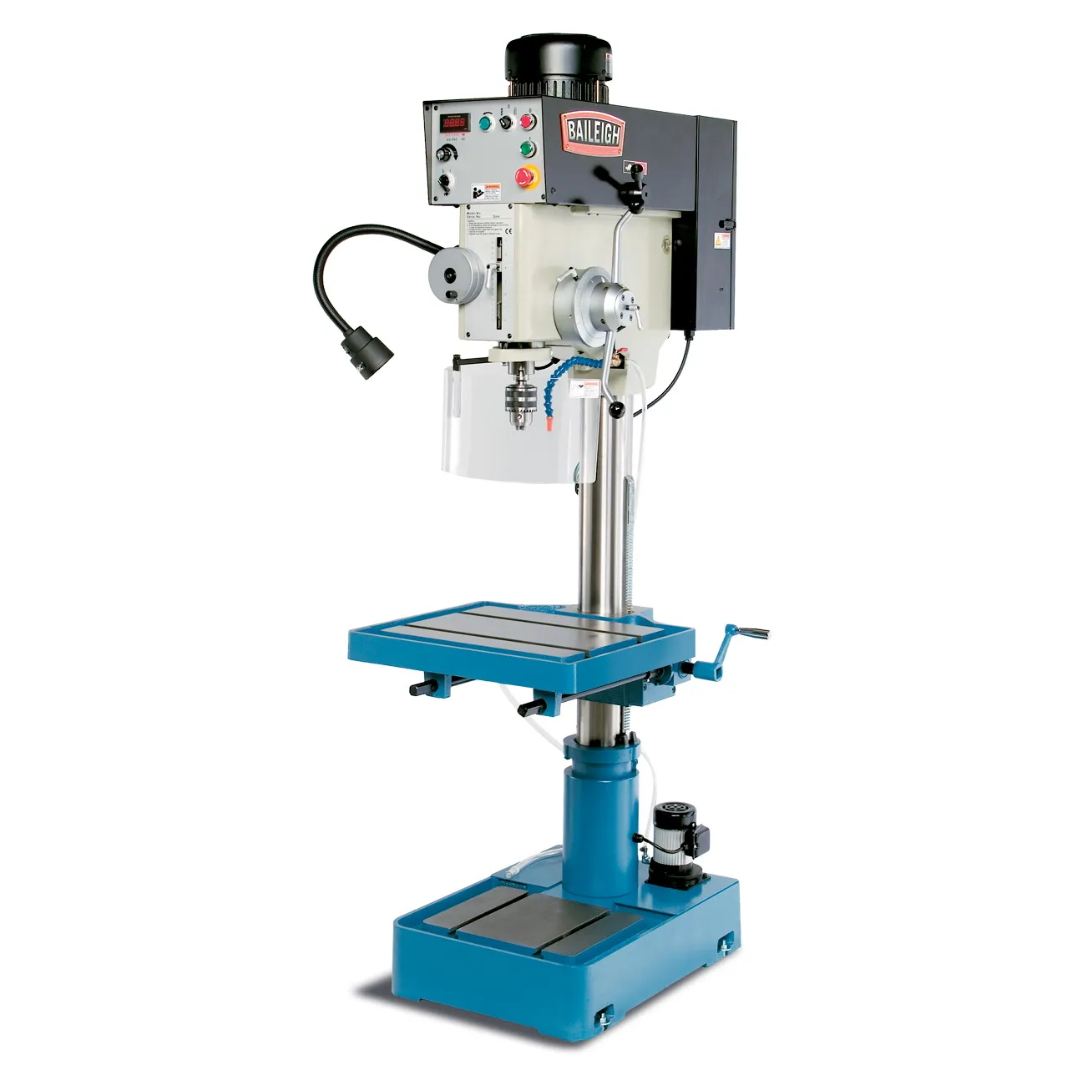

Baileigh 21-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1500VS) 1002923 Applications
- General metal fabrication and manufacturing facilities.
- Machine shops performing precision drilling and tapping operations.
- Maintenance and repair departments.
- Industrial production environments requiring variable spindle speeds.
- Prototype development and custom fabrication projects.
- Agricultural equipment manufacturing and repair.
- Automotive fabrication and restoration shops.
- Educational and technical training facilities.
Designed for shops that require industrial drilling performance, variable-speed versatility, and dependable accuracy across a wide range of materials and hole sizes.
Baileigh 21-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1500VS) 1002923 Specifications
| Model Number | DP-1500VS |
|---|---|
| Product Number | 1002923 |
| Motor Power | 2 HP |
| Power Requirement | 220V Single Phase |
| Drive Type | Inverter-Driven Variable Speed |
| Swing Capacity | 20 in. (21 in. Class) |
| Drilling Capacity - Mild Steel | 1.5 in. |
| Drilling Capacity - Cast Iron | 1.75 in. |
| Tapping Capacity - Mild Steel | 0.75 in. |
| Spindle Speed Range | 65 - 2,000 RPM |
| Quill Feed Rates | 0.0078 in., 0.004 in., 0.002 in. per revolution |
| Spindle Taper | #4 Morse Taper |
| Spindle Travel | 5.9 in. |
| Net Weight | 830 lbs. |
| Gross Weight | 830 lbs. |
| UPC | 731325404845 |
| Warranty | 1 Year |
Baileigh 21-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1500VS) 1002923 Performance & Construction
- 2 HP inverter-driven motor delivers consistent torque and reliable drilling power for demanding shop applications.
- Variable spindle speeds from 65 to 2,000 RPM allow precise speed selection for different materials, drill sizes, and tapping operations.
- Heavy-duty cast iron construction throughout the head, column, and base minimizes vibration and improves drilling accuracy.
- 1.5-inch drilling capacity in mild steel enables efficient production of larger holes in common fabrication materials.
- 1.75-inch drilling capacity in cast iron provides additional capability for industrial maintenance and machining operations.
- 21-inch class swing capacity accommodates larger workpieces while expanding overall machine versatility.
- 5.9-inch spindle travel allows deeper drilling operations without repositioning the workpiece.
- #4 Morse taper spindle supports a wide range of industrial tooling and accessories.
- Digital speed readout provides real-time RPM monitoring for accurate spindle speed adjustments.
- Three selectable quill feed rates help optimize drilling performance based on material type and cutting conditions.
- Integrated work light improves visibility around the cutting area for enhanced accuracy and operator convenience.
- Large adjustable worktable supports workholding equipment and allows positioning flexibility for complex drilling operations.
- 0.75-inch tapping capacity in mild steel expands the machine's usefulness beyond standard drilling applications.
- Single-phase power requirement allows installation in many commercial and light industrial facilities without requiring three-phase power.
- Industrial-grade design is built for continuous daily operation in fabrication and manufacturing environments.
- Backed by Baileigh support including a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh 21-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1500VS) 1002923
- Industrial-duty drill press built with rigid cast iron construction.
- 2 HP inverter-driven motor provides smooth power delivery and speed control.
- Wide 65 to 2,000 RPM speed range supports drilling and tapping applications.
- Large drilling capacities for both mild steel and cast iron.
- Digital RPM display improves setup accuracy and repeatability.
- Single-phase power compatibility simplifies installation.
- Designed for fabrication shops, machine shops, maintenance departments, and manufacturing facilities.
The Baileigh 21-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1500VS) 1002923 combines industrial-grade construction, inverter-driven variable speed technology, and impressive drilling capacity to deliver reliable performance, precision, and versatility for professional metalworking operations.
