Baileigh 2 Ton Arbor Press AP-2 1232699 Applications
- Press fitting bearings, bushings, pins, and shafts.
- Metal fabrication, assembly, and production operations.
- Riveting, staking, punching, and swaging applications.
- Small-part bending and straightening tasks.
- Machine shop repair and maintenance work.
- General industrial assembly requiring controlled manual pressing force.
An excellent manual pressing solution for fabrication shops and industrial workspaces requiring precise force, durable construction, and dependable long-term performance.
Baileigh 2 Ton Arbor Press AP-2 1232699 Specifications
| Model | AP-2 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Part Number | 1232699 |
| Operation | Manual |
| Rated Capacity | 2 Tons |
| Throat Opening | 5.375 in. |
| Capacity Over Table | 7.5 in. |
| Stroke Length | 9 in. |
| Ram Size | 1.25 in. Case-Hardened Square Ram |
| Die Plate | Machined 4-Position Die Plate |
| Frame Construction | Heavy Ductile Cast-Iron |
| Mounting Options | Bench or Pedestal Mount |
| Net Weight | 68 lbs |
| Gross Weight | 68 lbs |
| Warranty | 1 Year |
Baileigh 2 Ton Arbor Press AP-2 1232699 Performance & Construction

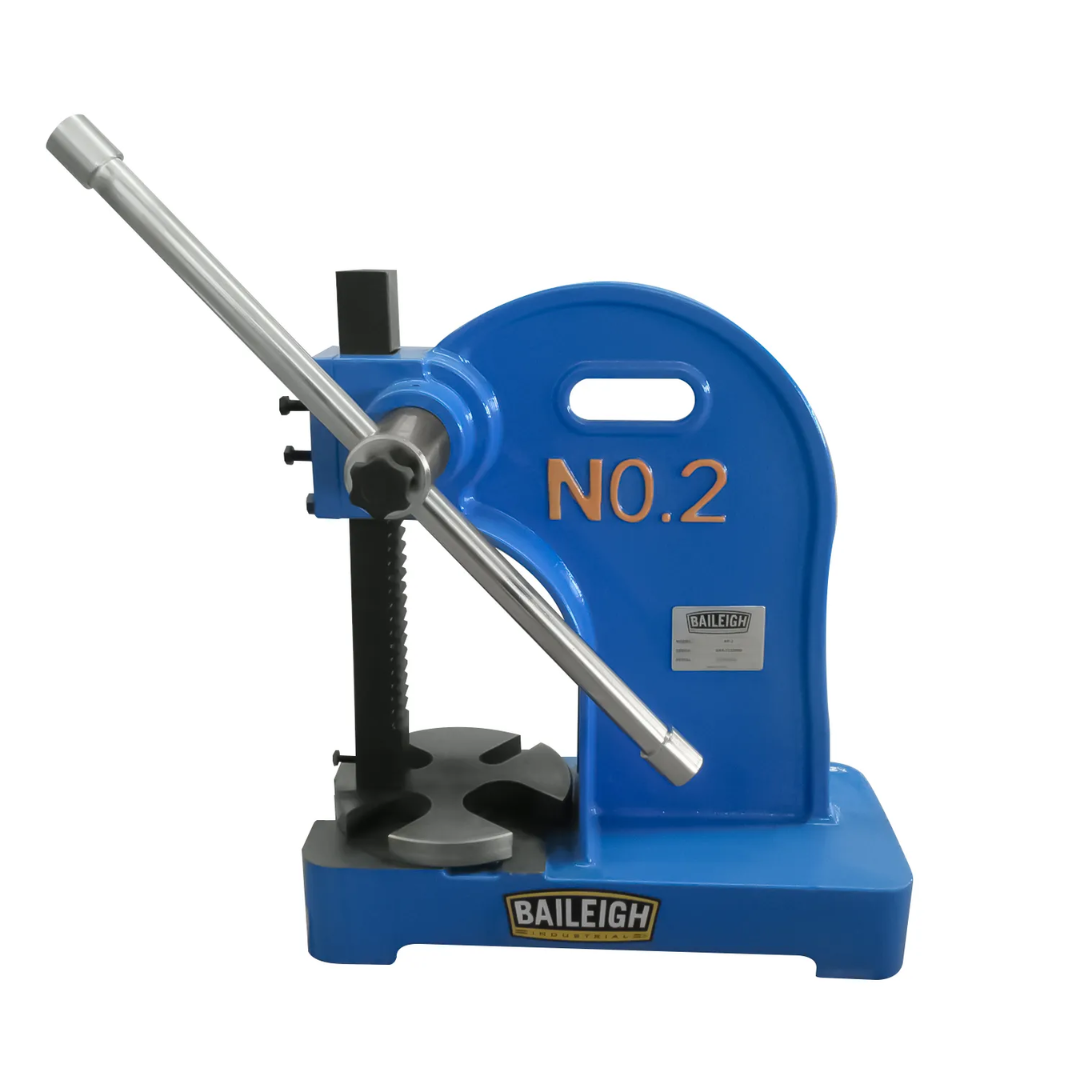

- Heavy-duty ductile cast-iron frame minimizes flex under load while maintaining excellent alignment and long-term durability.
- 2-ton manual pressing capacity delivers reliable force for precision assembly, fabrication, and repair applications.

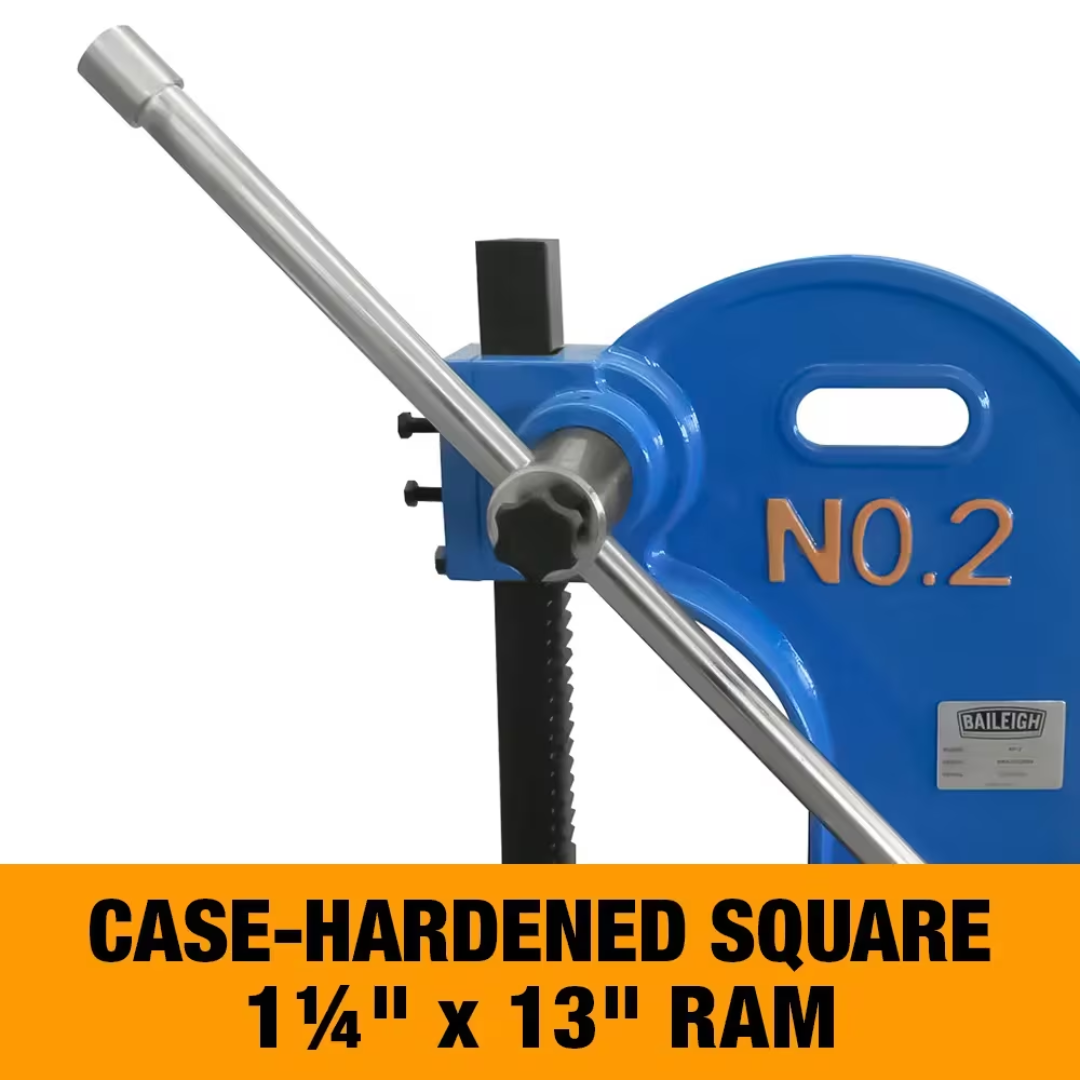

- Case-hardened 1.25-inch square ram provides exceptional wear resistance and accurate pressing performance.
- 5.375-inch throat opening offers generous workpiece clearance for a wide variety of pressing operations.
- Long 9-inch stroke accommodates deeper pressing applications and improves versatility across different workpiece sizes.

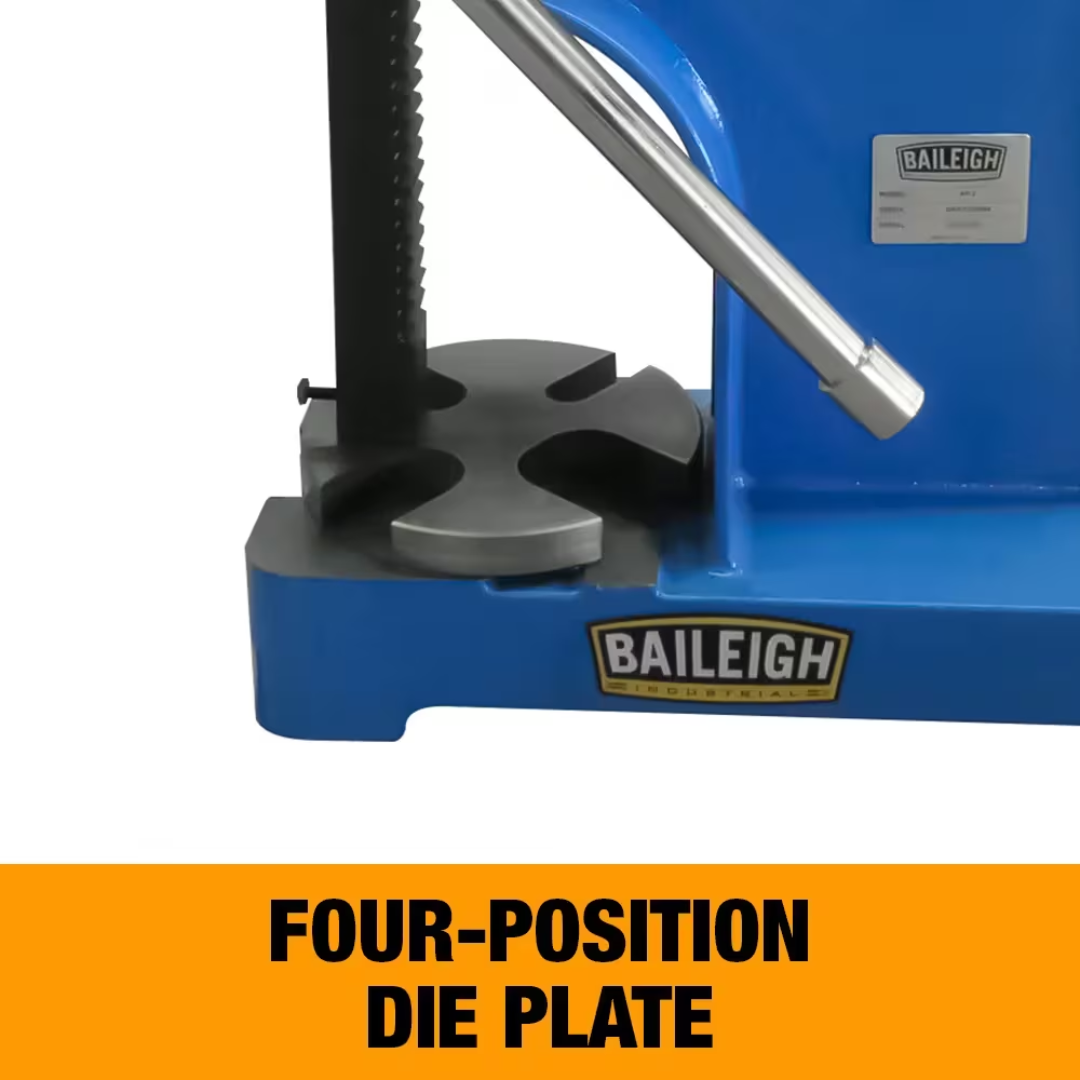

- Machined four-position die plate provides stable workpiece support while accommodating multiple tooling configurations.
- Adjustable slideway allows operators to fine-tune ram tension and alignment for improved precision and smooth operation.
- Bench or pedestal mounting capability provides installation flexibility to suit different workshop layouts.
- Manual operation requires no electrical power, making it ideal for production floors, maintenance shops, and field applications.
- Designed for precision riveting, punching, swaging, staking, bending, and bearing installation with dependable repeatability.
- Backed by Baileigh's 1-year warranty and lifetime technical support for long-term confidence.
Why Choose the Baileigh 2 Ton Arbor Press AP-2 1232699
- Heavy-duty 2-ton manual pressing capacity for industrial applications.
- Rigid cast-iron construction delivers excellent strength and accuracy.
- Long 9-inch stroke accommodates a broad range of workpieces.
- Case-hardened ram ensures precision and extended service life.
- Four-position die plate supports versatile tooling and workpiece positioning.
- Adjustable slideway improves alignment and operational consistency.
- Ideal for fabrication shops, machine shops, assembly departments, and maintenance facilities.
The Baileigh 2 Ton Arbor Press AP-2 1232699 combines rugged cast-iron construction, precision manual operation, and versatile work capacity into a dependable shop press for daily industrial use. Whether installing bearings, staking components, forming metal, or performing assembly operations, the AP-2 delivers consistent pressing force, exceptional durability, and the reliability professionals expect from Baileigh Industrial.
