Baileigh 18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P) 1226643 Applications
- Structural steel fabrication and processing.
- Industrial machine shops and production facilities.
- Precision cutting of steel, aluminum, stainless steel, and alloys.
- Custom fabrication requiring angled and compound cuts.
- Tool and die manufacturing operations.
- Heavy equipment, maintenance, and repair facilities.
- General-purpose industrial metal cutting with oversized workpieces.
The innovative tilt-frame design allows angled cutting without repositioning the workpiece, increasing productivity while maintaining superior cutting accuracy on large structural materials.
Baileigh 18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P) 1226643 Specifications
| Model | BSVT-18P |
|---|---|
| Manufacturer Part Number | 1226643 |
| Motor Power | 2 HP |
| Input Power | 220V Three Phase |
| Blade Size | 0.035" × 356" |
| Blade Guide | Bearing and Carbide |
| Blade Speed | 84 – 312 FPM (Variable Speed) |
| Throat Depth | 16.25 in. |
| Maximum Material Thickness | 20 in. |
| Maximum Vise Opening | 18 in. |
| Rectangle Capacity | 20" × 16-1/4" |
| Tilt / Miter Range | 45° Right / 45° Left |
| Coolant Pump Motor | 1/8 HP |
| Machine Dimensions | 82" × 38.2" × 87.7" |
| Net Weight | 1,540 lbs. |
| Gross Weight | 1,540 lbs. |
| Warranty | 1 Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
| UPC | 731325510393 |
Baileigh 18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P) 1226643 Performance & Construction
- Industrial 2 HP motor delivers dependable power for continuous cutting of structural steel, aluminum, stainless steel, and other industrial materials.
- 220V three-phase electrical system provides consistent performance for production shops and fabrication facilities.

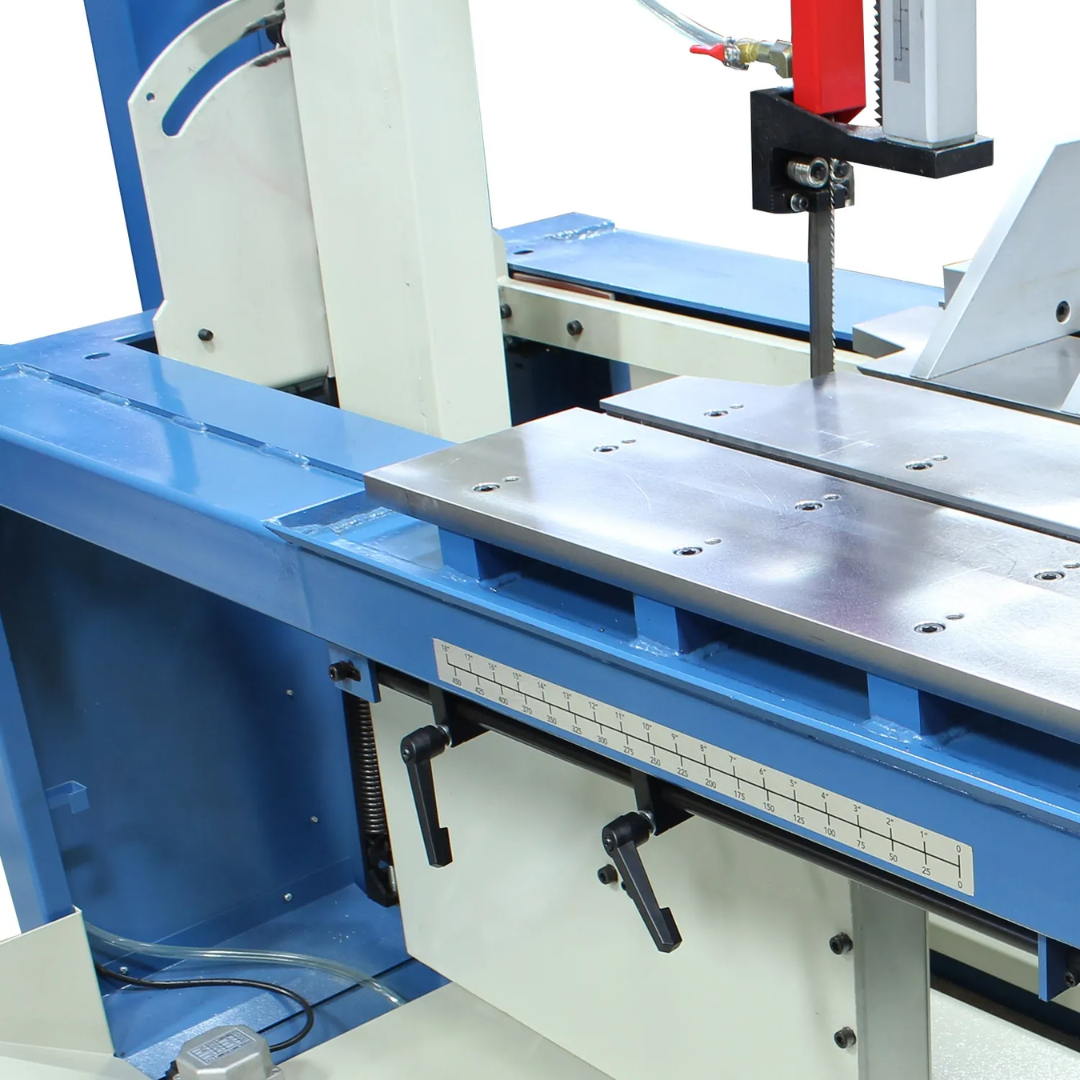

- Unique tilt-frame design allows the saw frame to tilt up to 45° left and 45° right, making accurate angled cuts without moving the workpiece.
- 16.25-inch throat depth accommodates wide stock and oversized materials while expanding cutting capabilities.
- Variable blade speeds from 84 to 312 FPM enable operators to optimize cutting performance for various metals while extending blade life.
- Hydraulic feed system provides smooth, controlled blade advancement for cleaner cuts, reduced operator fatigue, and improved consistency.
- Bearing and carbide blade guides maintain blade stability and cutting accuracy while minimizing wear.
- Integrated coolant system with 1/8 HP pump improves blade longevity, reduces heat buildup, and enhances cut quality.
- Heavy-duty welded steel construction minimizes vibration for superior cutting precision and long-term industrial durability.
- Halogen work light illuminates the cutting area for improved visibility during precision operations.
- Large cutting capacity handles material up to 20 inches thick with an 18-inch vise opening for demanding fabrication projects.
Why Choose the Baileigh 18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P) 1226643
- Powerful 2 HP industrial motor for demanding metal cutting applications.
- Tilt-frame design provides accurate angle cutting without repositioning stock.
- Variable blade speeds optimize cutting performance across multiple materials.
- Hydraulic feed system delivers smooth, controlled cutting action.
- Heavy welded construction reduces vibration for greater precision.
- Integrated coolant system extends blade life and improves surface finish.
- Large 20-inch cutting capacity accommodates oversized workpieces.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P) 1226643 is built for fabricators and industrial manufacturers who require precision, versatility, and dependable production performance. Combining a powerful 2 HP motor, hydraulic feed system, variable blade speeds, and a heavy-duty tilt-frame design, this bandsaw delivers accurate, repeatable cuts while standing up to the demands of continuous industrial operation.
