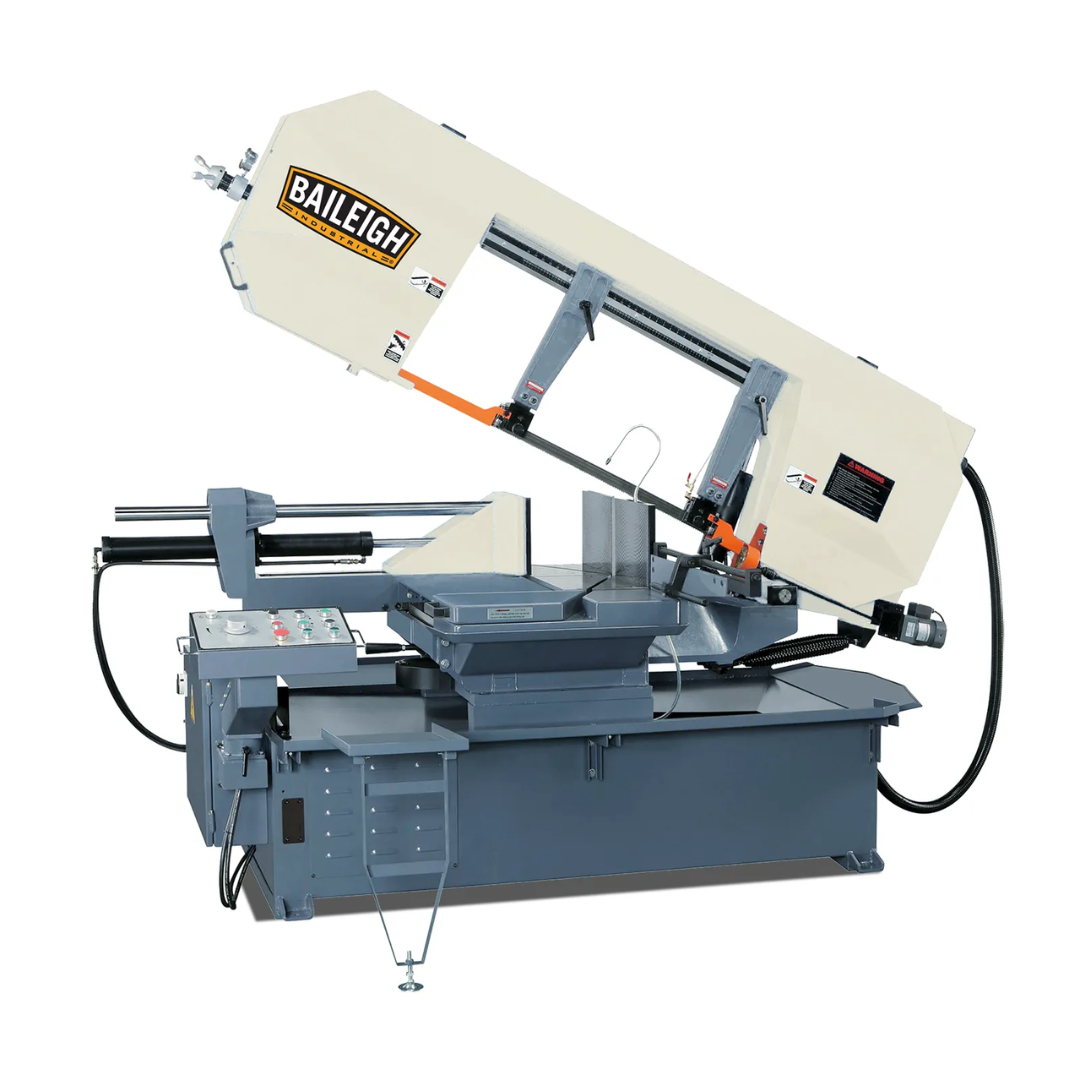

Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM) Applications
- Structural steel fabrication facilities.
- Industrial machine shops and manufacturing plants.
- Metal fabrication and production workshops.
- Steel warehouses and service centers.
- Pipe, tubing, channel, angle iron, and beam cutting.
- High-volume production requiring repeatable angled cuts.
- Precision cutting of heavy-duty ferrous materials and structural profiles.
Ideal for shops that require large cutting capacity, semi-automatic operation, and versatile dual-angle mitering for increased production efficiency.
Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM) Specifications
| Model | BS-24SA-DM |
|---|---|
| Product Number | 1001389 |
| Motor | 5 HP Industrial Motor |
| Power Requirement | 220V Three Phase |
| Round Cutting Capacity (90°) | 18 in. |
| Rectangular Cutting Capacity (90°) | Approximately 15 in. × 24 in. |
| Notch Capacity | 18 in. OD |
| Blade Width | 1.5 in. |
| Blade Speed | 106–317 SFPM Variable Speed |
| Blade Guide | Carbide x Roller Guides |
| Miter Angle Range | 60° Right / 60° Left |
| Miter Adjustment | Dual Miter Swivel Head |
| Operation | Semi-Automatic Hydraulic |
| Descent Control | Pressure Assist Hydraulic |
| Return | Hydraulic Head Return |
| Net Weight | 3,550 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325397307 |
Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM) Performance & Construction
- Powerful 5 HP industrial motor provides the torque required for continuous cutting of structural steel, tubing, pipe, and heavy metal stock.
- Semi-automatic hydraulic operation automates the clamping, blade feed, and hydraulic head return, improving productivity while reducing repetitive operator effort.
- Dual-miter swivel head pivots up to 60° left and 60° right, allowing accurate angle cuts without moving long or heavy workpieces.
- Variable blade speed from 106 to 317 SFPM enables operators to optimize cutting speed for a wide range of materials, improving blade life and cut quality.
- Pressure-assisted hydraulic descent control delivers smooth, controlled cutting pressure for greater accuracy and improved surface finish.
- Heavy-duty cast-iron bow provides superior rigidity while minimizing vibration during demanding production cutting.
- Fully welded steel frame maintains alignment and long-term structural integrity under continuous industrial workloads.
- Carbide roller blade guides improve blade stability, extend blade life, and help produce straighter, more consistent cuts.
- 1.5-inch blade capacity offers increased cutting stability and performance when processing large cross-sections and structural materials.
- Large cutting envelope accommodates round material up to 18 inches in diameter and rectangular stock approximately 15 × 24 inches.
Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM) Features & Benefits
- Industrial-grade 5 HP motor for demanding fabrication environments.
- 220V three-phase electrical configuration for commercial production facilities.
- Semi-automatic hydraulic operation increases productivity while reducing operator fatigue.
- Dual-miter swivel head provides 60° left and right cutting flexibility.
- Variable blade speed for optimizing different metals and material thicknesses.
- Pressure-assisted hydraulic feed improves cutting consistency and blade life.
- Cast-iron bow and welded steel base deliver excellent rigidity and precision.
- Carbide roller blade guides ensure smooth blade tracking and longer service life.
- 1.5-inch blade capacity supports efficient cutting of large structural materials.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM)
- Large-capacity industrial bandsaw designed for continuous production.
- Dual-miter head eliminates unnecessary material repositioning.
- Semi-automatic hydraulic controls improve workflow efficiency.
- Heavy-duty construction provides dependable accuracy and long machine life.
- Variable cutting speeds optimize blade performance across numerous metals.
- Excellent solution for fabrication shops requiring productivity, precision, and versatility.
The Baileigh 18-Inch Semi-Auto Dual-Miter Horizontal Bandsaw (BS-24SA-DM) combines industrial-grade power, heavy-duty construction, and versatile dual-miter capability into one highly productive cutting solution. With its 5 HP motor, hydraulic semi-automatic operation, 60° left/right swivel head, and large cutting capacity, it delivers the precision, durability, and efficiency required by today's professional metal fabrication and manufacturing environments.
