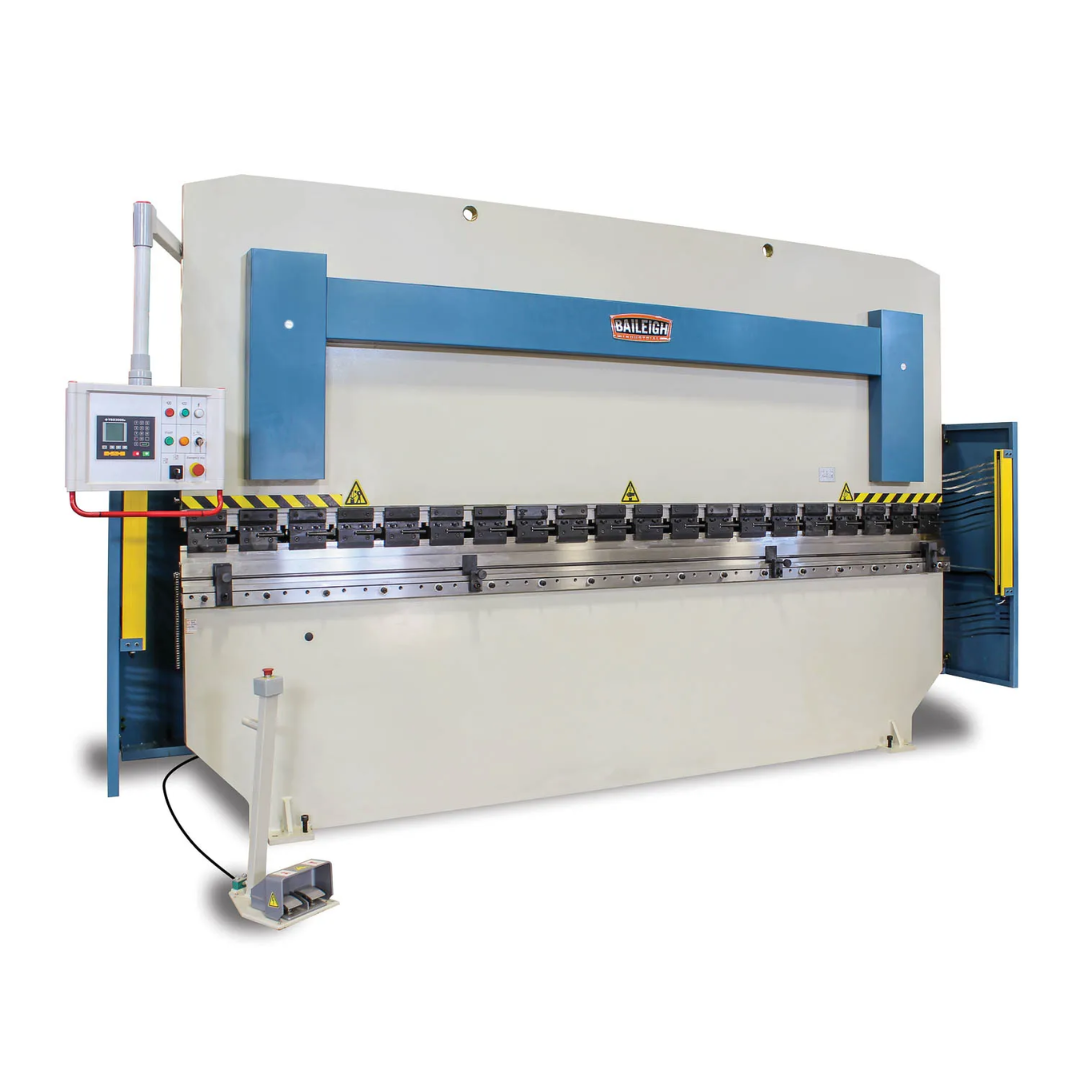

Baileigh 179-Ton Hydraulic Press Brake, 13' Bed Length (BP-17913CNC) 1000789 Applications
- Heavy sheet metal fabrication and manufacturing
- Architectural metal panel production
- Agricultural and construction equipment fabrication
- HVAC duct and large enclosure manufacturing
- Industrial cabinet and control panel fabrication
- Structural steel and formed metal component production
- Transportation and trailer manufacturing
- Production bending operations requiring repeatability
- Custom fabrication and prototype development
Designed for fabricators who need substantial bending capacity, CNC-controlled precision, and reliable performance when forming large sheet metal components.
Baileigh 179-Ton Hydraulic Press Brake, 13' Bed Length (BP-17913CNC) 1000789 Specifications
| Model Number | BP-17913CNC |
|---|---|
| Product Number | 1000789 |
| Bending Capacity | 179 Tons |
| Bending Length | 157" (13') |
| Input Power | 220V, Three Phase |
| Controller | Estun E21 2-Axis CNC Control |
| Program Storage Capacity | 40 Programs |
| Back Gauge Length | 23.62" |
| Back Gauge Motor | 1/2 HP |
| Approach Speed | 2.0 in./sec. |
| Bending Speed | 0.236 in./sec. |
| Stroke Length | 7" |
| Distance Between Housings | 100" / 123" |
| Distance from Table to Ram | 17.7" |
| Throat Depth | 12.5" |
| Maximum Bend Angle | 135° |
| Hydraulic Components | Nachi & Vickers/Eaton Industrial Hydraulics |
| Frame Construction | Fully Welded Stress-Relieved Steel Frame |
| Included Tooling | Gooseneck Punch & Multi-V Bottom Die |
| Assembled Dimensions | 134" × 64" × 103" |
| Gross Weight | 24,000 lbs. |
| Net Weight | 24,000 lbs. |
| UPC | 731325394351 |
| Warranty | 1 Year Parts Warranty |
Baileigh 179-Ton Hydraulic Press Brake, 13' Bed Length (BP-17913CNC) 1000789 Performance & Construction
- 179 tons of hydraulic bending force provides the capacity required for heavy-duty industrial sheet metal forming and large-scale fabrication projects.
- 157-inch (13-foot) bending bed accommodates oversized panels, long workpieces, and production applications that exceed the capabilities of smaller press brakes.

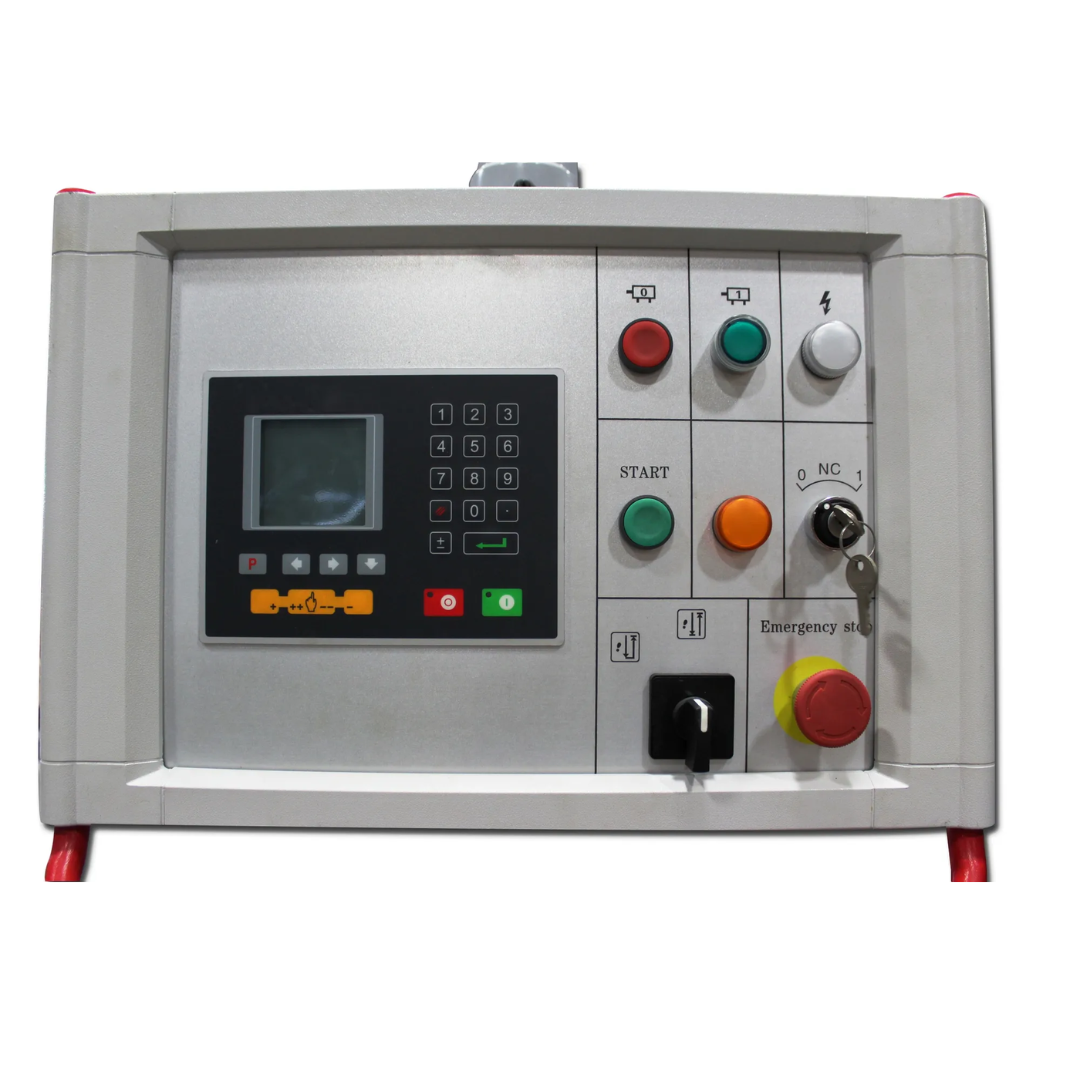

- Estun E21 2-axis CNC controller allows operators to create, store, and recall bending programs for improved efficiency and repeatable production.
- Storage capacity for up to 40 programs minimizes setup time and streamlines recurring jobs in fabrication and manufacturing environments.
- CNC-controlled back gauge system ensures accurate material positioning and consistent bend placement throughout production runs.
- Premium Nachi and Vickers/Eaton hydraulic components deliver smooth, balanced hydraulic performance with proven industrial reliability.
- 220V three-phase hydraulic drive system provides dependable power for continuous production and demanding bending operations.
- Fully welded stress-relieved steel frame minimizes deflection under load and maintains alignment for long-term bending accuracy.
- 12.5-inch throat depth provides increased flexibility for forming larger and more complex sheet metal components.
- 7-inch stroke length supports deep bending operations while maintaining consistent forming performance.
- 17.7-inch open height accommodates larger tooling configurations and oversized workpieces.

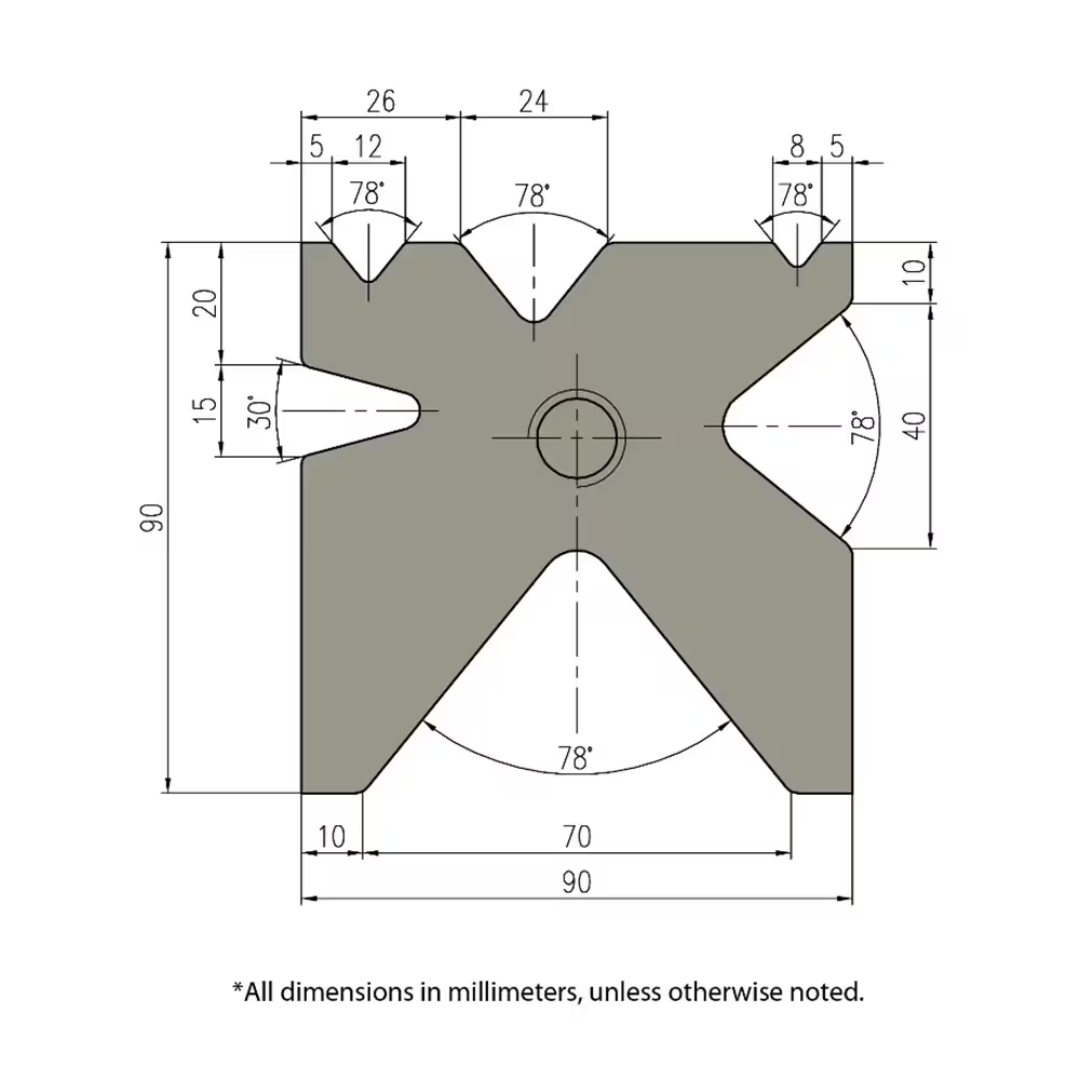

- Included gooseneck punch and multi-V die provide immediate versatility for a wide range of bending applications.
- Integrated safety systems including light curtains, machine guards, and emergency stop controls help enhance operator protection.
- Heavy-duty 24,000-pound construction contributes to machine stability, vibration reduction, and long-term structural integrity.
- Industrial-grade design supports continuous operation in fabrication shops, manufacturing facilities, and production environments.
- Lifetime technical support from Baileigh provides ongoing assistance and long-term ownership confidence.
Why Choose the Baileigh 179-Ton Hydraulic Press Brake, 13' Bed Length (BP-17913CNC) 1000789
- Massive 179-ton bending capacity handles demanding industrial applications.
- 157-inch bed length accommodates large panels and oversized components.
- Estun E21 CNC control stores up to 40 programs for repeatable production.
- Premium Nachi and Vickers/Eaton hydraulic components ensure dependable performance.
- CNC-controlled back gauge improves positioning accuracy and productivity.
- Heavy-duty stress-relieved frame maintains precision under high loads.
- Includes tooling, safety systems, warranty coverage, and lifetime technical support.
The Baileigh 179-Ton Hydraulic Press Brake, 13' Bed Length (BP-17913CNC) 1000789 delivers the power, precision, and durability required for large-scale sheet metal forming operations, combining advanced CNC control with industrial-grade hydraulic performance to maximize productivity and bending accuracy.
