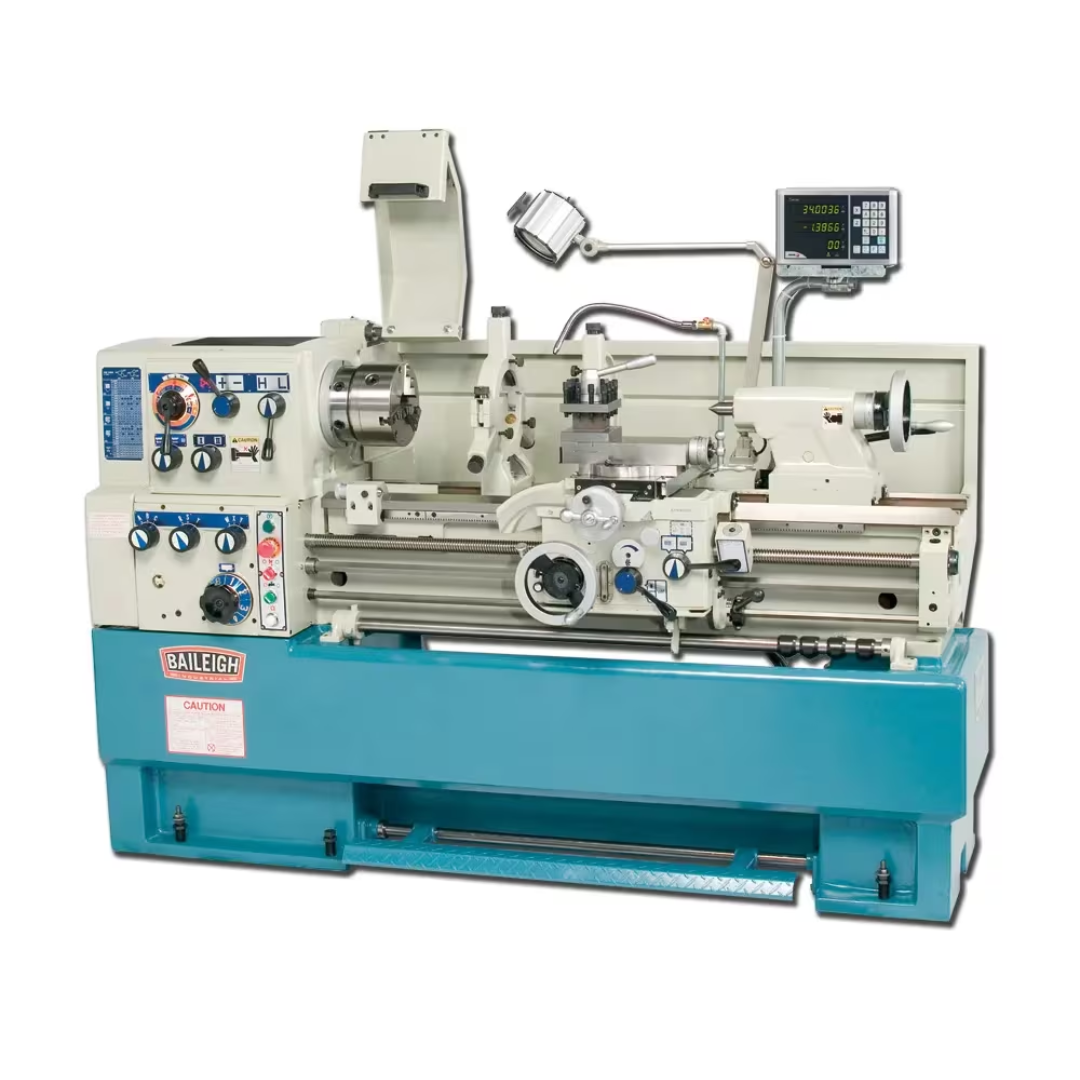

Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 Applications
- Precision turning of steel, stainless steel, aluminum, brass, and other machinable materials.
- Tool room machining and prototype manufacturing.
- Production turning and component fabrication.
- Maintenance, repair, and rebuild operations.
- Thread cutting for imperial, metric, diametral, and modular thread forms.
- Facing, contouring, taper turning, and shaft production.
- Machining long workpieces up to 40 inches between centers.
- Educational, industrial, and manufacturing environments requiring accurate machining performance.
The Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 is designed to provide industrial-grade machining accuracy, powerful cutting performance, and long-term reliability for demanding professional applications.
Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 Specifications
| Model Number | PL-1640 |
|---|---|
| Product Keyword | Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 |
| Swing Over Bed | 16" |
| Distance Between Centers | 40" |
| Motor Power | 7.5 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Spindle Speed Range | 30 – 2000 RPM |
| Digital Readout | Factory-Installed Mitutoyo DRO |
| Spindle Bore | 2.0625" |
| Spindle Taper | Morse #4 |
| Quill Taper | MT6 |
| Lead Screw Diameter | 1.25" |
| Lead Screw Pitch | 4 TPI |
| Cross Slide Travel | 9" |
| Compound Slide Travel | 4.75" |
| Compound Rest Width | 4.33" |
| Center Height | 7.086" |
| Bed Height | 12.20" |
| Cutting Tool Maximum Section | 0.625" x 0.625" |
| Longitudinal Feeds (Imperial) | 40 Selections / 0.0012" – 0.0252" per Revolution |
| Longitudinal Feeds (Metric) | 40 Selections / 0.032 – 0.640 mm per Revolution |
| Cross Feed Range | 40 Selections / 0.015 – 0.320 mm per Revolution |
| Imperial Thread Range | 40 Selections / 2 – 56 TPI |
| Metric Thread Range | 53 Selections / 0.4 – 14 mm Pitch |
| Diametral Pitch Thread Range | 32 Selections / 4 – 32 D.P. |
| Modular Thread Range | 44 Selections / 0.4 – 7 M.P. |
| Assembled Dimensions | 90" x 37" x 81" |
| Product Type | Machine |
| Net Weight | 3,720 lbs |
| Gross Weight | 3,720 lbs |
| UPC | 731325410495 |
| Warranty | 1 Year Parts Warranty |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 Performance & Construction
- Powerful 7.5 HP motor delivers the torque necessary for heavy cutting, turning, and threading operations.
- 220V three-phase electrical system supports industrial production environments and demanding workloads.
- Geared head spindle design provides smooth power delivery and consistent performance throughout the speed range.
- 30 to 2000 RPM spindle speeds accommodate everything from large-diameter roughing cuts to precision finishing operations.
- Heavy cast iron machine base minimizes vibration and maintains machining accuracy under load.
- Precision-ground and hardened ways ensure long-term wear resistance and repeatable cutting performance.
- 16-inch swing over bed allows machining of larger diameter components.
- 40-inch distance between centers supports longer shafts, rollers, and workpieces.
- 2.0625-inch spindle bore accommodates larger diameter stock and increases machine versatility.
- Industrial-grade construction is designed for continuous operation in professional machine shops and manufacturing facilities.
Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 Precision & Threading Capabilities
- Factory-installed Mitutoyo Digital Readout (DRO) enhances measurement accuracy and repeatability.
- Provides precise X-axis and Y-axis position tracking for improved machining efficiency.
- Supports imperial, metric, modular, and diametral pitch threading operations.
- Offers 40 longitudinal feed selections for optimized cutting performance.
- Wide feed range allows fine finishing cuts and aggressive material removal.
- MT6 quill taper and Morse #4 spindle taper provide compatibility with common tooling systems.
- Capable of precision turning, facing, contouring, threading, and taper machining operations.
- Engineered for high-accuracy production work and critical machining applications.
The factory-installed Mitutoyo DRO system significantly improves setup speed, dimensional accuracy, and repeatability, making the Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 an excellent choice for precision manufacturing environments.
Why Choose the Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140
- Heavy-duty cast iron construction ensures stability and long-term machining accuracy.
- Powerful 7.5 HP motor provides industrial-grade cutting performance.
- 16" swing and 40" between centers accommodate a wide range of workpiece sizes.
- Factory-installed Mitutoyo DRO enhances precision and productivity.
- Wide 30–2000 RPM speed range supports diverse machining operations.
- Large spindle bore improves versatility when working with bar stock.
- Comprehensive threading capabilities support imperial, metric, modular, and diametral thread production.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640) 1006140 combines industrial power, precision machining capability, advanced digital measurement technology, and rugged construction to deliver exceptional performance for machine shops, manufacturers, and maintenance professionals.
