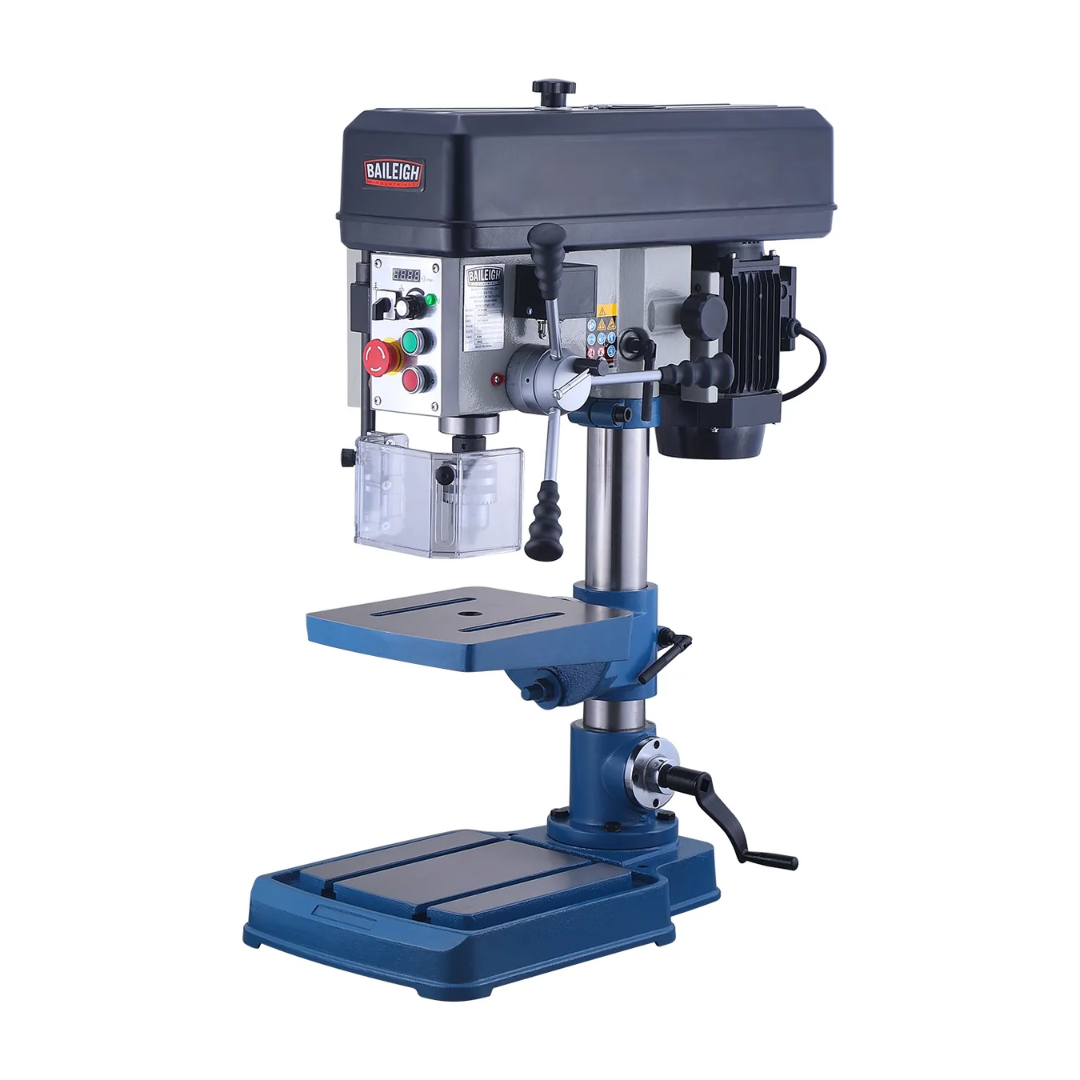

Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213 Applications
- Metal fabrication and welding shops performing precision drilling operations.
- Machine shops requiring accurate drilling and tapping capabilities.
- Maintenance and repair facilities servicing industrial equipment and components.
- Manufacturing operations producing fixtures, brackets, plates, and assemblies.
- Tool rooms requiring variable speed control for a variety of materials.
- Educational and technical training facilities teaching machining and fabrication processes.
- General-purpose drilling, tapping, countersinking, and hole-finishing applications.
The built-in auto-reversing tapping function allows operators to efficiently create threaded holes while improving productivity and reducing manual tapping effort.
Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213 Specifications
| Model Number | DP-4016B-VS |
|---|---|
| Product Name | Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213 |
| Swing Capacity | 16" |
| Motor Power | 0.75 HP (3/4 HP) |
| Input Power | 110V Single Phase |
| Variable Speed Range | 0 – 2100 RPM |
| Number of Speeds | Variable |
| Chuck Capacity | 0.03" – 0.625" (B16) |
| Spindle Taper | MT2 |
| Spindle Travel | 3.93" |
| Drilling Capacity (Mild Steel) | 0.75" |
| Tapping Capacity (Mild Steel) | 0.50" |
| Table Size | 11" x 10" |
| Table Material | Cast Iron |
| Table Tilt | 45° Left and Right |
| Headstock Movement | 360° Rotation |
| Working Load Capacity | 132 lbs |
| Net Weight | 270 lbs |
| Gross Weight | 270 lbs |
| Warranty | 1 Year |
| UPC | 19907766872 |
Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213 Performance & Construction
- Rigid Cast Iron Construction: Heavy-duty cast iron base and table resist flexing and vibration for improved drilling accuracy and long-term durability.

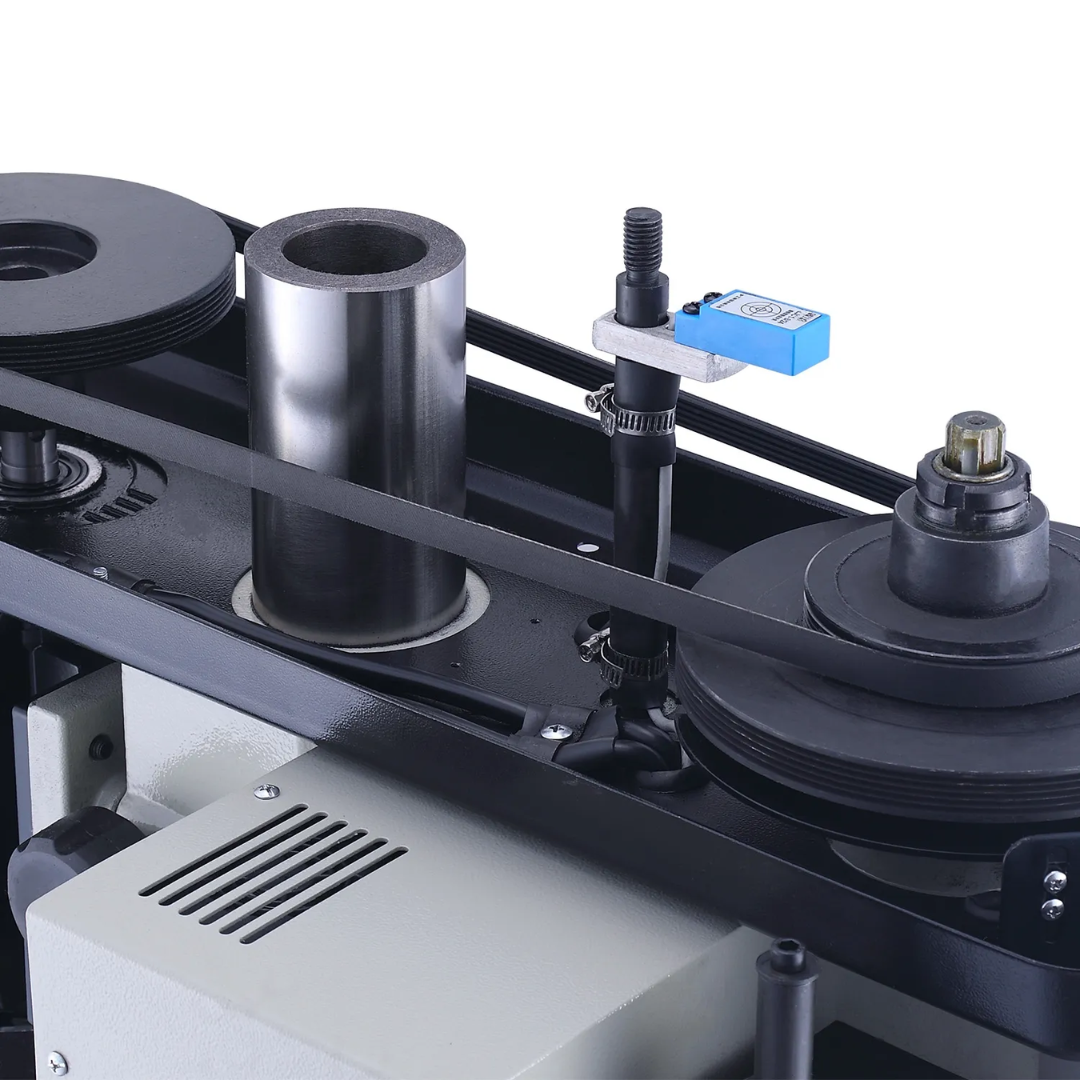

- Variable Speed Inverter Drive: Continuously adjustable spindle speeds from 0 to 2100 RPM allow precise speed selection without changing belts.
- 3/4 HP Motor: Delivers reliable power for drilling and tapping operations in steel, aluminum, and other common shop materials.
- 16" Swing Capacity: Accommodates larger workpieces while maintaining excellent control and precision.

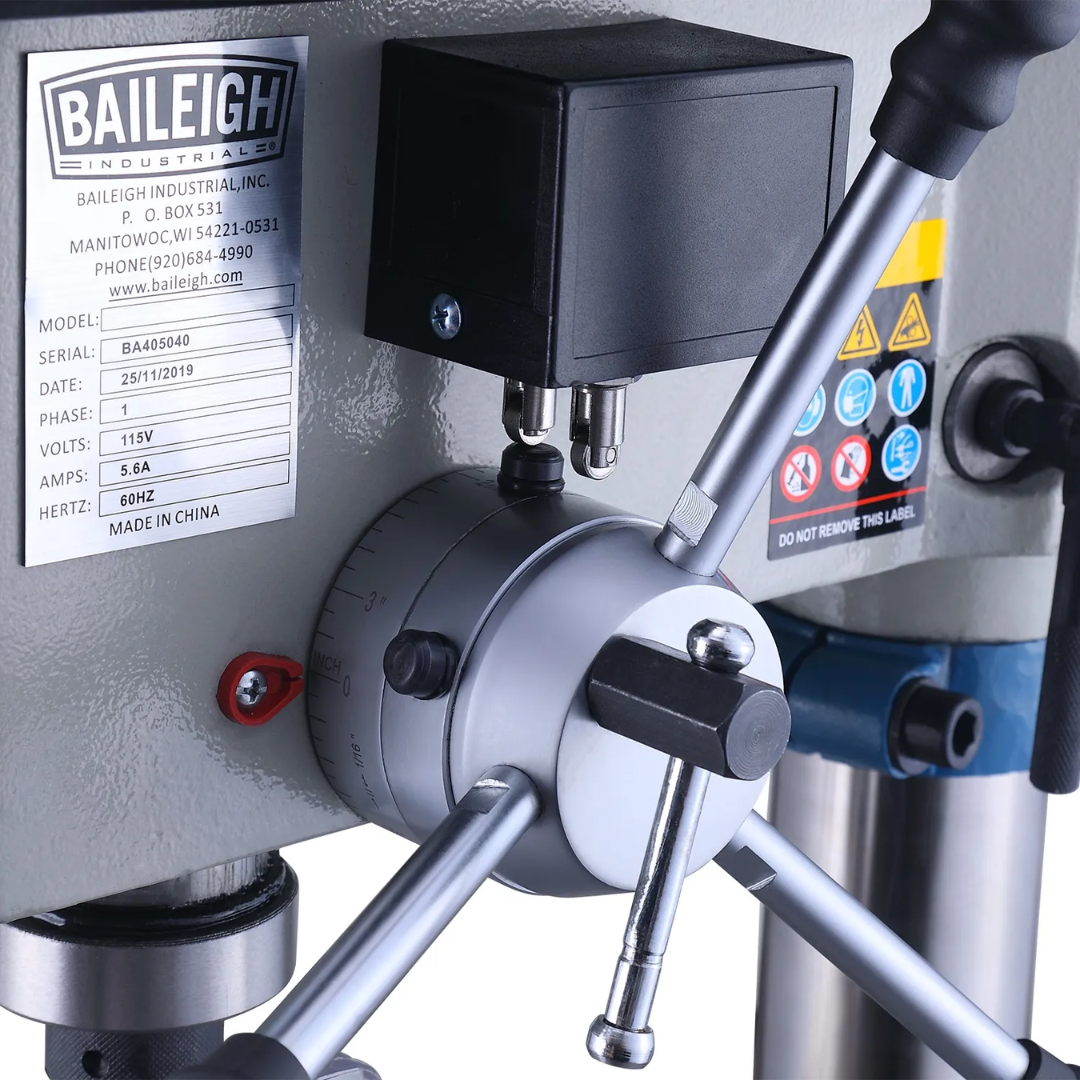

- Auto-Reversing Tapping Function: Simplifies threading operations and supports tapping up to 1/2" in mild steel.
- MT2 Spindle Taper: Provides compatibility with a wide range of industrial tooling and accessories.
- 3.93" Spindle Travel: Offers ample drilling depth for a variety of fabrication and machining applications.
- Wide 2-3/4" Steel Column: Helps minimize machine flex under load and improves overall drilling stability.

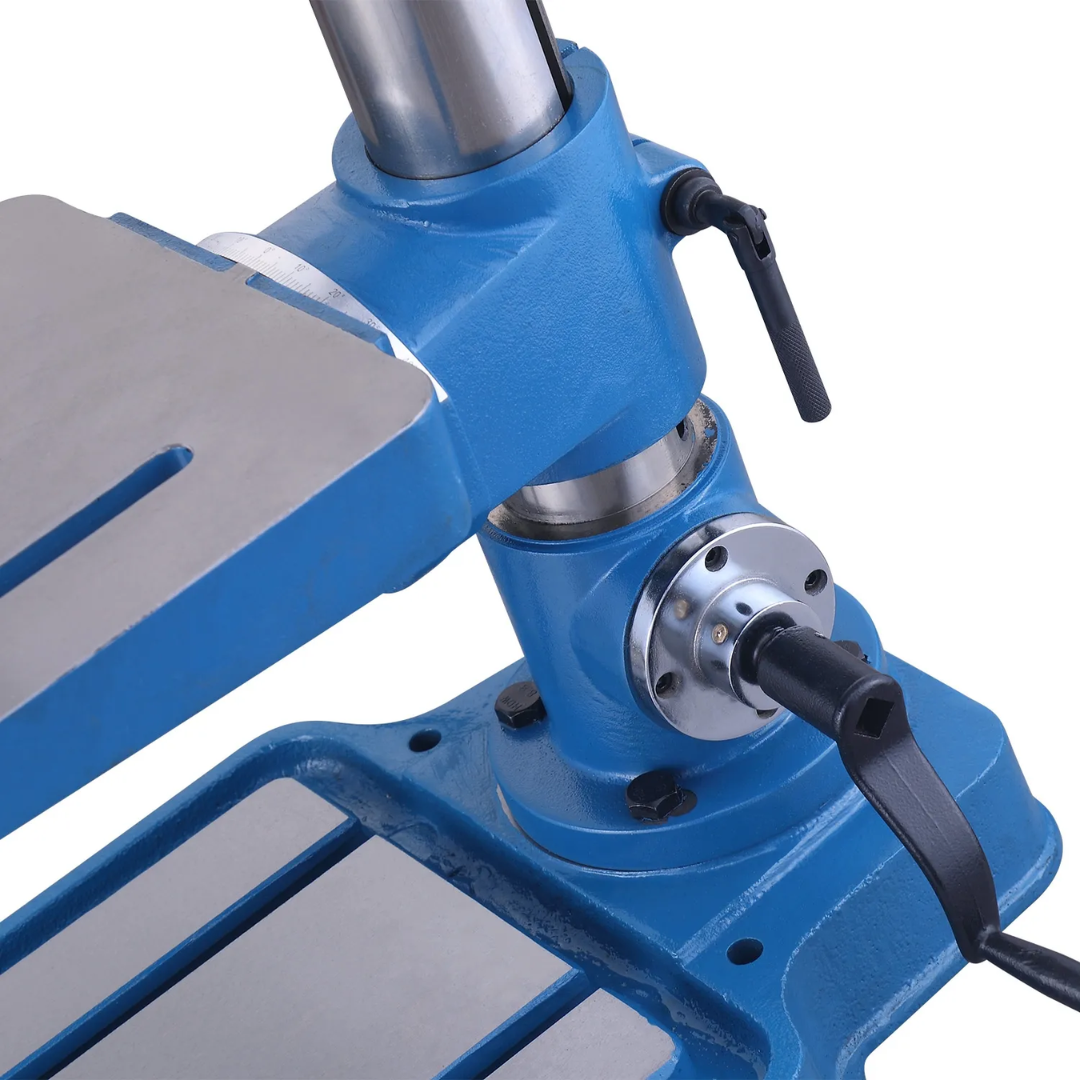

- Tilting Cast Iron Table: Adjusts up to 45° left and right for angled drilling and specialized fabrication tasks.
- 360° Headstock Movement: Enhances positioning flexibility for different workpiece configurations.
- Precision Chuck Capacity: Accepts drill bits ranging from 0.03" to 0.625" for versatile operation.
- Compact Bench Top Footprint: Maximizes drilling capability while conserving valuable floor space.
Why Choose the Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213
- Variable spindle speeds from 0 to 2100 RPM provide exceptional drilling flexibility.
- Integrated tapping function increases productivity and expands machine capability.
- Heavy-duty cast iron construction improves accuracy and long-term durability.
- 16" swing capacity accommodates larger workpieces than many standard bench drill presses.
- MT2 spindle taper supports a broad selection of professional tooling.
- Tilting table allows accurate angled drilling up to 45° in either direction.
- Operates on standard 110V power for easy shop integration.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 16" Variable Speed Bench Top Drill Press DP-4016B-VS 1228213 combines industrial-grade construction, precision variable-speed performance, and integrated tapping capability into a compact benchtop machine, making it an excellent solution for fabrication, machining, maintenance, and production drilling applications.
