Baileigh 16-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1000VS) 1002862 Applications
- Precision drilling in mild steel, cast iron, aluminum, and other metals.
- Machine shop production and repair work.
- Fabrication and metalworking operations.
- Tapping and thread creation in industrial components.
- Maintenance and manufacturing facilities.
- Prototype development and custom fabrication projects.
- Toolroom and maintenance department operations.
- General-purpose industrial drilling applications.
The inverter-driven variable speed system allows operators to precisely match spindle speed to tooling and material requirements for optimal performance and improved tool life.
Baileigh 16-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1000VS) 1002862 Specifications
| Model | DP-1000VS |
|---|---|
| Product Type | Variable-Speed Drill Press |
| Swing Capacity | 16 in. |
| Drilling Capacity (Mild Steel) | 1 in. |
| Drilling Capacity (Cast Iron) | 1.25 in. |
| Tapping Capacity (Mild Steel) | 0.625 in. |
| Motor Power | 2 HP |

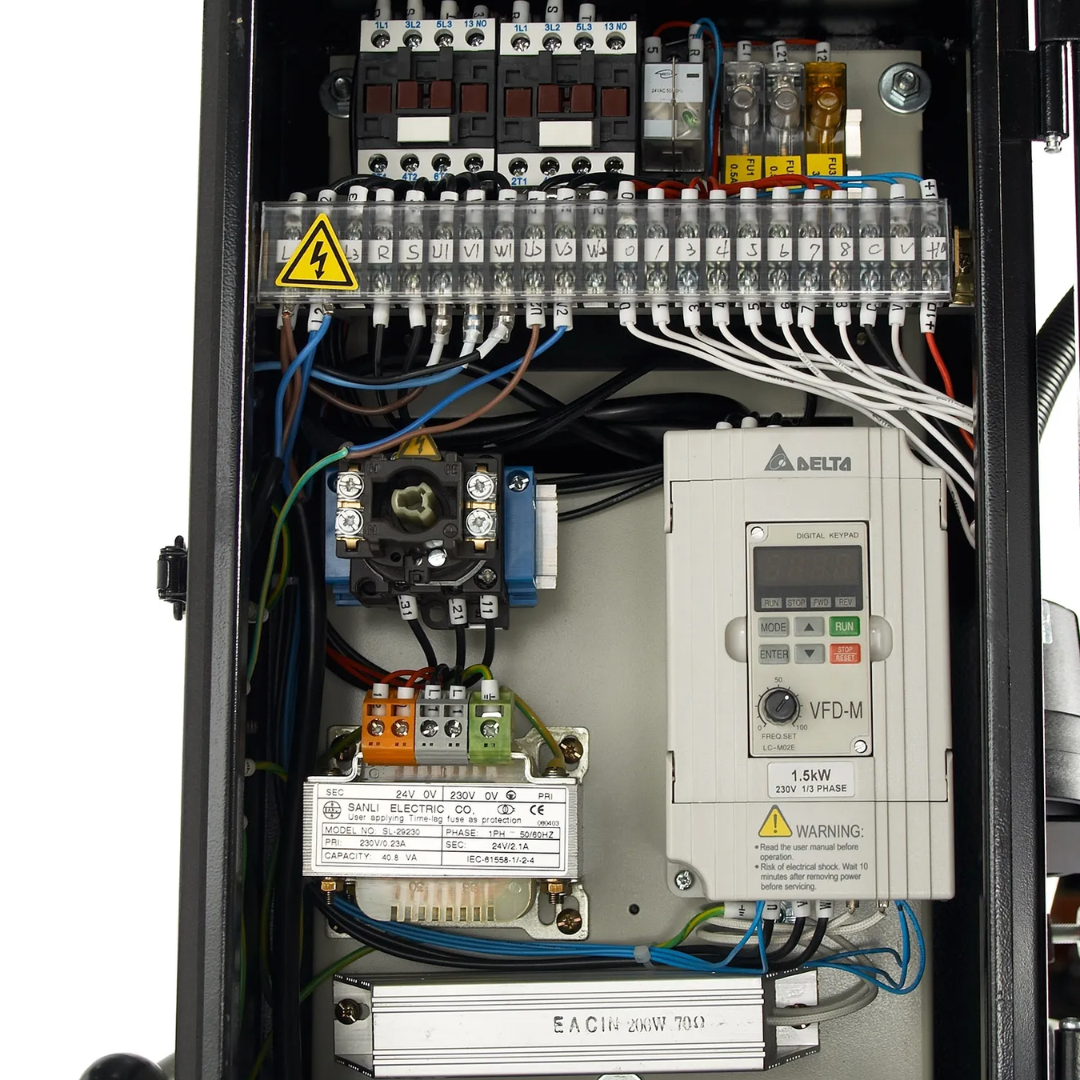

| Motor Type | Inverter Driven |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Spindle Speed Range | 150 – 3,000 RPM |
| Spindle Taper | MT3 |
| Base Construction | Rigid Cast Iron |
| Column Construction | Wide Steel Column |
| Coolant System | Integrated |
| Work Light | Halogen Gooseneck Light |
| Tapping Function | Auto-Reversing |
| Net Weight | 542 lbs. |
| Gross Weight | 542 lbs. |
| Warranty | 1 Year |
| UPC | 731325404272 |
Baileigh 16-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1000VS) 1002862 Features & Performance
- 2 HP Inverter-Driven Motor delivers consistent power output and precise speed control for demanding drilling and tapping applications.

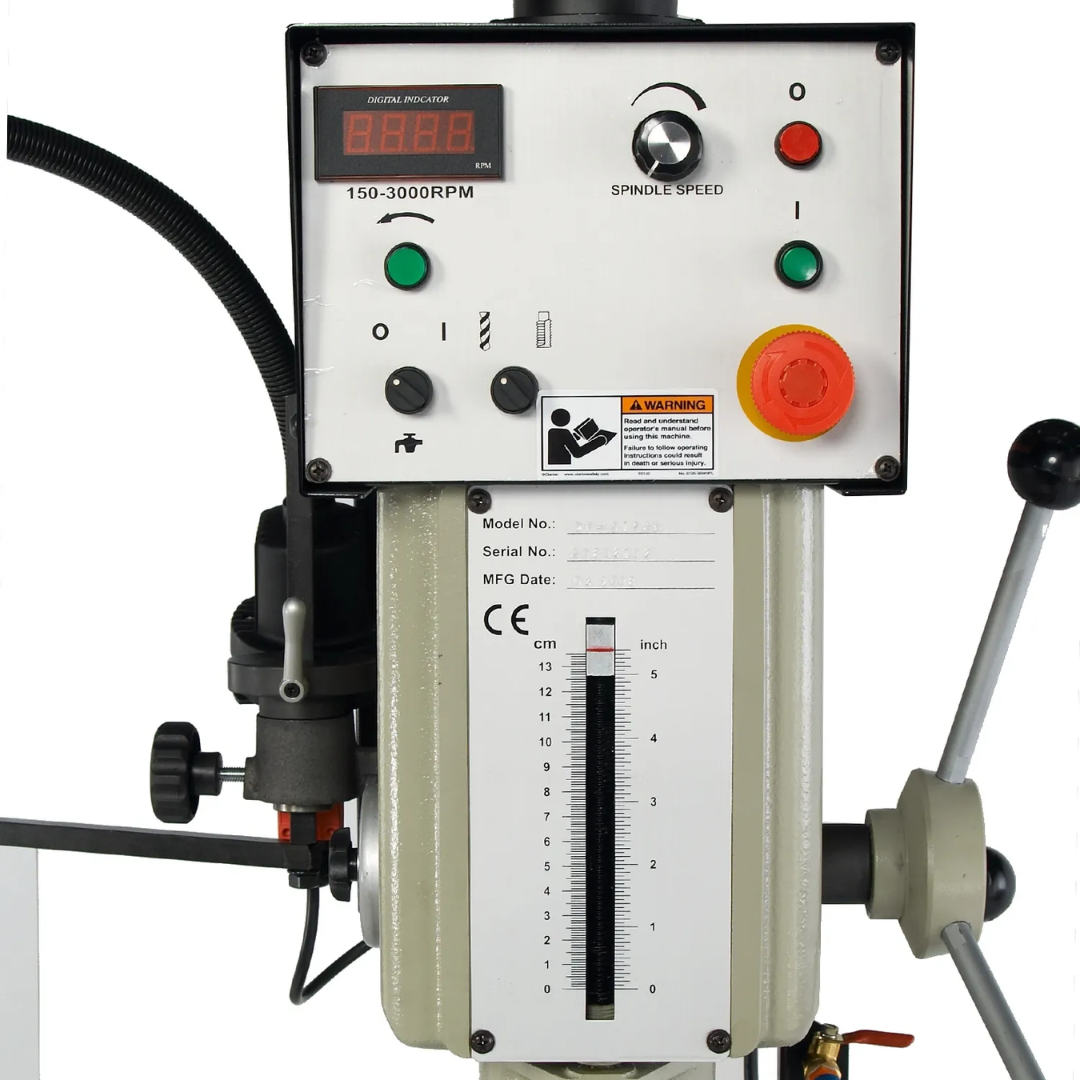

- Variable Speed Range from 150 to 3,000 RPM allows operators to optimize spindle speed for different materials, drill sizes, and tapping operations.
- 1" Mild Steel Drilling Capacity provides the capability to handle larger industrial drilling jobs with confidence and accuracy.
- 16" Swing Capacity accommodates larger workpieces while expanding application flexibility in fabrication and machining environments.
- MT3 Spindle Taper provides secure tooling retention and compatibility with common industrial drill press tooling.
- Auto-Reversing Tapping Function increases productivity by simplifying tapping operations and reducing operator workload.

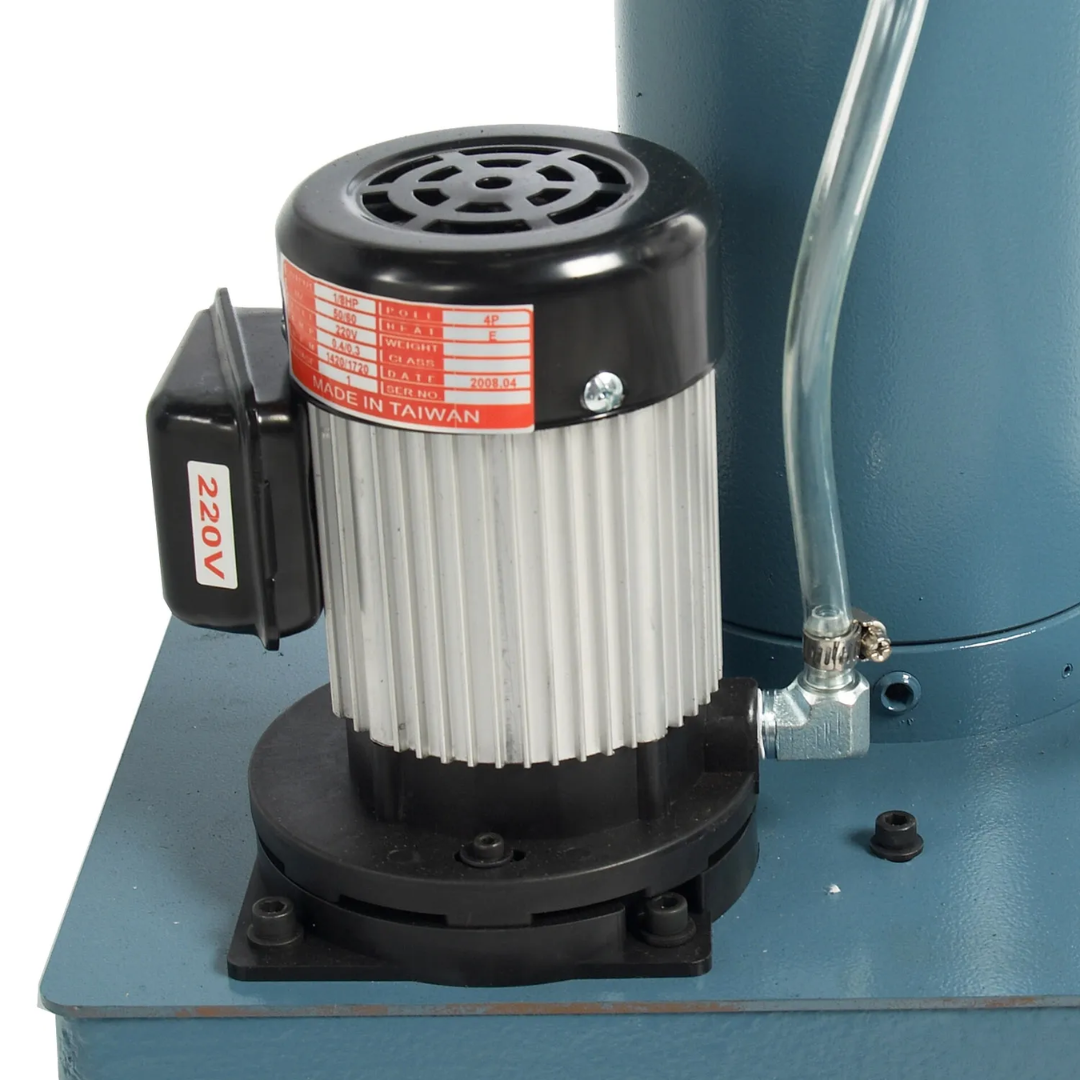

- Integrated Coolant System helps extend tool life, improve surface finish quality, and maintain cutting efficiency during extended operation.

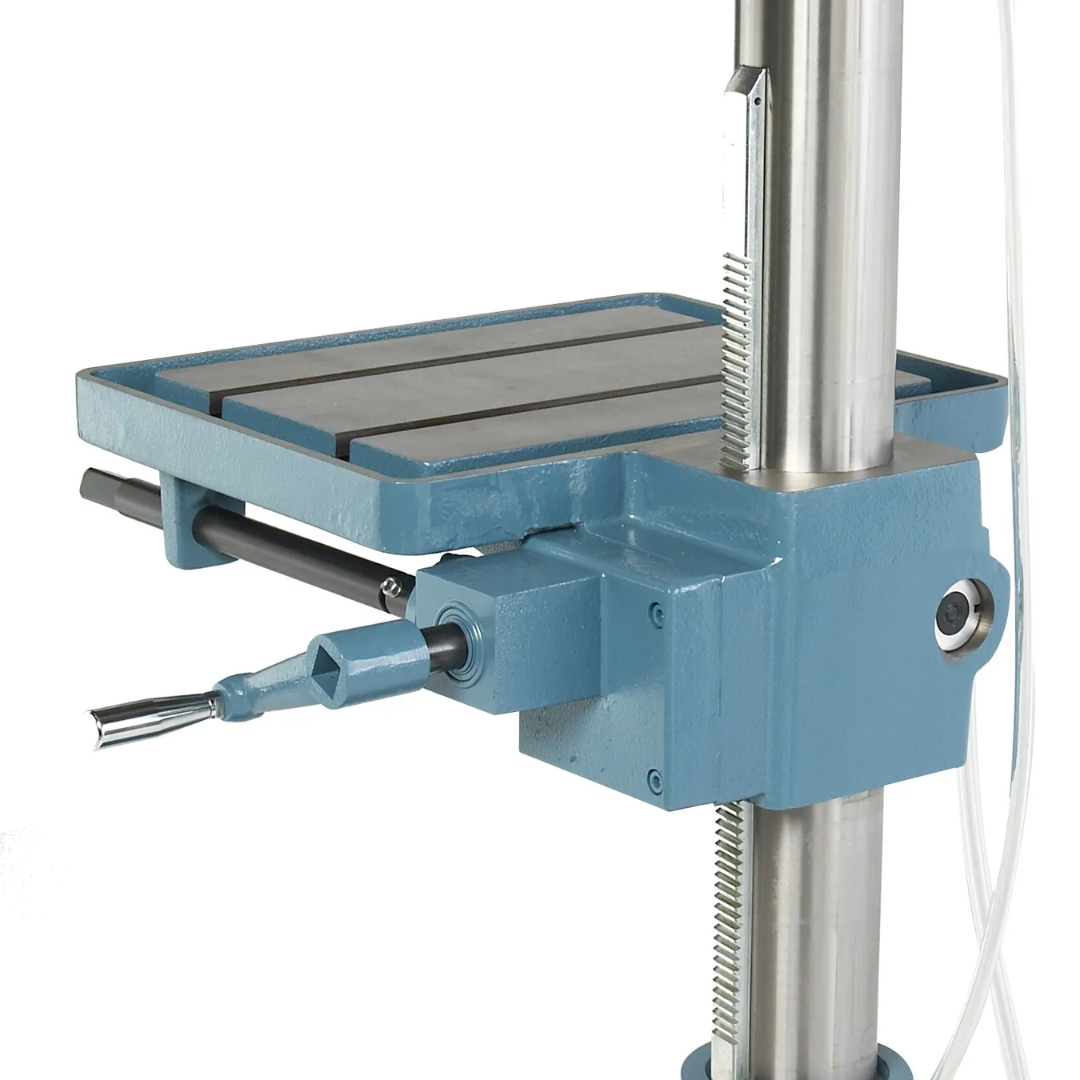

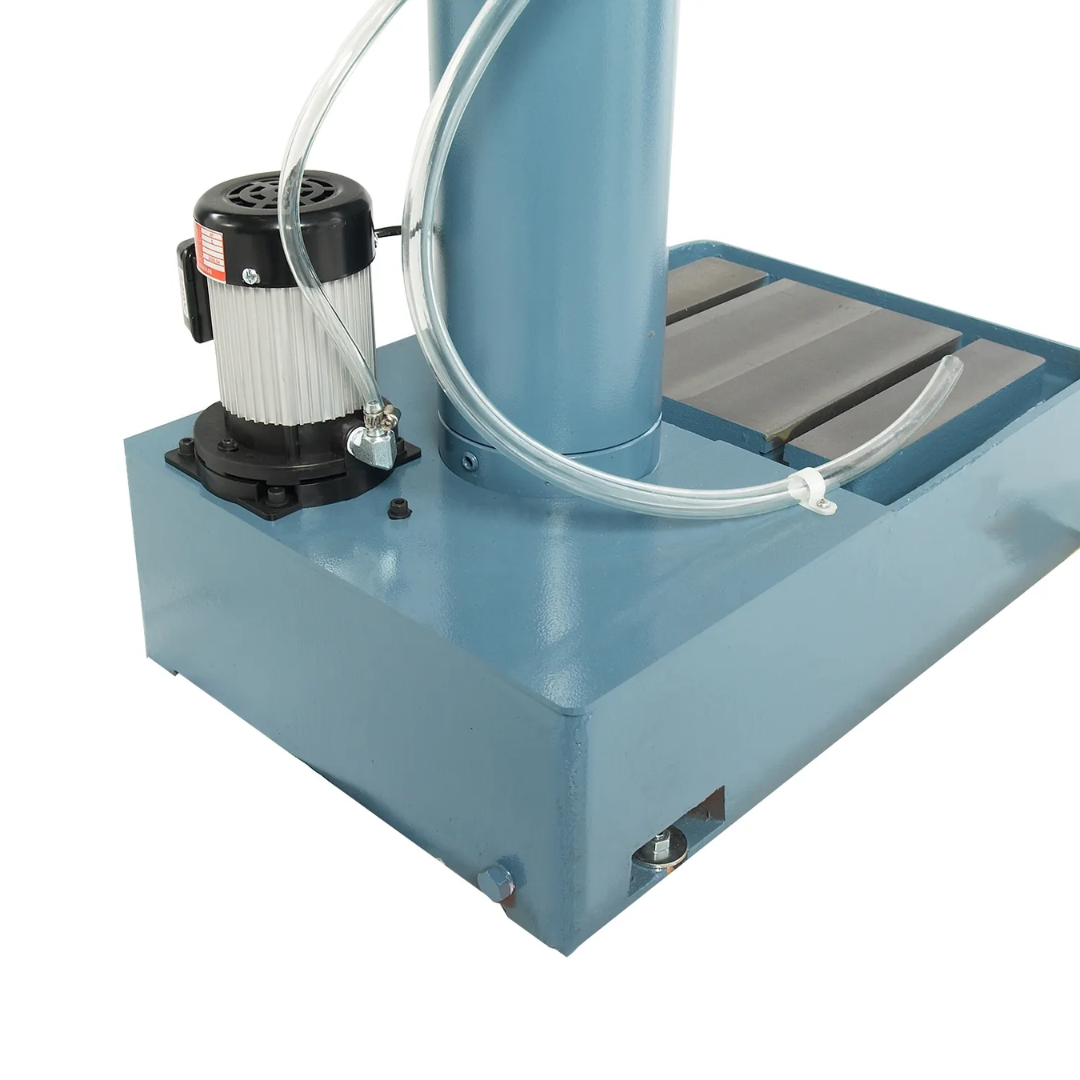

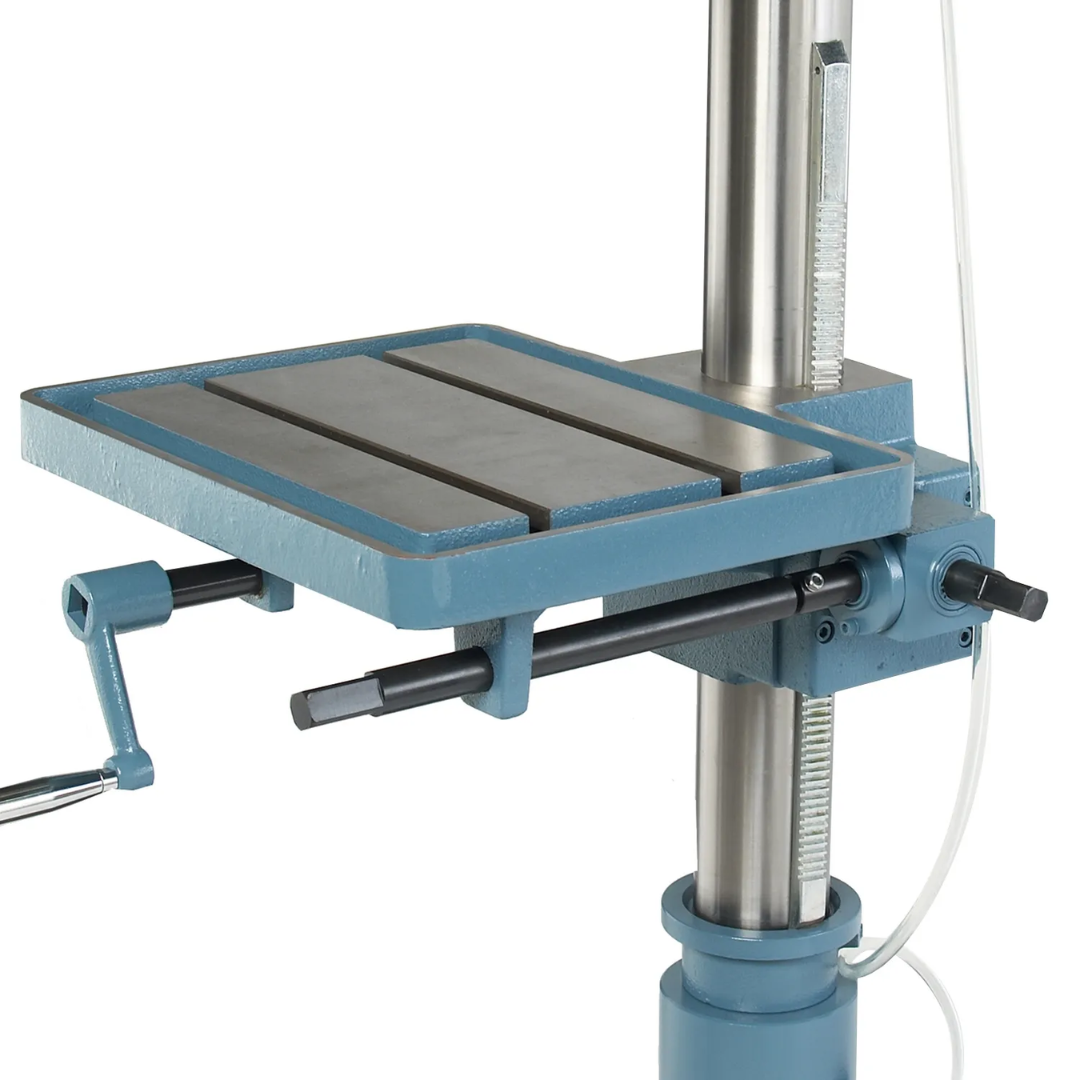

- Rigid Cast Iron Base and Table resist vibration and flexing while maintaining drilling accuracy under load.
- Wide Steel Column Construction enhances machine rigidity and contributes to long-term precision.

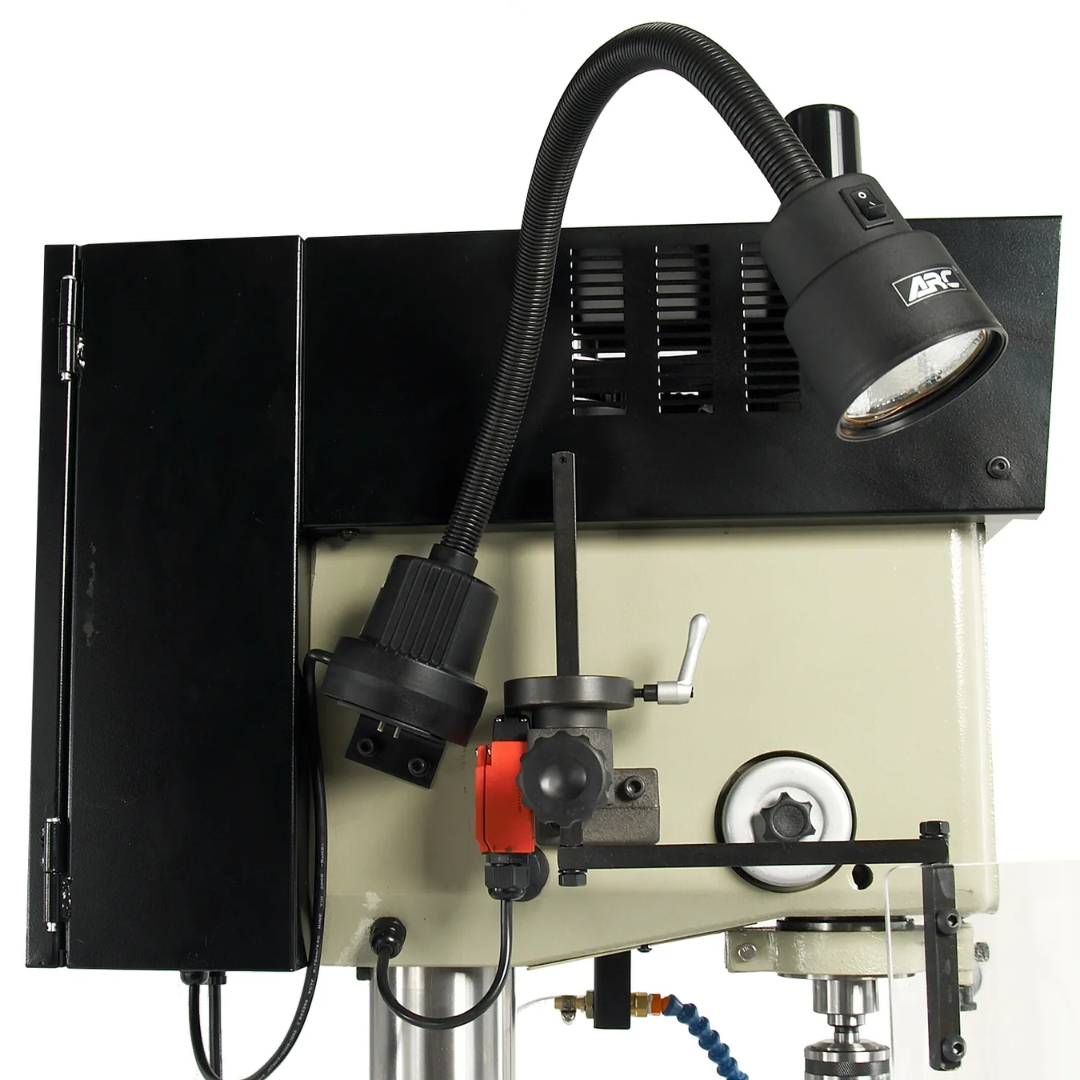

- Halogen Gooseneck Work Light improves visibility at the drilling location for greater accuracy and safer operation.
- 220V Single-Phase Power allows installation in many industrial and commercial workshops without requiring three-phase service.
- Heavy-Duty 542 lb. Construction provides stability and dependable performance in demanding production environments.
- Precision Drilling and Tapping Capability supports fabrication, repair, maintenance, and manufacturing operations.
- Baileigh Warranty & Technical Support includes a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh 16-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1000VS) 1002862
- Powerful 2 HP inverter-driven motor for industrial drilling performance.
- Wide 150–3,000 RPM speed range for maximum versatility.
- 1" mild steel drilling capacity and tapping capability in one machine.
- Rigid cast iron construction enhances accuracy and durability.
- Integrated coolant system improves tool life and machining results.
- Auto-reversing tapping function increases shop productivity.
- 16" swing accommodates larger workpieces and fabrication projects.
- Ideal for machine shops, fabrication facilities, maintenance departments, and industrial manufacturing operations.
The Baileigh 16-Inch Variable-Speed Drill Press, 220V 1Ph (DP-1000VS) 1002862 combines industrial-grade construction, inverter-driven speed control, and advanced drilling and tapping functionality into a versatile precision machining solution. Designed for demanding shop environments, it delivers the power, accuracy, and reliability professionals need for everyday production work.
