Baileigh 16" Bench Top Drill Press DP-4016B 1228212 Applications
- General fabrication and metalworking operations.
- Precision drilling in mild steel, aluminum, brass, and stainless steel.
- Woodworking and composite material drilling.
- Maintenance and repair shop applications.
- Prototype development and custom fabrication projects.
- Educational and vocational training environments.
- Angled drilling operations using the tilting worktable.
- Light production and repetitive drilling applications.

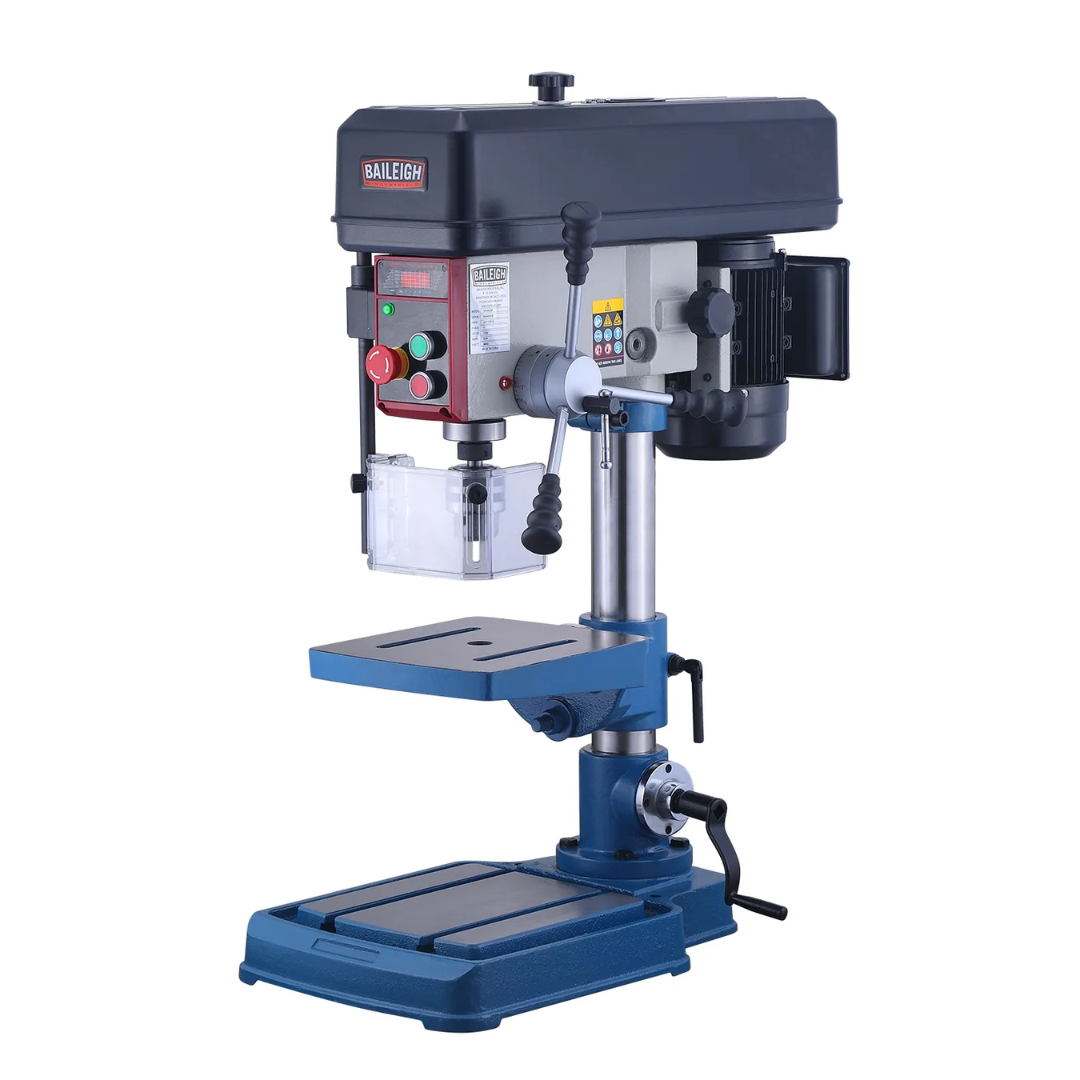

The Baileigh 16" Bench Top Drill Press DP-4016B 1228212 combines compact bench-top convenience with industrial-grade construction, making it an excellent choice for workshops that require accurate drilling without sacrificing valuable floor space.
Baileigh 16" Bench Top Drill Press DP-4016B 1228212 Specifications
| Model Number | DP-4016B |
|---|---|
| Product Keyword | Baileigh 16" Bench Top Drill Press DP-4016B 1228212 |
| Machine Type | Bench Top Drill Press |
| Input Power | 110V Single Phase |
| Motor Power | 0.75 HP (3/4 HP) |
| Swing Capacity | 16.14" |
| Number of Spindle Speeds | 5 |
| Speed Range | 250 – 2900 RPM |
| Spindle Travel | 3.93" |
| Drilling Capacity (Mild Steel) | 0.75" |
| Tapping Capacity (Mild Steel) | 0.50" |
| Spindle Taper | MT2 |
| Chuck Capacity | 0.03" – 0.625" (B16) |
| Worktable Size | 11" x 10" |
| Table Material | Cast Iron |
| Headstock Movement | 360° Rotation |
| Working Load Limit | 132 lbs |
| Product Type | Machine |
| Net Weight | 260 lbs |
| Gross Weight | 260 lbs |
| UPC | 19907766520 |
| Warranty | 1 Year Parts Warranty |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 16" Bench Top Drill Press DP-4016B 1228212 Performance & Construction
- 16-inch swing capacity allows drilling of larger workpieces while maintaining excellent control and accuracy.
- Powerful 3/4 HP motor provides dependable drilling performance for a wide variety of materials.
- 110V single-phase operation enables installation in most workshops without special electrical requirements.

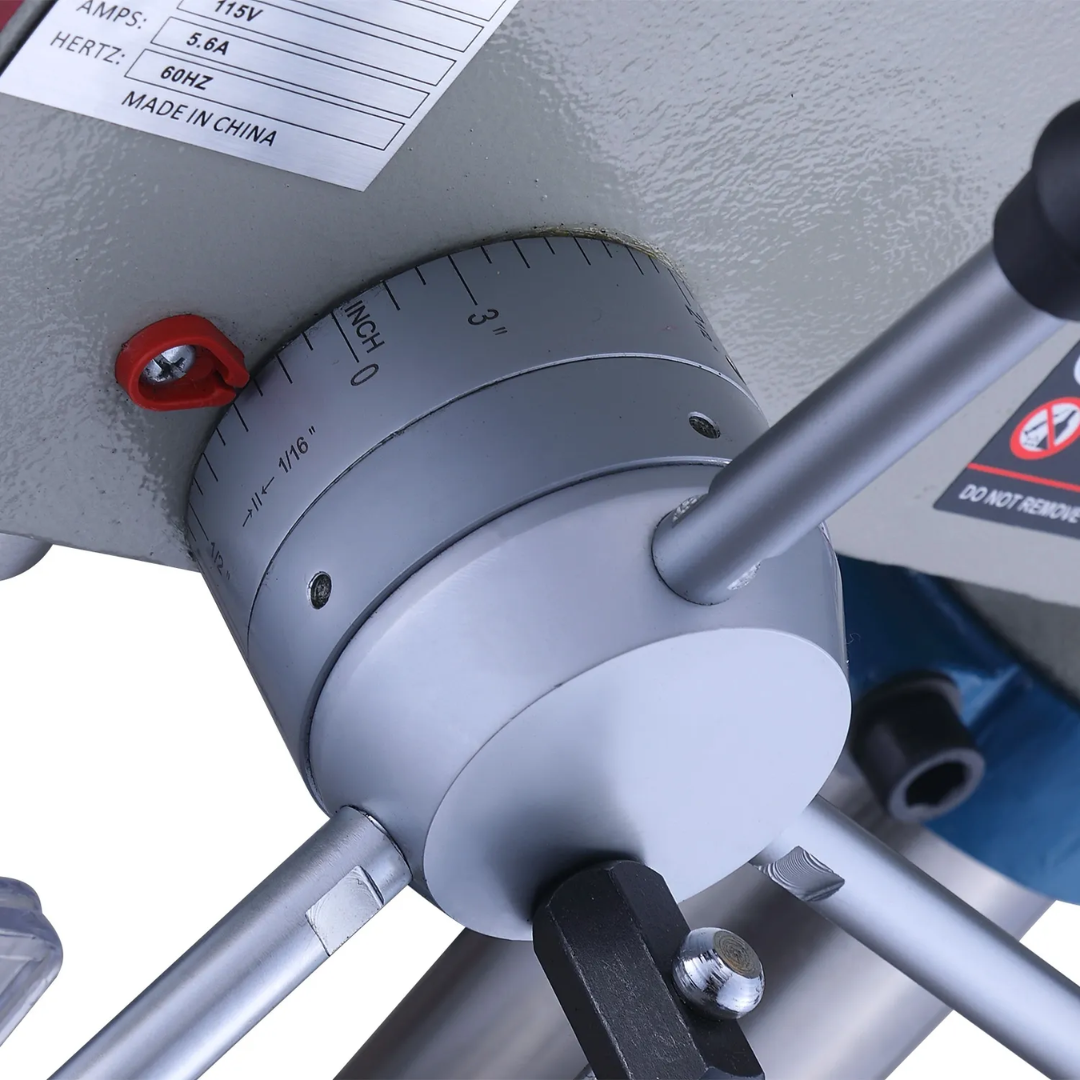

- Five selectable spindle speeds allow operators to match cutting speeds to specific materials and drill sizes.
- 250 to 2900 RPM speed range provides versatility for both slow-speed metal drilling and higher-speed applications.
- Belt-driven head design delivers smooth power transmission, consistent torque, and simple speed adjustments.
- Rigid cast iron head, base, and table help reduce vibration and improve drilling accuracy.
- 2-3/4-inch steel column minimizes flex under load for enhanced stability and precision.
- 3.93-inch spindle travel accommodates deeper drilling operations and larger workpieces.
- MT2 spindle taper provides compatibility with a wide range of industrial tooling and accessories.
Baileigh 16" Bench Top Drill Press DP-4016B 1228212 Versatility & Safety Features

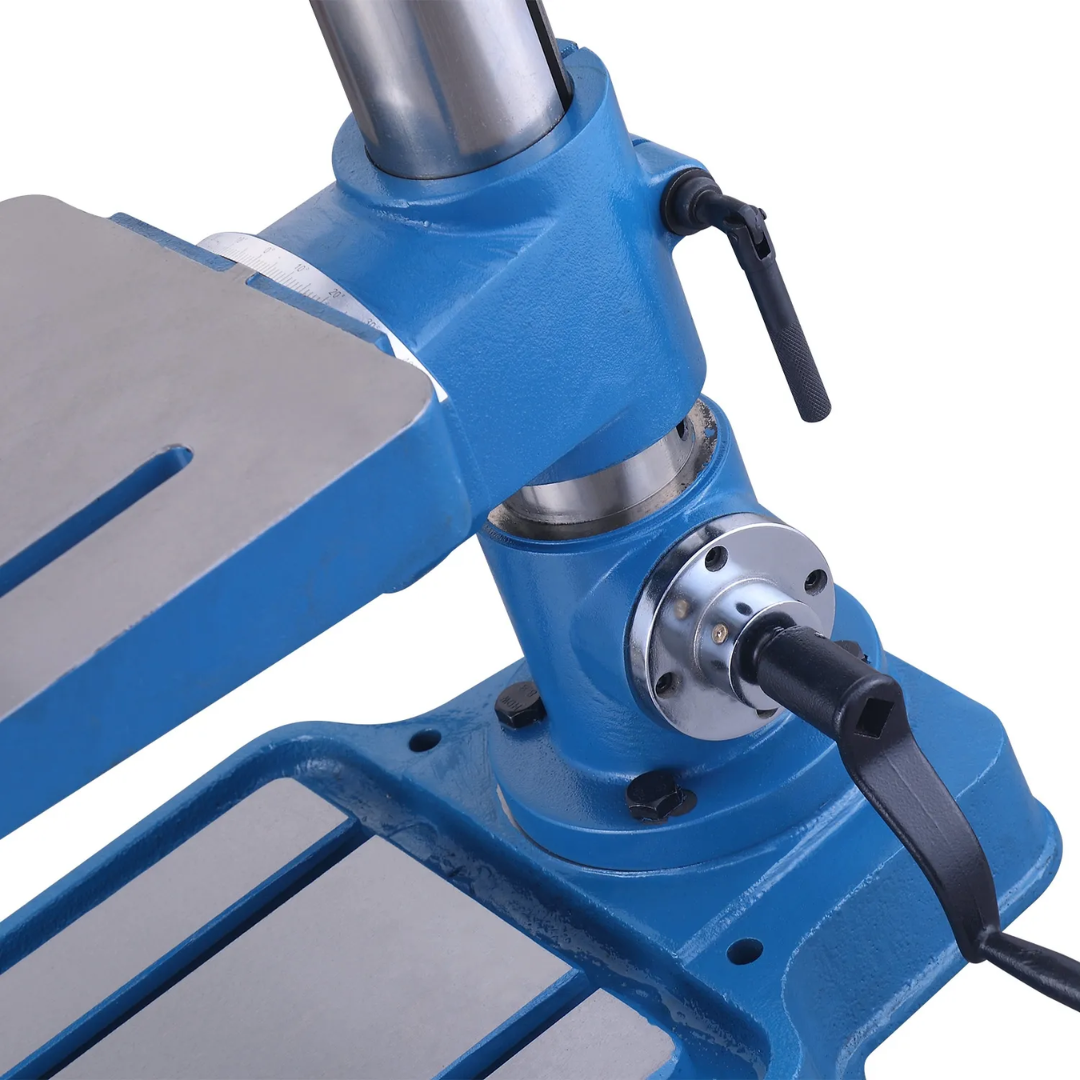

- Large 11" x 10" cast iron worktable supports a wide variety of workpiece sizes.
- Tilting table design enables accurate angled and compound drilling operations.
- Capable of drilling up to 3/4" diameter holes in mild steel.
- Tapping capacity up to 1/2" in mild steel expands machine versatility.
- 360-degree headstock movement allows flexible machine positioning and setup options.
- Protective drill head safety shield helps improve operator protection during operation.
- Heavy-duty construction supports workpieces up to 132 lbs.
- Suitable for metalworking, woodworking, plastics, composites, and general workshop applications.
Designed for professional and advanced workshop environments, the Baileigh 16" Bench Top Drill Press DP-4016B 1228212 delivers precision drilling capabilities while maintaining a compact footprint and user-friendly operation.
Why Choose the Baileigh 16" Bench Top Drill Press DP-4016B 1228212
- Industrial-grade cast iron construction for long-term durability.
- 16-inch swing capacity accommodates larger projects.
- Five-speed belt-driven system provides versatile drilling performance.
- 110V operation offers easy installation in most shops.
- Tilting cast iron worktable expands drilling capabilities.
- Capable of drilling up to 3/4" holes in mild steel.
- Safety shield and rigid column design improve user confidence and accuracy.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 16" Bench Top Drill Press DP-4016B 1228212 combines compact design, reliable power, precision construction, and versatile drilling performance, making it an excellent addition to fabrication shops, maintenance departments, schools, and professional workshops.
