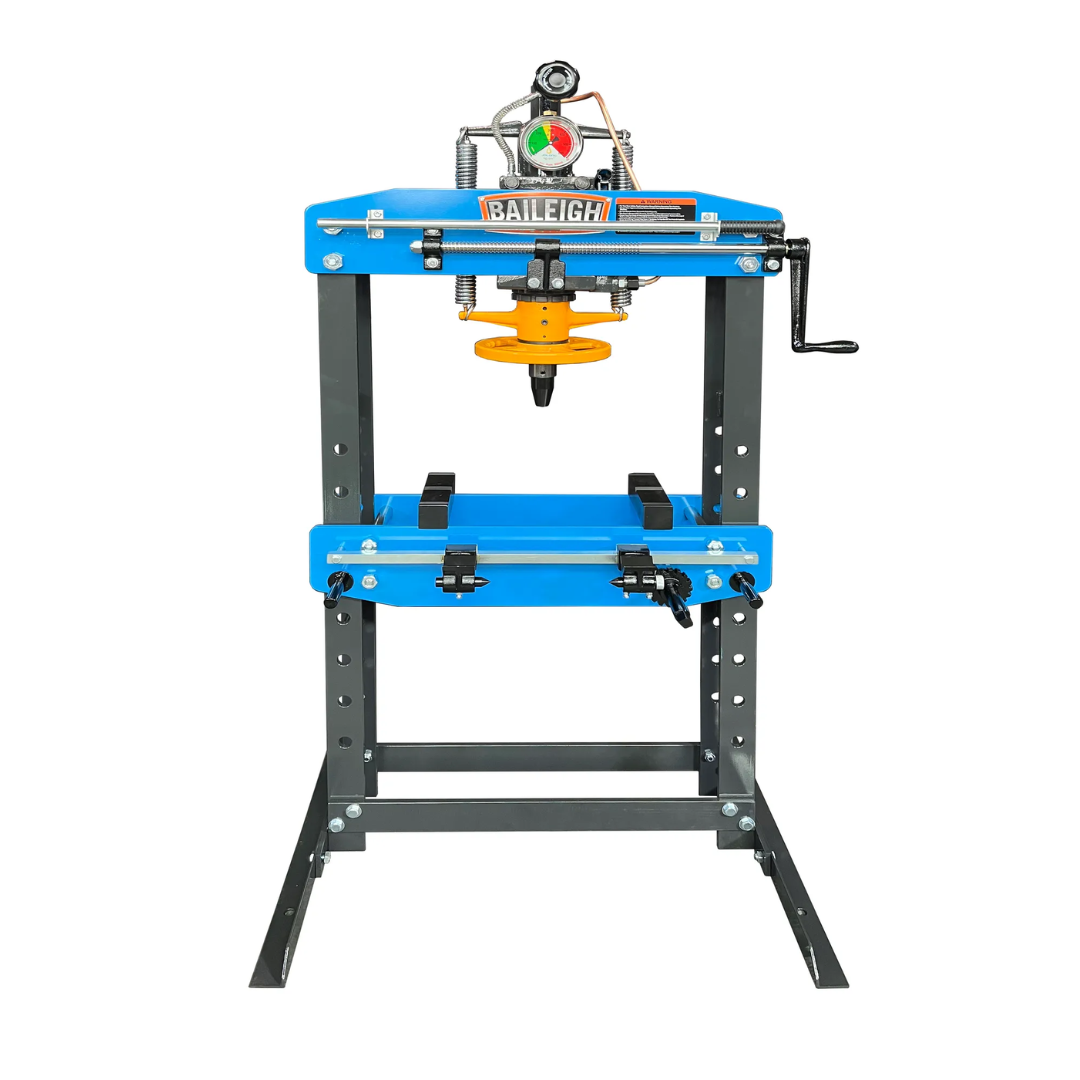

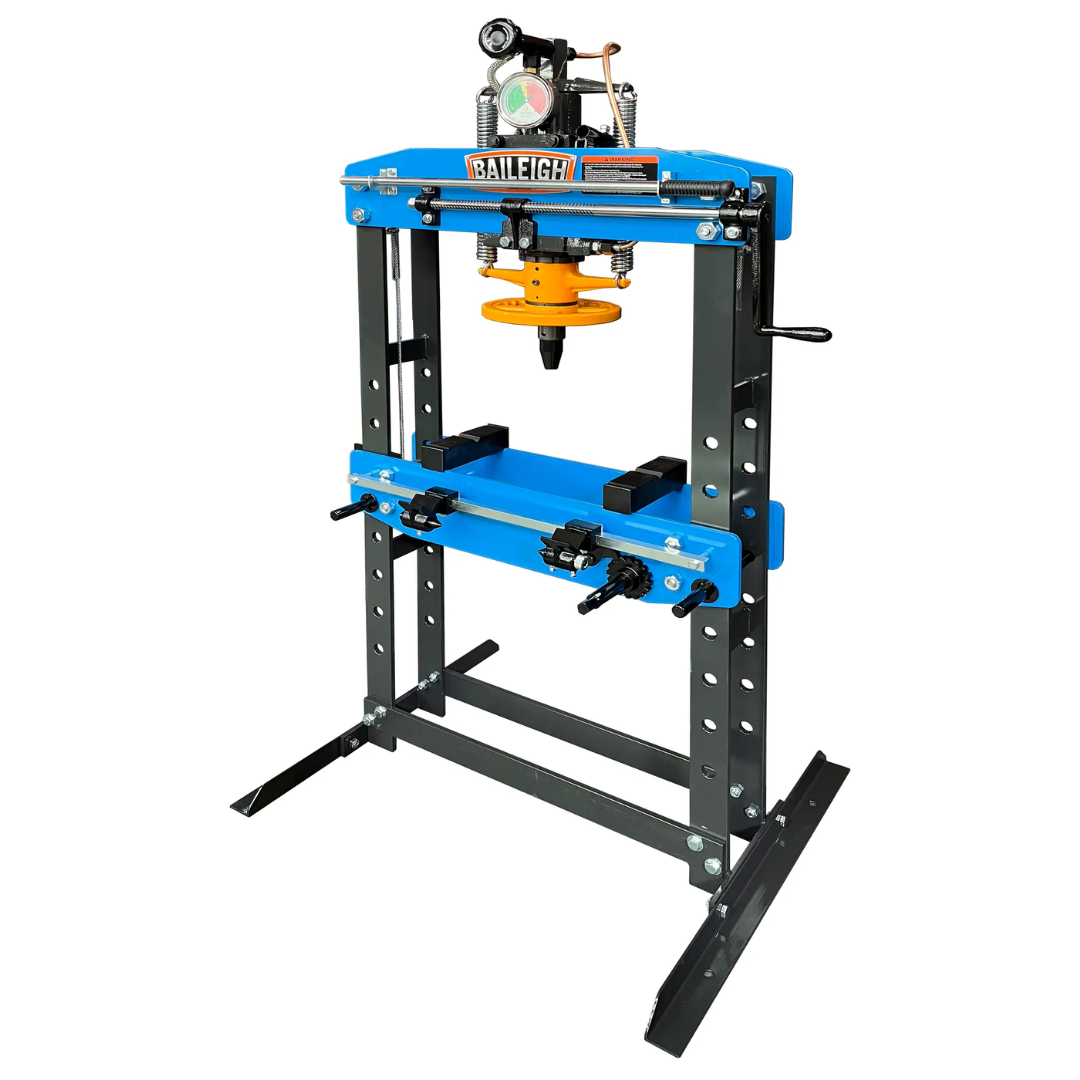

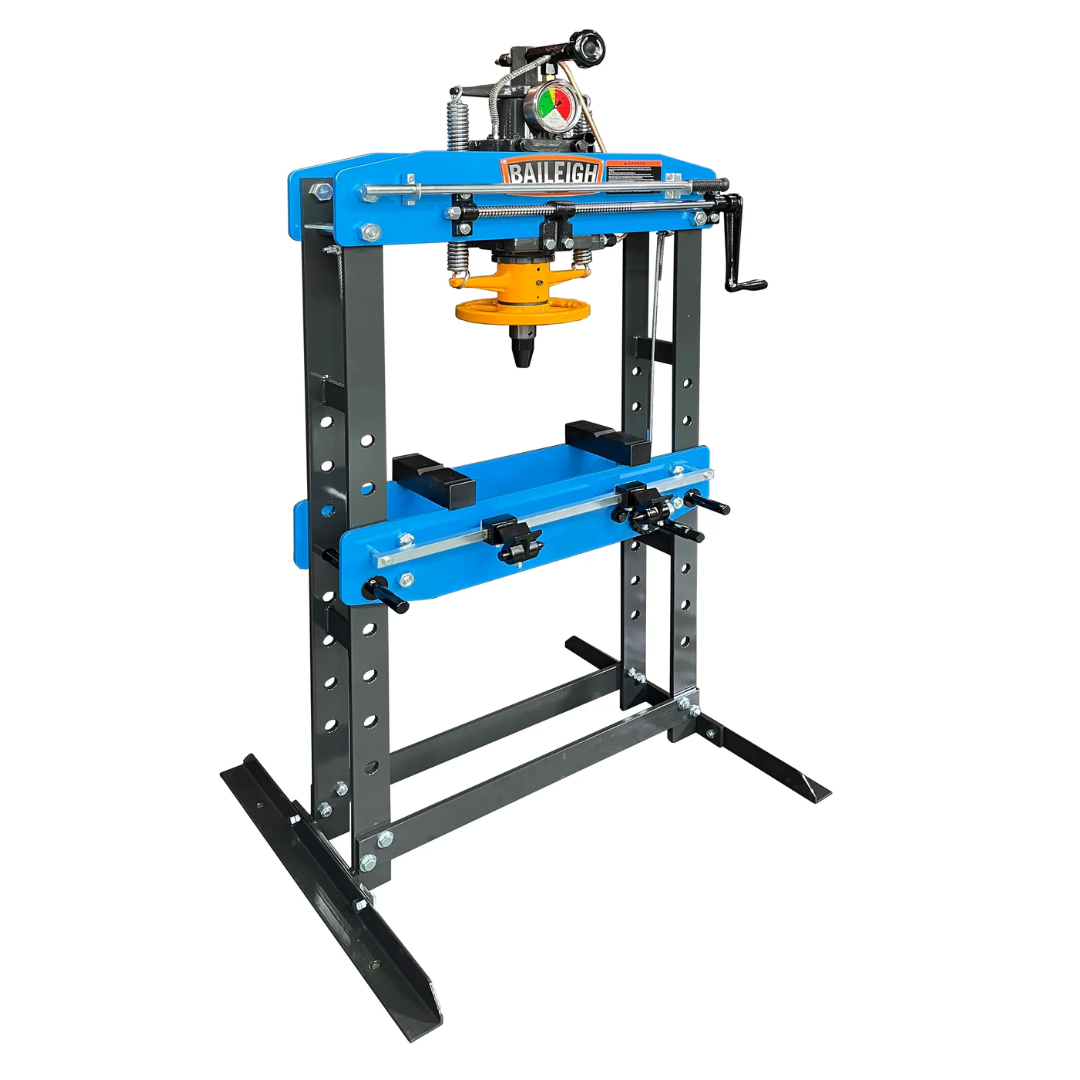

Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703 Applications
- Pressing bearings, bushings, sleeves, and gears into place.
- Straightening bent shafts, brackets, frames, and metal components.
- General fabrication and metalworking operations.
- Assembly and disassembly of mechanical components.
- Automotive repair and maintenance tasks.
- Machine shop production and repair work.
- Industrial maintenance departments requiring controlled pressing force.
- Custom manufacturing environments needing accurate hydraulic pressure application.
The Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703 is ideal for shops requiring dependable manual hydraulic pressing power without the need for electrical connections or complex operating systems.
Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | HSP-15A |
| Product Number | 1232703 |
| Product Type | Hydraulic Shop Press |
| Press Capacity | 15 Tons |
| Working Width | 24.75 in. |
| Cylinder Stroke | 4.5 in. |
| Stroke Length | 4.75 in. |
| Lateral Movement | 10.188 in. |
| Power Source | Manual Hydraulic Operation |
| Frame Construction | Electro-Welded Heavy Steel Plate H-Frame |
| Gross Weight | 438 lbs. |
| Net Weight | 438 lbs. |
| UPC | 19907201144 |
| Warranty | 1 Year Parts Warranty |
Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703 Performance & Construction
- 15-ton hydraulic capacity delivers substantial pressing force for industrial and fabrication applications.
- Heavy-duty electro-welded steel H-frame provides outstanding structural rigidity and long-term durability.
- 24.75-inch working width accommodates a wide variety of parts, assemblies, and workpieces.
- Industrial-grade hydraulic system ensures smooth force delivery and dependable performance.
- Adjustable work table increases flexibility when working with components of different sizes.
- Pressure regulator and gauge allow operators to monitor and control pressing force with greater accuracy.
- 4.5-inch cylinder stroke provides sufficient travel for common shop pressing tasks.
- 10.188-inch lateral movement expands operational versatility and work positioning.
- Manual operation eliminates the need for electrical power, making the press suitable for virtually any workspace.
- Rigid frame design minimizes flexing under load for more accurate and repeatable results.
- Standard V-block set included for supporting shafts, round stock, and specialized workpieces.
- Professional shop construction designed for daily use in demanding production and maintenance environments.
Why Choose the Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703
- Industrial-strength 15-ton pressing capability.
- Heavy welded steel frame engineered for durability and stability.
- Manual hydraulic operation requires no electrical power.
- Adjustable table supports a broad range of fabrication and repair tasks.
- Integrated pressure gauge and regulator improve control and accuracy.
- Includes V-block set for added versatility.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 15 TON HYDRAULIC SHOP PRESS HSP-15A 1232703 combines heavy-duty construction, dependable hydraulic performance, and operator-friendly control features into a versatile shop press capable of handling demanding fabrication, maintenance, repair, and production tasks. Its rugged H-frame design, adjustable work platform, and precision pressure management make it a valuable addition to professional metalworking and industrial facilities.
