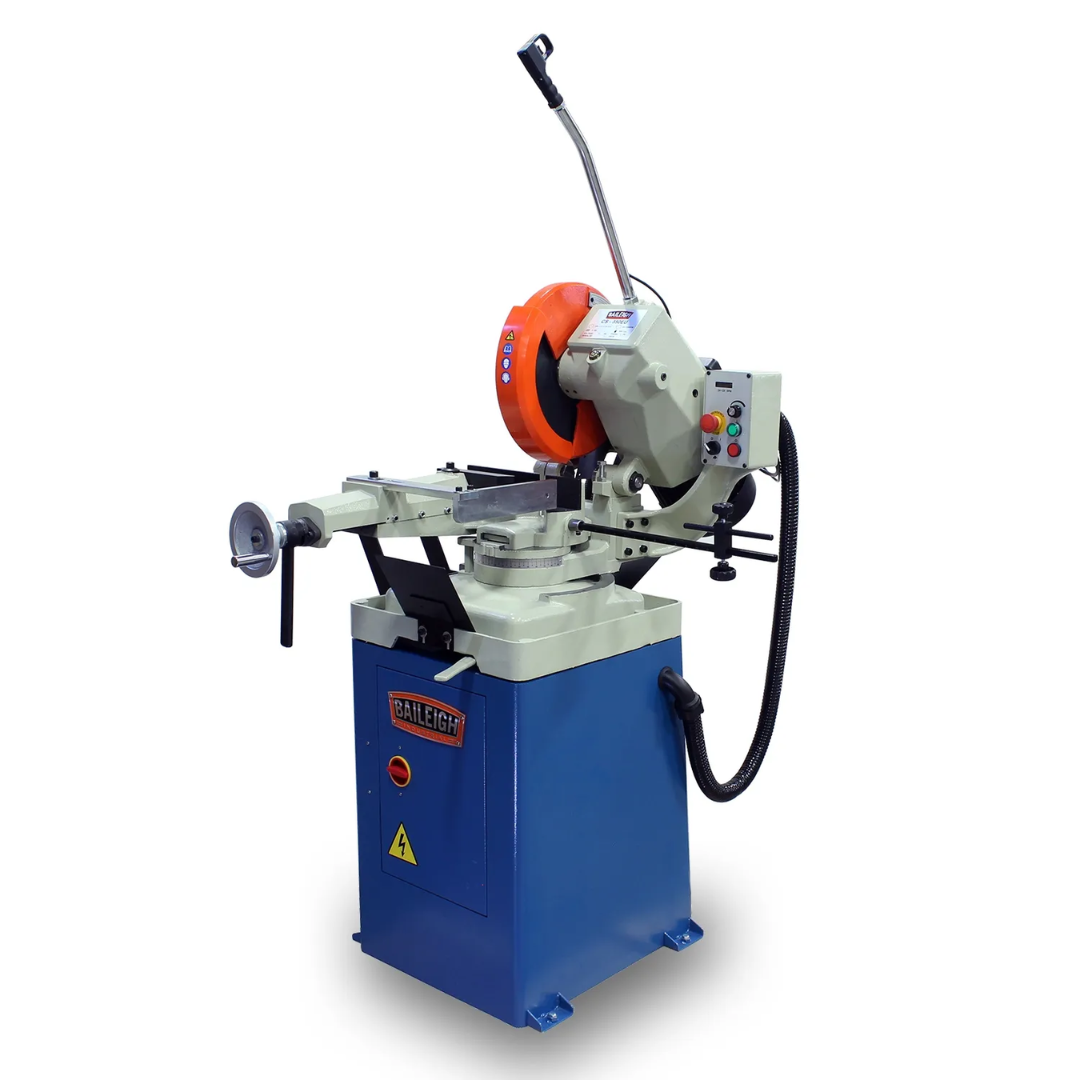

Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 Applications
- Metal fabrication and production cutting operations.
- Cutting round tube, square tube, and structural profiles.
- Processing pipe, solid bar stock, and metal sections.
- Manufacturing environments requiring accurate repeatable cuts.
- Maintenance and repair facilities.
- Welding and fabrication shops producing precision assemblies.
- Industrial metalworking and machine shop applications.
- Miter cutting for frames, supports, railings, and custom fabrication projects.
The Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 is designed to produce burr-free, accurate cuts while maximizing blade life and improving productivity in demanding metalworking environments.
Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 Specifications
| Model Number | CS-350EU |
|---|---|
| Product Keyword | Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 |
| Blade Size | 14" (350 mm) |
| Motor Power | 3 HP |
| Horsepower | 3 HP |
| Input Power | 220V Single Phase |
| Variable Blade Speed | 24 – 120 RPM |
| Round Tube Capacity | Approximately 4.7" |
| Notch Capacity OD | 4.75" |
| Miter Angle Range | 45° Right, 45° Left |
| Vise Type | Dual Self-Centering European Vise |
| Coolant System | Integrated Flood Coolant Pump |
| Net Weight | 705 lbs |
| Gross Weight | 705 lbs |
| UPC | 731325402827 |
| Warranty | 1 Year |
| Product Type | Machine |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 Performance & Construction

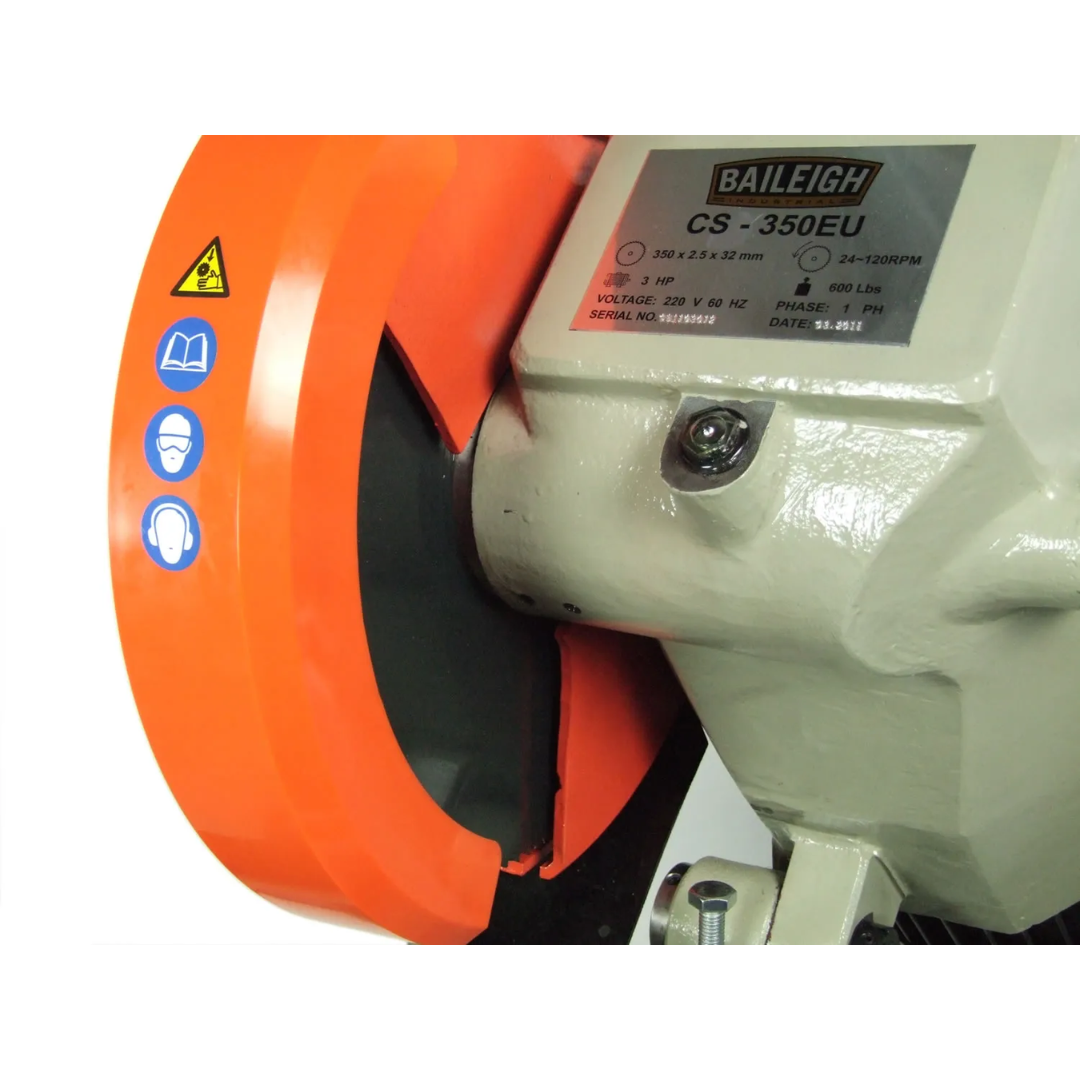

- 14-inch cold saw blade capacity provides excellent versatility for cutting tubing, pipe, and solid metal stock.
- Variable speed operation from 24 to 120 RPM allows operators to match blade speed to different materials for improved cut quality and blade life.
- Powerful 3 HP motor delivers consistent cutting performance in demanding fabrication environments.
- 220V single-phase electrical configuration is compatible with many commercial and industrial workshops.
- Rigid cast-iron head and base reduce vibration and contribute to superior cutting accuracy and surface finish.

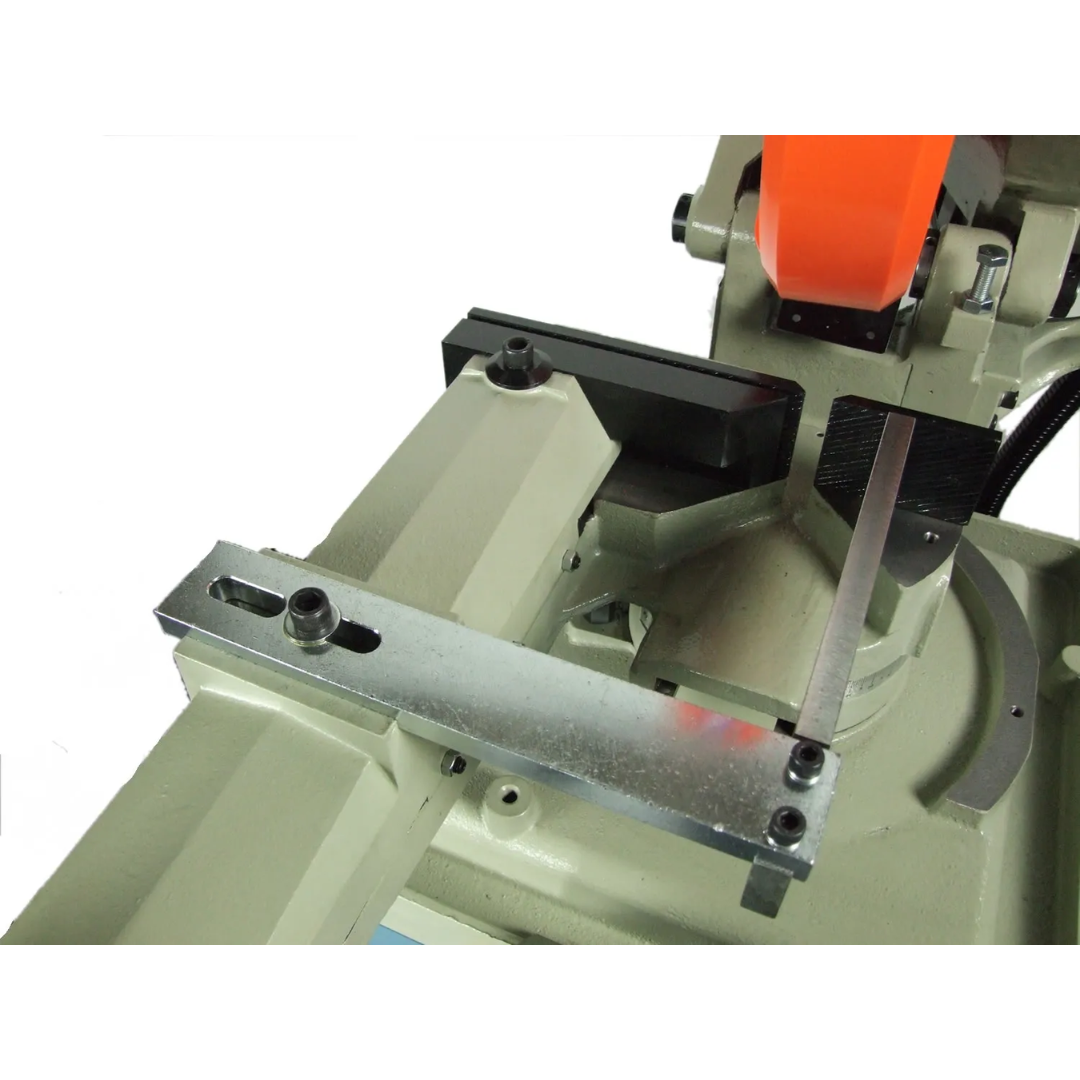

- Dual self-centering European vise automatically positions material for improved repeatability and precision.

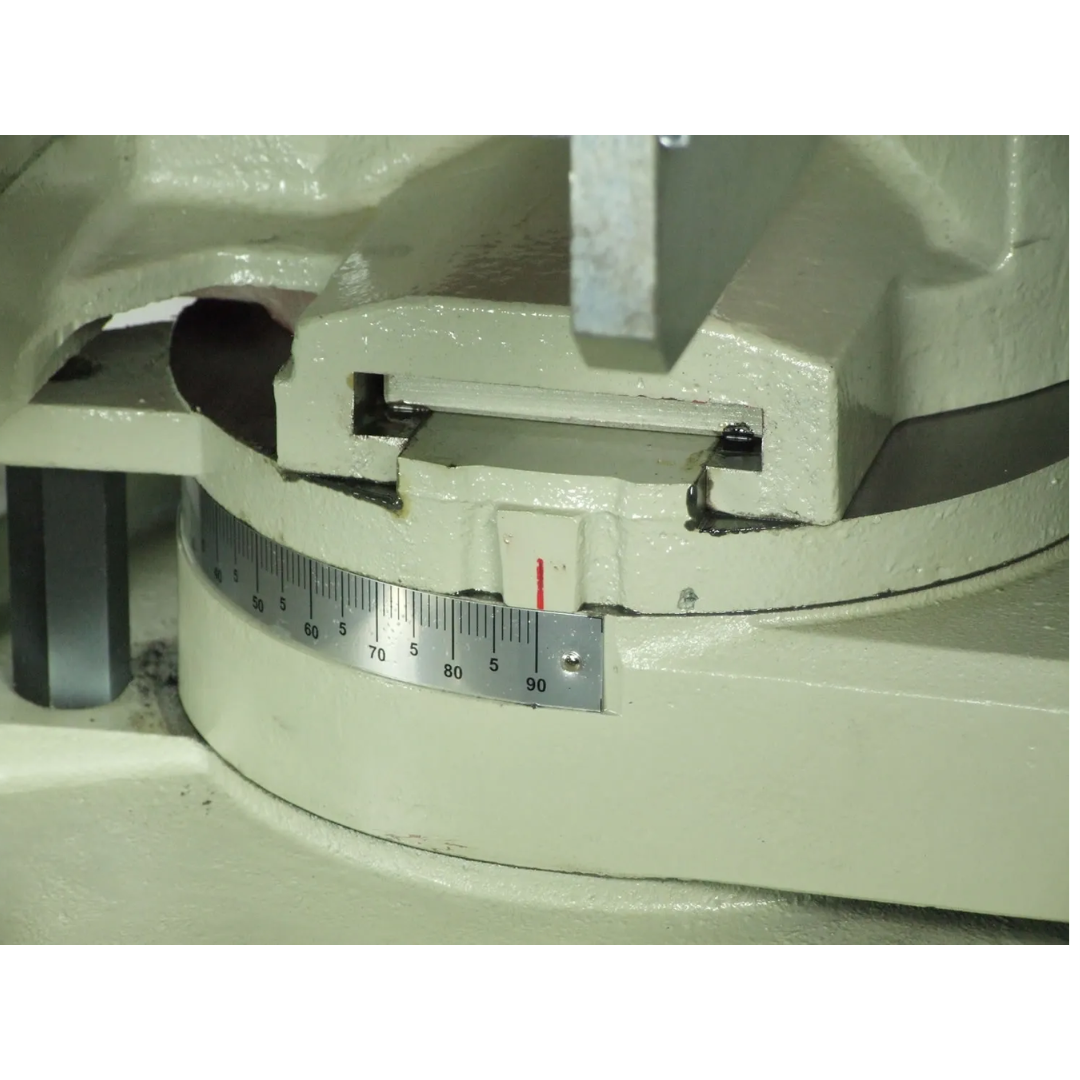

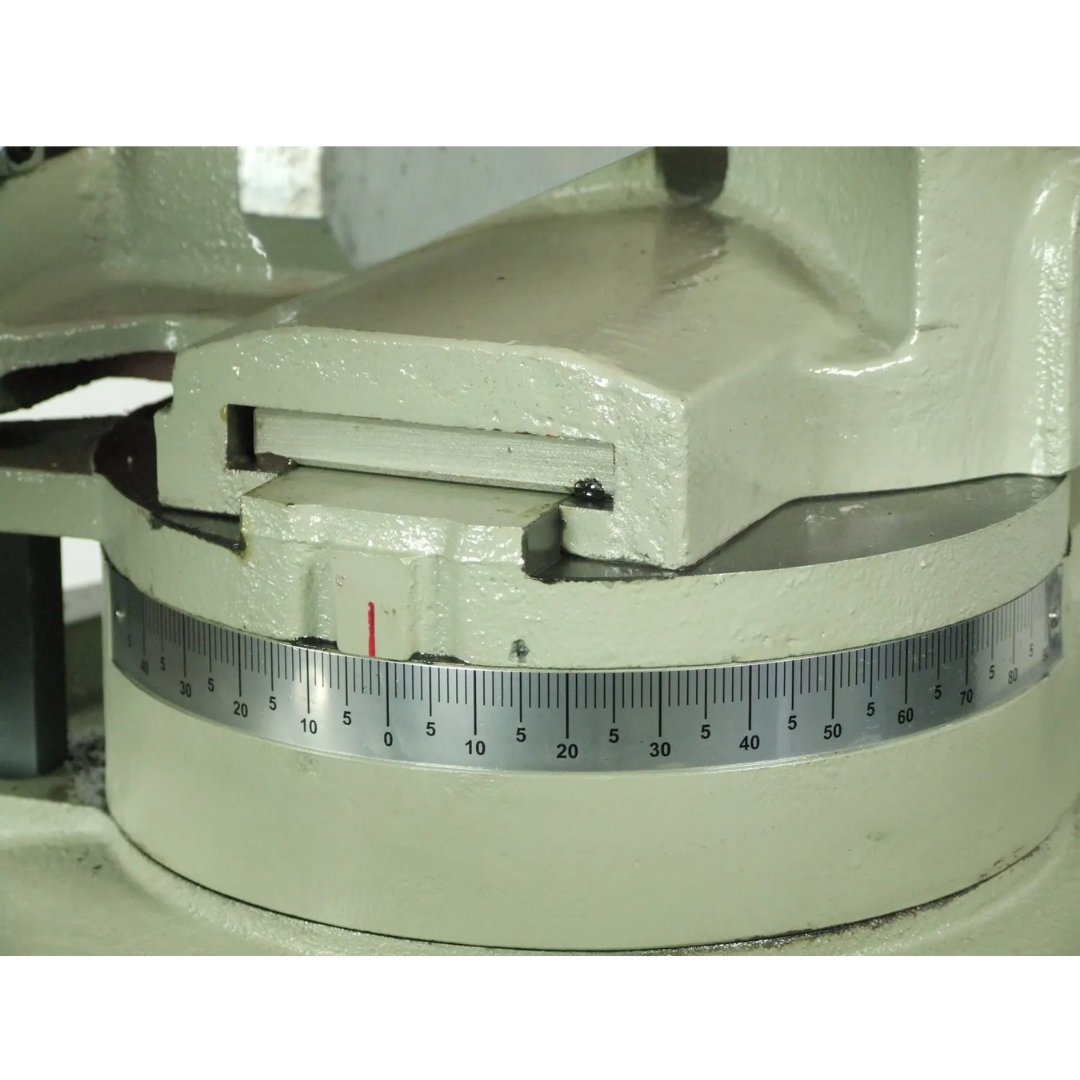

- Dual-direction miter capability enables cuts up to 45° left and 45° right without repositioning material unnecessarily.
- Integrated flood coolant system lubricates the blade, dissipates heat, and helps remove chips during operation.
- Approximately 4.7-inch round tube capacity accommodates a wide range of fabrication and production cutting requirements.
- Industrial-grade construction supports long-term reliability in daily production environments.

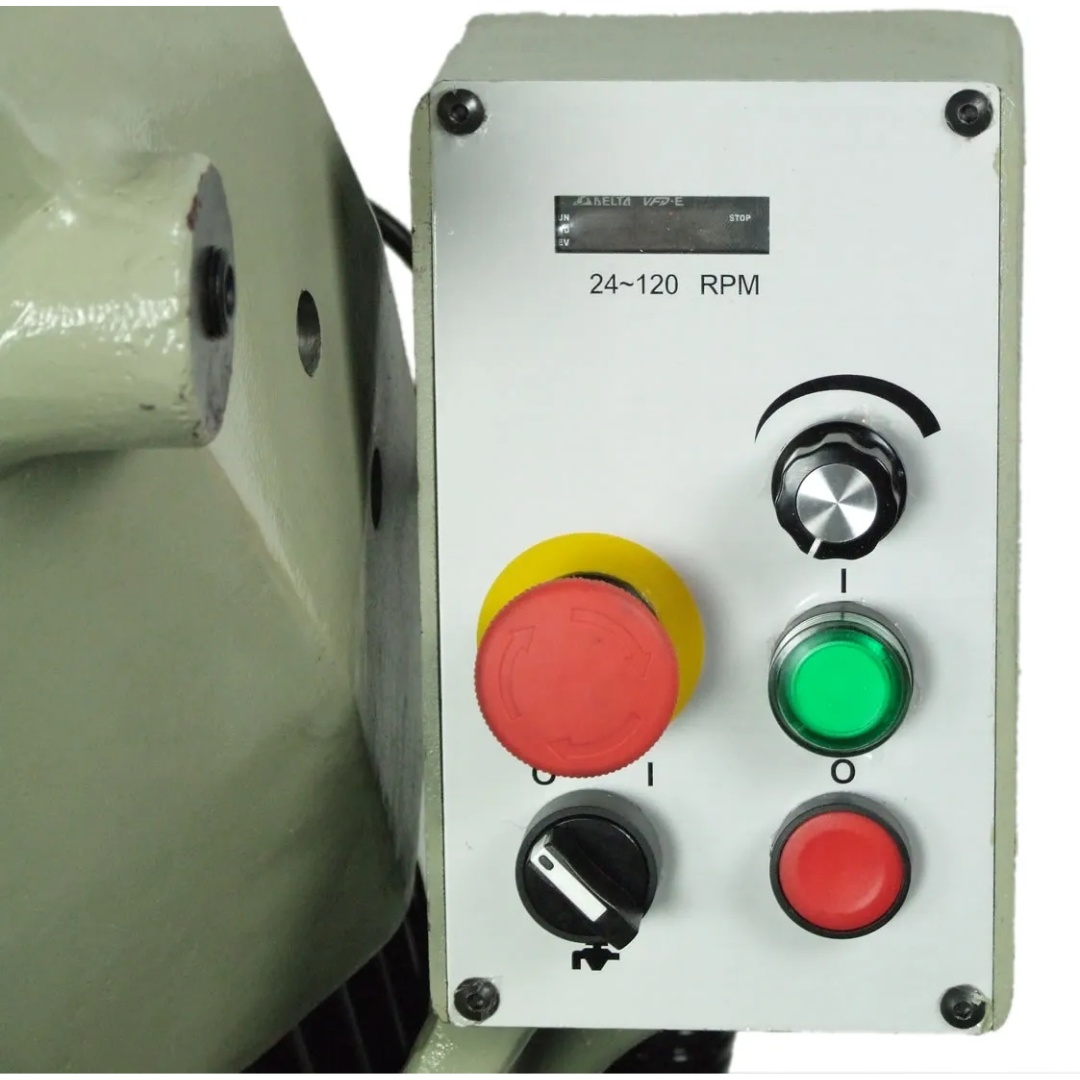

- Inverter-controlled speed adjustment provides precise blade speed management for optimal cutting performance.
- Designed for burr-free cutting reduces secondary finishing operations and improves workflow efficiency.
Why Choose the Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535
- Variable blade speeds from 24–120 RPM for superior cutting flexibility.
- Heavy-duty cast-iron construction minimizes vibration and improves accuracy.
- Dual self-centering European vise enhances precision and repeatability.
- 45° left and right mitering capability supports versatile fabrication work.
- Integrated flood coolant system improves blade life and cut quality.
- 3 HP motor delivers reliable industrial cutting performance.
- Produces cleaner cuts with minimal burrs compared to conventional cutting methods.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 14-Inch Variable-Speed Cold Saw, 120 RPM (CS-350EU) 1002535 combines adjustable cutting speeds, robust European-style construction, and precision workholding technology to deliver exceptional cutting accuracy, productivity, and reliability for professional metalworking operations.
