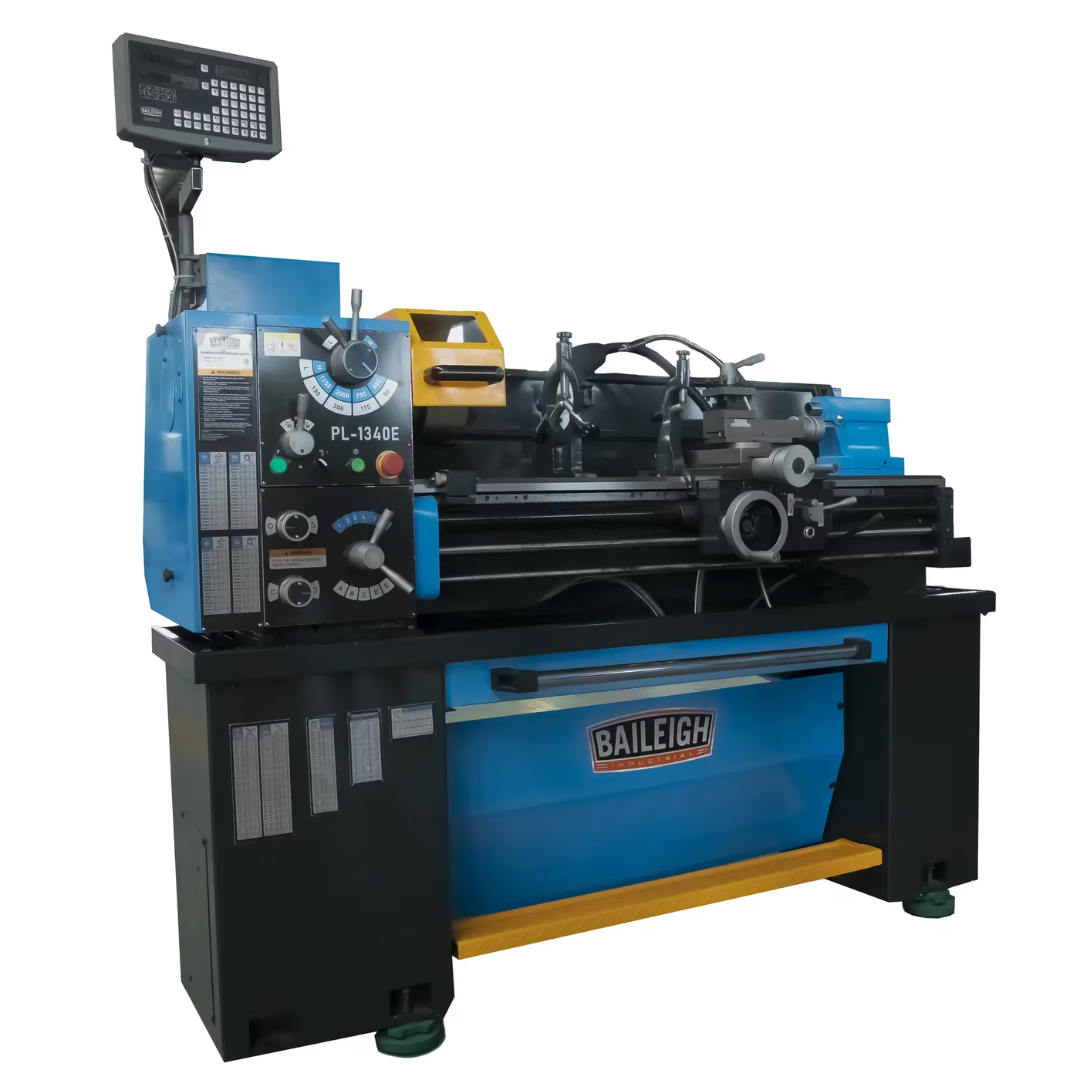

Baileigh 13" x 40" Gear Head Engine Lathe (PL-1340E-1) BA1-11223 Applications
- Industrial machine shops performing precision turning operations.
- Maintenance and repair departments.
- Custom fabrication and metalworking facilities.
- Prototype development and low-volume production machining.
- Technical schools, vocational programs, and training laboratories.
- Turning, facing, boring, drilling, threading, chamfering, and finishing operations.
- Machining steel, stainless steel, aluminum, brass, bronze, cast iron, plastics, and engineered materials.
- Repair work requiring accurate manual machining and repeatable results.
Ideal for professional machinists and educational facilities seeking a heavy-duty manual engine lathe with digital accuracy, industrial safety features, and dependable gear head performance.
Baileigh 13" x 40" Gear Head Engine Lathe (PL-1340E-1) BA1-11223 Specifications
| Model | PL-1340E-1 |
|---|---|
| Product Number | BA1-11223 |
| Swing Over Bed | 13" |
| Swing Over Gap | 16.9" |
| Distance Between Centers | 40" |
| Motor | 2 HP (1.5 kW) |
| Power Supply | 230V Single Phase |
| Motor Phase | Single Phase |
| Motor Voltage | 230V |
| Motor Amps | 9 Amps |
| Amp Draw | 15 Amps |
| Spindle Speed Range | 70–2000 RPM |
| Number of Spindle Speeds | 8 |
| Spindle Bore | 2" |
| Spindle Nose | D1-5 |
| Spindle Taper | MT3 |
| Tailstock Taper | MT3 |
| Quill Taper | MT6 |
| Chuck Size | 8" |
| Digital Readout | 2-Axis SINO DRO |
| Cross Slide Travel | 6.7" |
| Compound Slide Travel | 3.9" |
| Longitudinal Feed Range | 0.0011"–0.0367" IPR |
| Cross Feed Range | 0.0032"–0.1068" IPR |
| Inch Thread Range | 4–56 TPI |
| Metric Thread Range | 0.4–7 mm |
| Diametral Pitch Threads | 8–120 DP |
| Modular Pitch Threads | 0.2–3.5 MP |
| Assembled Dimensions | 76" × 40" × 62" |
| Net Weight | 1,146 lbs |
| Shipping Weight | 1,278 lbs |
| Electrical Certification | CSA/UL Certified |
| Warranty | 1-Year Parts Warranty |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh 13" x 40" Gear Head Engine Lathe (PL-1340E-1) BA1-11223 Performance & Construction
- Heavy-Duty Gear Head Drive efficiently transfers power without belt slippage, providing smooth torque delivery for roughing cuts, precision finishing, and continuous industrial operation.
- Powerful 2 HP Single-Phase Motor supplies dependable performance while operating from standard 230V single-phase electrical service, making installation convenient for many commercial shops.

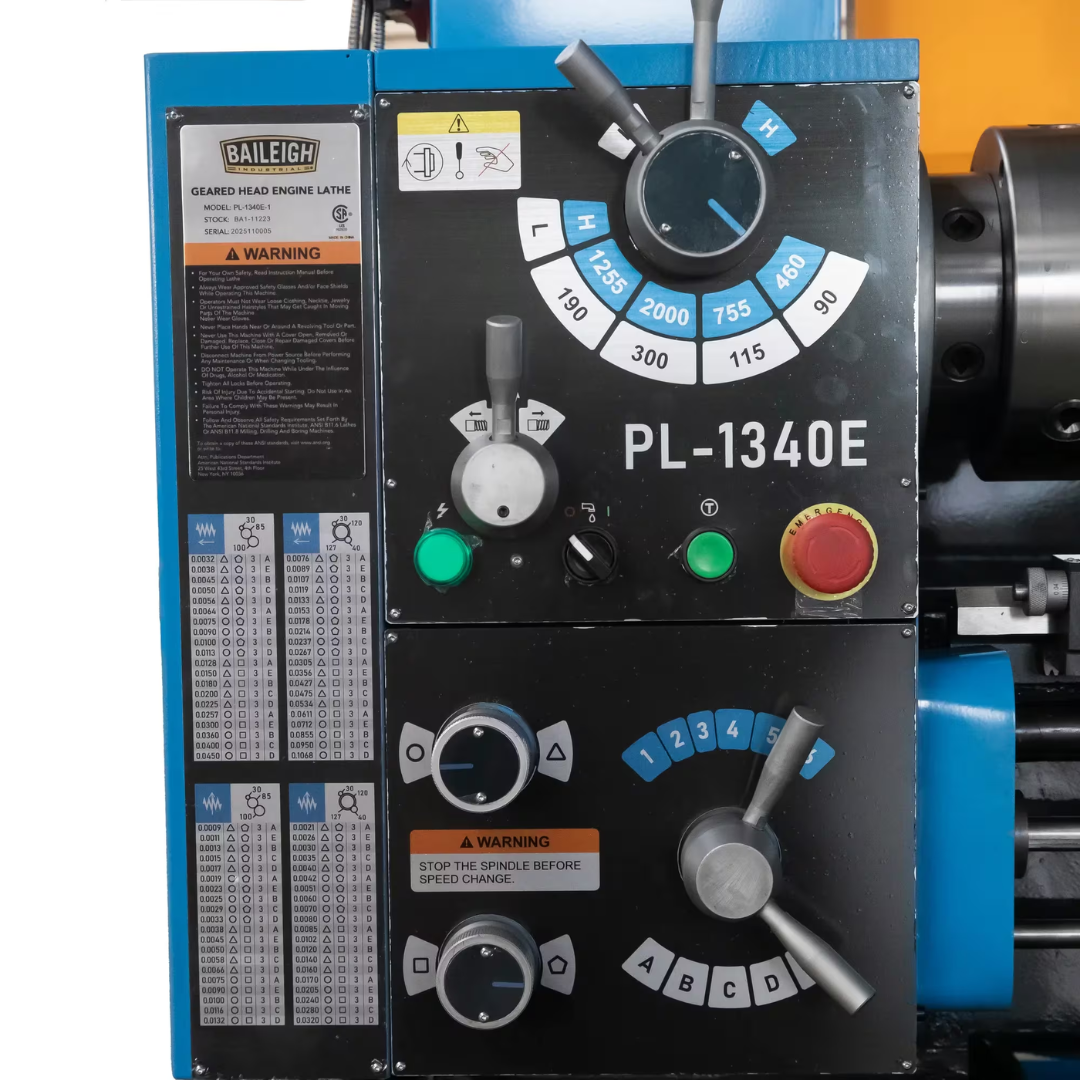

- Eight Spindle Speeds (70–2000 RPM) provide the flexibility required for machining a wide range of materials and workpiece diameters with optimal cutting performance.
- Large 2" Spindle Bore allows larger diameter stock to pass through the spindle, reducing setup time and minimizing secondary machining operations.
- 2-Axis SINO Digital Readout delivers real-time X and Y axis positioning, improving dimensional accuracy, reducing operator error, minimizing scrap, and increasing machining efficiency.

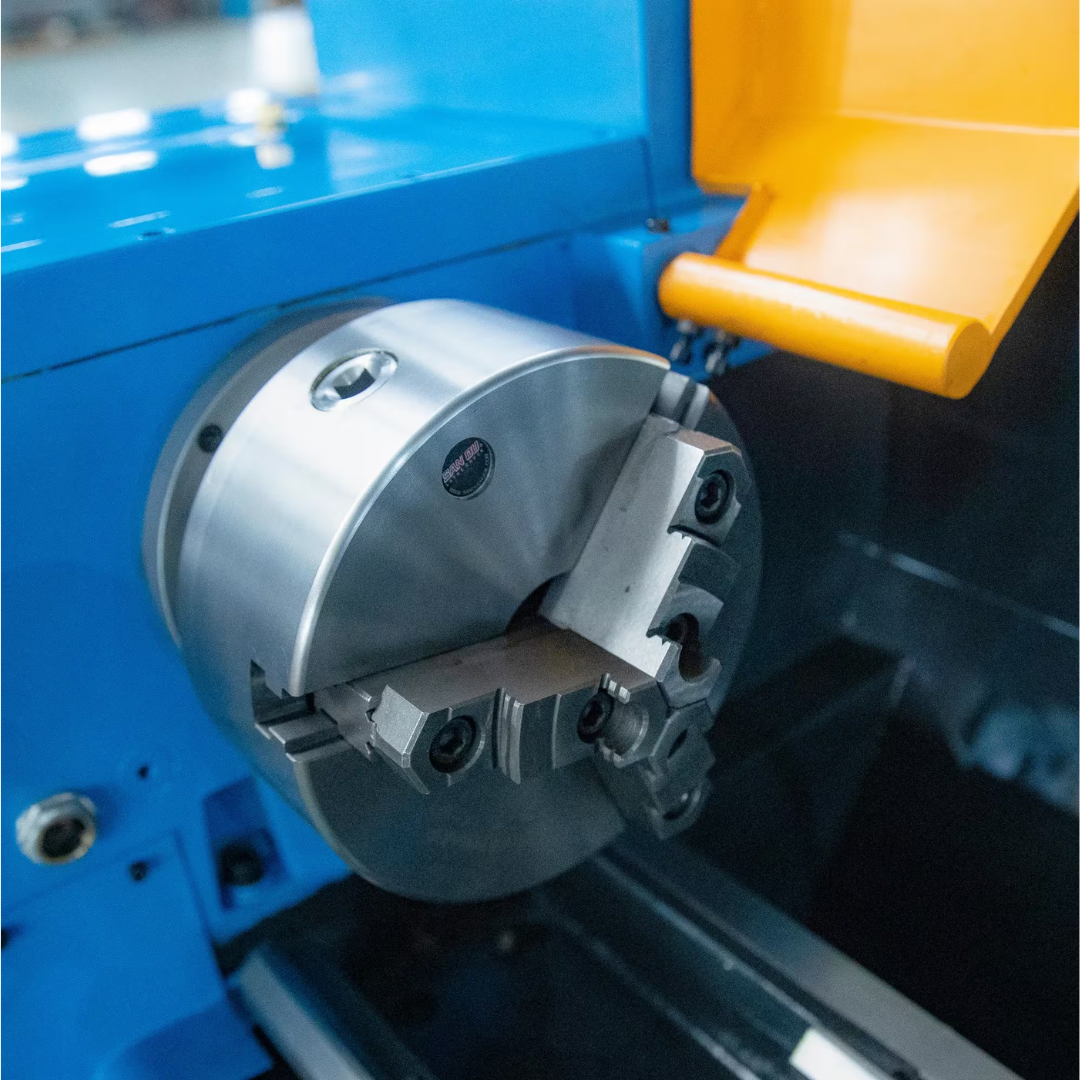

- D1-5 Spindle Nose provides secure chuck mounting with excellent repeatability for demanding turning applications.
- 16.9" Swing Over Gap accommodates larger diameter workpieces that cannot be machined on standard engine lathes of similar bed size.

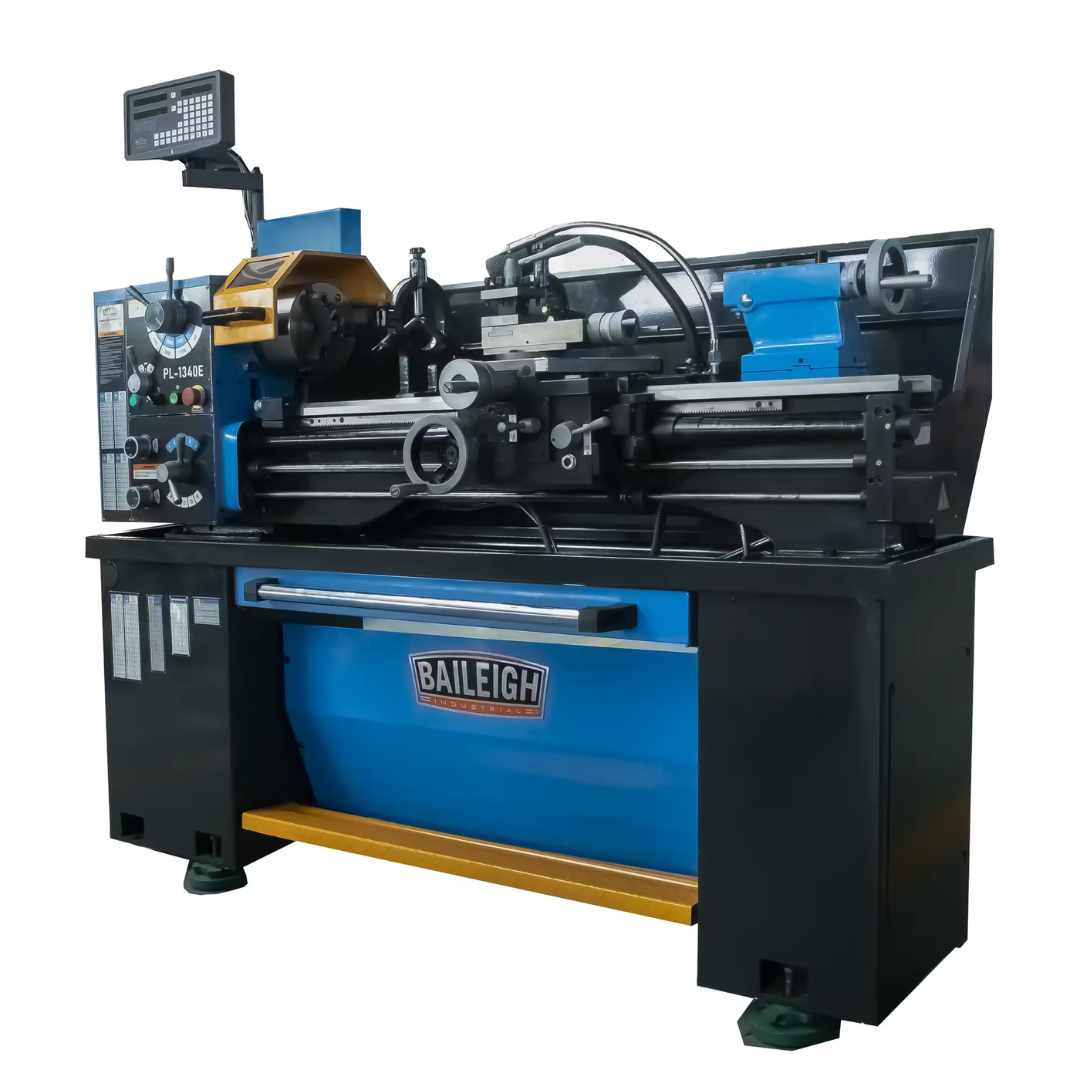

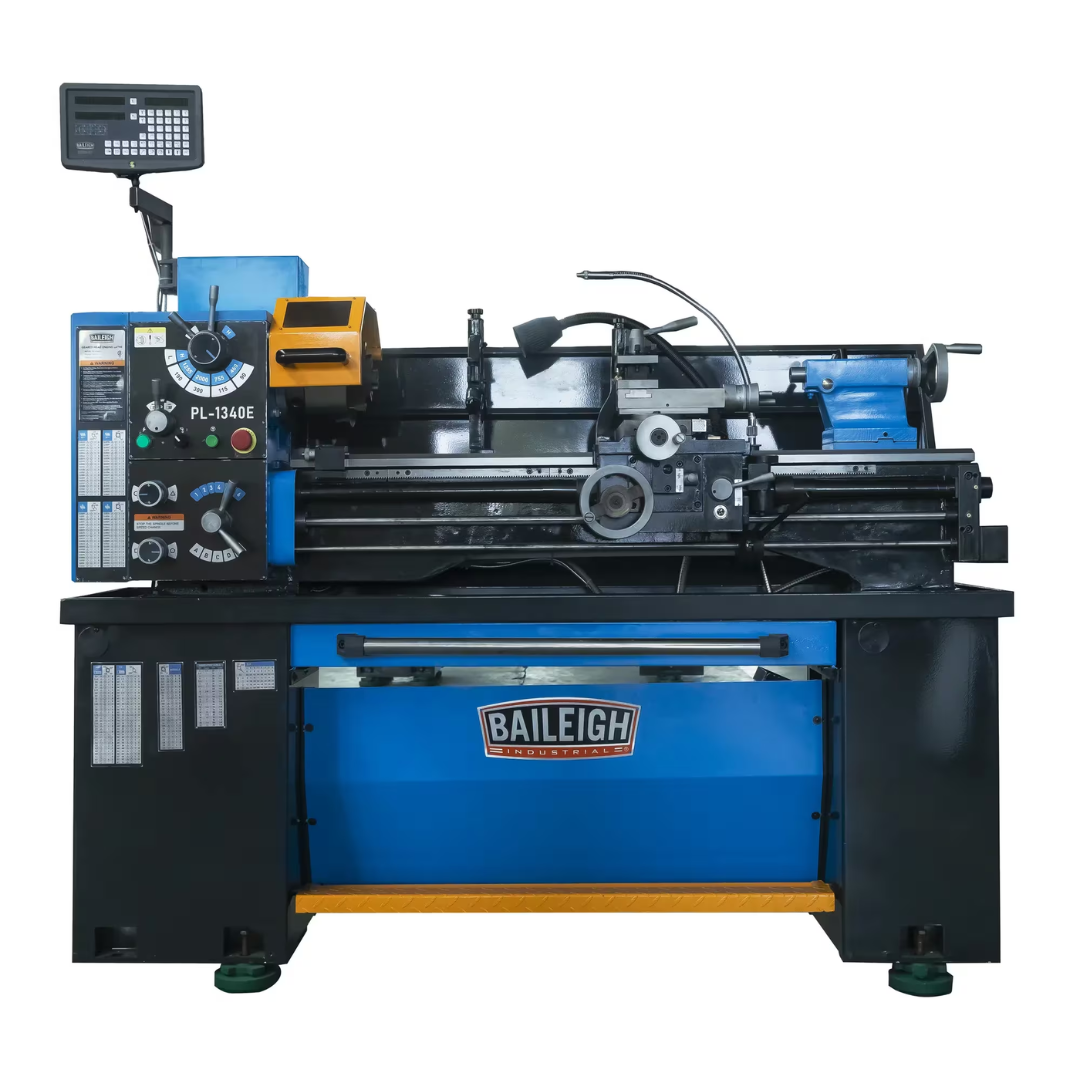

- Rigid Cast-Iron Construction with precision-ground bed ways minimizes vibration, increases rigidity, and helps produce superior surface finishes throughout long production runs.
- Comprehensive Safety Package includes a foot brake, chuck guard, lead screw cover, full-length splash guard, and integrated chip tray for enhanced operator protection and cleaner shop operation.
- Integrated Coolant Containment helps manage coolant and metal chips at the source, reducing cleanup while supporting extended machining cycles.
- CSA/UL Certified Electrical System meets recognized electrical safety standards for commercial, industrial, and educational environments.
- Wide Threading Capability supports inch, metric, diametral pitch, and modular threading for exceptional machining versatility.
- Backed by Baileigh Support with a 1-year parts warranty and lifetime technical support for long-term confidence and dependable service.
Why Choose the Baileigh 13" x 40" Gear Head Engine Lathe (PL-1340E-1) BA1-11223
- Industrial-grade 13" × 40" manual gear head engine lathe.
- Powerful 2 HP single-phase motor with eight spindle speeds.
- Large 2" spindle bore increases machining capacity.
- 2-Axis SINO DRO improves accuracy, repeatability, and setup efficiency.
- 16.9" swing over gap accommodates larger diameter workpieces.
- CSA/UL certified electrical system for commercial and educational facilities.
- Heavy cast-iron construction delivers excellent rigidity and long-term durability.
- Integrated safety package with foot brake, guards, splash shield, and chip tray.
- Wide threading capabilities support inch, metric, diametral, and modular threads.
- Protected by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 13" x 40" Gear Head Engine Lathe (PL-1340E-1) BA1-11223 delivers the precision, durability, safety, and versatility professional machinists demand. Combining gear head reliability, digital readout accuracy, generous spindle capacity, and industrial-grade construction, it is an outstanding solution for production machining, repair work, fabrication, and technical training environments.
