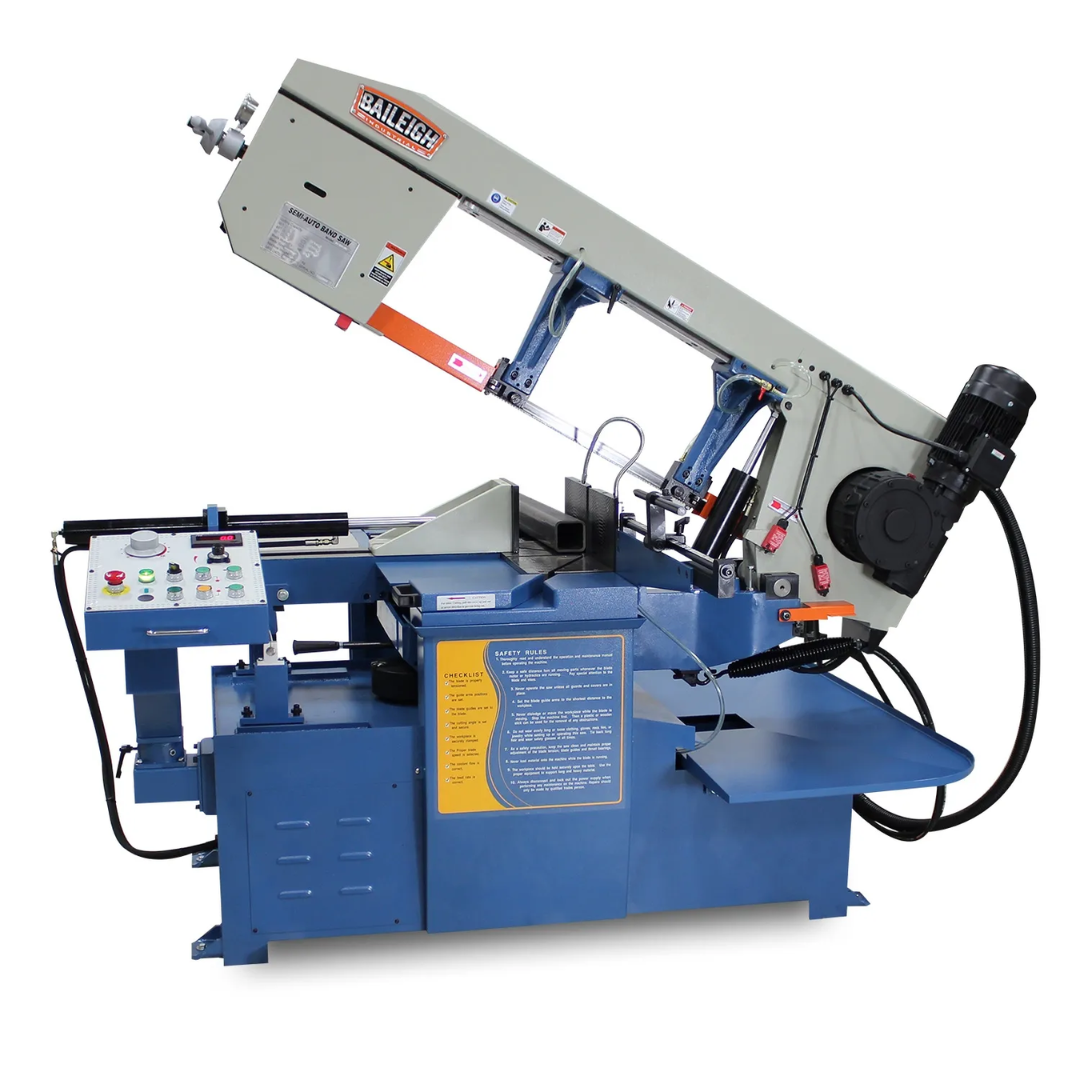

Baileigh 13-Inch Dual-Mitering Semi-Automatic Bandsaw (BS-20SA-DM) 1001298 Applications
- Structural steel fabrication and production cutting.
- Machine shops and industrial manufacturing facilities.
- Cutting round tube, pipe, square tubing, and structural profiles.
- Production environments requiring repeatable semi-automatic cutting cycles.
- Precision miter cutting for frames, railings, supports, and fabricated assemblies.
- Maintenance, repair, and heavy industrial fabrication operations.
The dual-swivel miter head allows operators to cut up to 60° right and 45° left without repositioning the workpiece, reducing setup time while improving productivity and cut accuracy.
Baileigh 13-Inch Dual-Mitering Semi-Automatic Bandsaw (BS-20SA-DM) 1001298 Specifications
| Model | BS-20SA-DM |
|---|---|
| Manufacturer Part Number | 1001298 |
| Product Type | Semi-Automatic Horizontal Metal Cutting Bandsaw |
| Motor Power | 3 HP |
| Input Power | 220V Three Phase |
| Blade Width | 1.25 in. |
| Blade Guide | Carbide / Roller |
| Blade Speed | 60 – 306 SFPM (Variable Speed Inverter Drive) |
| Round Capacity at 90° | 13 in. |
| Rectangular Capacity at 90° | 13" × 18" |
| Miter Capacity | 45° Left / 60° Right |
| Miter Adjustment | Dual Miter Swivel Head |
| Descent Control | Pressure Assist Hydraulic |
| Head Return | Hydraulic |
| Coolant System | Integrated Flood Coolant |
| Construction | Cast-Iron Saw Bow with Welded Steel Base |
| Net Weight | 2,370 lbs. |
| Gross Weight | 2,370 lbs. |
| Warranty | 1 Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
| UPC | 731325396720 |
Baileigh 13-Inch Dual-Mitering Semi-Automatic Bandsaw (BS-20SA-DM) 1001298 Performance & Construction

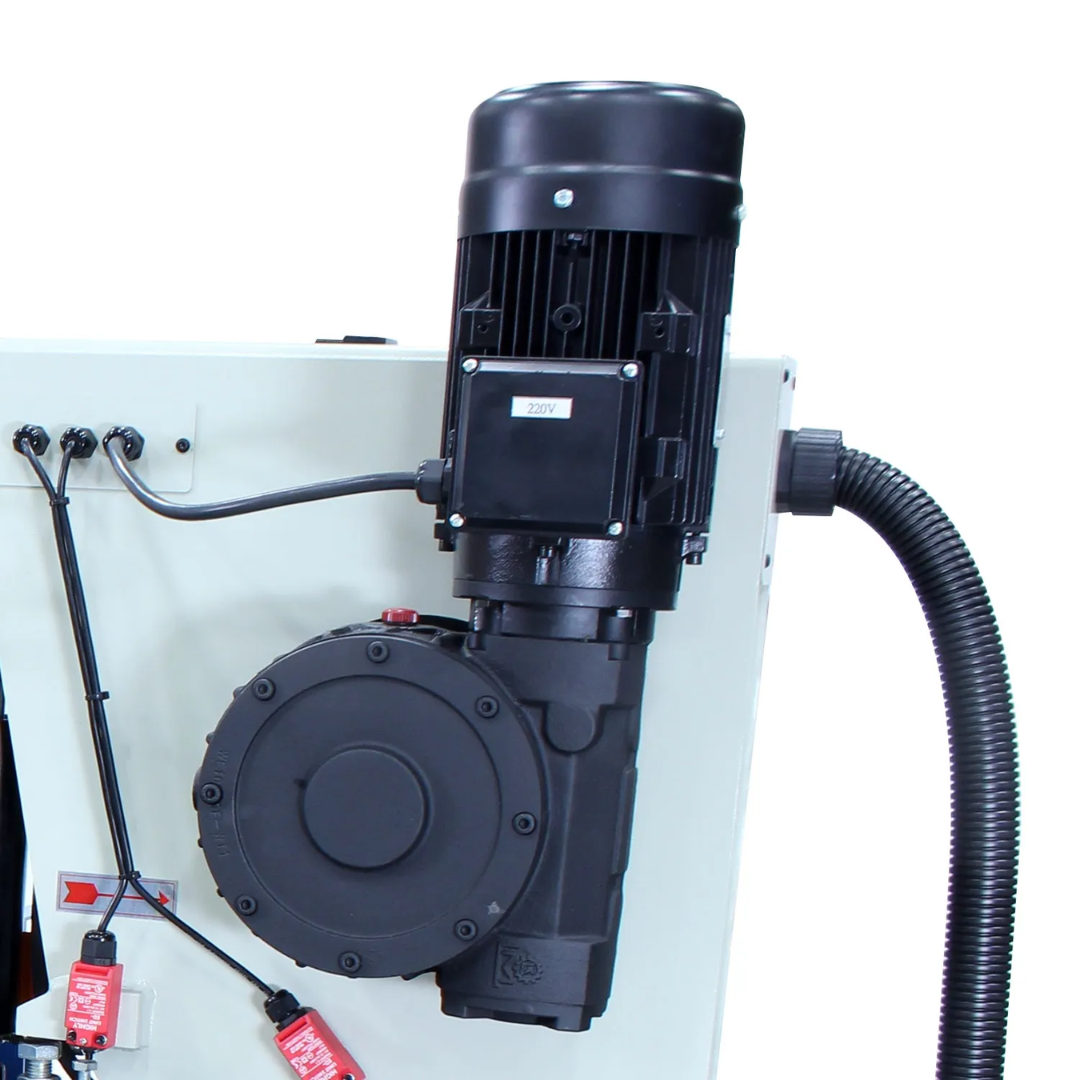

- Powerful 3 HP industrial motor delivers dependable cutting performance for structural steel, tubing, pipe, and solid materials in demanding production environments.
- 220V three-phase electrical system provides continuous power and reliable operation for fabrication shops and industrial manufacturing facilities.

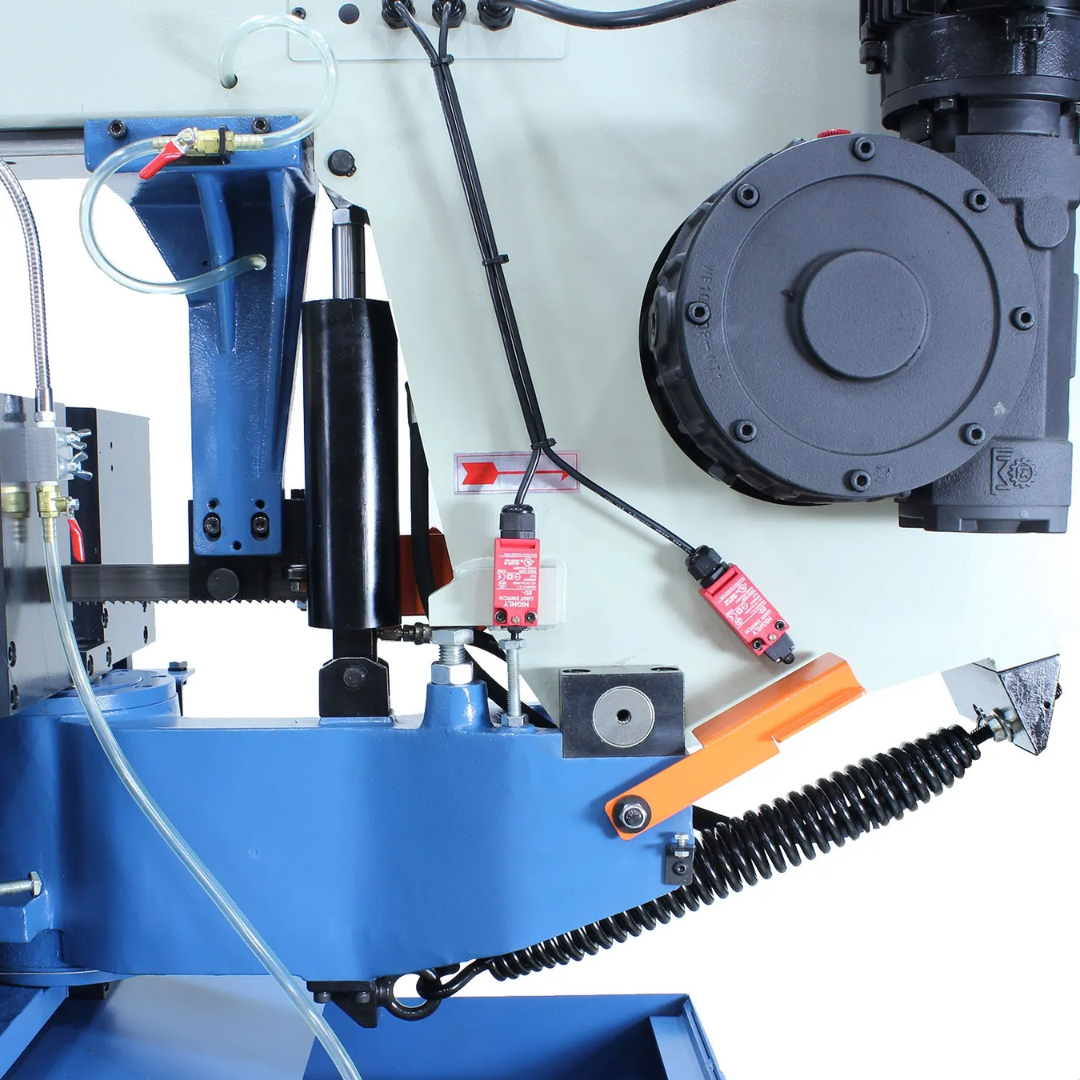

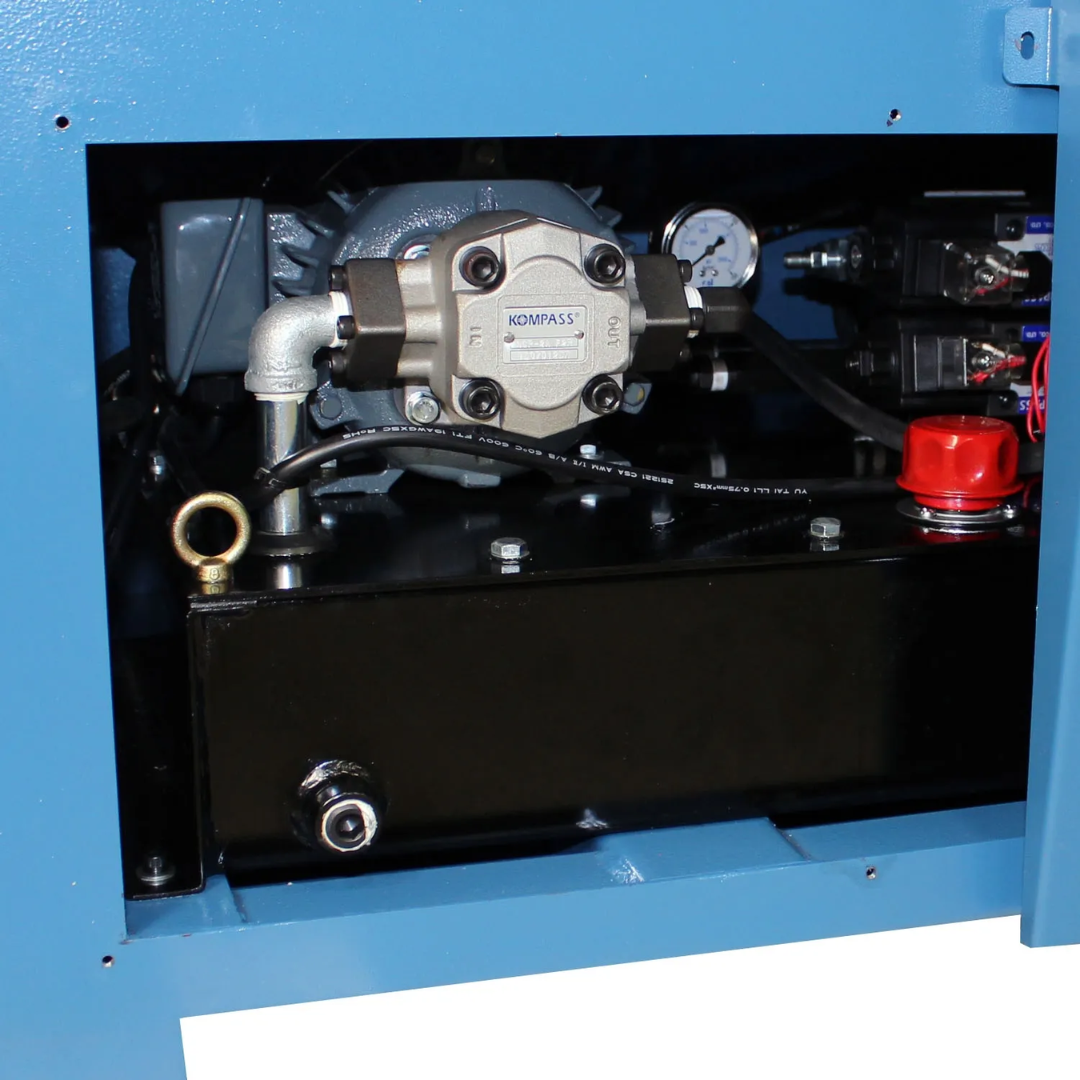

- Semi-automatic hydraulic operation combines hydraulic clamping, controlled feed, and automatic head return to increase production efficiency while reducing operator workload.
- Dual-swivel miter head cuts up to 60° right and 45° left without moving the workpiece, improving accuracy while minimizing setup time.
- 13-inch round capacity and 13" × 18" rectangular capacity allow the saw to handle a wide range of structural materials and production applications.

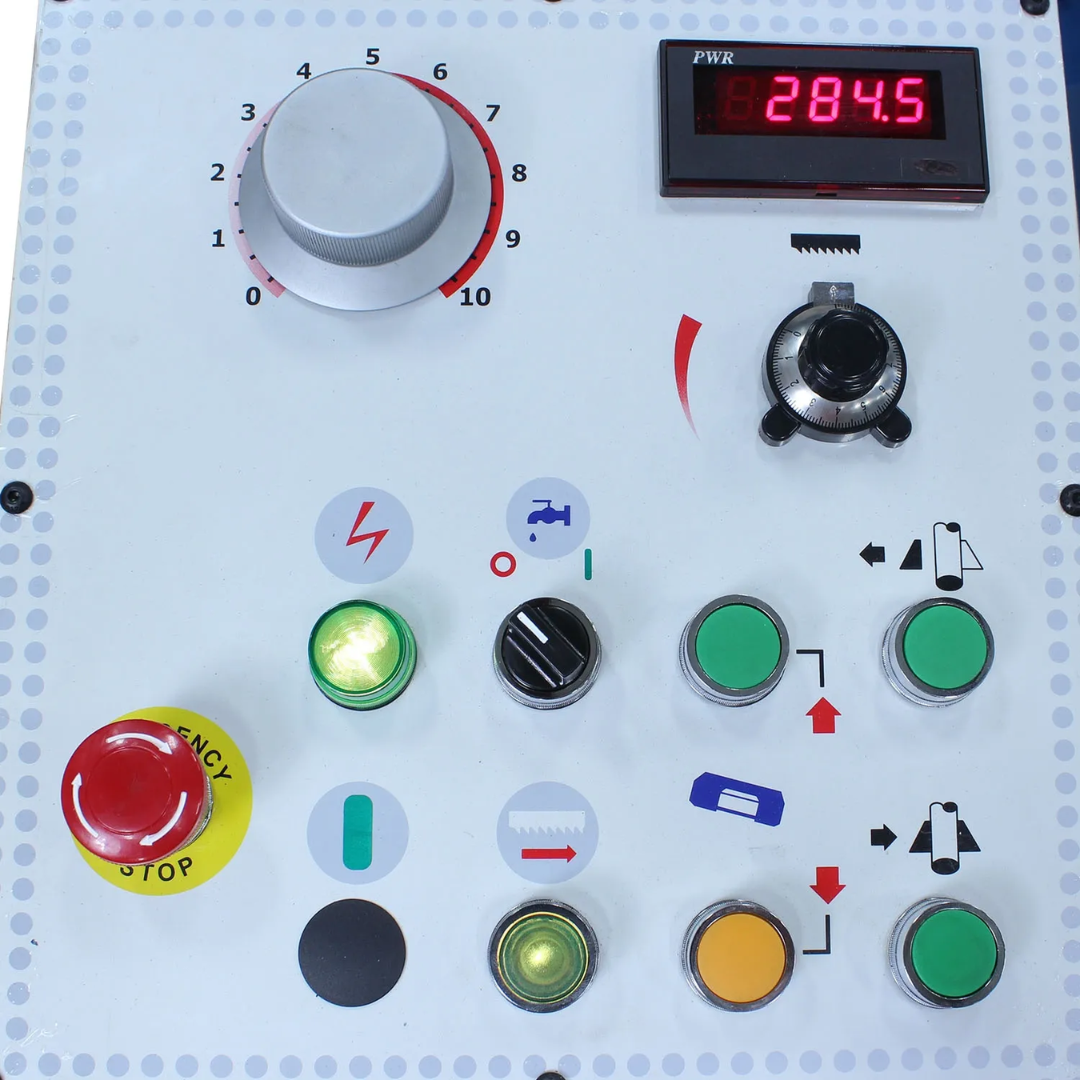

- Variable inverter-controlled blade speeds from 60–306 SFPM optimize cutting performance across carbon steel, stainless steel, aluminum, and alloy materials.

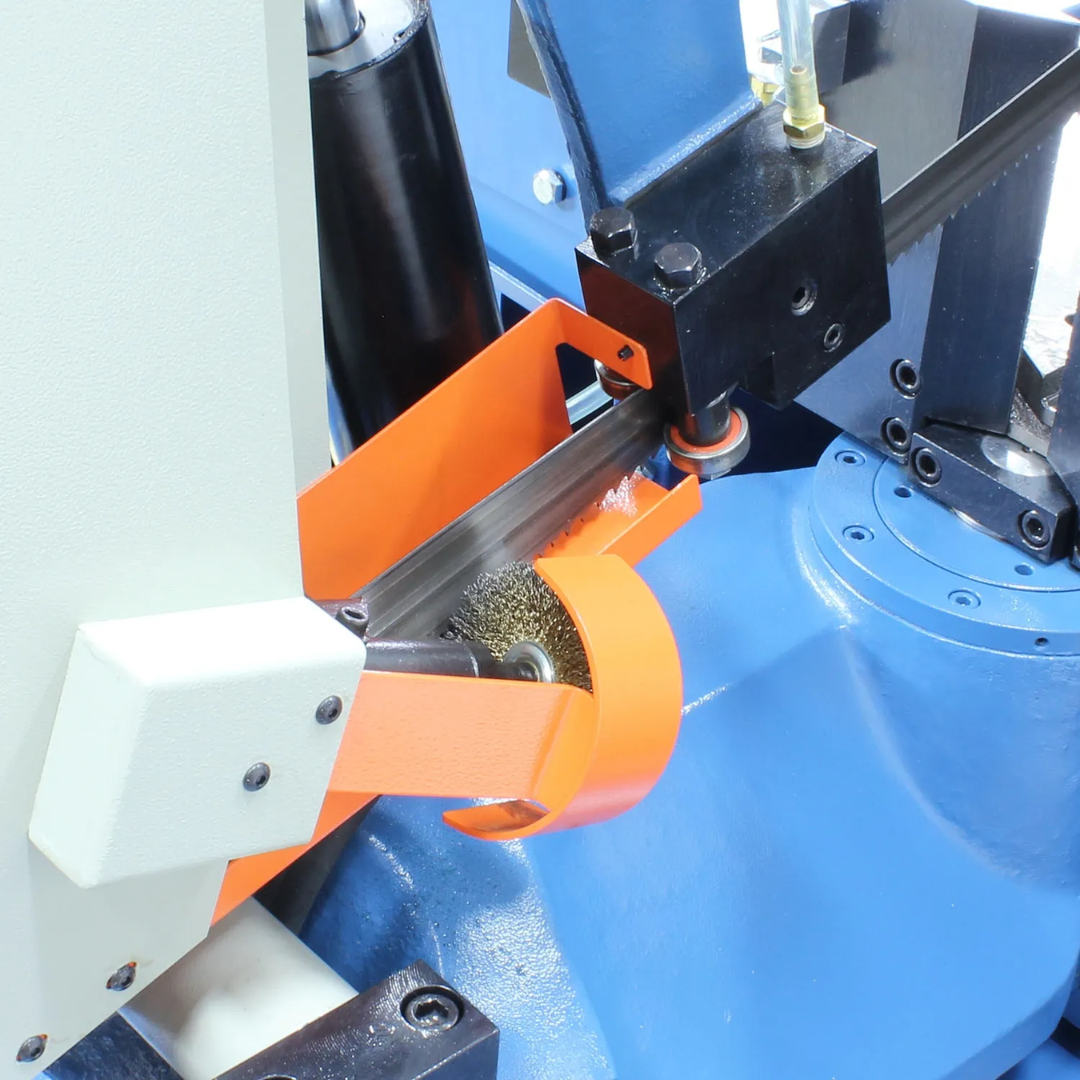

- Carbide and roller blade guides maintain excellent blade stability for straighter cuts, longer blade life, and improved surface finish.

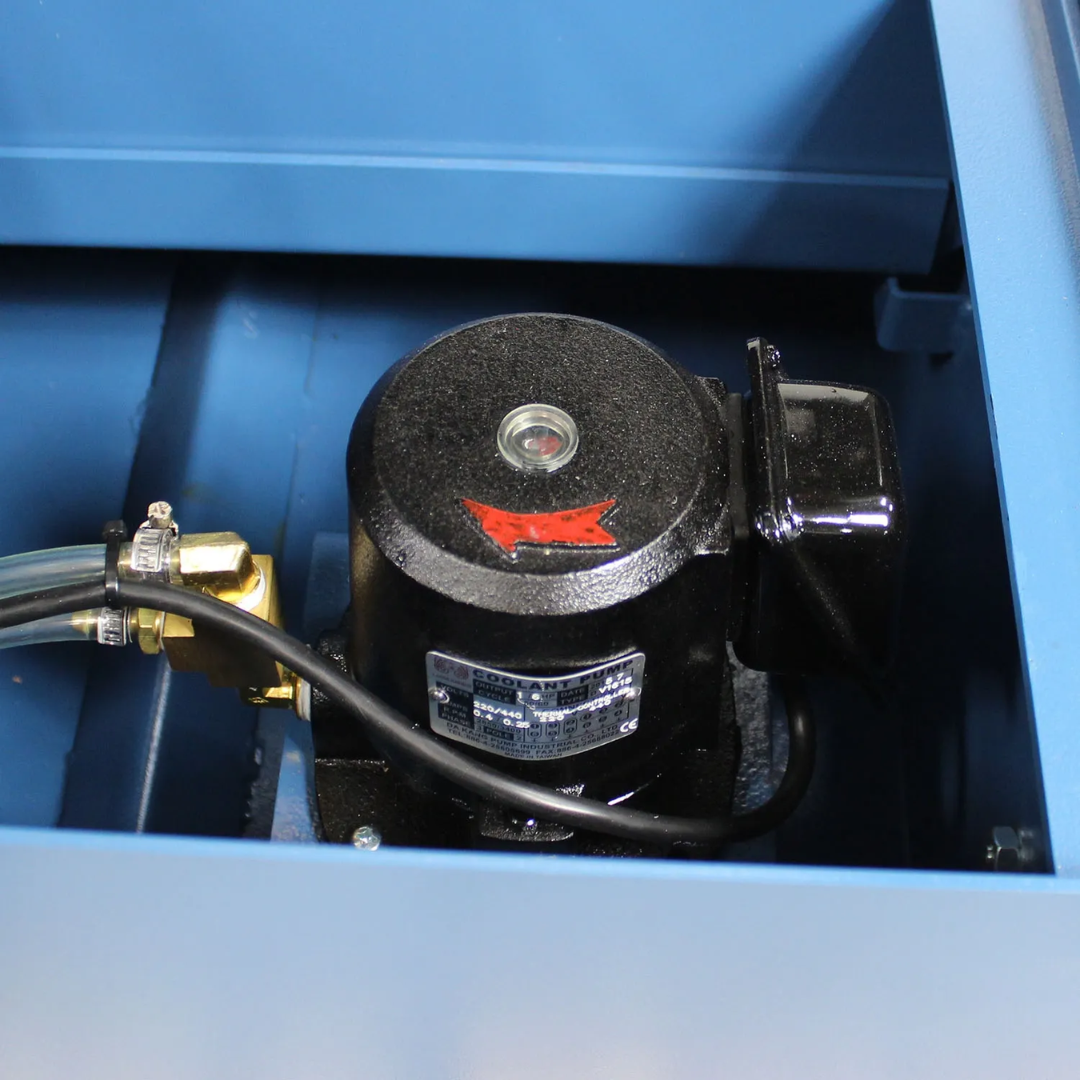

- Integrated flood coolant system reduces blade temperature, improves cut quality, and extends blade life during continuous production.

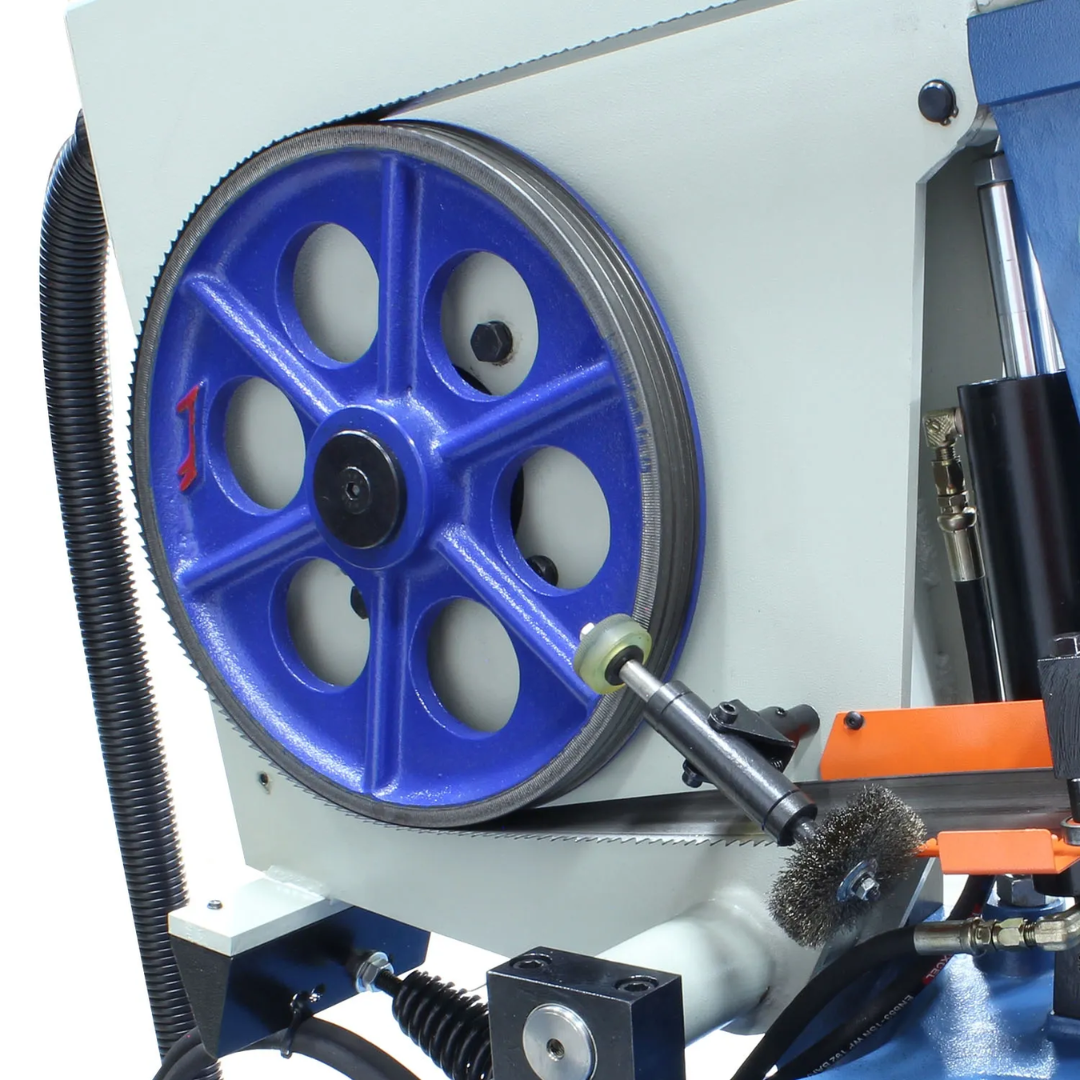

- Heavy cast-iron saw bow and welded steel base minimize vibration while maintaining excellent cutting accuracy and long-term machine durability.
- Accepts 1.25-inch wide bandsaw blades for enhanced cutting stability on large cross sections and demanding industrial applications.
Why Choose the Baileigh 13-Inch Dual-Mitering Semi-Automatic Bandsaw (BS-20SA-DM) 1001298
- Industrial 3 HP motor built for demanding production cutting.
- Semi-automatic hydraulic operation increases productivity and repeatability.
- Dual-swivel miter head eliminates material repositioning during angle cuts.
- Variable blade speeds optimize cutting across multiple metal types.
- Heavy-duty cast-iron construction delivers exceptional accuracy and durability.
- Flood coolant system improves blade life and finished cut quality.
- Large 13-inch round and 13" × 18" rectangular cutting capacities handle structural materials with ease.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh 13-Inch Dual-Mitering Semi-Automatic Bandsaw (BS-20SA-DM) 1001298 is engineered for fabricators and production facilities that demand fast cycle times, repeatable accuracy, and industrial durability. Combining semi-automatic hydraulic operation, a dual-miter swivel head, variable blade speed control, and rugged cast-iron construction, this bandsaw delivers dependable performance for high-volume metal cutting applications.
